Product Overview
Description

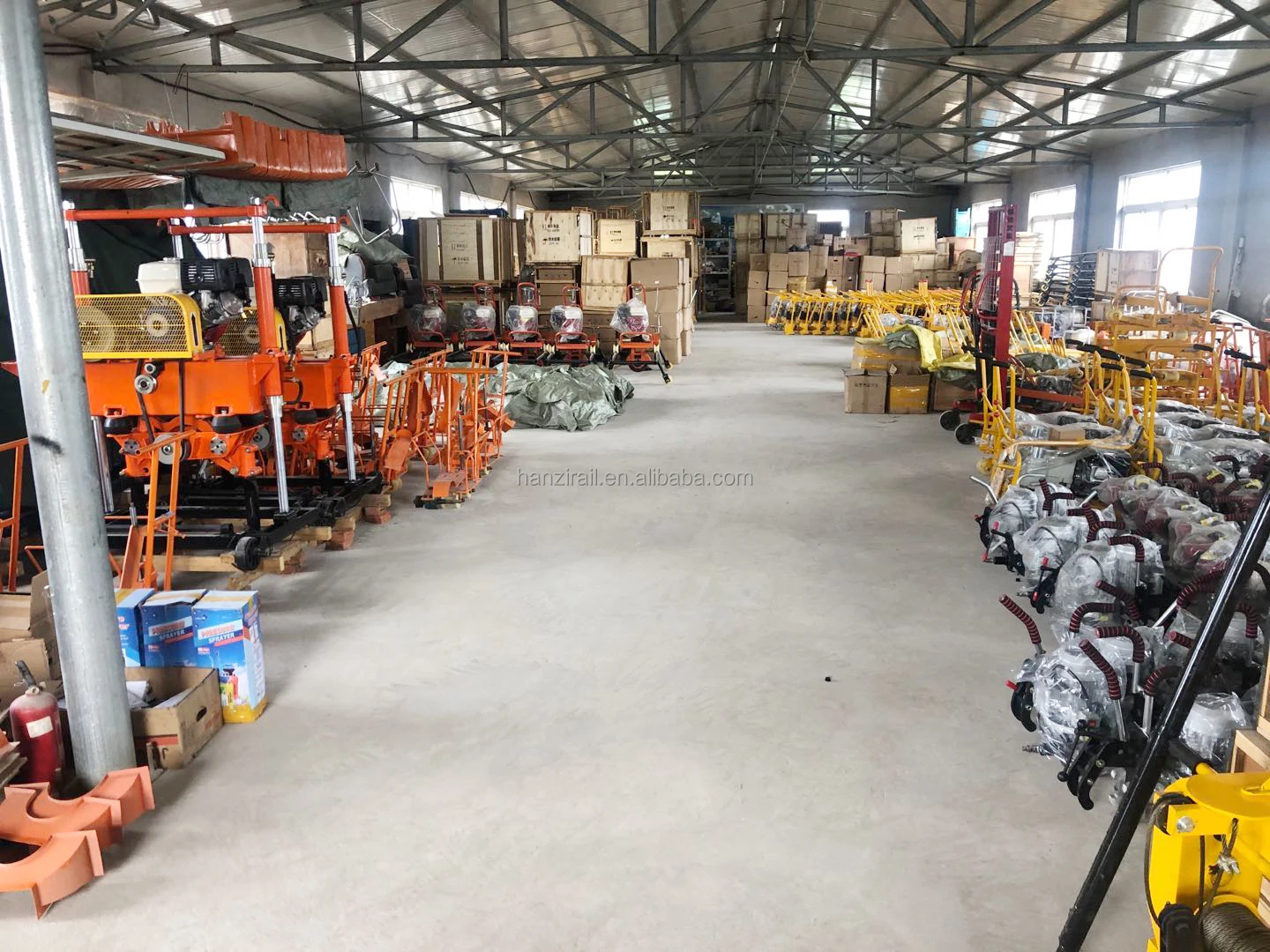

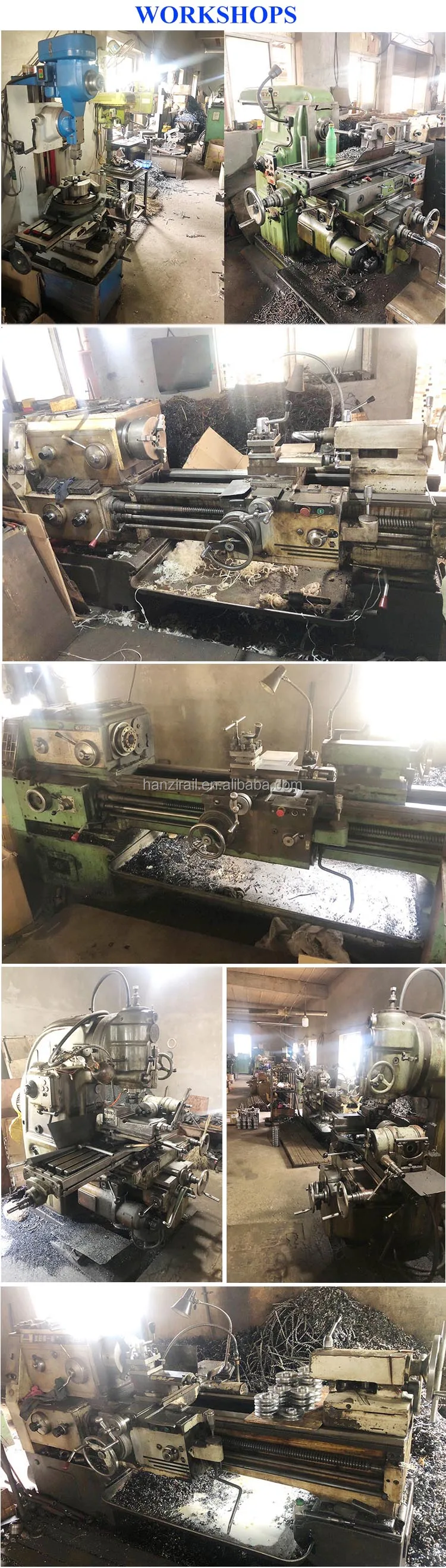

Factory Shows

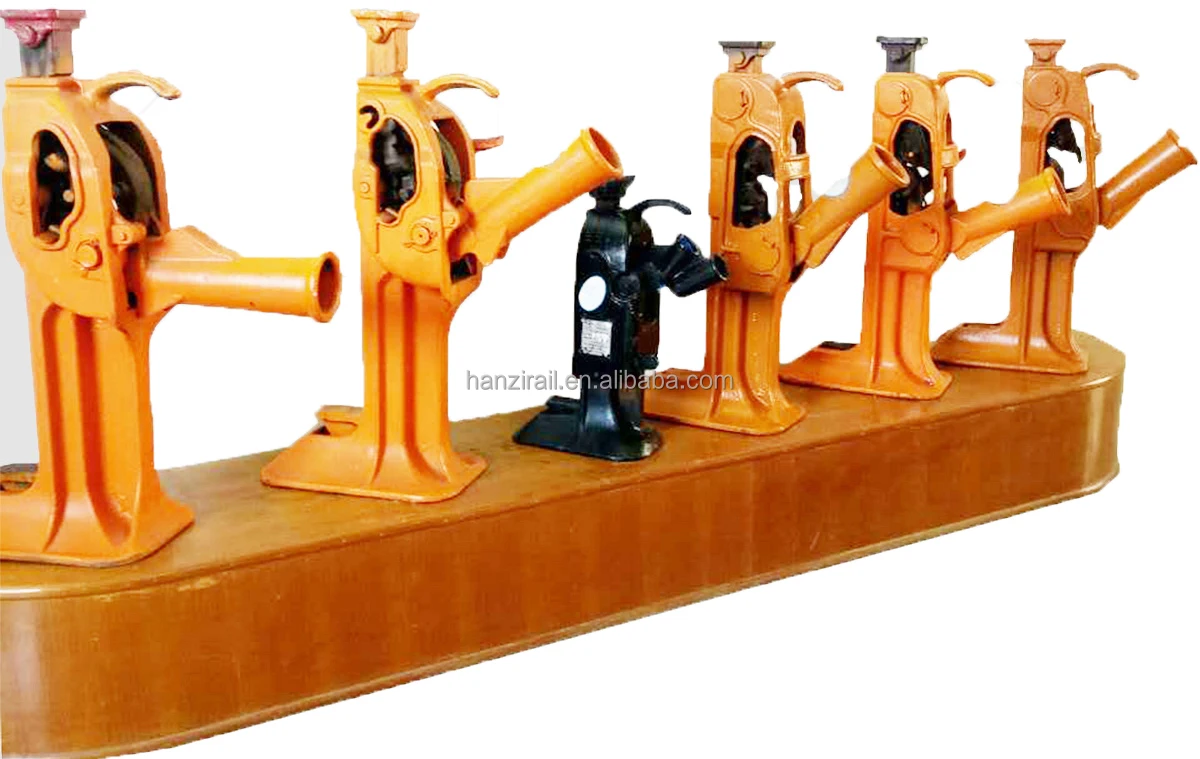

Hanzi Industrial Shanghai Co., Ltd specializes in manufacturing railway maintenance machines and rail fasteners. As an ISO9001/ALIBABA/ MADE-IN-CHINA certified company, we have a large selection of track accessories and tools to fit your needs: Railway Maintenance Machines, Steel Rails,Wagons, and Locomotives, etc. Railway Maintenance Machines mainly including Hydraulic toe jack, mechanical track jack, rail drilling machine, rail cutting machine, rail tamping machine, rail drill bit, rail bender machine, Hydraulic Track Lifting and Slewing Tools, rail gap adjuster, gauge rulers, etc.
Our users include railroads construction, mining companies, heavy industries, overhead cranes, railroad and tunneling industries, transit authorities, subway, passenger railways, and operators of port facilities, etc. You are most welcome to contact us for more information.
Our users include railroads construction, mining companies, heavy industries, overhead cranes, railroad and tunneling industries, transit authorities, subway, passenger railways, and operators of port facilities, etc. You are most welcome to contact us for more information.
Electric Gasoline Railway Rail Tamping Machine

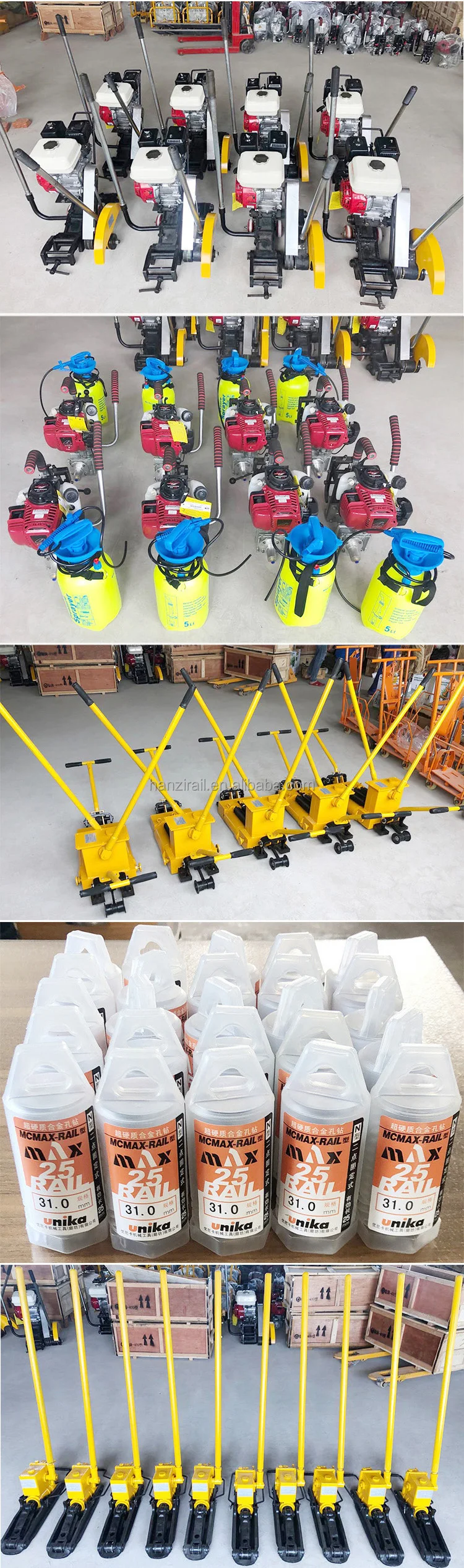

INVENTORY AND PACKAGING
Product Description

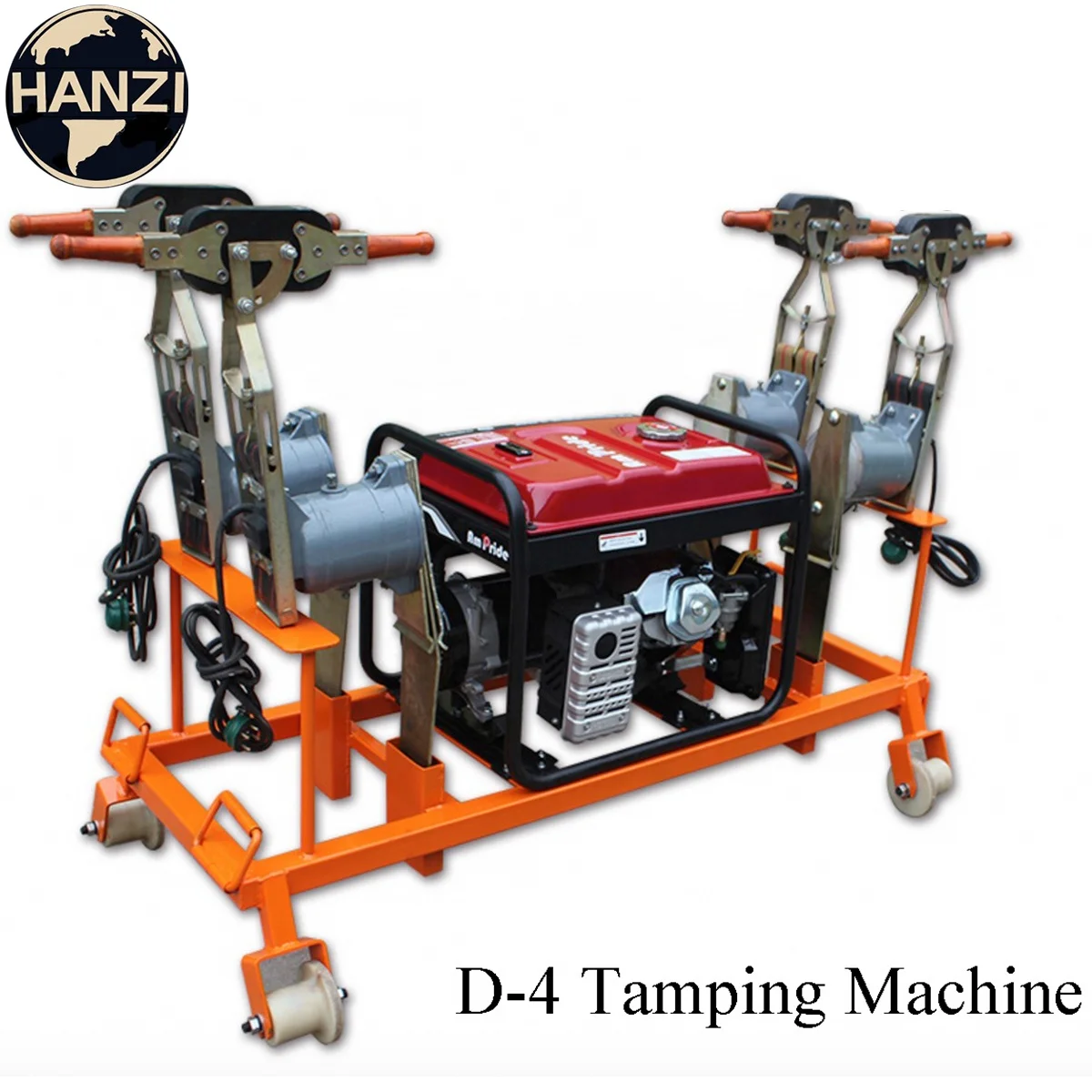

Rail Electric Gasoline Tamping Machine
Rail Electric Gasoline Tamping Machine is mainly in ballast tamping operation during the daily maintenance of the railway line.
The tamping pick produces a vibration force on the ballast by the vibration of the tip of the pick, which makes the ballast into a "fluid state" and makes the ballast under the sleeper more compact.
Rail Electric Gasoline Tamping Machine | ||||||
Model | D-4*4 | Exciting Frequency | 48Hz | |||
Exciting Force | 3kN | Pick Plate Form | Flexible | |||
Damping Material | Block Rubber | Generator Rated Power | 5000W | |||
Overall Weight | 105kg/set | Dimensions | 675*150*255mm | |||
YCD-32 Hydraulic Turnout Tamping Machine
Scope of Application:
YCD-32 hydraulic turnout tamping machine is suitable for the tamping operation of the most complicated and difficult turnout section in line maintenance. Turnout switch parts, turnout connecting parts, turnouts and rail protection parts can be tamped. The machine is easy to operate, light in weight, high in operation efficiency and low in failure rate. It is an ideal tool for tamping of railway turnouts that can meet the needs. The machine is shipped with a gauge of 1000-1600mm .Internal Combustion Engine Power | 9.5 kw (Honda GX390) | Vibration Frequency | 60-67Hz |
Excitation Force | 31.5kN | Oil Pressure | 4 ~ 5MPa |
Depth of ramming pick under the sleeper | 90-100mm | Unit Weight | 410kg |
Dimensions | 1430 × 930 × 1700mm | Production Efficiency | 30min/group switch / group machine |

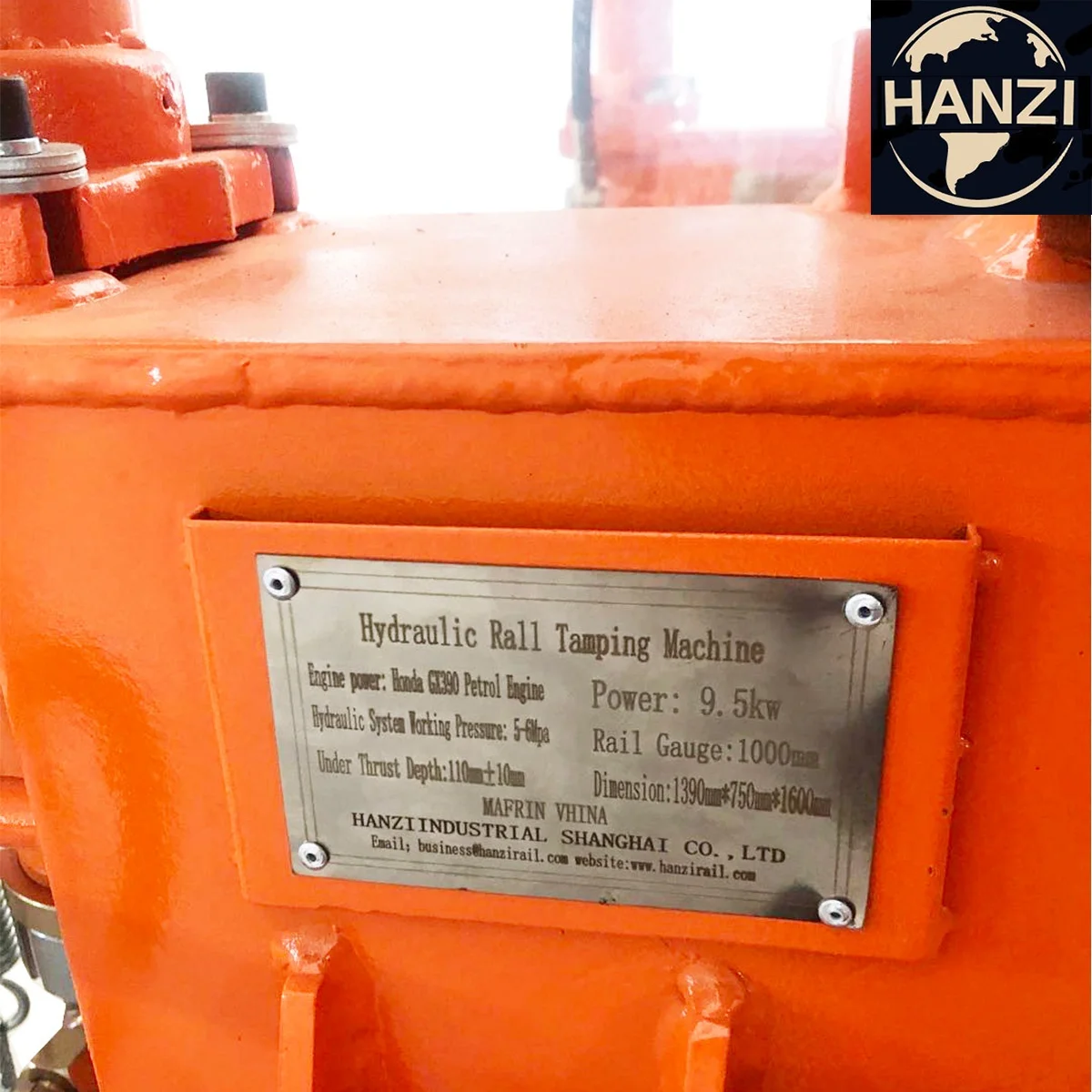

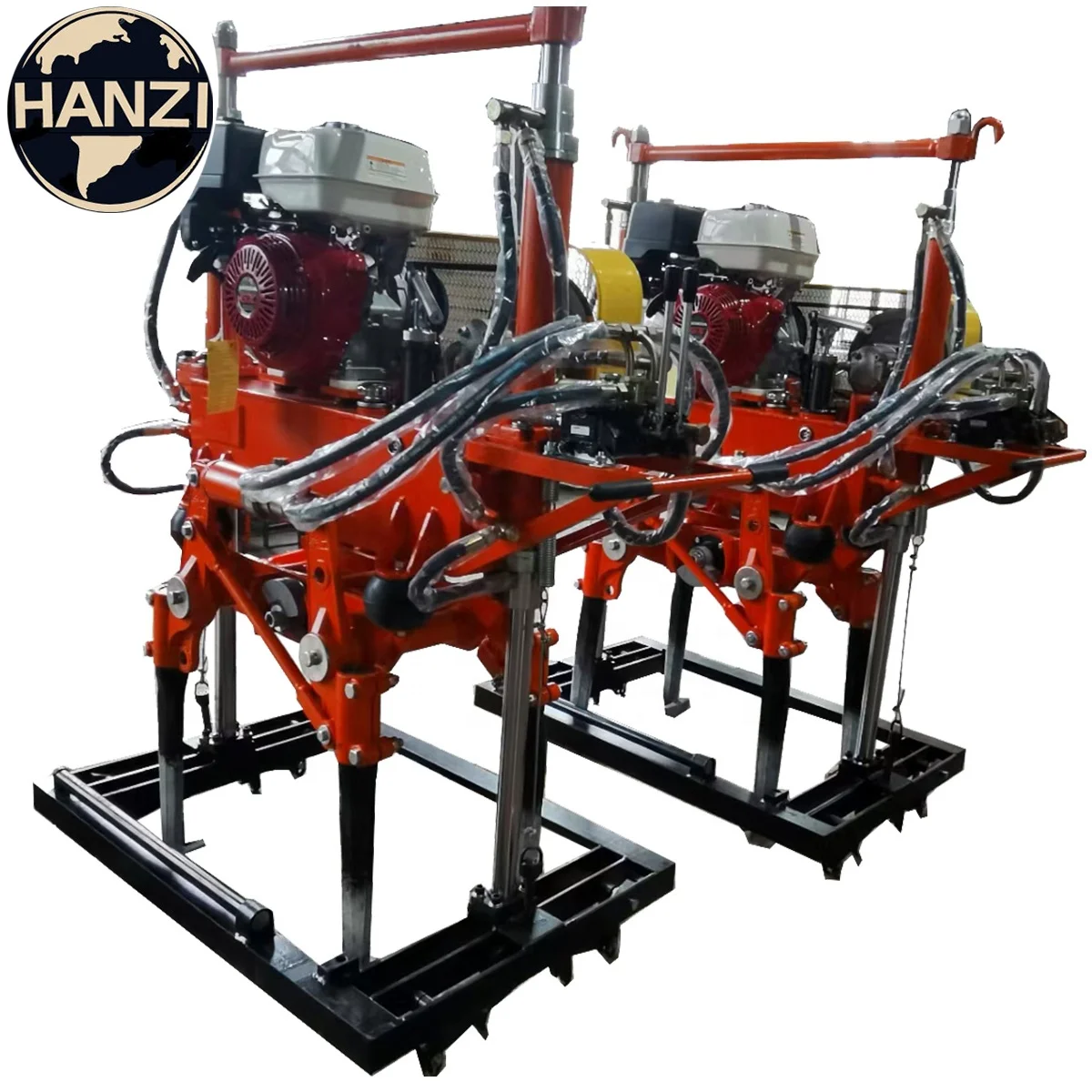

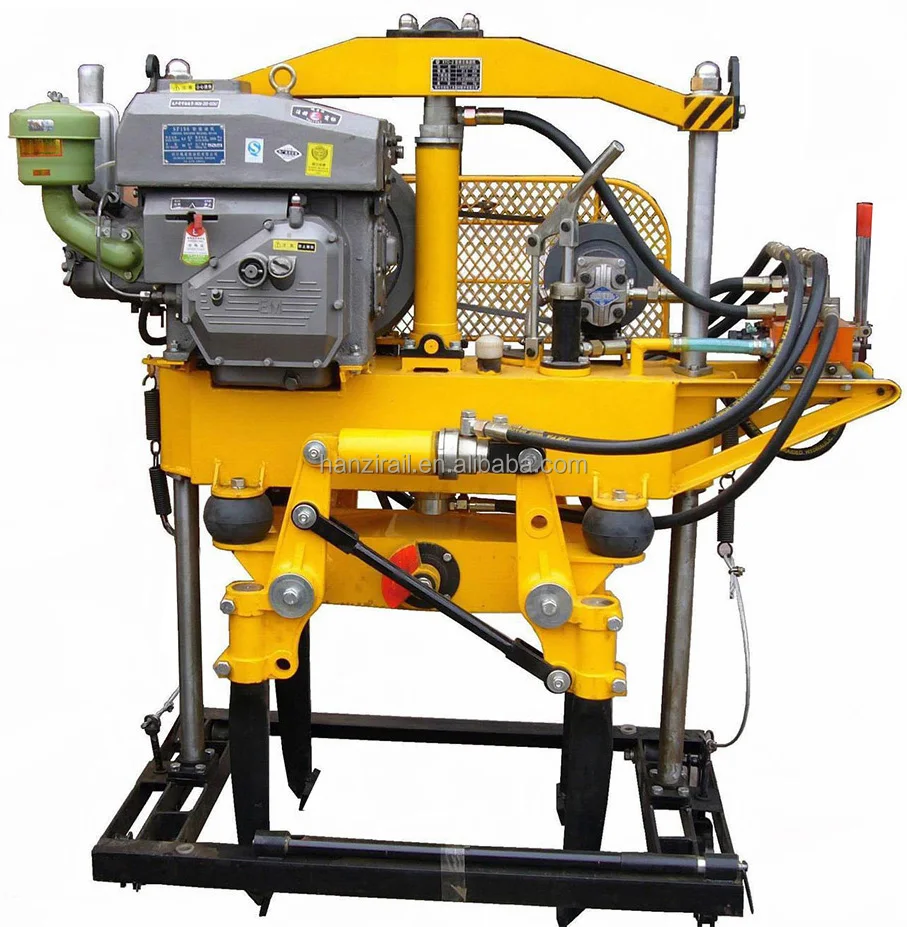

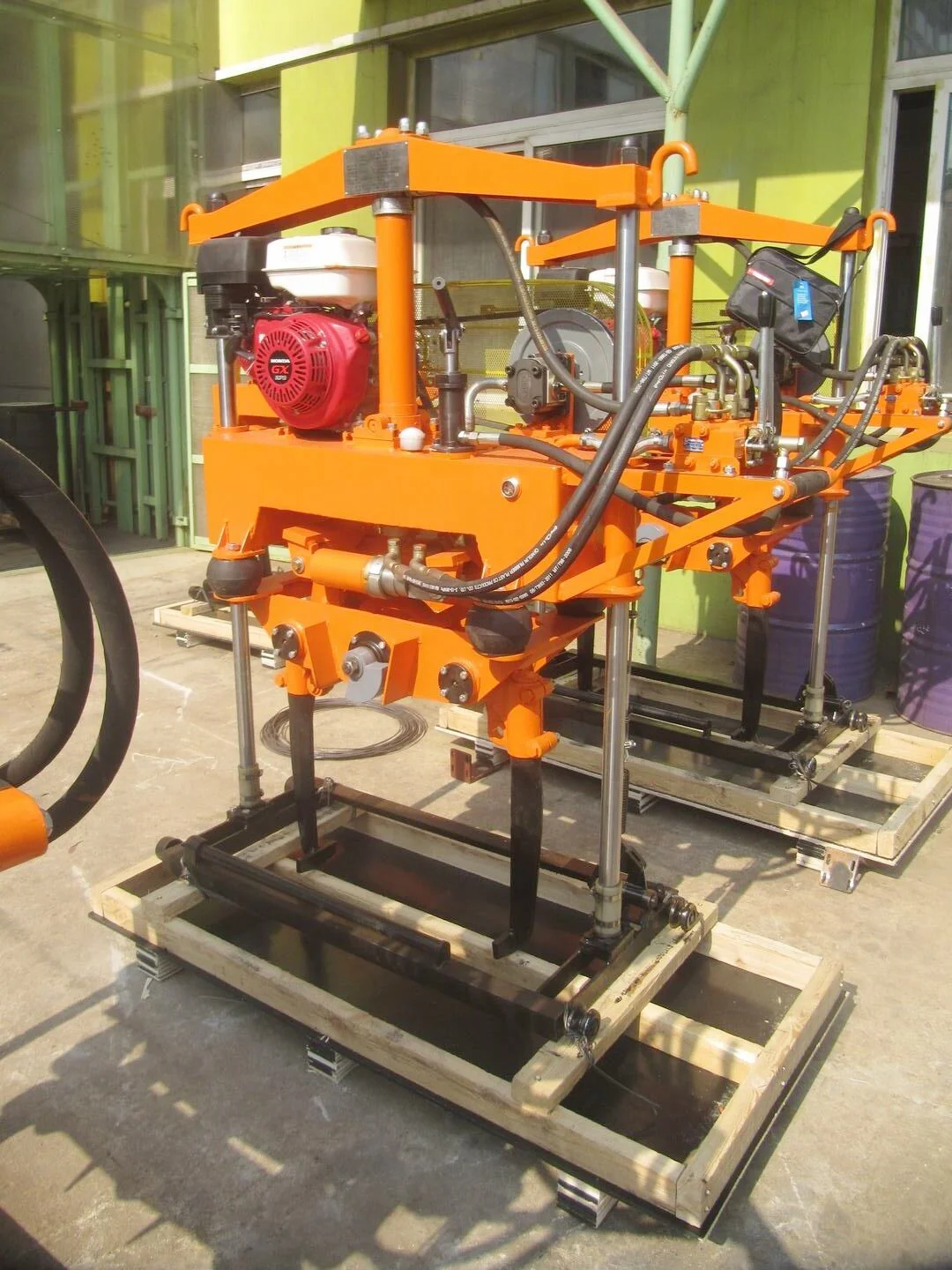

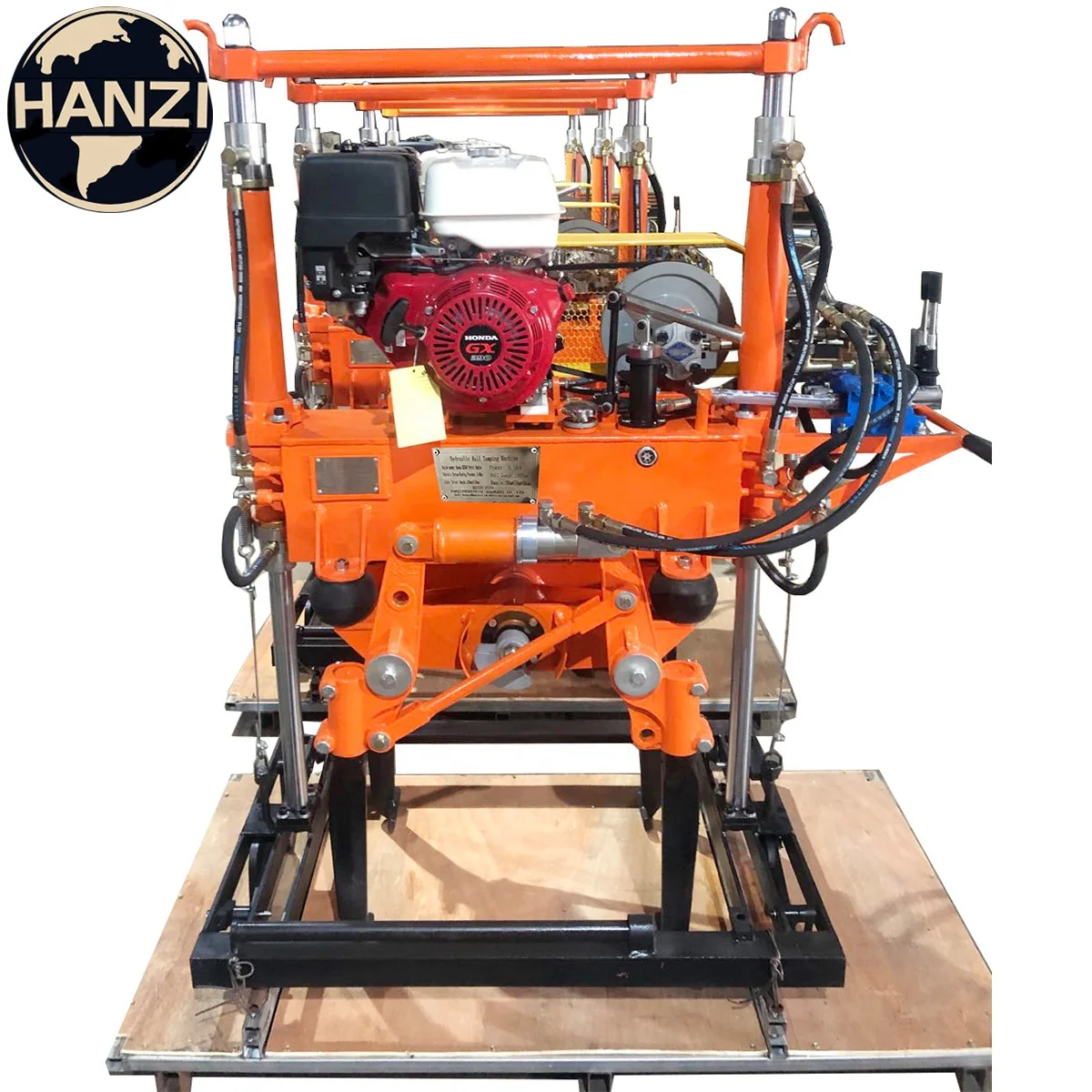

YD—22Ⅱ hydraulic railway line tamping machine is suitable for ballast tamping operation of railway ballast line. The machine is shipped with a gauge 1000-1600mm, with one side down the road. | ||
Engine Power | 9.5KW GX390 Gasoline Engine | |
Working pressure of hydraulic system | 5~ 6MPa | |
Vibration Frequency | 60-67Hz | |
Excitation Force | 22kN | |
Operating System Oil Pressure | 5Mpa | |
Maximum Insertion Force | 16kN | |
Clamping Strength | 6.5kN × 2 | |
Tapping Depth of Pick | Under Sleeper: 110 ± 10mm | |
Production Efficiency | ≥270 pieces / (group • hour) | |
Net Weight | 422kg | |
Dimensions | 1390 × 750 × 1600mm | |
