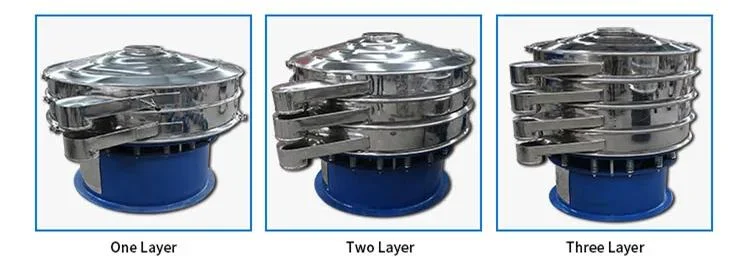

Qianzhen Single / Double Vibro Sifter Circular Vibrating Screen Classifier Flour Powder Sieving Machine Sieve
- Category: >>>
- Supplier: Xinxiang Qianzhen Machinery Co. Ltd.
Share on (1600823422764):
Product Overview
Description
Products Description
The rotary vibrating screen
is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to change the screen quickly. It is a fully closed structure, suitable for screening and filtering of particles, powder, mucus and other materials. The rotary vibrating screen is excited by a vertical motor. The upper and lower ends of the motor are equipped with eccentric weights to transform the rotating motion of the motor into horizontal, vertical and inclined three -dimensional motion, and then transmit this motion to the screen surface. Adjusting the phase angle of the upper and lower ends can change the movement track of the material on the screen surface.

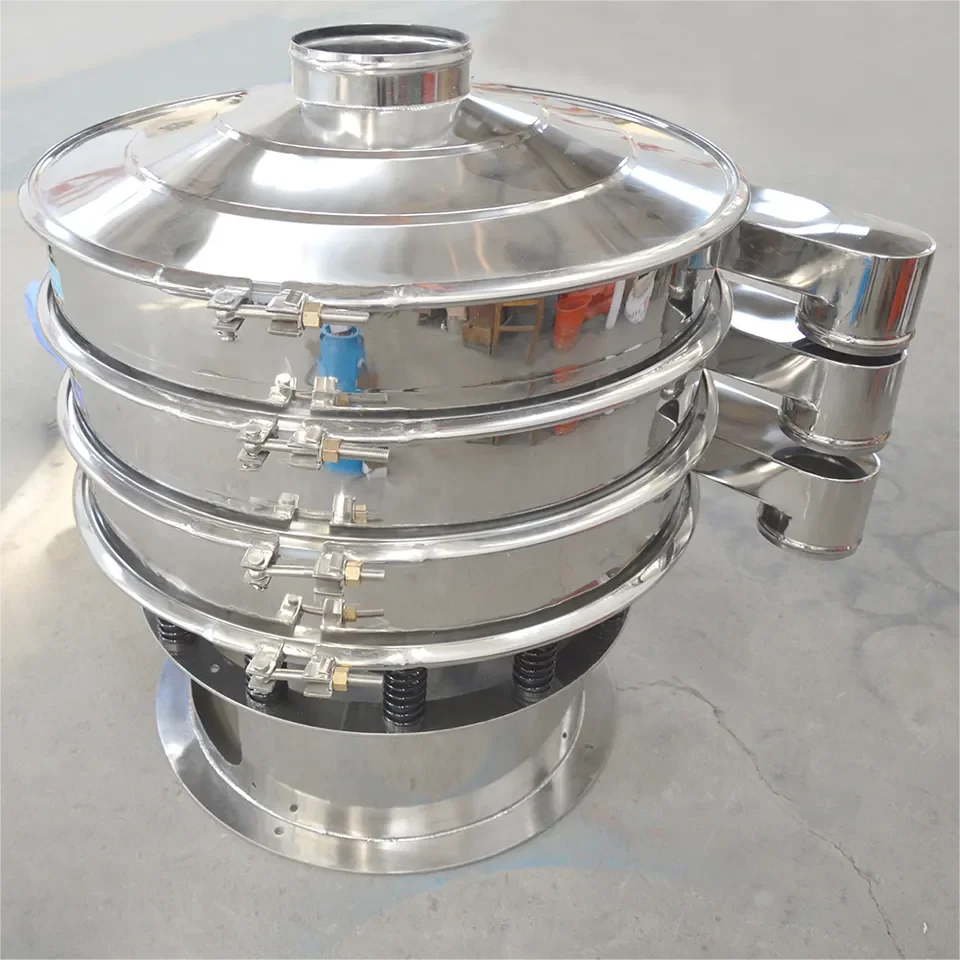

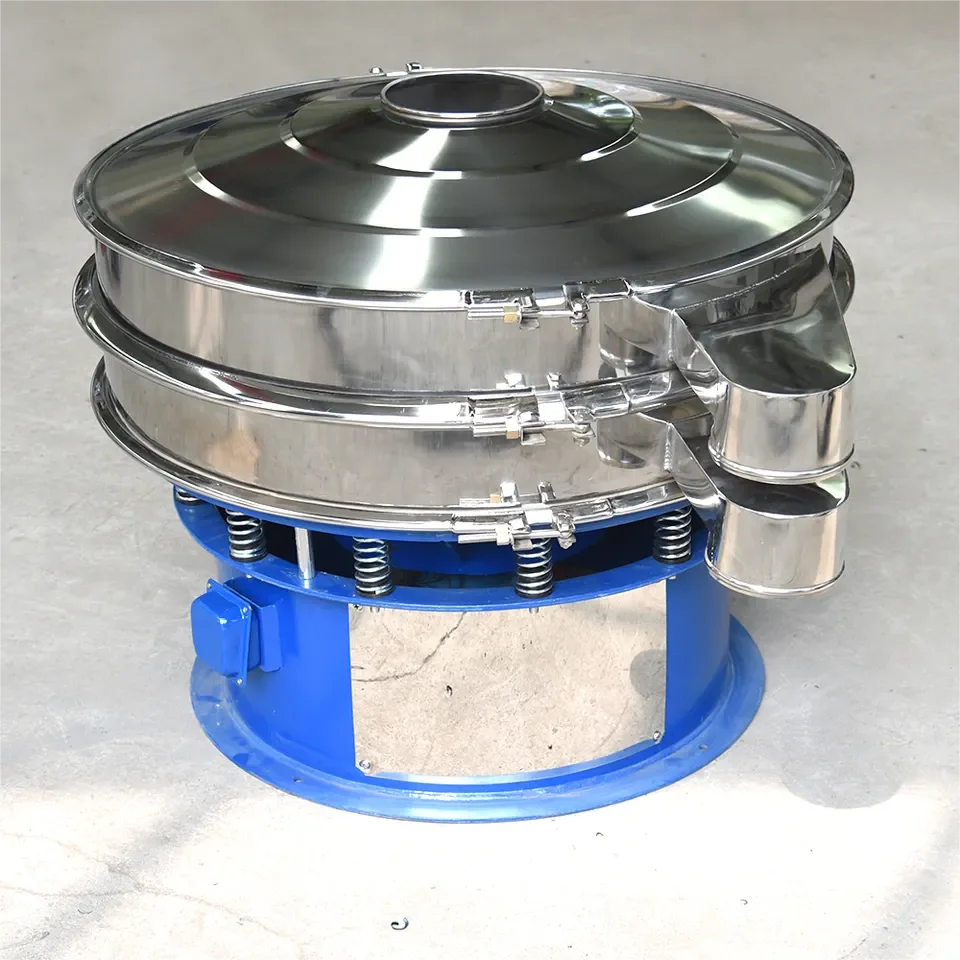

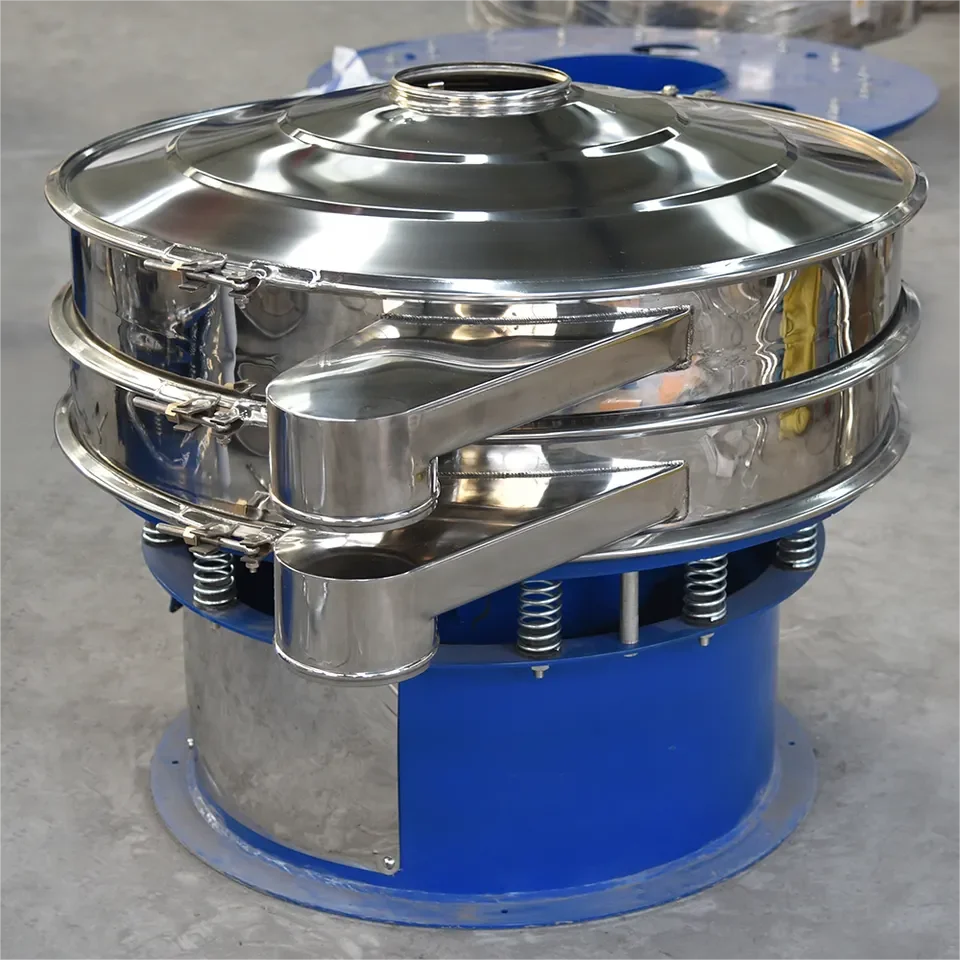

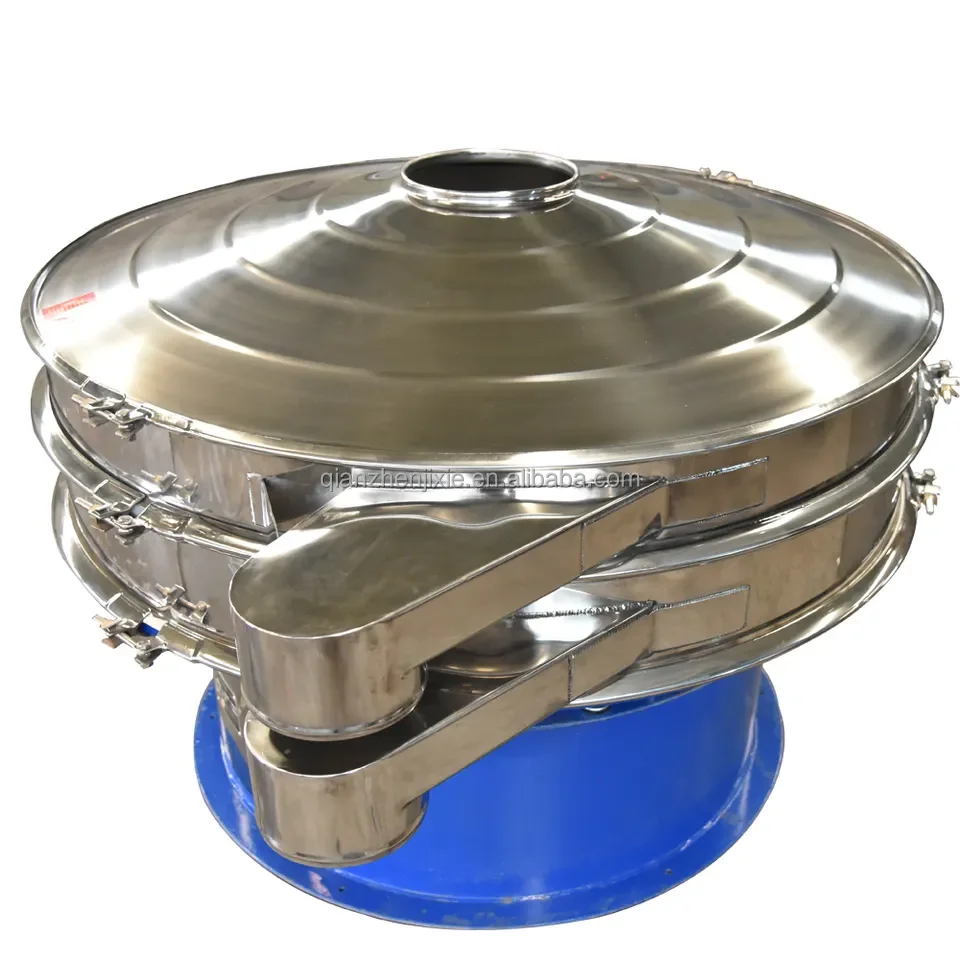

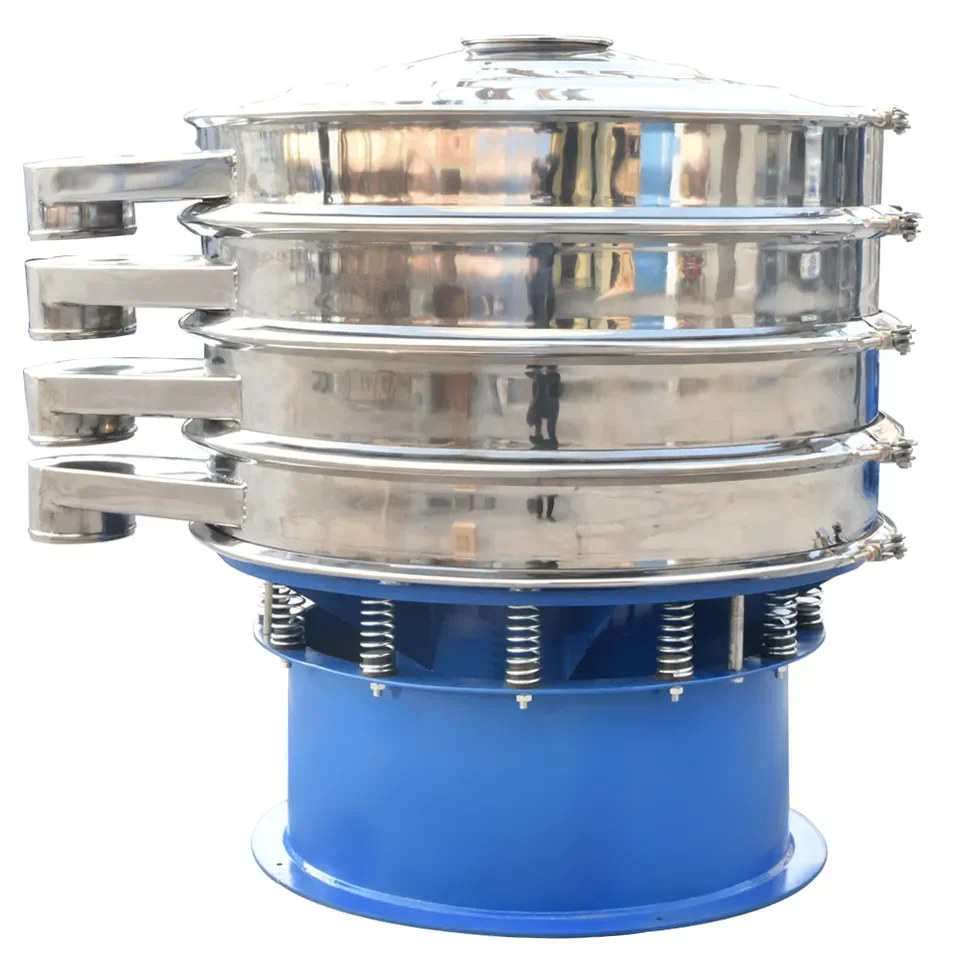

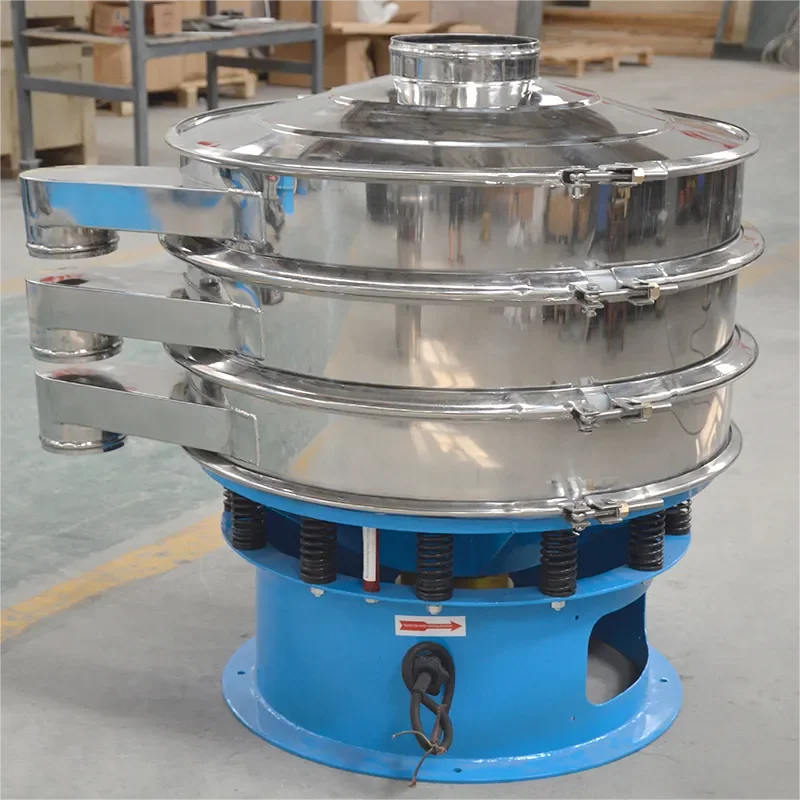

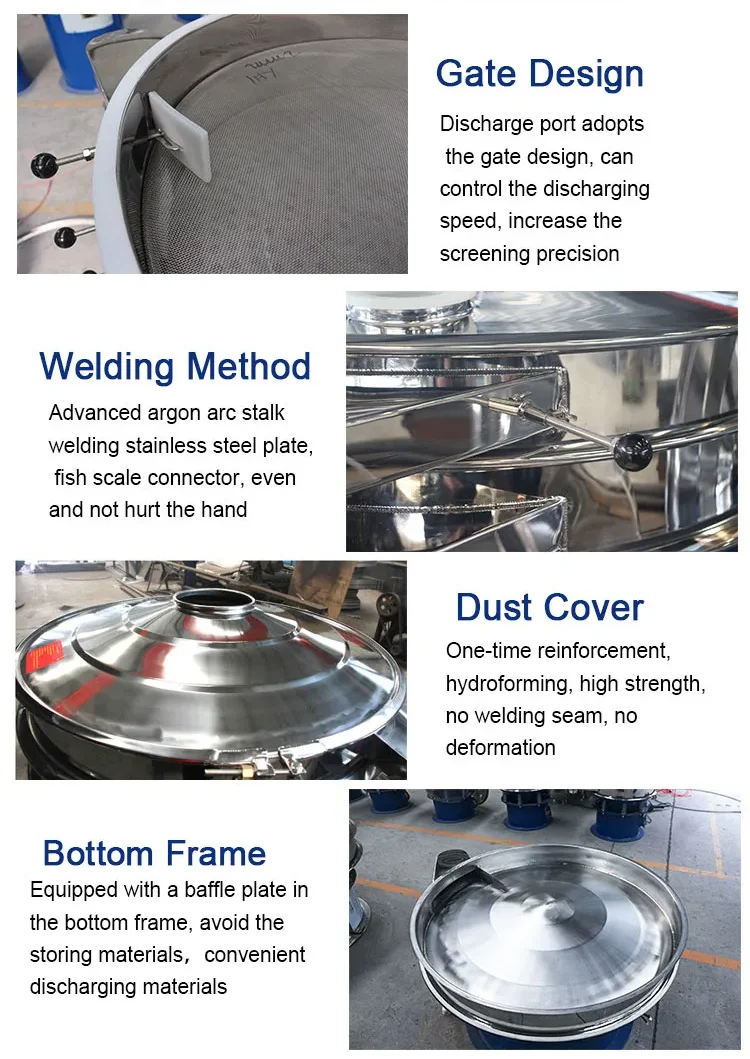

Details Images
Product Paramenters
Type | Power(KW) | Sieve Diameter(mm) | Volume(Length * width * height) |
QZ-600-1S | 0.55 | 560 | 600*600*740 |
QZ-600-2S | 0.75 | 560 | 600*600*880 |
QZ-600-3S | 0.75 | 560 | 600*600*1020 |
QZ-800-1S | 0.75 | 760 | 800*800*840 |
QZ-800-2S | 1.10 | 760 | 800*800*1000 |
QZ-800-3S | 1.10 | 760 | 800*800*1160 |
QZ-1000-1S | 1.10 | 930 | 970*970*950 |
QZ-1000-2S | 1.75 | 930 | 970*970*1110 |
QZ-1000-3S | 1.75 | 930 | 970*970*1270 |
QZ-1200-1S | 1.5 | 1130 | 1170*1170*1090 |
QZ-1200-2S | 2.2 | 1130 | 1170*1170*1250 |
QZ-1200-3S | 2.2 | 1130 | 1170*1170*1410 |
QZ-1500-1S | 2.2 | 1430 | 1470*1470*1110 |
QZ-1500-2S | 3.0 | 1430 | 1470*1470*1270 |
QZ-1500-3S | 3.0 | 1430 | 1470*1470*1430 |
Application Area
Company Profile
Product packaging
FAQ
Q: Are you a factory or trading company?
A: We are a manufacturer.
Q: Do you accept on-site inspection to check your pellet machine and your factory?
A: We strongly,firmly,warmly and sincerely expect your personal visit,and we hope to have a face-to-face negotiation with you and hope to do our host for you then.
Q: What payment terms do you prefer?
A: T/T,L/C,West Union,Cash,and so on.
Q: What about your delivery period?
A: 5 to 50 workdays upon getting advance or L/C,it depends on our production task arrangements,as saying goes:"first come,first served".
Q: How long is the warranty of the product?
A: 1 years.
A: We are a manufacturer.
Q: Do you accept on-site inspection to check your pellet machine and your factory?
A: We strongly,firmly,warmly and sincerely expect your personal visit,and we hope to have a face-to-face negotiation with you and hope to do our host for you then.
Q: What payment terms do you prefer?
A: T/T,L/C,West Union,Cash,and so on.
Q: What about your delivery period?
A: 5 to 50 workdays upon getting advance or L/C,it depends on our production task arrangements,as saying goes:"first come,first served".
Q: How long is the warranty of the product?
A: 1 years.
