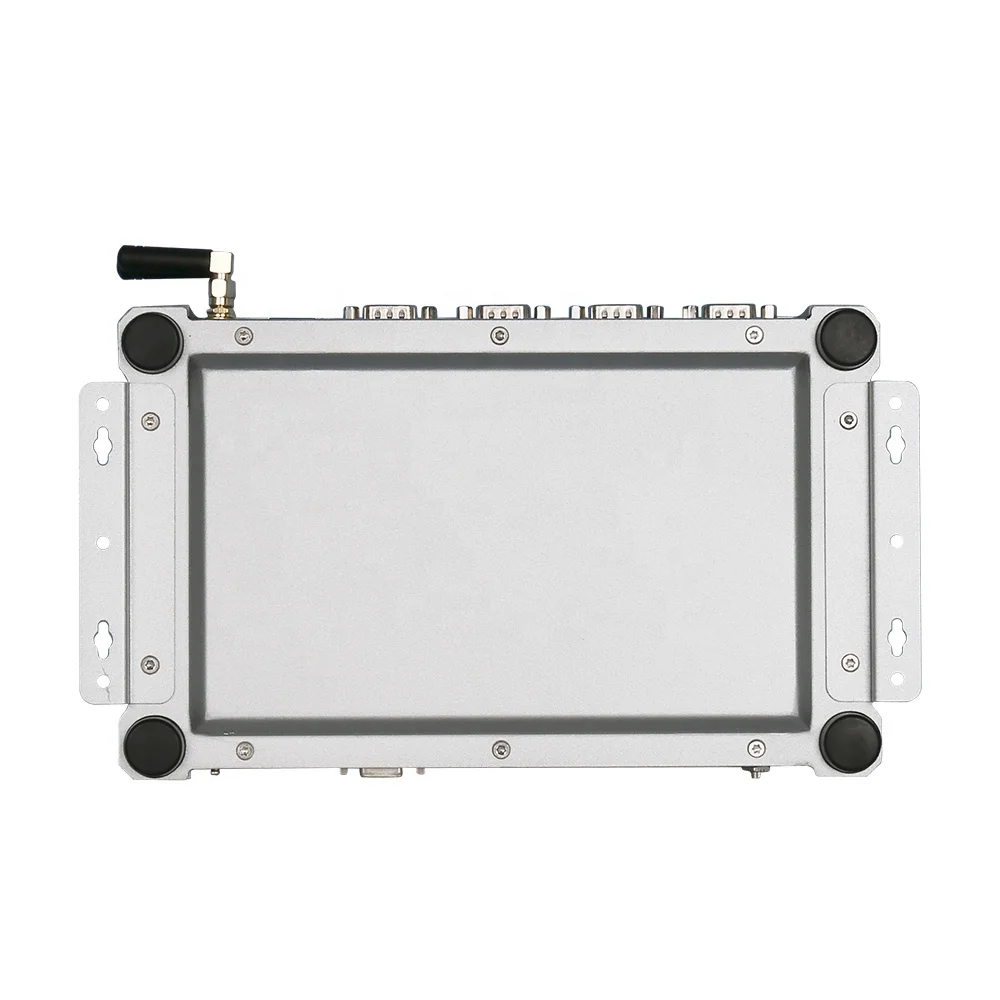

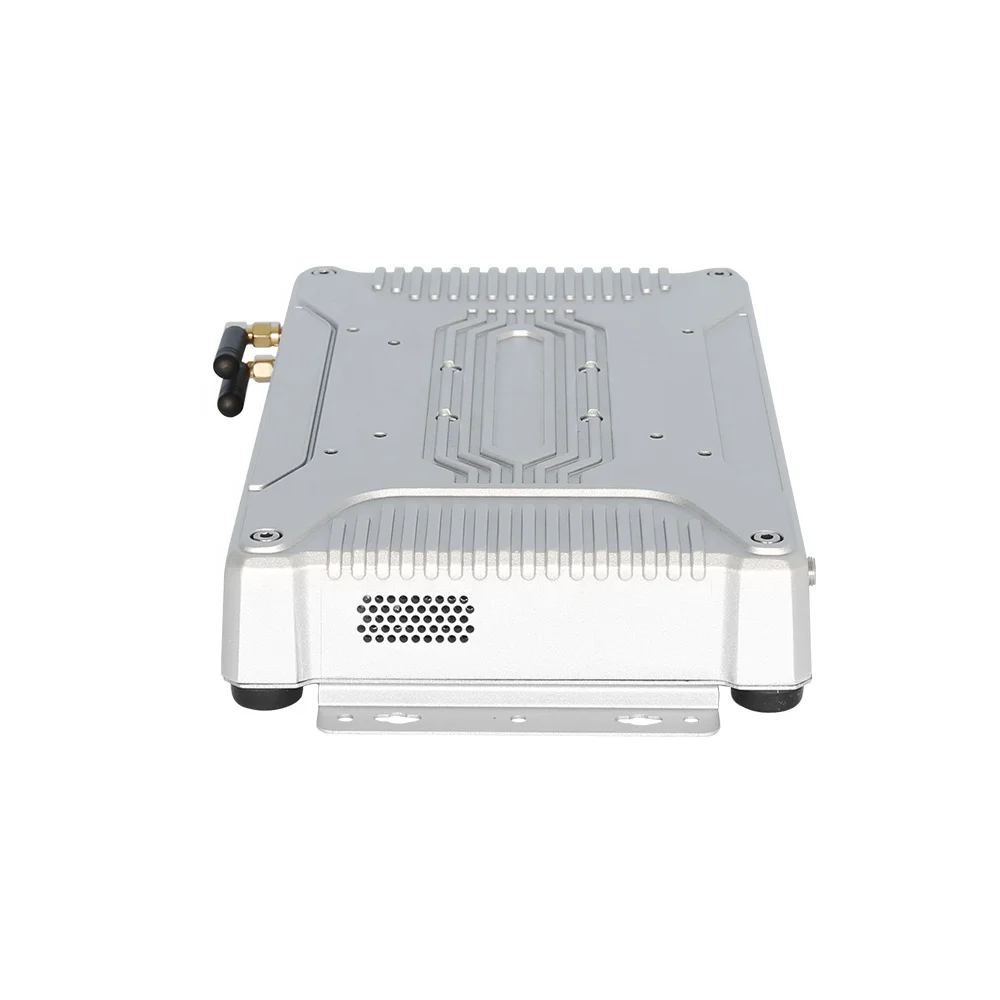

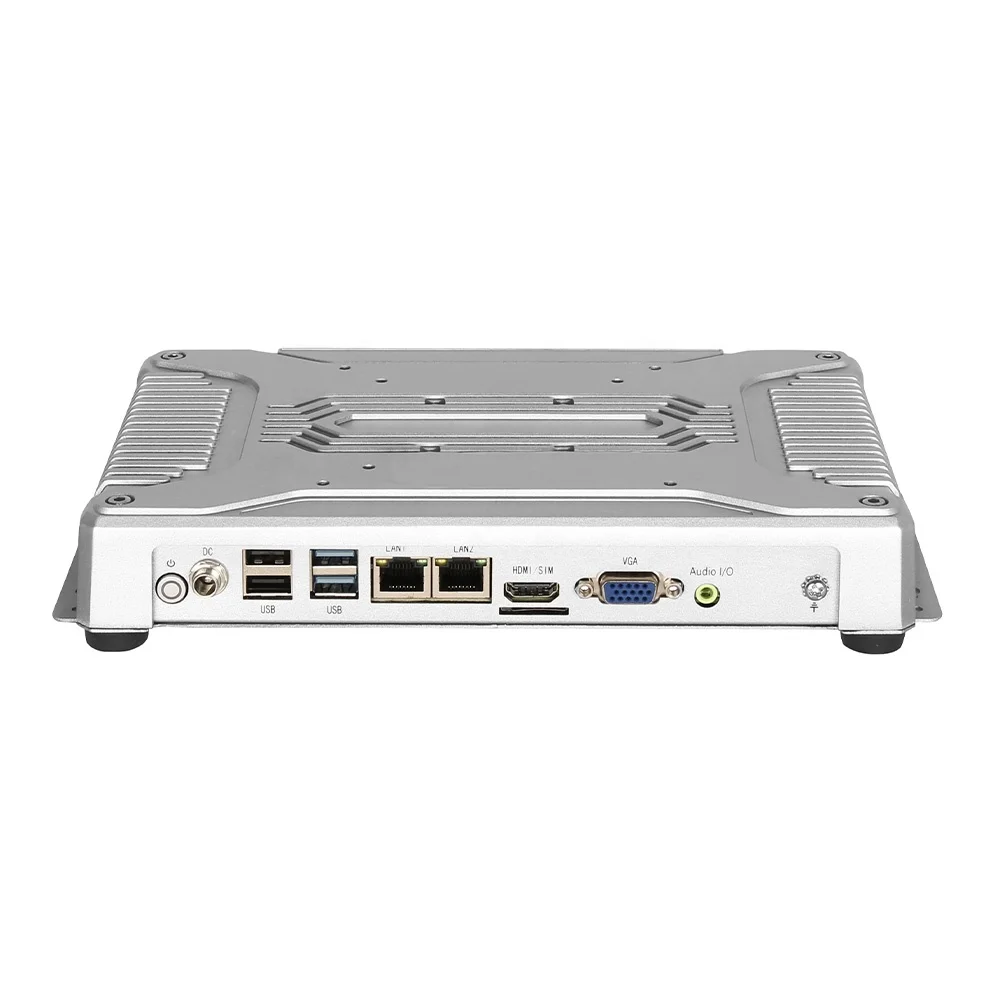

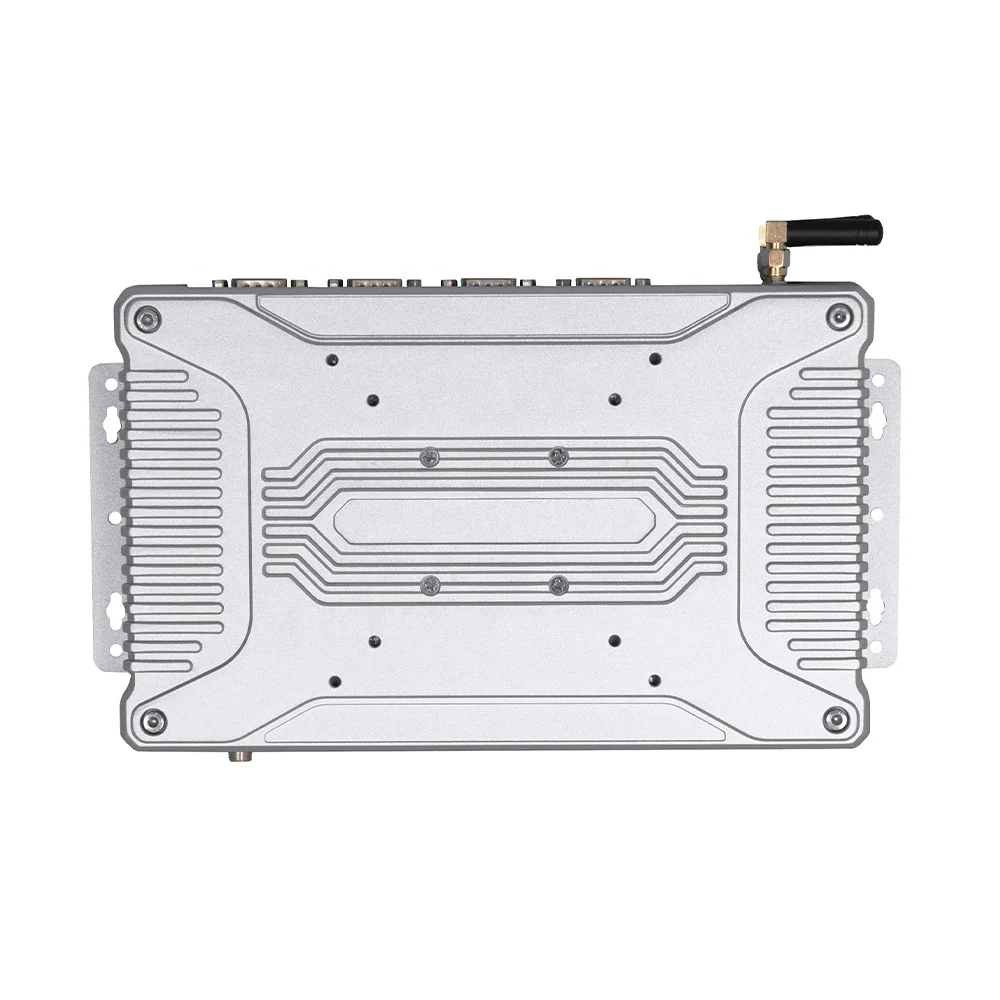

Compact Mini Industrial Computer PC J1900 I3 I5 I7 Processor 6/7/8/10Th Generation Rs232 Rs485 Dual Lan Fanless Industrial PC
- Category: >>>
- Supplier: Shenzhen Le Hua Display Electronic Technology Co. Ltd.
Share on (1600823472152):
Product Overview
Description
Product Description
LHDE 5th-GEN Industrial Computer is the New Arrival industrial embedded mini PC. Compact, space-saving, all-aluminum alloy structure, fanless and fully enclosed design scheme, stable operation, low power consumption and energy saving. Applicable to a wide range of industrial applications. 7*24 hours of stable work, strong computing power, and can better meet industrial needs. Not afraid of various harsh environments: dustproof, shockproof, good corrosion resistance, strong anti-interference, wide temperature design.
Application
Suitable for industrial automation, medical care, logistics and transportation, electronic education etc.J4125/I3/I5/i7 Windows Industrial Computer
Intel I5-6200U | J4125 | ||
CPU | Intel I5-6200U | Intel Celeron J4125 Quad-Core 2GHz | |
Display Chips | Intel Bay trail SOC chipset | ||
Memory | Supports DDR4-2400 MHz,1*SO-DIMM slot,up to 16GB | Supports DDR4-2400 MHz,1* SO-DIMM slot, up to 8GB | |
Storage | 1*SATA3.0 +1*mSATA +1*M.2 | ||
Display | 1*VGA:1HDMI | ||
Audio | USB Voice Chip, HS-100B, LQFP-48 (7 x 7mm), 2CH DAC with Headphone Amplifier for USB 2.0 Full Speed Operation | ||
Network | 2*Realtek PCI-E NIC RTL8111H for 1000Mbps | ||
WiFi | Dual-band WIFI | ||
Bluetooth | BT4.0 | ||
Operating System | Win7.Win8.Win10.Win11.Ubuntu | ||
MIC | Optional | ||
RTC Real Time Clock | Support | ||
Timed switch on/off | Support | ||
DC Port | 1*DC 55*25 with thread, can support 12V-36V wide voltage power supply | ||
Display | Support HDMl,VGA data output, maximum support 1080P | ||
USB | 4*USB2.0，2*USB3.0 | ||
LAN | 2*10M/100M/1000M Adaptive Ethernet | ||
Headphone Stand | 3.5mm standard connector | ||
SIM | 1*SIM, SIM card standard interface Support various standards (depending on 3G/4G module) | ||

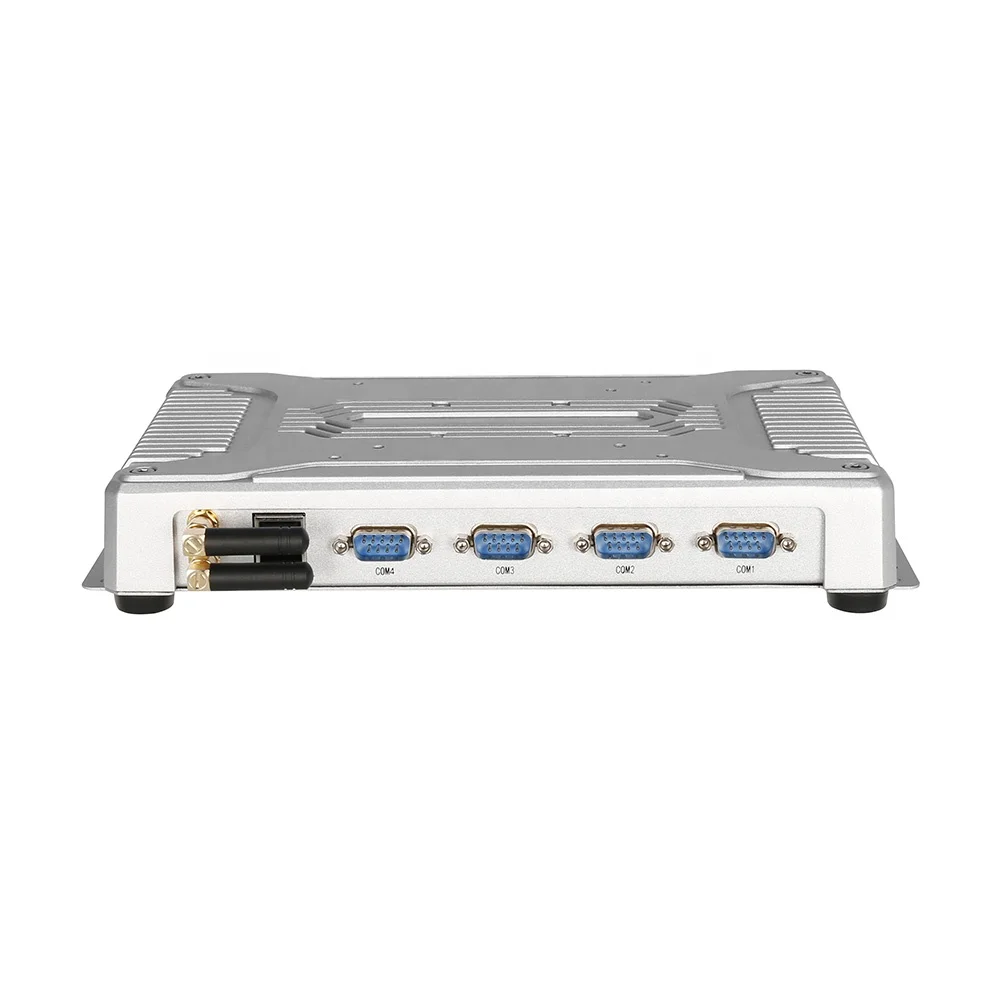

RS232 | 4*RS232 | ||
RS485 | 1*RS232/RS422/RS485interchange | ||
GPIO | 8*GPIO(input/output) (upgradeable) | ||
RS422 | Optional | ||
Temperature | Operating temperature: -10C ~60C, Storage temperature: -20C ~70C | ||
Working humidity | Humidity: 95%non-condensing | ||
Vibration Protection | IEC 60068-2-64,random,5~500 Hz,1hr/axis | ||
Ilmpact Protection | IEC 60068-2-27,half sine wave,11ms duration | ||
Product Certification | CCCICE/FCC/EMC/CB/ROHS | ||
Power input | 12V-36V powerinput | ||
Power output | DC12V/4A | ||
Fuselage Materia | All aluminum alloy | ||
Body color | Technology silver, classic black | ||
Bare Machine Weight | 1.2KG | ||
Overall weight | 1.6KG | ||
Installation method | Support desktop and rack installation | ||
Warranty policy | Three years (one year free warranty) | ||

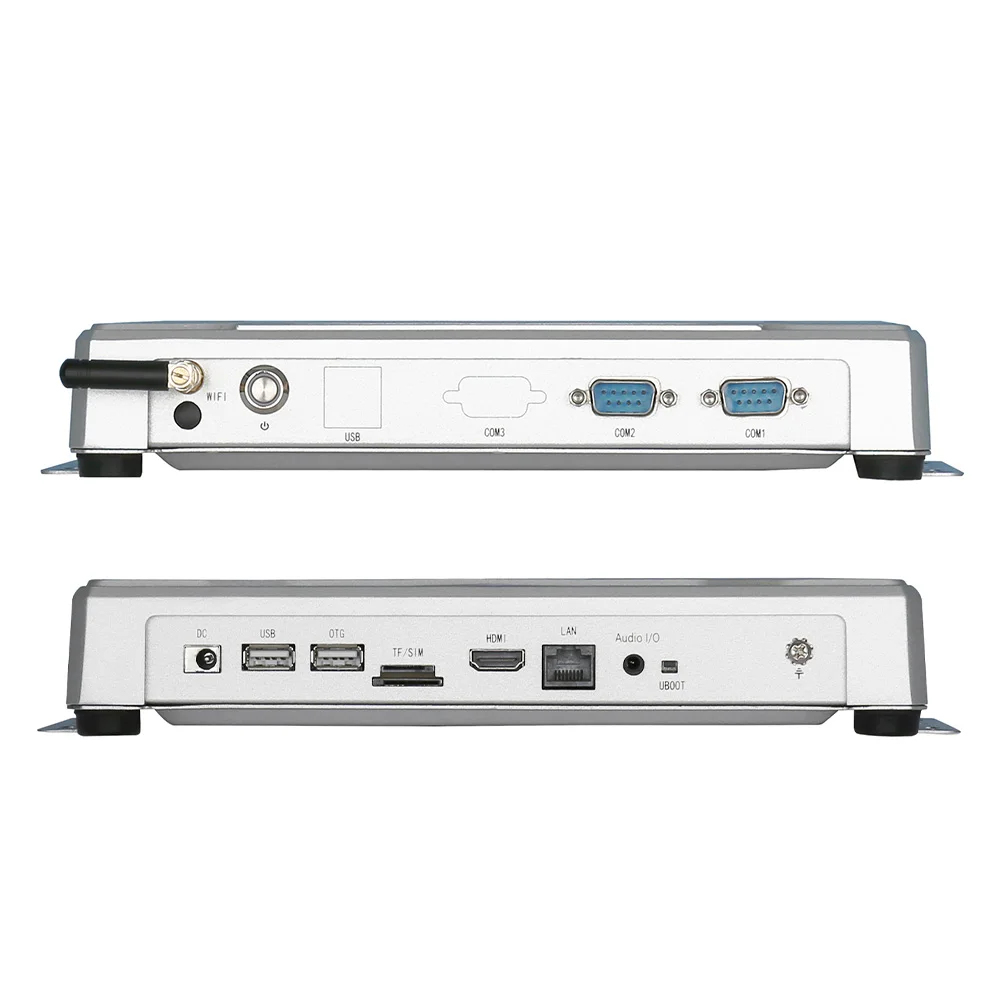

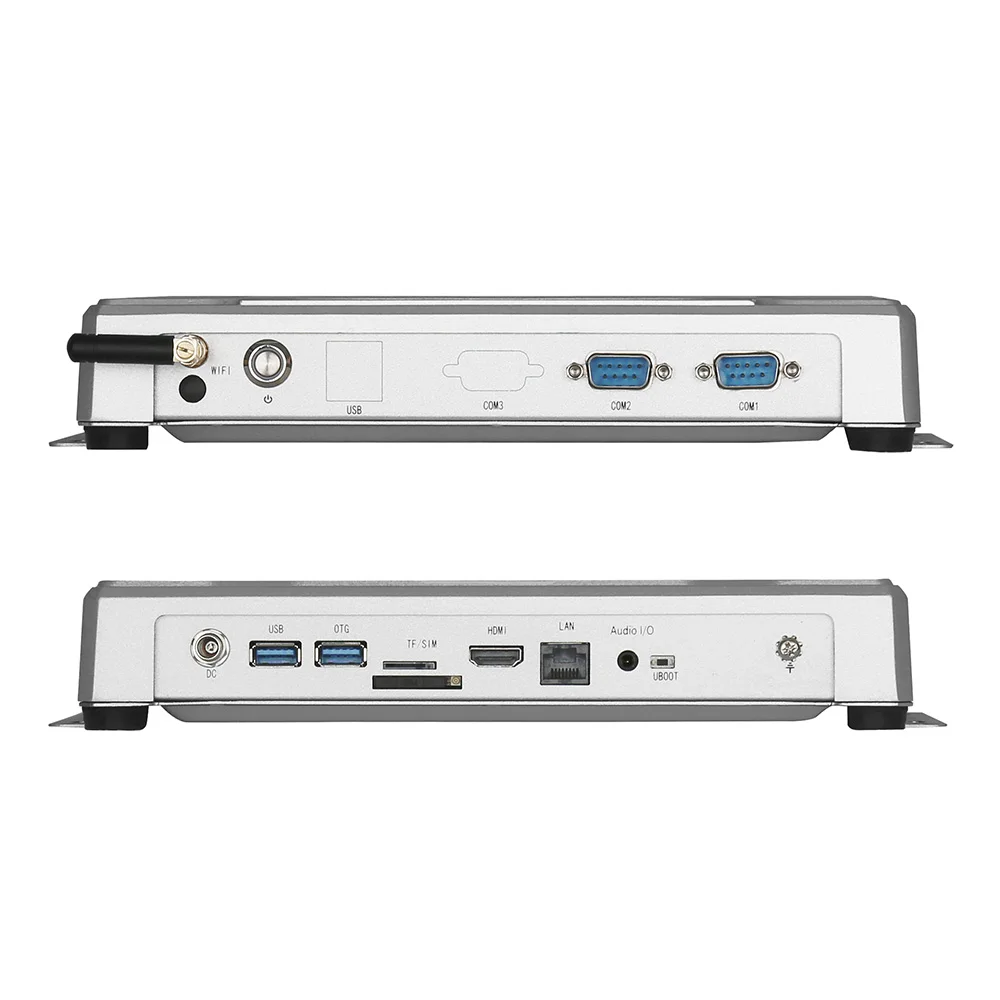

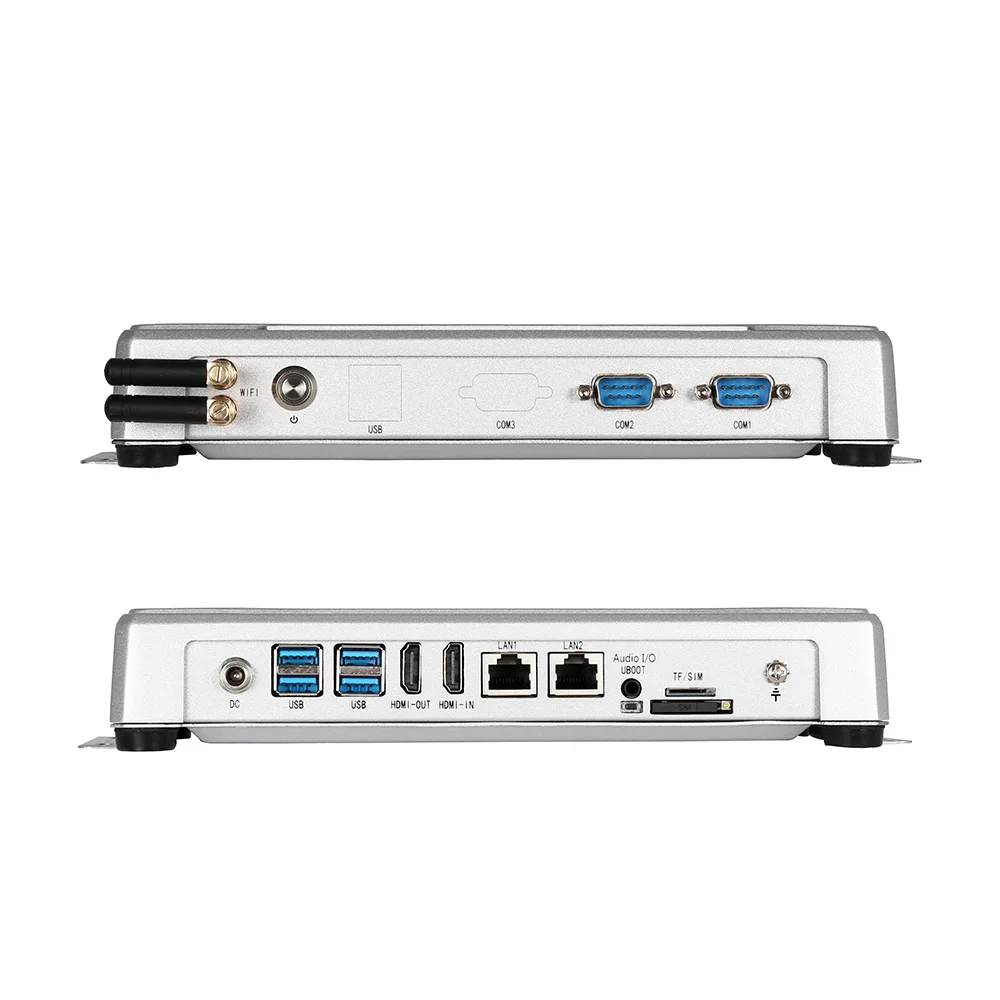

RK3588/RK3288/RK3399 Android Industrial Computer
*RK3588 Multiple I/O Ports
*RK3288 Multiple I/O Ports
*RK3399 Multiple I/O Ports
Recommend Products
Company Profile
Shenzhen Le Hua Display Electronic Technology Co., Ltd. is a professional company engaged in independent R&D, manufacture, sale of Industrial Touch Screen Monitor, Android All In One Panel PC, Industrial Windows All In One Panel PC, Industrial Mini Box PC, and Industrial Motherboard. Our company was established in 2013, our workshop covers 6000 square meters. We can offer product design, system integration, software test, ODM/OEM service, and a complete product line.
Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
Le Hua enforces the strictest quality control to ensure complete customer satisfaction. Our manufacturing process meets ISO9001 quality assurance standards and we hold other safety certifications including CE, FCC, RoHS, and IP65. We strive to offer superior quality and reliability supports in the most cost-effective way that meets the customer’s requirements.
Factory workshop
Certifications
FAQ
Q1: Can you accept sample order?
A1: Yes, samples are always available for checking quality and can be dispatched to you in a short time.
Q2: What's the time of delivery?
A2: Depends on order quantity and our production schedule. 3-7 working days for sample order of standard model.12-20 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept?
A3: AlibabaTrade Assurance, T/T, Paypal, Western Union, etc.
Q4: Whether your industrial pc support the OEM/ ODM?
A4: Yes
Q5: Where is your industrial pc apply?
A5: Industrial automation, medical care, logistics and transportation, electronic education etc.
Q6: What kind of inspection you can provide?
A8: LeHua has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q7: What is your guarantee period?
A9: We provide 3 years warranty service,free repair for the first year, you can pay to extend the warranty. In the second and third year,we only provide the quality assurance service.
A1: Yes, samples are always available for checking quality and can be dispatched to you in a short time.
Q2: What's the time of delivery?
A2: Depends on order quantity and our production schedule. 3-7 working days for sample order of standard model.12-20 working days for custom sample order & mass production after payment receipt.
Q3: What paying methods do you accept?
A3: AlibabaTrade Assurance, T/T, Paypal, Western Union, etc.
Q4: Whether your industrial pc support the OEM/ ODM?
A4: Yes
Q5: Where is your industrial pc apply?
A5: Industrial automation, medical care, logistics and transportation, electronic education etc.
Q6: What kind of inspection you can provide?
A8: LeHua has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q7: What is your guarantee period?
A9: We provide 3 years warranty service,free repair for the first year, you can pay to extend the warranty. In the second and third year,we only provide the quality assurance service.
