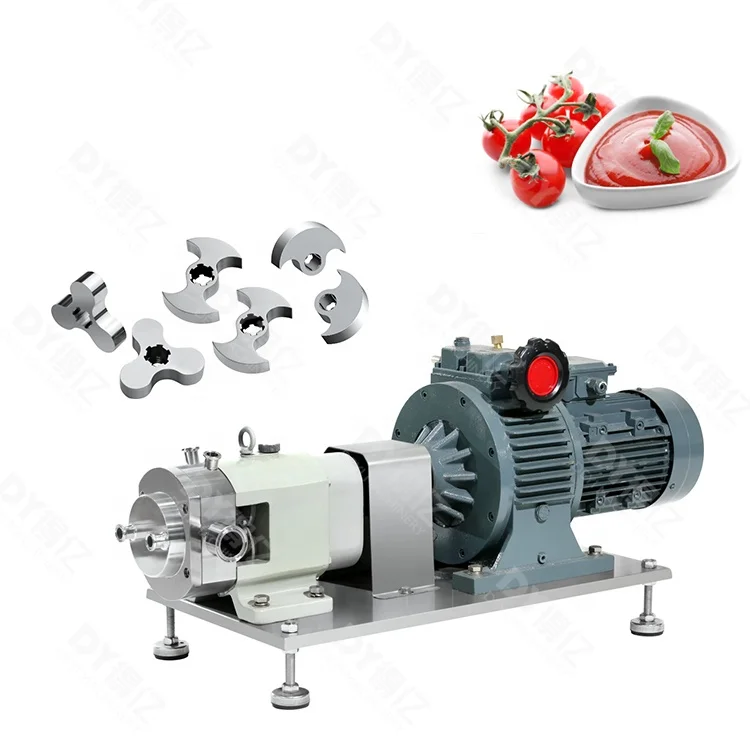

Deyi stainless steel sanitary lobe honey pump mayonnaise lobe pump with electric control box
- Category: >>>
- Supplier: Wenzhou Deyi Bio-Technology Co. Ltd.
Share on (1600823646676):
Product Overview
Description
Products Description
Stainless Steel SS304 SS316L Sanitary Hygienic Cam Rotor Pump
Application:
Food Industry: Yogurt,Fresh Butter,Ice Cream,Cheese,Whey,Beer,Wort,Yeast,Soft Drink,Fruit Jelly, Fruit Drink,Ketchup,Fruit
Puree,Vegetable Mash,Pudding,Fruit Jam,Jelly, Flavor,Fruit Stuffing,Sweet, Yeast,Seasoning,Bread,Meat Gruel,Comminuted Meat,Meat Oil,Edible Oil,Candy,Syrup,Thin Cream Dressing,Chocolate,Etc.
Daily Chemicals: Cleansing Facial Milk,Hair Gel,Hair Dyes,Essence Oil,Toothpaste,Detergent, Shampoo,Shoe
Polish,Cosmetics,Perf-umery Compound,Soap,Balsam,Etc.
Pharmacy:Various Pill,Paste,Emulsifier,Syrup,Nutrition Liquid,Chinese Traditional Patent Medicine, Medicine Grease,Biological Products,Fish Meal,Pollen,Royal Jelly,Vaccine.
Chemical Industry: Fat,Dissolvent,Resin,Polymer,Paint,Pigment,Dyes,Coating Material,Lubricant, Lubricating Grease,Oil
Agent,Emulsified Asphalt,Adhesive,Plastic,Explosives,Glass Fiber Reinforced Plastics,Leather,Etc.
Construction Industry:Various Coating,Including Indoor/outdorr Wall Coating,Corrosi on And Water Proof Coating,Ceramic
Coating,Paint Coating,Ceramic Glazing,Etc.
Other Industries: Plastic Industry,Textile Industry,Paper making Industry,Coal Floatation Agent, Nanometer Material,Biochemical
Industry
Puree,Vegetable Mash,Pudding,Fruit Jam,Jelly, Flavor,Fruit Stuffing,Sweet, Yeast,Seasoning,Bread,Meat Gruel,Comminuted Meat,Meat Oil,Edible Oil,Candy,Syrup,Thin Cream Dressing,Chocolate,Etc.
Daily Chemicals: Cleansing Facial Milk,Hair Gel,Hair Dyes,Essence Oil,Toothpaste,Detergent, Shampoo,Shoe
Polish,Cosmetics,Perf-umery Compound,Soap,Balsam,Etc.
Pharmacy:Various Pill,Paste,Emulsifier,Syrup,Nutrition Liquid,Chinese Traditional Patent Medicine, Medicine Grease,Biological Products,Fish Meal,Pollen,Royal Jelly,Vaccine.
Chemical Industry: Fat,Dissolvent,Resin,Polymer,Paint,Pigment,Dyes,Coating Material,Lubricant, Lubricating Grease,Oil
Agent,Emulsified Asphalt,Adhesive,Plastic,Explosives,Glass Fiber Reinforced Plastics,Leather,Etc.
Construction Industry:Various Coating,Including Indoor/outdorr Wall Coating,Corrosi on And Water Proof Coating,Ceramic
Coating,Paint Coating,Ceramic Glazing,Etc.
Other Industries: Plastic Industry,Textile Industry,Paper making Industry,Coal Floatation Agent, Nanometer Material,Biochemical
Industry

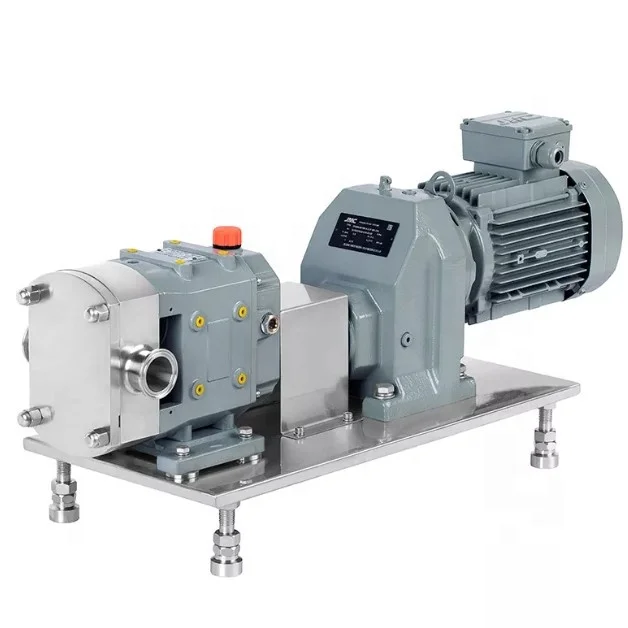

SPECIFICATION SHEET OF DEYI STAINLESS STEEL CAM ROTARY LOBE PUMP
Model | Flow per 100 Rotation(L) | Rotation Speed(RMP) | Capacity(L/H) | Power(KW) | Connectins/mm | Reducer Recommend |
DY-ZB3A-3 | 3L | 200-500 | 300-800 | 0.55 | 25/25 | Gear reducer (VFD on Customer's request) |
DY-ZB3A-6 | 6L | 200-500 | 650-1600 | 0.75 | 25/25 | |
DY-ZB3A-8 | 8L | 200-500 | 850-2100 | 1.5 | 32/32 | |
DY-ZB3A-12 | 12L | 200-500 | 1300-3200 | 2.2 | 38/38 | |
DY-ZB3A-20 | 20L | 200-500 | 2100-5400 | 3.0 | 38/38 | |
DY-ZB3A-30 | 30L | 200-400 | 3200-6400 | 4.0 | 51/51 | |
DY-ZB3A-36 | 36L | 200-400 | 3800-7600 | 4.0 | 38/38 | |
DY-ZB3A-52 | 52L | 200-400 | 5600-11000 | 5.5 | 51/51 | |
DY-ZB3A-70 | 70L | 200-400 | 7100-14000 | 7.5 | 63/63 | |
DY-ZB3A-78 | 78L | 200-400 | 9000-18000 | 7.5 | 63/63 | |
DY-ZB3A-100 | 100L | 200-400 | 11000-22000 | 11 | 76/76 | |
DY-ZB3A-135 | 135L | 200-400 | 15000-30000 | 15 | 89/89 | |
DY-ZB3A-160 | 160L | 200-400 | 17000-34000 | 18.5 | 102/102 | |
DY-ZB3A-200 | 200L | 200-400 | 21600-43000 | 22 | 102/100 | |
DY-ZB3A-300 | 300L | 200-400 | 32000-64000 | 30 | 108/108 | |
DY-ZB3A-350 | 350L | 200-400 | 40000-80000 | 30 | 129/129 | |
DY-ZB3A-400 | 400L | 200-400 | 45000-90000 | 37 | 159/159 |
Operation Principle:
Rotor pump is also named rotary lobe epump,three-lobe pump,sole pump,etc.When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve,it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.

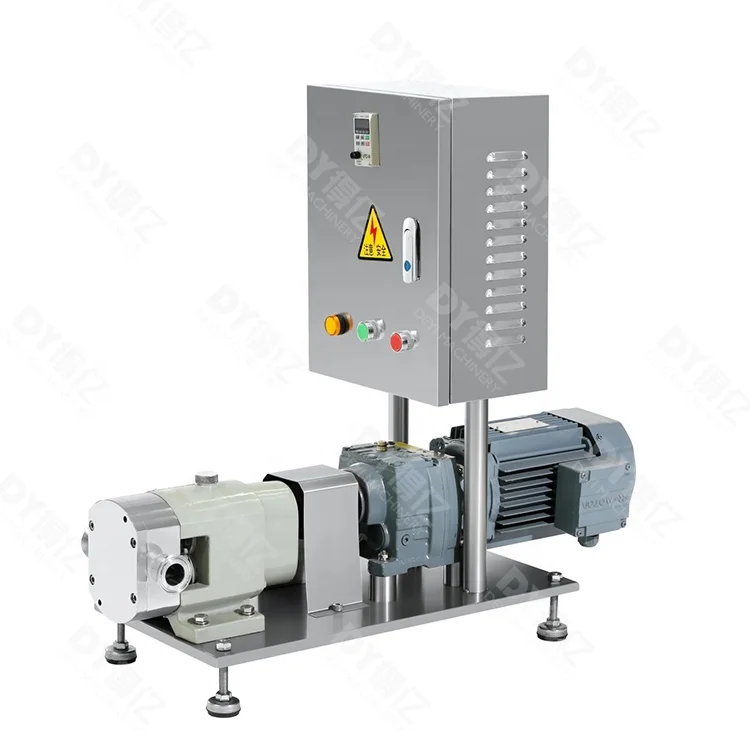

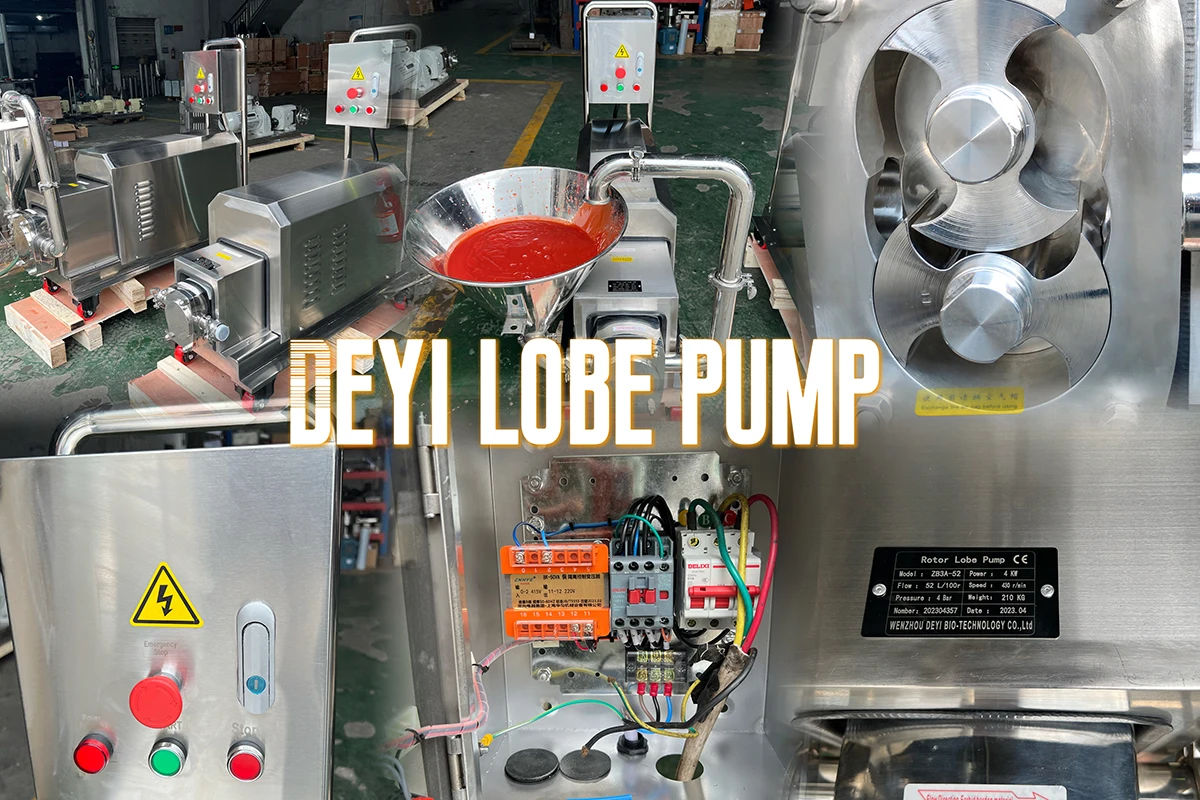

DEYI ZB3A-12 CAM LOBE PUMP WITH TROLLEY AND CONTROLLER BOX
You may also can add Control box and trolley on your lobe pump!

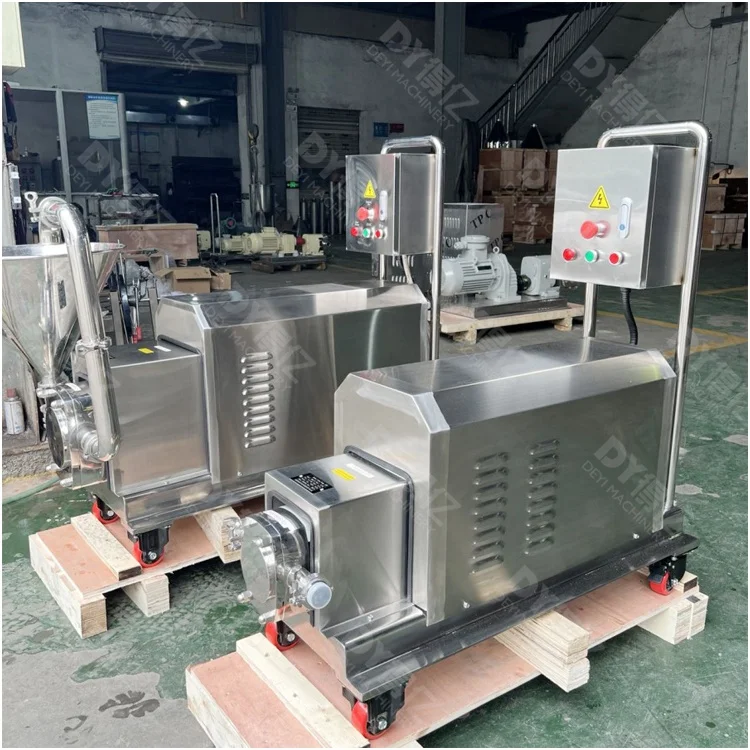

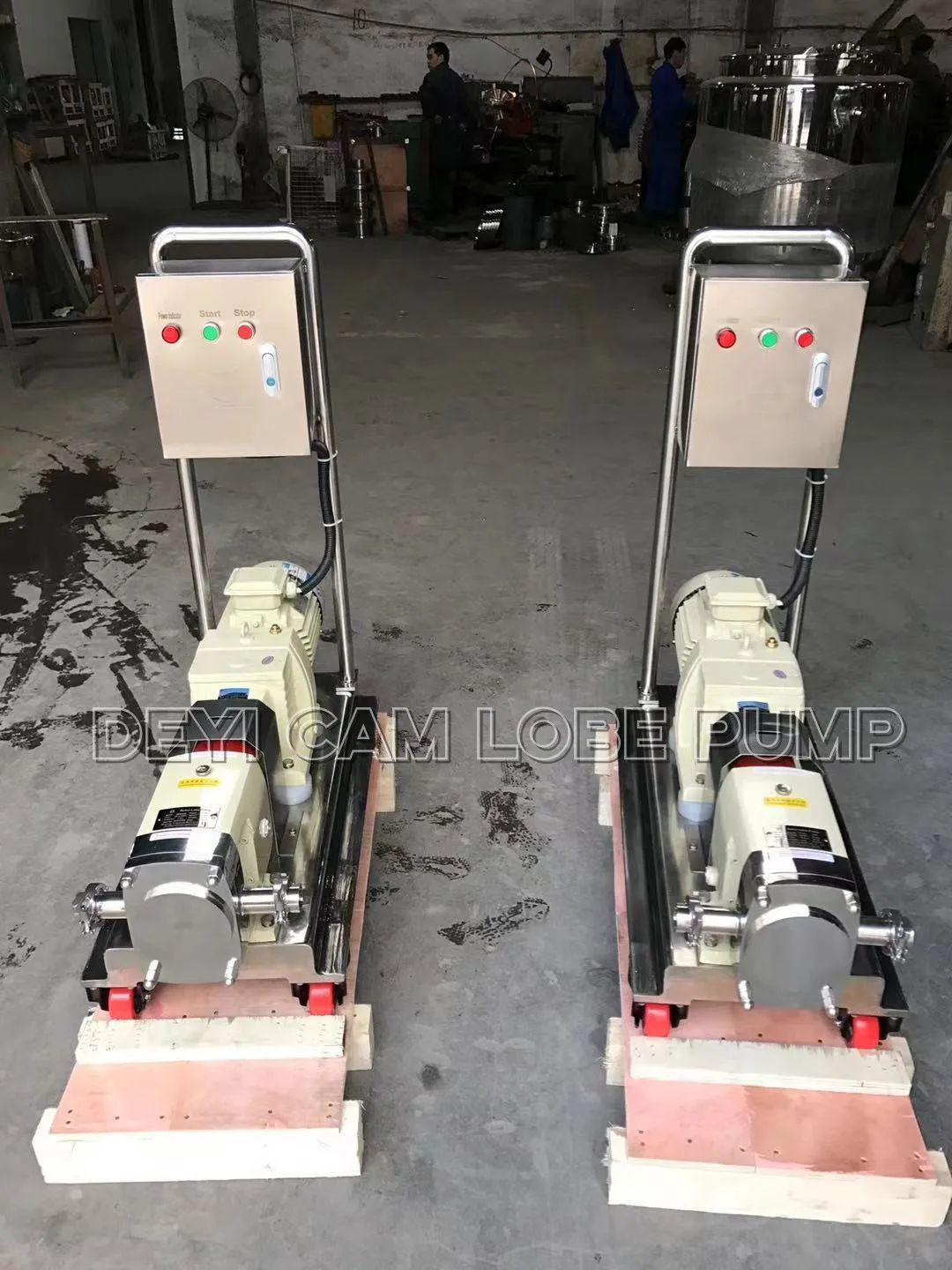

Mobile lobe pump
Control box: 1) Start and stop electrical control, plus "Emergency" button if request! 2) Built-in inverter on request.

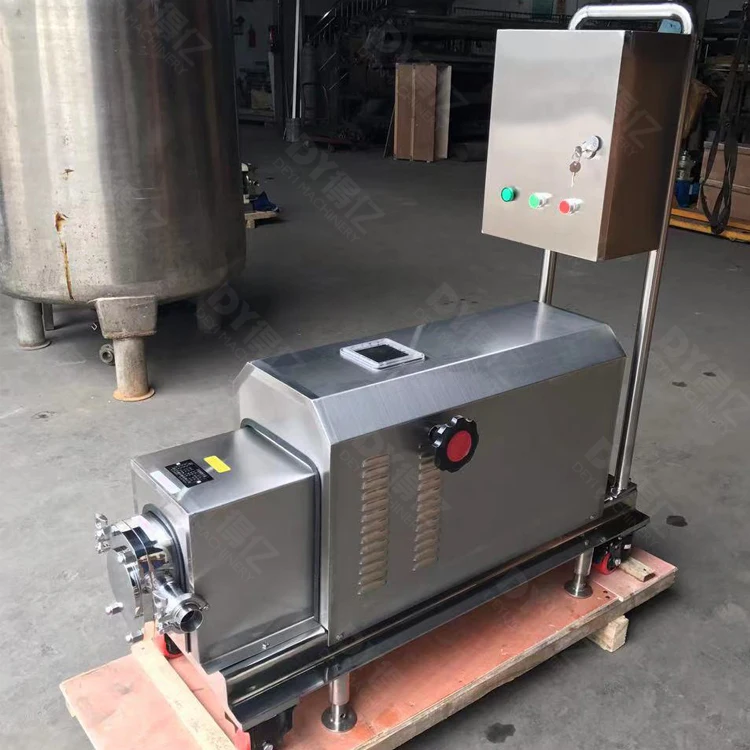

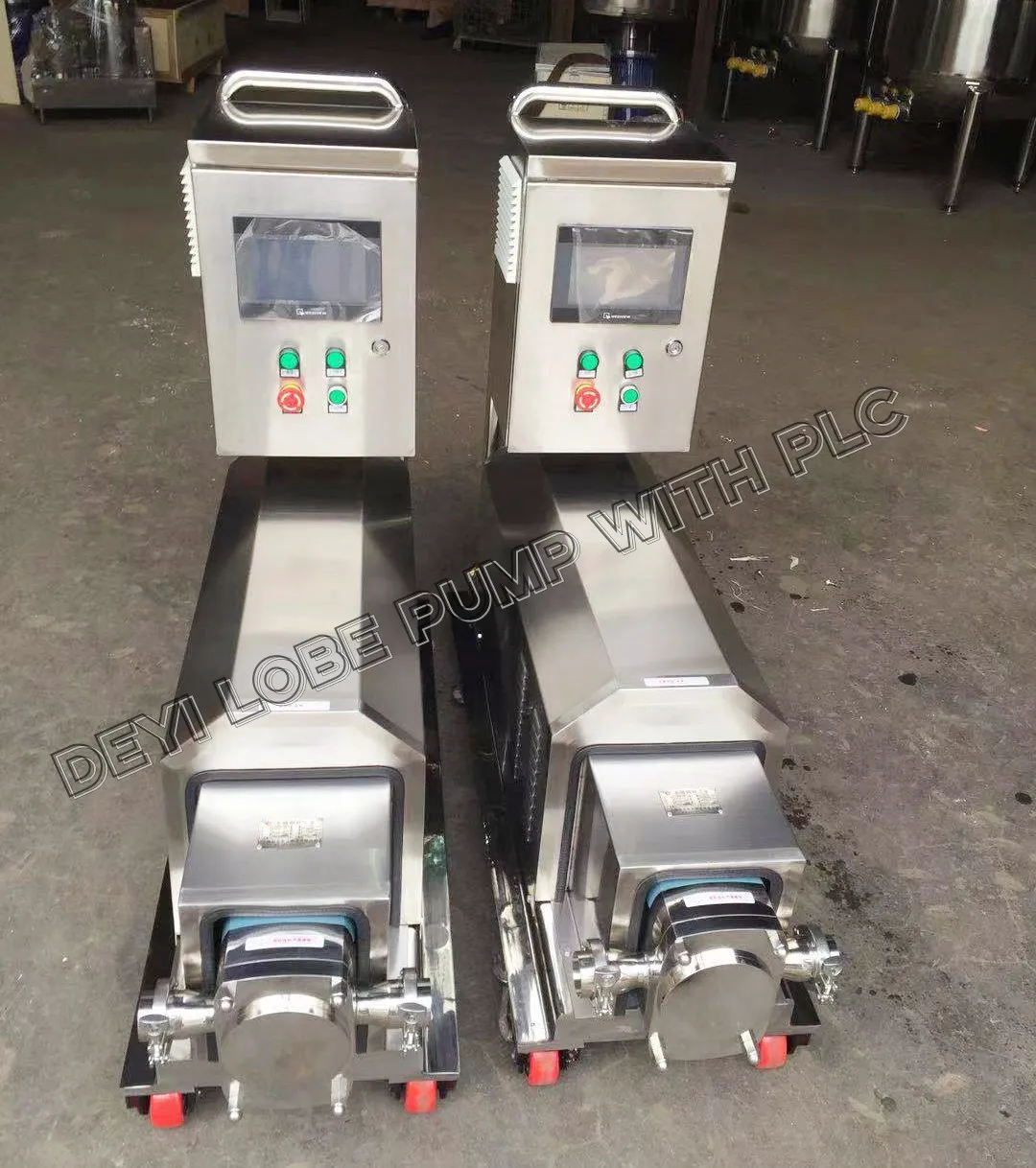

This is Mobile lobe pump with PLC, protecting cover
Mobile lobe pump
Control box: 1) Start and stop electrical control, plus "Emergency" button if request! 2) Built-in inverter on request.
Wheels: Wheels with brakes

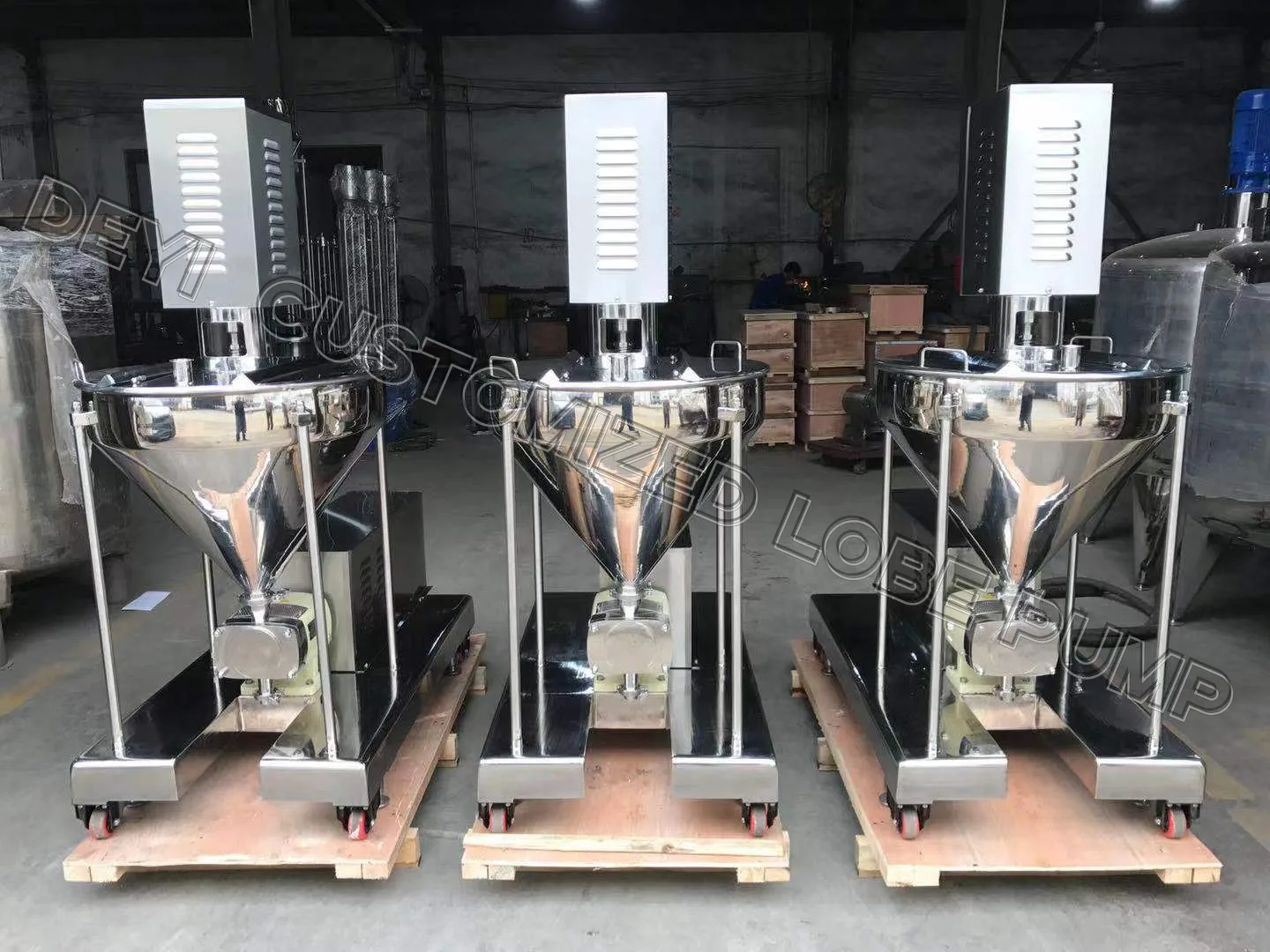

Deyi Customized Lobe pump, installed with mixing tank and whole protecting cover
Deyi has professional and experienced engineers to supply u the solutions in your food or dairy projects.

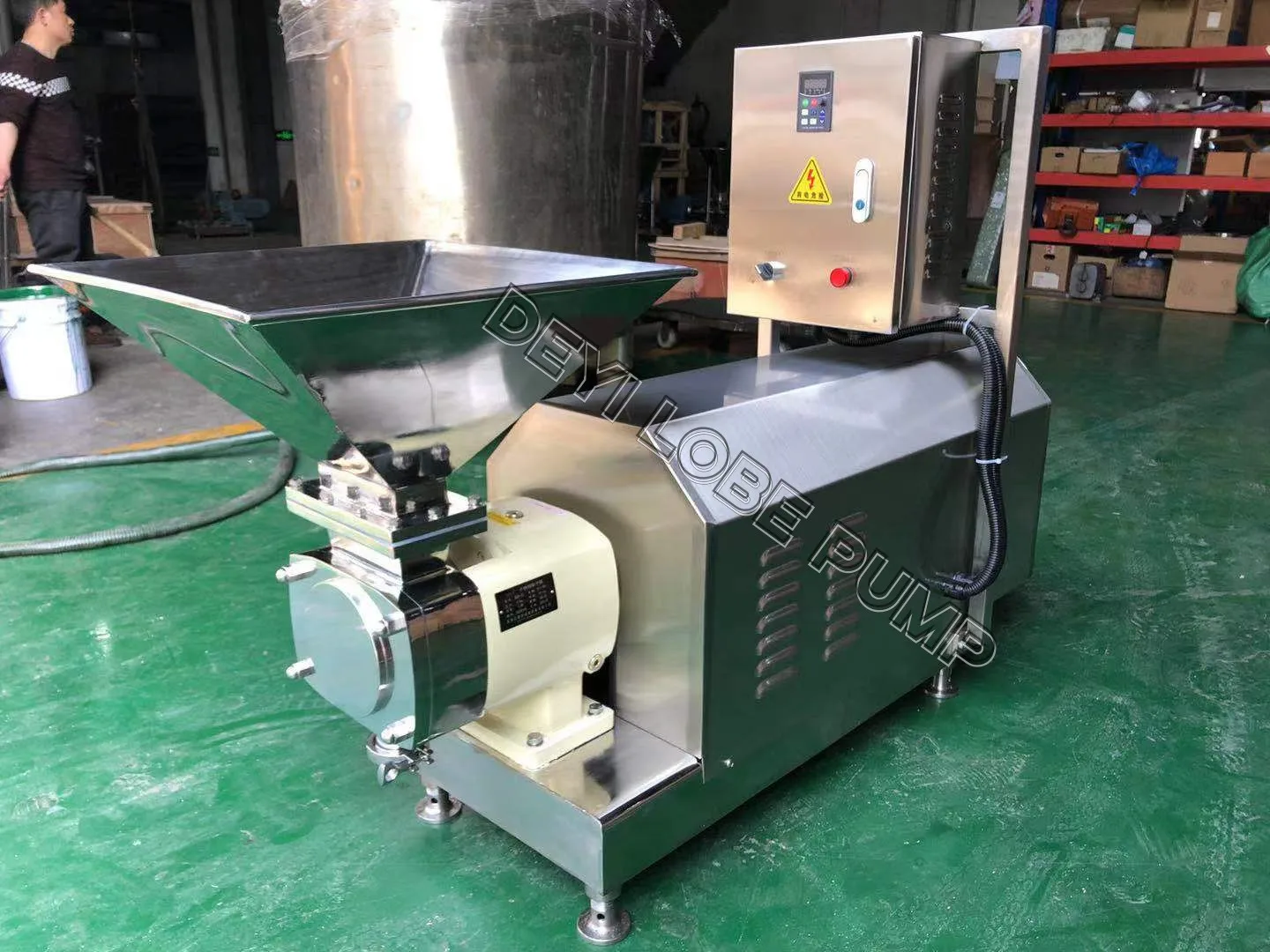

You may also can add Control box and trolley, hopper on your lobe pump!

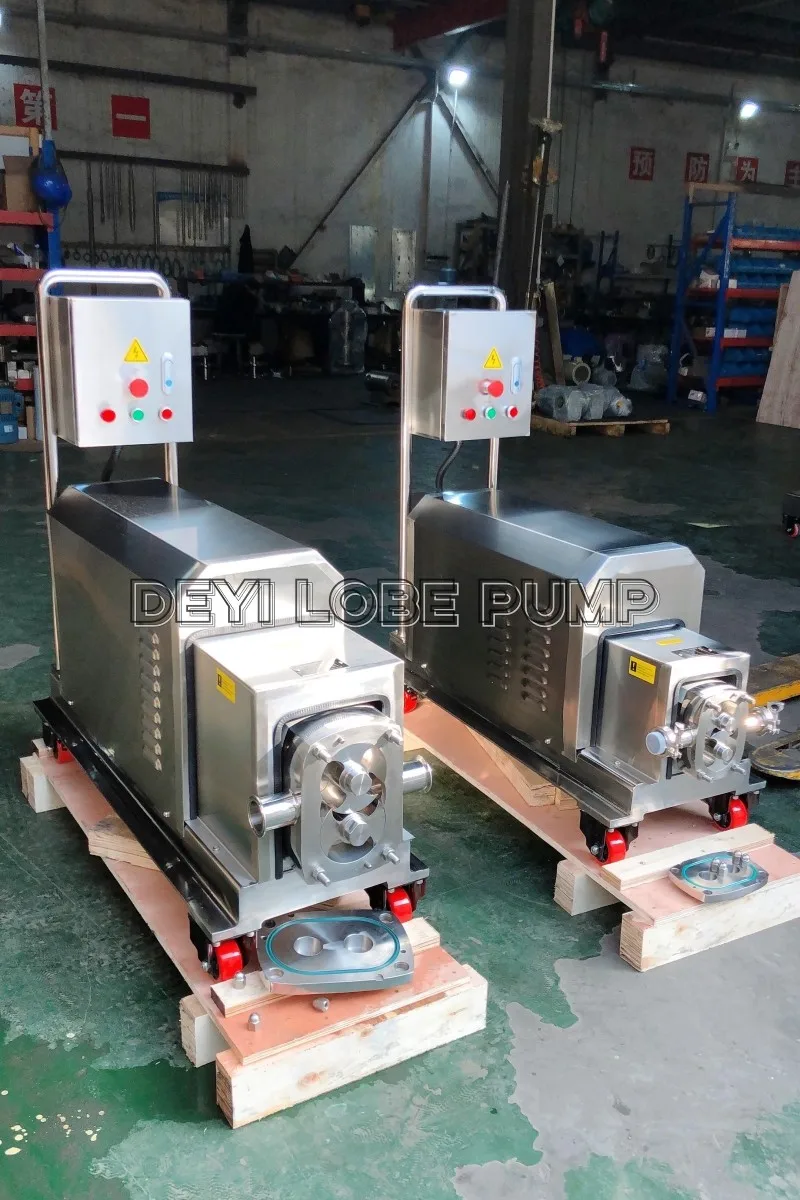

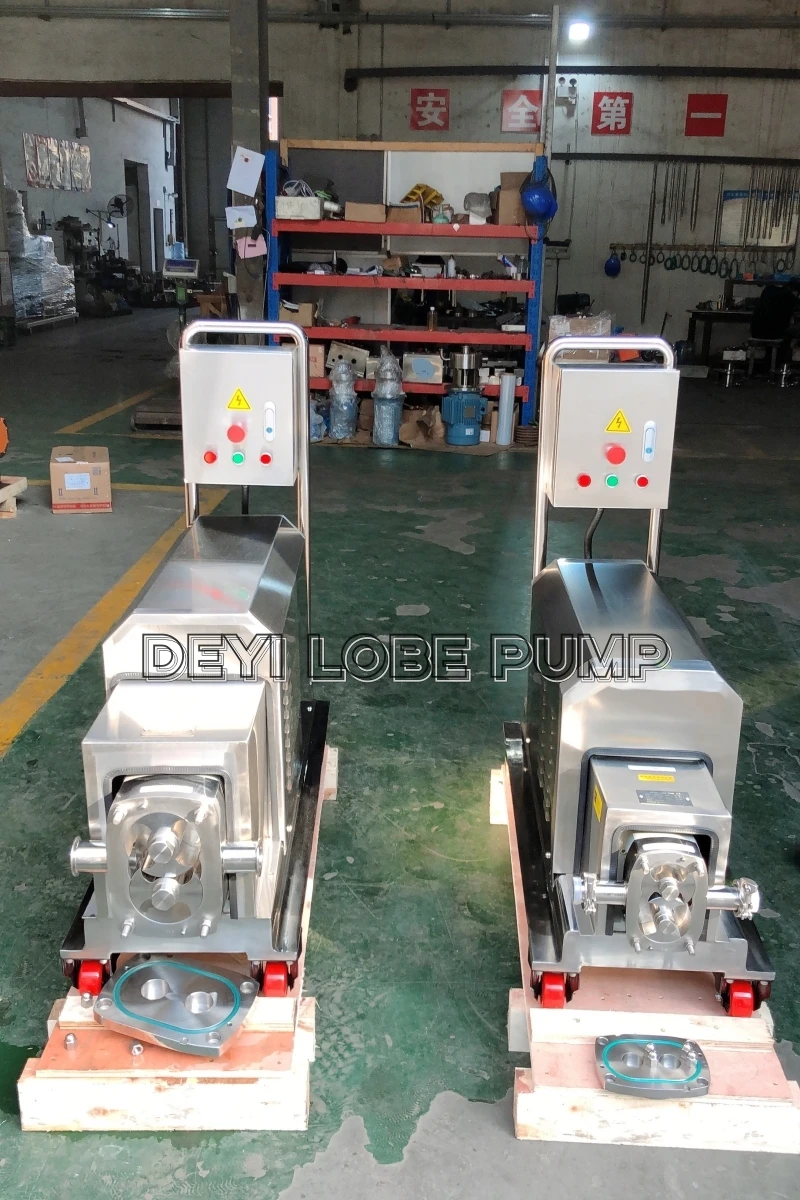

Deyi Lobe pump with whole protecting cover
Control box: 1) Start and stop electrical control, plus "Emergency" button if request! 2) Built-in inverter on
request.
request.
Protecting cover: Full SS304 stainless steel, can protect motor and personal safety in Wet working environment.
Hopper: 10L-200L ect.
Work Shop
Company Profile
FAQ
Q1. Are you the factory?
A1:Yes,we are 12 YEARS manufacturer of Extractors, tanks, tank components, stainless steel valves, fittings, filters and pumps. our factory is in Wenzhou. Your sanitary Solutions.
A1:Yes,we are 12 YEARS manufacturer of Extractors, tanks, tank components, stainless steel valves, fittings, filters and pumps. our factory is in Wenzhou. Your sanitary Solutions.
Q2. Do you ANY Certificate？
A2. Yes, We have ISO9001 certificate.
A2. Yes, We have ISO9001 certificate.
Q3. Do you have mill test certificate?
A3. Yes,each order is traceable by Inspection certificate EN10204 3.1
A3. Yes,each order is traceable by Inspection certificate EN10204 3.1
Q4. May I have free samples before bulk order?
Yes, of course, appreciate for your chance to show you our quality, ship by your express account or Pay on Trade Assurance. But this prepaid cost will be returned or minus from your first PO...
Yes, of course, appreciate for your chance to show you our quality, ship by your express account or Pay on Trade Assurance. But this prepaid cost will be returned or minus from your first PO...
Q5. What’s your leading time?
Stocked items: 1-2 days.
Producing items: 5-10 days for regular orders, and 15-25 days for bulk orders.
Customized items: Normally 20-35days.
Stocked items: 1-2 days.
Producing items: 5-10 days for regular orders, and 15-25 days for bulk orders.
Customized items: Normally 20-35days.
Q6:What's the Minimum Order Quantity and warranty?
A3: MOQ:1pc for standard and stock items. Inquiry us please.
Warranty: 12 months, 100% inspection on finished products before dispatch. Inferior products can be returned or replaced without excuse. exclude wearing parts such as gaskets.
A3: MOQ:1pc for standard and stock items. Inquiry us please.
Warranty: 12 months, 100% inspection on finished products before dispatch. Inferior products can be returned or replaced without excuse. exclude wearing parts such as gaskets.
Q7. What's the payment terms and trade terms for new customers?
A2: We accept Paypal, Western Union, T/T, Trade Assurance and L/C at sight opened in first-class international bank.
Trade terms: EXW,FOB,CIF,C&F..
A2: We accept Paypal, Western Union, T/T, Trade Assurance and L/C at sight opened in first-class international bank.
Trade terms: EXW,FOB,CIF,C&F..
Q8.Does your company have export license?
Yes sure, we have more than 10 years exporting experience, 99.9% of our products in International market.
Yes sure, we have more than 10 years exporting experience, 99.9% of our products in International market.
OEM is welcomed,and we can sign on Non-disclosure Agreement of Commercial Secrets. Custom fabrication is acceptable. Deyi has professional tech engineers to design and support tech.
Welcome you to be our distributor and partner. Win-win position:)
Welcome you to be our distributor and partner. Win-win position:)
