EW AT 101 1.5 10mm Tape Od Wire Harness Taping Machine Electric Wire Taping Winding Machine
- Category: >>>
- Supplier: Wenzhou East World Automation Equipment Co. Ltd.
Share on (1600823819725):
Product Overview
Description
Products Description

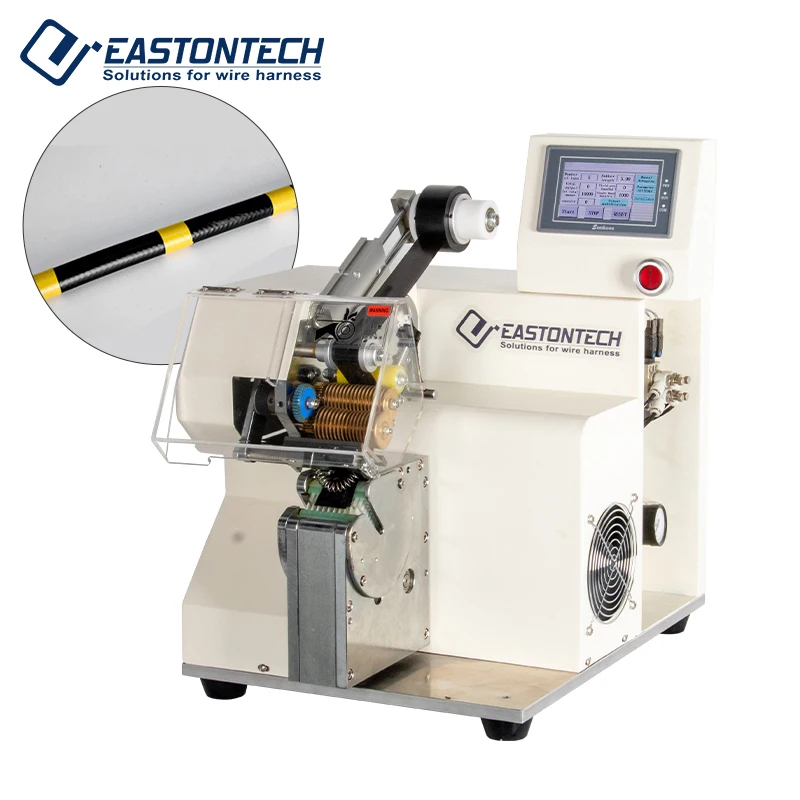

EW-AT-101 Tape Wrapping Machine For Wire Harness

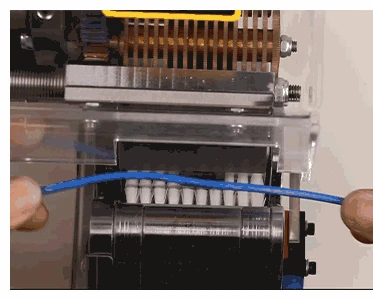

This machine uses a working wheel to automatically wrap the tape around the wire harness to achieve the purpose of bundling.EW-AT-101 is designed for tape point wrapping. It can work with different types of material tape include tape with back paper. Mainly used for automobile, motorcycle, and aviation industry, point taping for marking, fixing, or insulation.
Features:
1. Tape length, winding number adjustment is convenient and accurate
2. Fully automatic cut the tape when finish wrapping
3. Touch screen, PLC control system, easy to operate; compact design, small size
4. Machine work stable and high efficiency, reduce the operation difficulty than manual
1. Tape length, winding number adjustment is convenient and accurate
2. Fully automatic cut the tape when finish wrapping
3. Touch screen, PLC control system, easy to operate; compact design, small size
4. Machine work stable and high efficiency, reduce the operation difficulty than manual
Model | EW-AT-101 | EW-AT-101 -1 |

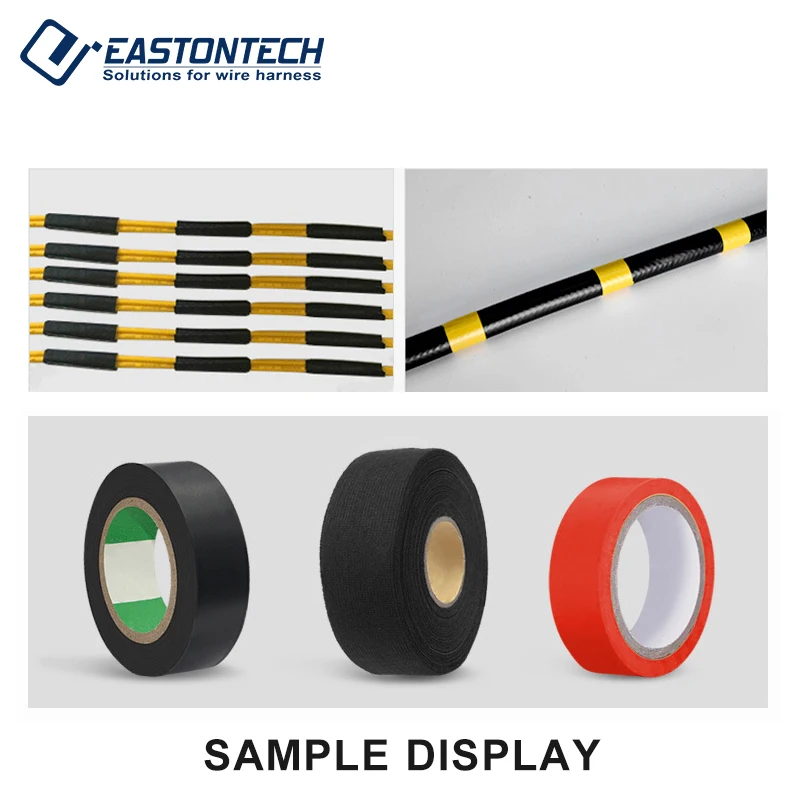

Applicable tape | PVC, flannel tape, lacquer tape etc. | PVC, flannel tape, lacquer tape etc. |

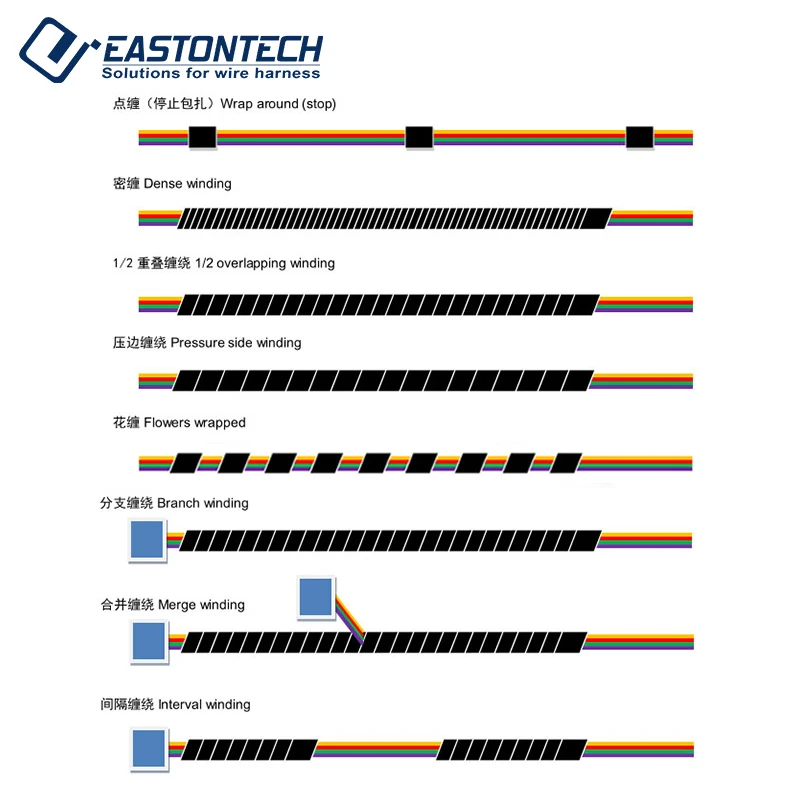

Application | Spot wrap, multi-section wrap | Spot wrap, multi-section wrap |
Wrapping diameter | 1.5 - 10 mm | 1.5 - 10 mm |
Tape width | 15 - 50 mm | 0 - 15 mm |
Tape inner diameter | Customized | Customized |
Tape feeding length | 50 - 99 mm | Customized |
Tape feeding mode | Manual (automatic feeding can be customized) | Manual (automatic feeding can be customized) |
Productivity | 50 pcs./min | 50 pcs./min |
Compressed air input | 0.4 - 0.6 MPa | 0.4 - 0.6 MPa |
Control voltage | 24, 68 V (DC) | 24, 68 V (DC) |
Power supply | 110, 220 V | 110, 220 V |
Power | 600 W | 600 W |
Weight | 54 kg | 54 kg |
Dimension | 520 * 340 * 510 mm | 520 * 340 * 510 mm |

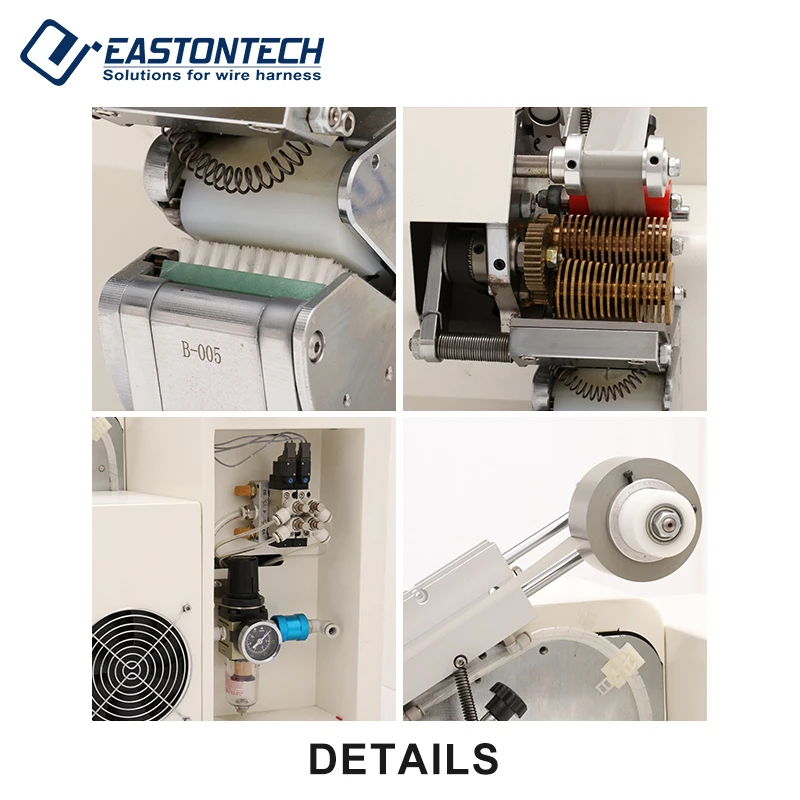

Details Images
Recommend Products
Company Profile
FAQ
Q1. What is your delivery date?
A: The delivery date is about 5-7 working days after receive the payment.
Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.
Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.
Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine.
Besides, we provide 7x24 hours Online support, or face-to-face online communications, are available.
Q5.How to contact you?
A: Please leave messages and click "Contact supplier" to send us inquiries.
A: The delivery date is about 5-7 working days after receive the payment.
Q2.What is the payment way ?
We provide Visa, Mastercard, T/t, Paypal, Apple Pay, Google Pay, Gc Real Time Bank Transfer.
Q3.What the service can you provide?
Support product customization, any requirements you need can be customized according to your requirements.
Q4.How about the after service and guarantee period?
We offer 1 year warranty since the arrival of the machine.
Besides, we provide 7x24 hours Online support, or face-to-face online communications, are available.
Q5.How to contact you?
A: Please leave messages and click "Contact supplier" to send us inquiries.
