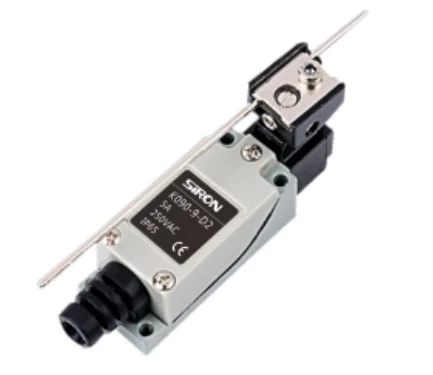

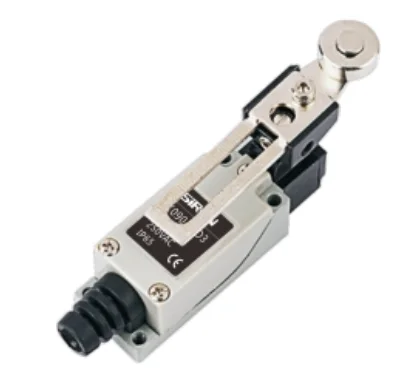

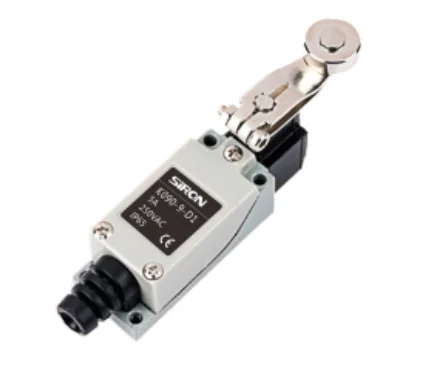

SiRON K090 9 D Stainless Steel Roller Rotary Metallic Bottom Shell Electrical Limit Switch Waterproof IP65 Limit Switch
- Category: Limit Switches >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (1600823823487):
Product Overview
Description
Features
* The shell is composed of reinforced plastic and zinc alloy, the structure is sturdy, easy to wire
* Small size, waterproof and oil-proof

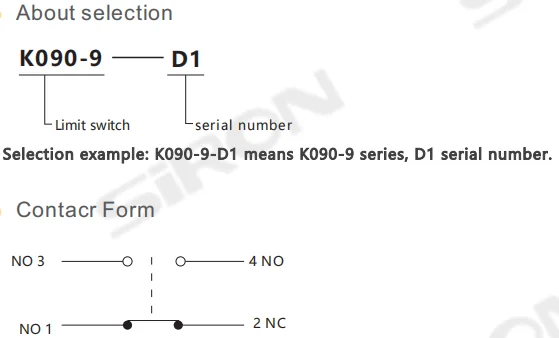

* Adopt double loop form, built-in double reed micro switch
* Equipped with various types of drive links
* Widely used in various household electrical, electronic equipment, automation equipment, Instrumentation and other fields
* Small size, waterproof and oil-proof
* Adopt double loop form, built-in double reed micro switch
* Equipped with various types of drive links
* Widely used in various household electrical, electronic equipment, automation equipment, Instrumentation and other fields
Specification
Name | Micro Switch | ||||||||||

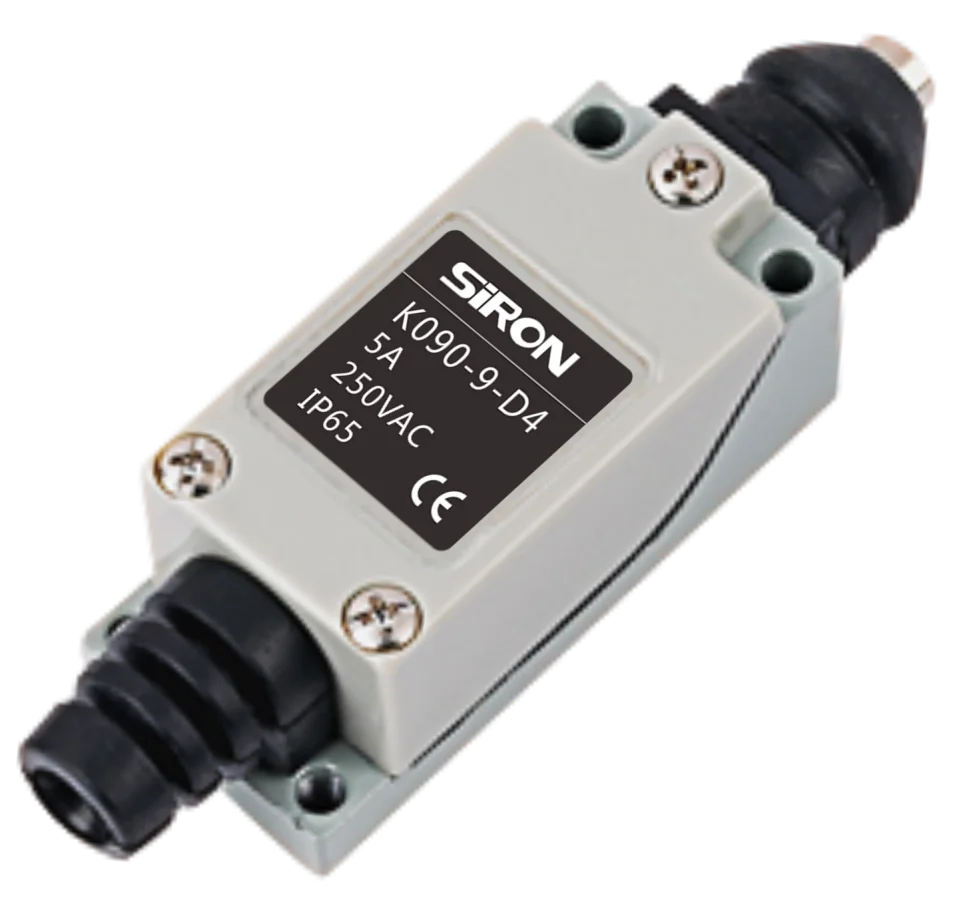

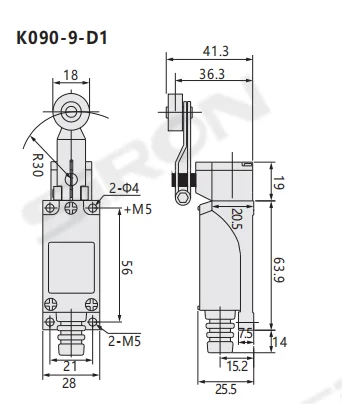

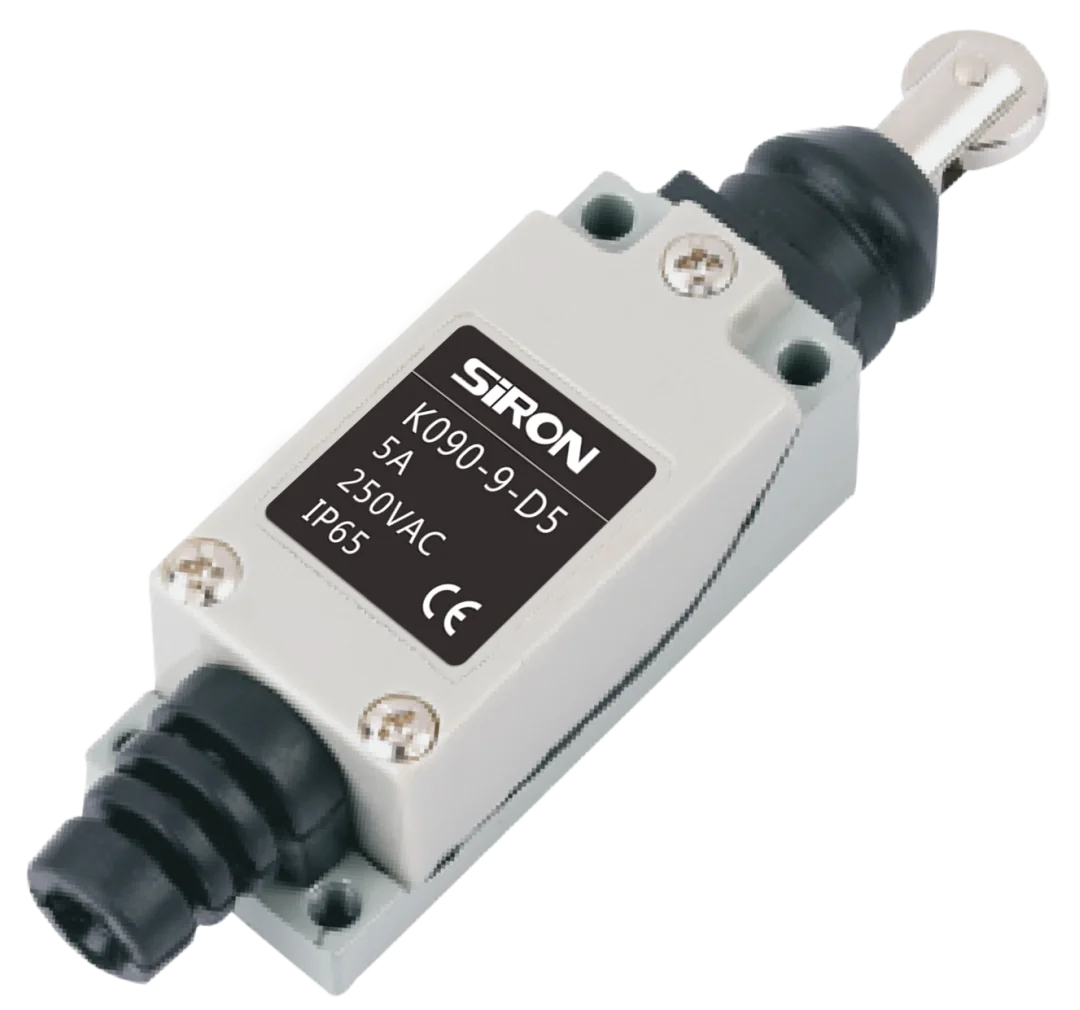

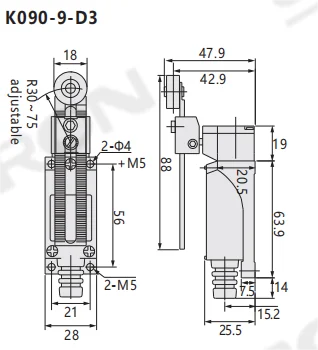

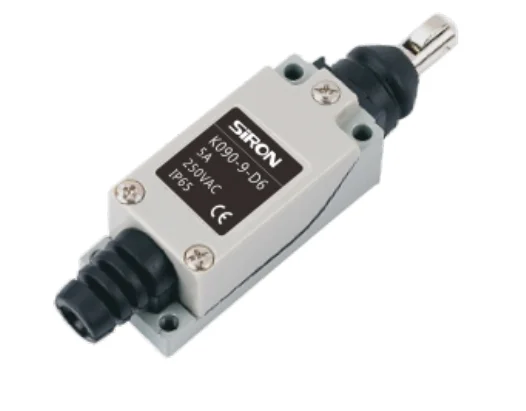

Model | K090-9-D1 | K090-9-D2 | K090-9-D3 | K090-9-D4 | K090-9-D5 | K090-9-D6 | |||||
Action force | 700g(6.86N) | 700g(6.86N) | 800g(7.84N) | 1100g(10.78N) | 1100g(10.78N) | 1100g(10.78N) | |||||
Resilience | 60g(0.59N) | 70g(0.69N) | 60g(0.59N) | 250g(2.45N) | 250g(2.45N) | 250g(2.45N) | |||||
Pre-travel | 30° | 30° | 30° | 2mm | 2mm | 2mm | |||||
Overtravel | 60° | 60° | 60° | 0.6mm | 0.6mm | 0.6mm | |||||
Difference stroke | 15° | 15° | 15° | 1mm | 1mm | 1mm | |||||
Action position | / | / | / | 26±0.8mm | 37±0.8mm | 37±0.8mm | |||||
Total trip | 90° | 90° | 90° | / | / | / | |||||
Rated load | 5A/125VAC,3A/250VAC | ||||||||||||
Operating speed | 0.1mm~1m/s | ||||||||||||
Operating frequency | Mechanical | 400 times/min | |||||||||||
Electric | 30times/min | ||||||||||||
Insulation resistance | 100mΩ or more DC500V | ||||||||||||
Contact resistance | 30mΩ (initial value) | ||||||||||||
Medium withstand voltage | Non-wired | 1000VAC | |||||||||||
Between terminals | 1500VAC | ||||||||||||
Vibration | 10~55Hz complex amplitude | ||||||||||||
Shock | Durable | 1000m/s2 | |||||||||||
Malfunction | 300m/s2 | ||||||||||||
life | Electric | More than 100,000 times | |||||||||||
Mechanical | More than 1 million times | ||||||||||||
Protection level | IP40 | ||||||||||||
Operating temperature | -25~+80ºC | ||||||||||||
Operating humidity | <85% | ||||||||||||

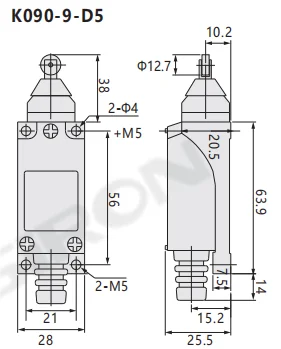

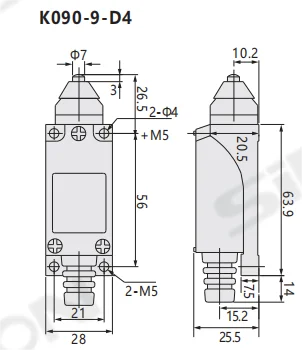

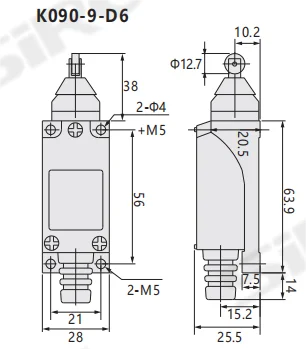

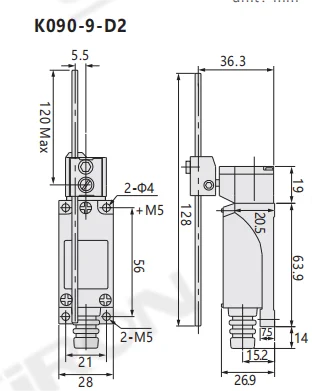

Product Paramenters
