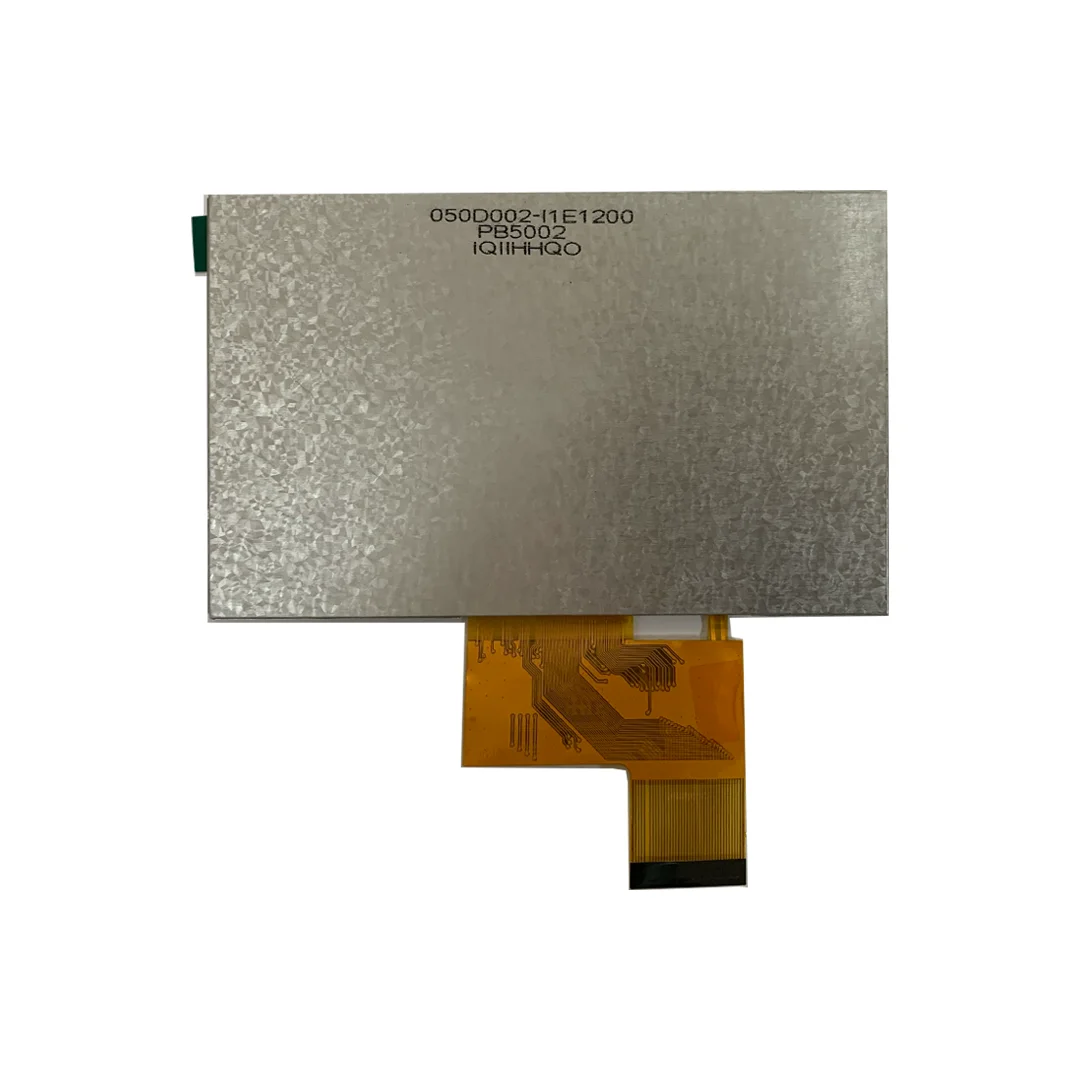

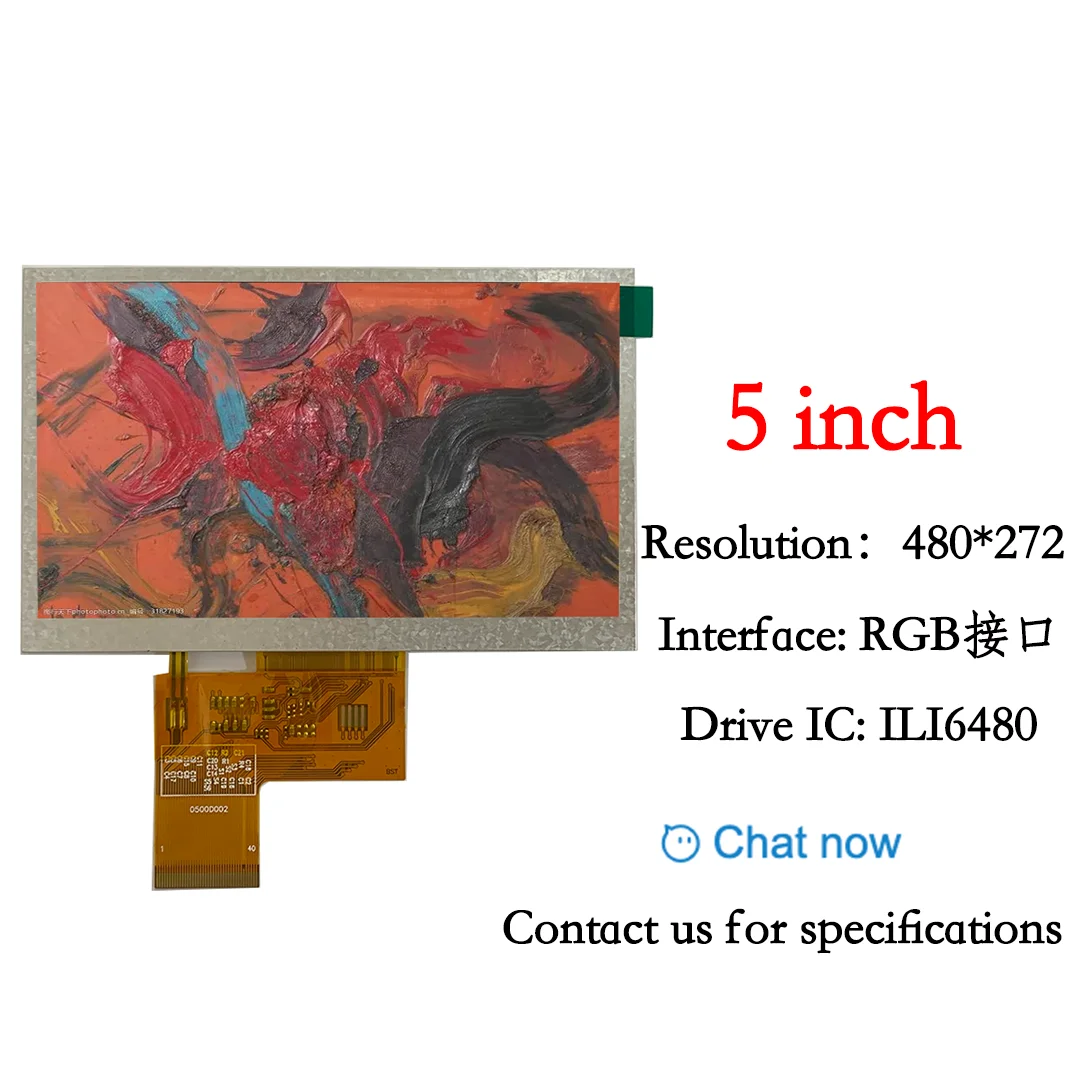

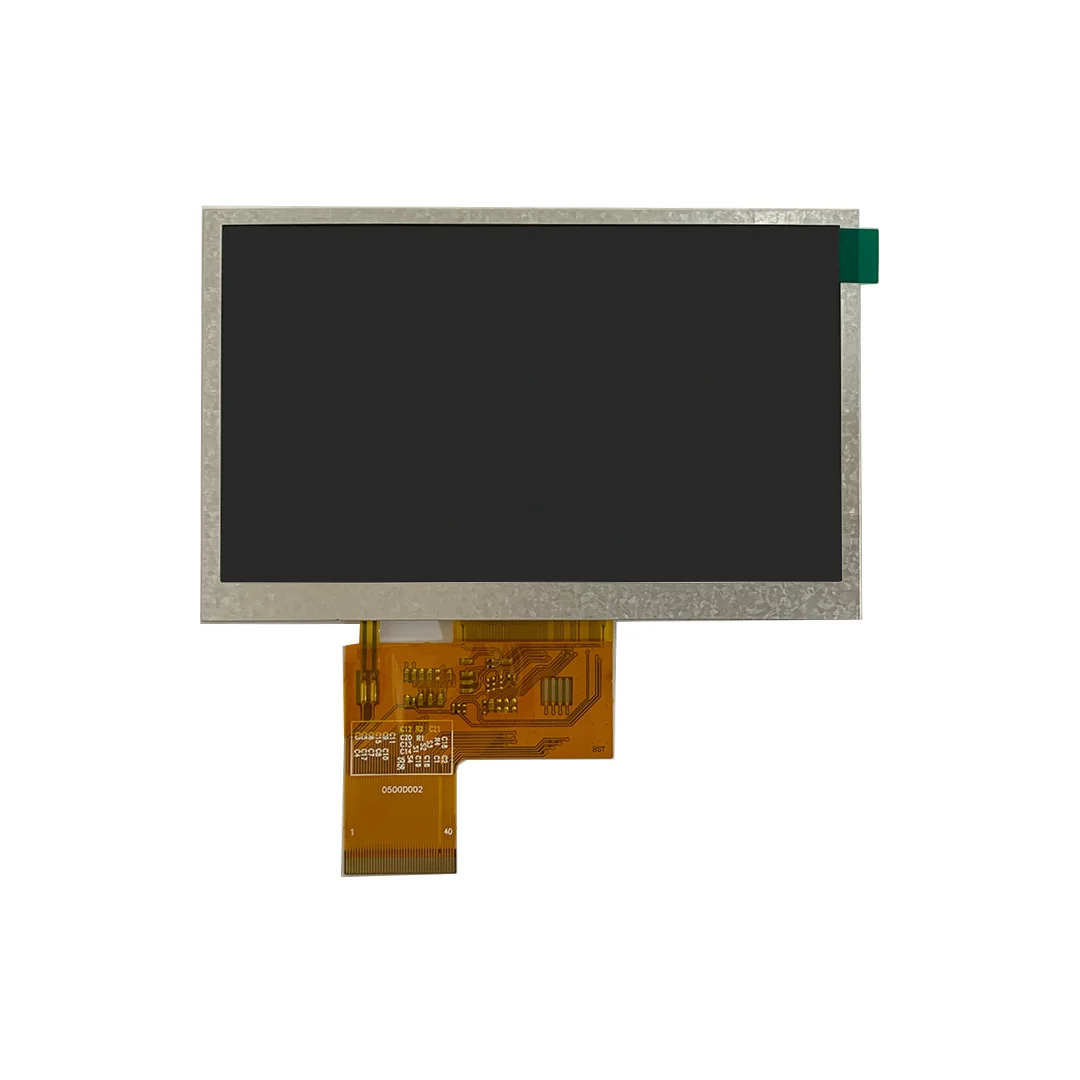

LCD Module 5 inch innolux 400*272 RGB TN ILI6480 Drive IC TFT LCD Display
- Category: >>>
- Supplier: Shenzhen Hong Xian Wei Ye Technology Limited
Share on (1600824024658):
Product Overview
Description
Product Description
Specification
item | value |
Type | Lcm |
Display Size | 0500D002-I1E1200 |
Supplier Type | factory direct supply |
Place of Origin | China |
Province | Guangdong |
Brand Name | Inolux |

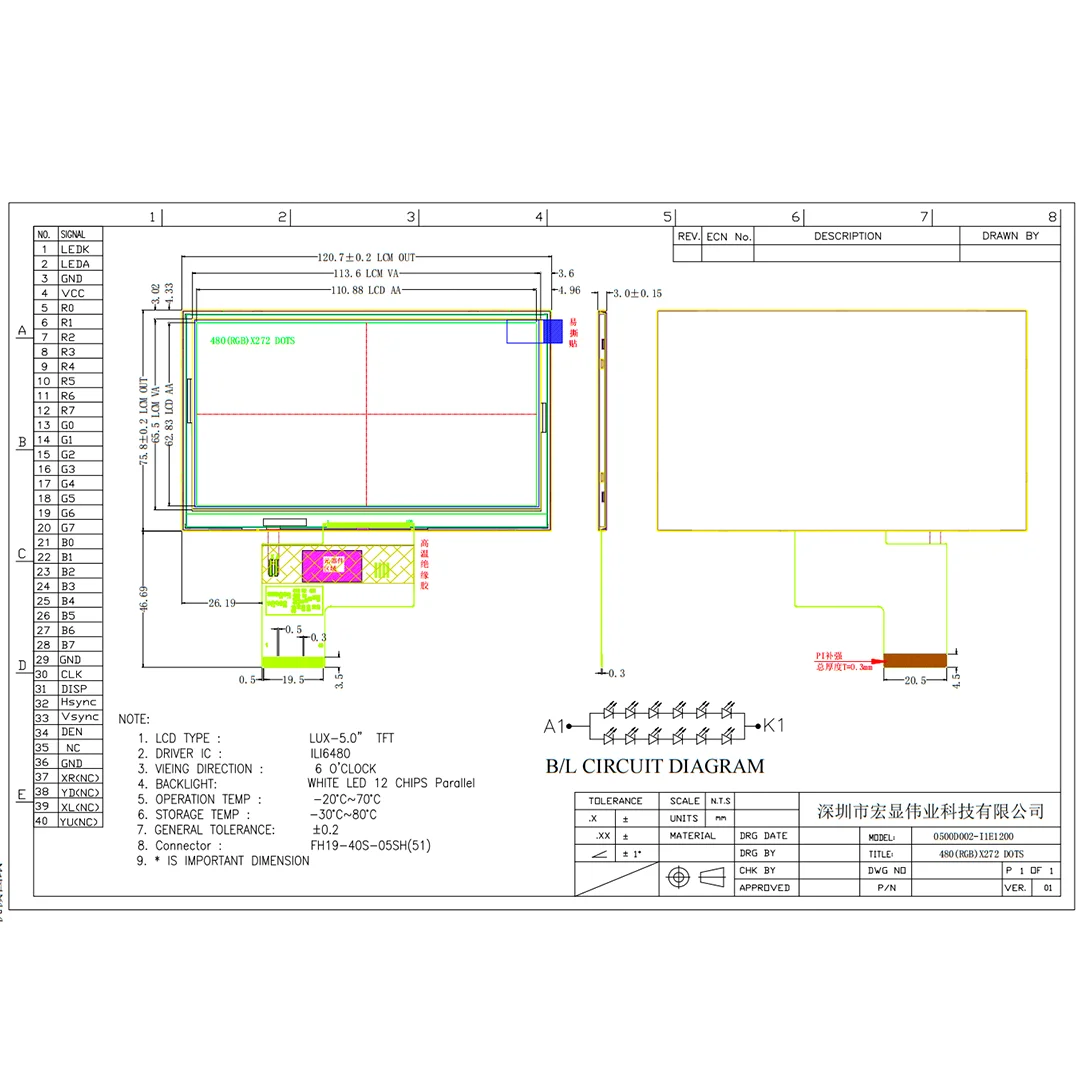

LCM Dimension | 120.7(W)*75.8(H)*3.00(D) |
LCD Active Area | 110.88*62.83 |
Number of Dots | 480*RGB*272 |
LCD Type | a-Si TFT |
Viewing Direction | 6 O'CLOCK |
Driver IC | ILI6480 |
Interface Type | RGB |
Operating Temperature | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
Backlight Type | 12 LEDs |
Company Profile
Hong Xian Display Technology Limited
Hong Xian Display Technology Limited ,established in the year 2014 ,located at Bao'an District Shenzhen China. We focus on TFT LCD
module production and R&D. The main sizes of TFT LCD modules we are offering are: 1.44, 1.77, 2.0, 2.2, 2.4, 2.8, 3.0,3.2, 3.5,
4.3, 5.0, 7.0, 8.0, 9.0 and 10.1. Our products are widely used for Security product, household appliances, Instrument and
meter,military products,automobile instruments, finger print machine,mobile phone, video door phone,GPS navigator, CVR,
Anti-dazzle rear-view mirror and so on.
module production and R&D. The main sizes of TFT LCD modules we are offering are: 1.44, 1.77, 2.0, 2.2, 2.4, 2.8, 3.0,3.2, 3.5,
4.3, 5.0, 7.0, 8.0, 9.0 and 10.1. Our products are widely used for Security product, household appliances, Instrument and
meter,military products,automobile instruments, finger print machine,mobile phone, video door phone,GPS navigator, CVR,
Anti-dazzle rear-view mirror and so on.
Production Process
Product Packaging and Delivery
This product adopts formal packaging, and there are different packaging specifications for products of different sizes. The 4.3 inch product is packed in a box of 200 pieces. Packages delivered have triple protections. Each module comes with a standard foam box, and all modules would be placed in order inside the corrugated carton. Besides, each package would be packed in sturdy wooden case, and the cases must be nailed. We ship our products in strong packing just to ensure good condition on arrival.
Product Applications
Certifications
ISO 14001:2015
Production and processing of liquid crystal display module of glucose detector.Applicable to Disign and manufacturing of LCD (liquid crystal display) modules.
ISO 9001:2015
Approved Scope to which this Certificate refers:The Manufactures of Liquid Crystal Display Modules.
FAQ

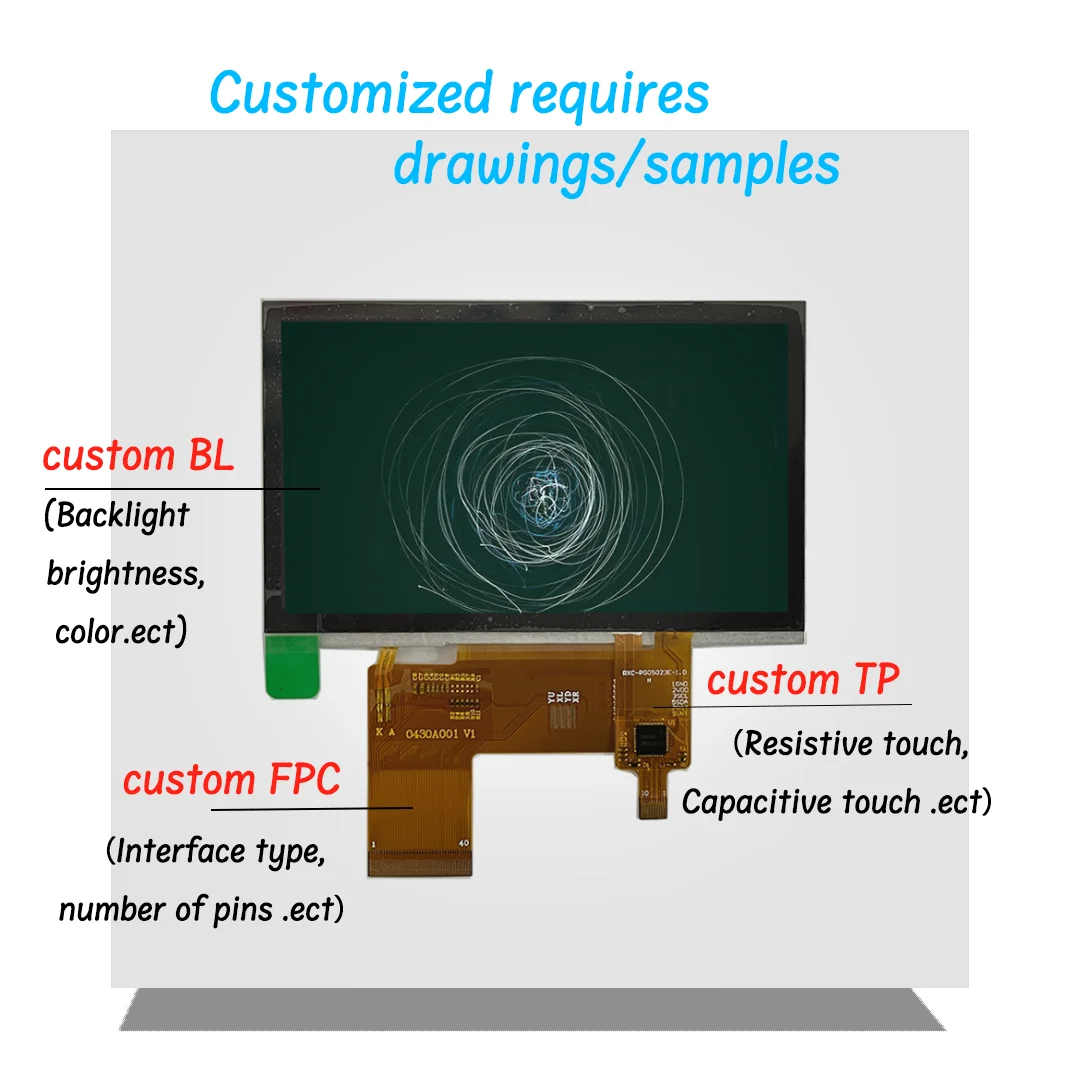

1.Q: Can We customize products?
A: Product customization is possible,including FPC, touch screen, IC, fineness, etc.
2. Is there a Touch Panel (Touch screen) on the display ?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
A: Product customization is possible,including FPC, touch screen, IC, fineness, etc.
2. Is there a Touch Panel (Touch screen) on the display ?
We can offer you the Resistive Touch Panel or Capacitive Touch Panel if you need.
Resistive touch panel - RTPs are the most common and lowest cost touch panel technology. They are activated by contact from any object, regardless of the material used. They are lower cost and will operate in a wide range of temperatures and environmental conditions.
Capacitive touch panel – Allows multi-touch operation as seen on a smart cell phones or tablets, and allow more light to pass through, providing a brighter display. It is more expensive than resistive touch panels and only recognizes a touch from skin or a special pen.
3.Q:How does HongXian guarantee the quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.Q:How much the transportatian foreight of the sample?
A:The freight depends on total weight and your address.
5.Q：How is the After-sales service?
A:We have a huge team which is in charge of after-charges and offer 24 hours online service to help buyers solving the problems.We also offer buyers the market information updated regularly.
3.Q:How does HongXian guarantee the quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;
4.Q:How much the transportatian foreight of the sample?
A:The freight depends on total weight and your address.
5.Q：How is the After-sales service?
A:We have a huge team which is in charge of after-charges and offer 24 hours online service to help buyers solving the problems.We also offer buyers the market information updated regularly.
