  • Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen
Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen
Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen
Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen
Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen
Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen
Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen
Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen

Mount 2*2 3*3 Display Lcd Video Wall Advertising Splicing Screen

Share on (1600824085354):


Price:$363.00 - $442.00

Quantity:


Product Overview

Description


Product Description



Product Description

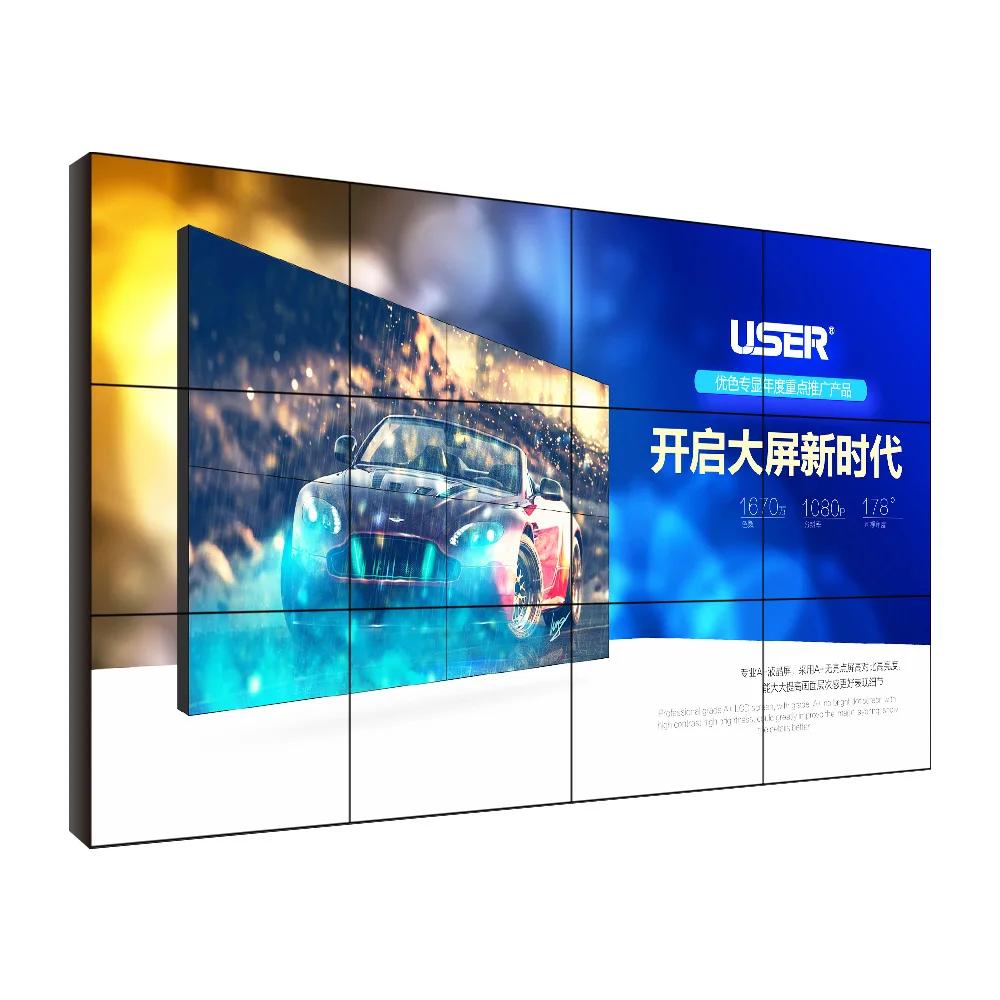

LCD Video Wall Screen ( DID)
Specifications
Model No.US-PJ4902
Panel Size46'' (super narrow bezel 5.3mm)
Aspect Ratio 16:9
Max Resolution Support1920x1080/1366x768
 Color8Bit,16.7M
Brightness (nits)450cd/m2
Contrast 4000:1
Visual Angle (H/V)178°
Response Time<=6ms
Life(hrs)>60,000(hrs)

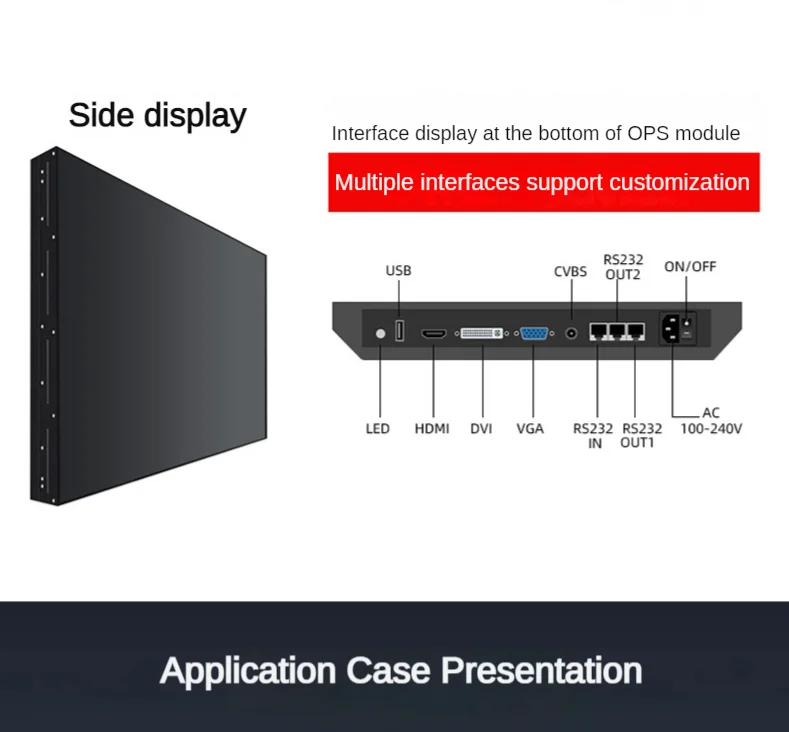

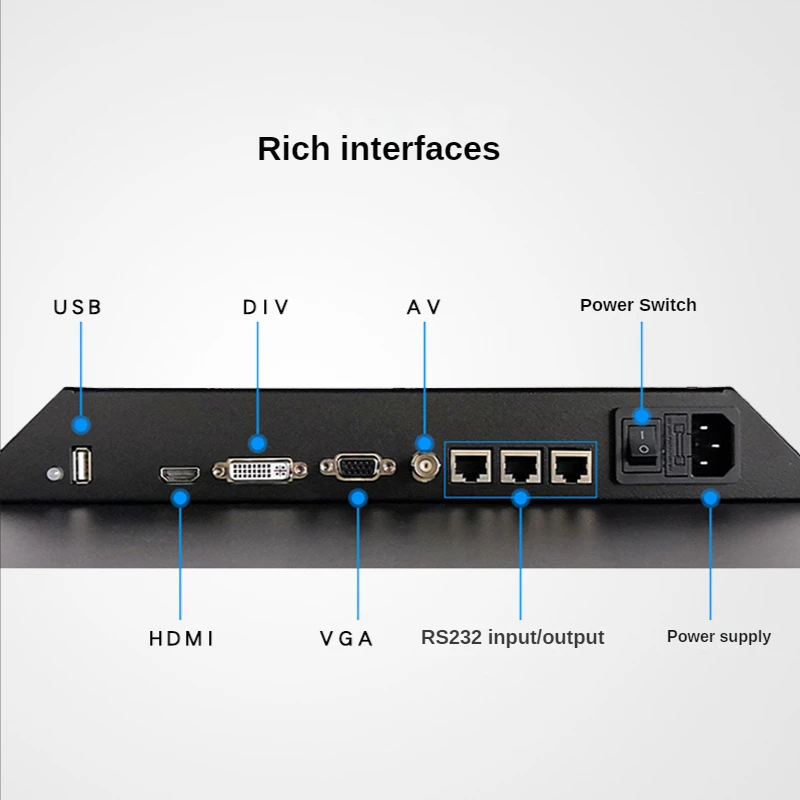

Input and output
DVI1
H   -   D1
D-15 RGB Input(VGA)1
YUV/YPbPR1(3xBNC)
S-(YC)1(2xBNC)
Composite Video Input/(AV)3(3xBNC)
Composite Video Output2(2xBNC)
AUDIO INPUT1
Split ScreenSupport Picture in Picture(PIP/POP/PAP)
Power
Power SupplyAC100V~240V
Maximum Power Consumption250W
Standby Power Consumption<=3W
Temperature
Working Temperature0°C~50°C
Working Humidity20%-80%
Dimension1025.65x579.84x126.73mm
Video Wall Controller(Built-in each Screen)
Model No.US-P816A
Input CVBS3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA1*D15 port, support SVGA/XGA/WXGA
YPbPr/YCbCr1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, H- H - DTV
Y/C2*BNC inputs, support PAL/NTSC all formats
Output LVDSSupport signal or double LVDS output, and WUXGA (1920*1080) display
Operate  mode Panel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
 Engineering softwareCustomized
Working temperature  0~70 °C
working humidity5~95 %RH
AC voltage power supply100-240V/50, 60Hz
power consumptionMax 300W,according to different Screen models
Dimension338×295×60(mm)
WeightAbout 3.5KG

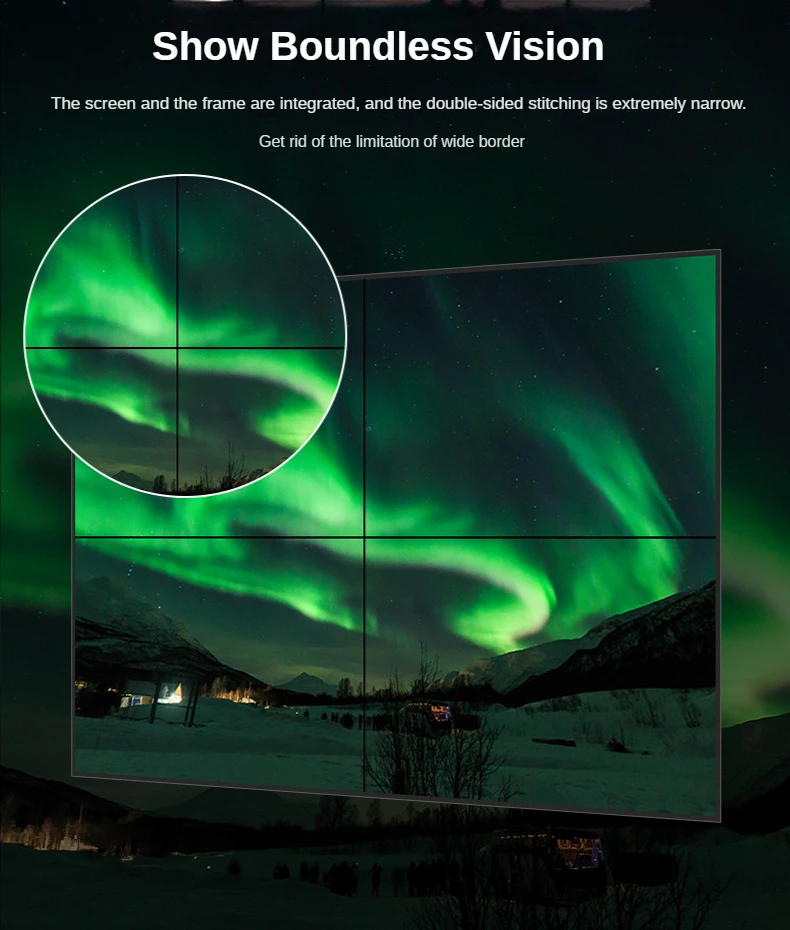

1.  Narrow design: the narrowest can reach 5.3mm (55did), and it truly achieves the seamless.
2.  Interface type: VGA, DVI and H- D connected analog signal and digital high-definition signal
3.  Remote control function: by RS232 port and Ethernet connection for remote operation

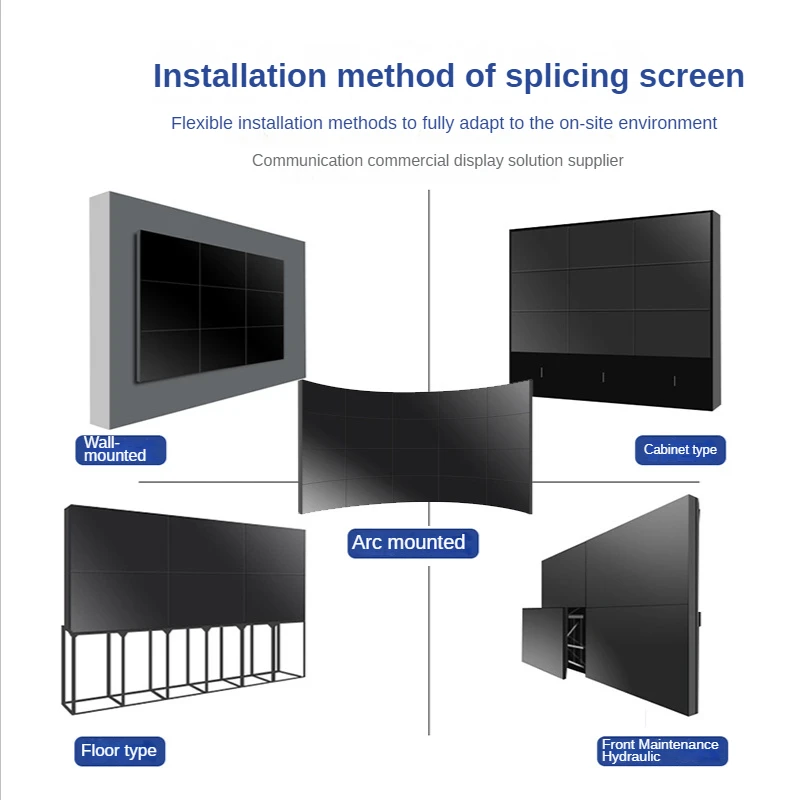

4.  Beautiful wall structure design, be convenient for installation and maintenance
5.  Continuous boot for 7 * 24 hours, deserve to trust.
6.  Support 365 days non-stop boot, the backlight life is up to 60,000 hours

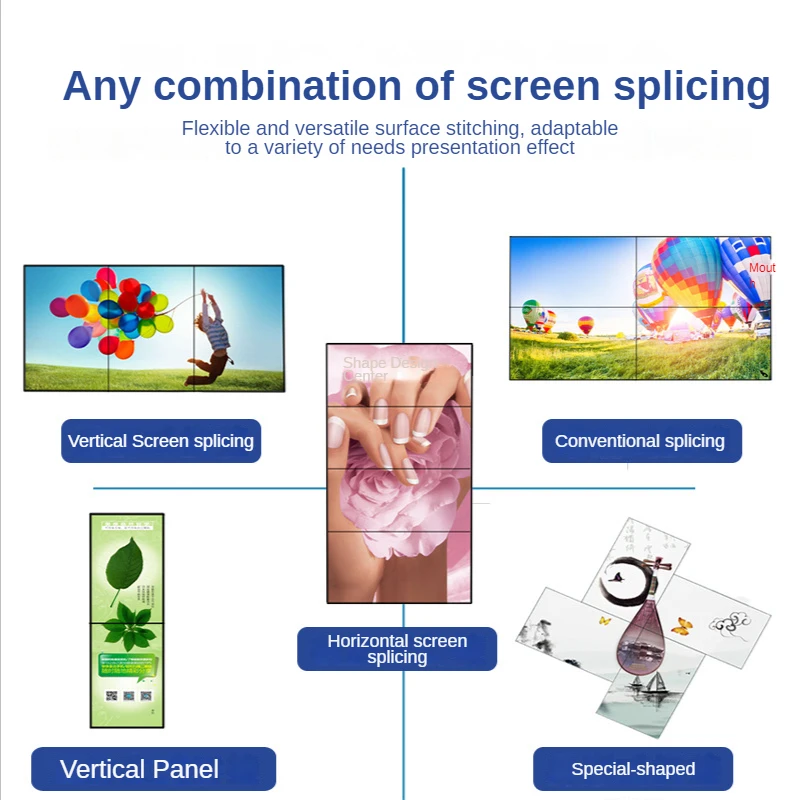

7.  Splicing mode is optional.
8.  Support error and compensation function of video wall pictures
9.  Modular design according to customer demand (M * N)
10. Diversification of the display mode


11. Excellent display
