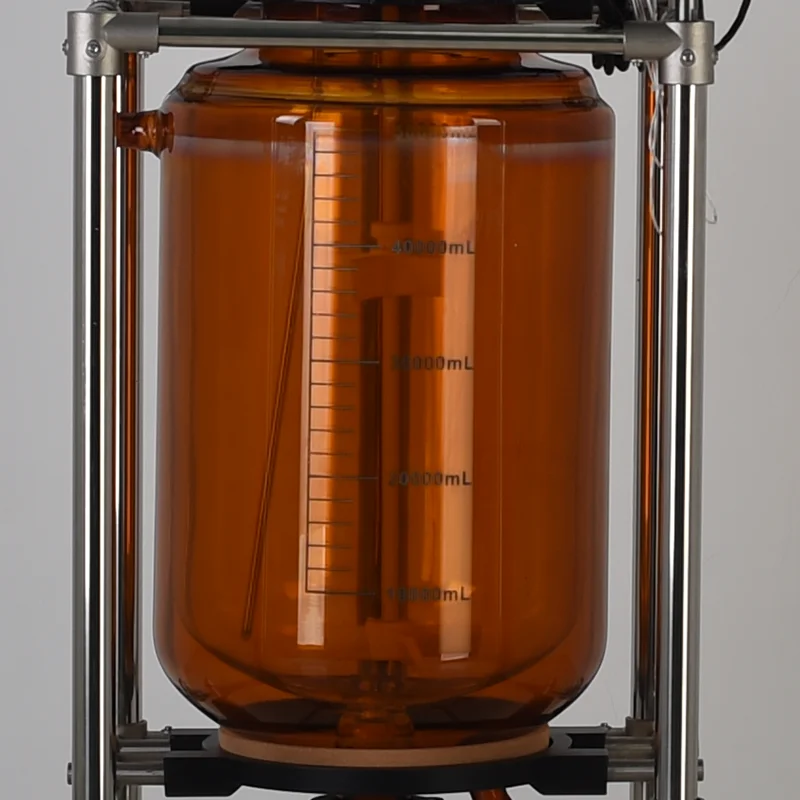

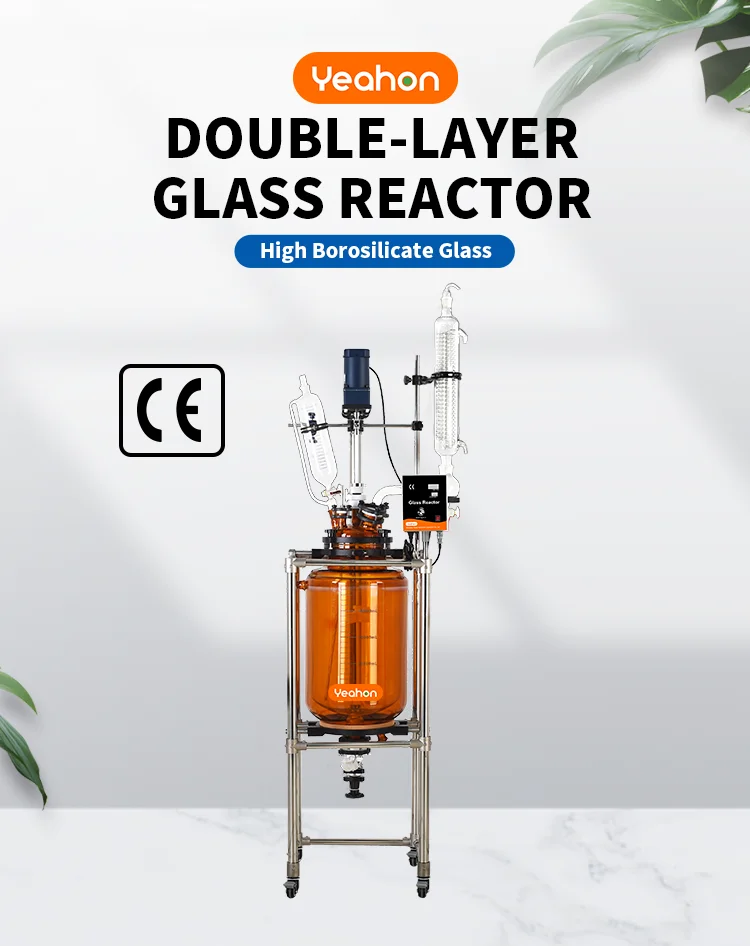

Shanghai better customized brown double wall jacketed 50L glass reactor chemical reactor
- Category: Chemical Machinery & Equipment >>>
- Supplier: Shanghai,Yuhua,Instrument,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Jacketed glass reactor is mainly used for the experiments of material synthesis, distillation, concentration, separation, etc.

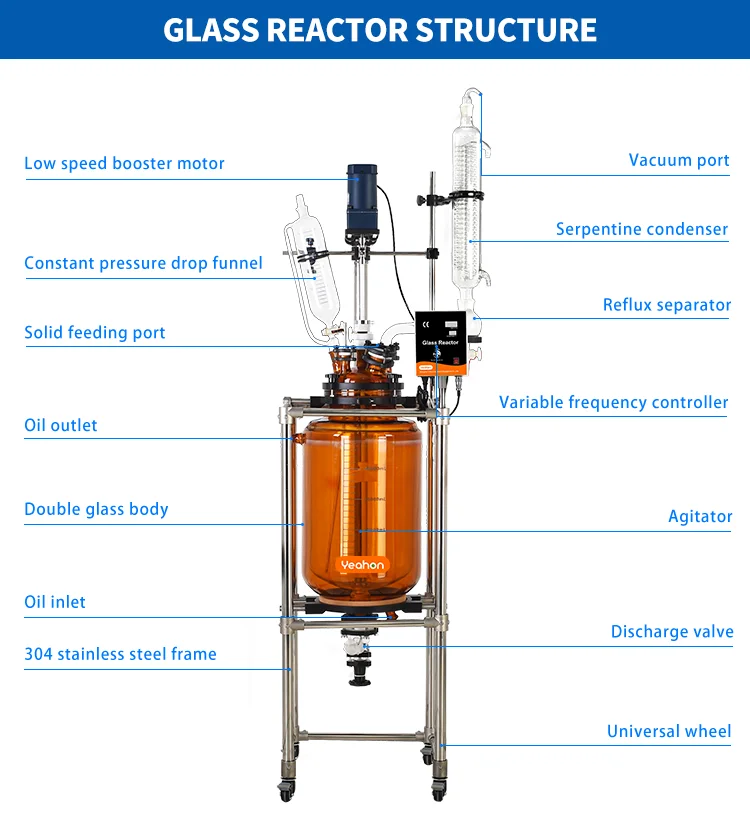

Jacketed glass reactor has an inner layer and an outer layer. The circulation fluid can be injected in the outer layer to adjust material temperature. By injecting thermostatic (high or low temperature) hot-melt media or cooling media through the outer layer, we can heat and cool the materials in the reactor at a constant temperature, also mixing function is provided.
To meet the experiment condition, the vacuum can be pumped to negative pressure; even material instilment can be controlled by using constant pressure funnel or regulating valve in feeding flask. Distillation and collection can be realized by condenser's heat exchange function. Know more!
Product parameters
Model | S212-1L | S212-2L | S212-3L | S212-5L | S212-10L | S212-20L | |||||
Jacket capacity | 0.6L | 0.6L | 0.9L | 1.5L | 3L | 6L | |||||
Material capacity | 1L | 2L | 3L | 5L | 10L | 20L | |||||
Constant pressure funnel | 0.25L | 0.25L | 0.5L | 0.5L | 1L | 1L | |||||
Mixing speed | 0~1200rpm | 0~600rpm | 0~600rpm | ||||||||
Condensation area | 0.03m2 | 0.03m2 | 0.04m2 | 0.05m2 | 0.35m2 | 0.45m2 | |||||
Overall size (CM) | 44*36*132.5 | 52*50*151 | 520*500*1510 | 67*65*192 | 72*70*202 | ||||||
Weight | 65KG | 65KG | 75KG | ||||||||
Power Supply | 110V/60HZ or 220V/50HZ/60HZ | ||||||||||
Power | 120W low-speed booster motor | ||||||||||
Operating pressure | Normal or negative pressure | ||||||||||
Height from the discharge opening to the ground | 80MM | 300MM | 300MM | ||||||||
Model | S212-30L | S212-50L | S212-80L | S212-100L | S212-150L | S212-200L | |||||
Jacket capacity | 10L | 16L | 24L | 30L | 45L | 60L | |||||
Material capacity | 30L | 50L | 80L | 100L | 150L | 200L | |||||
Constant pressure funnel | 2L | 50L | 80L | 2L | 5L | 5L | |||||
Mixing speed | 0~600rpm | ||||||||||
Condensation area | 0.5m2 | 0.65m2 | 1m2 | 1m2 | 1.35m2 | 1.35m2 | |||||
Overall size (CM) | 65*75*240 | 75*70*245 | 77*72*248 | 78*73*250 | 124*114*310 | ||||||
Weight | 85KG | 95KG | 115KG | 125KG | 135KG | 145KG | |||||
Power Supply | 110V/60HZ or 220V/50HZ/60HZ | ||||||||||
Motor Power | 120W low-speed booster | 120W | 200W | 400W | 400W motor | ||||||
Operating pressure | Normal or negative pressure | ||||||||||
Height from the discharge opening to the ground | 300MM | 400MM | 500MM | ||||||||
Product Description
High borosilicate glass
With high-tech firing method, the high borosilicate glass has stable chemical performance, high strength, high hardness and high light transmittance. High and low temperature conversion is not easy to crack, and low-quality products are eliminated for safer use.

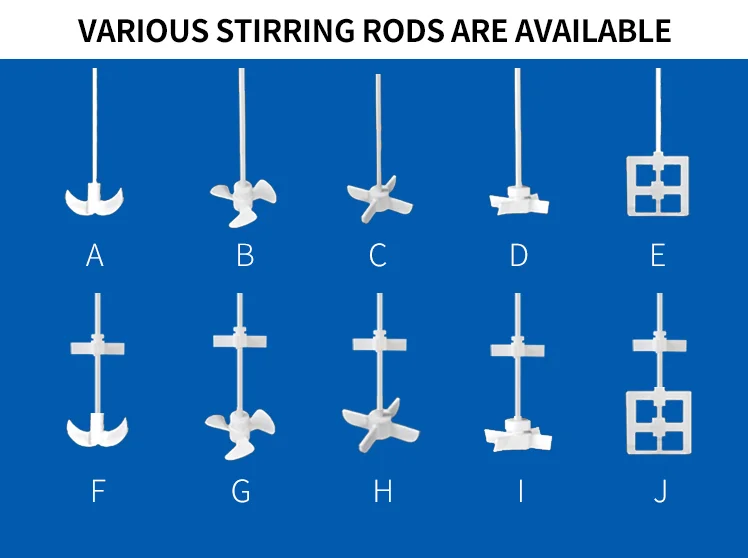

Various stirrers
Stirrer material is 316L stainless steel wrapped with PTFE coat, which has high corrosion resistant performance. (316L stainless steel material optional) Stirring blade can be customized. We also provide various blade shape for your reference.

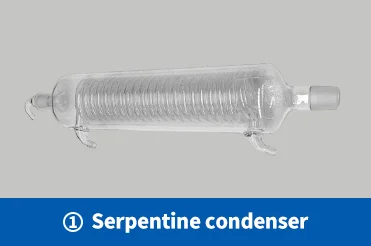

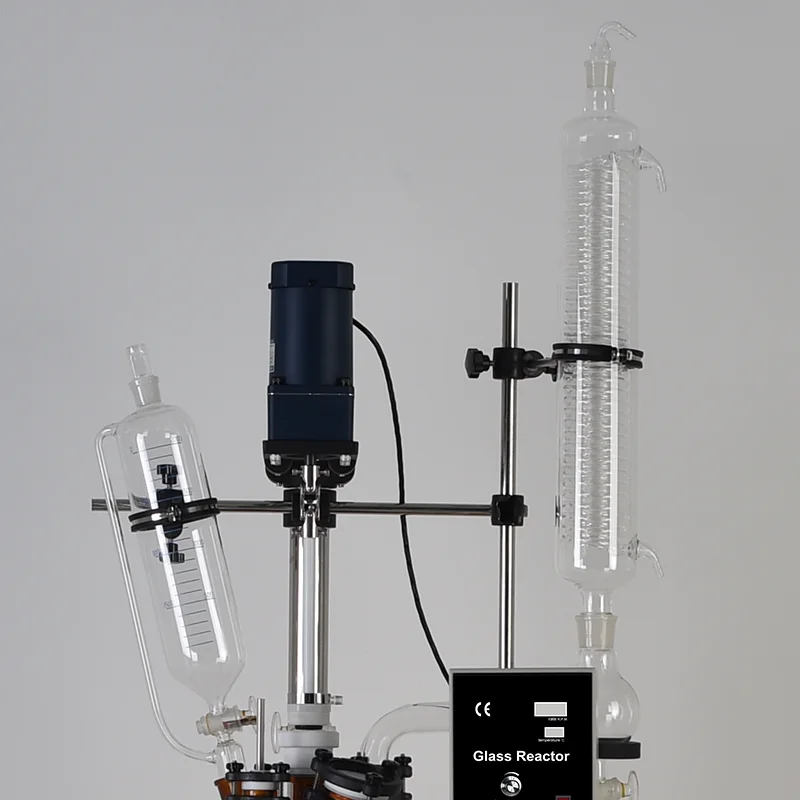

① Serpentine coil condenser, excellent air tightness, high vapor condensation efficiency.

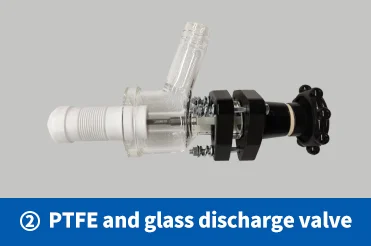

② The combination of high borosilicate glass and PTFE discharge rod design is resistant to corrosion.
② The combination of high borosilicate glass and PTFE discharge rod design is resistant to corrosion.
Also there is no dead corner at the bottom of reaction kettle, so no liquid accumulation exists during discharging.

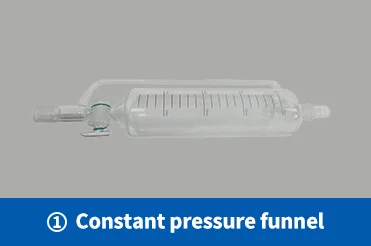

① First, it can prevent sucking back. Second, it can make the liquid in the funnel flow down smoothly. Third, it can reduce the influence of the increased liquid on the gas pressure, so that it is more accurate when measuring the volume.

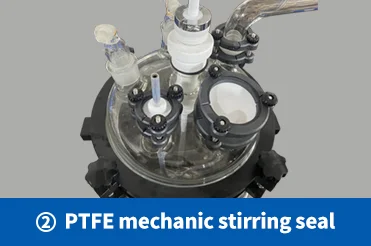

② PTFE seal and ceramic sealing rings are used for sealing, which is anti-corrosion, anti-wear and maintains high sealing vacuum degree.
② PTFE seal and ceramic sealing rings are used for sealing, which is anti-corrosion, anti-wear and maintains high sealing vacuum degree.

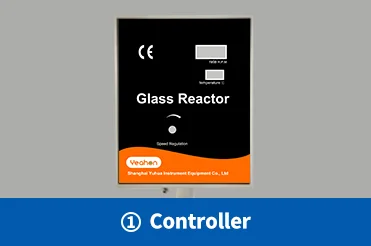

① The motor is equipped with a frequency controller, which can easily adjust the speed through the speed control knob. The controller displays the speed and temperature. (Explosion-proof type Optional)

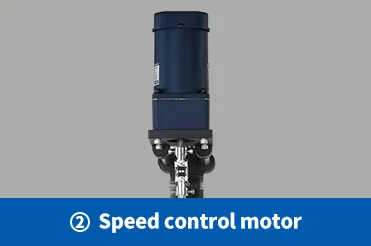

② All copper brushless variable-frequency speed regulating motor, no brush, no spark, low noise, safety, stability, long life,
overload protection, constant speed, stable starting. (Explosion-proof type Optional)
overload protection, constant speed, stable starting. (Explosion-proof type Optional)

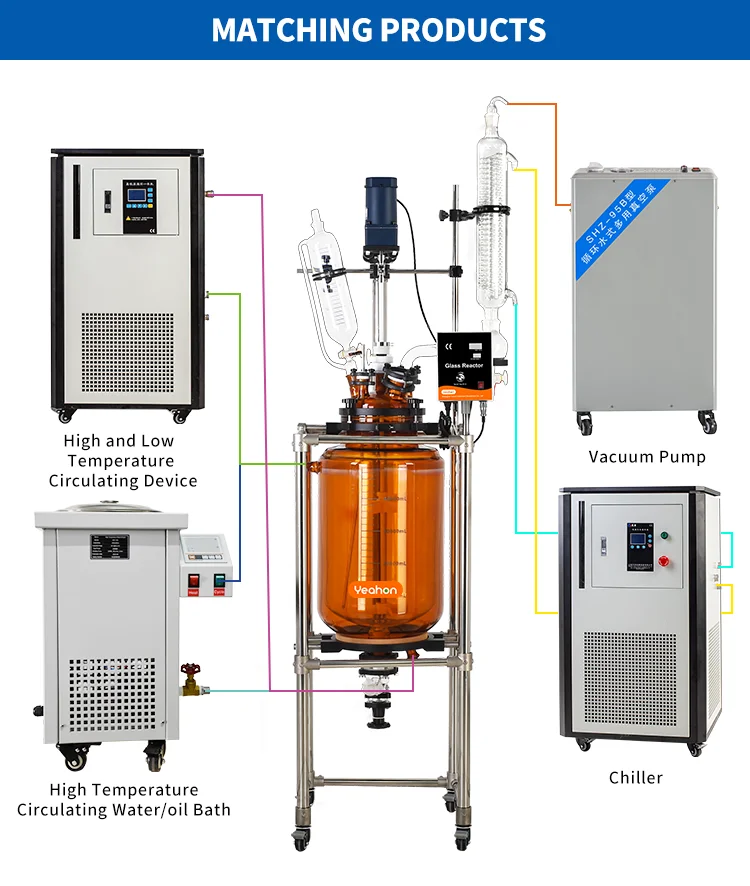

Matching products

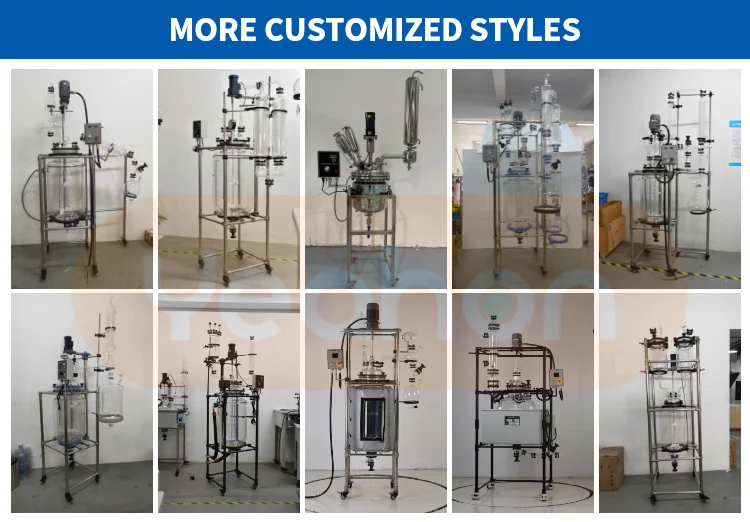

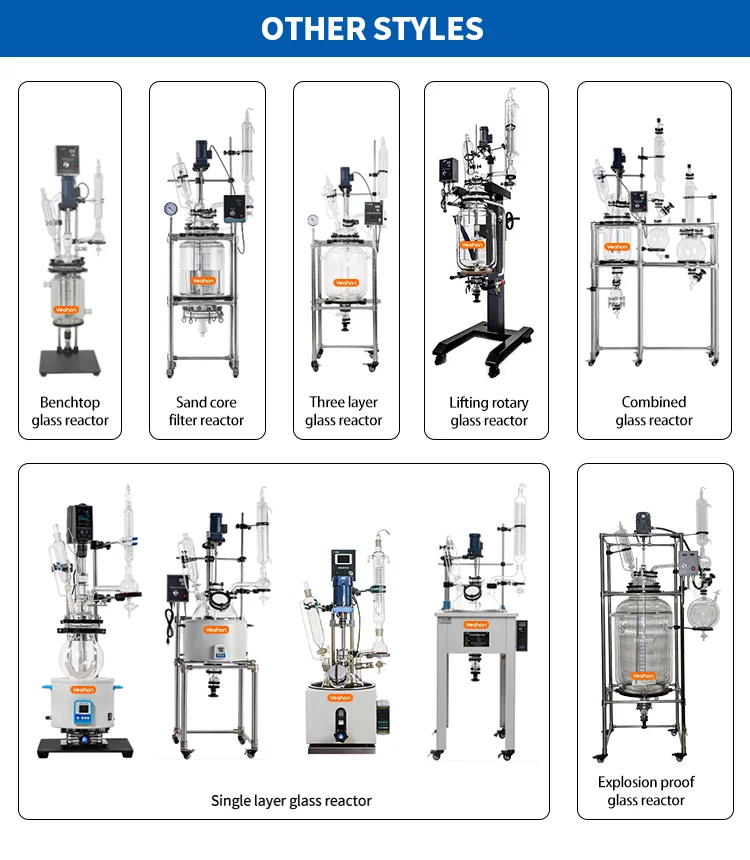

Other styles
These accessories are optional: glass shield, explosion proof motor, PTFE lid, new type PTFE rod, insulation clothes, SS304 frame with PTFE coating. We are a direct selling manufacturer, with many types of reactors, which can also be customized according to customer requirements.
For more customized styles, you can consult our sales, or tell us your customized needs, we have professional designers who will draw for you.
