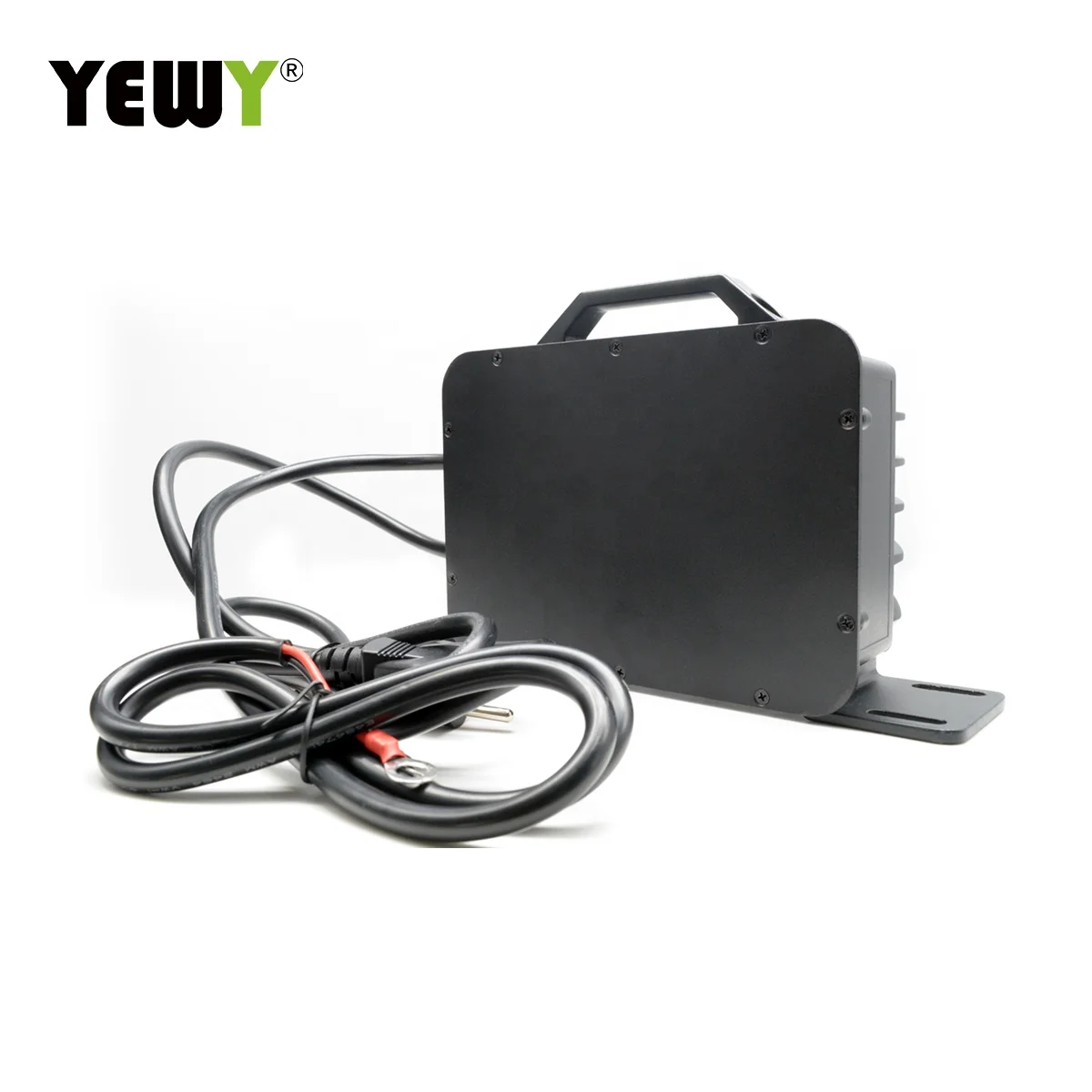

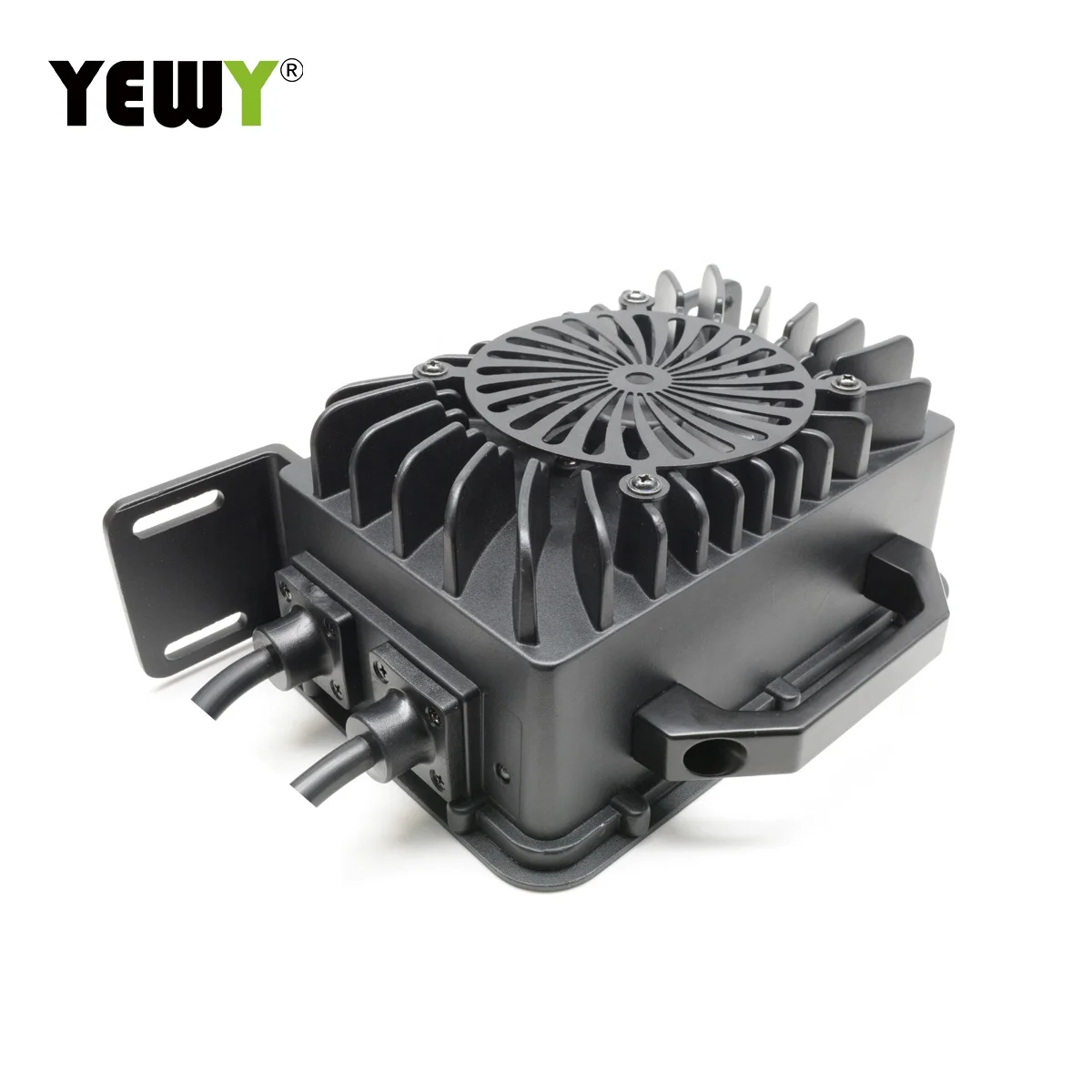

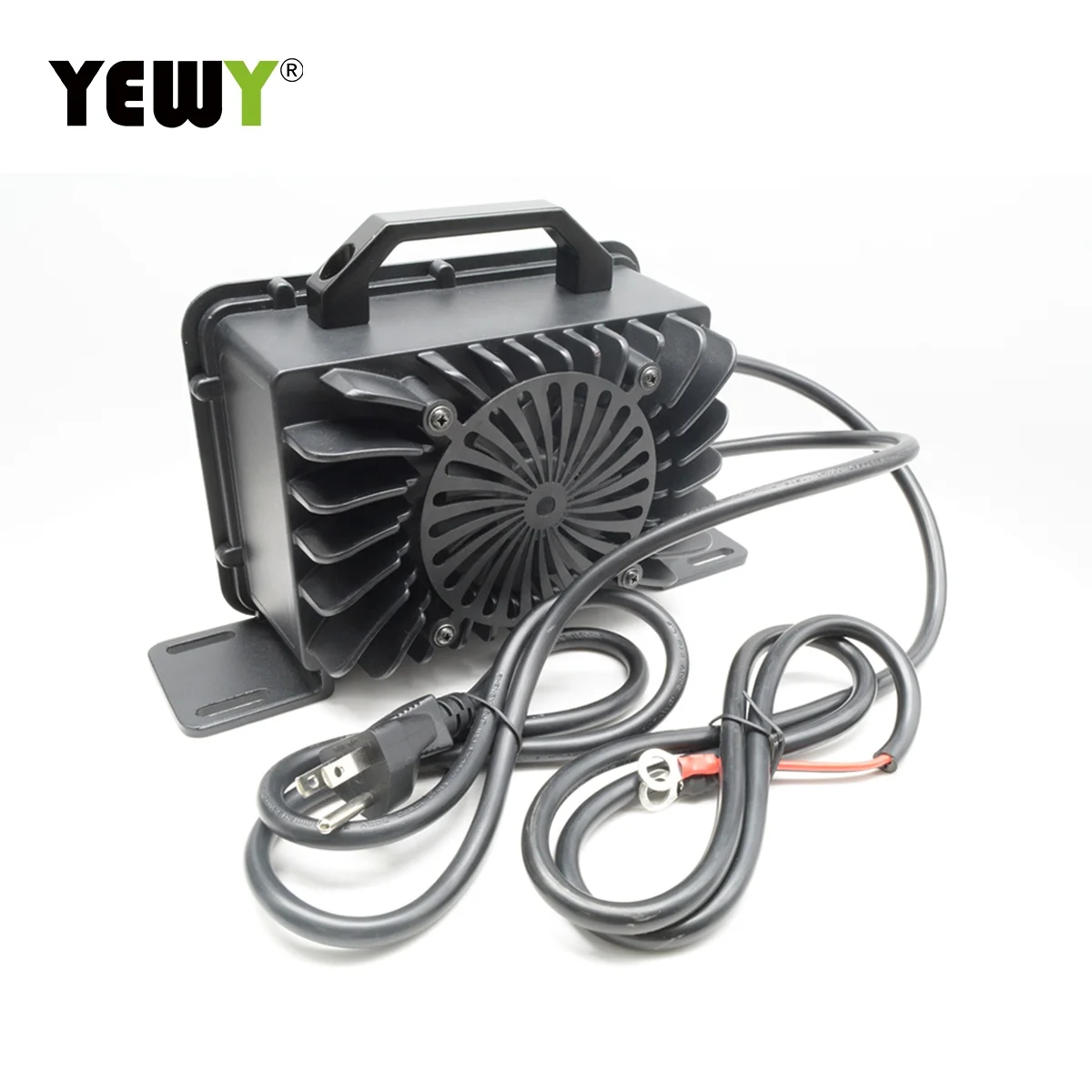

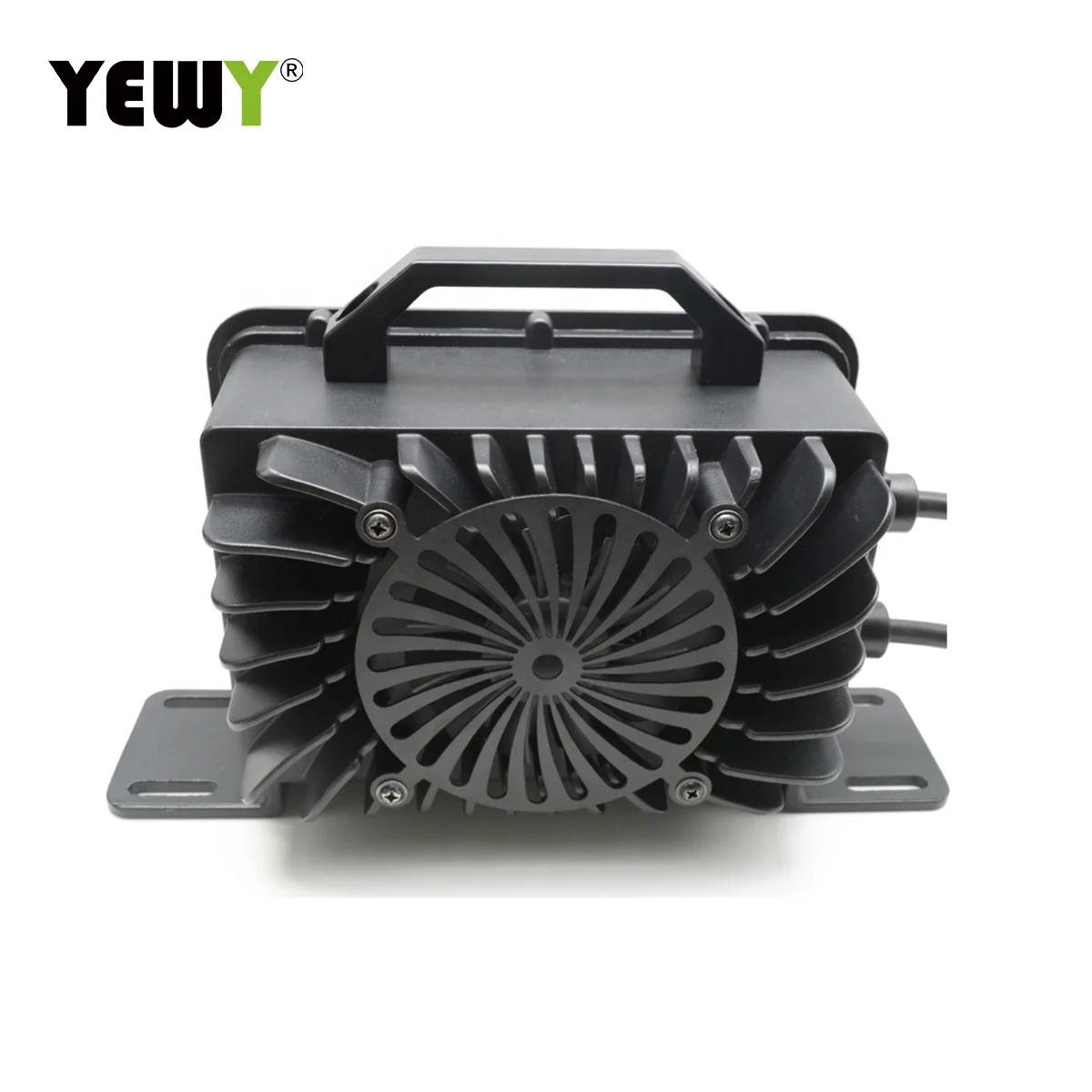

YEWY 900W CAN RS485 Bluetooth 36V 20A 36volt 20amp L A Lead Acid Golf Cart Battery Charger
- Category: >>>
- Supplier: Guangzhou Yunyang Electronic Technology Co. Ltd.
Share on (1600824256943):
Product Overview
Description
Guangzhou Yunyang Electronic Technology Co.,Ltd.
Professional Battery Charger Manufacturer
China "National Hi-Tech Enterprise"
Product Details
Charger Model: | UY900S | Max Power: | 900W | ||

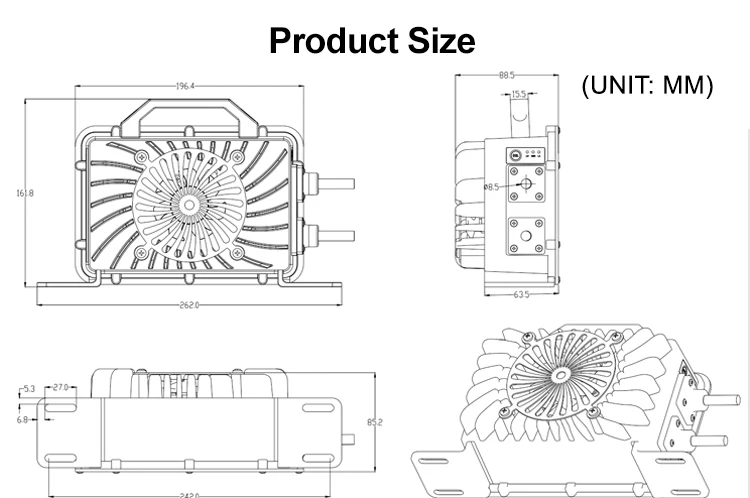

Shell: | Aluminium Alloy | Size: | 262*88.5*161.8mm | ||
Communication: | CAN, RS485, Bluetooth | Waterproof: | IP65 | ||
Max Efficiency: | >=93% | Operating Temperature: | -20 to 40℃ | ||
Storage Temperature: | -40 to +70℃ | Noise: | <=40dB | ||
Cooling: | Temperature and load current-controlled fan | ||||
Protection: | Over-temperature, over-voltage, over-current, short-circuit, and reverse connection protection. | ||||
UY900S-W294200 | UY900S-W441180 | UY900S-W588150 | ||||
Output | LFP charging voltage | 29.2V | 43.8V | 58.4V | ||
NCM charging voltage | 29V | 43.5V | 58V | |||
L-A charging voltage | 29.4V | 44.1V | 58.8V | |||
Floating charge voltage | 27.6V(only Lead) | 41.4V(only Lead) | 55.2V(only Lead) | |||
Maximum charging current | 20A | 18A | 15.0A | |||
Rotating lamp current | Lead 5.0A/ Lithium 1.8A | Lead 4.5A/ Lithium 1.44A | Lead 3.75A/ Lithium 1.2A | |||
Input | Voltage range | 90V~260VAC | ||||
Frequency range | 47~63Hz | |||||
Power factor | PF>0.98/115VAC, PF>0.95/230VAC at full load | |||||
AC current(type) | 12A/115VAC 6.5A/230VAC | |||||
Inrush current(type) | COLD START 50A at 230VAC | |||||
Lithium Battery Charger Charging Curve
Charging mode：6 stage
Pre-Charge, CC mode, CV mode ,Battery Full, Recharge
Lead Acid Battery Charger Charging Curve
Charging mode：5 stage
Pre-Charge, CC mode, CV mode ,Battery Full&Float Charge

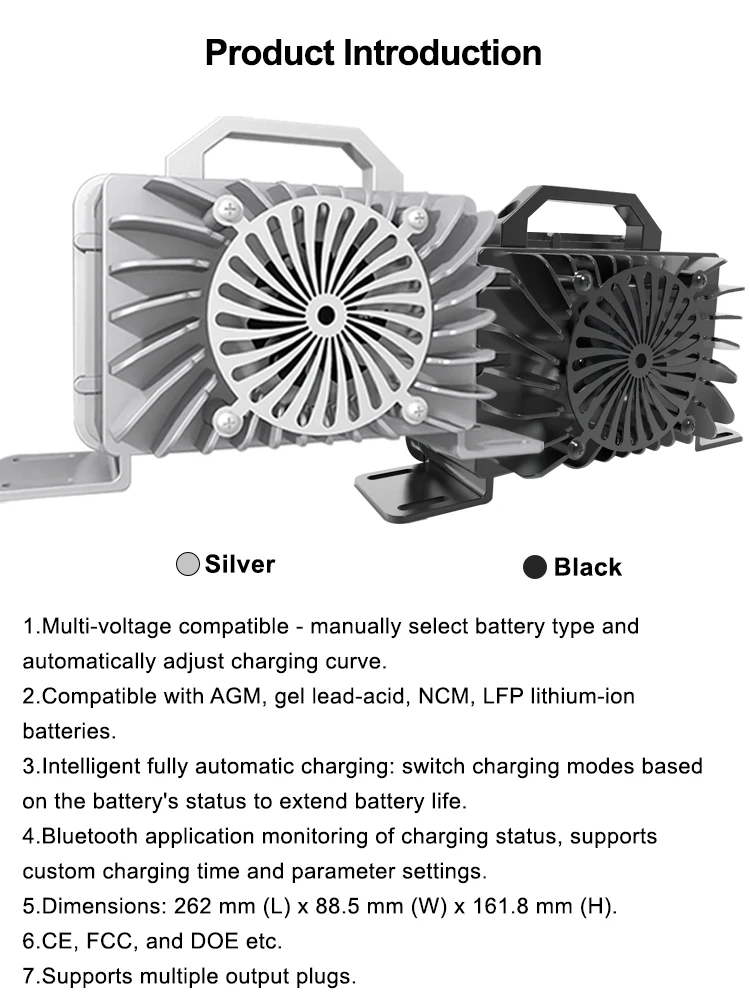

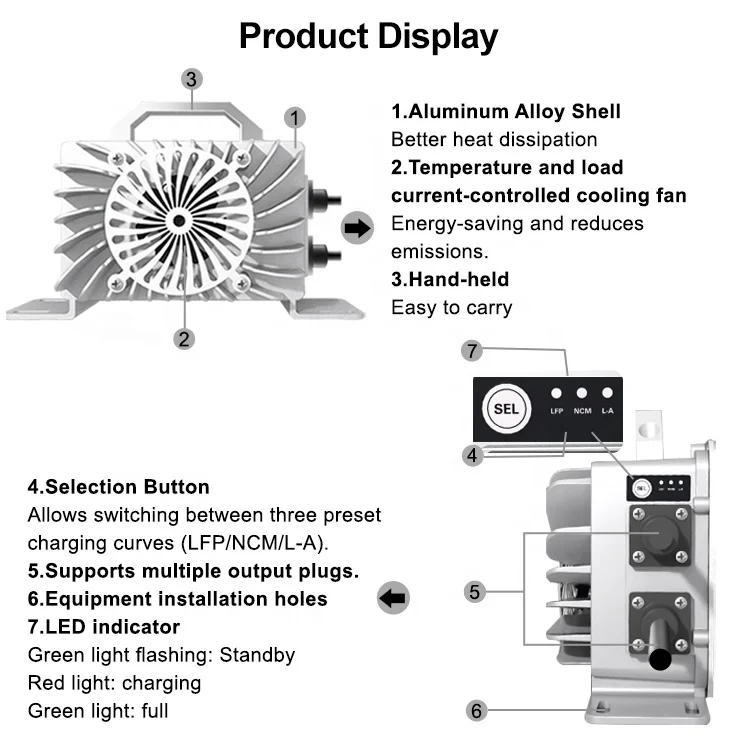

1.Aluminum Alloy Shell
- provides better heat dissipation performance.
2.Temperature and load current-controlled fan
2.Temperature and load current-controlled fan
- energy-saving and reduces emissions.
3.Handle-held
3.Handle-held
- easy to carry.
4.Selection button
4.Selection button
- allows switching between three preset charging curves (LFP/NCM/L-A).
5.Supports multiple output plugs.
6.Equipment installation holes.
7.LED indicator lights:
Green light flashing: Standby.
Red light: charging.
Green light: full.
5.Supports multiple output plugs.
6.Equipment installation holes.
7.LED indicator lights:
Green light flashing: Standby.
Red light: charging.
Green light: full.

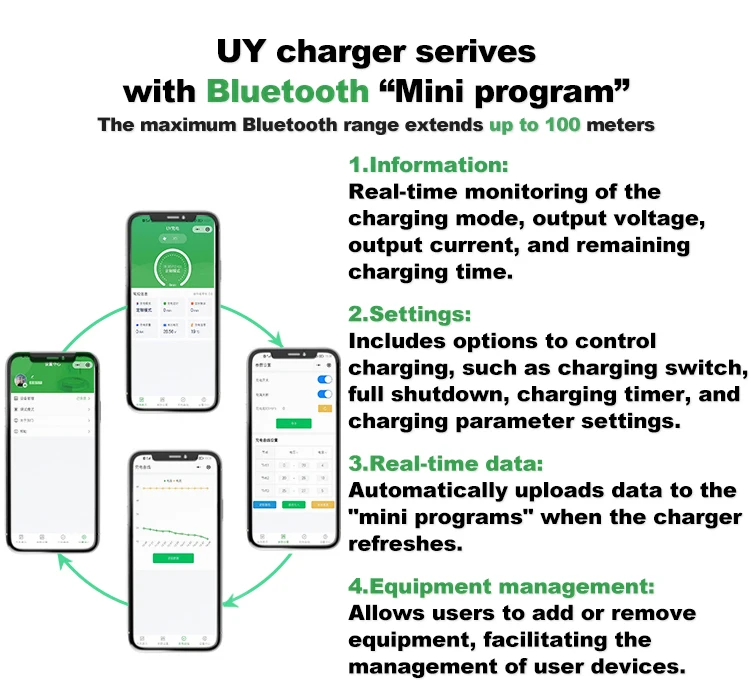

UY charger series with Bluetooth "Mini programs"
The maxium Bluetooth range extends up to 100 meters
1.Information: Real-time monitoring of charge mode, output voltage, output current, and time remaining in the timer.
2.Settings: Include options to control charging, such as charging switch, full shutdown, charging timer, and charging parameter settings.
3.Real-time Information: Automatically uploads data to the "mini programs" when the charger refreshes.
4.Equipment Management: Allows users to add or remove equipment, facilitating the management of use devices.
3.Real-time Information: Automatically uploads data to the "mini programs" when the charger refreshes.
4.Equipment Management: Allows users to add or remove equipment, facilitating the management of use devices.

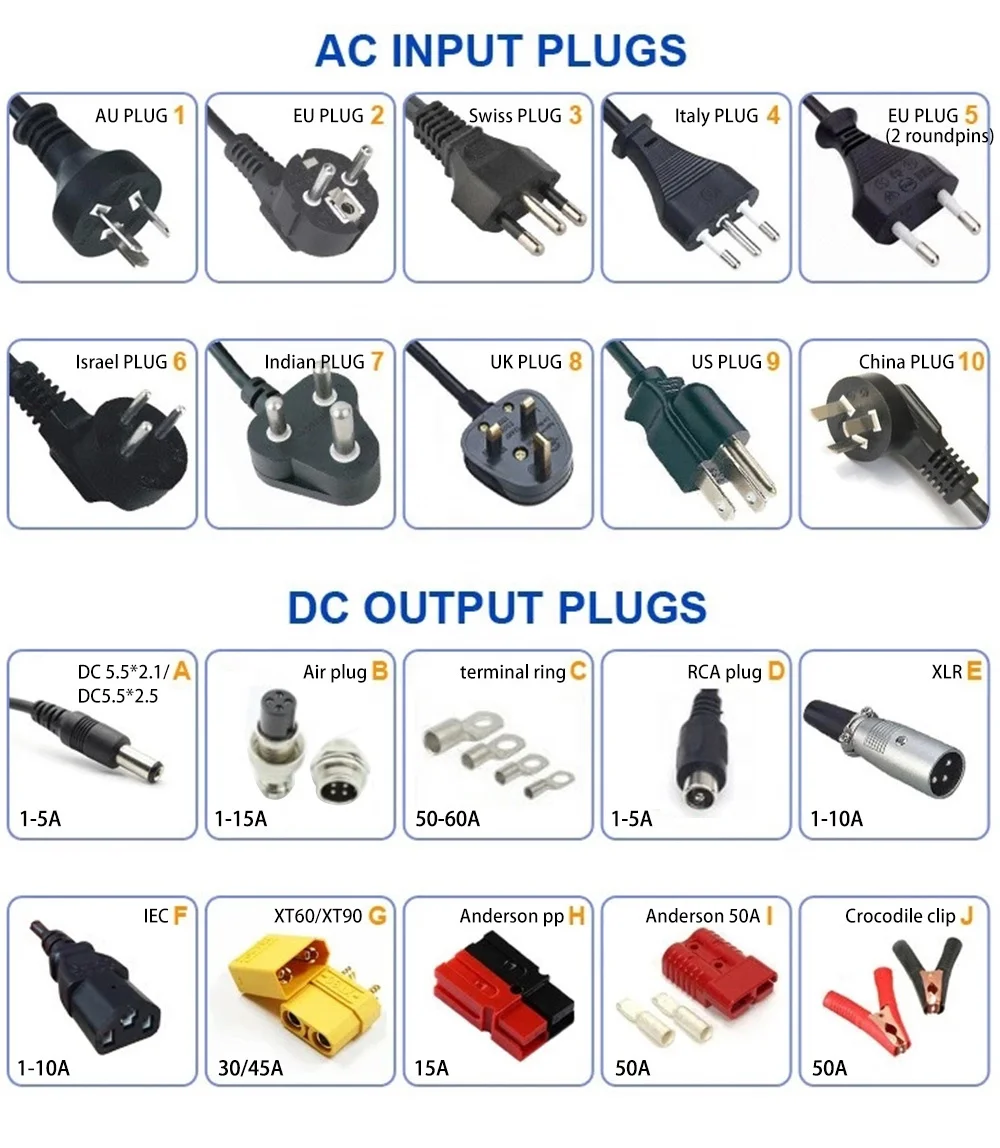

Input&Output Plug
Input Plug from 1 to 10, Output Plug from A to J, choose according to your demand.
If you have any special requirement, please contact us!
YEWY Battery Charger Parameters | ||||||||||||||||
Model | Input 47~63Hz | Power | (voltage & Current) | 24v | 36v | 48v | 60v | 72v | ||||||||
Model | Input 47~63Hz | Power | 12V | 24V | 36V | 48V | 60V | 72V | ||||||||
Umini | 100-240Vac | 120w | 6A | 4A | 2.5A | 2A | 1.5A | 1A | ||||||||
UY120 | 100-240Vac | 120w | 6A | 4A | 2.5A | 2A | - | - | ||||||||
UY180 | 110/220Vac | 180w | 8A | 6A | 4A | 3A | 2A | 2A | ||||||||
UY240 | 110/220Vac | 240W | 15A | 8A | 5A | 4A | 3A | 2A | ||||||||
UY360 | 110/220Vac | 360W | 18A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY600 | 110/220Vac | 600W | 30A | 20A | 12A | 10A | 8A | 6A | ||||||||
UY900 | 110/220Vac | 900W | 40A | 28A | 18A | 15A | 12A | 10A | ||||||||
UY1200 | 110/220Vac | 1200W | 50A | 35A | 25A | 20A | 15A | 12A | ||||||||
UY1500 | 110/220Vac | 1500W | 70A | 45A | 30A | 25A | 20A | 16A | ||||||||
UY2000 | 110/220Vac | 2000W | 100A | 60A | 40A | 30A | 25A | 20A | ||||||||
UY2500 | 110/220Vac | 2500W | 100A | 70A | 60A | 60A | 50A | 23A | ||||||||
UY240LP | 100-240Vac | 240W | 10A | 8A | 5A | 4A | 3A | 2A | ||||||||
UY300LP | 100-240Vac | 300W | 15A | 10A | 7A | 5A | 4A | 3A | ||||||||
UY360L | 100-240Vac | 360W | 20A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY360LP | 100-240Vac | 360W | 20A | 12A | 8A | 6A | 5A | 4A | ||||||||
UY600L | 100-240Vac | 600W | 30A | 20A | 12A | 10A | 8A | 6A | ||||||||
UY600S | 100-240Vac | 600W | 25A | 18A | 12A | 10A | 8A | 6A | ||||||||
UY900S | 100-240Vac | 900W | - | 30A | 20A | 15A | 12A | 10A | ||||||||
UY900L | 100-240Vac | 900W | 35A | 30A | 20A | 15A | 12A | 10A | ||||||||
UY1200S | 100-240Vac | 1200W | 50A | 35A | 25A | 20A | 16A | 12A | ||||||||
UY1500S | 100-240Vac | 1500W | 50A | 45A | 30A | 25A | 20A | 16A | ||||||||
L: PFC +LLC charger, Universal, with PFC, the efficiency up to 93%. LP/S: PFC+LLC, Waterproof | ||||||||||||||||
Application Scenario
Our charger ADAPTS to lithium iron phosphate battery, lithium ion battery, lithium polymer battery, lithium manganese acid battery, lead-acid battery, AGM, colloidal battery, silicone battery, etc.
Scope of application: Power tools, electric bikes, electric motorcycles, electric sweepers, electric atVs, electric cars, AGV, Forklift, robat, on the boat, drones,golf carts, surfboards, etc.
Scope of application: Power tools, electric bikes, electric motorcycles, electric sweepers, electric atVs, electric cars, AGV, Forklift, robat, on the boat, drones,golf carts, surfboards, etc.
Company Profile
ABOUT US
Guangzhou Yunyang Electronic Technology Co., Ltd was established in 2013, but our history dates back to 2008 when we operated as Danl Industrial Co., Limited. With 15 years of experience in the battery charger industry, we are a professional and high-tech company that specializes in designing, manufacturing, and providing power supply solutions and support services.

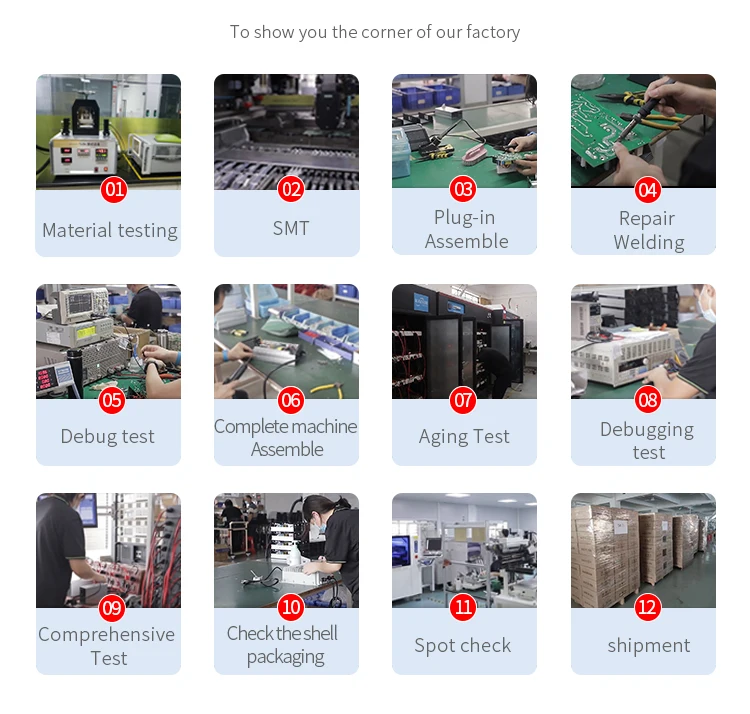

Products Process
Certifications
IOS 9001:2015,CE,CB,LVD,C-TUV-US,ROHS,FCC,UL,CQC,GS,KC,KCC,RCM
Shipping & Payment
FAQ
Q: How do I choose a charger?
A: To make sure our charger is suitable for your battery pack,
Please send us the following information:
A: To make sure our charger is suitable for your battery pack,
Please send us the following information:
(1) Battery type (2) Number of series units (3) Battery pack capacity (AH) (4) Maximum charging voltage.
Q: Can I have a sample order?
A: Yes, we can provide n initial sample for your requirements.
Q: Why choose us?
A :* More competitive prices! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.
*Certification! All Charger certified by CE& ROHS. Also have relevant certificates of FCC, CB, LVD, KC & KCC for waterproof series products.
A :* More competitive prices! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
* Fast delivery! Mature factory, experienced engineers and efficient workers.
* Good transportation service! We have long-term cooperation with DHL, UPS and EMS, so we can promise to save more transportation costs and provide better services.
* Experienced professional service! More than 15 years of professional research and development team and experience. Maintain good cooperative relationship with more than 200 dealers. Have a good reputation in the industry.
* Warranty service! The warranty lasts for 18 months.
*Certification! All Charger certified by CE& ROHS. Also have relevant certificates of FCC, CB, LVD, KC & KCC for waterproof series products.
Q: Can I have a sample order?
A: Yes, we can provide n initial sample for your requirements.
