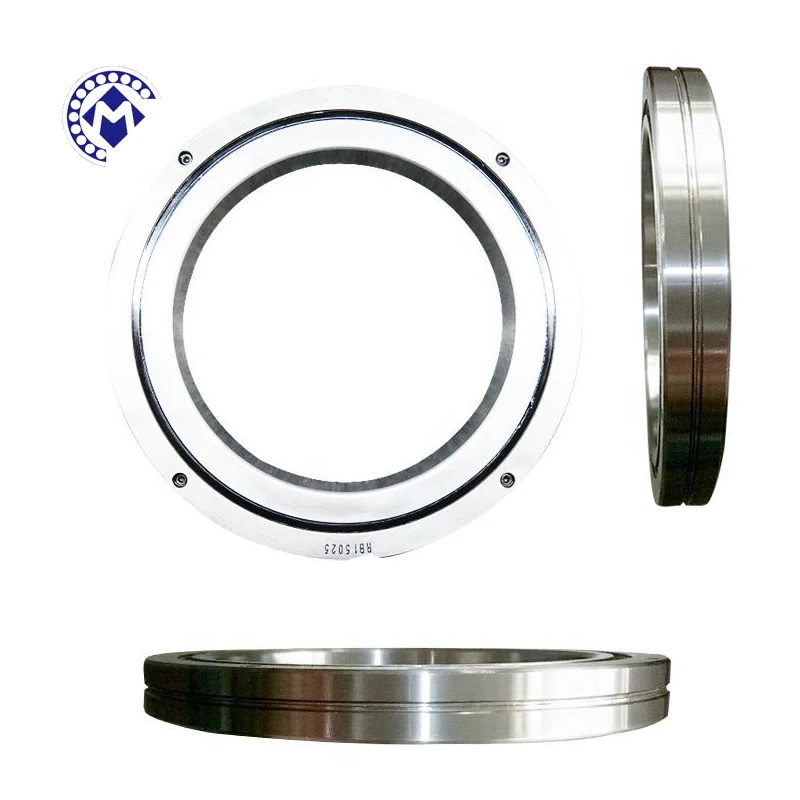

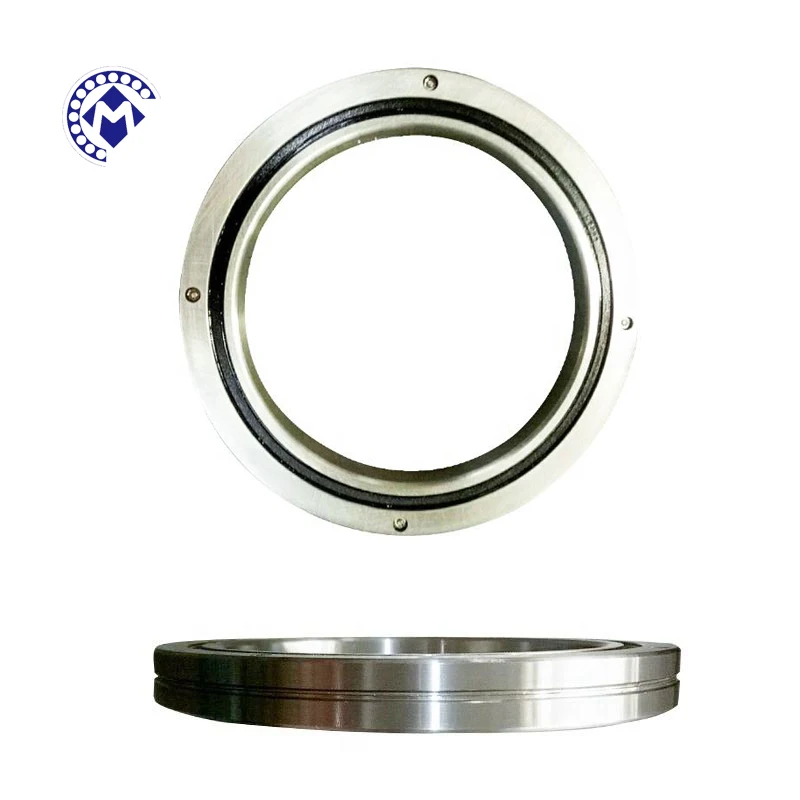

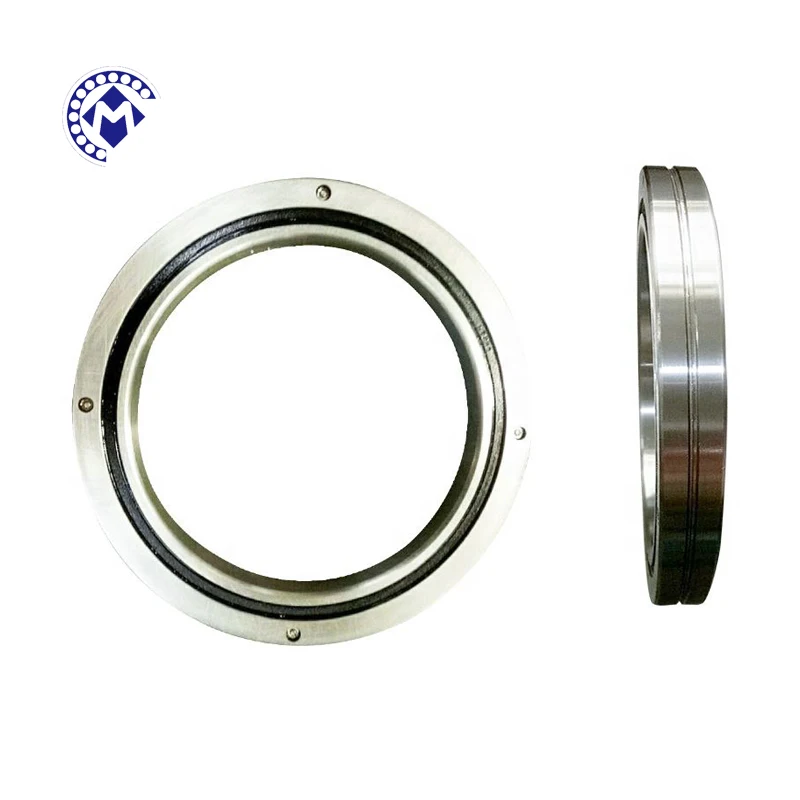

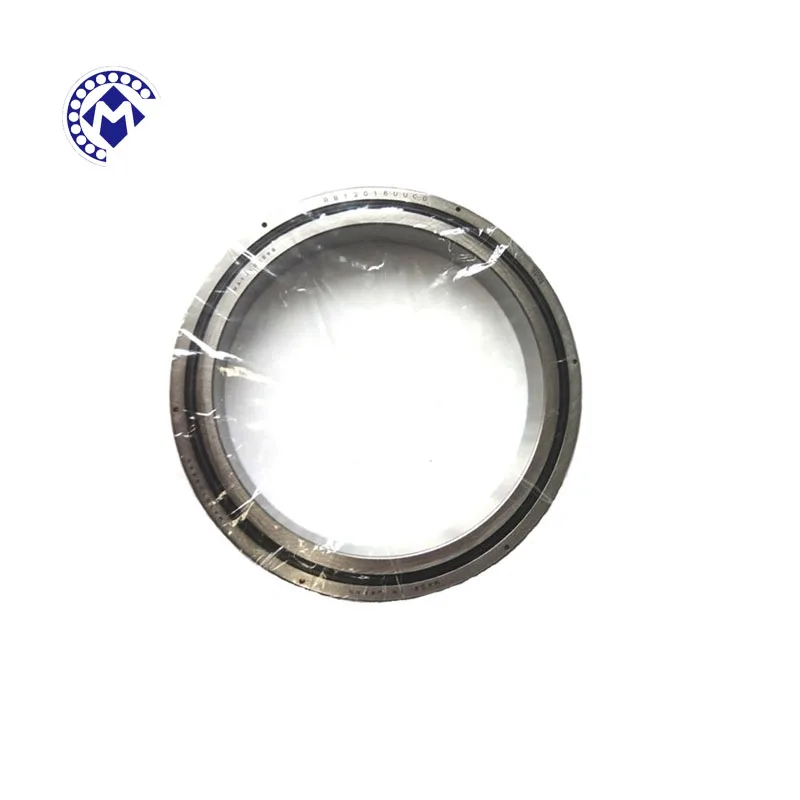

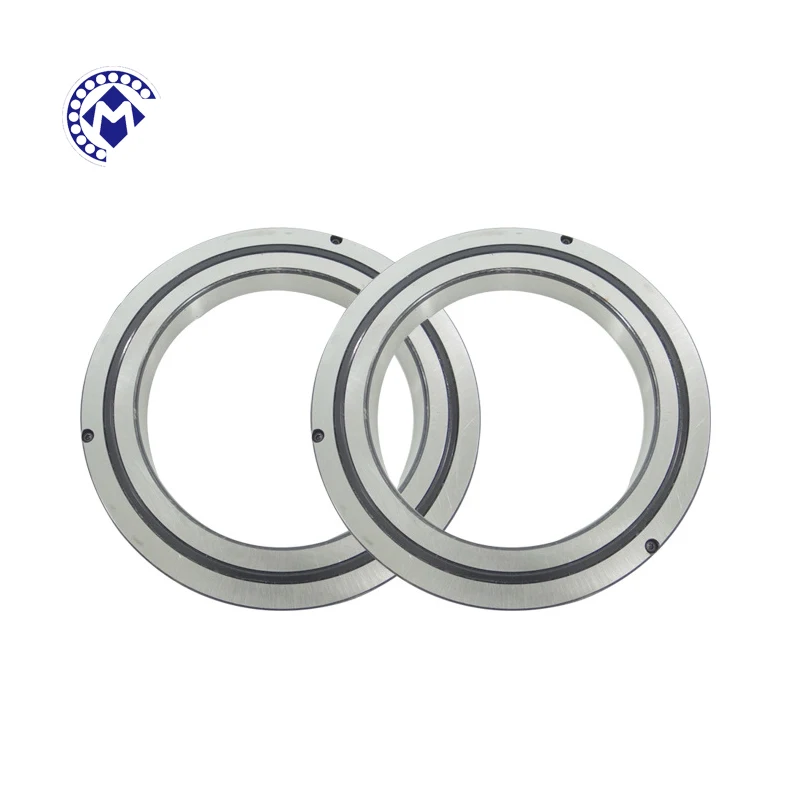

Thin Section Robotic RB15013 Crossed Roller Bearings Size 150x180x13 mm
- Category: >>>
- Supplier: Luoyang Mc Bearing Technology Co. Ltd.
Share on (1600824348803):
Product Overview
Description
Thin Section Robotic RB15013 Crossed Roller Bearings Size 150x180x13 mm

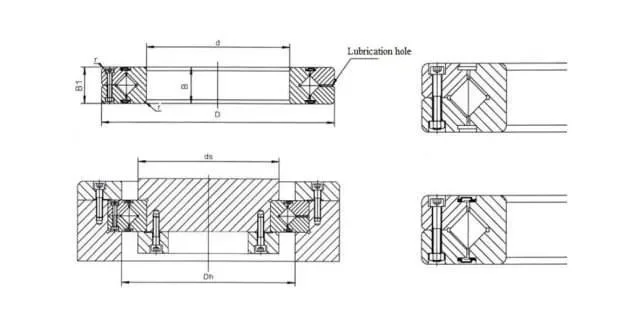

RBseries crossed roller bearing
RB standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.
Product Description
| TYPE | Inner diameter | Outer diameter | Pitch diameter | Height | Chamfer | Shoulder size | Basic rated load(Radial) | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
| d | D | Dpw | B | r | ds | Dh | Cr Kn | Cor Kn | KG | |
| RB 2008 | 20 | 36 | 27 | 8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
| RB 2508 | 25 | 41 | 32 | 8 | 0.5 | 28.5 | 35.5 | 3.63 | 3.83 | 0.05 |
| RB 5013 | 50 | 80 | 64 | 13 | 0.6 | 57.4 | 72 | 16.7 | 20.9 | 0.27 |
| RB 6013 | 60 | 90 | 74 | 13 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
| RB 12016 | 120 | 150 | 134.2 | 16 | 0.6 | 127 | 141 | 24.2 | 43.2 | 0.72 |
| RB 12025 | 120 | 180 | 148.7 | 25 | 1.5 | 133 | 164 | 66.9 | 100 | 2.62 |
| RB 13015 | 130 | 160 | 144.5 | 15 | 0.6 | 137 | 152 | 25 | 46.7 | 0.72 |
| RB 15013 | 150 | 180 | 164 | 13 | 0.6 | 157 | 172 | 27 | 53.6 | 0.68 |
| RB 15025 | 150 | 210 | 178 | 25 | 1.5 | 164 | 194 | 76.8 | 128 | 3.16 |
| RB 24025 | 240 | 300 | 269 | 25 | 2.5 | 256 | 281 | 68.3 | 145 | 4.5 |
| RB 25025 | 250 | 310 | 277.5 | 25 | 2.5 | 265 | 290 | 69.3 | 150 | 5 |
