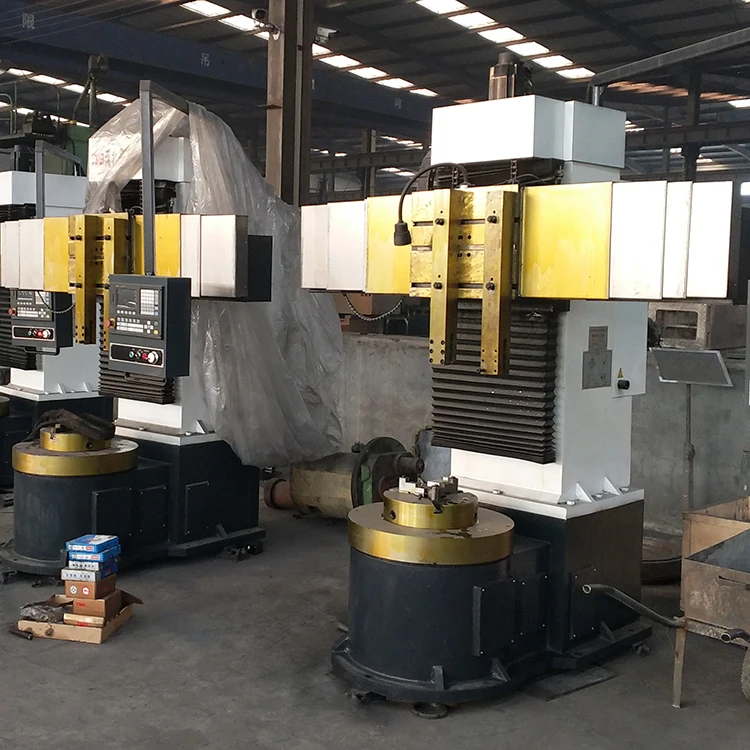

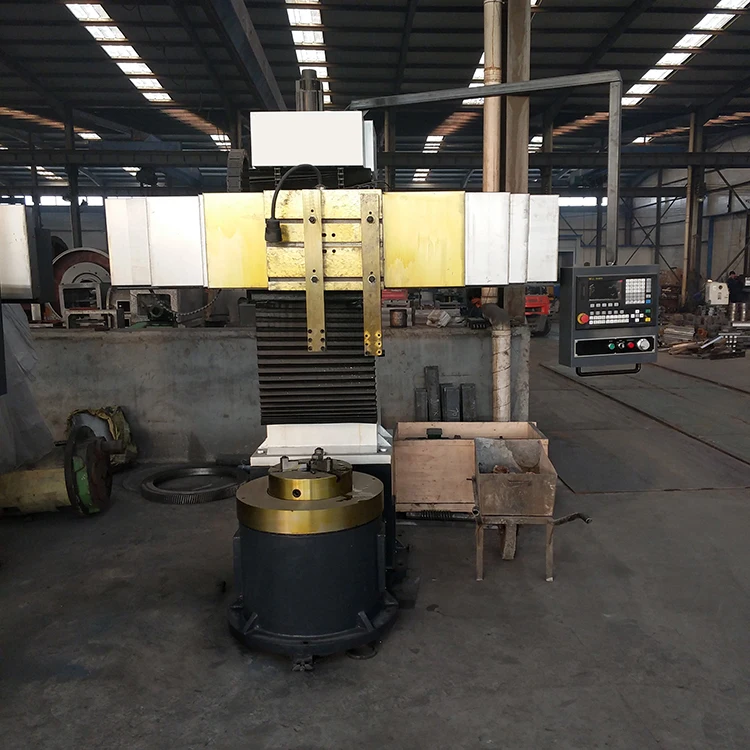

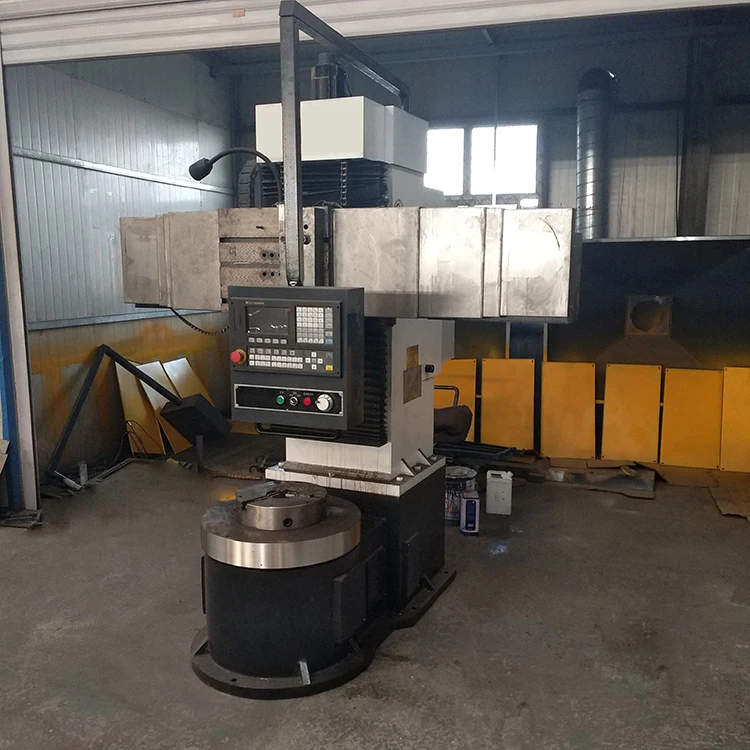

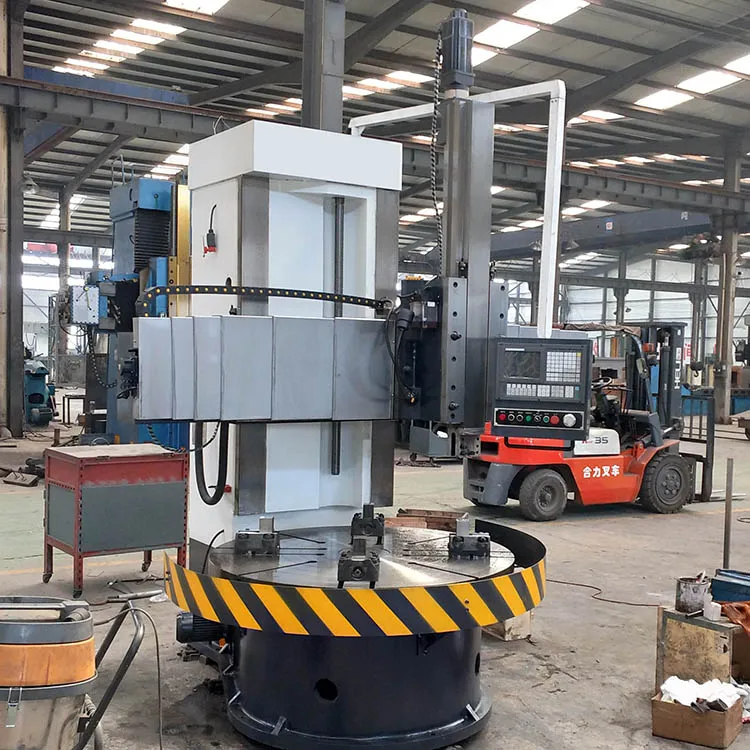

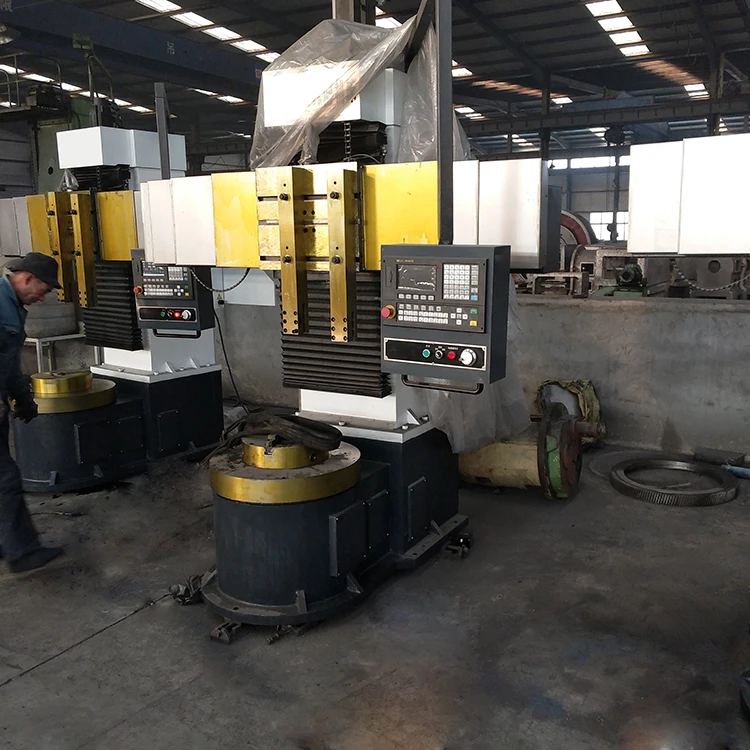

High Precision Vertical Machining CNC Lathe Metal Drilling Milling Machine with CE






Product Description


The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.


CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.


Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.


Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.

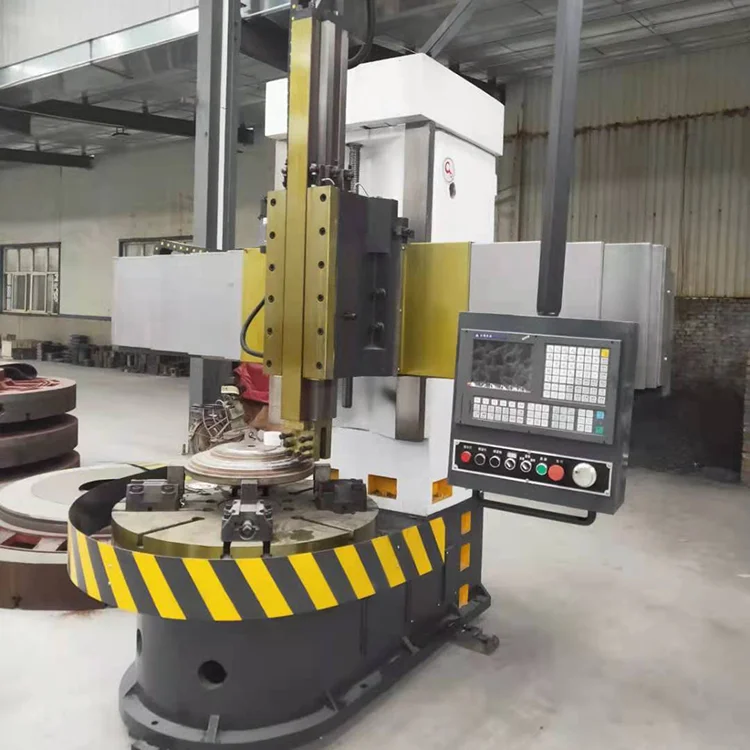

CNC full automatic .png

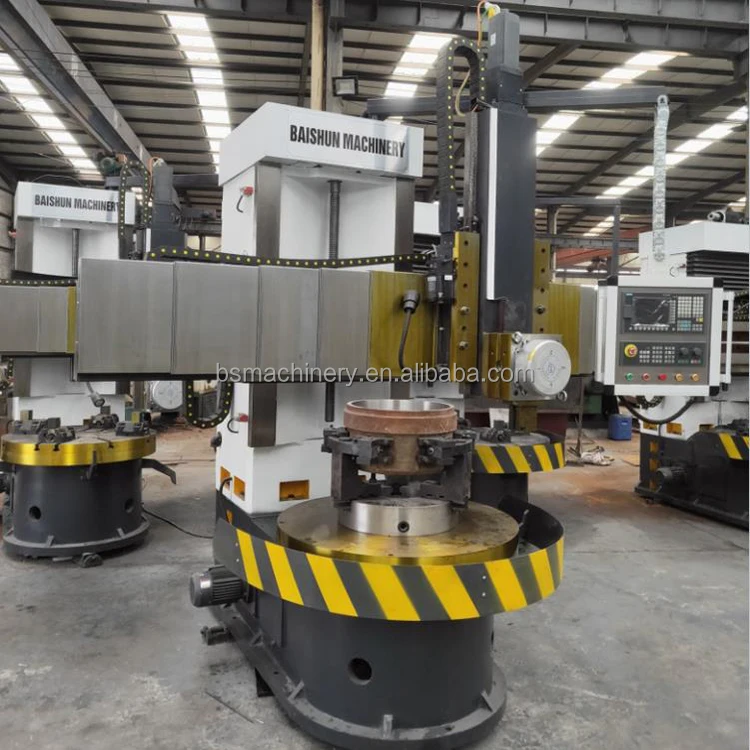

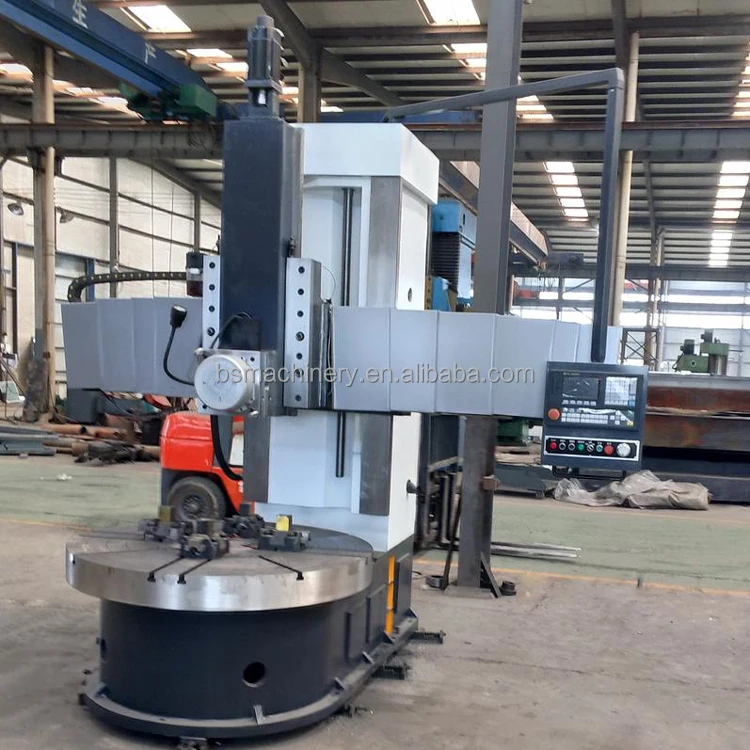

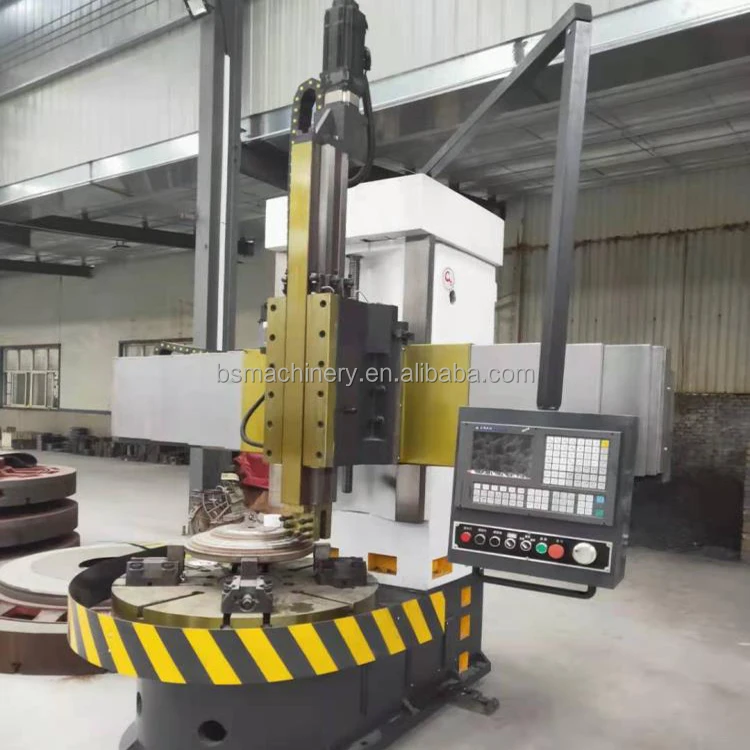

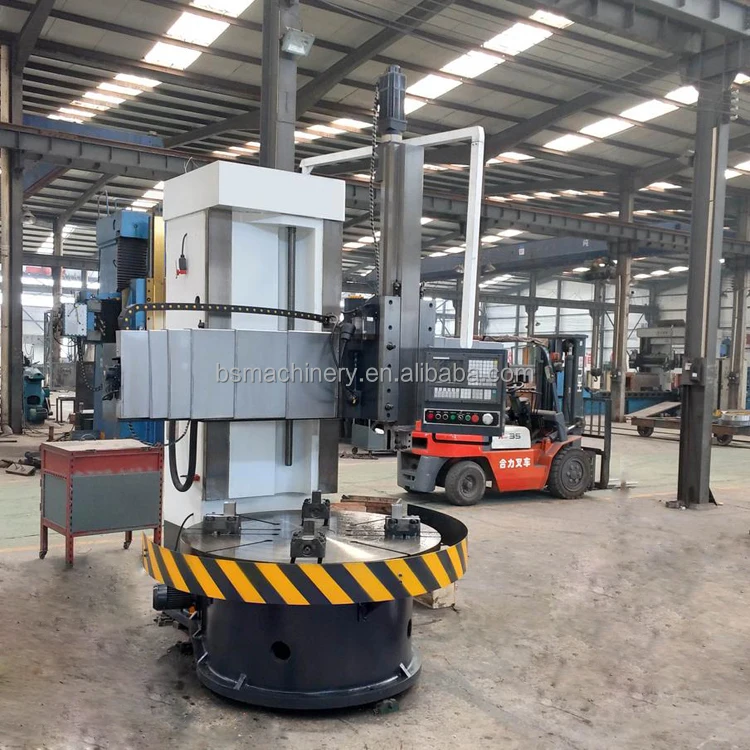

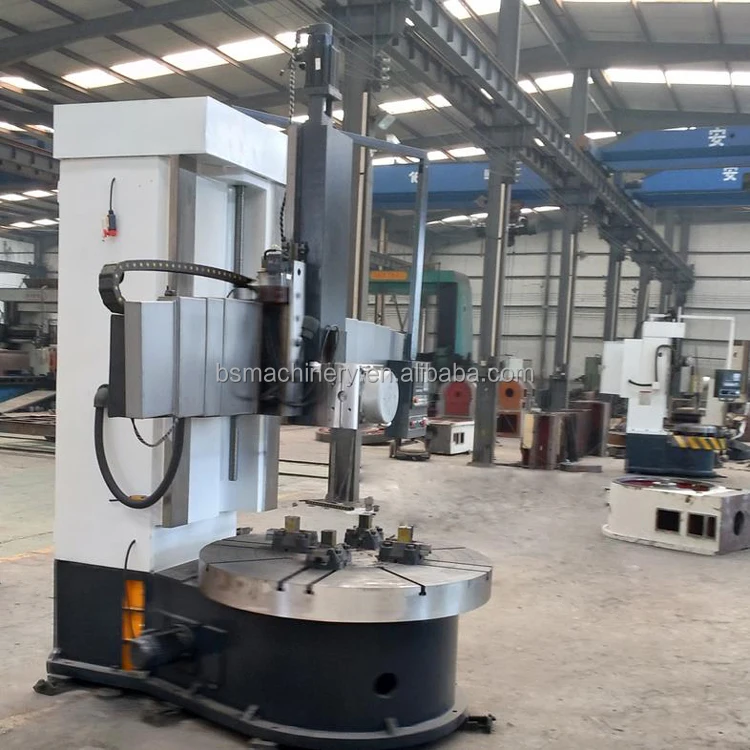

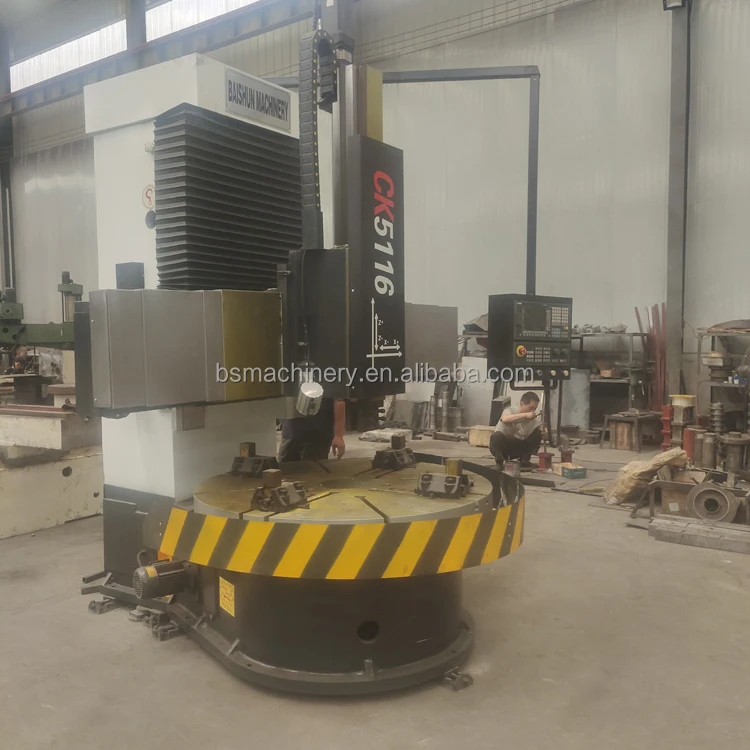

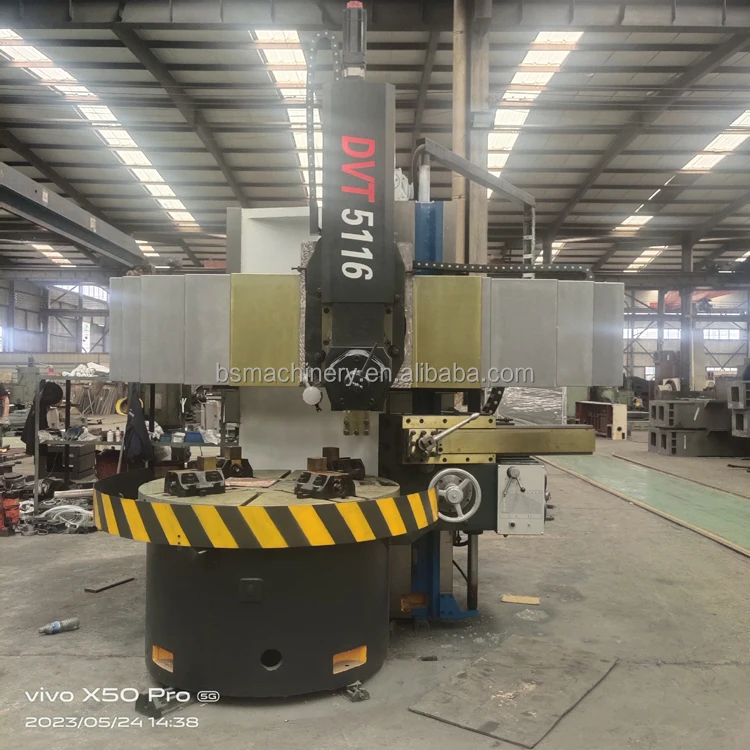

 _20230606092149.jpg_20230606092649.jpg_20230525095852.jpg_20230525100028.jpg_20230606092959.jpg_20230606093041.jpg_20230606093119.jpg_20230525100131.jpg



Machine Parameter






























































































































Model



CK518



CK5112A



CK5116Q



CK5116A



CK5120A



CK5126A



Max. turning diameter of vertical tool rest (mm)



800



1200



1600



1600



2000



2600



Working table diameter (mm)



700



1000



1400



1400



1800



2200



Max. height of work-piece (mm)



800



1000



1200



1200



1250



1400



Max. weight of work-piece (kg)



1500



3200



3200



5000



8000



8000



Range of worktable rotation speed (rpm)



30-260



6.3-200



15-160



5-160



3.2-100



2.2-70



Feeding series



Stepless



Stepless



Stepless



Stepless



Stepless



Stepless



Range of tool rest feed (mm/min)



0.25-90



0.8-86



0.25-90



0.8-86



0.8-86



0.8-86



Cross beam travel (mm)



500



650



1200



650



890



1090



Horizontal travel of tool rest (mm)



500



700



900



916



1115



1400



Vertical travel of tool rest (mm)



450



650



750



800



800



800



Size of section of cutter bar (mm)



30*40



30*40



30*40



30*40



30*40



30*40



Main motor power (kw)



11



22



15



30



30



30
