Factory direct sale target retrieval system moving shooting target running target with automatic scoring system
- Category: >>>
- Supplier: Rizhao Zhongtai Sports Equipment Co. Ltd.
Share on (1600824417978):
Product Overview
Description
FNY Infantry moving target
Remark
Shooting target system MOQ: 1
Shooting target system can be customized
System Purpose
In training, infantry moving targets simulate the linear movement characteristics, appearance characteristics, and effects of an imaginary enemy individual after being hit.
Support high-precision shock wave target reporting, mainly used for training in subjects such as target application shooting and tactical shooting.
Infantry moving targets can meet the requirements of light weapons against single or group targets, and record and evaluate shooting performance.

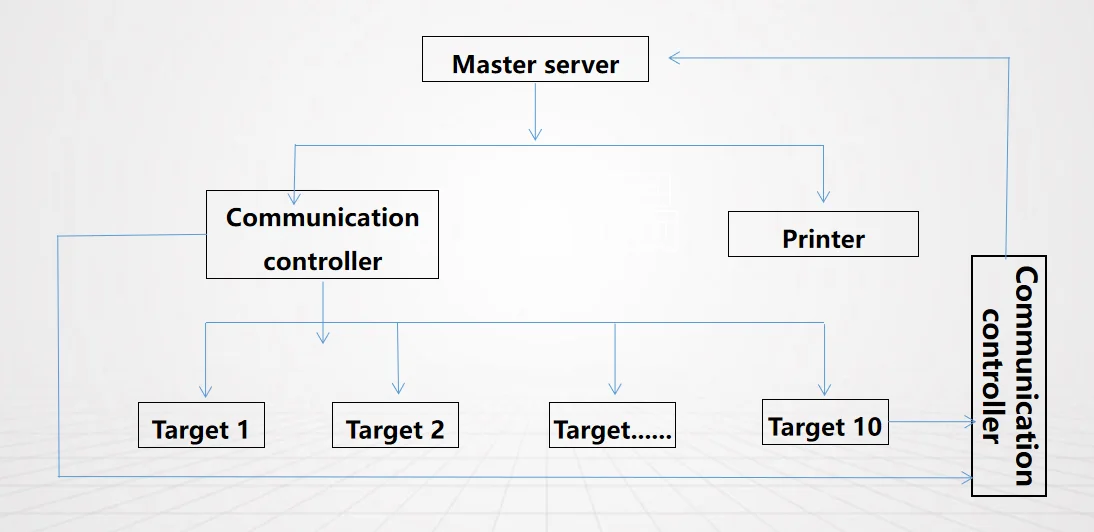

System Composition
FNY Infantry moving target
FNY Infantry moving target

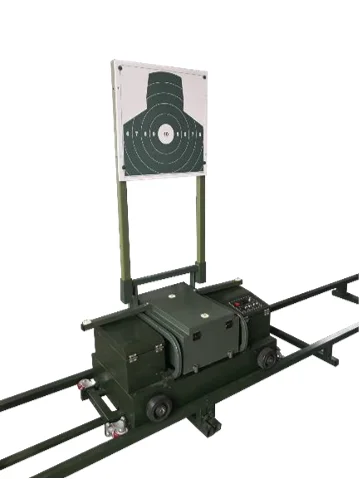

Infantry moving target
The shock wave T-bar stationary target adopts a portable design, with a light weight target machine and short deployment time.
The target plane calculates the position of the impact point by analyzing the process of projectile incidence and based on the spatial geometric relationship between the impact point and the sensor array.
Master server
The main control server is equipped with a highly configured notebook computer and server management software, which is convenient for controlling, viewing, statistics, and querying the firing performance of units or individuals.
Shooter display
It can instantly display information such as the shooter's score and impact point while shooting, and can help the shooter correct accuracy. Real-time recording of firing points, voice reading of hit scores, and automatic recording of aiming points and firing point data.
Communication controller
A high-power communication system can provide 2.4G wireless services, providing a cleaner wireless environment, and more stable wireless access. It can accurately transmit signals from the target and the master control server to each other within a range of 1-500 meters.

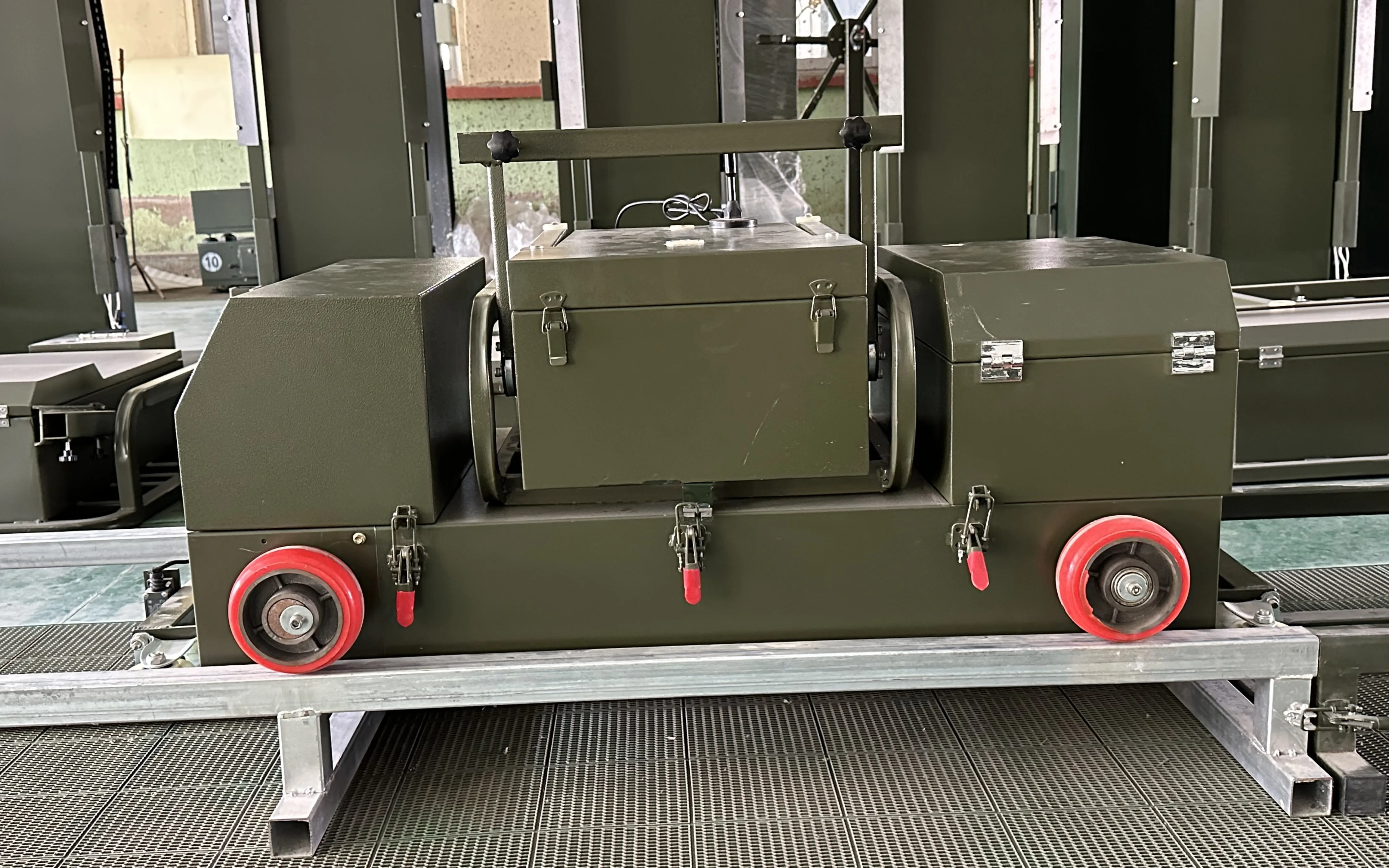

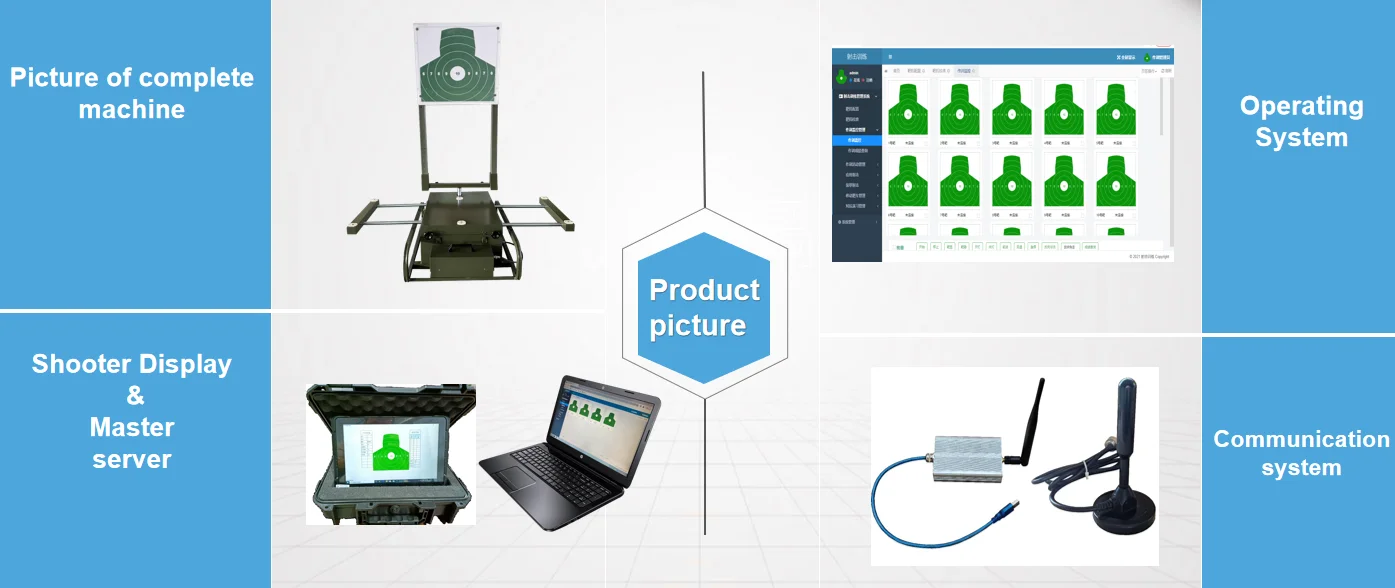

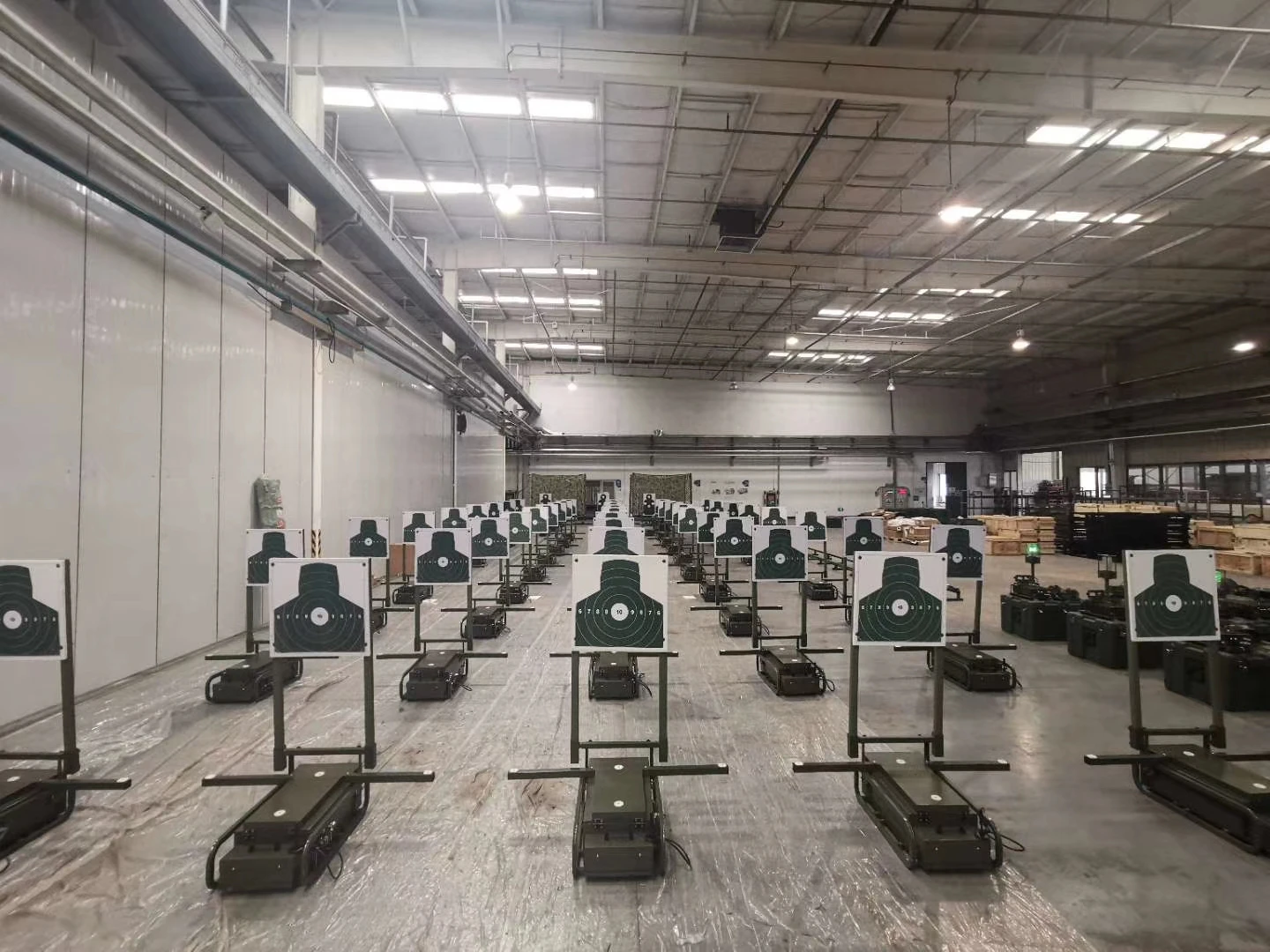

Product Picture
FNY Infantry moving target
Product Paramenters
FNY Infantry moving target
Item | Target |
Applicable target type | Universal chest ring target, head target, chest target, body target |
Applicable g-u-n type | Various types of light weapons such as pi-st-ol-s and ri-fle-s |
Applicable bullet diameter | 5.56mm、5.8mm、7.62mm、12.7mm； |
Applicable projectile speed | 420m/s~1800m/s |
Applicable temperature | -30℃~+65℃ |
Extension function | The infantry moving target vehicle can control multiple infantry pop-up targets carried by it to lift and drop the target, conceal and display the target at the same time through the "drag and drop" method |
Movement speed | 1~5m/s, with a speed deviation range of ± 0.5m/s. |
Target reporting accuracy | ≥99.5% |
Target reporting accuracy error | ≤3mm |
Continuous capture | 1-50 shooting |
Number of target combinations | Through the "drag and drop" method, the product can carry multiple infantry pop-up targets |
Wind resistance rating | Level 6 |
Rain proof grade | 100mm/h，30min |
Target reporting response time | ≤0.5s |
Wireless control distance | 1-500m (Intervisibility) |
System Interface
FNY Infantry moving target
Company Information
FNY Infantry moving target
FNY was founded in 2018,which is is the leading company in the design, manufacturing and supply of projectile location systems including the renowned and proven LOMAH-Location of Miss and Hit.
FNY has our own factories producing military target aircraft products and a complete industrial chain. We can provide one-stop services from R&D design to production, packaging, and shipping.
FNY has its own research and development design team, sales team, and after-sales service team. Team members have first-rate theoretical knowledge and practical experience in relevant fields.
FNY adheres to the belief of innovation, perseverance, and development, continuously delves into the industry, innovates in technology, and updates products, committed to establishing a win-win relationship with customers.
FNY has our own factories producing military target aircraft products and a complete industrial chain. We can provide one-stop services from R&D design to production, packaging, and shipping.
FNY has its own research and development design team, sales team, and after-sales service team. Team members have first-rate theoretical knowledge and practical experience in relevant fields.
FNY adheres to the belief of innovation, perseverance, and development, continuously delves into the industry, innovates in technology, and updates products, committed to establishing a win-win relationship with customers.
FNY Infantry moving target
Product Package
Professional export package
1.Every customs-compliant battery will be packaged in wooden package. Appropriate packaging methods will be used based on targetweight and size that are strong enough to last for extended periods of time Long-distance transport.
2.Payment Term: FOB, CFR,CIF,DDP, DAP base on customers' requirement.
3.Shipment: By sea, By air, By train, Express courier available.
3.Shipment: By sea, By air, By train, Express courier available.
Reliable Shipping Service
FNY cooperates with professional and experienced forwarders in the transport of dangerous goods, to guarantee the target shipping quick, safe, and efficiency.
Certification

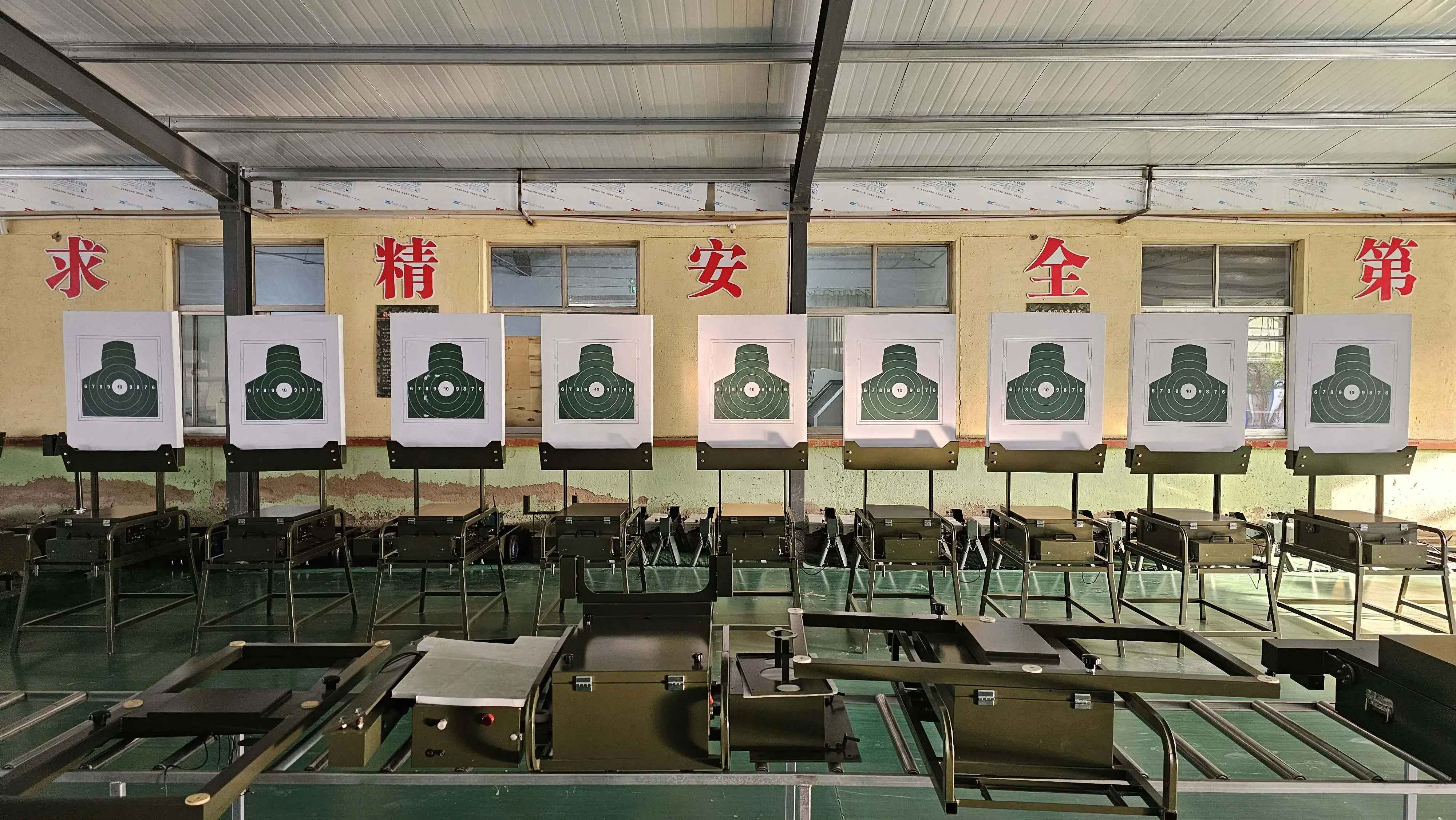

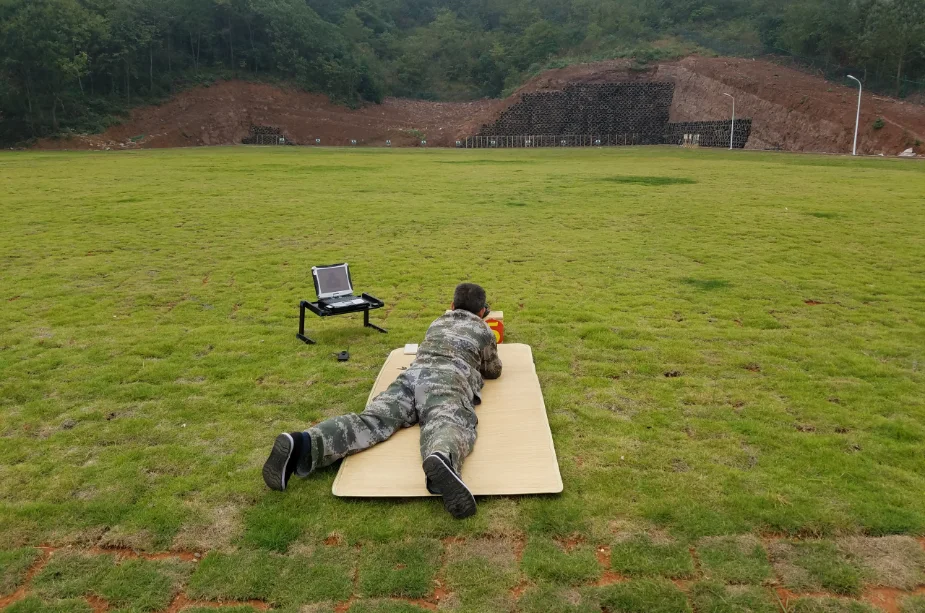

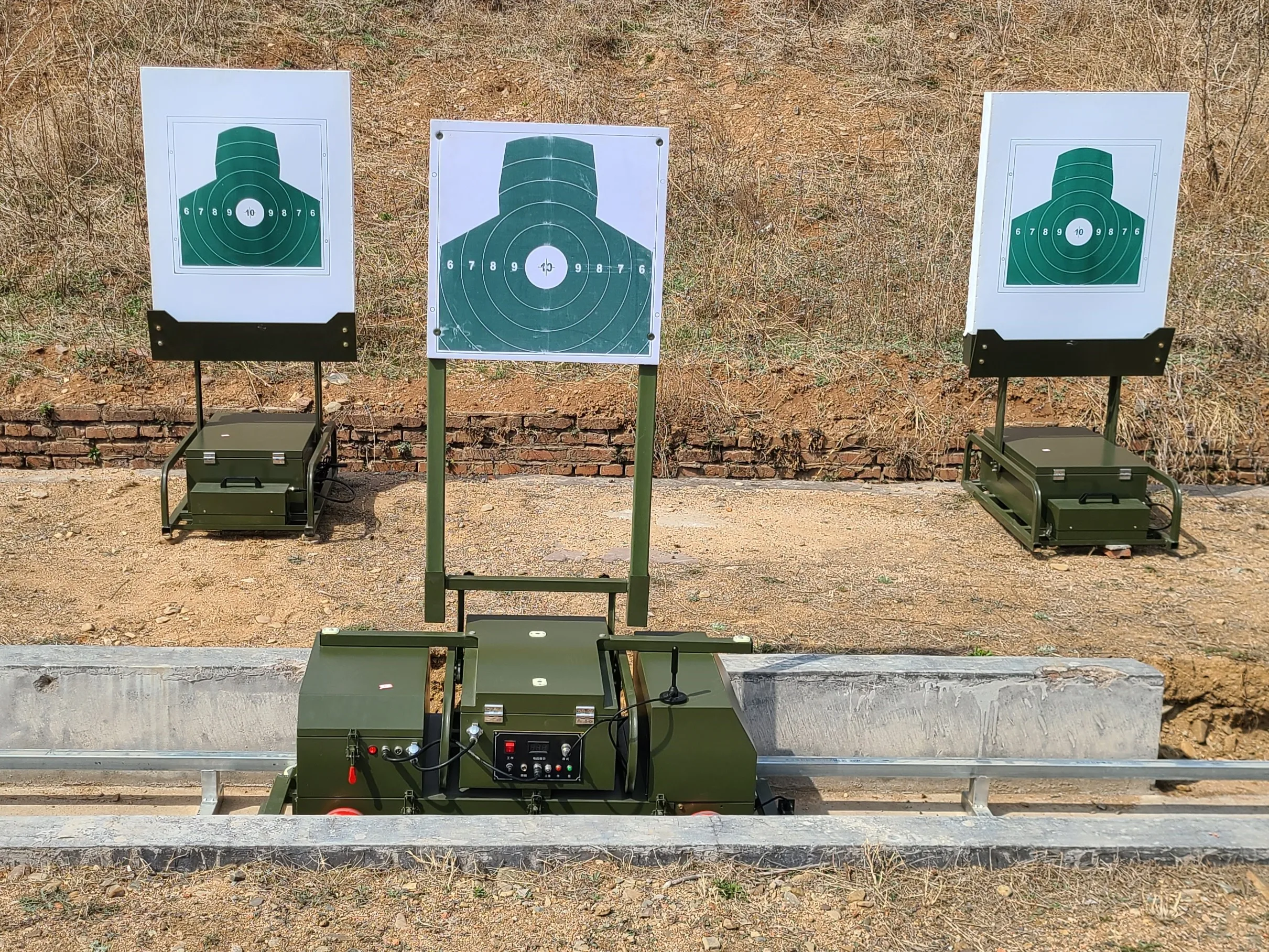

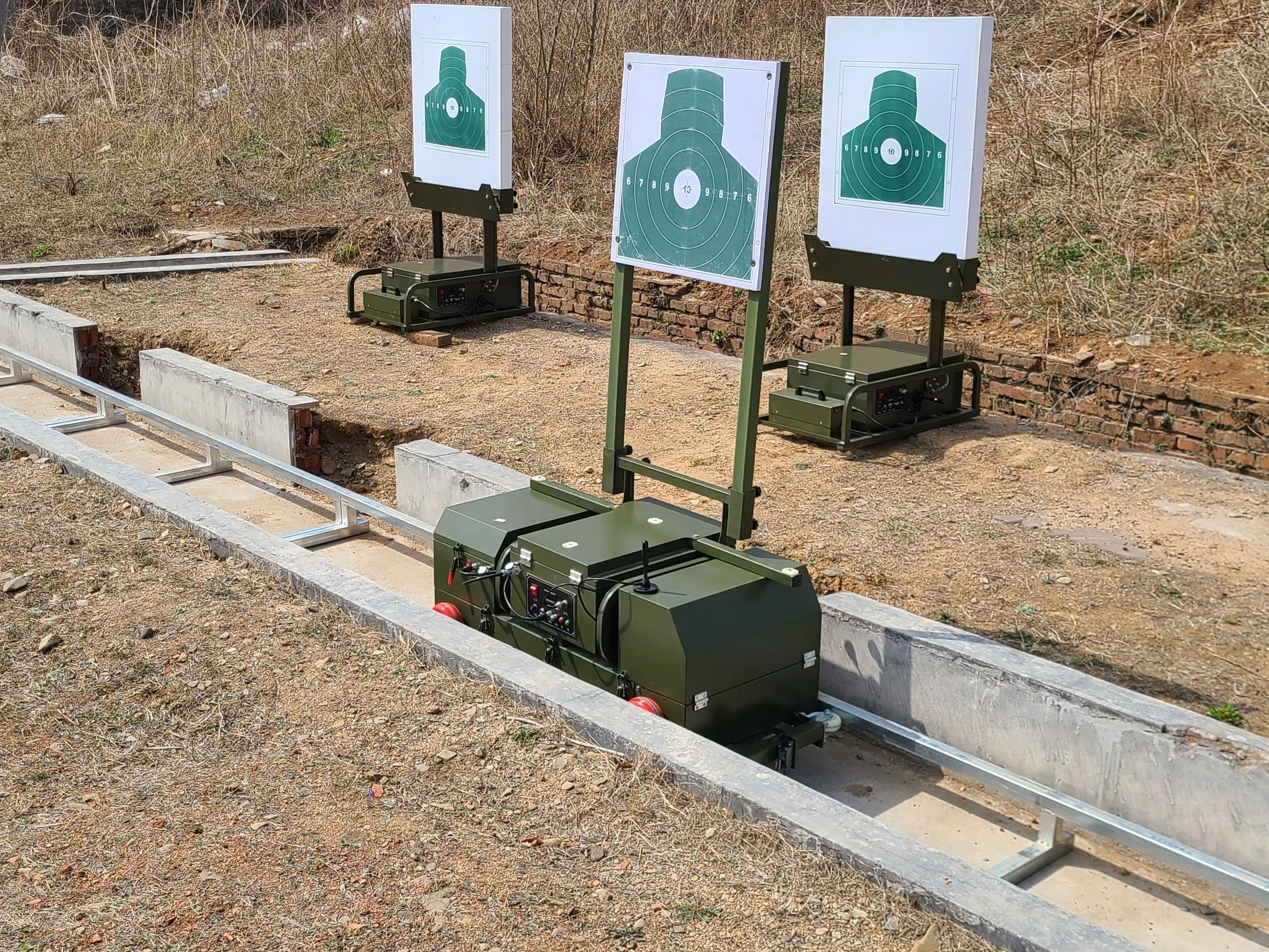

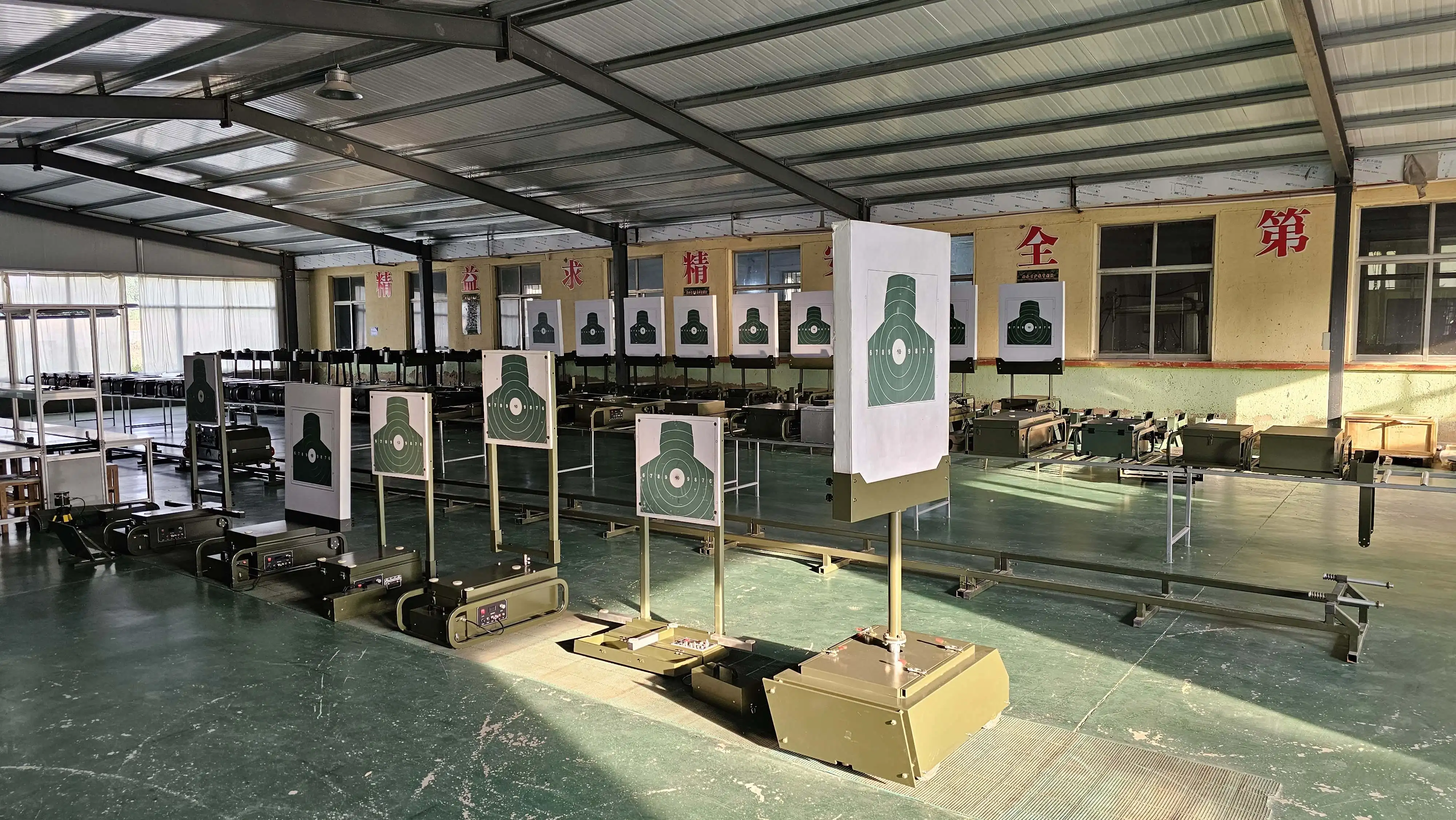

Application Cases
FNY Infantry moving target
FNY Infantry moving target
FAQ
1.Q:What is your order MOQ? Is customization acceptable？
A:The MOQ of our order is 1, and we have the customization ability to customize the shooting target system according to the needs of customers.
2. Q: Are you a factory or a trading company?
A:FNY has its own technical team and factory, complete production line, including R&D, design, production, packaging and delivery in one service system.
3.Q: Can I have a sample order?
A:Yes, we welcome sample order to test and check quality.
4. Q:What about the lead time?
A:Sample needs 7-10 days, mass production time needs 5-7 weeks, it depends on order quantity.
5. Q: How do you ship the goods and how long does it take to arrive?
5. Q: How do you ship the goods and how long does it take to arrive?
A: Airline and sea shipping is also optional.It usually takes 20-50 days to arrive .
6. Q:How to proceed with an order?
A: Firstly ,let us know your requirements or application. Secondly, we quote according to your requirements or our suggestions. Thirdly, customer confirms the samples and places a deposit for formal order. Fourthly ,we arrange the production. 7.Q:What is the terms of payment?
A:T/T, L/C, Alipay, for T/T it is 50% for deposit, the balance 50% before shipment for bulk order.
8.Q:How about the after sales service?
A:FNY welcome you contact us at 24 hours per day, 7 days per week,your any questions will be highly appreciated.e highly appreciated.
