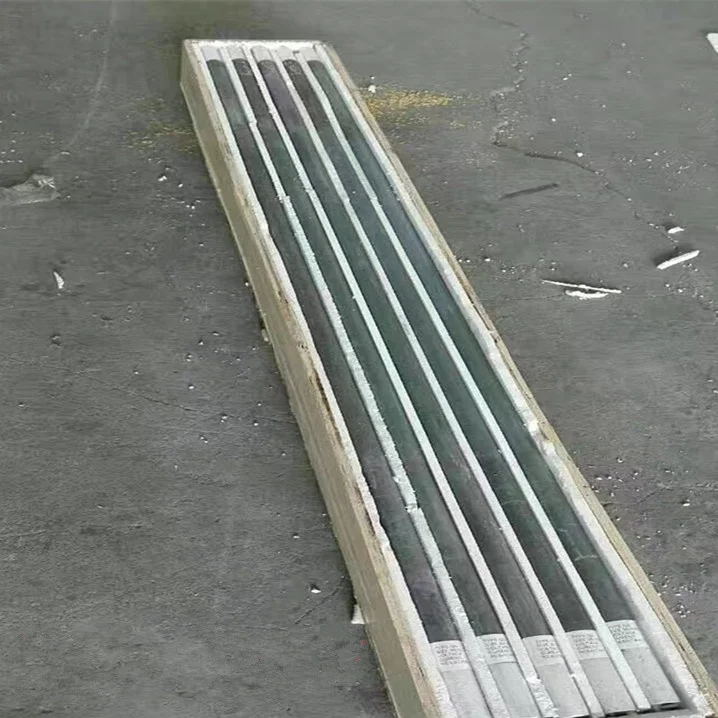

U W shape SiC heating element 1400 degree industrial heating treatment furnace heater factory
- Category: >>>
- Supplier: Zhengzhou Yuanjie Chemical Co. Ltd.
Share on (1600824419378):
Product Overview
Description
Product Overview
SiC heating element
SiC heating elements are usually used as high temperature furnace heaters or kiln heaters. Working temperature is 600°C-1400°C.
SiC heating elements are non-metal electric heating element made from SiC as its main raw material.
FEATURES AT A GLANCE
Uniform resistance
Not afraid of oxidation
Cost - effective

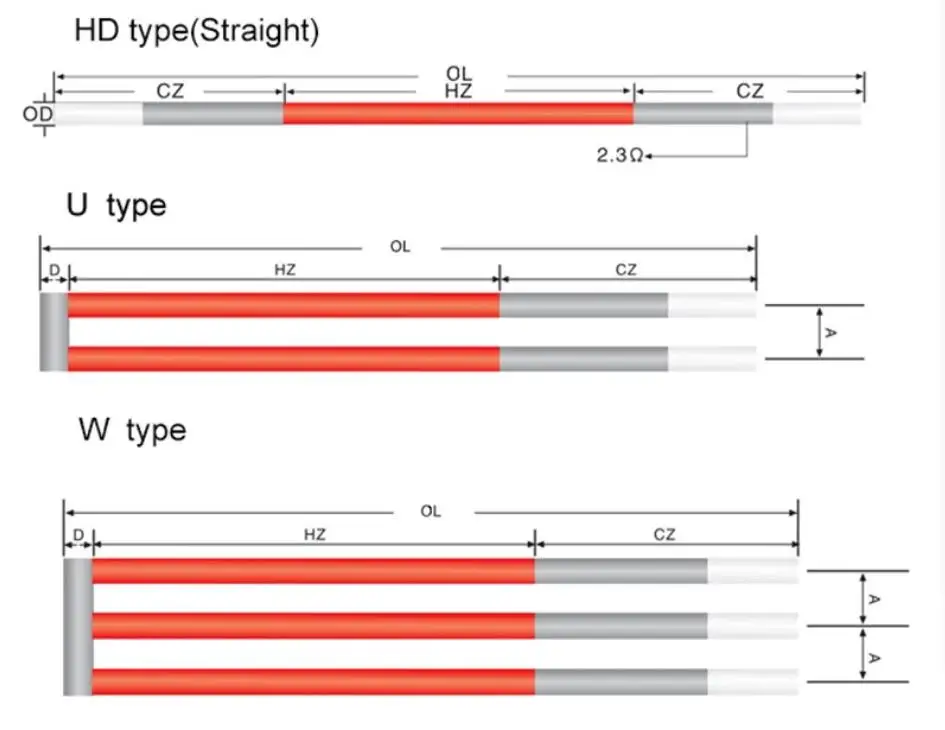

A variety of styles
Straight type

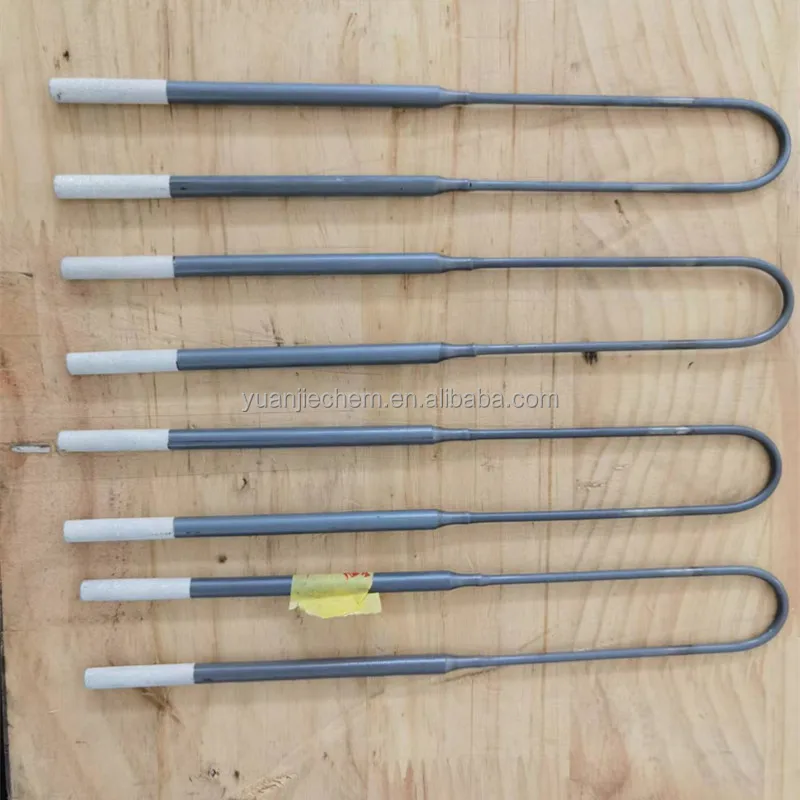

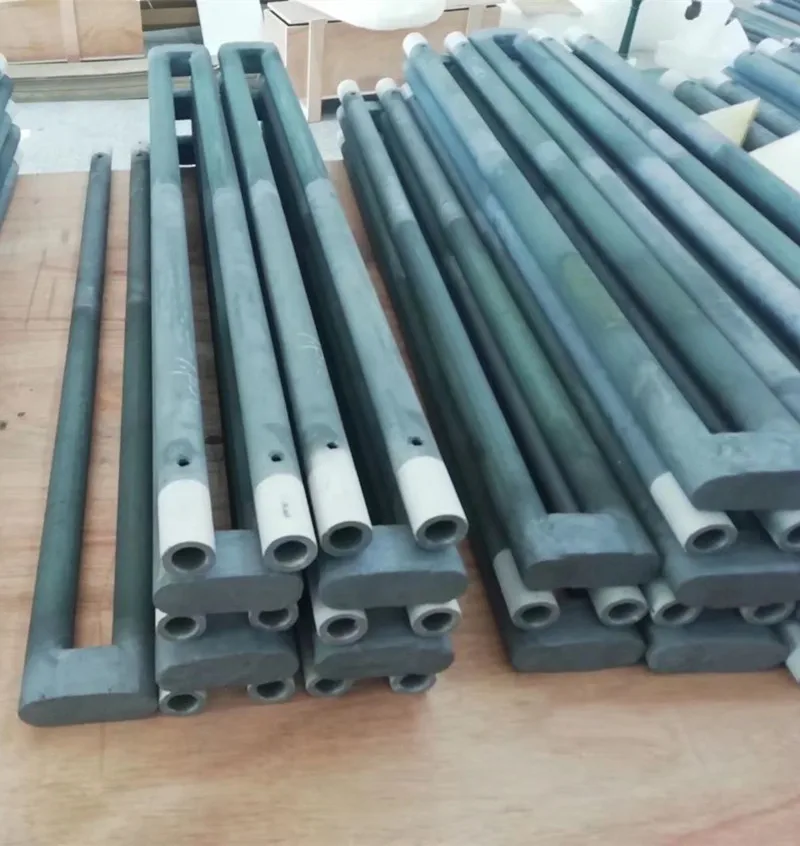

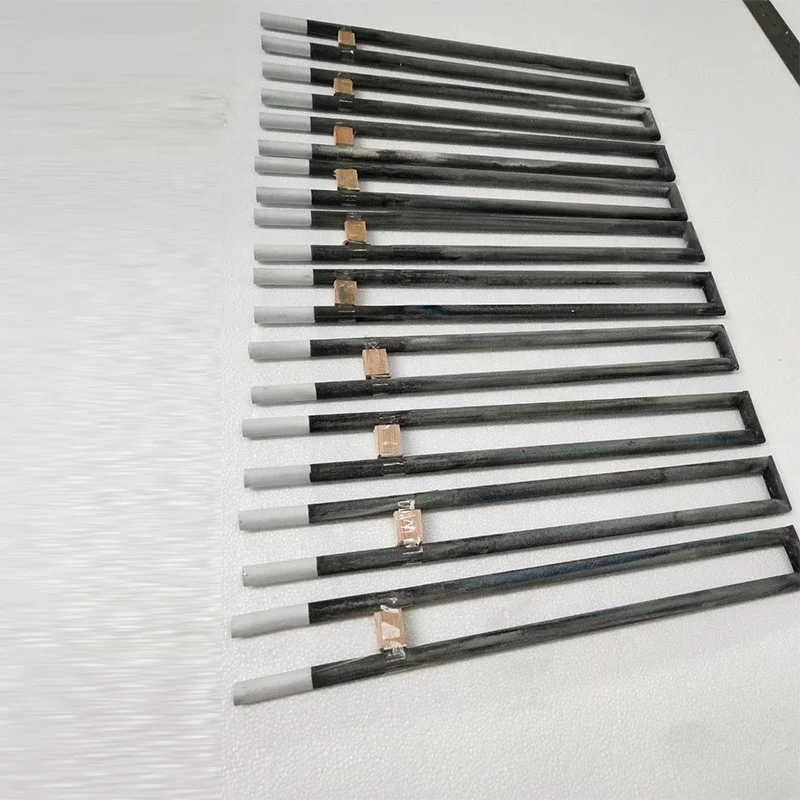

U type
W type
PRODUCT SPECIFICATIONS
No | Diameter OD, mm | Hot zone HZ, mm | Cold zone CZ, mm | Overall length mm |
1 | 8 | 100-300 | 60-200 | 240-700 |
2 | 12 | 100-400 | 100-350 | 300-1100 |
3 | 14 | 100-500 | 150-350 | 400-1200 |
4 | 16 | 200-600 | 200-350 | 600-1300 |
5 | 18 | 200-800 | 200-400 | 600-1600 |
6 | 20 | 200-800 | 250-600 | 700-2000 |
7 | 25 | 200-1200 | 250-700 | 700-2600 |
8 | 30 | 300-2000 | 250-800 | 800-3600 |
9 | 35 | 400-2000 | 250-800 | 900-3600 |
10 | 40 | 500-2700 | 250-800 | 1000-4300 |
11 | 45 | 500-3000 | 250-750 | 1000-4500 |
12 | 50 | 600-2500 | 300-750 | 1200-4000 |
13 | 54 | 600-2500 | 300-750 | 1200-4000 |
PRODUCT CONFIGURATION

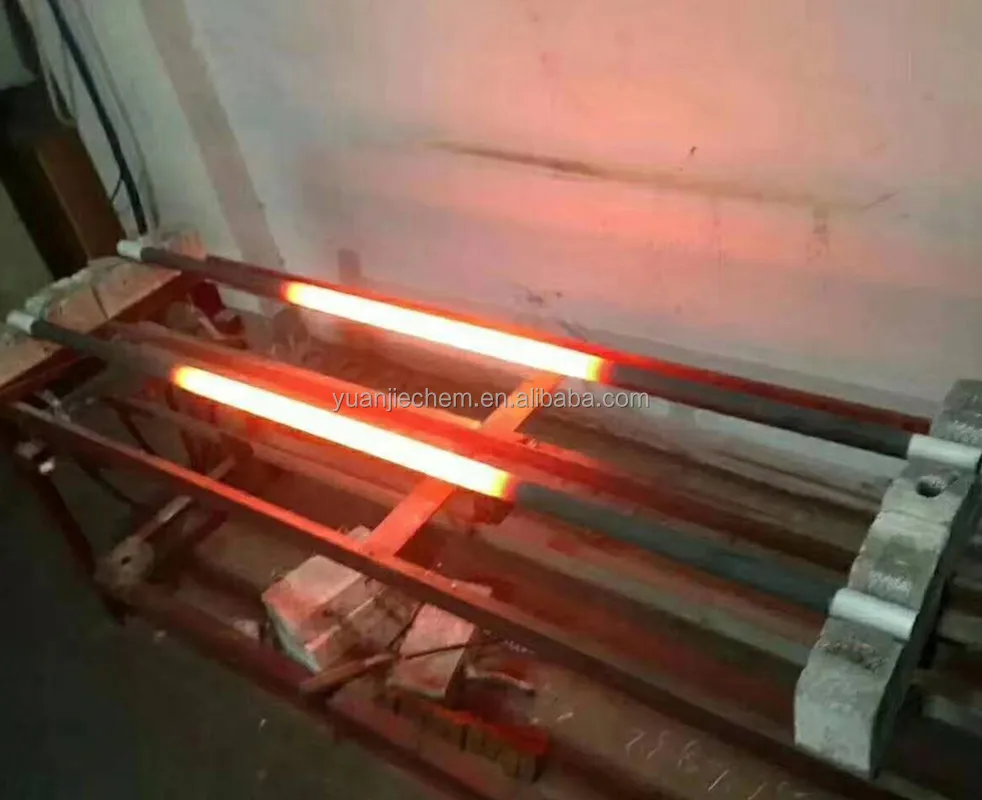

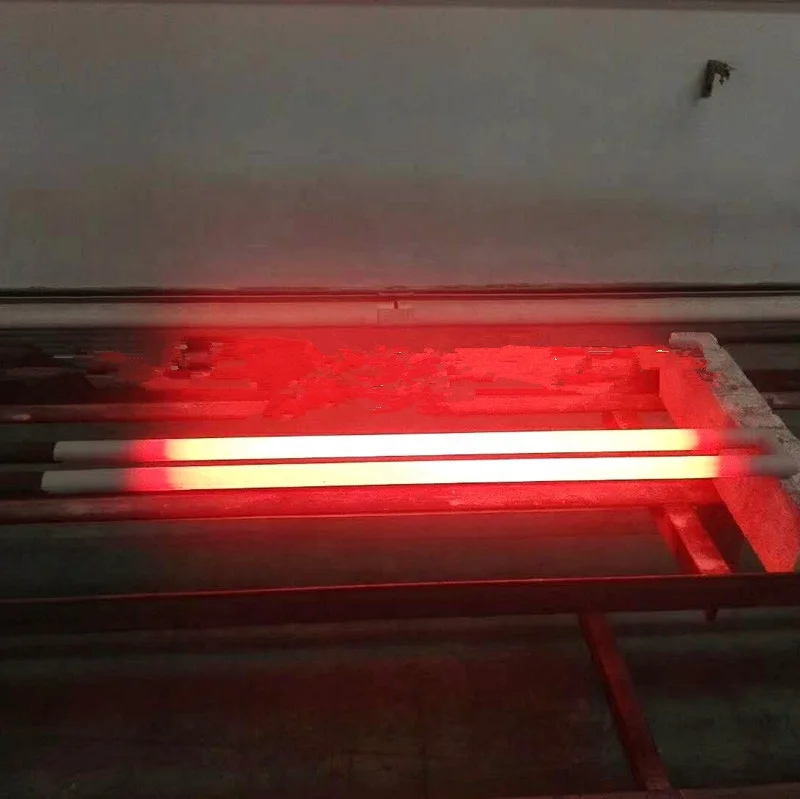

Industrial furnace heater
Electric muffle furnace heater
Electric heating treatment furnace heater
SALES AND SERVICE NETWORK
Successful Project
Project in Thailand
Project in India
Project in Russia
SIMILAR PRODUCTS
FAQ
1. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
HD series（ Straight shape）U series（U shape）W series（three phase type）SG series（single spiral type）,SGR series（double spiral
type）Can be customized according to customer design requirements of special gauge silicon carbon rod
3. Why should you buy from us not from other suppliers?
1.More than 10 years experence
2.The operating temperature is 1625℃, and the density of the heating element is 2.8g/cm³
3.The R&D team
4.Laboratory
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T
Language Spoken:English,Chinese
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
HD series（ Straight shape）U series（U shape）W series（three phase type）SG series（single spiral type）,SGR series（double spiral
type）Can be customized according to customer design requirements of special gauge silicon carbon rod
3. Why should you buy from us not from other suppliers?
1.More than 10 years experence
2.The operating temperature is 1625℃, and the density of the heating element is 2.8g/cm³
3.The R&D team
4.Laboratory
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T
Language Spoken:English,Chinese
