75Ni8 оцинкованная стальная пластина
- Category: >>>
- Supplier: Shanghai Chuangdeya New Material Co. Ltd.
Share on (1600824466718):
Product Overview
Description
75Ni8
Product application
Used for manufacturing Damascus steel steel, vehicle accessory , cutting tools and various spring.
PRODUCT PARAMETER
Chemical composition | ||||||||||||||
C | Si | Mn | S | P | Cr | Ni | Mo | |||||||
0.72～0.78% | 0.15～0.35% | 0.30～0.50% | ≤0.025% | ≤0.025% | ≤0.15% | 0.18~0.21% | ≤0.01% | |||||||
Mechanical property | ||||||||||
Thickness | Heat treatment or condition | Tensile strength | Yield point | Elongation | Hardness | |||||
（mm） | （MPa） | （MPa） | （%） | HBW | ||||||
0.3≤t≤3 | Annealed (+A) or annealed flat (+LC) | ≤680 | ≤540 | ≥13 | H≤210 | |||||
0.3≤t≤3 | Tempering (+QT) | 1200~1800 | ||||||||
Heat treatment and standard
Customers can specify hardness or tensile strength values, but not both. If neither is specified, the tensile strength value should be applied.
For materials delivered in the cold rolled state, the strength range of 150N/mm2or the hardness range of 50HV should be applicable.
For materials supplied under quenching and tempering conditions, a range of 150 N/mm2or 50 HV should be applicable.
SPECIFIC APPLICATION OF MATERIAL
Used for manufacturing Damascus steel steel.
Used for cutting tools and various spring.
STEEL GRADE & EXECUTIVE STANDARD | ||||
Steel grade | Executive standards | |||
Germany | 75Ni8(1.5634) | EN 10132-4-2002 | ||
Product classification & specifications | ||||||||||
length | width | thickness | surface process | edge process | ||||||
75Ni8 | 50~1250mm | Rough edge(EM) | ||||||||
75Ni8 spring steel strip | ||||||||||
75Ni8 spring steel plate | ||||||||||
75Ni8 spring steel sheet | ||||||||||
75Ni8 alloy steel strip | ||||||||||
75Ni8 alloy steel plate | ||||||||||
75Ni8 alloy steel sheet | ||||||||||
75Ni8 stainless steel | ||||||||||
75Ni8 stainless steel strip | ||||||||||
75Ni8 stainless steel plate | ||||||||||
75Ni8 stainless steel sheet | ||||||||||
75Ni8 heat treatment steel | ||||||||||
75Ni8 heat treatment steel strip | ||||||||||
75Ni8 heat treatment steel plate | ||||||||||
75Ni8 heat treatment steel sheet | ||||||||||
Above all products can be customized according to customer requirements。 | ||||||||||
PRODUCT PICKING
Picking way

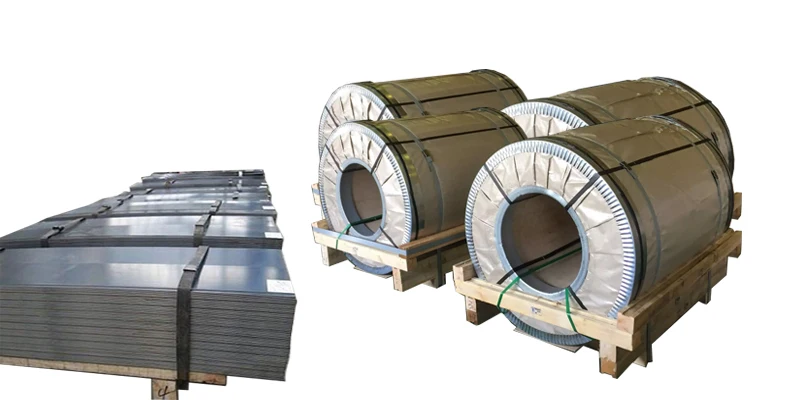

Usually 250 kg/roll, 8 rolls/pallet.A 20 feet container can loading 10 pallets. Packaging way can be changed according to customer customized requirements
