Product Overview
Description
Products Description

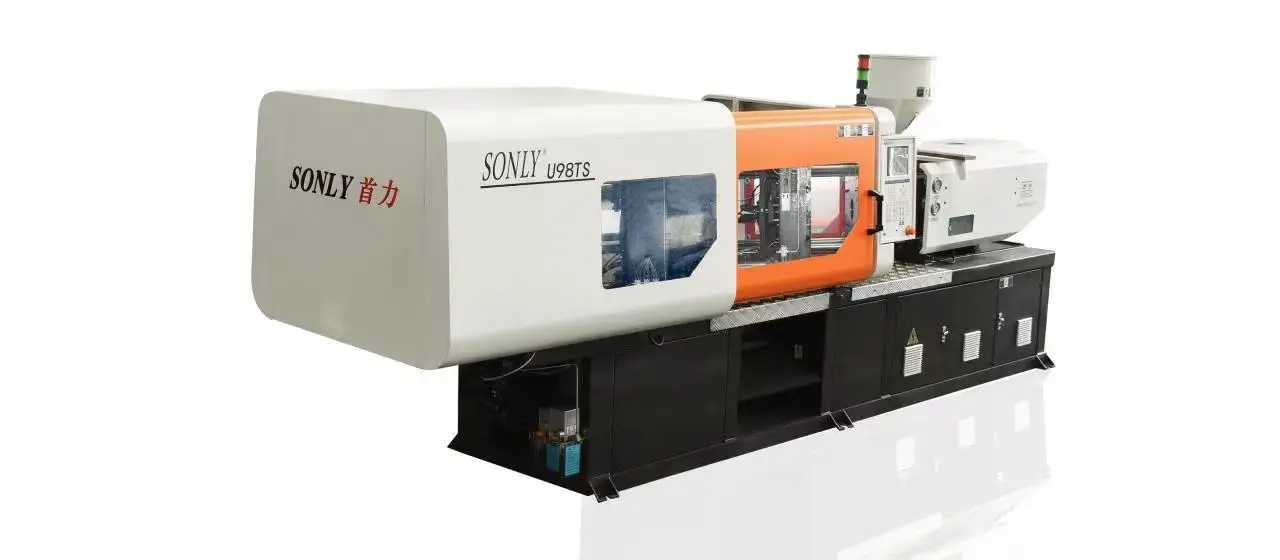

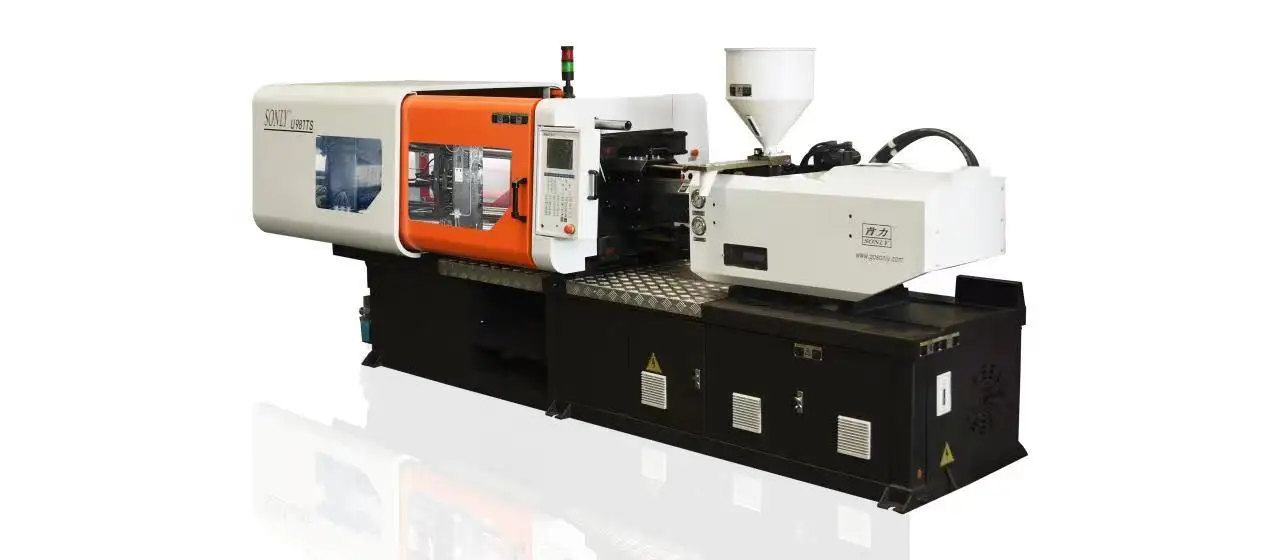

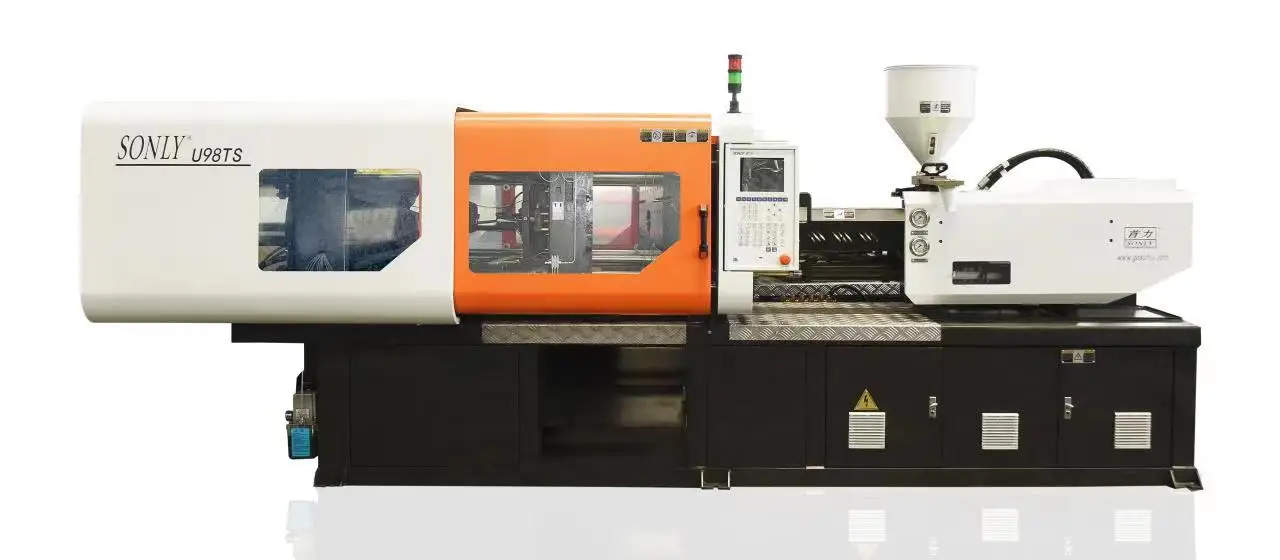

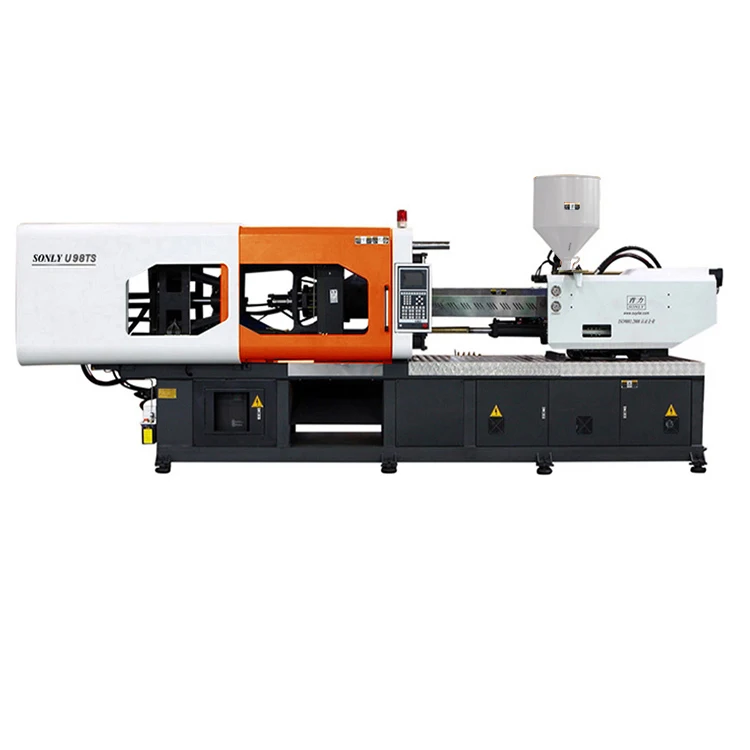

U98TS | Unit | A | B | C | ||||
INJECTION UNIT | ||||||||
SCREW DIAMETER | mm | 32 | 35 | 38 | ||||
SCREW L/D RATIO | L/D | 24.1 | 22 | 20.3 | ||||
SHOT VOLUME(THEORETICAL) | cm3 | 133.7 | 160 | 188.6 | ||||
INJECTION PRESSURE | Mpa | 232.1 | 194 | 164.6 | ||||
SCREW SPEED | rpm | 210 | ||||||
SHOT WEIGHT(THEORETICAL)(PS) | g | 122 | 146 | 172 | ||||
SHOT WEIGHT(THEORETICAL)(PS) | oz | 4.303 | 5.15 | 6.067 | ||||
CLAMPING UNIT | ||||||||
CLAMPING FORCE | Kn | 980 | ||||||
OPEN STROKE | mm | 320 | ||||||
SPACE BETWEEN TIE BARS(W*H) | mm | 365*360 | ||||||
MAX.MOULD HEIGHT | mm | 360 | ||||||
MIN.MOULD HEIGHT | mm | 120 | ||||||
EJECTOR STROKE | mm | 100 | ||||||
EJECTOR FORCE | Kn | 38 | ||||||
EJECTOR NUMBER | 4+1 | |||||||
DIE HOLE DIAMETER | mm | 125 | ||||||
OTHERS | ||||||||
SYSTERM PRESSURE | Mpa | 16 | ||||||
MOTOR POWER | Kw | 9 | ||||||
HEATING POWER | Kw | 10 | ||||||
OIL TANK CUBAGE | L | 125 | ||||||
MACHINE WEIGHT | Ton | 2.8 | ||||||
BOUNDARY DIMENSION(L*W*H) | m | 4.34*1.24*1.9 | ||||||
SERVO DRIVER CAPACITY | Kw | 11 | ||||||
Details Images
Applications
Applications
For Commodity
For Food
For Plastic
Recommend Products
Product Advantages
Sonly injection molding machine has a large diameter ratio, faster plasticization speed, short drying cycle, and ultra-high plasticizer capacity provide guarantee for the high efficiency of the whole machine.

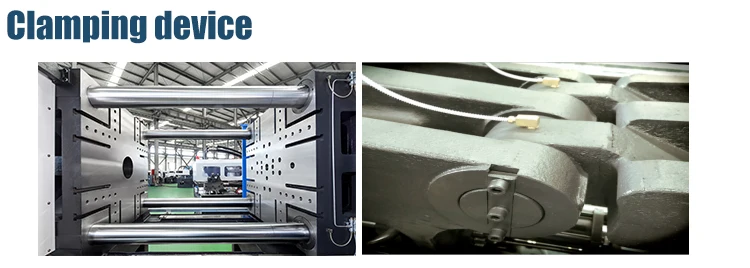

Clamping device
1. New conjoined hyperbolic elbow five fulcrum clamping mechanism, after a detailed calculation, manual and software running curve is more stable, smooth process is faster, and longer service life
2. New conjoined template through finite element analysis software, reasonable structure, convenient maintenance, good rigidity, high strength, small deformation
3. Electronic scale attached to cross, speed control is more agile, is conducive to protect the mould
4. Lubrication automatic detection alarm function, can effectively guarantee the lubrication of all nodes in place
5. Compared with the same, we have a bigger bar spacing, molar volume and open mold, processing more plastic products, the high cost performance of the machine
2. New conjoined template through finite element analysis software, reasonable structure, convenient maintenance, good rigidity, high strength, small deformation
3. Electronic scale attached to cross, speed control is more agile, is conducive to protect the mould
4. Lubrication automatic detection alarm function, can effectively guarantee the lubrication of all nodes in place
5. Compared with the same, we have a bigger bar spacing, molar volume and open mold, processing more plastic products, the high cost performance of the machine

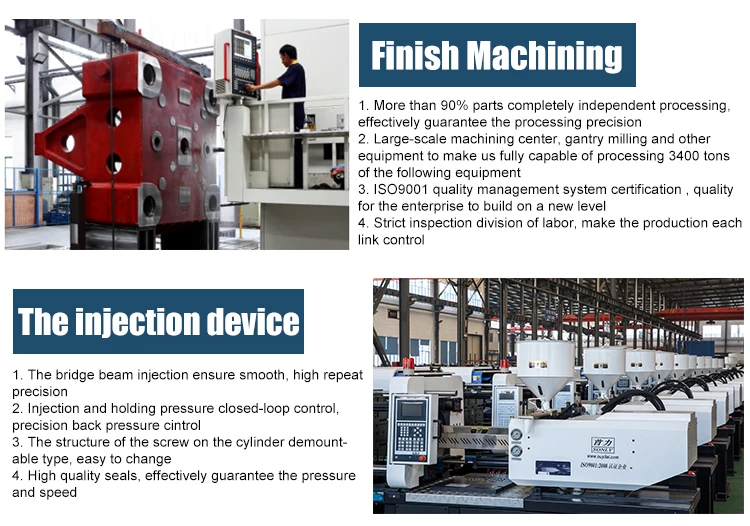

Finish Machining
1. More than 90% parts completely independent processing, effectively guarantee the processing precision
2. Large-scale machining center, gantry milling and other equipment to make us fully capable of processing 3400 tons of the following equipment
3. ISO9001 quality management system certification, quality for the enterprise to build on a new level
4. Strict inspection division of labor, make the production each link control
The injection device
1. The bridge beam injection ensure smooth, high repeat precision
2. Injection and holding pressure closed-loop control, precision back pressure control
3. The structure of the screw on the cylinder demount-able type, easy to change
4. High quality seals, effectively guarantee the pressure and speed

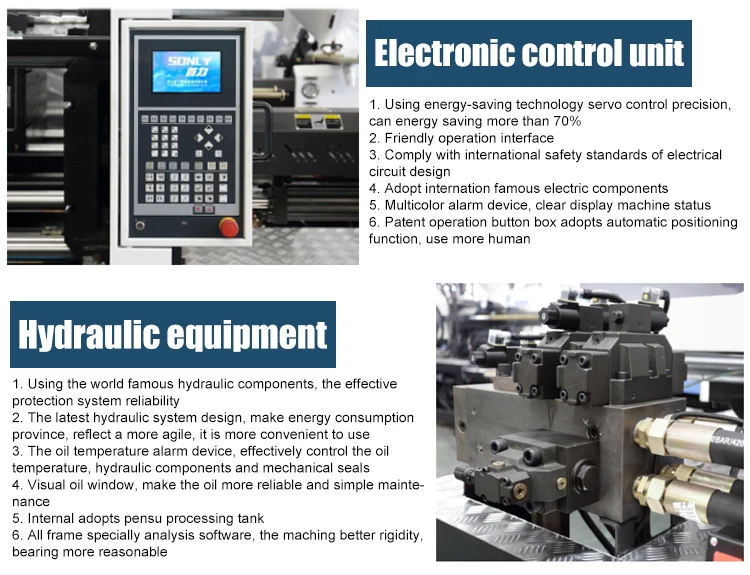

Electronic control unit
1. Using energy-saving technology servo control precision, can energy saving more than 70%
2. Friendly operation interface
3. Comply with international safety standards of electrical circuit design
4. Adopt internation famous electric components
5. Multicolor alarm device, clear display machine status
6. Patent operation button box adopts automatic positioning function, use more human
Hydraulic equipment
1. Using the world famous hydraulic components, the effective protection system reliability
2. The latest hydraulic system design, make energy consumption province, reflect a more agile, it is more convenient to use
3. The oil temperature alarm device, effectively control the oil temperature, hydraulic components and mechanical seals
4. Visual oil window, make the oil more reliable and simple maintenance
5. Internal adopts pensu processing tank
6. All frame specially analysis software, the maching better rigidity, bearing more reasonable
Why Choose Us
About us
Our company is a high-tech enterprise intergrate development, manufacturing, and sales.
· Since 2000
· Factory area: 60000㎡
· Annual production: 3000 sets precision injection molding machine
· BSCI & ISO 9001:2008 certified manufacture
· The member unit of China Plastics Machinery Industry Association
Our company produce:
· SONLY U-TS high-grade precision injection molding machine
· 50T to 3400T servo injection molding machine
· Customized PET bottle injection molding machine
· PP-R coupler injection molding machine
· PVC pipe fitting injection molding machine
· Fruit basket injection molding machine
· Double colored plastic injection machine
We provide customerized service according to customer's requirements, please feel free to contact with us!
FAQ
Q1: Are you a manufacture or a trading company?
A1: We are a manufacturer in Ningbo city, Zhejiang Province, China
Q2: What's your payment term?
A2: 30% TT as deposit, 70% TT before shipment, and other payments can also be negotiated
Q3: What should I do if there is a quality problem?
A3: We have guarantee 1 year for machine, 6 months for screw and barrel (not include recycle or reclaimed material). All the spare parts are made by ourselves, so we can control the quality and cost totally.
Q4: What's your delivery time?
A4: within 30 working days after received deposit. (U98TS - U438TS)
within 60 working days after received deposit. (U508TS - U780TS)
within 90 working days after received deposit. (U1080TS - U1850TS)
within 120 working days after received deposit. (U2400TS - U3400TS)
Q5; How to install the machine and use the machine?
A5: We can send engineer to your factory for worker training and machine installation.
Q6: I want to make a plastic product, but I don't know how to choose a suitable machine model, what should I do?
A6: Please feel free to tell us about the product detail information, such as size and weight, how many output you prefer per hour. We will help you to make good proposal with nice price.
A1: We are a manufacturer in Ningbo city, Zhejiang Province, China
Q2: What's your payment term?
A2: 30% TT as deposit, 70% TT before shipment, and other payments can also be negotiated
Q3: What should I do if there is a quality problem?
A3: We have guarantee 1 year for machine, 6 months for screw and barrel (not include recycle or reclaimed material). All the spare parts are made by ourselves, so we can control the quality and cost totally.
Q4: What's your delivery time?
A4: within 30 working days after received deposit. (U98TS - U438TS)
within 60 working days after received deposit. (U508TS - U780TS)
within 90 working days after received deposit. (U1080TS - U1850TS)
within 120 working days after received deposit. (U2400TS - U3400TS)
Q5; How to install the machine and use the machine?
A5: We can send engineer to your factory for worker training and machine installation.
Q6: I want to make a plastic product, but I don't know how to choose a suitable machine model, what should I do?
A6: Please feel free to tell us about the product detail information, such as size and weight, how many output you prefer per hour. We will help you to make good proposal with nice price.
