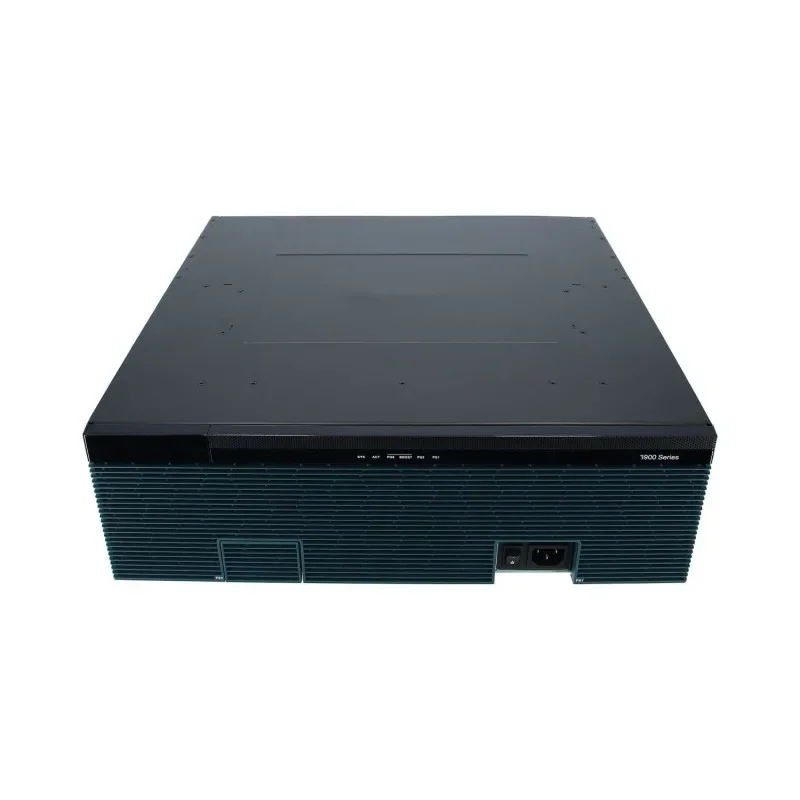

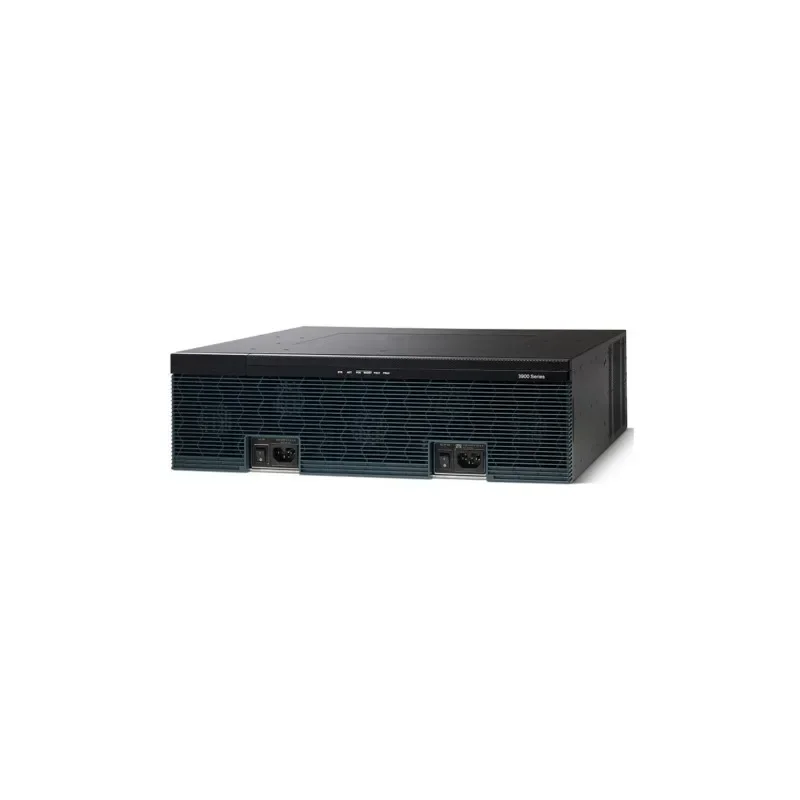

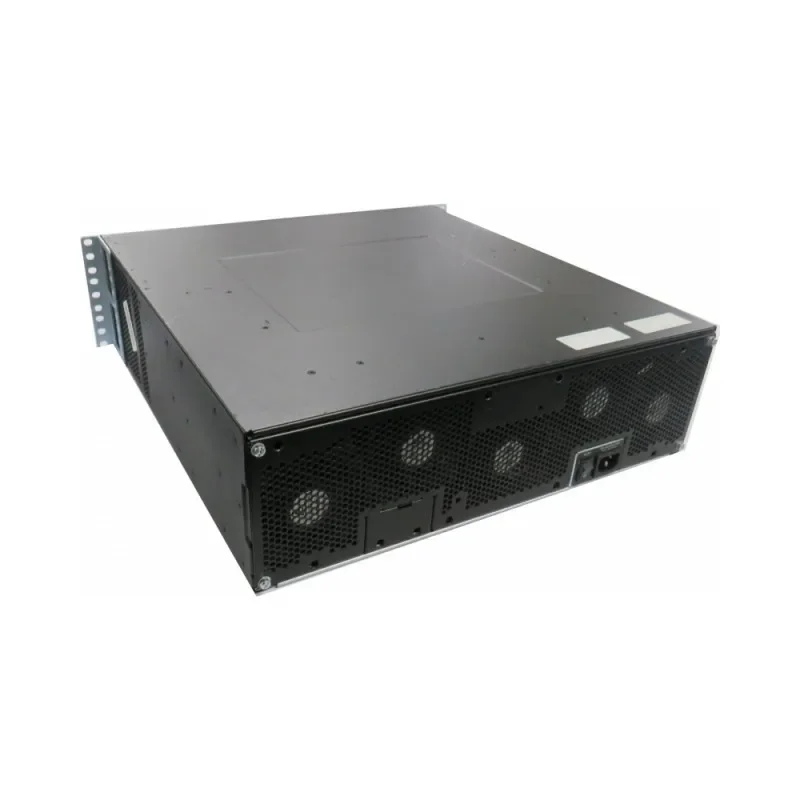

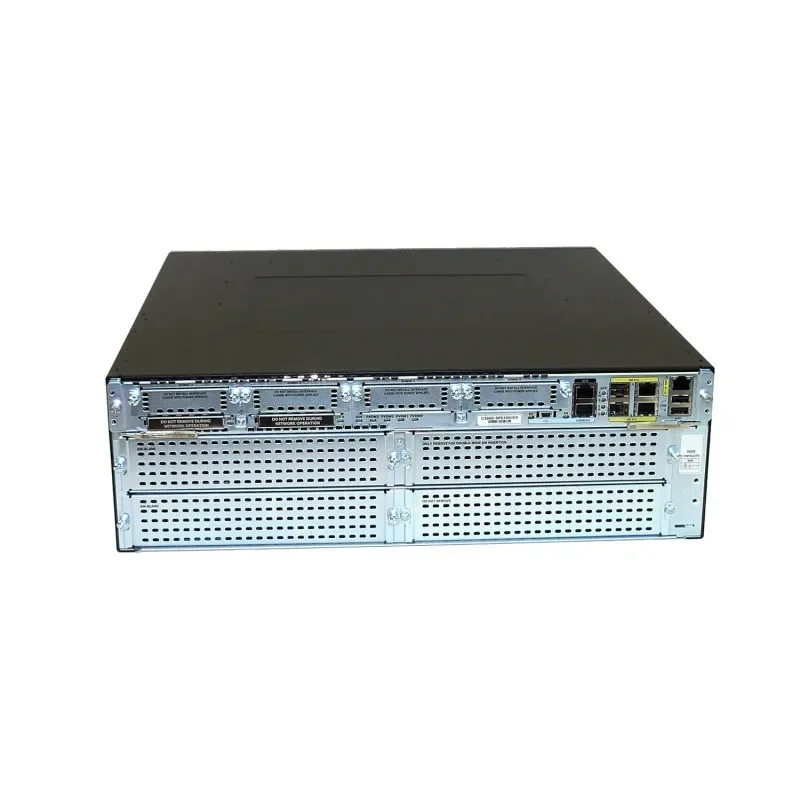

3900 Series Gigabit Ethernet Wired Modular 3U SPEs Scale Router 3945 V/K9
- Category: >>>
- Supplier: Beijing Lianmai Tongchuang Technology Co. Ltd.
Share on (1600824528987):
Product Overview
Description
Product Description
393900 Series Gigabit Ethernet Wired Modular 3U SPEs Scale Router 3945-V/K9
3945-V/K9 Specifications | |
| Device Type | Router |
| Form Factor | Desktop - modular - 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP, RMON |
| Features | Firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 1 GB (installed) / 2 GB (max) |
| Flash Memory | 256 MB (installed) / 8 GB (max) |
| LED Status Lights Indicators | Link activity, power |
| Communications | |
|---|---|
| Type | Voice / fax module |
| Digital Ports Qty | 64 |
| IP Telephony | |
| Voice Codecs | G.711, G.722, G.723.1, G.728, G.729, G.729a, G.729ab, G.726 |
| Connectivity Slots | |
| Router Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 USB : 2 x 4 PIN USB Type A 2 x SFP (mini-GBIC) |
| Expansion Slots Total (Free) | 4 ( 4 ) x HWIC 3 ( 2 ) x PVDM 2 ( 1 ) x CompactFlash Card 1 ( 1 ) x Expansion Slot |
| Power Supply | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Dimensions / Weight / Miscellaneous | |
| Width | 47.6 cm |
| Depth | 43.8 cm |
| Height | 8.9 cm |
| Weight | 17.7 kg |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, AS/NZS 3548, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
