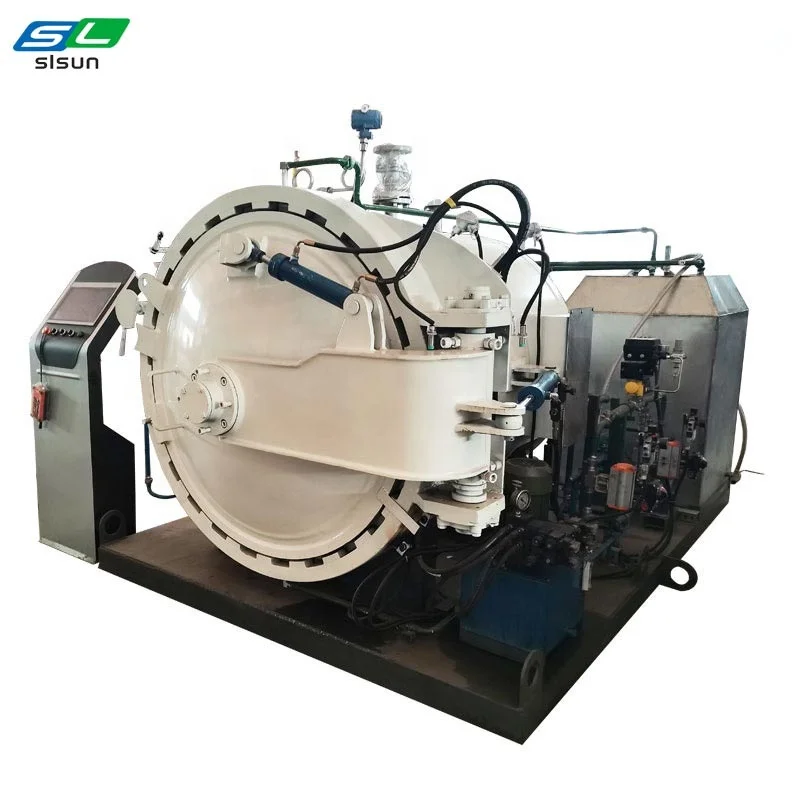

PED Certificate Customized Oven for Carbon Fiber 2MPa Industrial Steel Autoclave for Carbon Fiber
- Category: >>>
- Supplier: Taian Strength Equipments Co. Ltd.
Share on (1600824532032):
Product Overview
Description
Specifications of Composite Autoclave | ||||||
Effective Diameter (mm) | 600-6,000 | |||||
Effective Length (mm) | 800-300,000 | |||||
Maximum Working Pressure (Mpa) | 0.2-10 | |||||
Maximum Working Temperature (℃) | 100-500 | |||||
Temperature Control Accuracy (℃) | ±0.5-±3.0 | |||||
Tank Temperature Uniformity (℃) | 1.0-3.0 | |||||
Pressure Control Accuracy (Mpa) | ±0.01 | |||||
Vacuum Limit (Kpa) | ≤2 | |||||
✳Remark: Other specifications can be customized according to specific requirements. | ||||||
Composite autoclave (also called industrial autoclave for carbon fiber) is the pressure vessel specially designed and manufactured to fabricate composite material, carbon fiber autoclave is one of the our hot sale industrial autoclave products. Carbon fiber autoclave (also called a composition material or composite) is made from two or more constituent materials with significantly different physical or chemical properties that produce a material with characteristics different from the individual components when combined. Carbon fiber autoclave is one of the effective and most applicable techniques for composite production. In the composite manufacturing process, the assembly of a two-sided mold set that forms both surface of the panel is placed into the industrial autoclave which provides both required elevated pressure and elevated temperature.

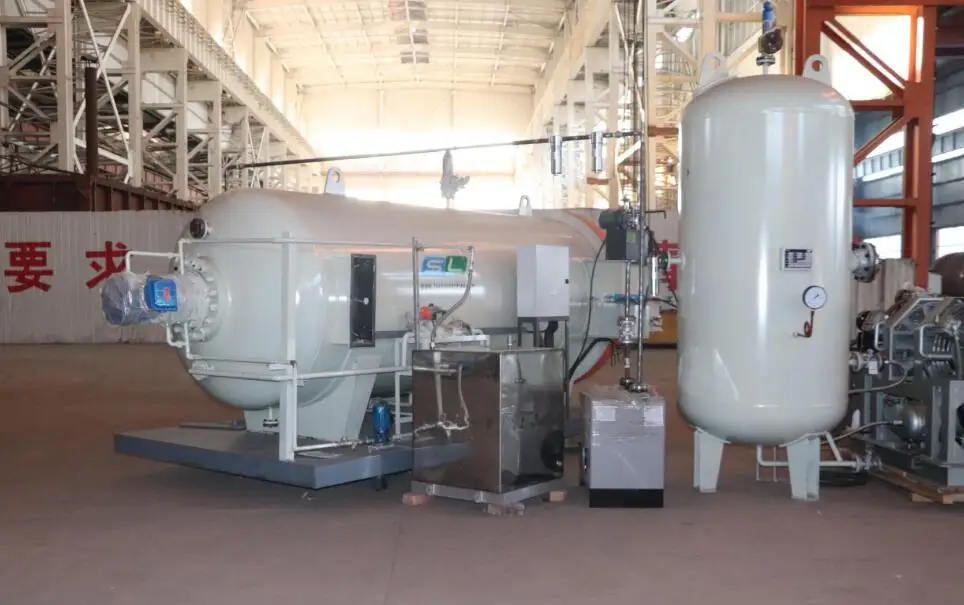

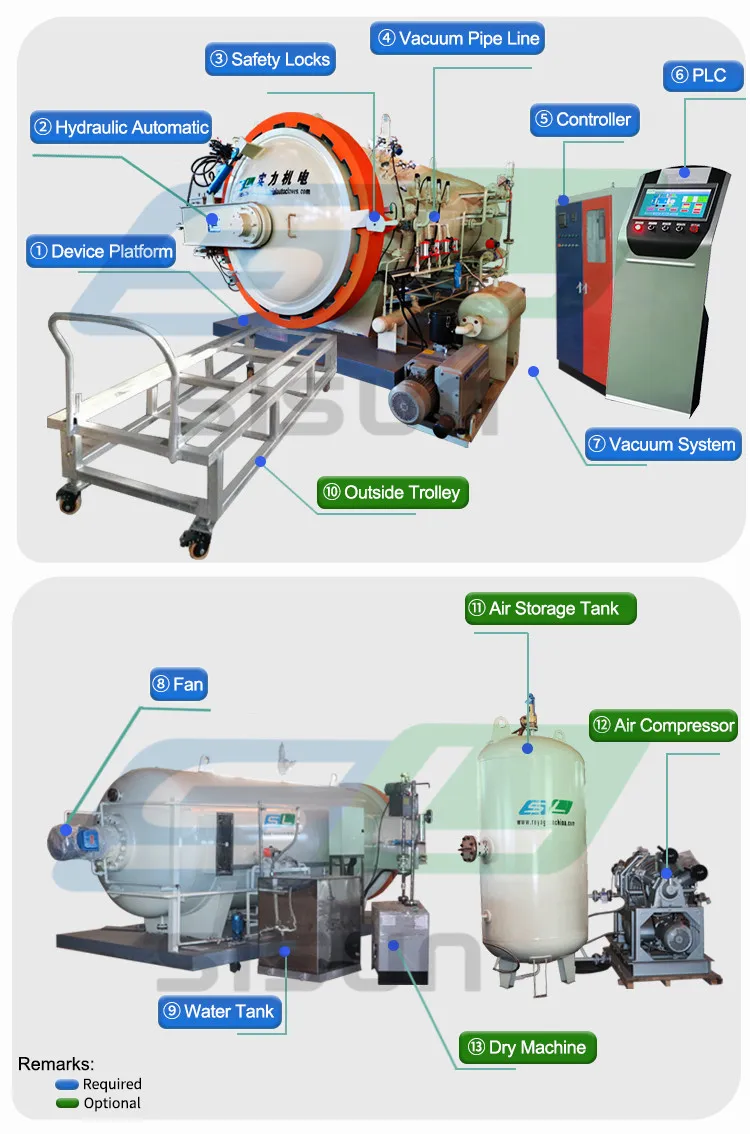

Supporting facilities
Features of Composite Autoclave
①Turn key solution for large, high productive units to lab autoclaves.
②Integrated system design with over 20 years of industrial experiences.
③Professional modular manufacturing.

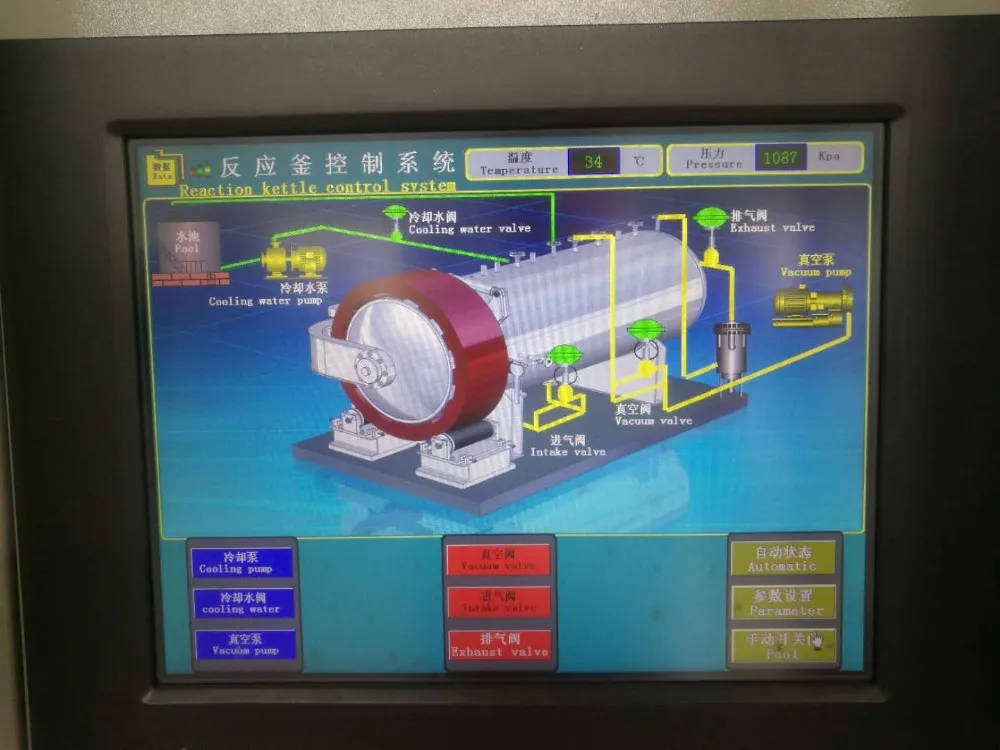

④Computer control system specifically for composite autoclave use.
⑤Automatic control of over pressure or temperature protection, door safety interlock.
⑥High quality, energy saving.
⑦Customized installation to satisfy your demands.
⑧Safe operation, over pressure and temperature protection, door safe interlock.
⑨Advanced composite curing and bonding process.Easy to operate, longer service life.
⑩Reliable and efficient operation.Custom designs to suit your needs.

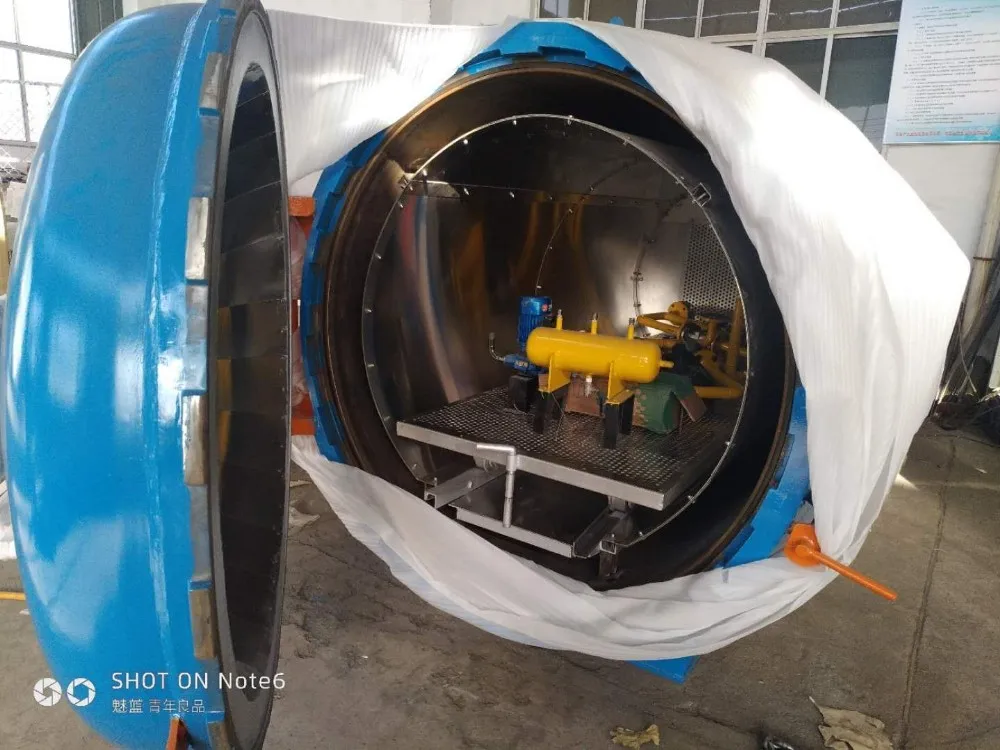

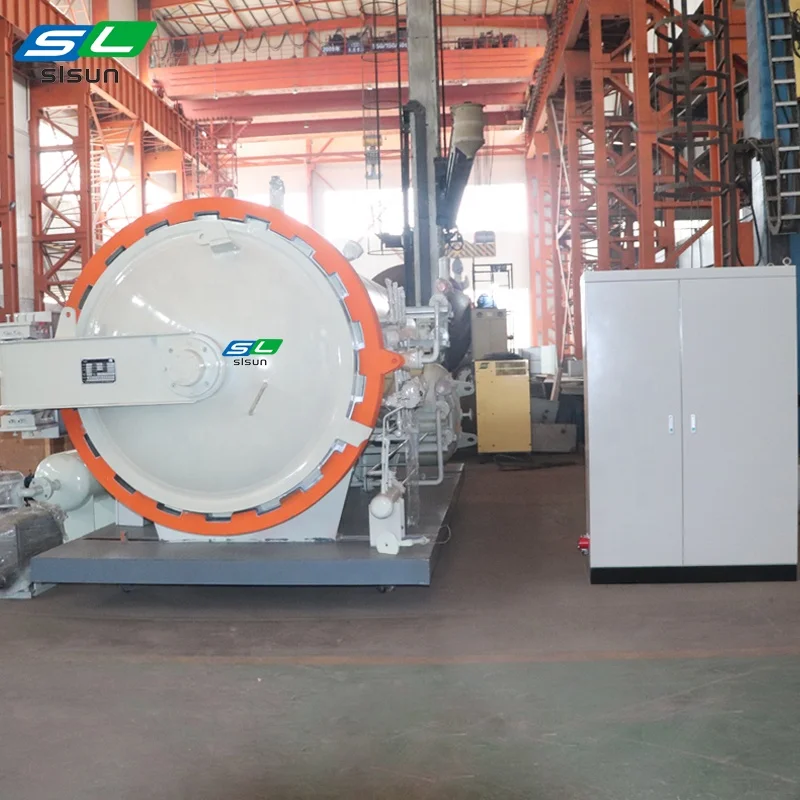

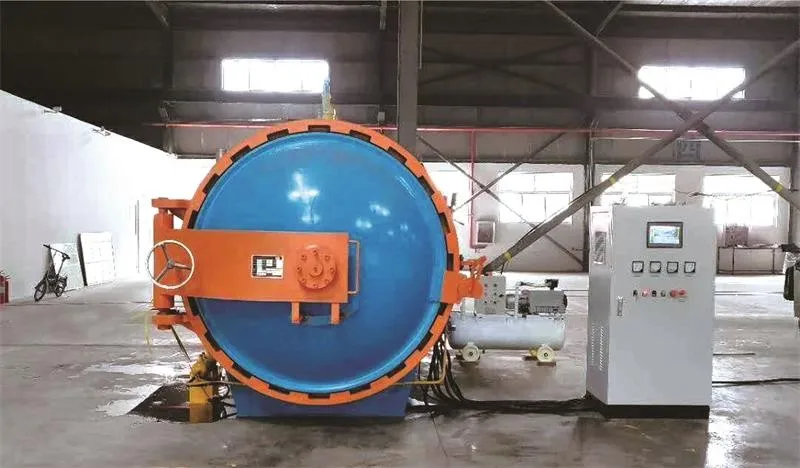

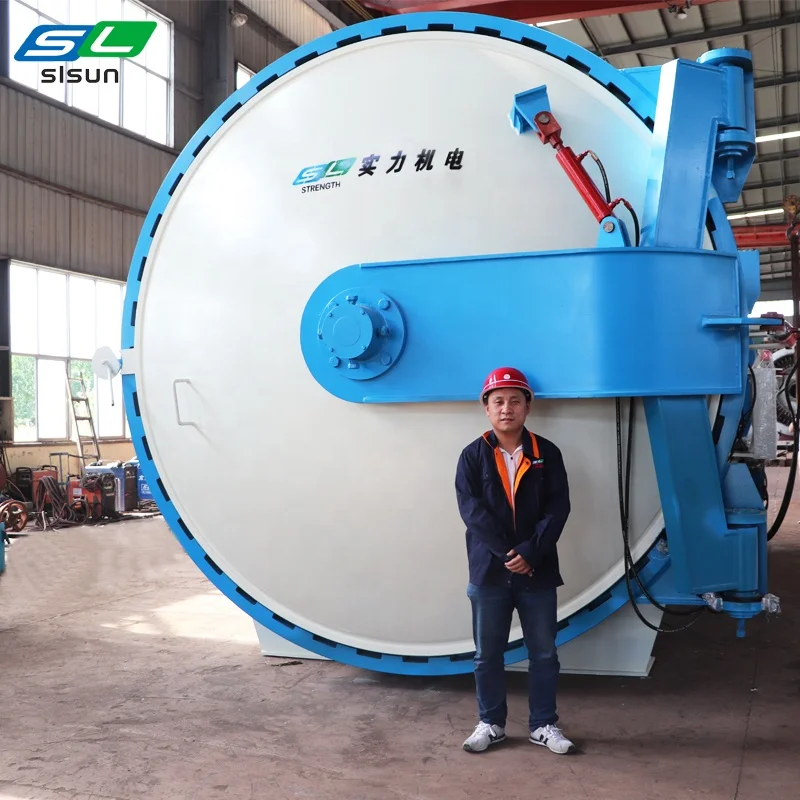

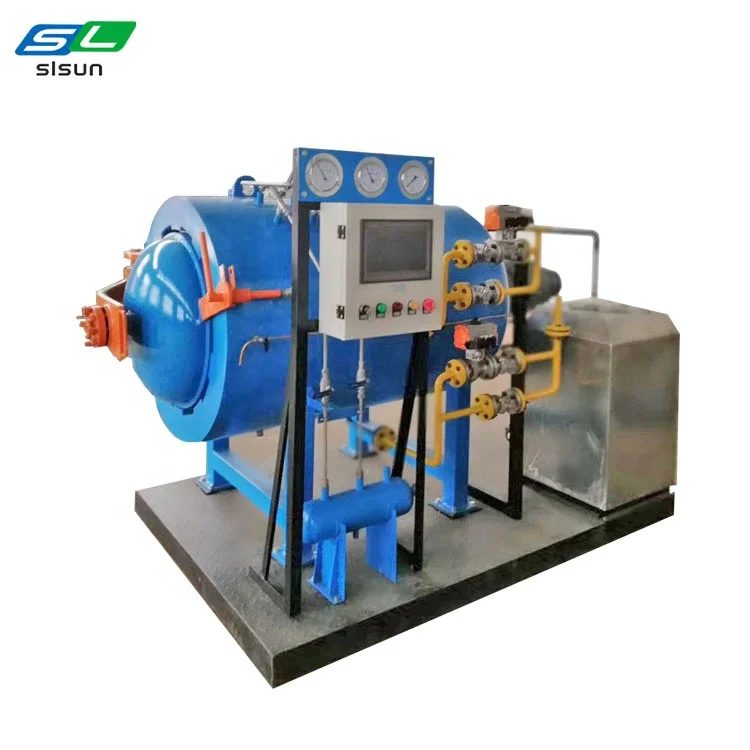

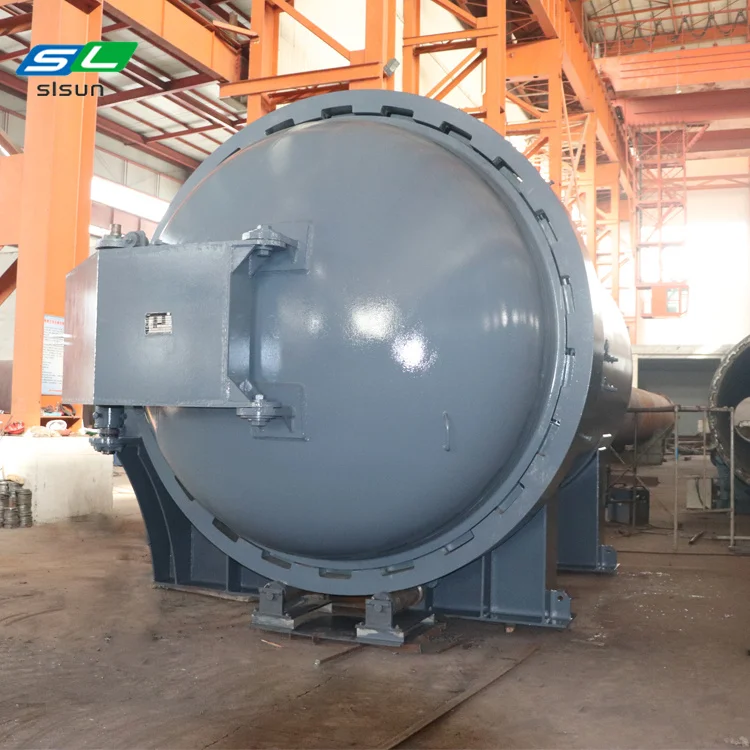

Product Display

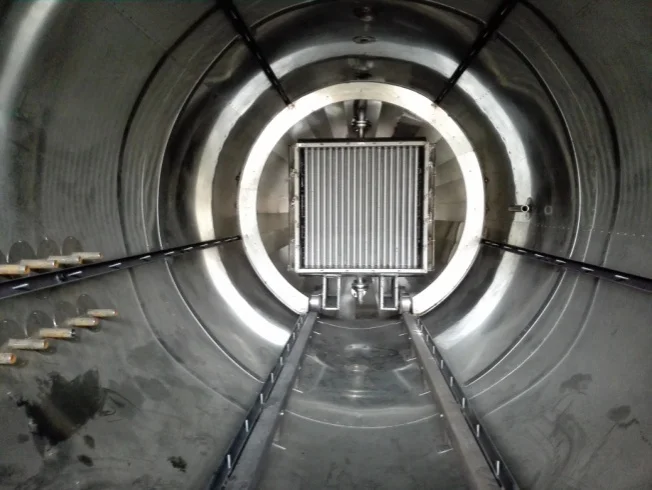

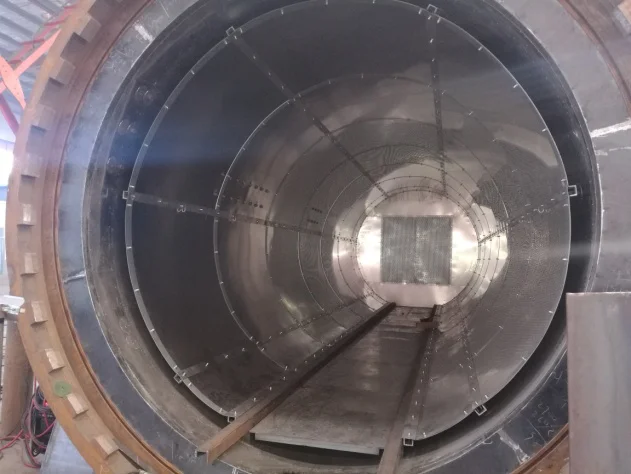

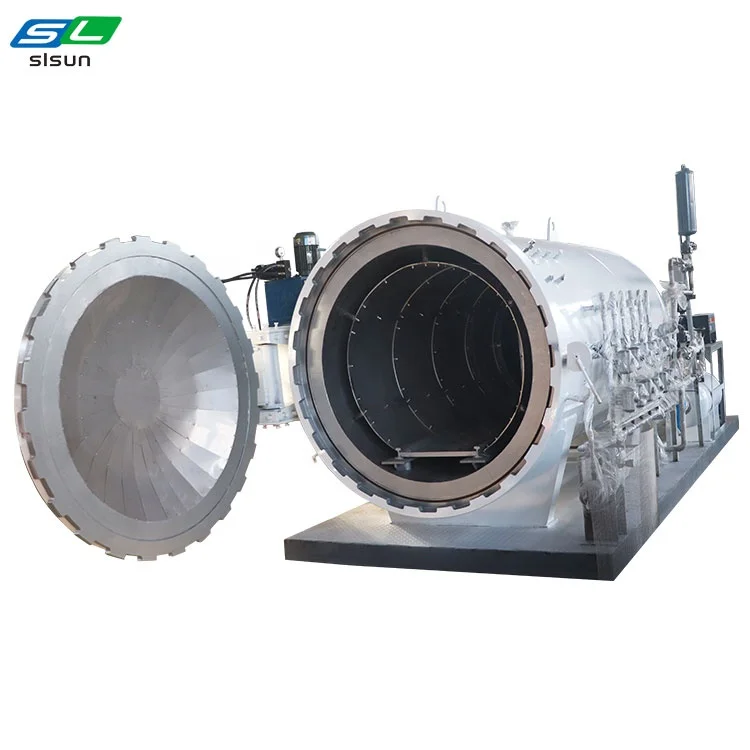

Interior thermal insulation
Internal sheet metal: Insulation liner, stailess steel 304.
Mineral wool insulation: 100mm. Ceramic aluminum silicate ceramic folding cotton.
Motor& fans air flow
Fan Motor: 11KW, 415V, 3PH – 50 Hz
Motor mounting: Capsule with water cooling
Motor jacket cooling system
Flow‐switch indication to PC

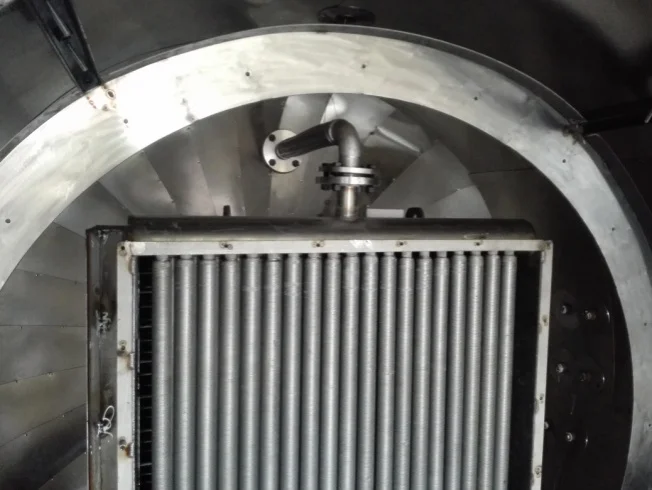

Heating control
Electric heating via inconel (Stailess steel ) tubular heaters
Heaters mounted back at end of autoclave which moving wheels for easy system maintenance.
Two linear regulator for heating power , each unite guarantee heating work efficient and energy saving.
Cooling system
Proportional cooling valve for main cooling control. Computer controlled.
Air spray and Mist water valves for trim cooling control. Computer controlled.
