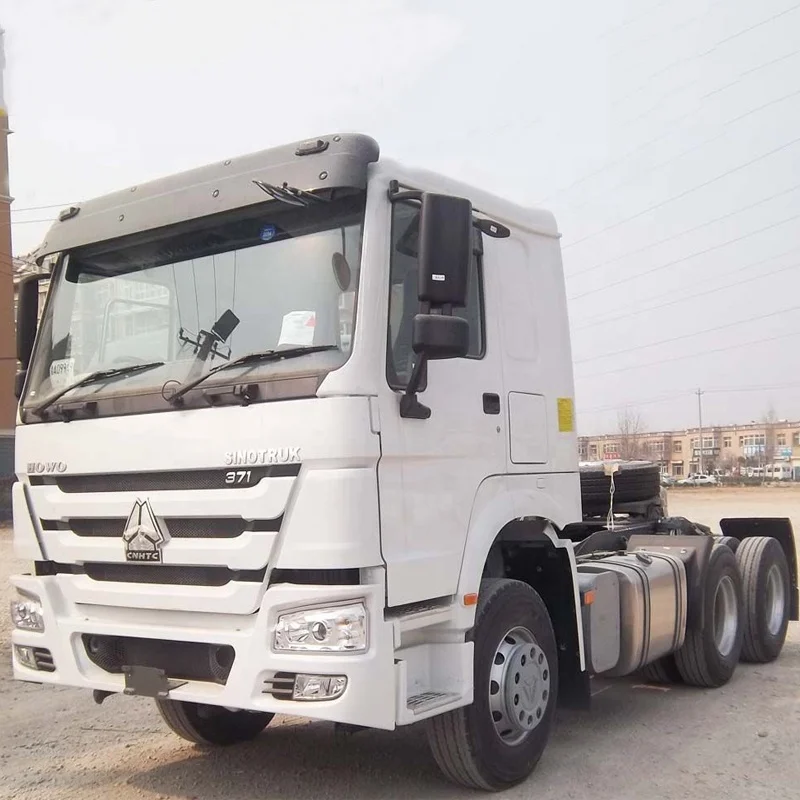

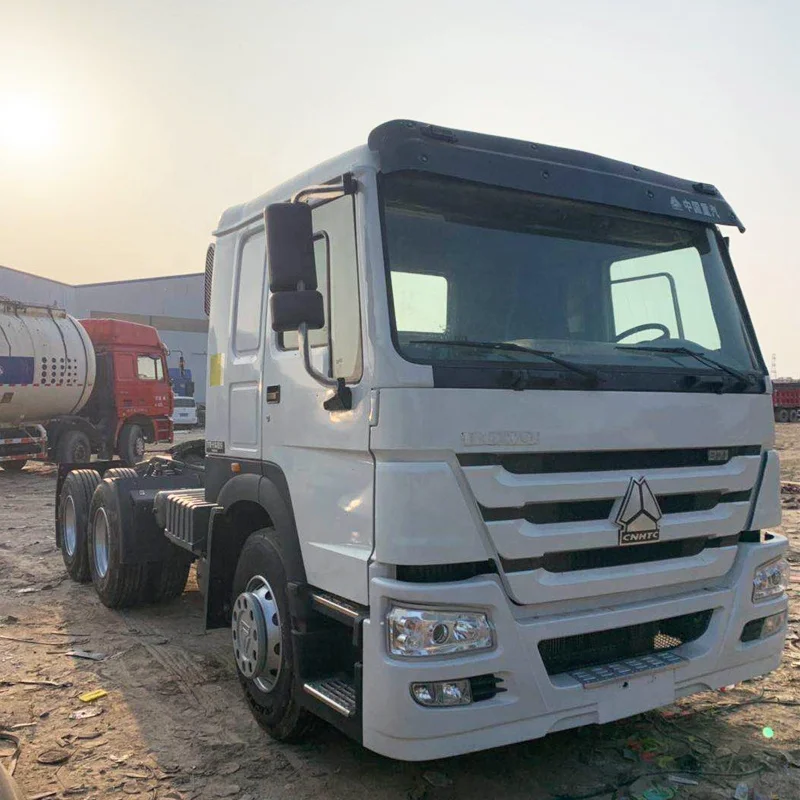

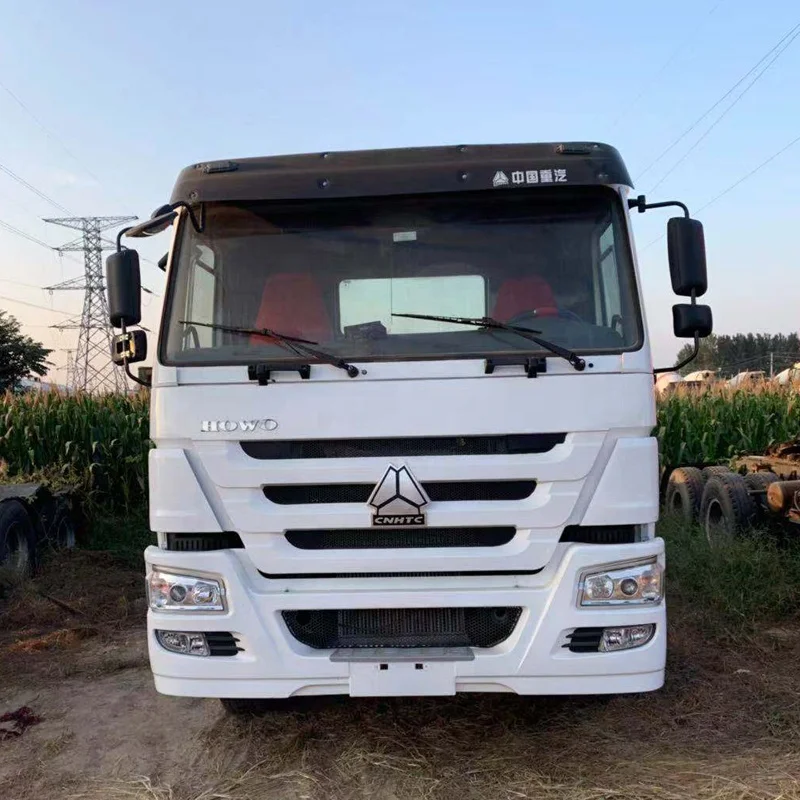

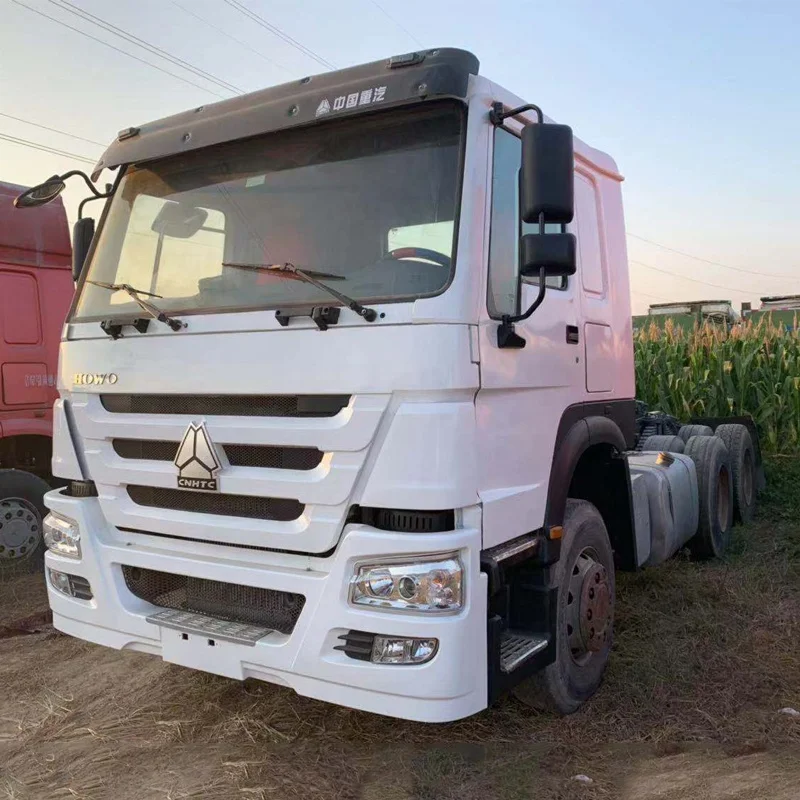

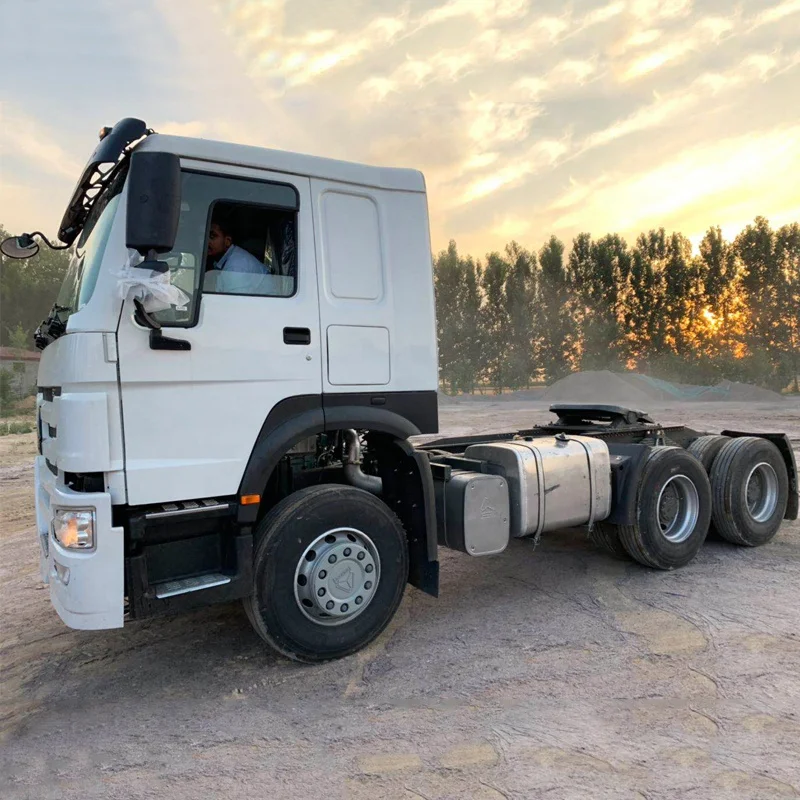

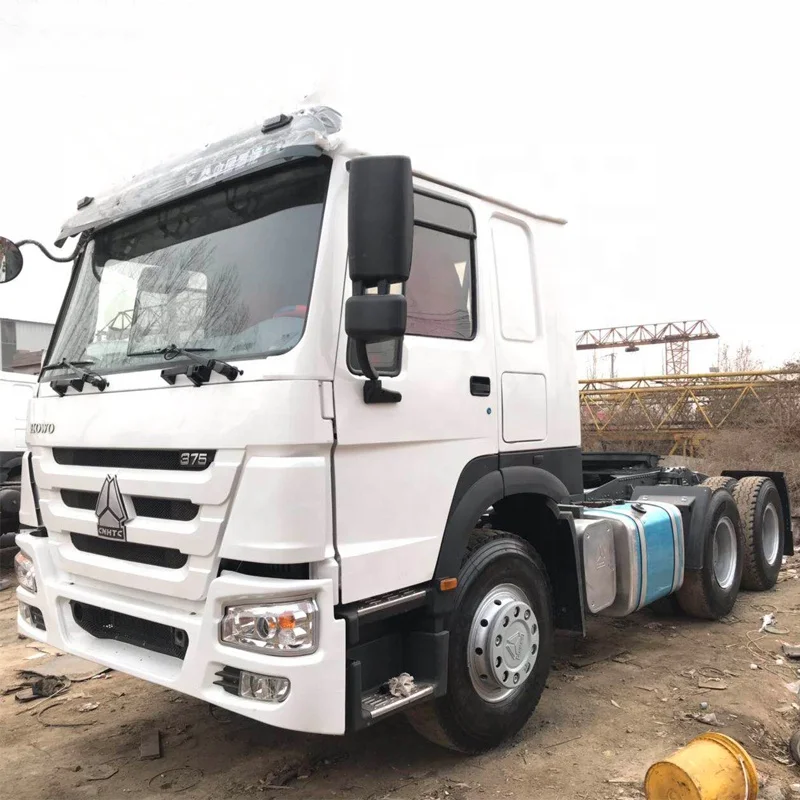

Truck Model | ZZ4257S3241 | ||||||
Truck Brand | SINOTRUK-HOWO | ||||||
Driving Style | Left/Right Hand Driving | ||||||
Dimension(Lx W xH)(unloaded) (mm) | 6800x2496x2958 | ||||||
Approaching angle/Departure angle(°) | 16/70 | ||||||
Overhang(front/rear) (mm) | 1500/725 | ||||||
Wheel base (mm) | 3225+1350 | ||||||
Front track/ Rear track(mm) | 2022/1830/1830mm | ||||||
Front track/ Rear track(mm) | 2022/1830/1830mm | ||||||
Max speed(km/h) | 101 | ||||||
Curb weight(kg) | 9180 | ||||||
Loading Weight(kg) | 25000 | ||||||

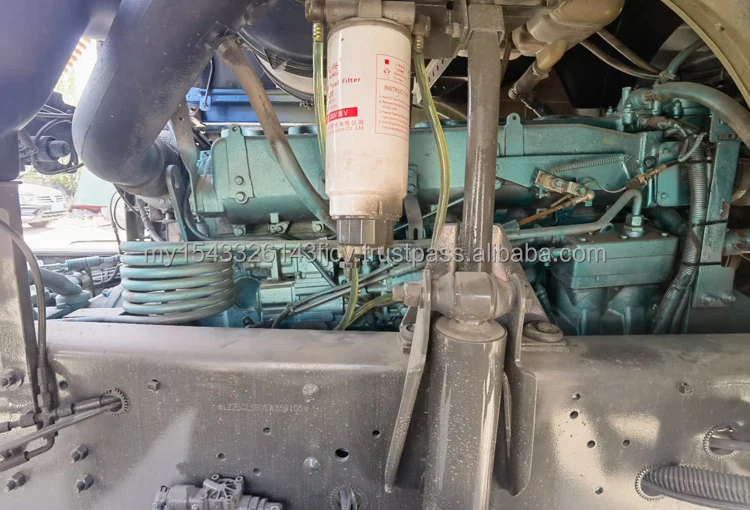

Engine (Steyr technology, made in China) | Brand | SINOTRUK | |||||
Model | WD615.47, water-cooled,four strokes,6 cylinders in line, turbocharged, directly injection | ||||||
Fuel type | Diesel | ||||||
Horse Power, max(kw/rpm) | 371HP | ||||||
Emission | EURO II | ||||||
Fuel tanker capacity (L) | 400L | ||||||
Clutch | Φ430 pull-type diaphragm spring clutch | ||||||
Transmission | HW19710, 10 forwards and 2 reverse | ||||||
Brake system | Service brake | Dual circuit compressed air brake | |||||
Parking brake | spring energy, compressed air operating on rear wheels | ||||||
Auxiliary brake | Engine exhaust brake | ||||||
Steering system | ZF8098 hydraulic steering with power assistance | ||||||
Front axle | HF9, 9 tons loading capacity | ||||||
Rear axle | HC16, 16 tons loading capacity | ||||||
Color | optional | ||||||
Tire | 1200R20, 10+1pcs | ||||||
Electrical system | Battery | 2X12V/165Ah | |||||
Alternator | 28V-1500kw | ||||||
Starter | 7.5Kw/24V | ||||||
Cab | HW76 cab one sleeper, with air-condition,4 point full-floating air suspension, adjustable steering wheel with various heights and angles, air suspension seat,etc. | ||||||
