Laminar Flow Cabinet HEPA H14 Filter FFU Fan Filter Unit for Sandwich Panel Modular Cleanroom
- Category: >>>
- Supplier: Airkey Envirotech Co. Ltd.
Share on (1600824544277):
Product Overview
Description
Products Description
Technical Parameters
MODEL | FFU-2*2 | FFU-2*4 | FFU-3*4 | FFU-4*4 | |||
External Size(mm) | 575*575*300 | 575*1175*300 | 875*1175*300 | 1175*1175*300 | |||
HEPA Filter Size(mm) | 570*570*69 | 570*1170*69 | 870*1170*69 | 1170*1170*69 | |||
Efficiency | HEPA 0.3um @99.99% or ULPA 0.12um @99.995% | ||||||
Construction | Galvanized Steel or Stainless Steel Optional | ||||||
Air Velocity(m/s) | 0.35-0.45(±20%） | ||||||
Air Volume( CMH) | 410-530 | 840-1080 | 1280-1650 | 1720-2160 | |||

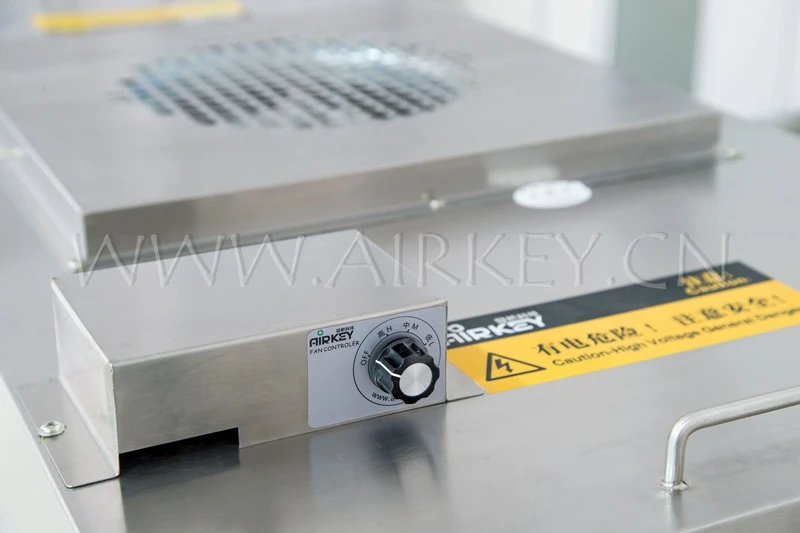

Speed Control | Three Speeds Adjustable | ||||||
Noise Level(dB) | 48-50 | 48-52 | 50-56 | 52-58 | |||
Output Power AC DC | ≤98 | ≤150 | ≤180 | ≤200 | |||
Power Consumption | ≤65 | ≤90 | ≤130 | ≤160 | |||
Power Supply | AC110/220V OR 220/380V 50/60HZ OR DC 220V | ||||||
Protector | Included | ||||||
Weight(Kg) | 28 | 40 | 47 | 55 | |||

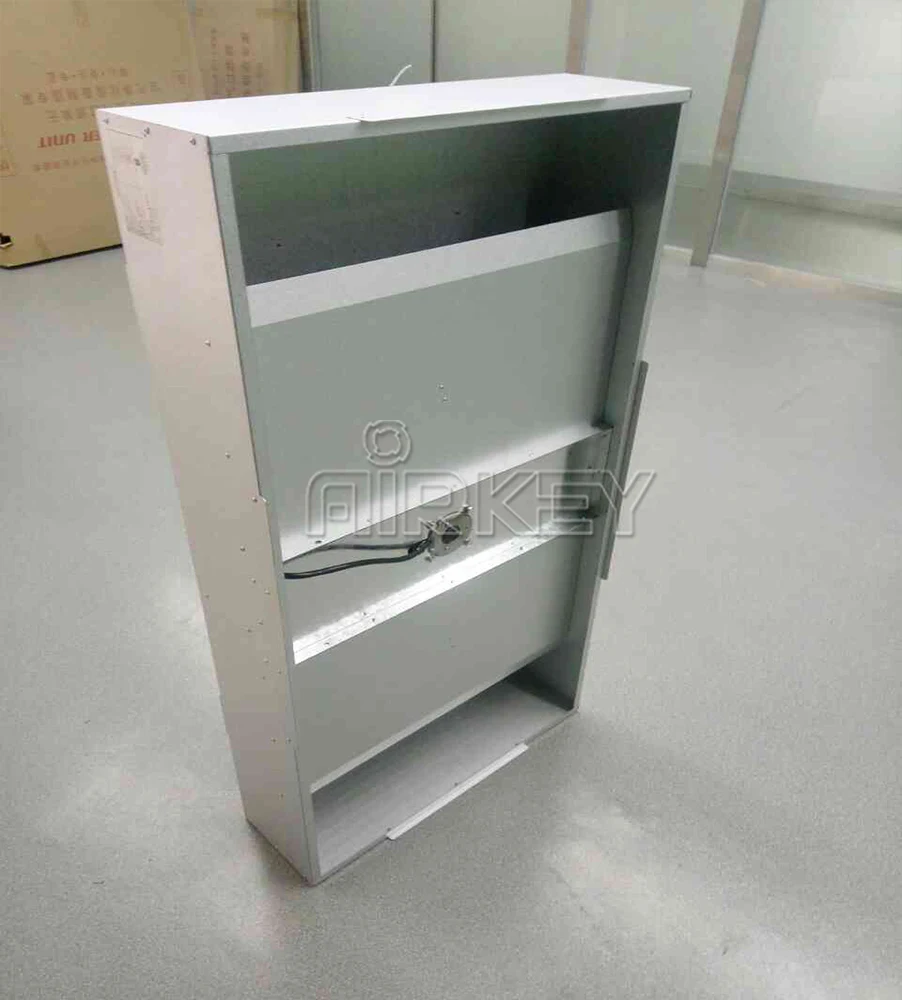

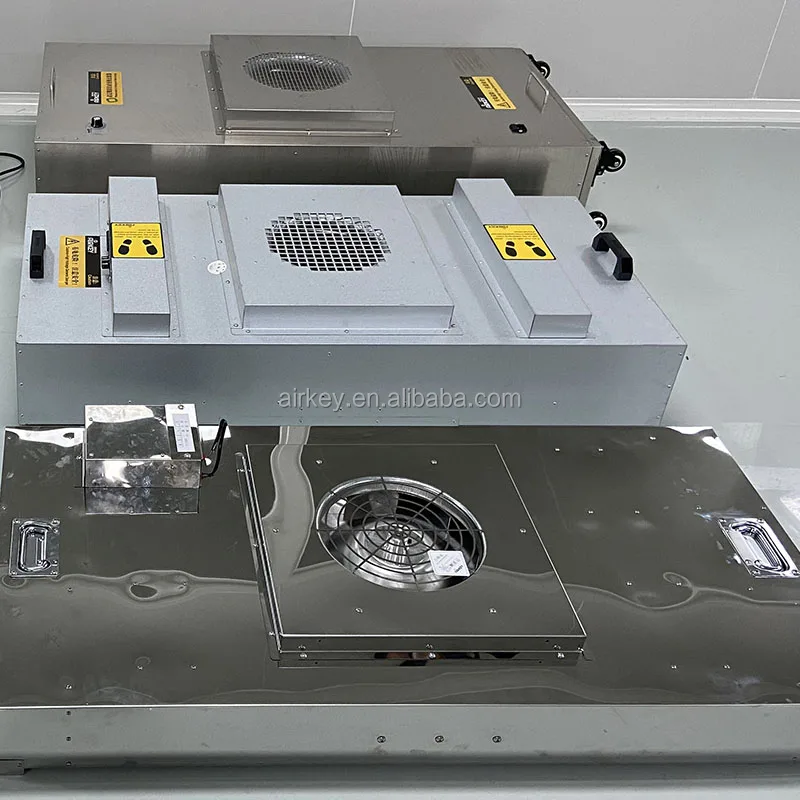

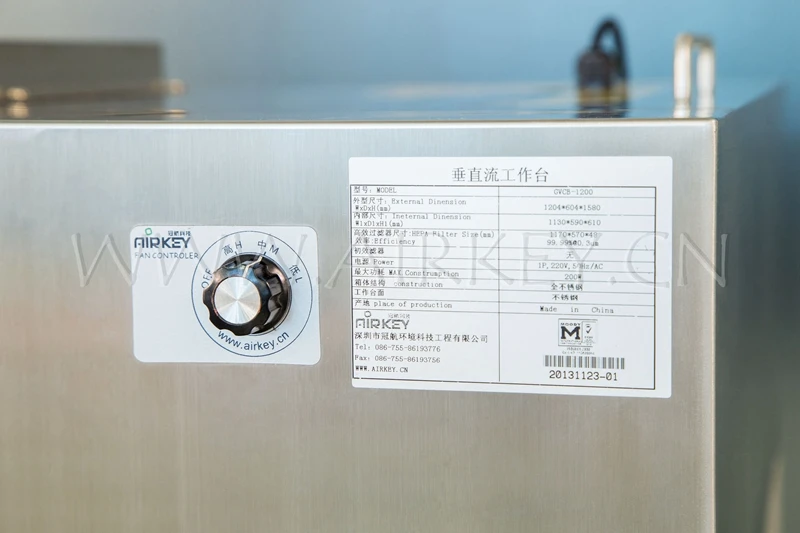

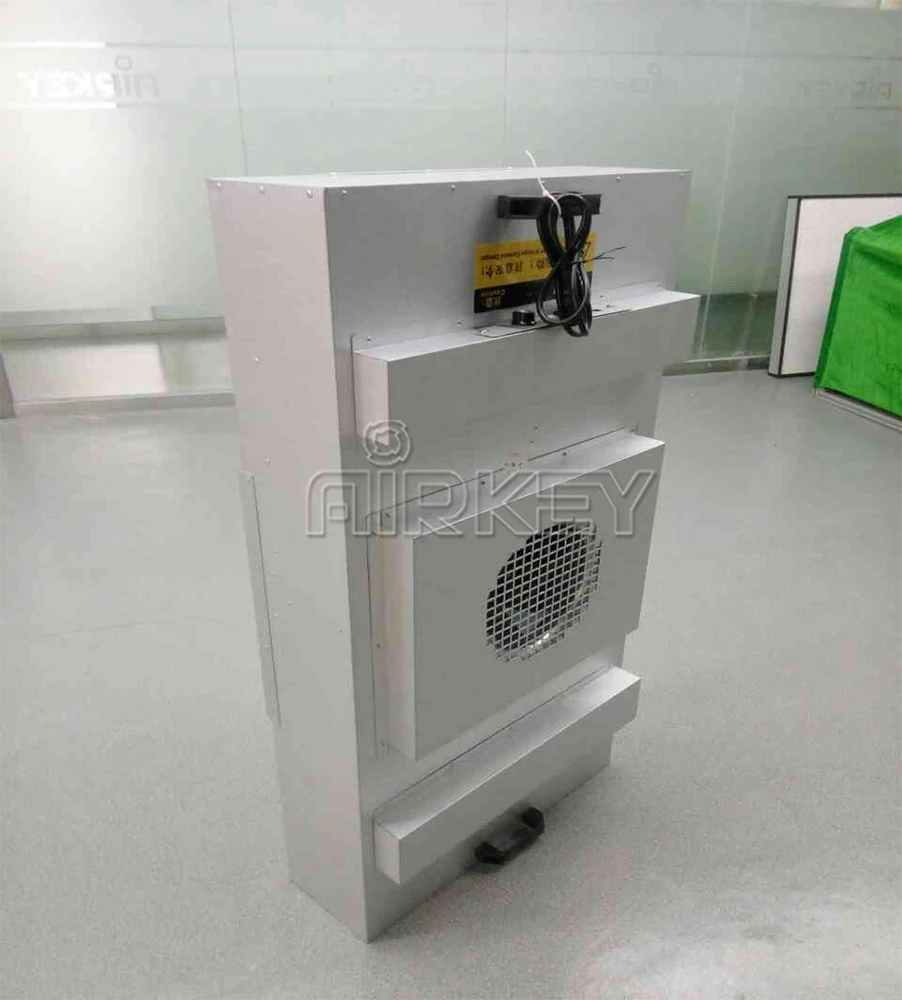

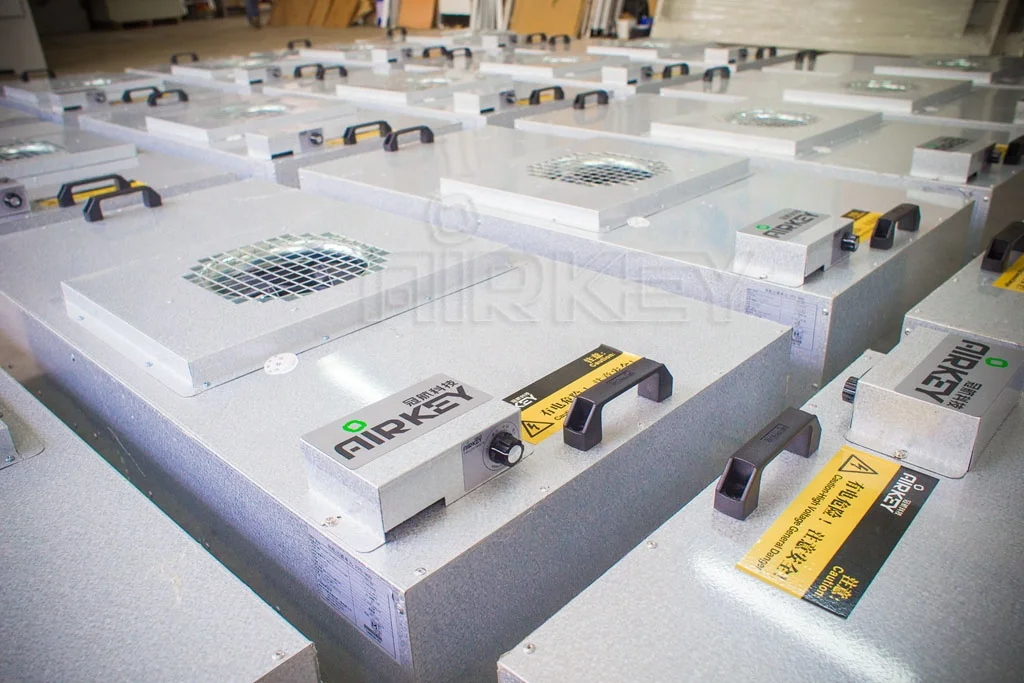

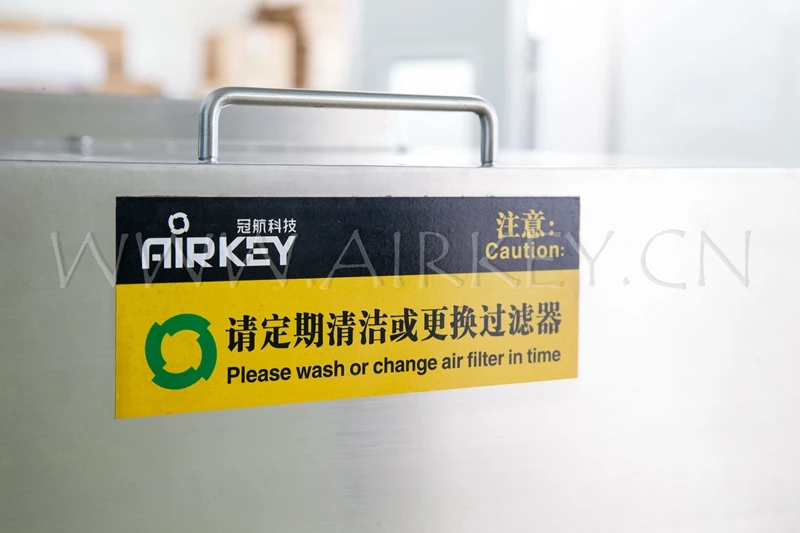

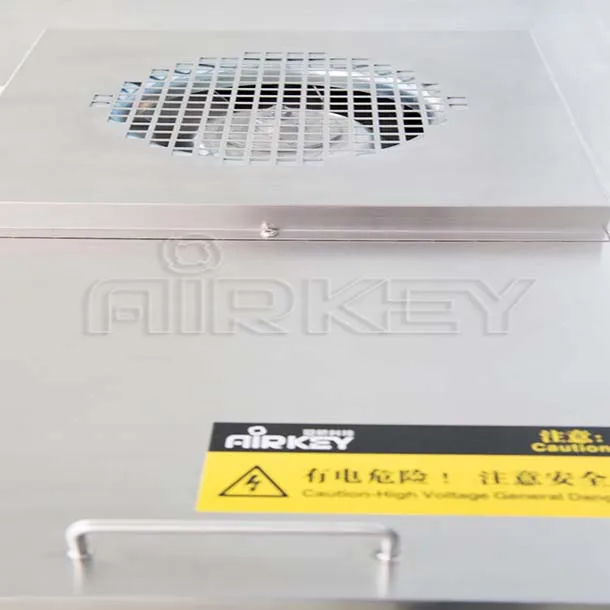

Detailed images
Application & Main Features

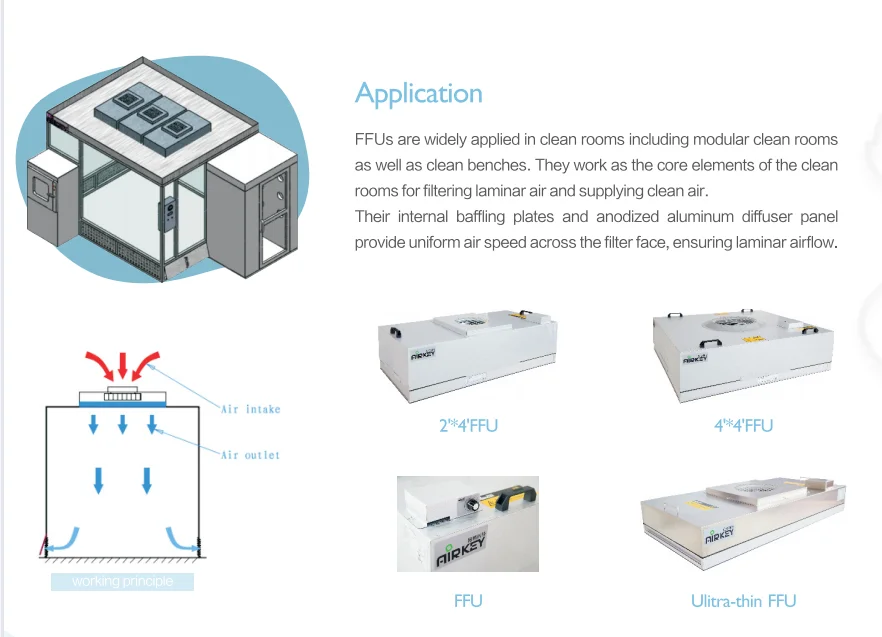

Application
FFUs are widely applied in clean room including modular clean rooms as well as clean benches. They work as the core elements of the clean rooms for filtering laminar air and supplying clean air.Their internal baffling plates and anodized aluminum diffuser panel provide uniform air speed across the filter face, ensuring laminar airflow.
FFUs are widely applied in clean room including modular clean rooms as well as clean benches. They work as the core elements of the clean rooms for filtering laminar air and supplying clean air.Their internal baffling plates and anodized aluminum diffuser panel provide uniform air speed across the filter face, ensuring laminar airflow.
Main Features
1) Built-in hepa air filter and low-noise fan.
2) Exterior height is suitable to make it easier for technicist.
3) More lighter, its size is changeable to fit any design of ceiling.
4)Lower noise, lower consumption.
5) The modular design makes it easier to instal.
1) Built-in hepa air filter and low-noise fan.
2) Exterior height is suitable to make it easier for technicist.
3) More lighter, its size is changeable to fit any design of ceiling.
4)Lower noise, lower consumption.
5) The modular design makes it easier to instal.

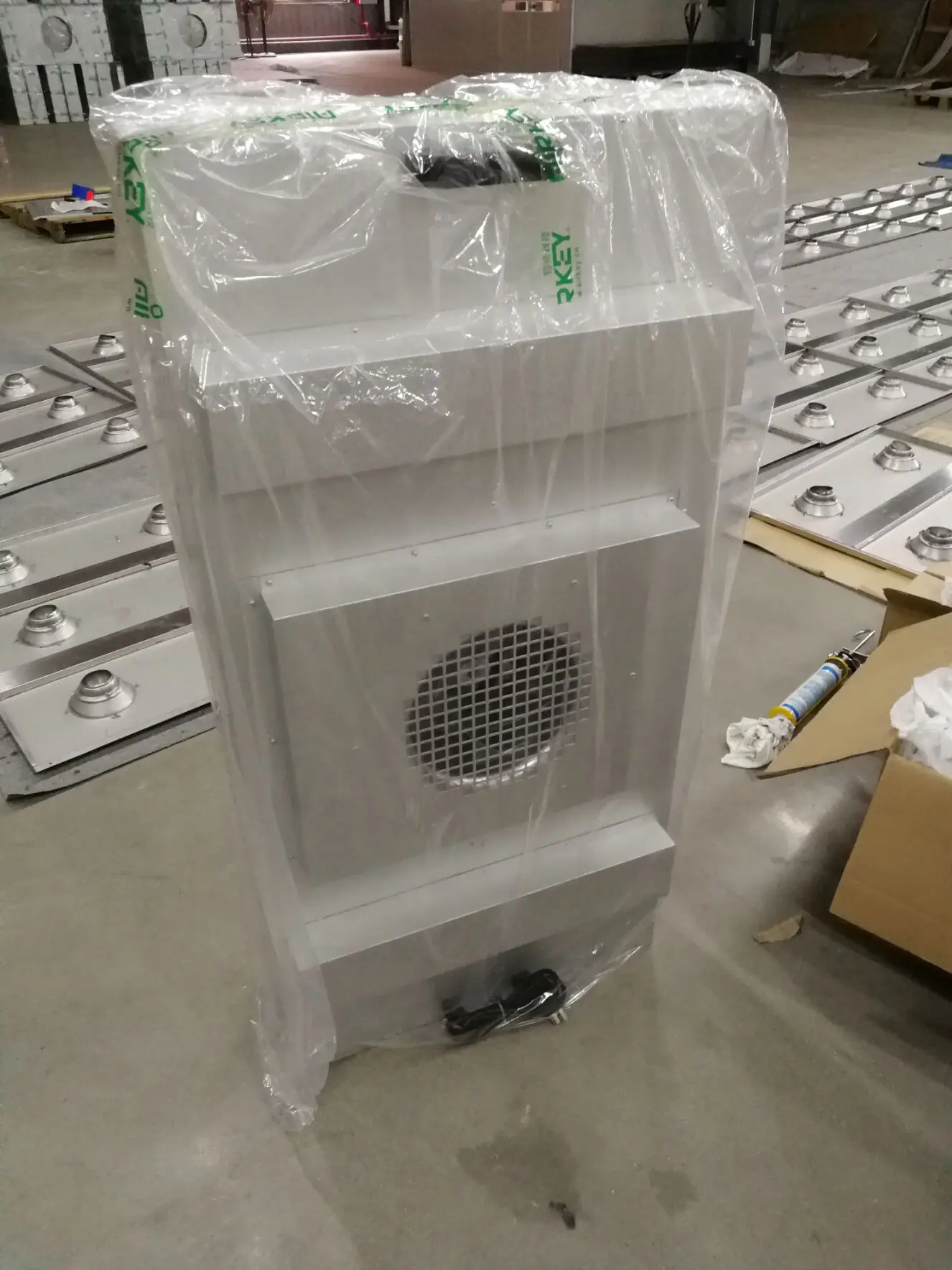

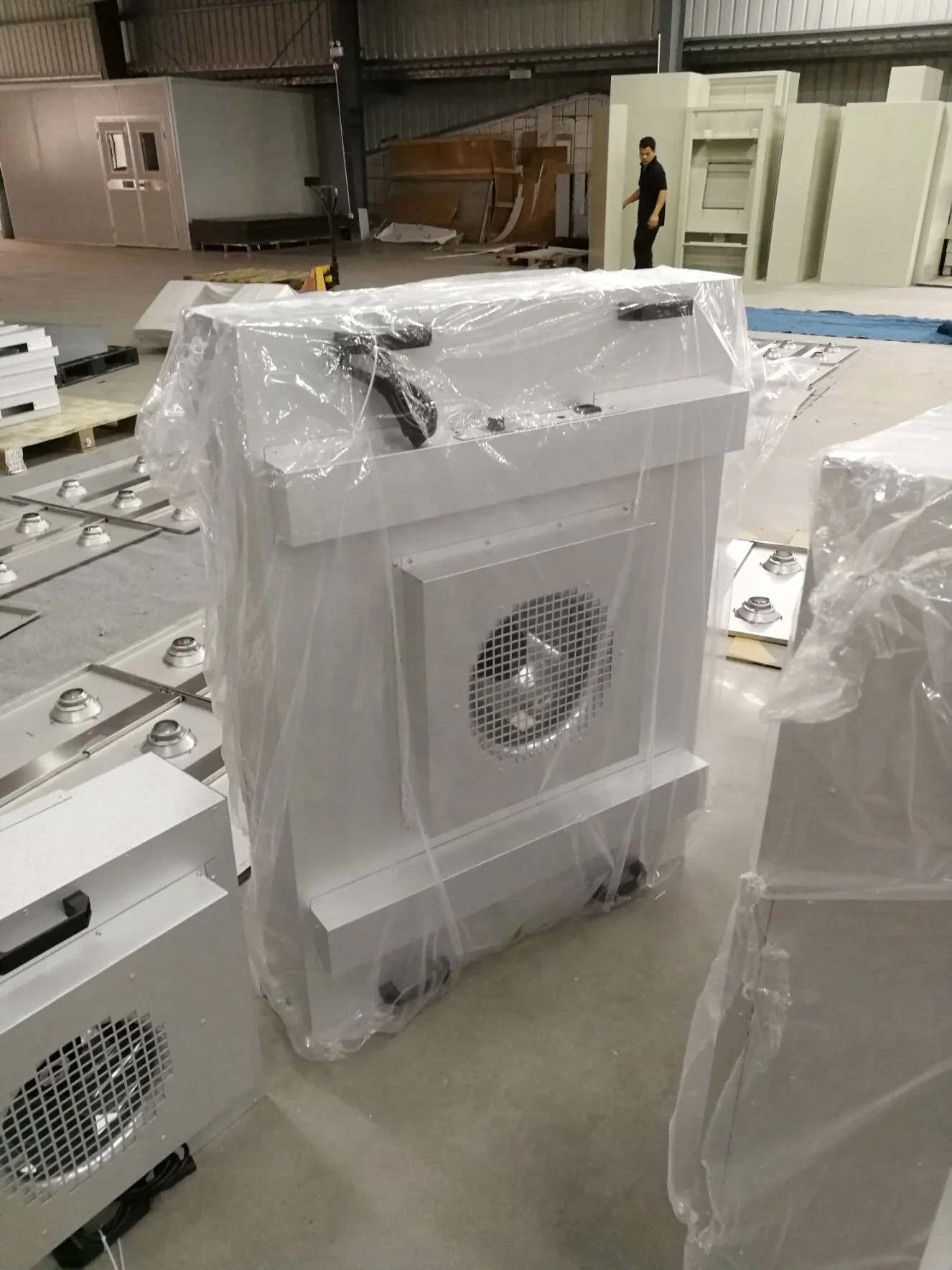

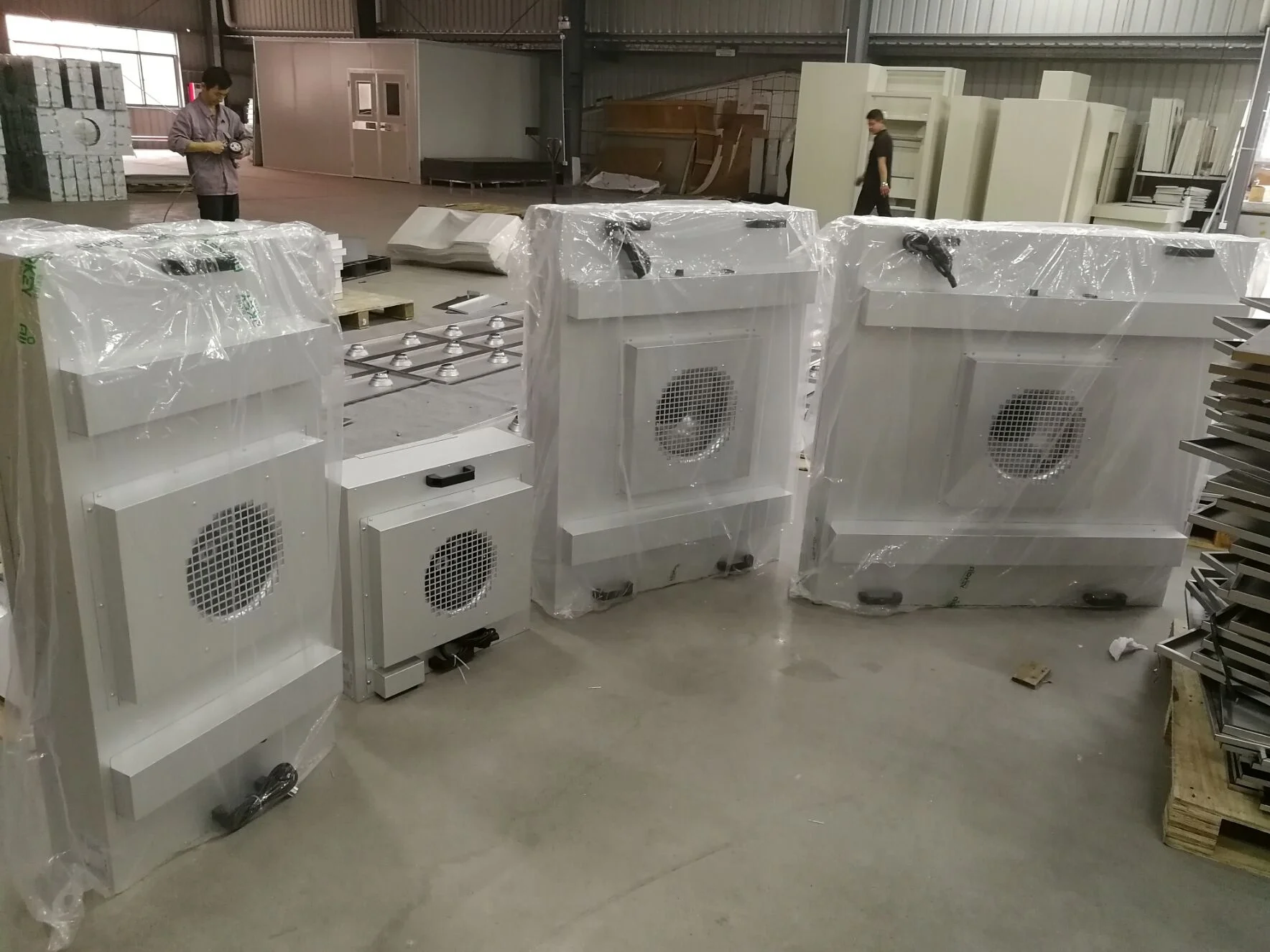

Product packaging
