Best Selling Industrial Mini Pc N100 J6412 J6413 12th Support DP 2 HD 4K Display WIN10 LINUX RS232 Fanless Industrial Computer
- Category: >>>
- Supplier: Shenzhen Rongtian Electronic Technology Co. Ltd.
Share on (1600824564977):
Product Overview
Description

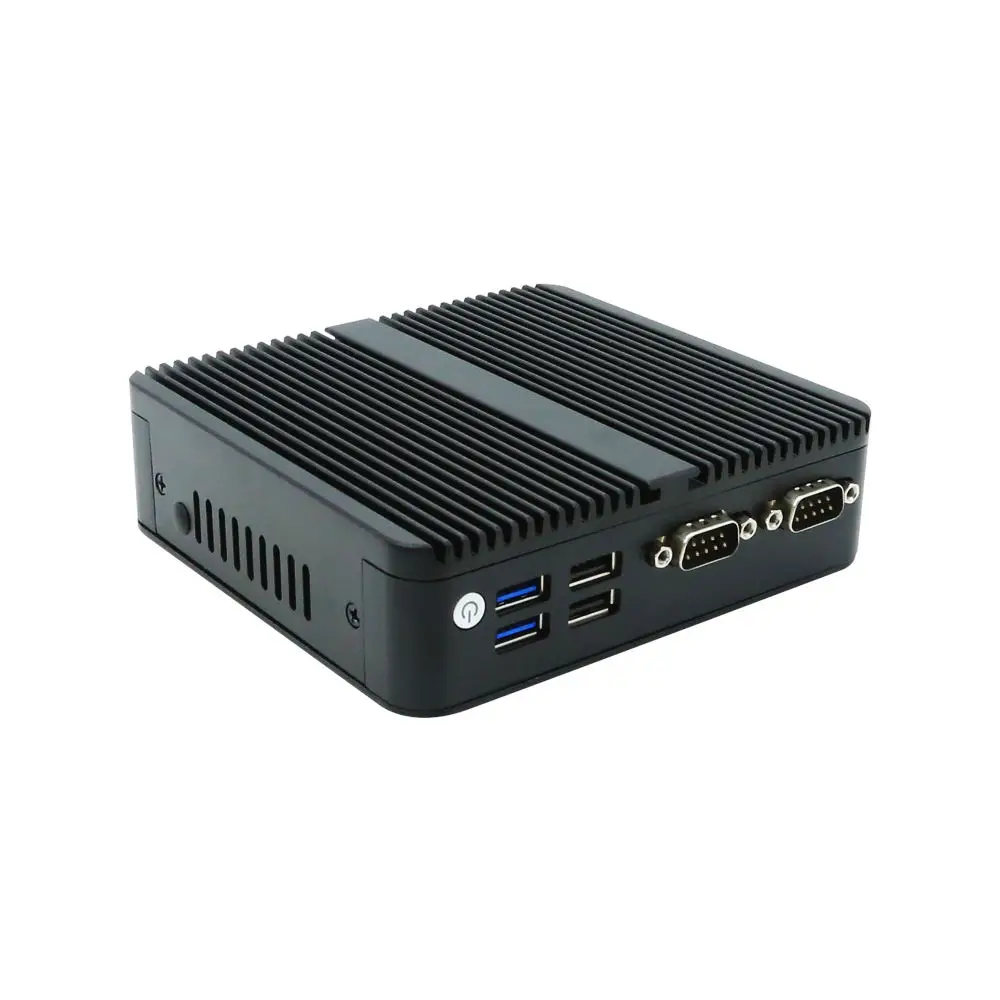

Best Selling Industrial Mini Pc N100 J6412 J6413 12th Support DP 2 HD 4K Display WIN10 LINUX RS232 Fanless Industrial Computer
- Processor: Onboard 10nm Elkhart Lake Intel Celeron J6412 2.0~2.6GHz Quad Cores Four Threads
- Support 2 x HDMI 1.4+DP 1.2 Three display output synchronously.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design

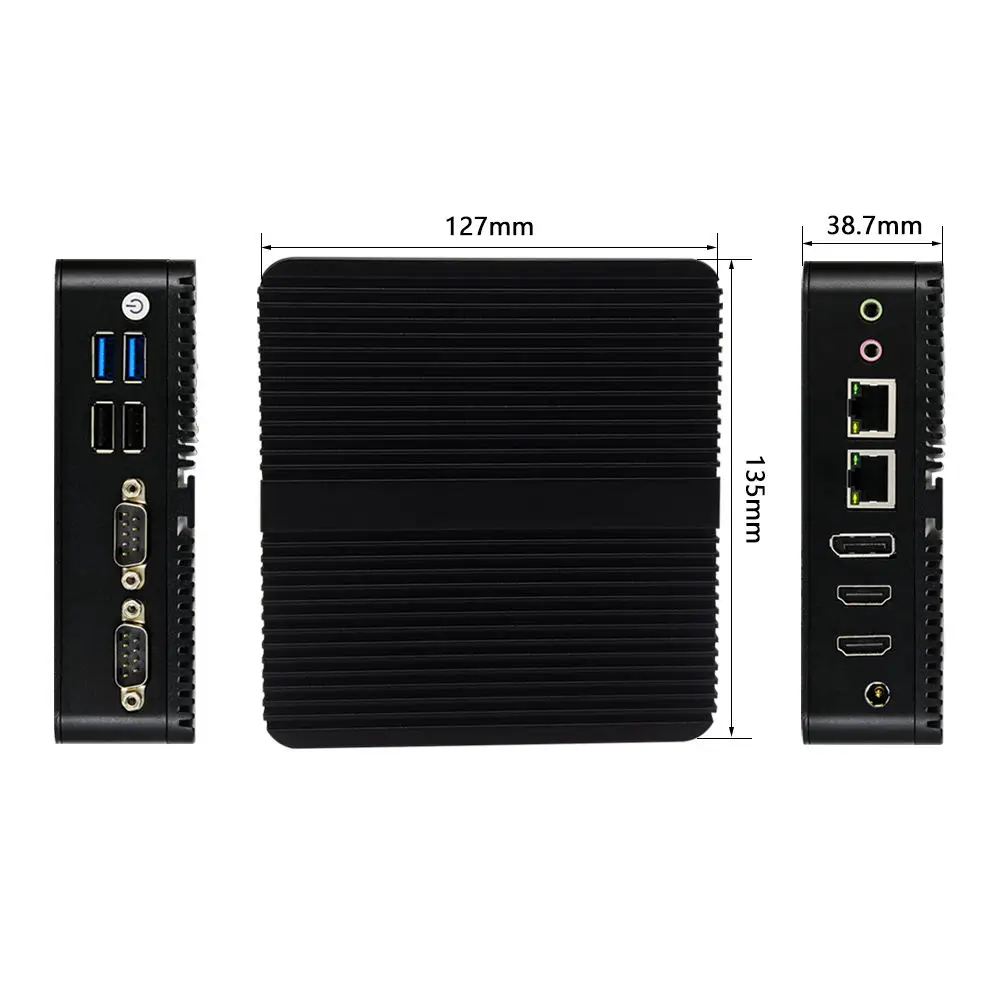

with high quality and stable performance, slim dimension 135*127*38.7MM.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 10W, save much energy and eco-friendly.

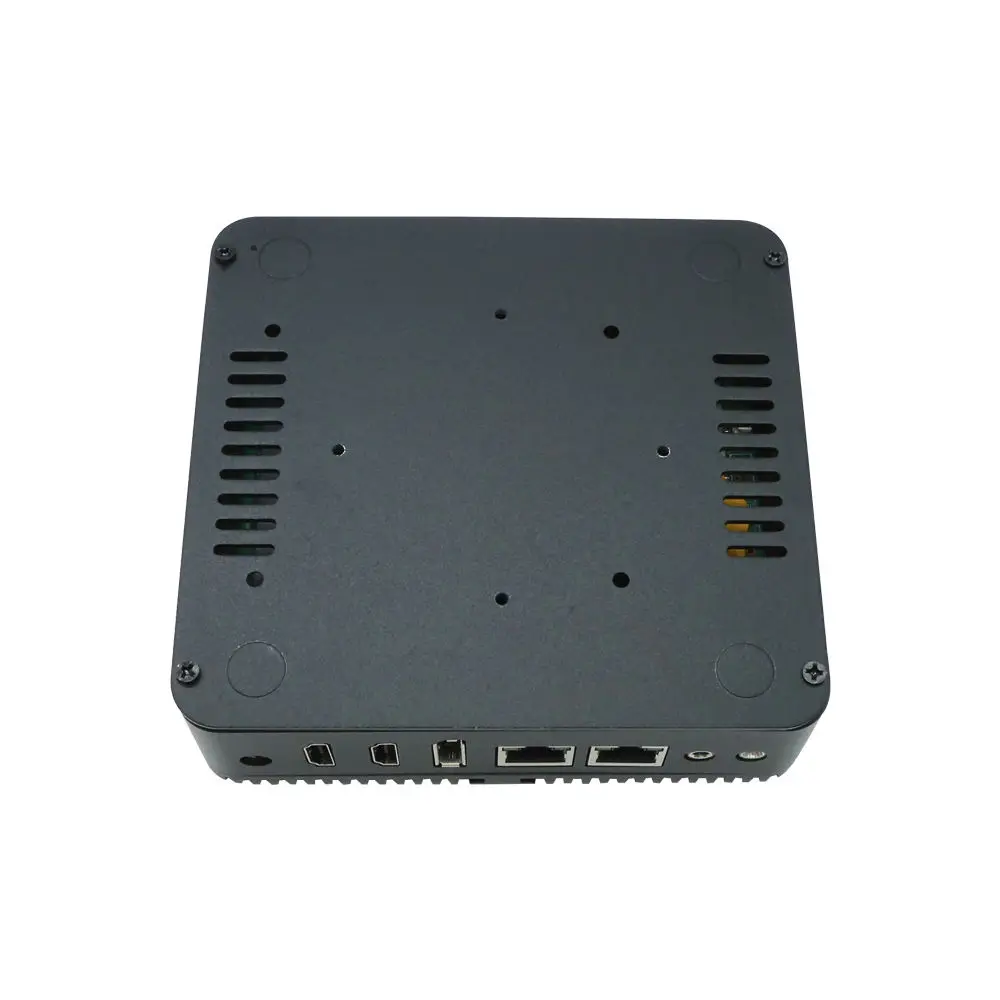

- Can be mounted back of monitor or wall by the optional VESA mount.
- Support 2 x HDMI 1.4+DP 1.2 Three display output synchronously.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design
with high quality and stable performance, slim dimension 135*127*38.7MM.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 10W, save much energy and eco-friendly.
- Can be mounted back of monitor or wall by the optional VESA mount.
Product Name: | Industrial computer Mini PC | ||||||
Onboard CPU： | Intel Celeron J6412 Processor (10nm Elkhart Lake 2.0~2.6GHz Quad Cores Four Threads) | ||||||
TDP： | 10W | ||||||
Video Card： | Intel UHD Graphics | ||||||

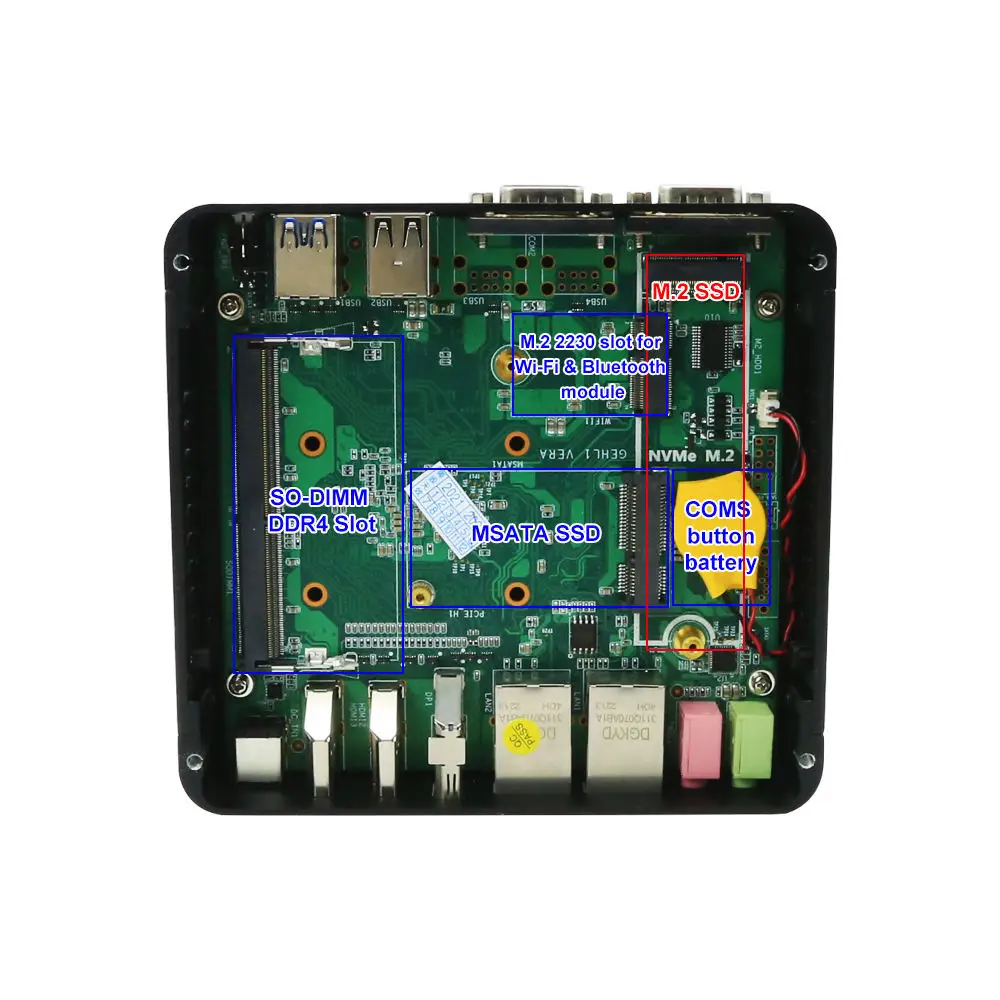

RAM： | 1*SO-DIMM DDR4 slot，Support 4GB/8GB | ||||||
Hard Disk： | 1 x M.2 slot for NVME 2280 SSD 1 x M-SATA3.0 slot for MSATA SSD, suppot 6Gb/s 1 x SATA3.0 slot for SATA HDD or SSD,support 6Gb/s | ||||||
O/S： | Windows 10/11/Linux | ||||||

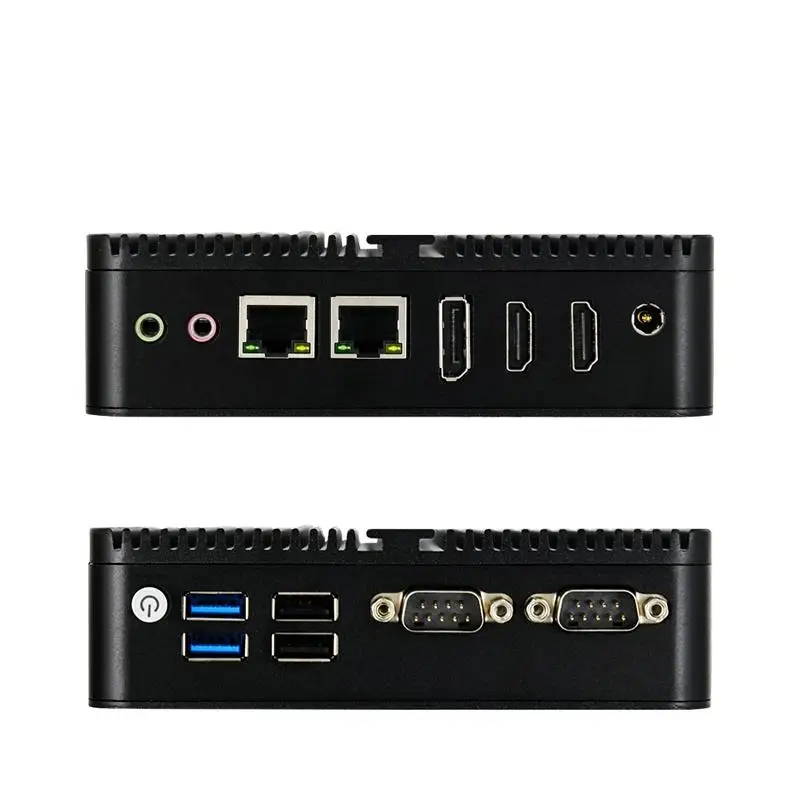

2 x USB3.0 2 x USB2.0 1 x DP1.2 2 x HDMI1.4 2 x DB9 RS232 COM 2 x RJ45 Giga Lan 1 x MIC 1 x SPK 1 x 12V DC In 1 x Power On/Off Switch | |||||||
WiFi: | 1 x M.2 2230 slot for Wi-Fi & Bluetooth module | ||||||
Audio： | Intel High Definition Audio Controller | ||||||
Network： | 1 x Realtek 811H Gigabit Ethemet Controller 10/100Mbps/1000Mbps BaseT LAN | ||||||
Extra Function： | Watchdog Auto power on, Wake-On-LANPXE | ||||||
Dimension & Details： | 135*127*39mm,Net 0.55kg,Gross 1.2kg | ||||||
Material： | Aluminum Alloy Fanless | ||||||
Pakcage： | Standard：1 x Mini PC,1 x Power Adapter,1 x Power Cord,1 x Screws Bag Optional：Wi-Fi antennas.1 x User Manual，1 x VESA mount | ||||||
Power： | Input:：DC100-240V AC/50-60Hz Output：DC 12V/5A | ||||||
Recommend Products
Packing&Shipping
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Industrial computer Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Normally we use the carton box, 5 or 10pcs per carton
1 x Industrial computer Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
