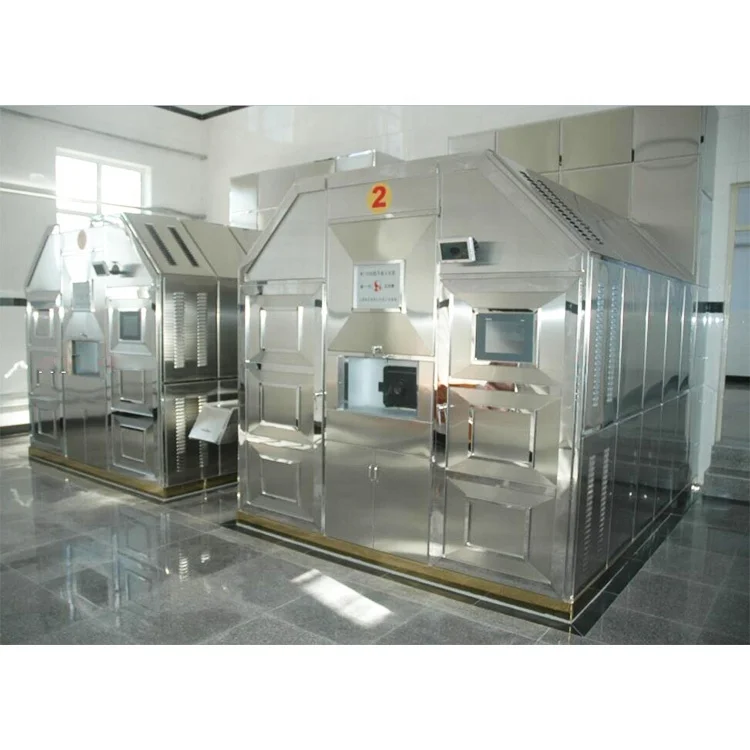

Cremation Machine For Sale No Smoke No Smell Human Cremation Machine Negative Pressure Burning 1000 Celsius
- Category: >>>
- Supplier: Shandong Jinlicheng Environmental Technology Co. Ltd.
Share on (1600824566798):
Product Overview
Description
Cremation Machine Cremation Furnace Crematory Equipment Human Body Incinerator Crematory Equipment
* During incineration, the body is exposed to a column of flames produced by a furnace fueled by natural gas, oils, propane, etc.
* As the corpse is placed in the machine, the container burns down.
* Next, the heat dries the body, burns the skin and hair, contracts and chars the muscles, vaporizes the soft tissues, and calcifies the bones so that they eventually crumble.
* The bodies are mostly burned around half a hour. There is no smell and no smoke at all because the emissions are processed to destroy the smoke and vaporize the gases that would smell.
* Our crematories machine have fourth afterburner to help burn the body completely.
* As the corpse is placed in the machine, the container burns down.
* Next, the heat dries the body, burns the skin and hair, contracts and chars the muscles, vaporizes the soft tissues, and calcifies the bones so that they eventually crumble.
* The bodies are mostly burned around half a hour. There is no smell and no smoke at all because the emissions are processed to destroy the smoke and vaporize the gases that would smell.
* Our crematories machine have fourth afterburner to help burn the body completely.
Our cremator adapt the latest combustion technology, four times burning technology ensure the emissions purified.
(1) First Time Combustion is direct combustion inside the primary chamber. Integrated with hot blast oxygen supply (300℃), most
smoke and gas get burned as spontaneous combusting of corpse and enforced by the main burner supporting at times.
(2) Second Time Combustion: The smoke and gas substance released from the primary chamber gathered in the secondary burning and
multiple collision take place, decomposition and oxidation of that harmful substances speedup this way and by the special
construction of the secondary burning chamber.
(3) Third Time Combustion is the strengthen combustion of the gas and smoke. Burner starts work to strengthen the burning if
temperature under 700℃,otherwise above 700℃the high temperature gas and smoke burn itself matched with the suitable amount of
oxygen.
(4) Fourth Combustion occurred in the gas way and underground smoke channel, gas and gas substances flameless burned totally
before injection into the atmosphere.
Cremation, as an option for the final disposition of a deceased person, has been around for thousands of years. While the
beginnings of cremation involved somewhat primitive methods for achieving the end result, modern times and technology have given
rise to a more standardized version of the process. Our company manufacture human size cremators that reduce the amount of time
necessary to complete the cremation to less than half an hours.
(1) First Time Combustion is direct combustion inside the primary chamber. Integrated with hot blast oxygen supply (300℃), most
smoke and gas get burned as spontaneous combusting of corpse and enforced by the main burner supporting at times.
(2) Second Time Combustion: The smoke and gas substance released from the primary chamber gathered in the secondary burning and
multiple collision take place, decomposition and oxidation of that harmful substances speedup this way and by the special
construction of the secondary burning chamber.
(3) Third Time Combustion is the strengthen combustion of the gas and smoke. Burner starts work to strengthen the burning if
temperature under 700℃,otherwise above 700℃the high temperature gas and smoke burn itself matched with the suitable amount of
oxygen.
(4) Fourth Combustion occurred in the gas way and underground smoke channel, gas and gas substances flameless burned totally
before injection into the atmosphere.
Cremation, as an option for the final disposition of a deceased person, has been around for thousands of years. While the
beginnings of cremation involved somewhat primitive methods for achieving the end result, modern times and technology have given
rise to a more standardized version of the process. Our company manufacture human size cremators that reduce the amount of time
necessary to complete the cremation to less than half an hours.

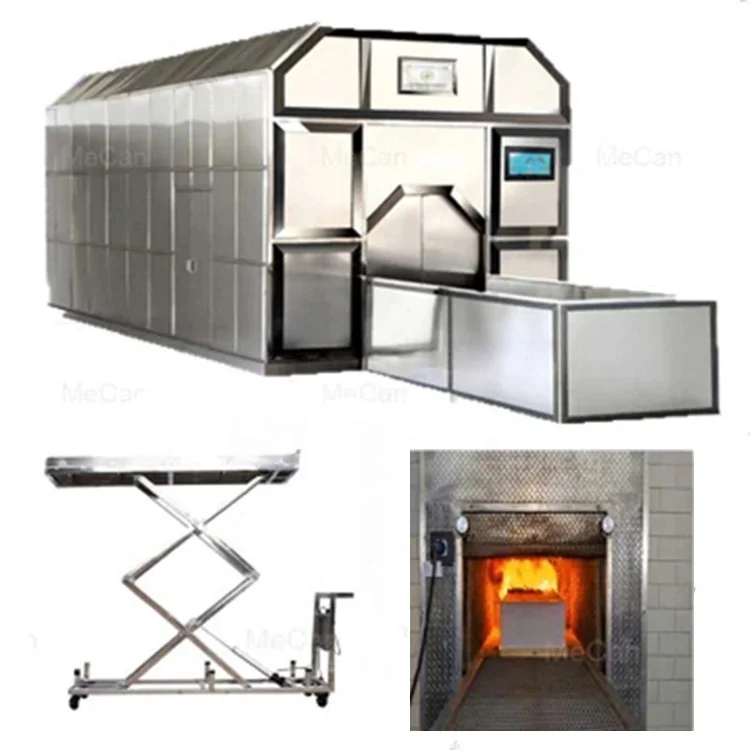

High-End Furnace Cremation Machine
Feature:
Model Name | Body Cremation Machine Oven Cremator For Crematorium |
Model Number | JLC4000-61 |
Material | Stainless and Refractory |
Style | Eropean style |
Type | Including burning systerm and cold systerm |
Control Systerm | Japan Mitsubishi PLC and LCD touch screen or touch switches |
Overall Dimensions | 12000*2360*2700mm |
Transport Creeper Trolley Size | 3800*830*800mm |
Temp of Primary Combustion Chamber | 700-900 cent degree |
Hearth Burning Pressure | -5 to -10Pa |
Total Power | 20kw |
Ground Space | 9-10m2 |
Average Fuel Consumption | 3-7kg/case |
Average Time | 20~35min/case |
Package Details | One unit of cremation machine load 1*40HQ container, around 27 Ton Totally |
Payment | 50%TT in advance,50%TT before shipping |
Delivery | 30days |
(1) Refractory material
The refractory material of the furnace is JILICHENG brand, which is famous in China. The top cover of the furnace is made of prefabricated high aluminum refractory bricks. The furnace is made of new high-strength erosion resistant aluminum carbonized silicon composite material, which can ensure the fast temperature rise in the furnace, the short time of the cremation remains and the small oil consumption. All refractory bricks and cement used for the furnace body are of high quality, cold and hot resistance, high compressive strength, fast heat absorption, good heat preservation, corrosion resistance, high stability, wear resistance, long service life, and will not automatically loosen and fall off after a long period of high temperature, with a temperature resistance of 1400 degrees.
(2) Thermal insulation material
It adopts high-quality aluminum silicate fiber felt board, calcium silicate board and diatomite insulation brick, with high-quality heat conduction, making the surface temperature of furnace body about 20 ℃ , good insulation performance, long service life, furnace temperature drop of about 40 ℃ in 24 hours after shutdown.
(3) Decorative materials
It adopts 0.8-1.0mm high-quality stainless steel plate, beautiful and generous, strong three-dimensional sense, corrosion resistance, convenient disassembly, maintenance and never deformation.
(4) Bone scaffold
High quality profiles and plates are adopted, which are durable and never deformed.
(5) Main combustion chamber
After the body enters the main combustion chamber, it is ignited by the burner and incinerated here.
(6) Flue gas combustion chamber
Burning the flue gas, making the flue gas stay longer in the furnace, making the toxic and harmful substances burn more fully, so as to achieve the effect of environmental protection.
(7) Main furnace masonry
During masonry, the mortar is full of the joint surface between the brick and the brick, and the mortar joint is less than 3mm.
The refractory material of the furnace is JILICHENG brand, which is famous in China. The top cover of the furnace is made of prefabricated high aluminum refractory bricks. The furnace is made of new high-strength erosion resistant aluminum carbonized silicon composite material, which can ensure the fast temperature rise in the furnace, the short time of the cremation remains and the small oil consumption. All refractory bricks and cement used for the furnace body are of high quality, cold and hot resistance, high compressive strength, fast heat absorption, good heat preservation, corrosion resistance, high stability, wear resistance, long service life, and will not automatically loosen and fall off after a long period of high temperature, with a temperature resistance of 1400 degrees.
(2) Thermal insulation material
It adopts high-quality aluminum silicate fiber felt board, calcium silicate board and diatomite insulation brick, with high-quality heat conduction, making the surface temperature of furnace body about 20 ℃ , good insulation performance, long service life, furnace temperature drop of about 40 ℃ in 24 hours after shutdown.
(3) Decorative materials
It adopts 0.8-1.0mm high-quality stainless steel plate, beautiful and generous, strong three-dimensional sense, corrosion resistance, convenient disassembly, maintenance and never deformation.
(4) Bone scaffold
High quality profiles and plates are adopted, which are durable and never deformed.
(5) Main combustion chamber
After the body enters the main combustion chamber, it is ignited by the burner and incinerated here.
(6) Flue gas combustion chamber
Burning the flue gas, making the flue gas stay longer in the furnace, making the toxic and harmful substances burn more fully, so as to achieve the effect of environmental protection.
(7) Main furnace masonry
During masonry, the mortar is full of the joint surface between the brick and the brick, and the mortar joint is less than 3mm.
Q1: Do you provide on-site installation service?
Yes, we will provide on-site installation, debugging, training and other services.
Q2: Why did I choose your product?
We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.
Q3: How long does it usually take for your products to ship?
Generally, the delivery time is two to three weeks.
Q4: Do you support OEM service?
Yes, we fully support OEM services and welcome you to customize our products.
Q5: What if the product received has been damaged?
Please rest assured that within 15 days after receipt of the goods, we will provide no reason to return or exchange services.
Q6: Can I get a cheaper price?
Of course, please contact us, we can give you a cheaper price.
Q7: What if the product breaks down in the future?
Don't worry, we offer a very long warranty, and we will send our engineers to repair it, or even we can replace it.
Q2: Why did I choose your product?
We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.
Q3: How long does it usually take for your products to ship?
Generally, the delivery time is two to three weeks.
Q4: Do you support OEM service?
Yes, we fully support OEM services and welcome you to customize our products.
Q5: What if the product received has been damaged?
Please rest assured that within 15 days after receipt of the goods, we will provide no reason to return or exchange services.
Q6: Can I get a cheaper price?
Of course, please contact us, we can give you a cheaper price.
Q7: What if the product breaks down in the future?
Don't worry, we offer a very long warranty, and we will send our engineers to repair it, or even we can replace it.
