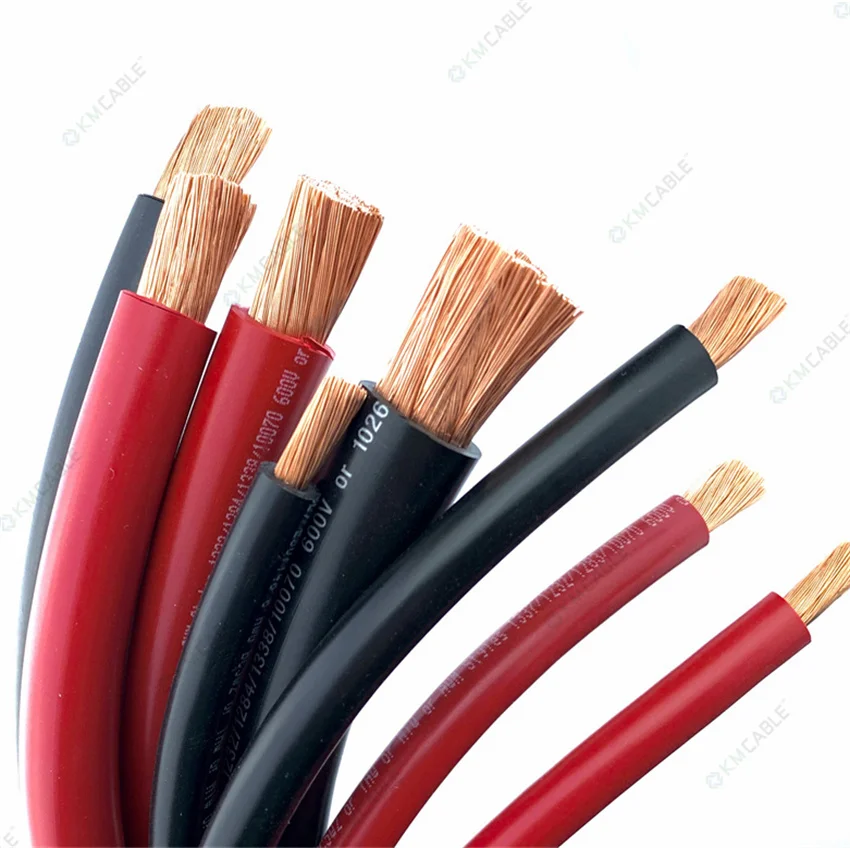

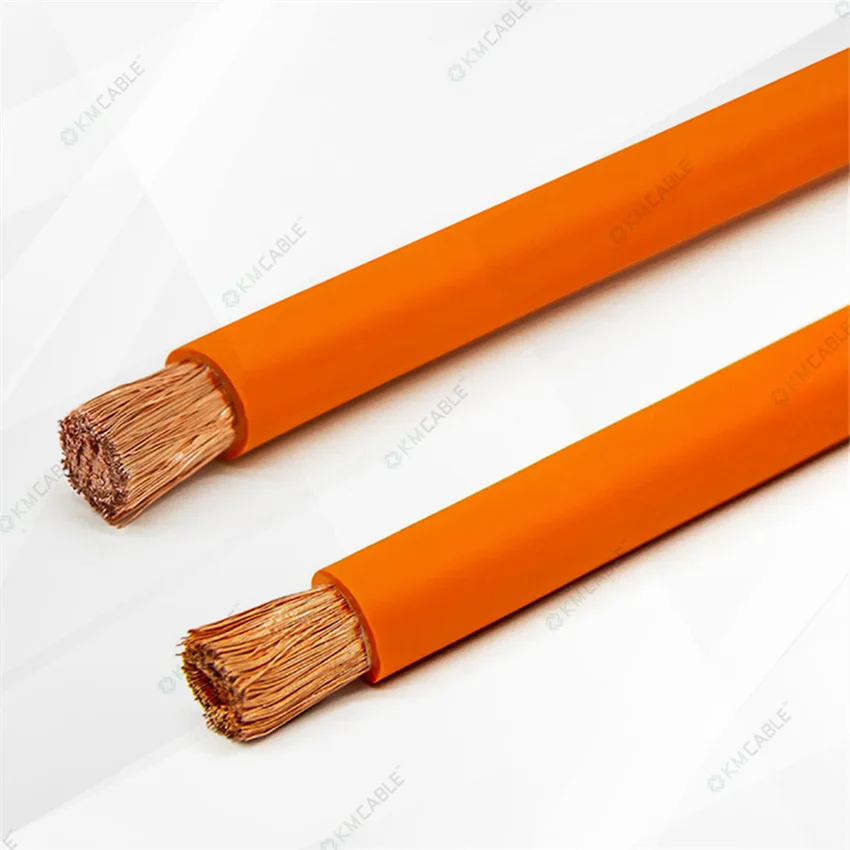

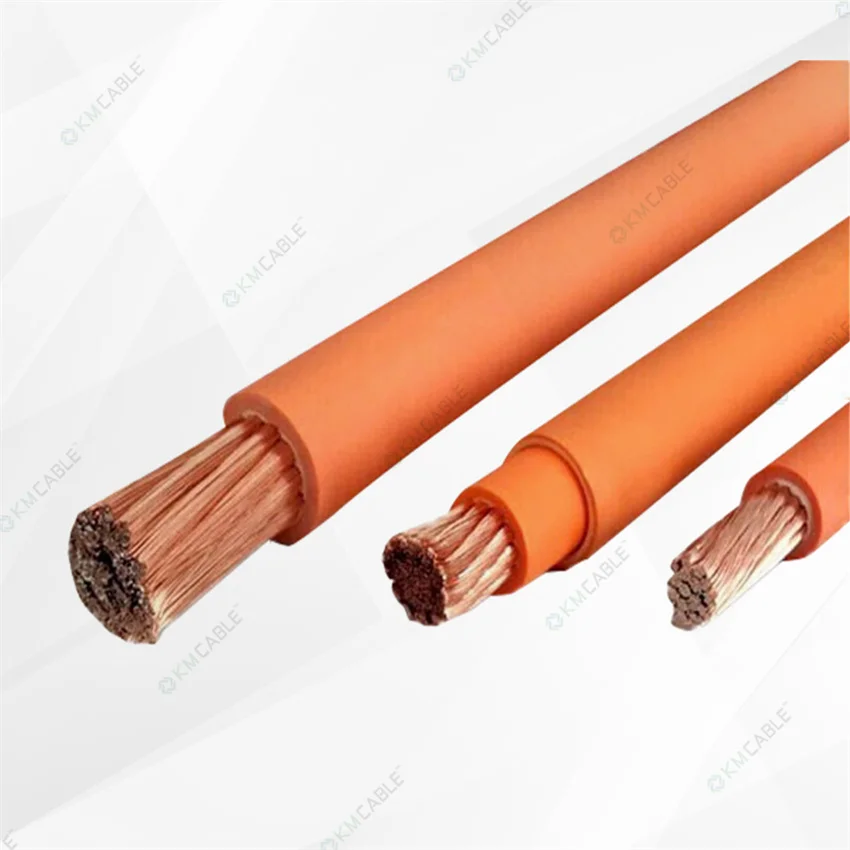

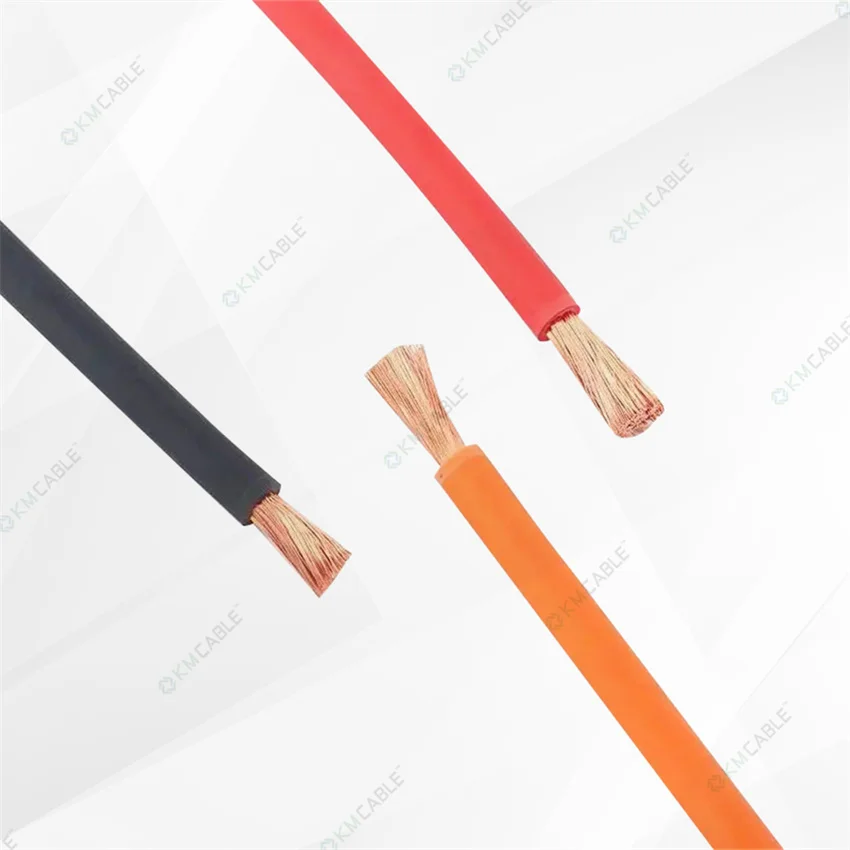

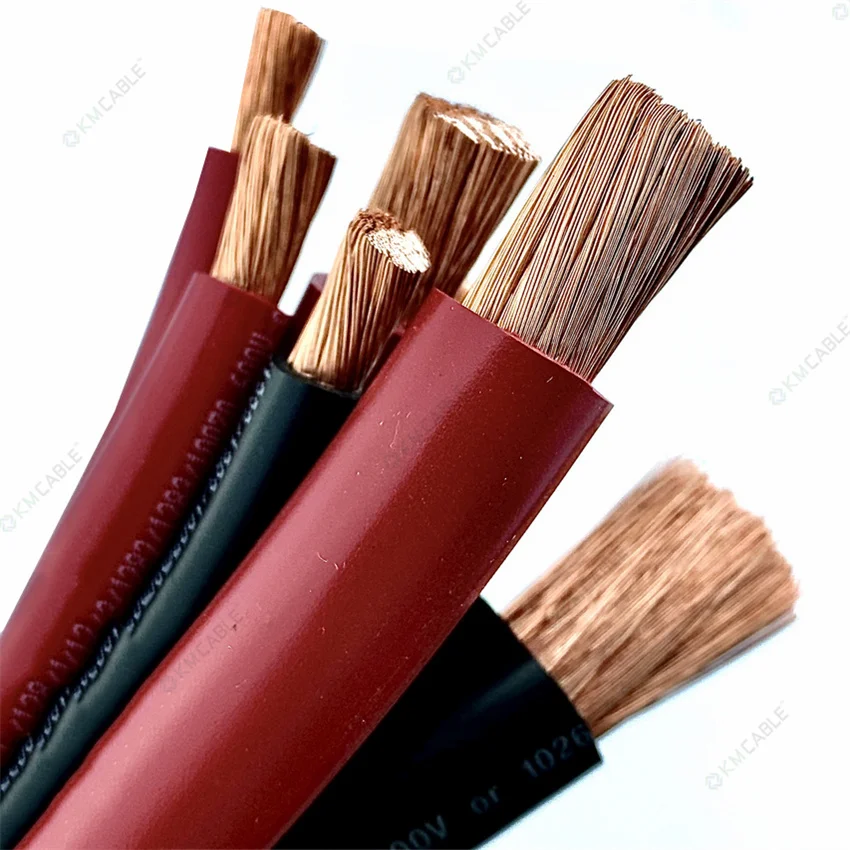

Rubber Sheathed Oil Resistance Flexible Rubber Welding Cable Bs En 50525 2 81 H01N2 D H01N2 E Cable
- Category: >>>
- Supplier: Shanghai Kmcable Group Co. Ltd.
Share on (1600824575575):
Product Overview
Description
Products Description

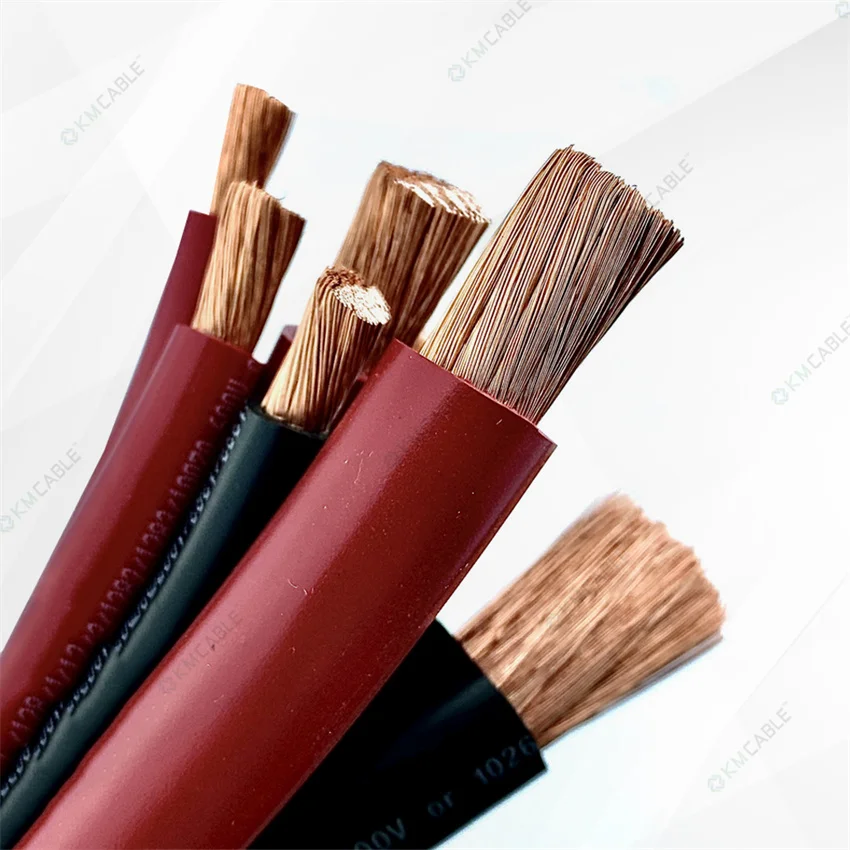

H01N2-D Welding Cable
These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols. These cables are also ideal for outside installation in dry, moist and wet areas.
- Extra fine bare copper strands
- Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
- Strands to VDE-0295 as listed below
- Synthetic or paper separator over core
- Polychloroprene rubber (neoprene) jacket EM5
- Extra fine bare copper strands
- Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
- Strands to VDE-0295 as listed below
- Synthetic or paper separator over core
- Polychloroprene rubber (neoprene) jacket EM5
Specifications
Model | H01N2-D Welding Cable |
Conductor | Class 5 copper conductor for H01N2-D Welding Cable Class 6 copper conductor for H01N2-E Welding Cable |
No. of Cores | 1 |
Conductor Type | stranded |
Insulation | Rubber |
Jacket(Sheath) | Rubber |
Test Voltage | 1.0 KV |
Nominal cross-sectional area of conductor(mm²) | 10~240(mm²) |
Application | Electric connect cable wire |
Colors | Black , Blue or Customized |
Ambient temperature | -40℃ ~+90℃ |
Max. Temperature at conductor | +120 ℃ |

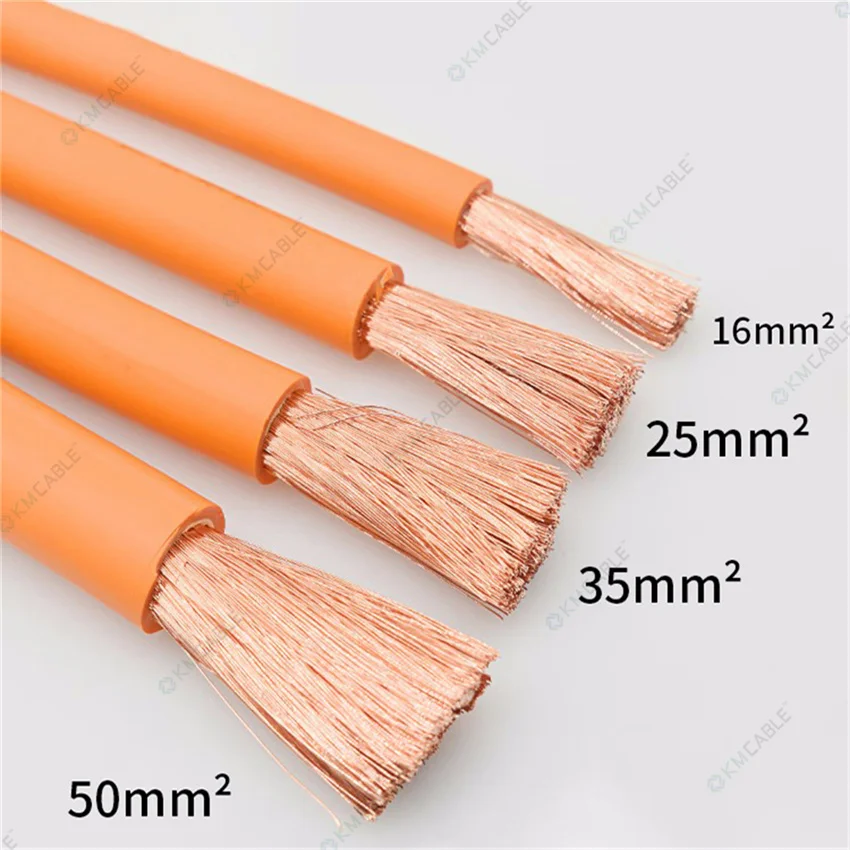

AWG | Cross area mm2 | Cable diameter mm | Cable weight kg/km |
8 | 1*10 | 9.0 | 135 |
6 | 1*16 | 10.5 | 205 |
4 | 1*25 | 11.3 | 302 |
2 | 1*35 | 12.8 | 420 |
1 | 1*50 | 14.5 | 586 |
2/0 | 1*70 | 16.8 | 798 |
3/0 | 1*95 | 20.8 | 1015 |
4/0 | 1*120 | 22.3 | 1310 |
300MCM | 1*150 | 24.6 | 1620 |
350MCM | 1*185 | 25.9 | 1916 |
500MCM | 1*240 | 27.3 | 2540 |
Details Images
Company Profile
Packing and Delivery
FAQ
Q1:I didn't find my needed model in this page.
A1:We are factory. Ecatalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
Q3:Can I see the sample before place the order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:Our company has MOQ requirement, but we also accept small quantity.
A1:We are factory. Ecatalog will emailed to you asap you contact us. Also, we supply customization service. So, contact us!
Q2:How long is your delivery time?
A2:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3:Can I see the sample before place the order ?
A3:Of course. We can offer little sample for testing quality and market.
Q4:How about MOQ ?
A4:Our company has MOQ requirement, but we also accept small quantity.
Q5:What is your terms of payment ?
A5:Payment<= 3000USD, 100% in advance. Payment>= 3000USD, 30%T/T in advance ,balance before shippment.
A5:Payment<= 3000USD, 100% in advance. Payment>= 3000USD, 30%T/T in advance ,balance before shippment.
