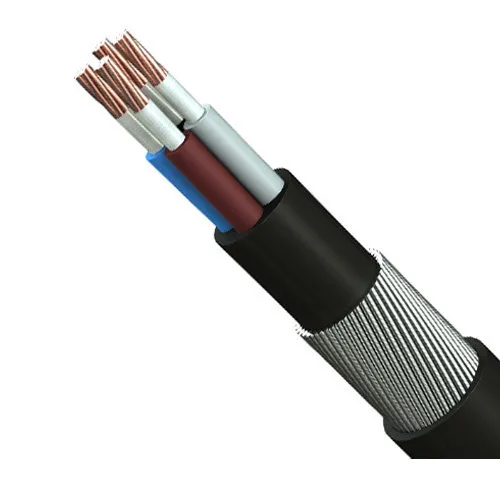

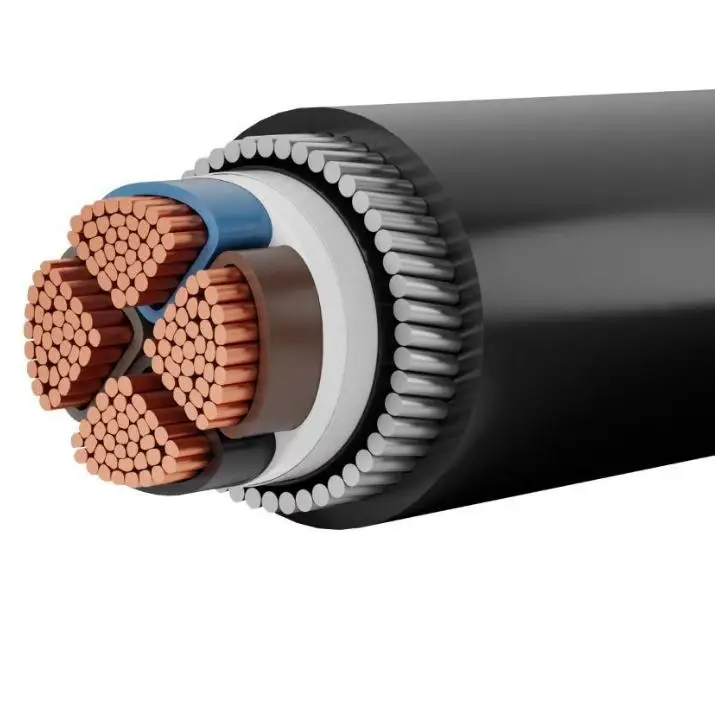

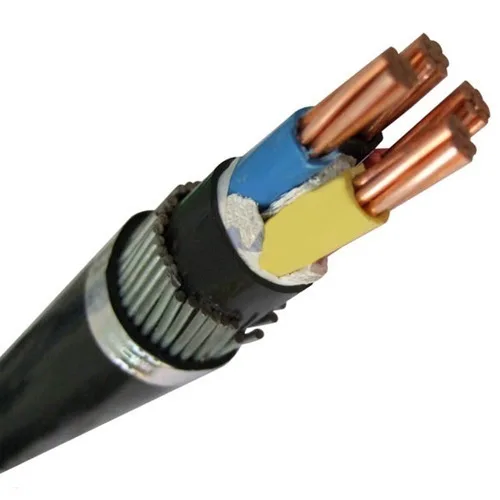

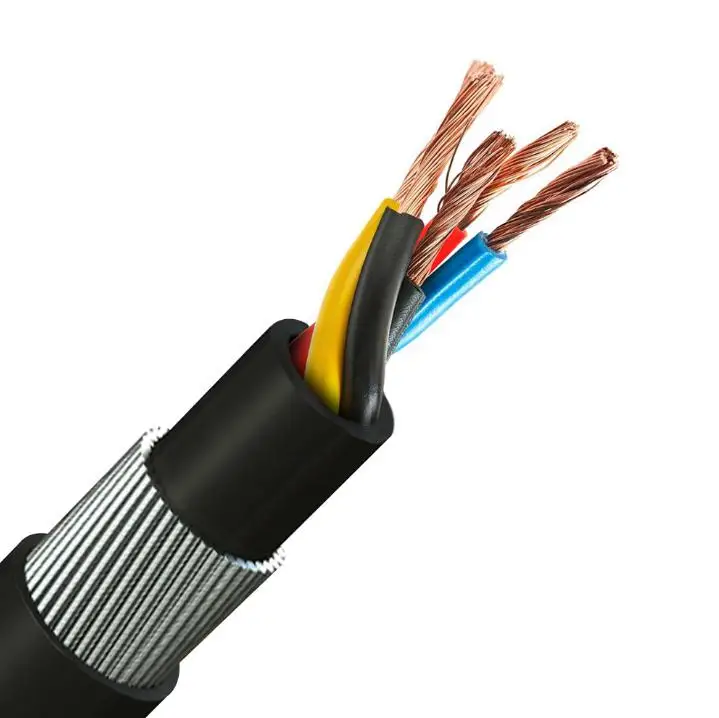

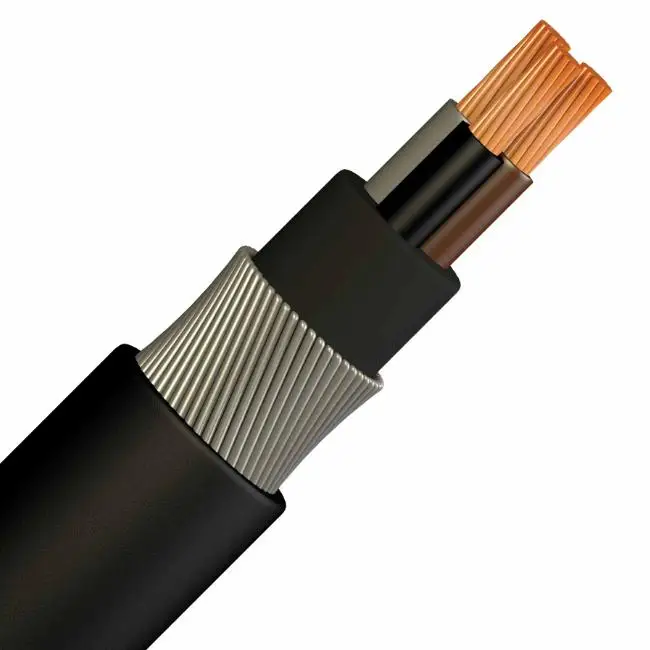

Armoured cable is available with a Copper (Cu) or Aluminium (Al) conductor and with a Polyvinyl Chloride (PVC) or Low Smoke Zero

Product Overview

Description

Armoured cable is available with a Copper (Cu) or Aluminium (Al) conductor and with a Polyvinyl Chloride (PVC) or Low Smoke Zero Halogen (LSZH) sheathing Rating Voltage 6/6kv~26/35kv XLPE insulated yjv cable



Standard GB/T12706-2002, or design and produce as per client’s request.


Application performance: this products is suitable for power transmission and distribution rating voltage 6/6kv-26/35kv

1. Max permissible operating temperature 90centigrade


2. Max short circuit temperature(5 seconds at longest) shall not exceed 250centigrade


3. The ambient temperature under installation should not below 0centigrade,if not, please heating in advance.


4. Permissible bending radius ≥12 times of outer diameter of conductors


     Model, Name and Application

Model		Name	Application
Cu	Al
YJSV	YJLV	XLPE insulated PVC sheathed power cable	For laying aerial indoors , in-tunnel or cable trench
YJSY	YJLY	XLPE insulated PE sheathed power cable
YJSV22	YJLV22	XLPE insulated steel tape armored PVC sheathed power cable	For laying indoors , intunnel or cable trench
YJSV23	YJLV23	XLPE insulated steel tape armored PE sheathed power cable
YJSV32	YJLV32	XLPE insulated thin steel wire armored PVC sheathed power cable	For laying high-drop, well or underwater
YJV33	YJLV33	XLPE insulated thin steel wire armored PE sheathed power cable
YJV42	YJLV42	XLPE insulated thick steel wire armored PVC sheathed power cable	Able to bear external mechanical forces, for laying in silo into sea
YJV43	YJLV43	XLPE insulated thick steel wire armored PE sheathed power cable
