Tuya Zigbee Remote Control 4 Ch Relay Rf Receiver Controller 5V 32V 12V 24V Smart Module Timer Diy Switch
- Category: >>>
- Supplier: Shenzhen Yijia Electronics Co. Ltd
Share on (1600824730804):
Product Overview
Description

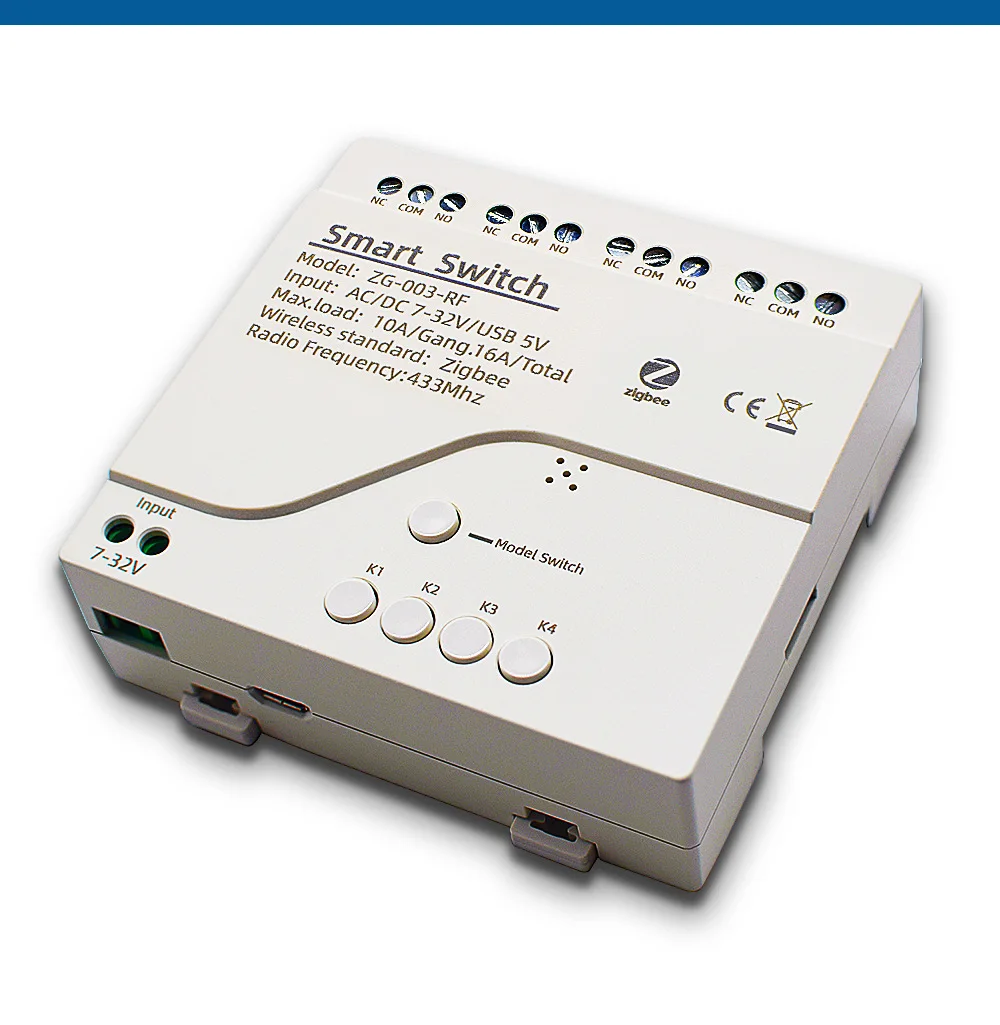

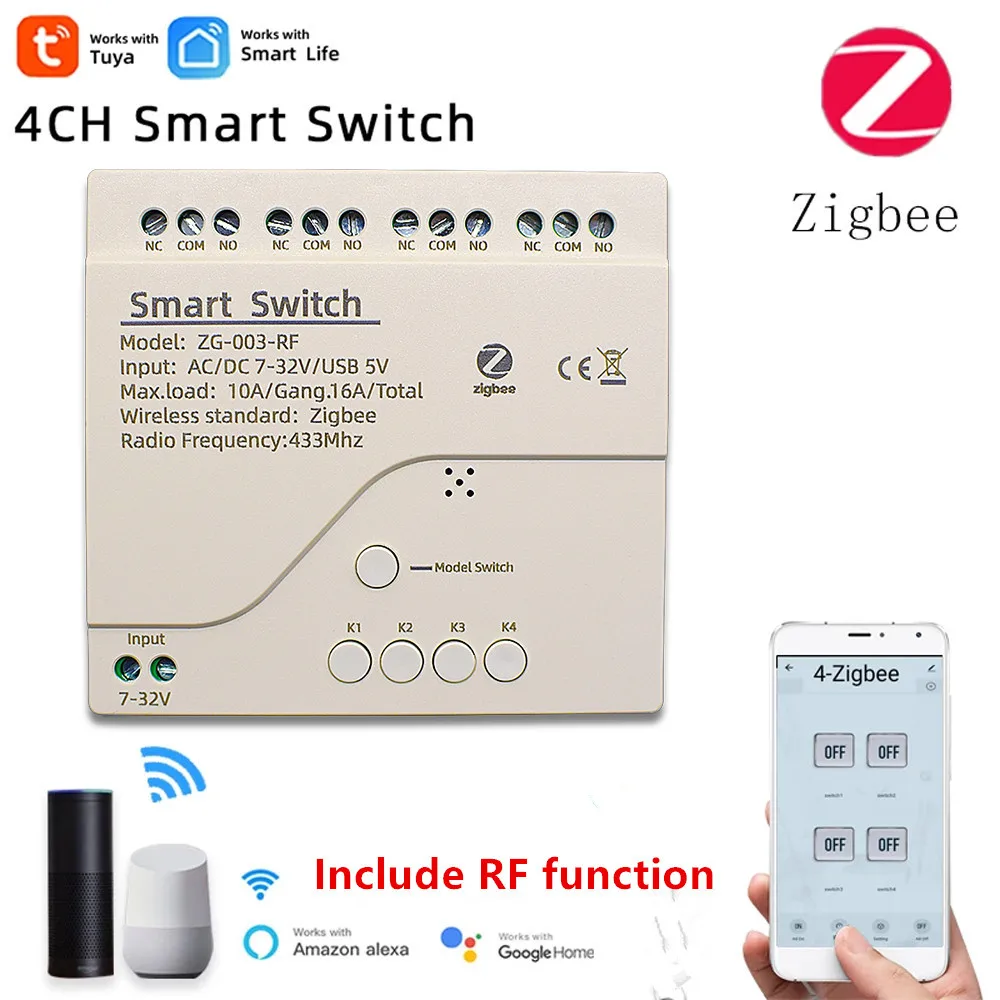

Tuya Smart life ZigBee Remote Control 4 CH Relay Board Wifi RF Switch Receiver Controller 5V-32V 12V 24V Smart Module Timer
Products Description

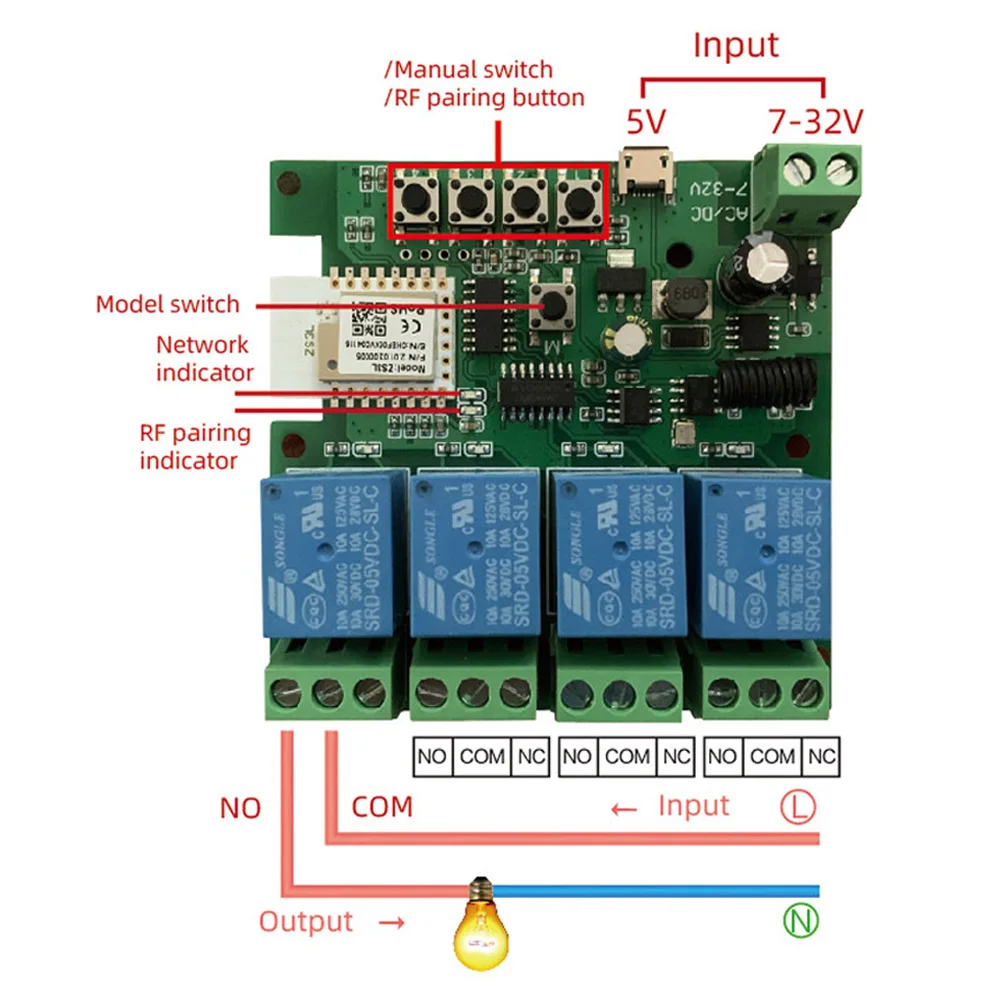

This product is a wireless switch supports inching /self-locking mode/Inter lock mode. Users can add the device to the Zigbee Hub
in APP Smart life in order to remotely control connected home appliances or devices.
In self-locking mode,customers can remotely turn on/off connected devices immediately.
When in inching mode,Default inching time 0.5s, the switch will turn on and turn off immediately after 0.5s.
In Inter Lock mode,if turn switch 1 on, then switch 2 turn off, if turn switch 1 off, switch 2 will turn on.
No matter where you are, you only need to download a APP to connect the Zigbee Device and control the cloud.
RF mode, you can control the board with RF433 remote controller .
Note:Please make sure to select the right model before buying ,or leave us a message before shipping.
Please check the following items before using the equipment:
1. Your smartphone or tablet has been connected to a 2.4G WiFi that can access the Internet (5G WiFi is not currently supported)
2. Mobile phones or tablets using Android system must be of Android version 4.0 or higher.
3. If your wireless router has set MAC address filtering, please enter the router background to turn off the MAC filtering
function.
4. Must be used in conjunction with Zigbee gateway
in APP Smart life in order to remotely control connected home appliances or devices.
In self-locking mode,customers can remotely turn on/off connected devices immediately.
When in inching mode,Default inching time 0.5s, the switch will turn on and turn off immediately after 0.5s.
In Inter Lock mode,if turn switch 1 on, then switch 2 turn off, if turn switch 1 off, switch 2 will turn on.
No matter where you are, you only need to download a APP to connect the Zigbee Device and control the cloud.
RF mode, you can control the board with RF433 remote controller .
Note:Please make sure to select the right model before buying ,or leave us a message before shipping.
Please check the following items before using the equipment:
1. Your smartphone or tablet has been connected to a 2.4G WiFi that can access the Internet (5G WiFi is not currently supported)
2. Mobile phones or tablets using Android system must be of Android version 4.0 or higher.
3. If your wireless router has set MAC address filtering, please enter the router background to turn off the MAC filtering
function.
4. Must be used in conjunction with Zigbee gateway

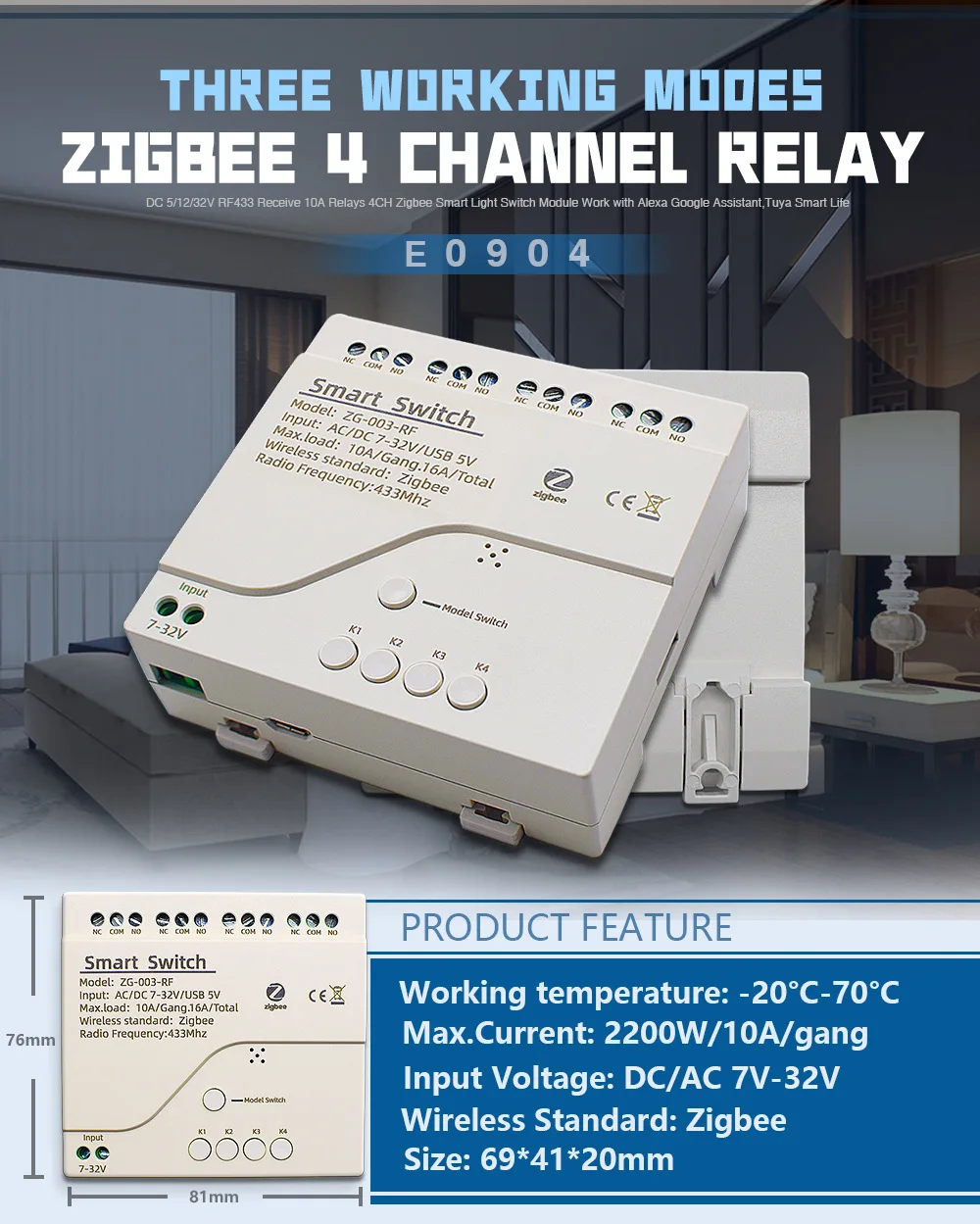

Specifications:
Input voltage : DC/AC 7-32V , Micro USB 5V input
Max current : 2200W/10A
Wifi standard: 2.4GHz b/g/n
Working temperature: -20～70 ℃
Wireless standard : Zigbee 3.0
RF control: support
Input voltage : DC/AC 7-32V , Micro USB 5V input
Max current : 2200W/10A
Wifi standard: 2.4GHz b/g/n
Working temperature: -20～70 ℃
Wireless standard : Zigbee 3.0
RF control: support
Noted :
Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 0.5s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).
Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 0.5s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).
Company Profile
Product packaging
Package includes :
1 * wifi module
1* shell
1* manual
1 * wifi module
1* shell
1* manual
