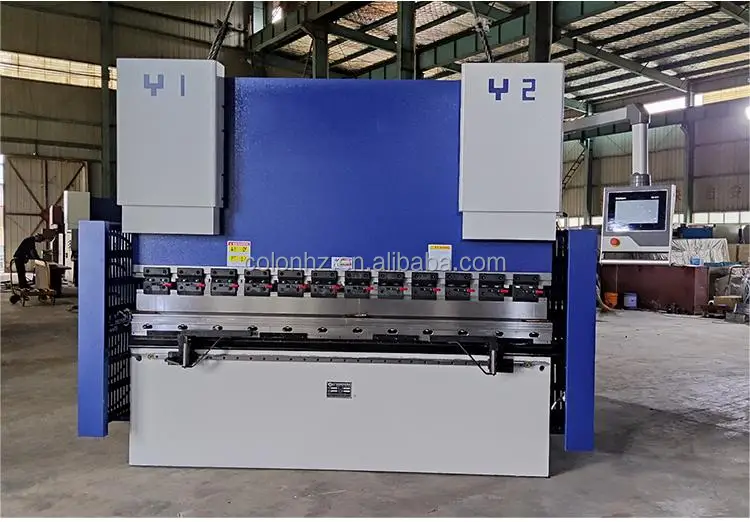

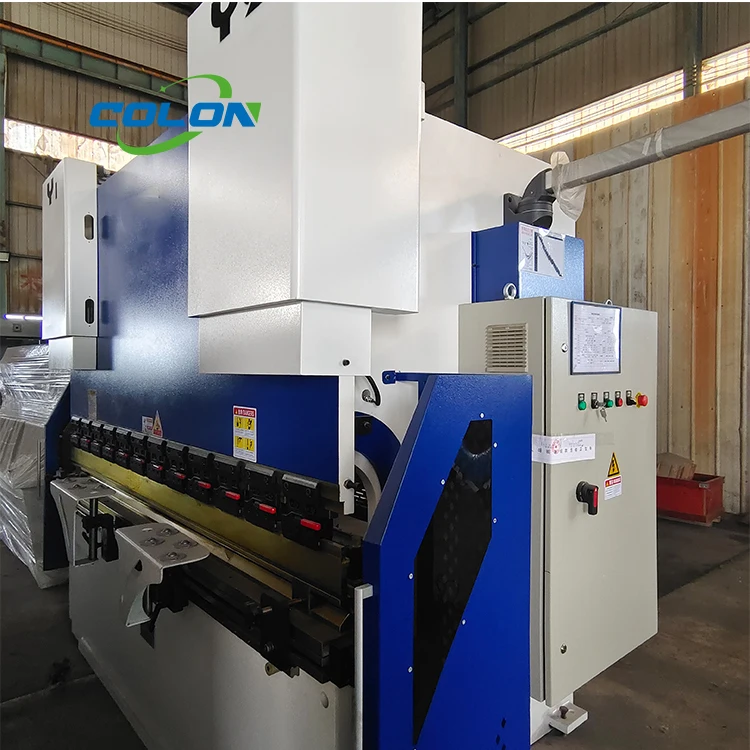

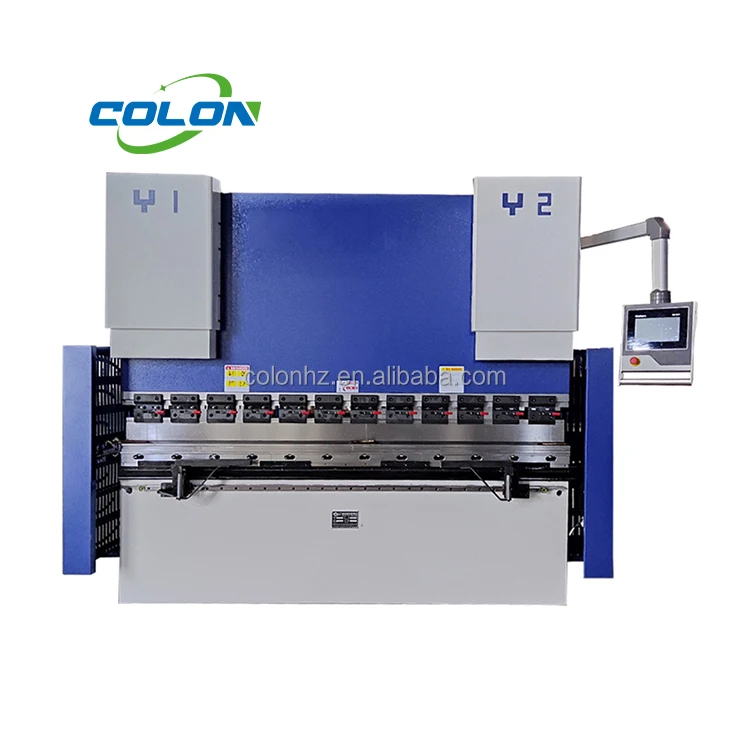

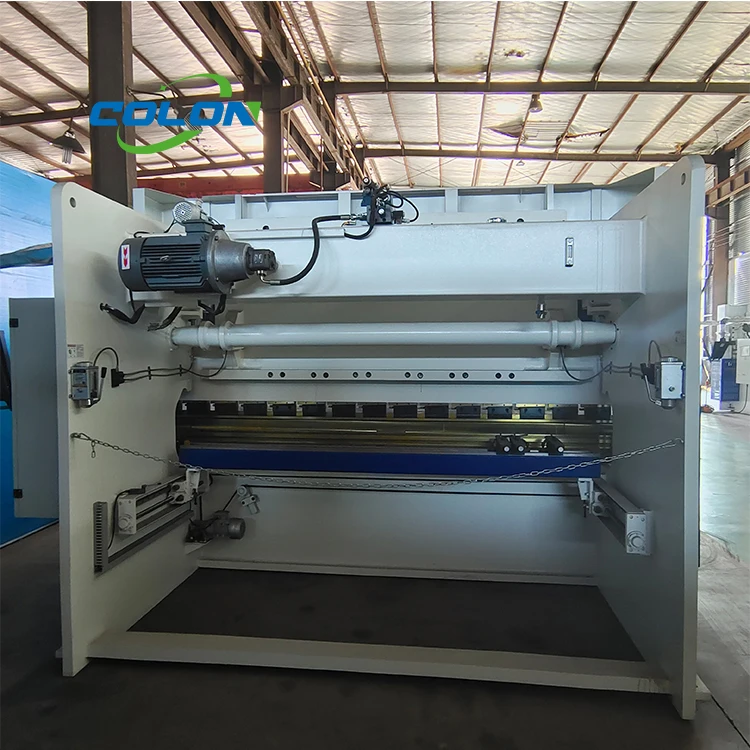

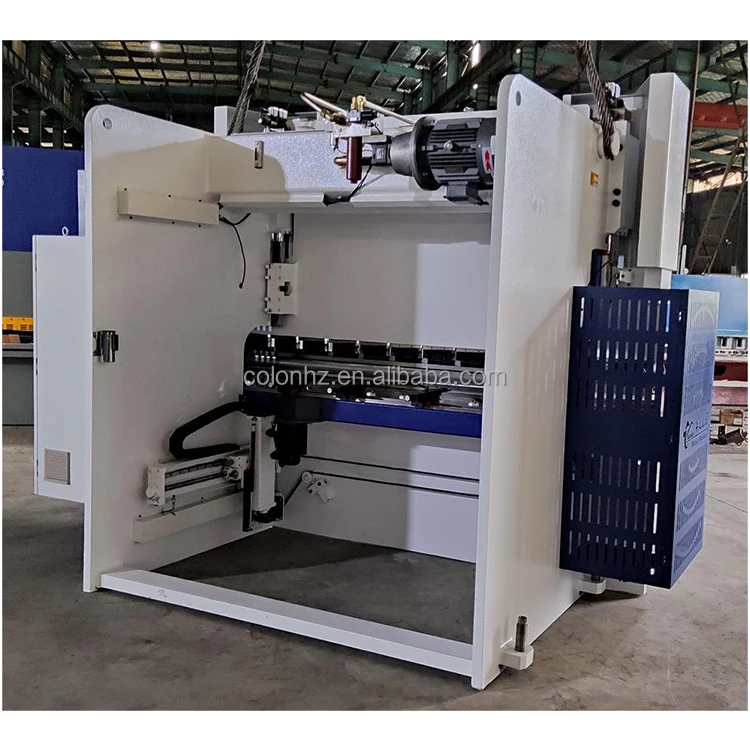

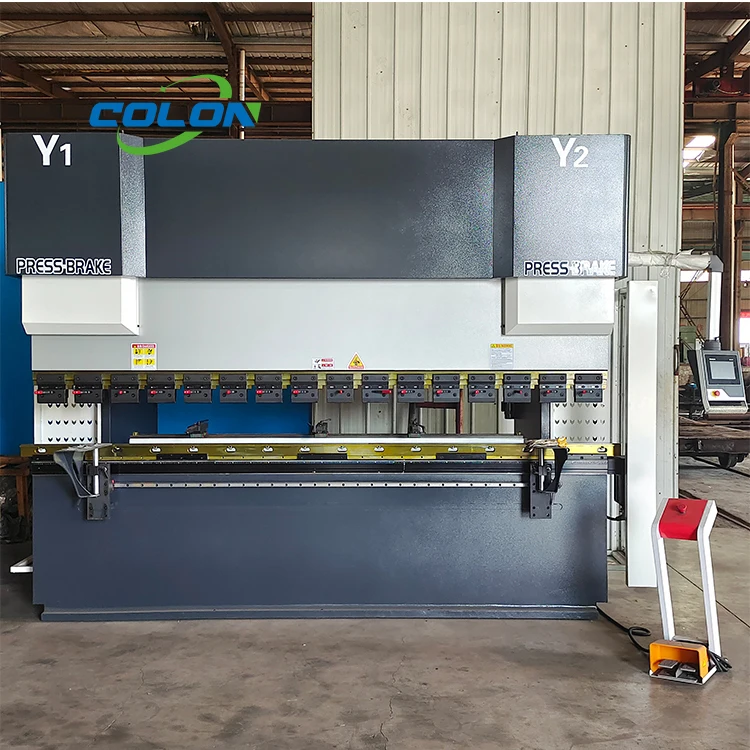

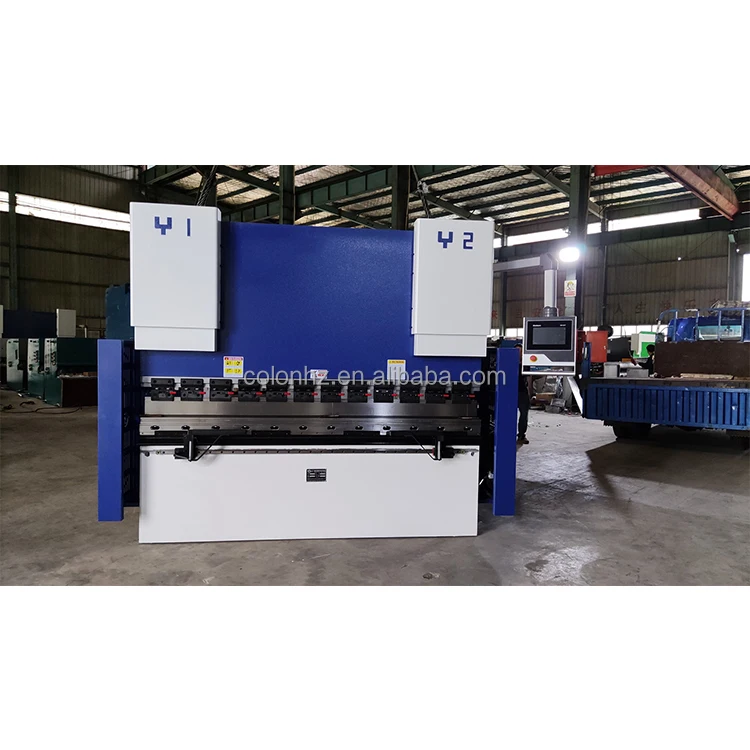

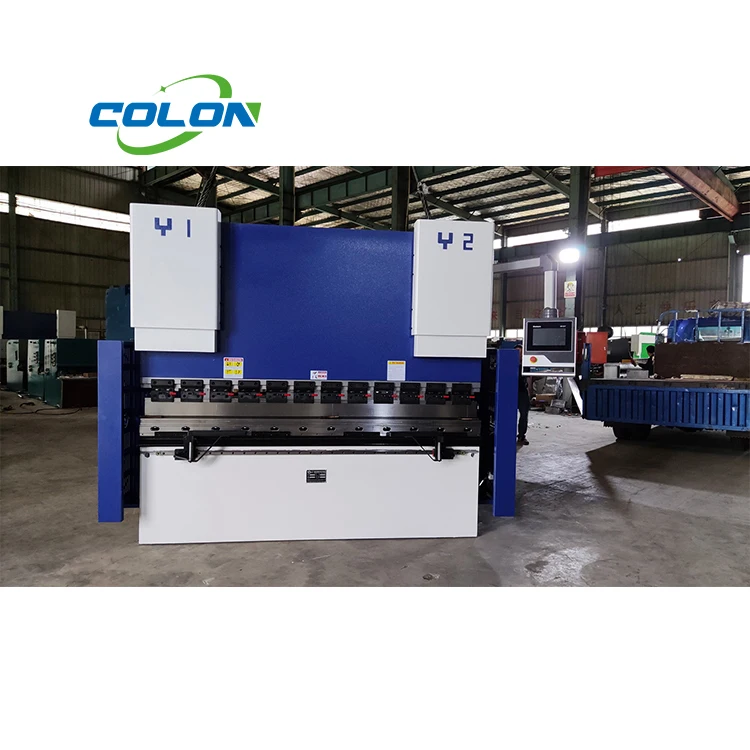

Hydraulic servo cnc press brake bending machine with DELEM DA41S control system
- Category: >>>
- Supplier: Hangzhou Colon Digital Technology Co. Ltd.
Share on (1600824755366):
Product Overview
Description
Product Description
High precision press brake bending machine adopt upper mold deflection compensation mechanism

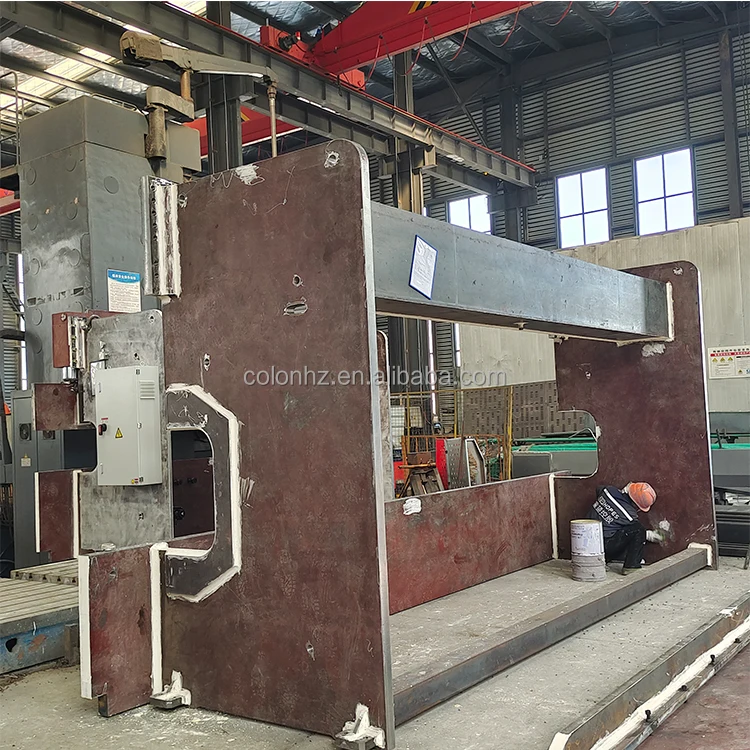

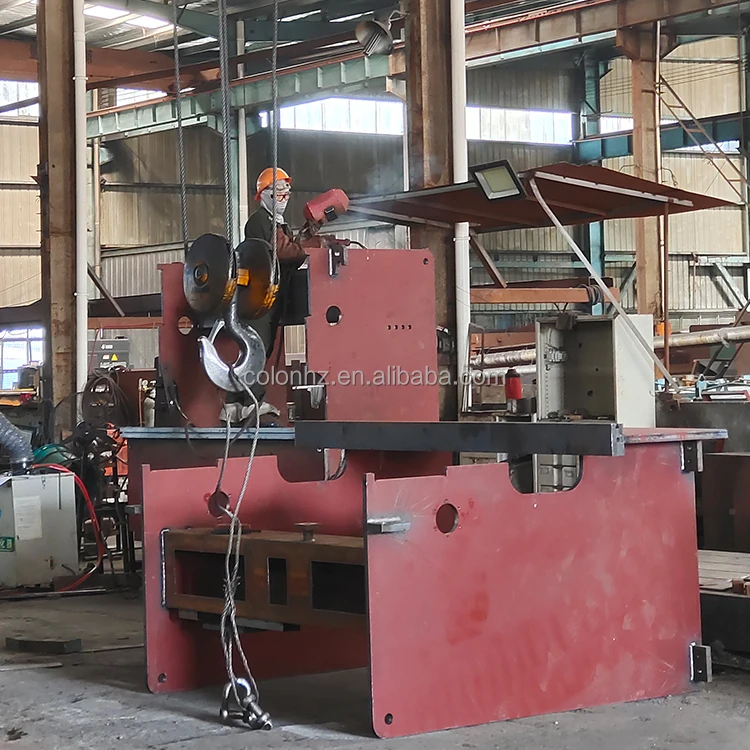

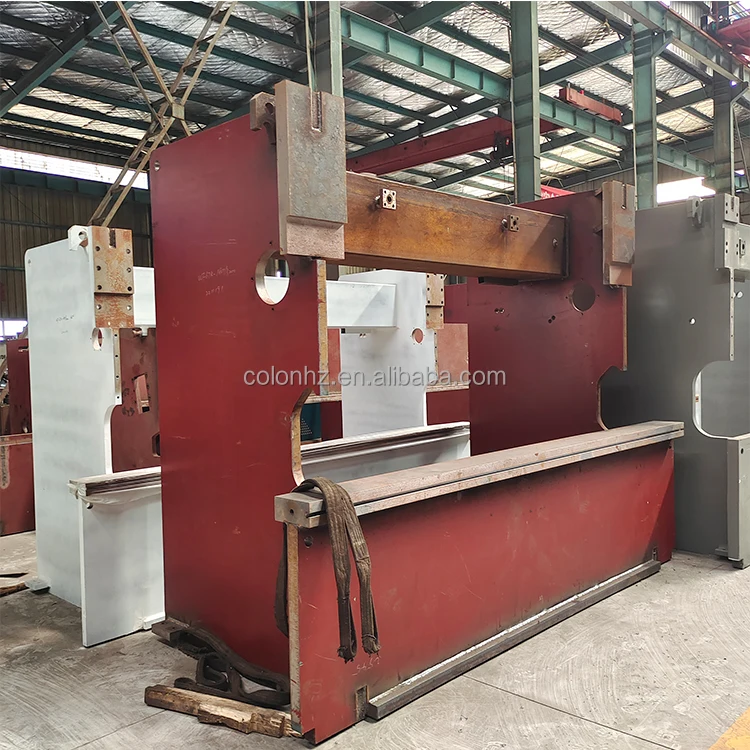

This machine is designed limiting limit elements analyzing and optimization made of entirely steel structure. Using liberation effort to eliminate inner stress, the rigidity of machine is guaranteed.
1. Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearing at both ends of torsion shaft, and to install eccentricity adjusting mechanism.
2 .The upper die that is equipped with accurate compensating mechanism, to compensate deflection generated by table and slider when mechanical loads, can make the work piece acquire better precision of bending.
3. The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
4. Installed long-distance pressure-regulator valve on column right side.

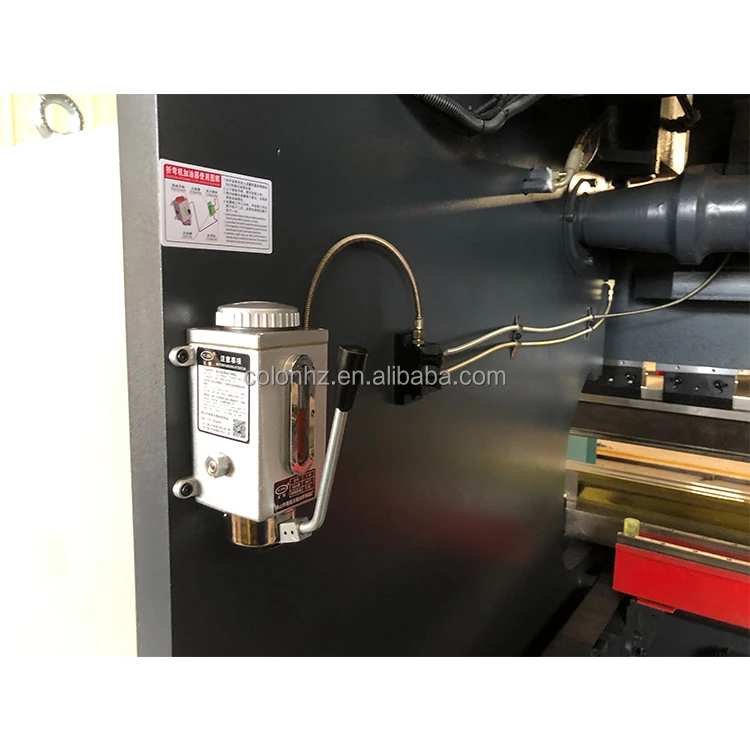

5. Wallboard inside with manual pumps.
6. Back gauge adopt grinding plate design, high regulation accuracy.
1. Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearing at both ends of torsion shaft, and to install eccentricity adjusting mechanism.
2 .The upper die that is equipped with accurate compensating mechanism, to compensate deflection generated by table and slider when mechanical loads, can make the work piece acquire better precision of bending.
3. The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
4. Installed long-distance pressure-regulator valve on column right side.
5. Wallboard inside with manual pumps.
6. Back gauge adopt grinding plate design, high regulation accuracy.
Specification
Model | 63T/2500 | 80T/3200 | 100T/4000 | 160T/5000 | 200T/6000 | 250T/3200 | 350T/4000 |
Nominal Pressure（kN） | 630 | 800 | 1000 | 1600 | 2000 | 2500 | 3200 |
Workbench Length(mm) | 2500 | 3200 | 4000 | 5000 | 6000 | 3200 | 4000 |
Workbench Width（mm） | 160 | 180 | 180 | 200 | 220 | 240 | 320 |
Poles Distance(mm) | 1900 | 2600 | 3100 | 3800 | 4800 | 2500 | 3100 |
Throat Depth(mm) | 250 | 250 | 320 | 400 | 350 | 350 | 400 |
Slider Stroke(mm) | 120 | 120 | 120 | 200 | 250 | 250 | 250 |
Max Opening Height(mm) | 345 | 350 | 380 | 450 | 500 | 520 | 540 |
Slider Stroke adjust length (mm) | 100 | 100 | 100 | 150 | 180 | 200 | 200 |
Main Motor(kW) | 5.5 | 5.5 | 7.5 | 11 | 11 | 18.5 | 18.5 |
Dimension(L*W*H) (mm) | 2600*1500*2200 | 3300*1700*2320 | 4000*1750*2420 | 5100*2000*3000 | 6100*2150*3030 | 3200*2200*3300 | 4100*2500*3650 |
Machines Details
Features
1. Mechanical torque synchronization
2.Domestic famous hydraulic integrated system
3.Schneider or Siemens low-voltage electrical
4.Standard upper and lower molds
5.Ball screw back gauge operation control
6.Front material supporting frame
7.ball screw,linear guide,fast clamp, servo motor
3.Schneider or Siemens low-voltage electrical
4.Standard upper and lower molds
5.Ball screw back gauge operation control
6.Front material supporting frame
7.ball screw,linear guide,fast clamp, servo motor

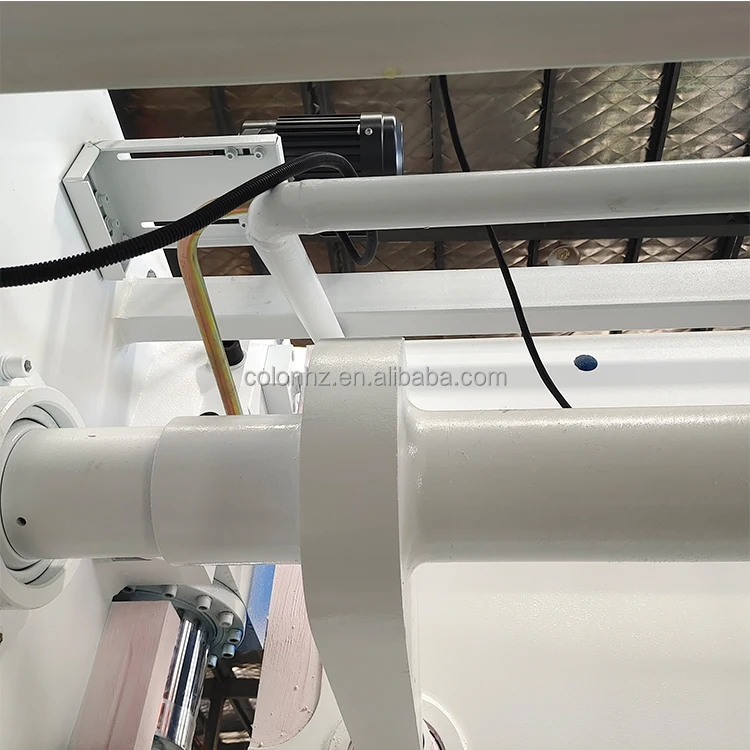

Torsion-Bar structure
High quality torsion-bar structure,shaft body adopts the traditional forging and tempering process, which has high strength,good elasticity and adjustable design.

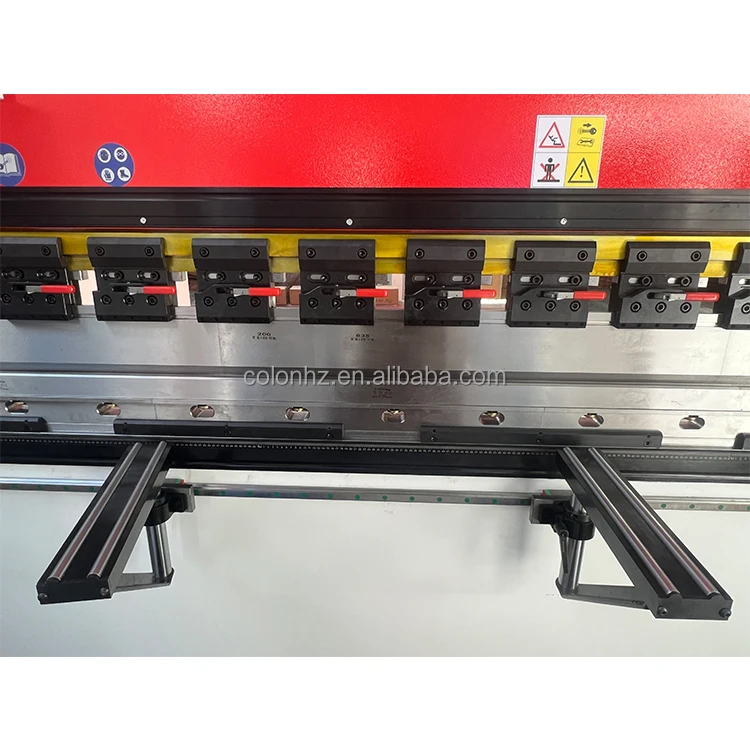

Front material supporting frame
Usually Fixed front support, we also support movable front support, which moving along the linear guide rail,can be parked at any position, with rotation and height adjustment functions to help you bend.

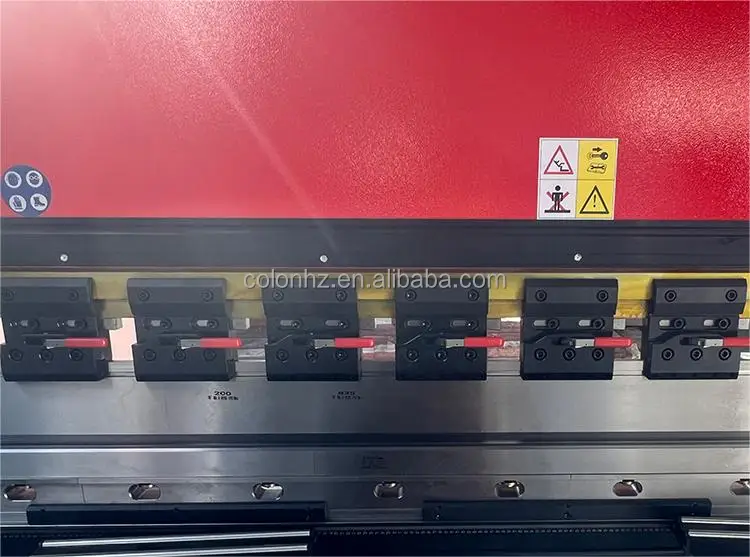

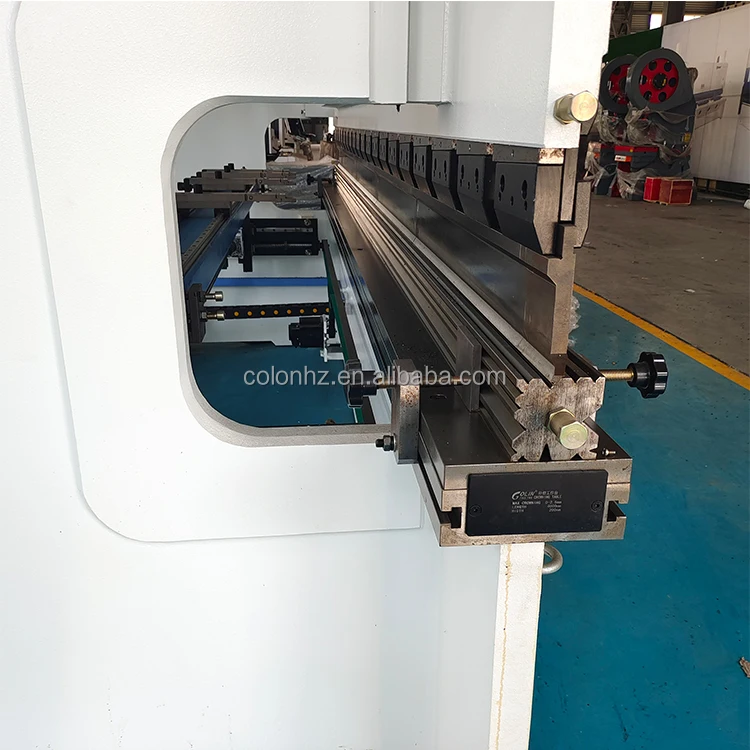

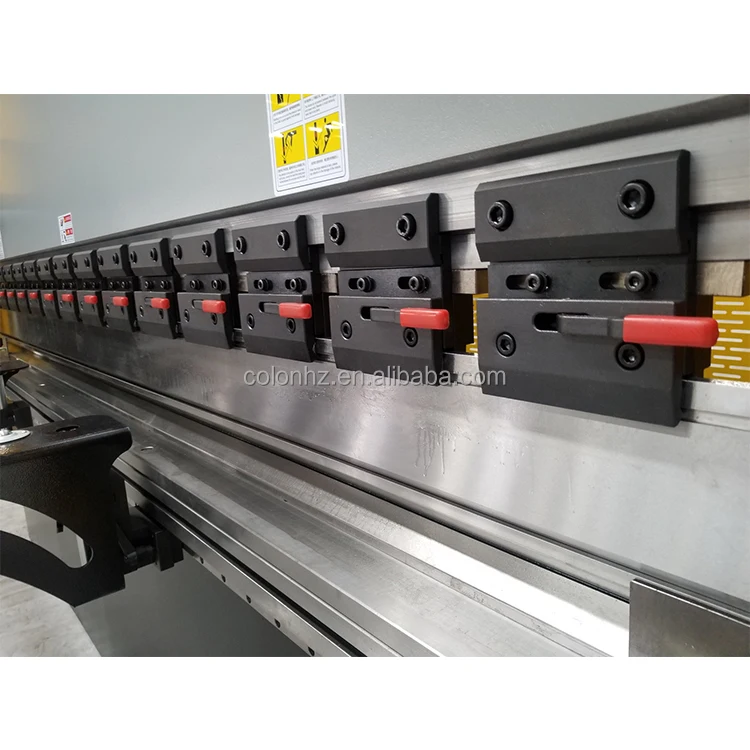

Model quick clamping device
It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantage of high precision, easy clamping, no loosening, no tool dropping.

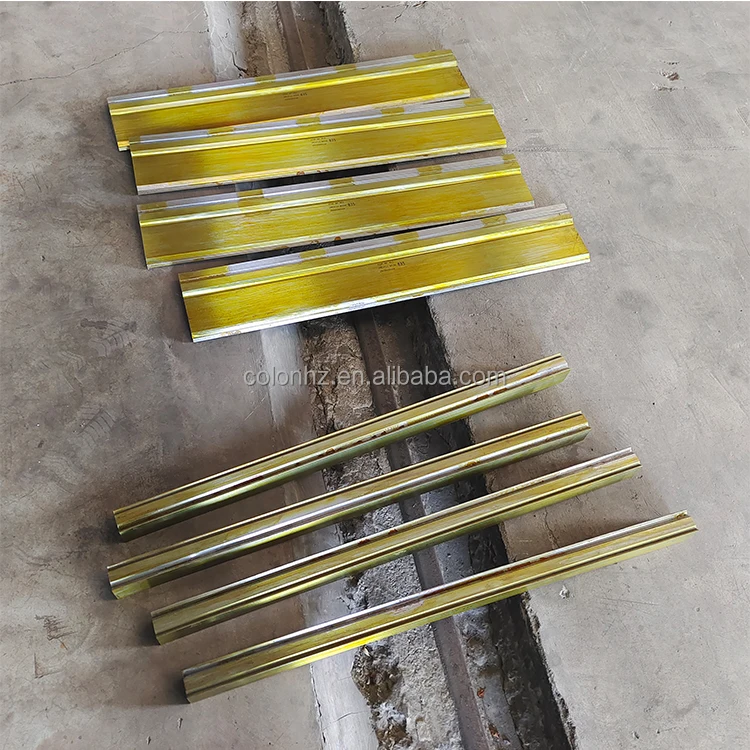

Press brake tooling
After forging and quenching, it is durable. High precision , high straightness and high repeatability, and finally obtain the ideal bending effect.
CNC control system(accept customized)
Servo motor and drive

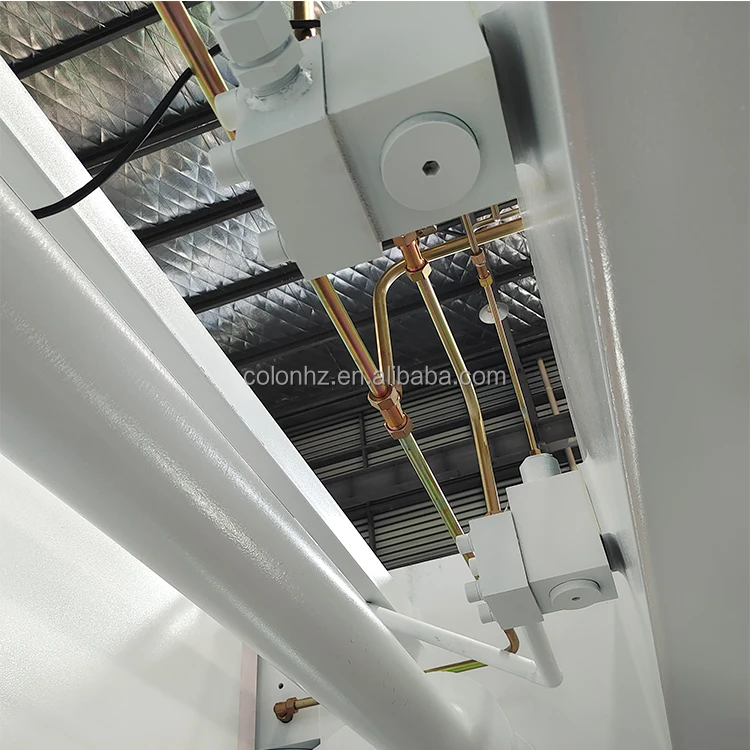

Hydraulic system
Precision ball screw, linear guide rail
Rear fingers up and down.

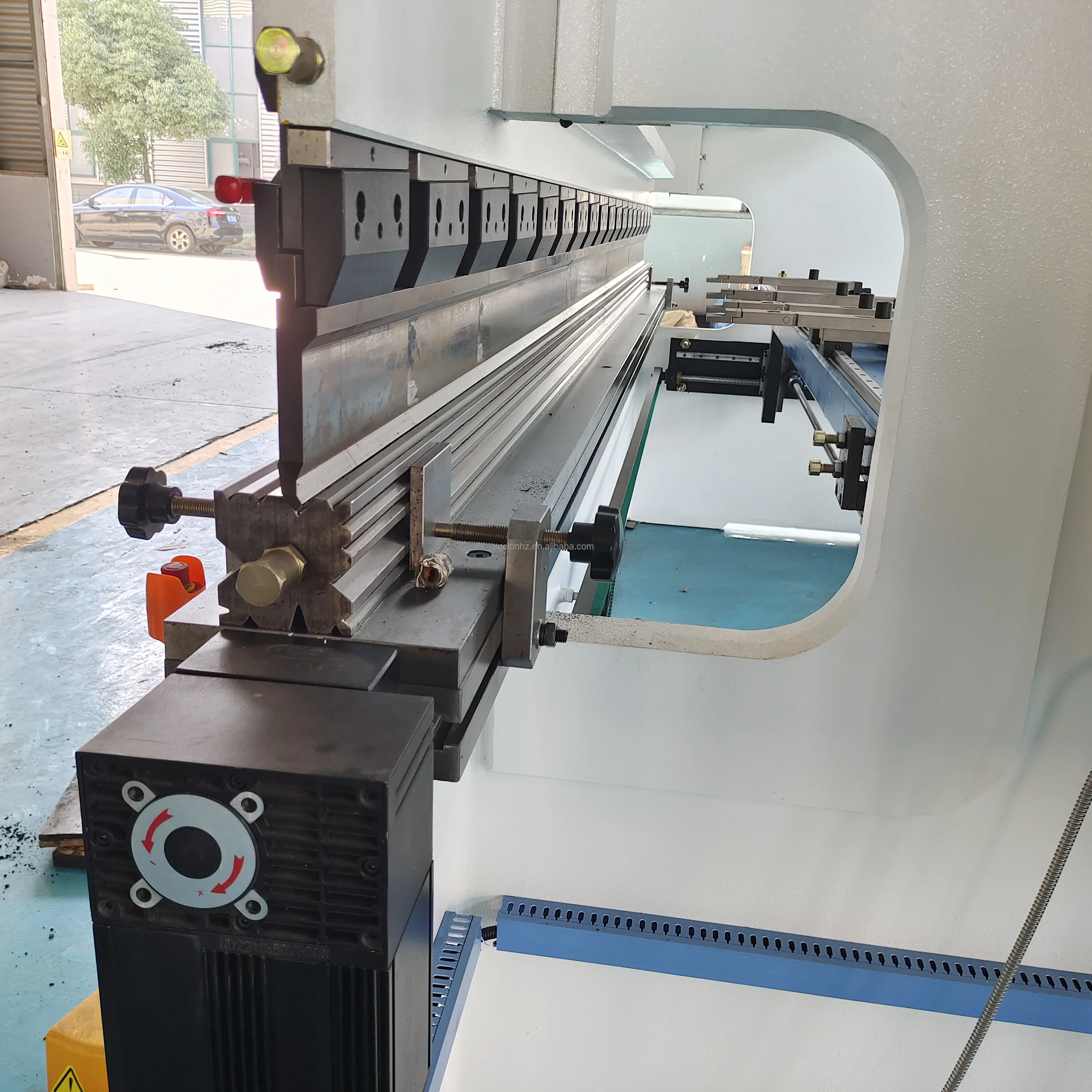

Stable and reliable back gauge
Imported ball screw drive, linear guide rail guide, double linear guide construction, to ensure the positioning accuracy. Multistage stops to increase the positioning range, make the bending more convenient.
Table compensation device

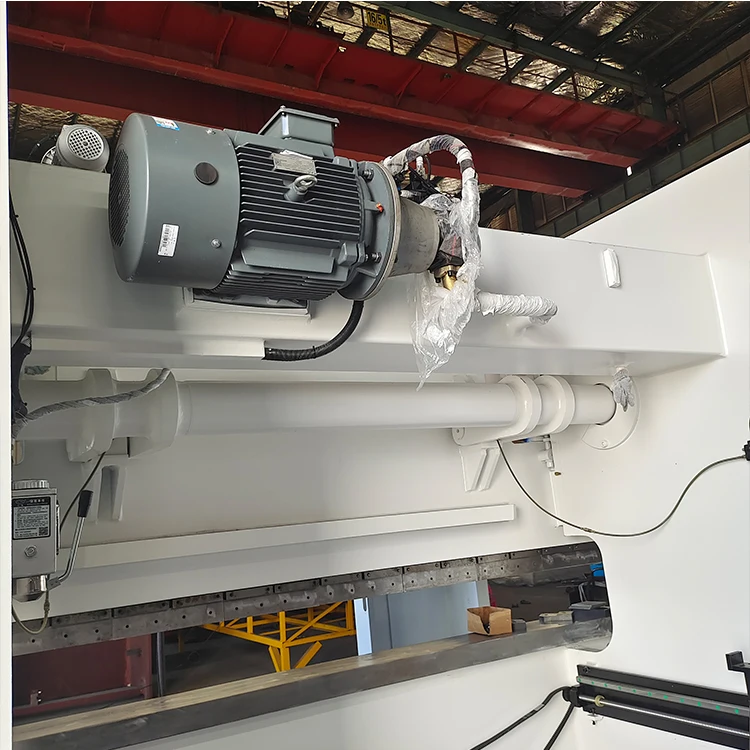

Siemens motor
Electric box
Emergency stop pedal switch

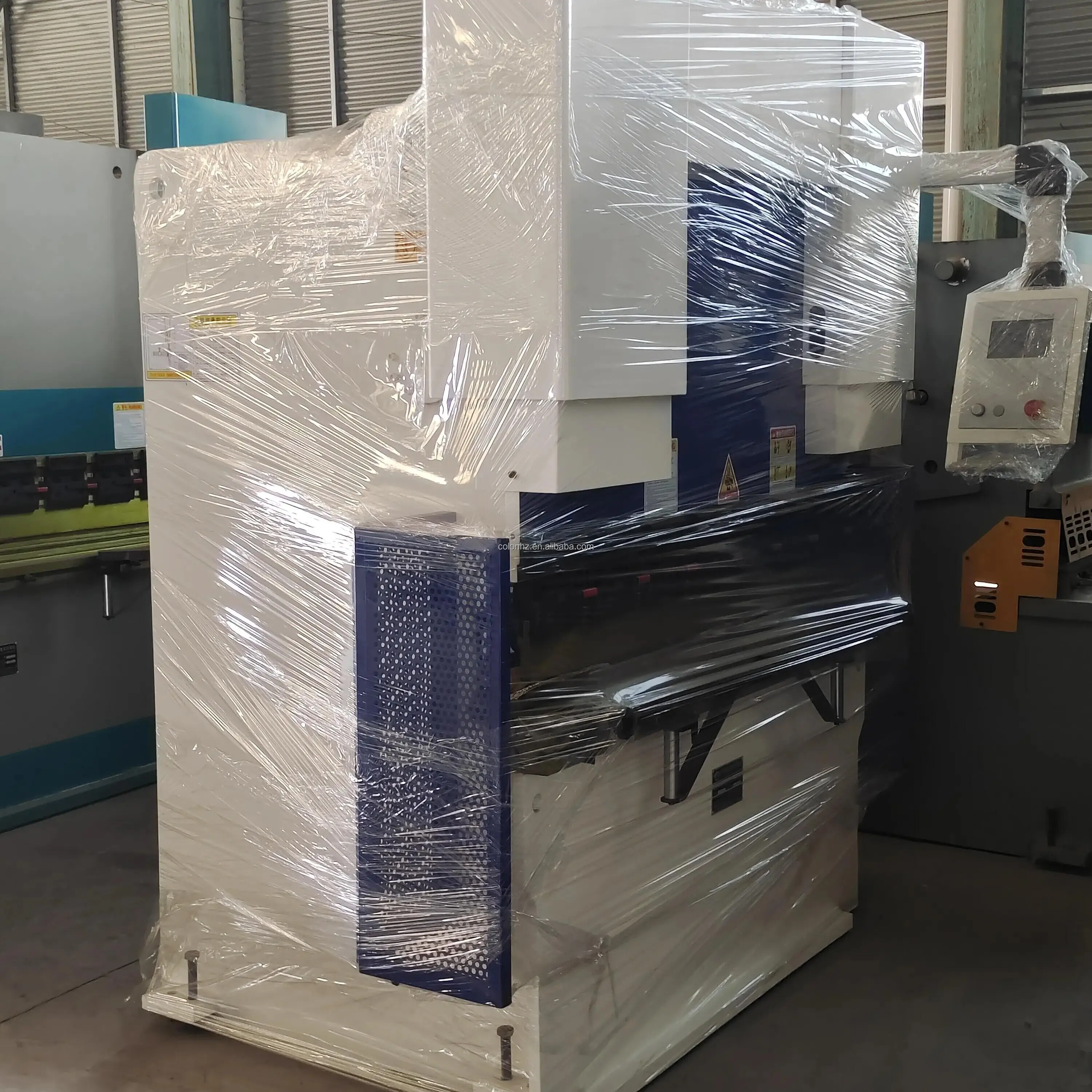

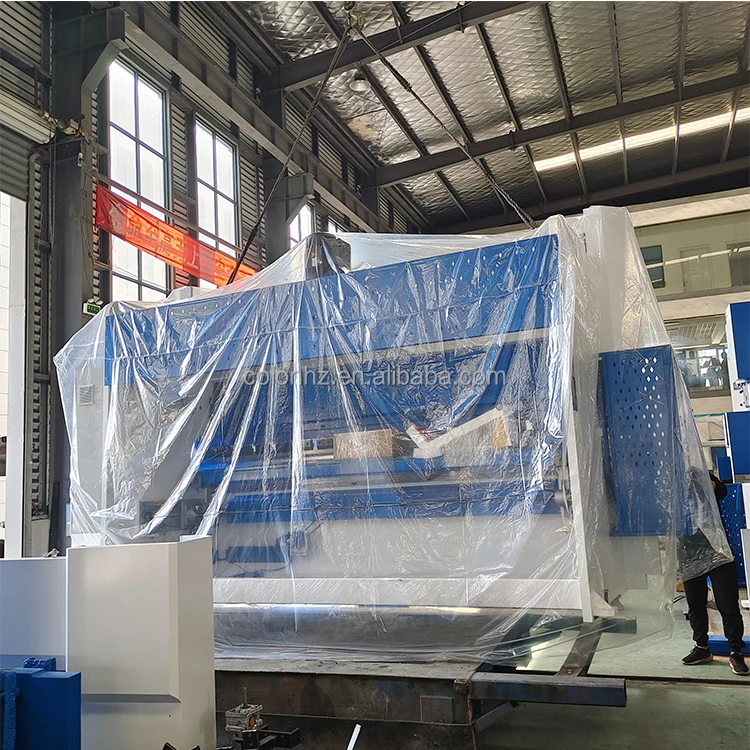

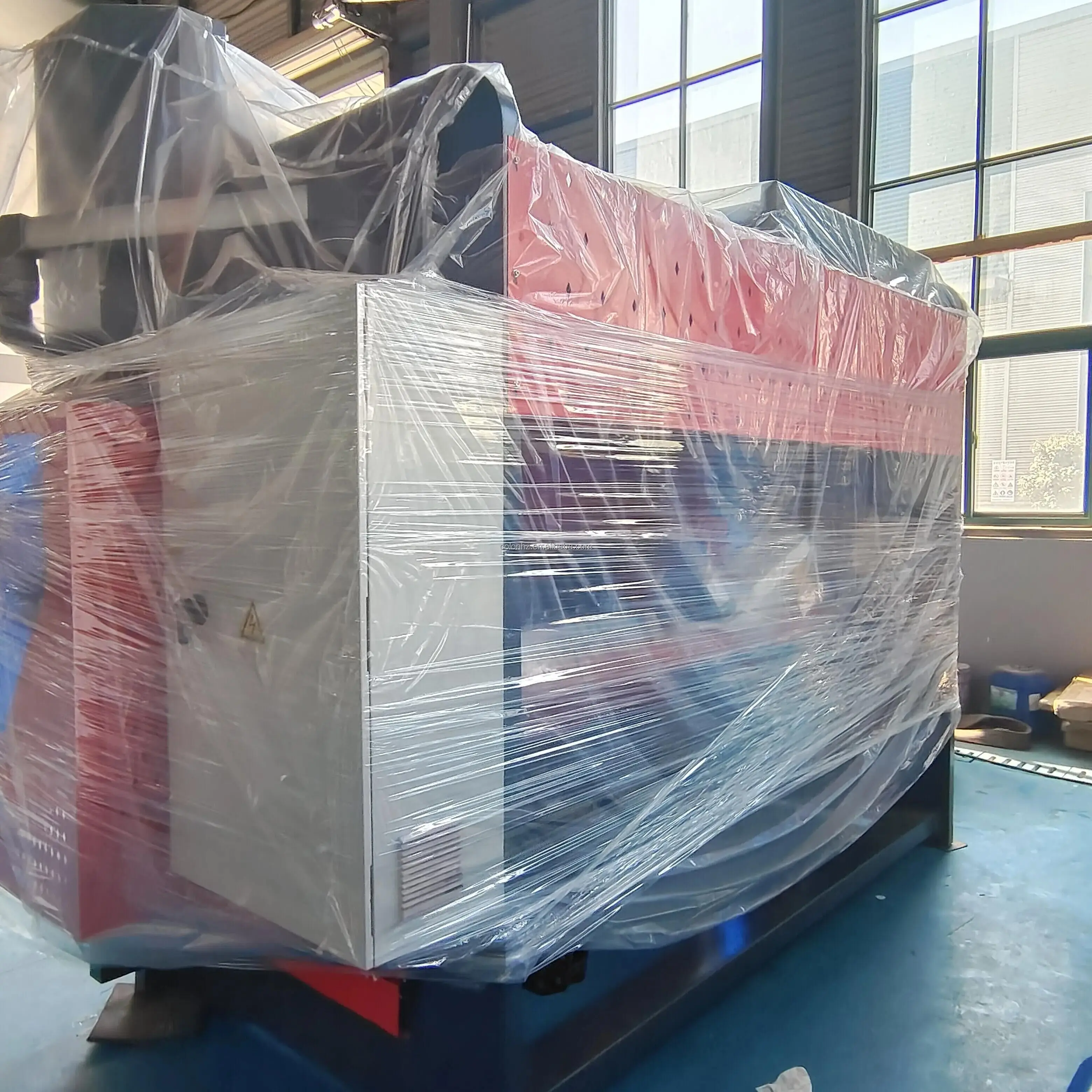

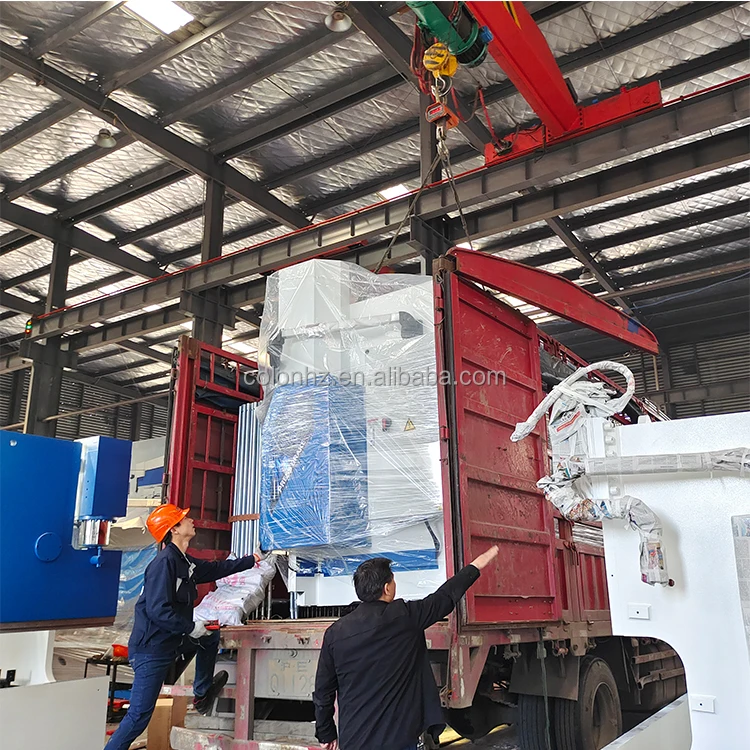

Packing & Delivery

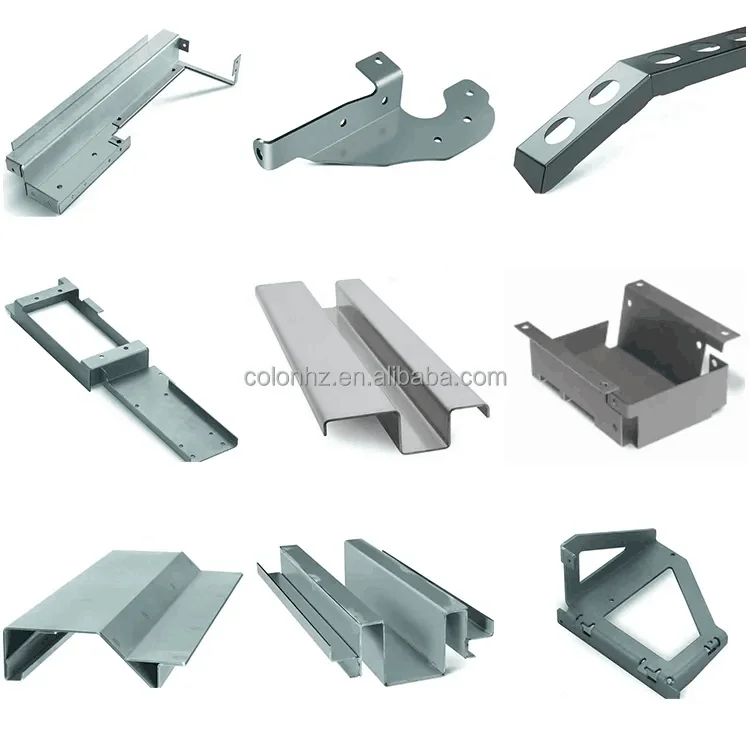

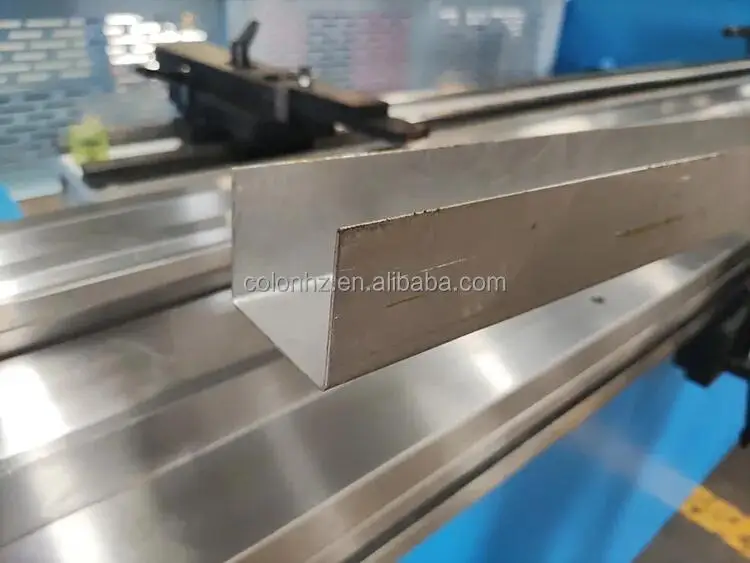

Sample
Company Profile
Hangzhou Colon Digital Technology Co.,LTD covers an area of 5,000 square meters and has more than 150 employees.We have several production lines,from laser cutting machine,shearing machine,CNC press brake,auto duct line and punch press.According to different machines,we have different branch factories.Each branch factory has professional engineers and R&D departments.
We also have a professional after sale team to provide you with high quality after sale service.Engineers can come to our factory to help you debug your machine and provide free training.
Our engineer have been debugging machines for customers all year round abroad.Our factory also cooperated with French and German companies,we often communicate and learn from each other,it ensures the quality of the machine and our technology is also far ahead in China.
Because we provide high quality machines and excellent services,they are favored by developed countries,such as the United States,Japan,the United Kingdom,France,German and so on.
We also have a professional after sale team to provide you with high quality after sale service.Engineers can come to our factory to help you debug your machine and provide free training.
Our engineer have been debugging machines for customers all year round abroad.Our factory also cooperated with French and German companies,we often communicate and learn from each other,it ensures the quality of the machine and our technology is also far ahead in China.
Because we provide high quality machines and excellent services,they are favored by developed countries,such as the United States,Japan,the United Kingdom,France,German and so on.

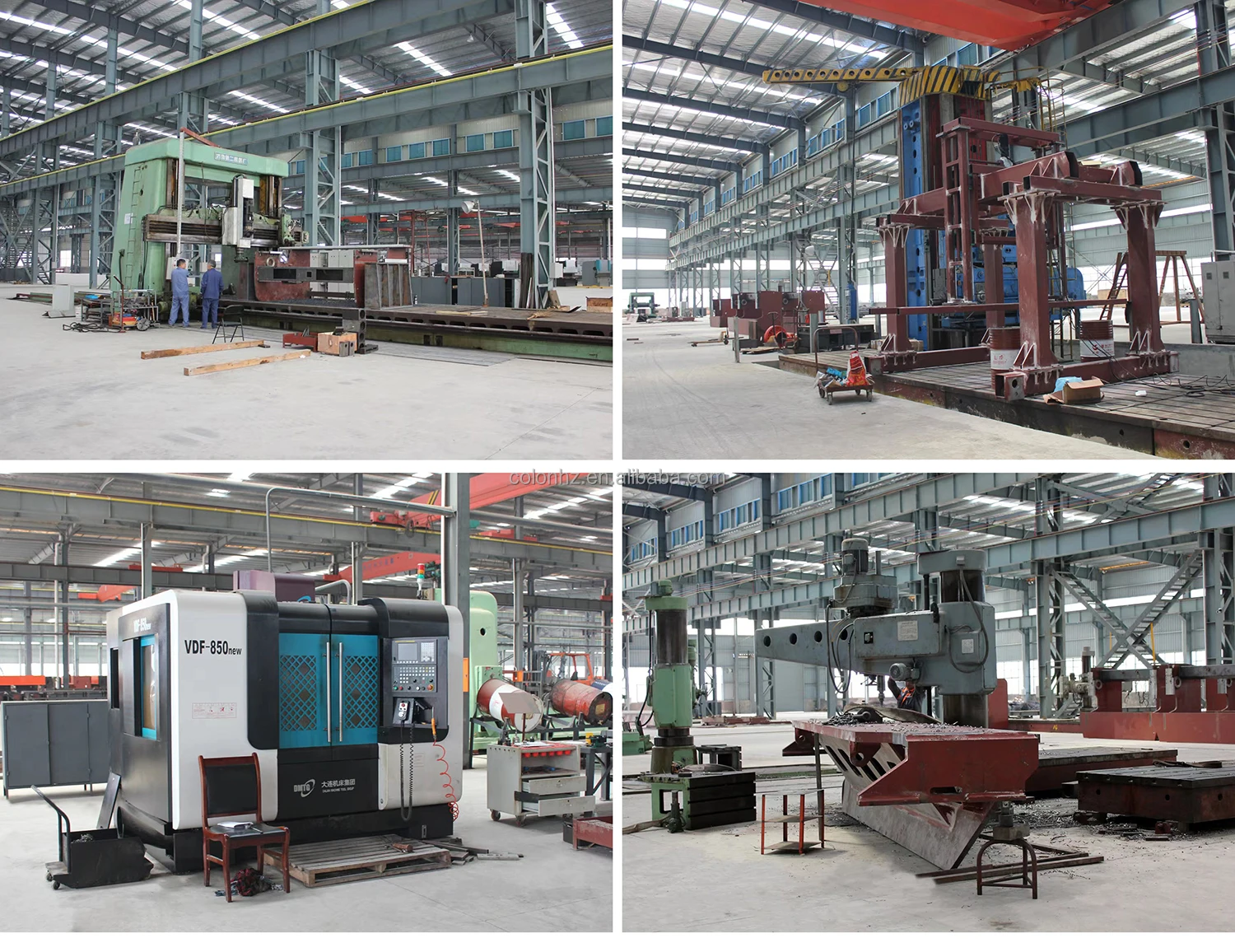

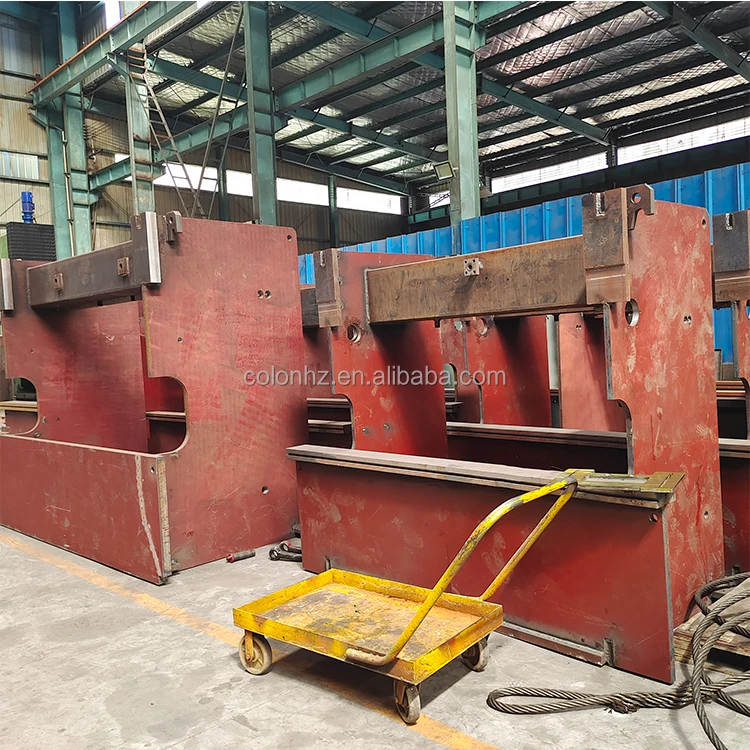

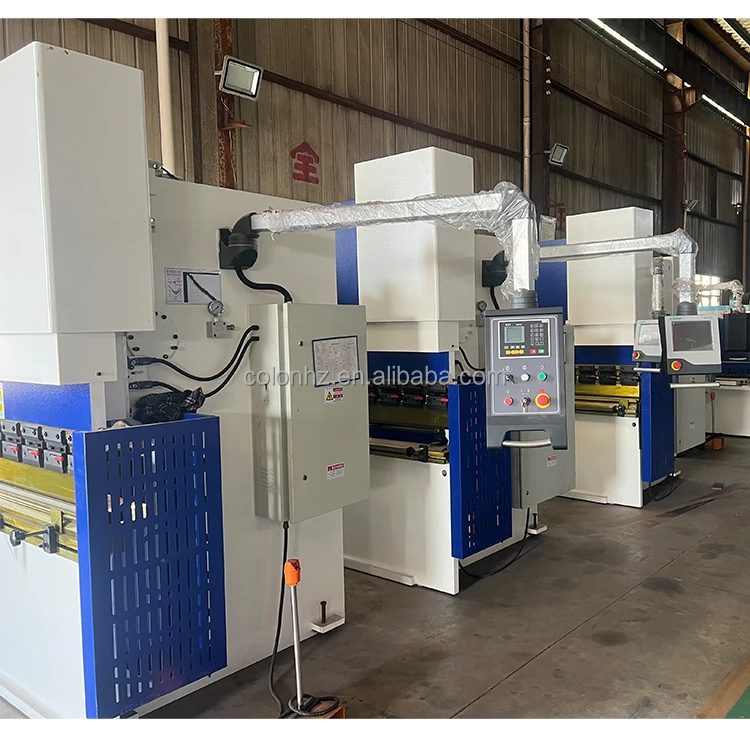

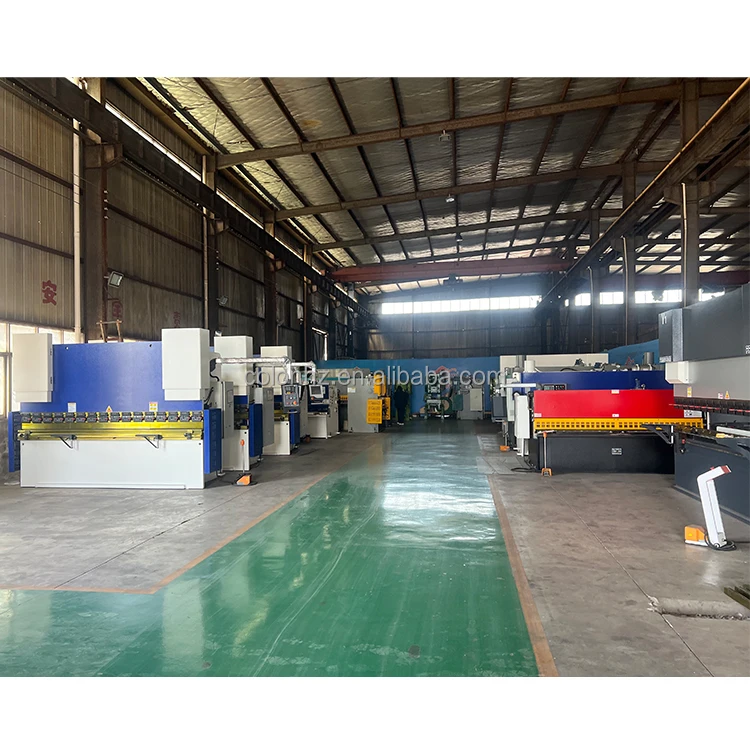

Factory Overview
FAQ
1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
