Product Overview

Description

single blade labyrinth hose drip irrigation tape making machine

PE pipe production line





About Us

Jiangsu Faygo Union Machinery Co., Ltd.

Faygo Plast





1. It is a high-tech enterprise which is specialized in research, manufacture and marketing plastic extrusion lines,plastic production line.



2.Our plastic extrusion lines based on Plastic Extruders:Single Screw Extruder,Conical Twin Screw Extruder and Parallel Twin Screw Extruder.



3.Our plastic making machine can make many kinds of plastic productions like:PVC pipe,CPVC pipe,PE/HDPE/PE-RT pipe,PP-R pipe,plastic foamed profile,WPC profile and panel,wood plastic composite and so on.



4.Plastic Extuder is widely used in Plastic industry.It is the main part of Plastic Pipe Extrusion Line, Plastic Profile Extrusion Line,Plastic Recycling Line and Plastic Granulating Line.



5.We provide plastic machine which can make Agriculture pipe,machines to produce pellet,laminating machine,wooden window frames machine.Our machine can make 3D printer material.



6.Our plastic extruder use good quality screw in plastic machinery.Our plastic machine have long-life.







single blade labyrinth hose drip irrigation tape making machine

PE pipe production line



1.output:60-800kg/h



2.pipe diameter:16-800mm



3.ISO&CE standard



4.test before delivery





PE pipe production line

single blade labyrinth hose drip irrigation tape making machine



Technical parameter:



Modle	Pipe Diameter (mm)	Extruder	Output (kg/h)	Installation Power (kw)	Extruder Power (kw)
SJ45	16~32	SJ45/30 SJ25/25	30~60	40	22
SJ65	20~75	SJ65/33 SJ25/25	80~120	65	37
SJ75	50~160	SJ75/33 SJ25/25	80~150	150	75
SJ90	75~250	SJ90/33 SJ25/25	280~350	200	110
SJ120	160~315	SJ120/33 SJ30/25	300~450	280	185
SJ150	315~630	SJ150/33 SJ30/25	550~800	420	285















PE pipe extrusion machine



 The main extruder adopts PE high-efficiency screw, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion.





Our PE pipe extrusion machine has features of low consumption, high output, stable running etc.

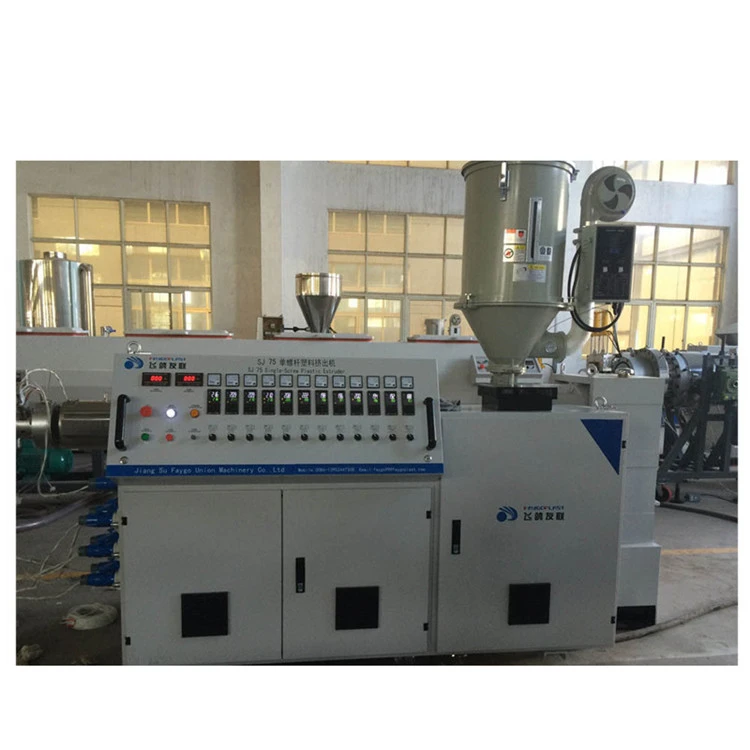

The standard PE pipe extrusion machine include: material charger, SJ series single screw



extruder, mould, vacuum calibration tank, spray cooling tank(for big pipe), haul-off, cutter, stacker.



The main electrics for PE pipe extrusion machine only adopt Siemens motor, siemens contactor,



ABB inverter, Omron temperature meter.





All of our PE pipe extrusion machine will be tested before delivery, and we will invite our cients to



come and testing the whole line with us together.









single blade labyrinth hose drip irrigation tape making machine

1. Capacity: Single screw extruder, suitable for  PE powder with high capacity, max 800KG/H





2. Diameter: our company succeed in designing and producing the biggest conical single extruder in the world. Max production diameter reach 800mm.





3. Auxiliary machine closely meet customer specifications. Nice appearance, automatic control and stable running performance.





This PE Pipe Extruding Machine is mainly used to produce PE water pipe; it is of high quality and reasonable design.









PE PIPE EXTRUSION LINE

single blade labyrinth hose drip irrigation tape making machine

Features Specifications:



A. The main extruder adopts PE high-efficiency screw, notched feeding cylinder and is equipped with strong water jacket cooler, which greatly improves its transmission capacity and guarantees high-efficiency extrusion.

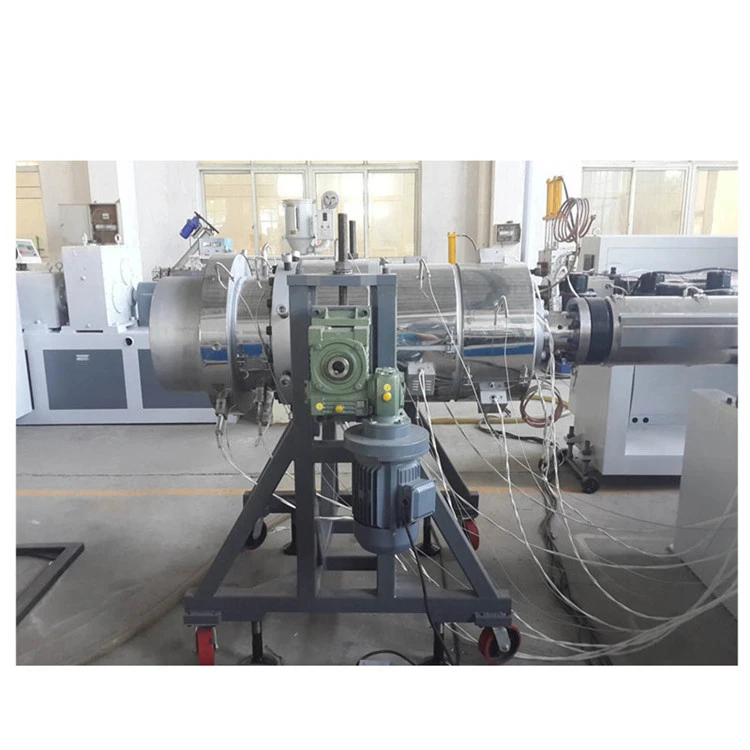

B. The basket composite machine head adapted for PE processing not only guarantees extrusion stability at high speed, but also realizes minimum stress and highest pipe quality in low temperature.

C. The high-efficiency double-cavity vacuum sizing technology and spray cooling tank improves the rate of finished product and meets the need of high-speed production.

D. Adopt multi-pedrial tractor to drive all pedrials through central motor to get synchronous height and guarantees pipe’s roundness.

E. The high-speed, precise designed cutting machine is low in noise. And it is also equipped with strong scrap attracting device to reduce the work of maintenance to the lowest degree.





1. The machine adopts DC motor, and Eurotherm DC digital converter and high efficiency screw to ensure high efficiency extrusion.

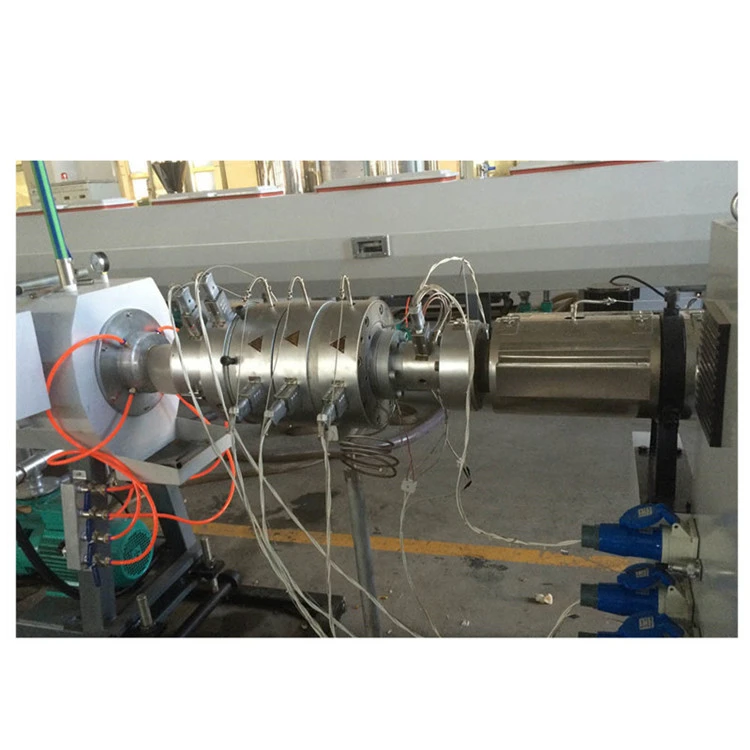

2. This production line adapts basket type composite die head, which ensures not
Only the uniformity of high-speed extrusion but also the stable performance of tubular
goods.

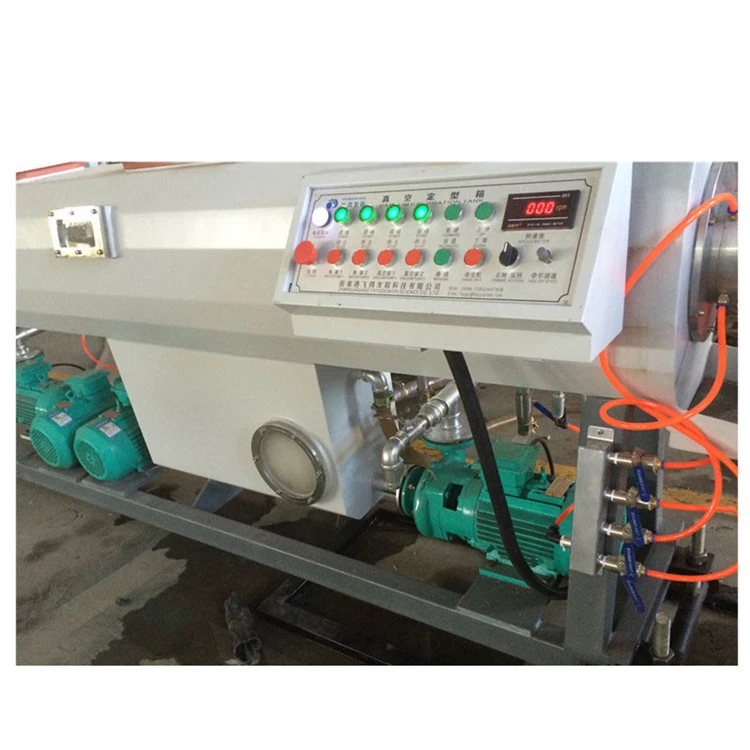

3. This production line adopts high efficiency double chamber vacuum calibrating
technology and spray cooling bath to improve the rate of finished products of tubular
goods and meet the demand of high-speed production. The vacuum bath and cooling bath adopt stainless steel.

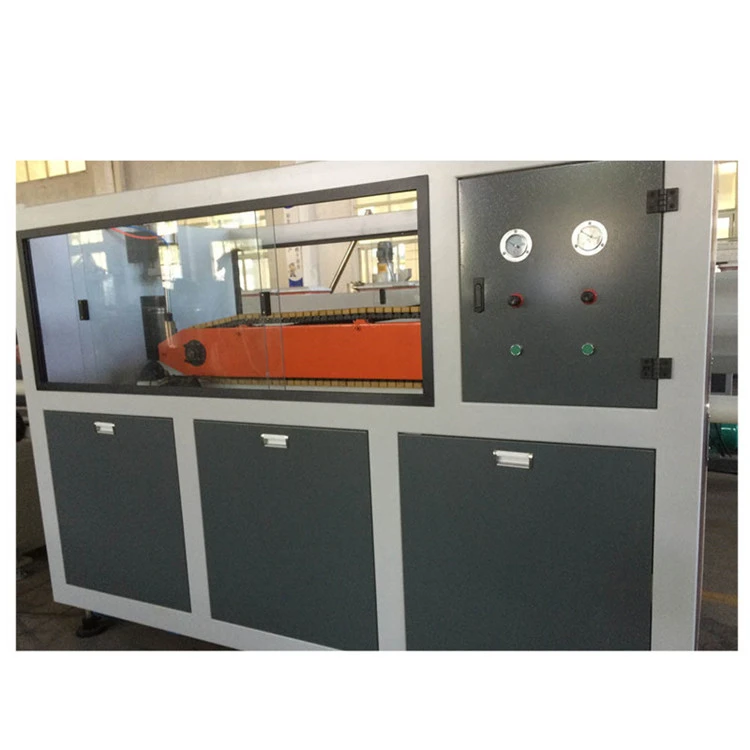

4. This production line adopts multi-caterpillar haul-off and ensures the synchronization.
5. The cutting machine adopts special saw blade with low noise, equipped with chip
collector.
6. The whole line adopts PLC control system and large liquid crystal screen, which
makes the operation very convenient.













If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, we will provide long-term technical assistance.







What can we bring you?



1.High-quality equipment and highly competitive market prices can bring you more profits.





2.  More than 15 years of plastic extrusion machine industry experience, can solve the various problems in the work. Improve machine efficiency  for you.





3. More than 15 years of plastic extrusion machine industry experience, has a good supply system, can provide you one-stop service with the pre-sale , sale and after sale service. Save your purchasing cost and maintenance costs
