Richauto Dsp A11 A18 3 axis Motion Control System, English, A11e A18e Dsp Usb Handle Controller For Cnc Router
- Category: >>>
- Supplier: Changzhou Begist Electric Co. Ltd.
Share on (1600824786403):
Product Overview
Description
Product Description
Please note: Please purchase according to your own needs, but we recommend buying a suit, because the handle of a11 is updated and it cannot work with your old card. If your handle is already the orange line above, you can just buy the card. The following text explains the difference between the new model and the old model, please check carefully. If still has any questions, please contact us.
Specification
Model | RichAuto-A11 |
Processor | DSP |
Memory | 512M |
Display screen | 3 inch monochrom LCD |
Communication | U disk/ USB data cable |
Number of axis | 3 axis |
Control Signal | Diffierential signal |
Drive System | Stepper/ Servo motor |
Minimum input | 0.001mm |
Ignition delay | Stand by |
Adjust | Stand by |
Voltage | 24v |
Manual mode | Continuous/inching/distanc |
Interpolation method | Straight line/ arc |
Soft/hard | Stand by |
Pluse frequence | 1Mhz |
Pass word | Stand by |
Support Language | English other can be costomized |

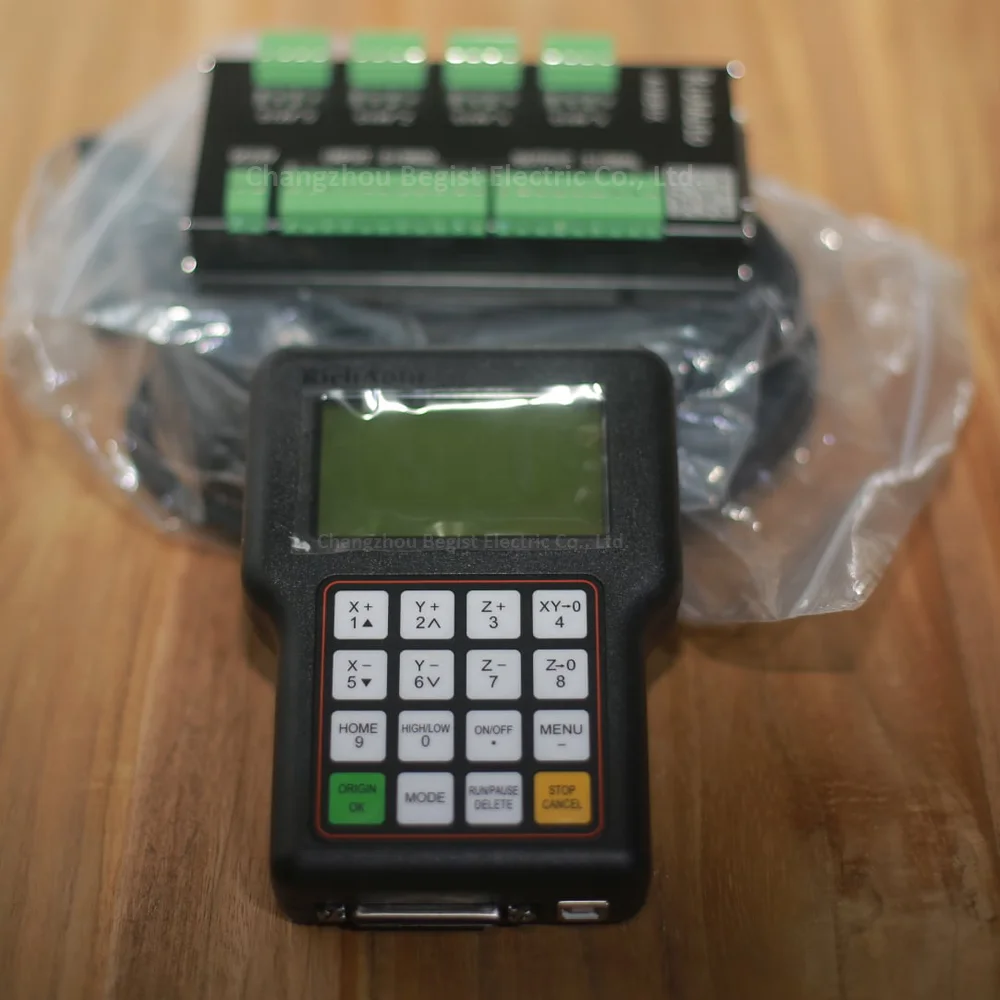

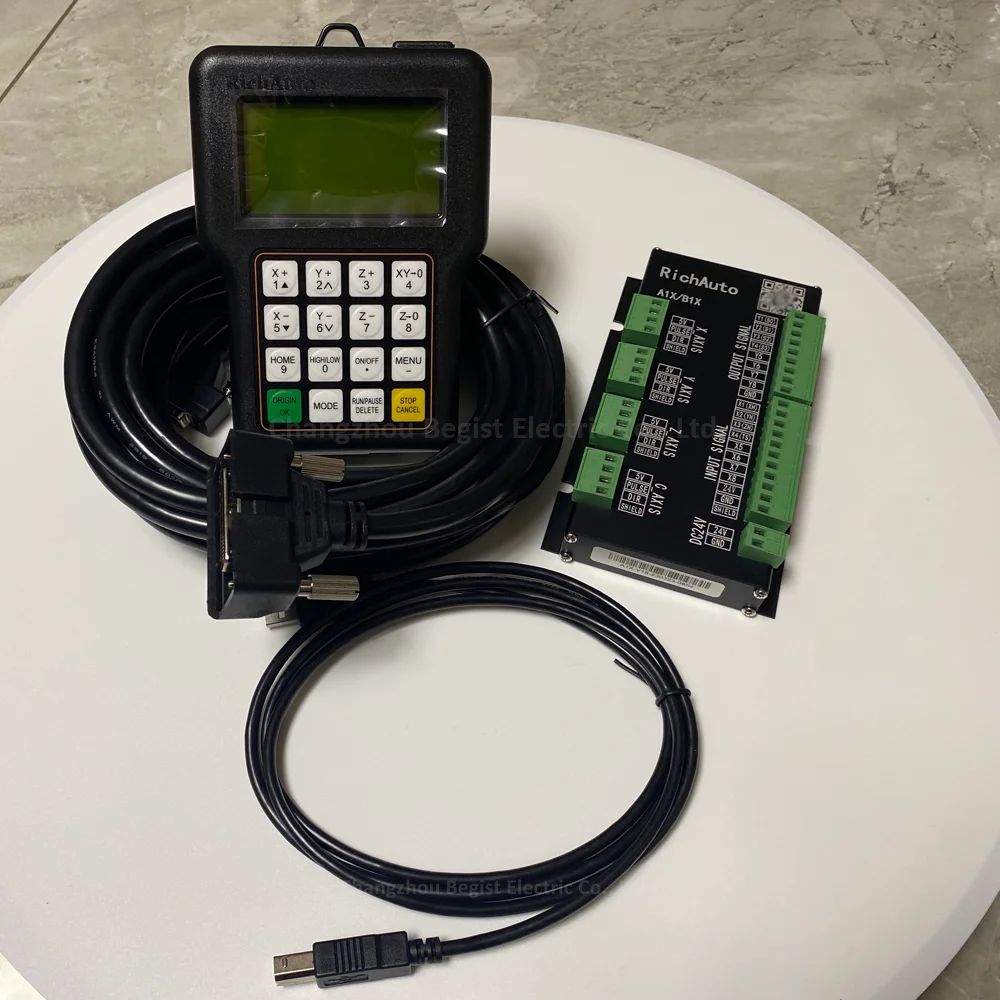

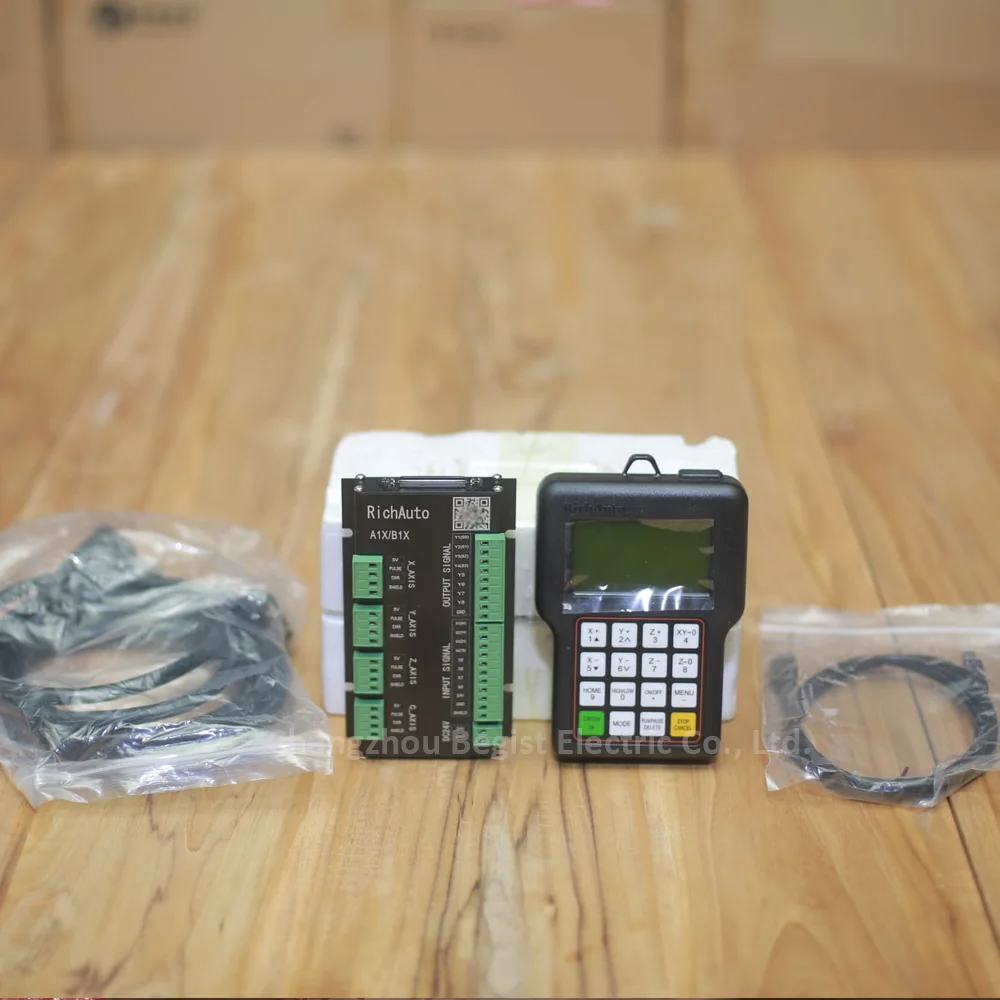

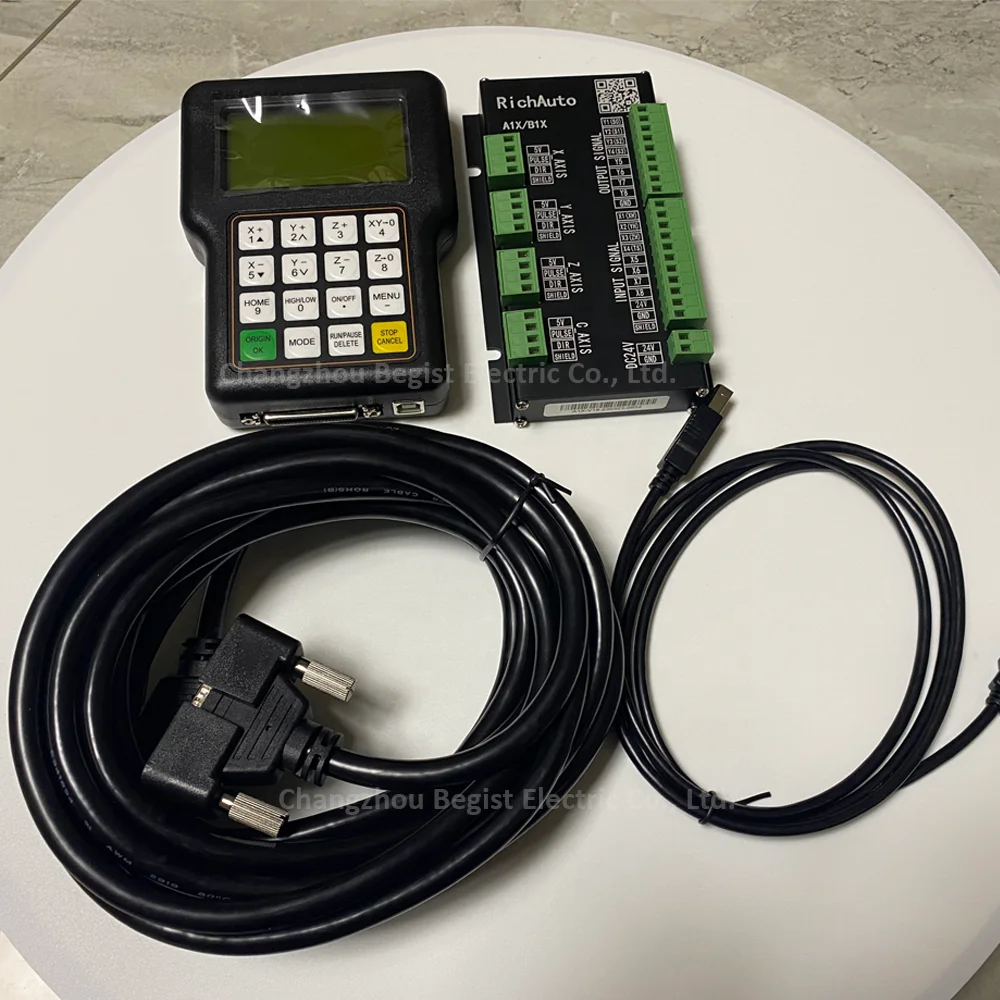

DSP A11 kit
1. A11 control hand
2. A11control card
3. USB date cable
4. 50 PIN date cable
A11 control hand

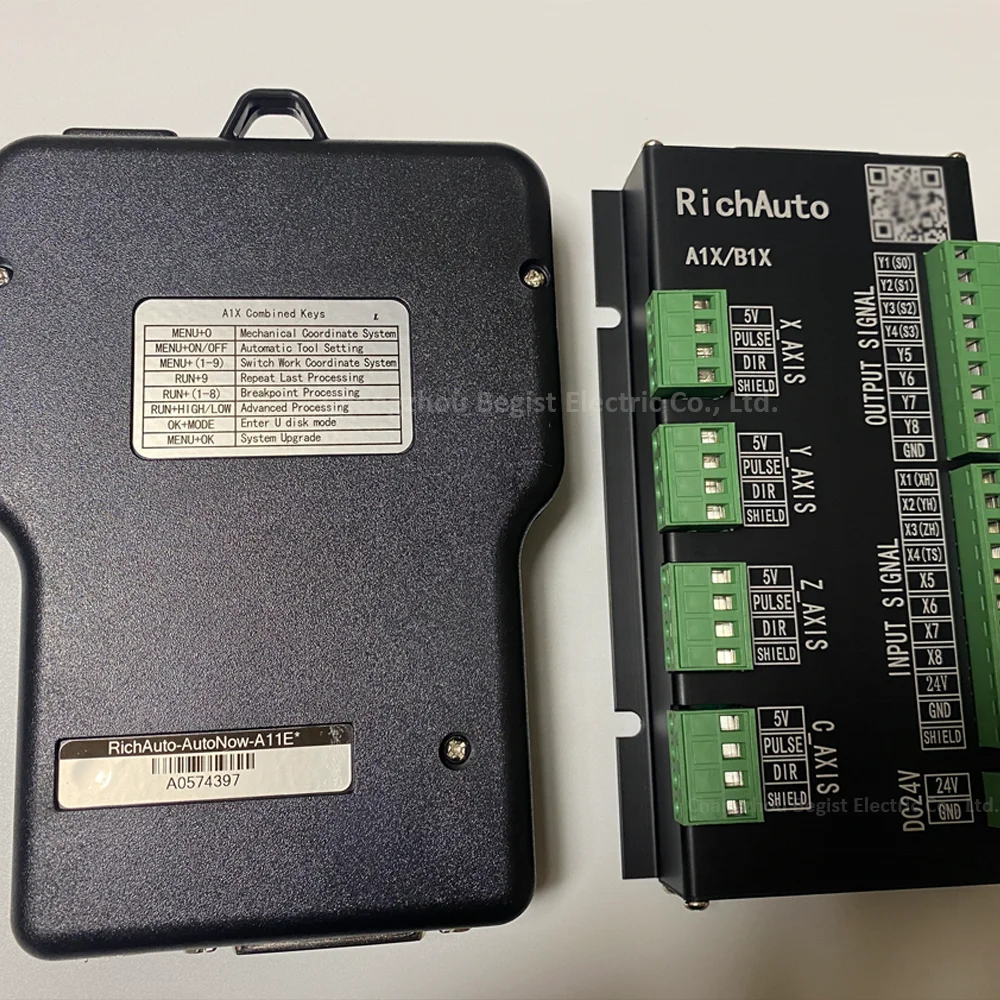

A11control card
USB date cable

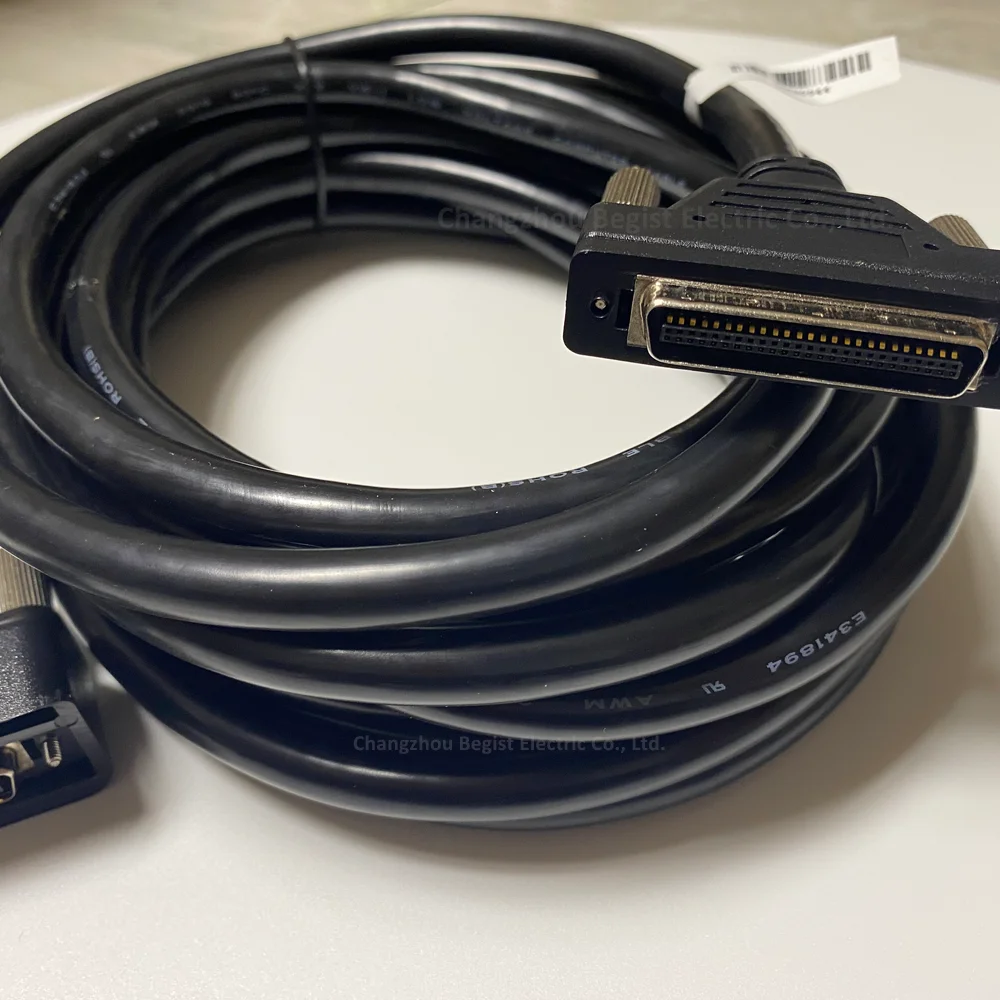

50 PIN date cable

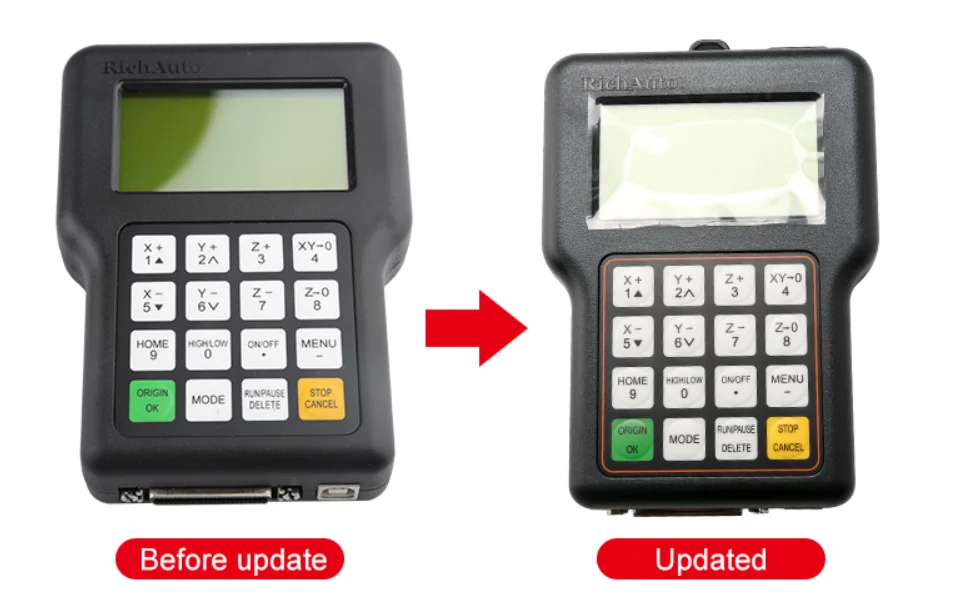

The picture above shows the new version of our company's A1X system (hereinafter referred to as the orange version)
At present, the changes and precautions are explained:
1. The features of this version of A1X are:

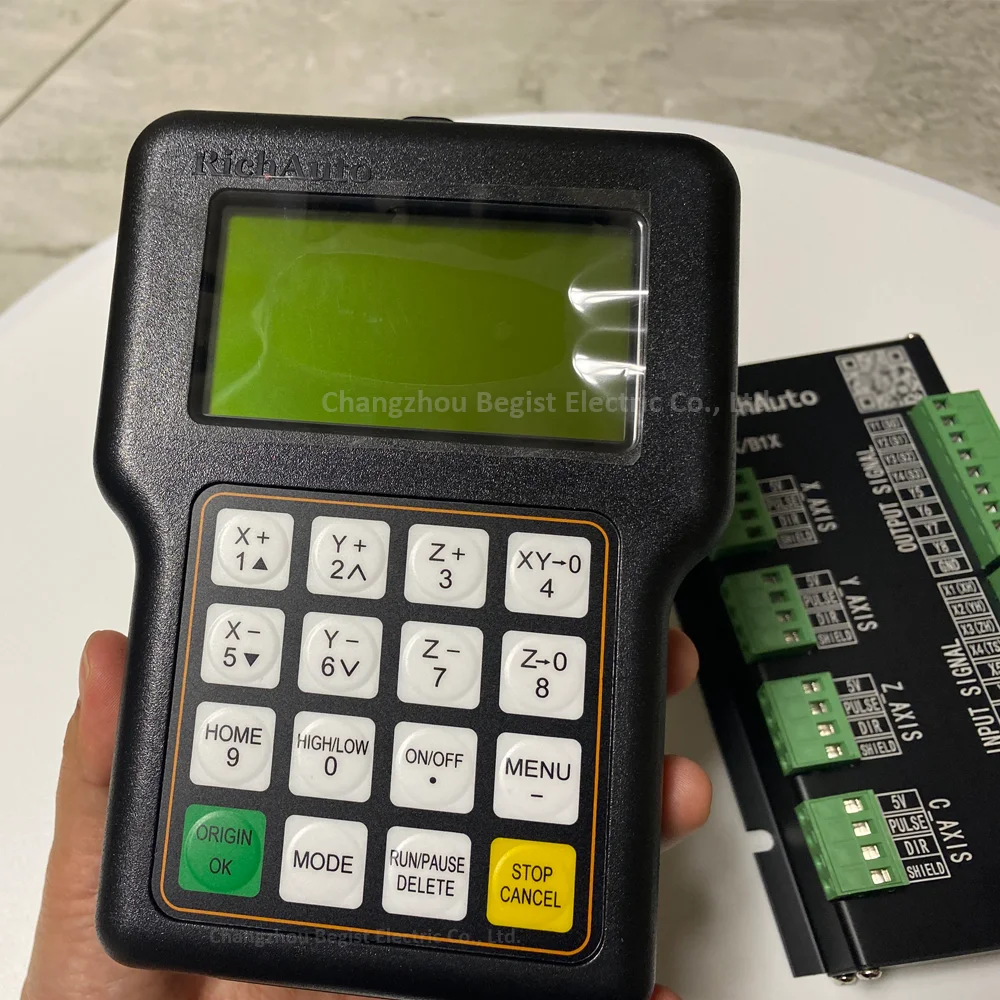

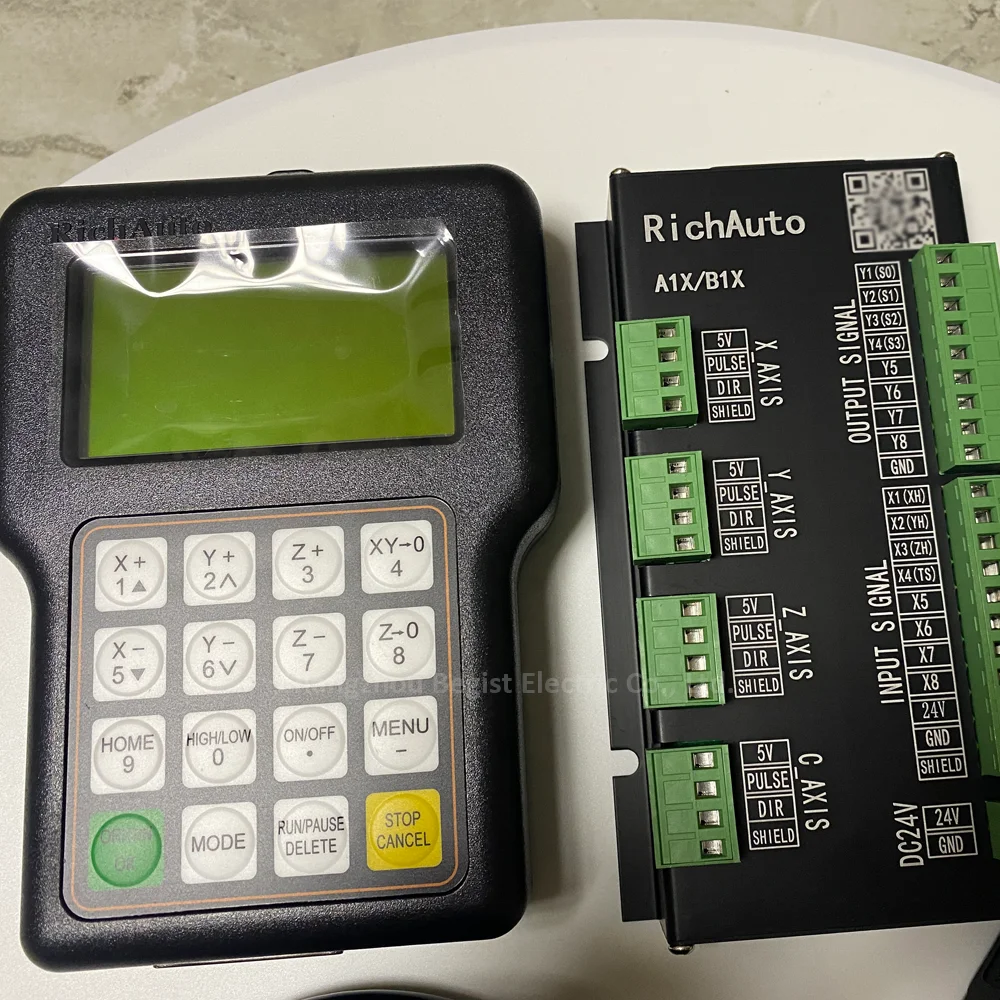

There is an orange frame on the handle buttons, and a silk screen on the upper right end of the wiring board.
2. The compatibility of this version of A1X system has been adjusted:
The old version of the handle can use the orange version of the wiring board, the orange version of the handle can not use the old version of the wiring board
That is, the orange version of the wiring board can be interchanged with the old version of the system, but the orange version of the handle cannot.
3. The current orange version of the handle has changed the internal 24V power supply line, so the USB mode has been temporarily cancelled. If the USB mode is added again later, another notice will be given.
4. The orange version of the wiring board has updated the output circuit protection part, which effectively prevents the abnormal rotation of the spindle after the power is off.
5. The orange version of the system can only modify the parameters when the terminal board is used for power supply. When using a computer to modify the parameters, the parameters cannot be saved.
At present, the changes and precautions are explained:
1. The features of this version of A1X are:
There is an orange frame on the handle buttons, and a silk screen on the upper right end of the wiring board.
2. The compatibility of this version of A1X system has been adjusted:
The old version of the handle can use the orange version of the wiring board, the orange version of the handle can not use the old version of the wiring board
That is, the orange version of the wiring board can be interchanged with the old version of the system, but the orange version of the handle cannot.
3. The current orange version of the handle has changed the internal 24V power supply line, so the USB mode has been temporarily cancelled. If the USB mode is added again later, another notice will be given.
4. The orange version of the wiring board has updated the output circuit protection part, which effectively prevents the abnormal rotation of the spindle after the power is off.
5. The orange version of the system can only modify the parameters when the terminal board is used for power supply. When using a computer to modify the parameters, the parameters cannot be saved.
