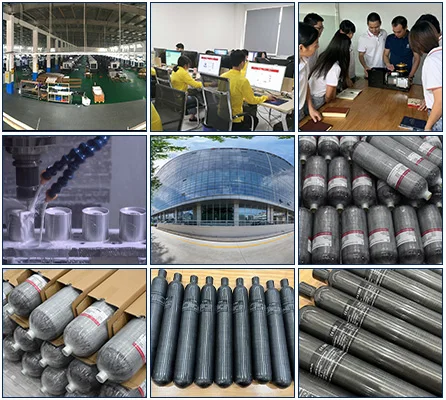

COMPANY PROFILE


Fujian Fresh Air IMP&EXP Co.,Ltd
Fujian Fresh Air IMP&EXP Co.,Ltd is an enterprise which produces hardware product, covering an area of 3000 meter square. We mainly produces and sells outdoor such as pumps, pump accessories,air compressors, air compressors accessories, diving
equipment,etc.
1.We are the original manufacturer, we can provide OEM&ODM service.
2. We covers about 3,000 square meters, and more than 100 employees.
3. We have professional R&D team, will publish several new products each year.
4. We have CE and ISO certification.
5.We have professional after-sale service team.
6. We exported goods to more than 80 countries all over the world.


PRODUCTS DESCRIPTION

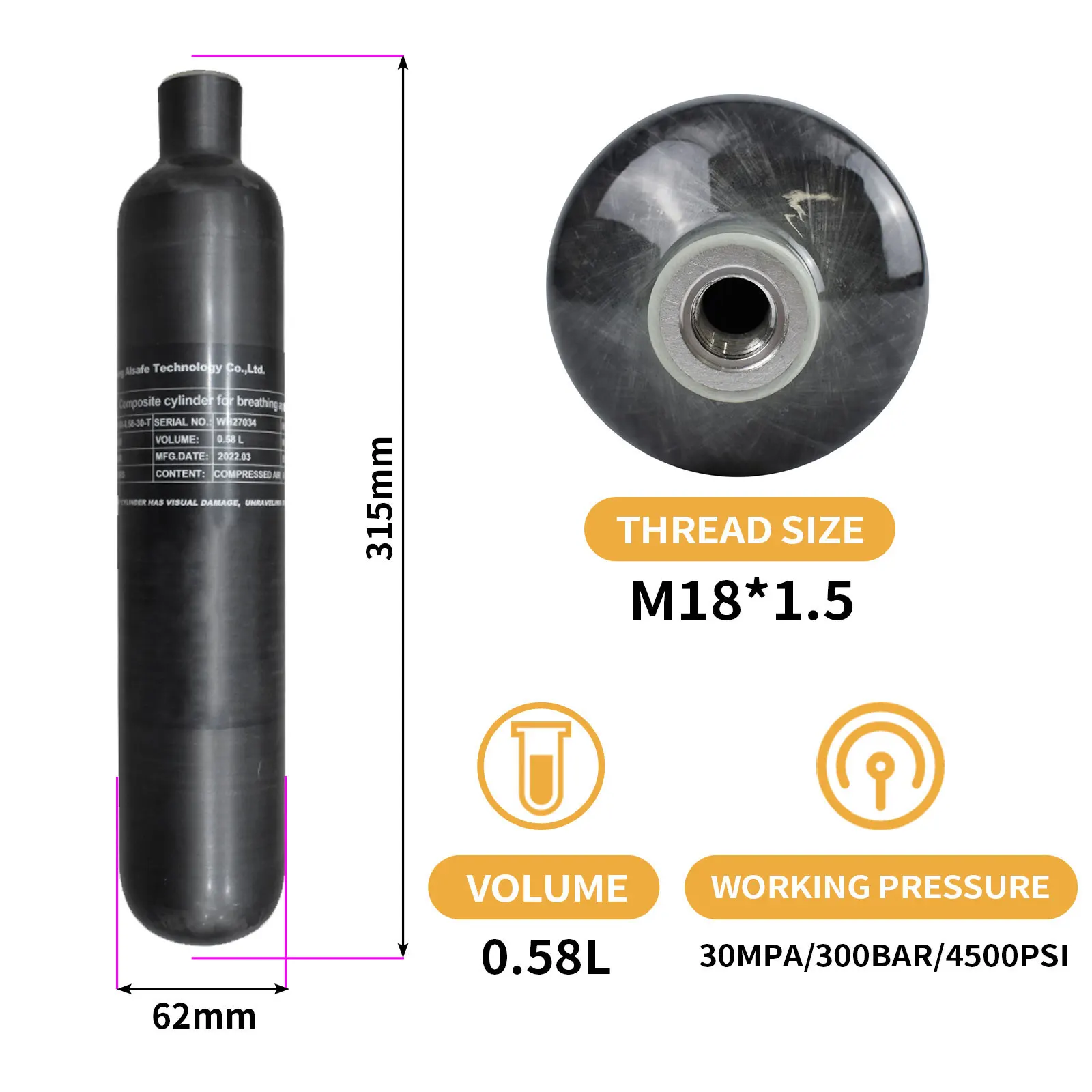

Model
GPGC0058
Type
Gas Cylinder

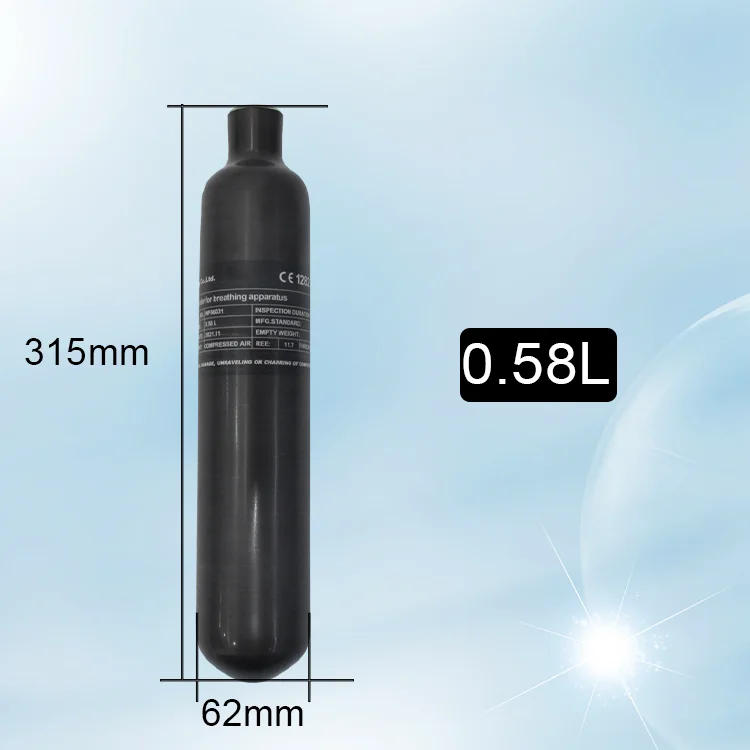

Length
315mm
Diameter
62mm
Water Capacity
0.58L
Cylinder Thread
M18*1.5
Working Pressure
300bar/4500psi/30mpa
Color
Black
Gross Weight
0.6kg
Material
Carbon Fiber

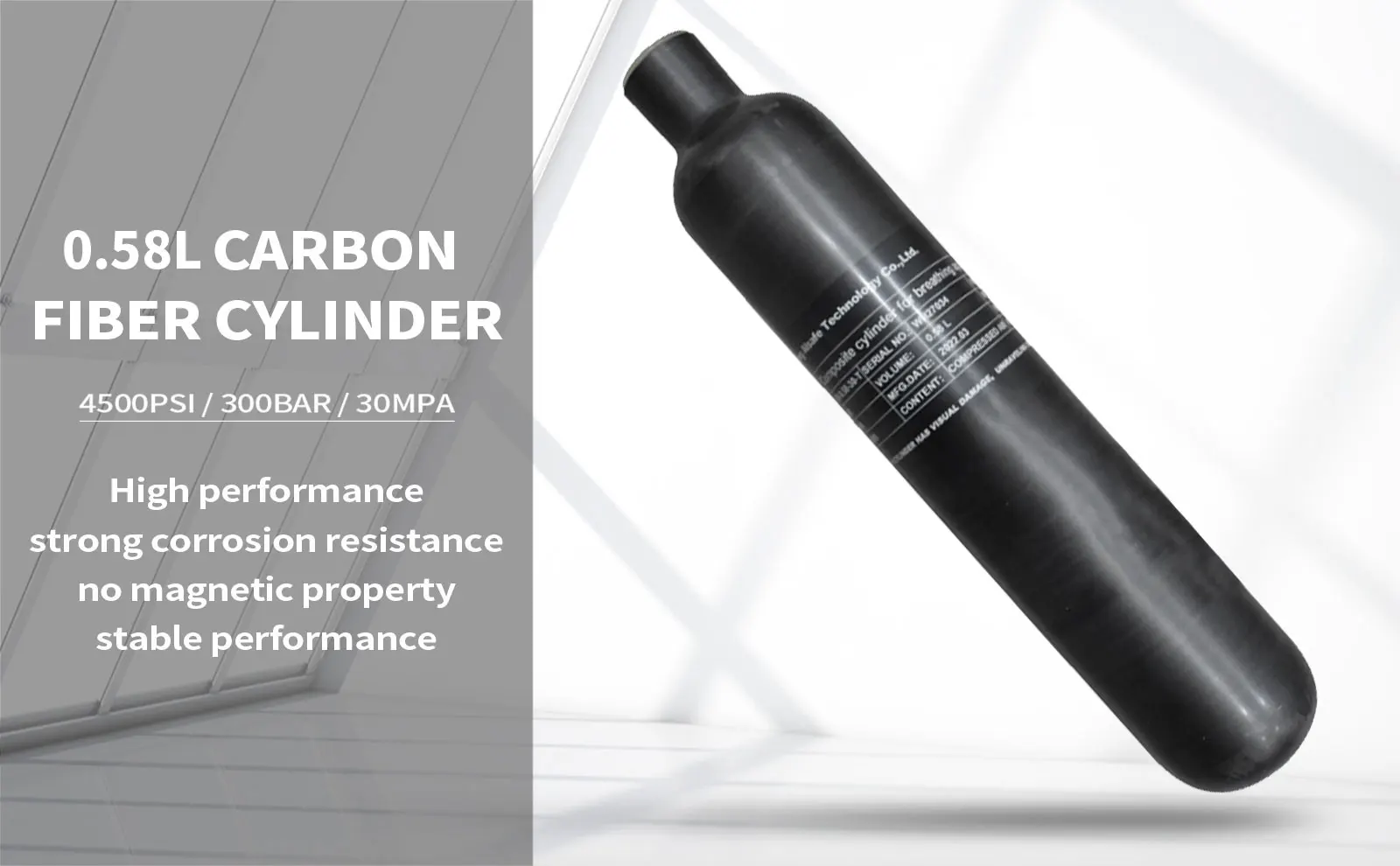

0.58L HIGH PRESSURE CARBON FIBER GAS CYLINDER






PARAMETER



Actual Volume: 0.58L(L)
Actual Weight: 0.5 (Kg) Length:315mm
Outer diameter:62mm
Working Pressure:
300BAR /30MPA/4500PSI
Hydraulic Test Pressure:
500 BAR
Design Working Life:15 Years Re-Test Period:3 Years Fiber Material:Carbon Fiber
Liner material:
6061 aluminum alloy

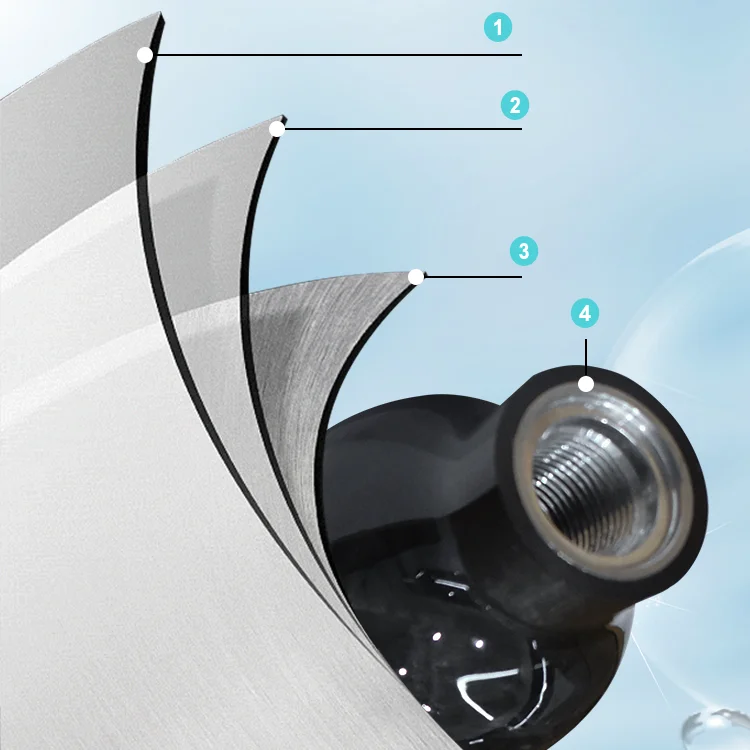

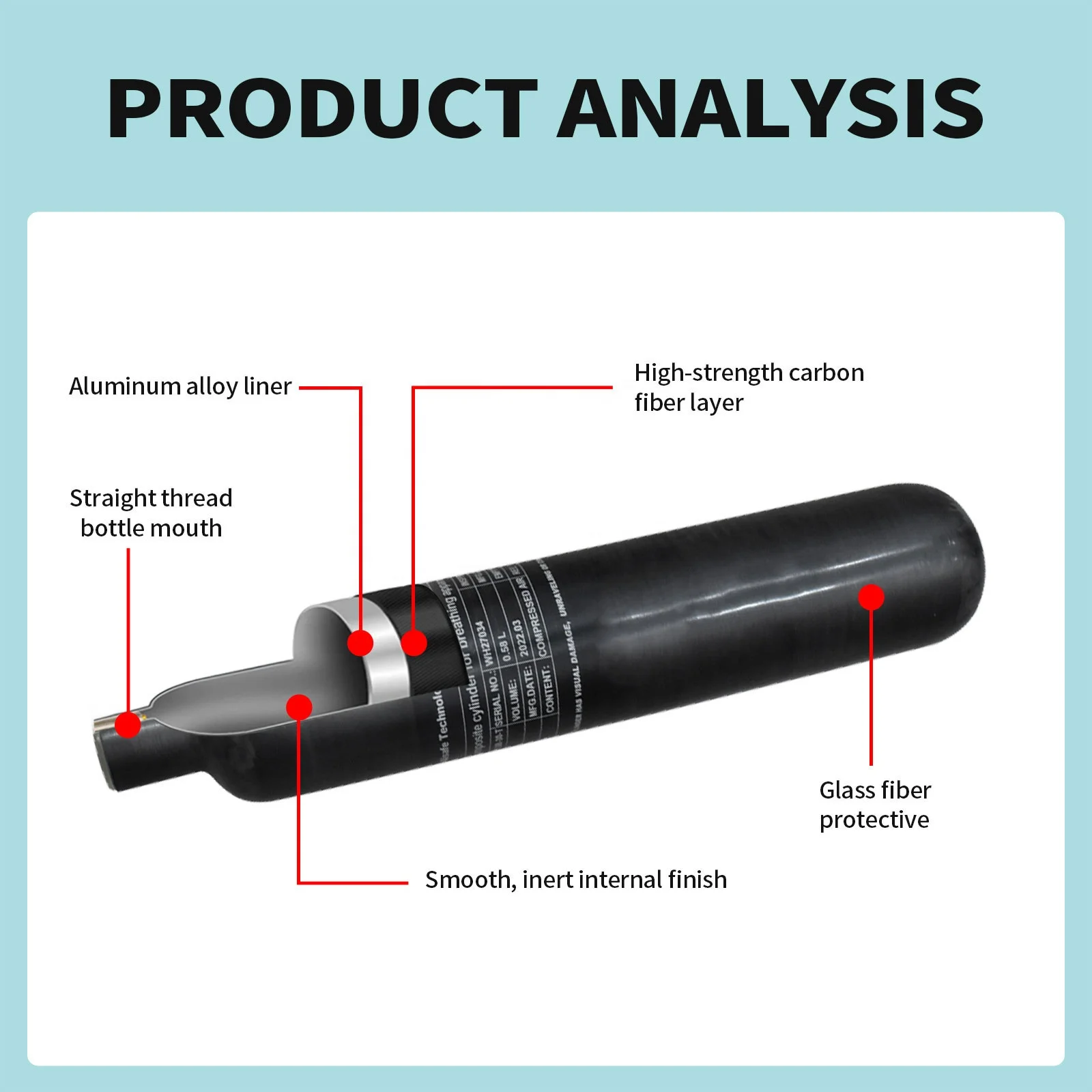

MULTIPLE LAYER MATERIAL THICKENING PREVENT ACCIDENTS






①Glass fiber protective layer

②High-strength carbon fiber layer

③Aluminum alloy liner

④M18*1.5 Straight thread bottle mouth

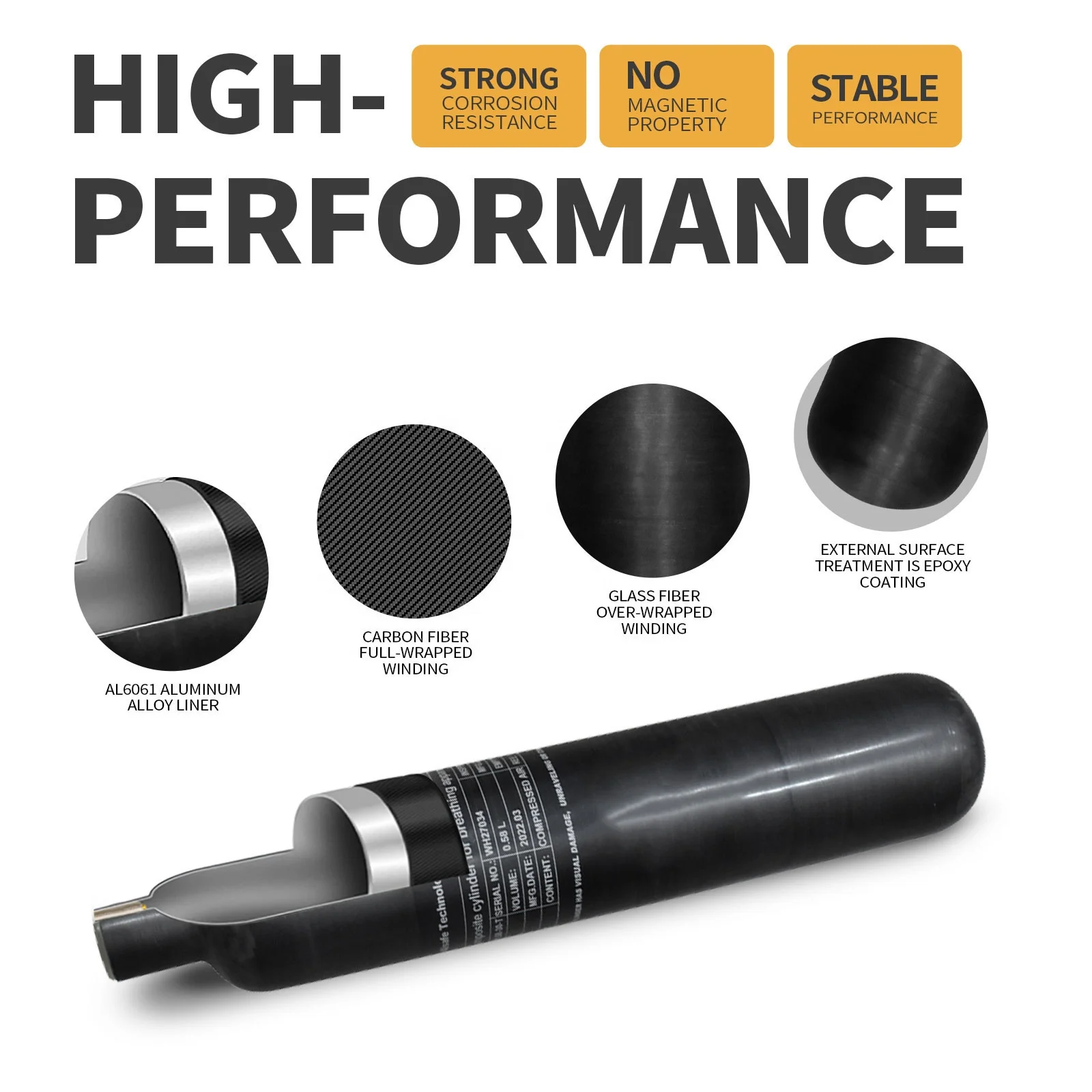

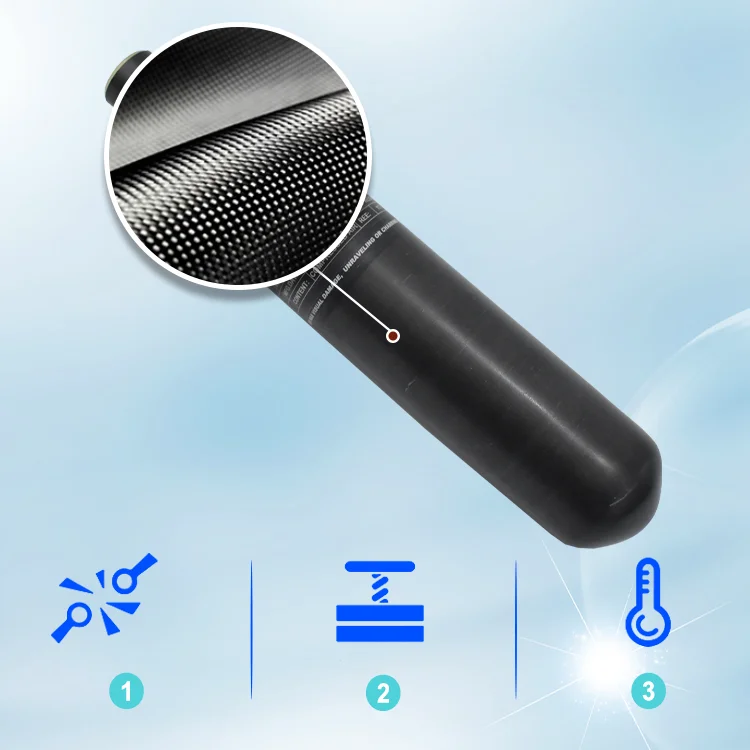

HIGH PURITY CARBON FIBER




The bottle body is made of high quality carbon fiber raw materials,with a composite winding process, Have a strong ability to withstand pressure.

①Wear-resistant and impact-resistant

②Compressive strength

③High temperature resistance


STAMPING FORMING BLAST UPGRADE








Strict procedures, integrated cold forming. Strict standards and professional technology ensure long-term safety.


PRODUCT IN DETAIL

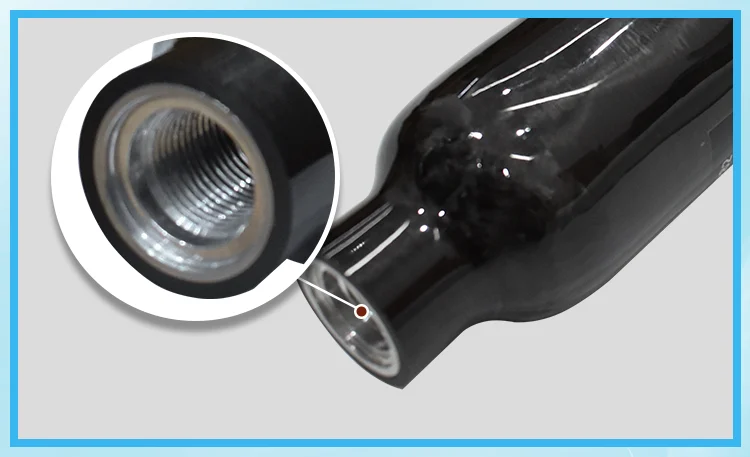

Safety Seal

The spiral mouth design of the gas cylinder can prevent the gas cylinder from leaking,eliminate the risk factors,and maintain high safety standards.

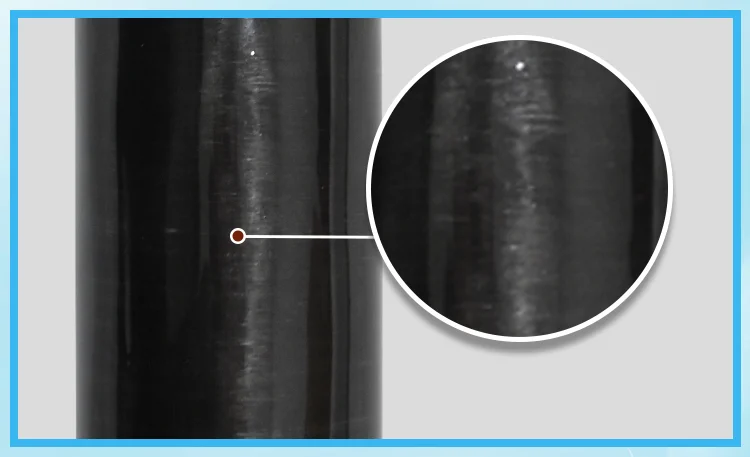

Carbon Fiber Winding

The metal liner are wound with the carbon fiber,which is resistant to high temperature and high pressure.

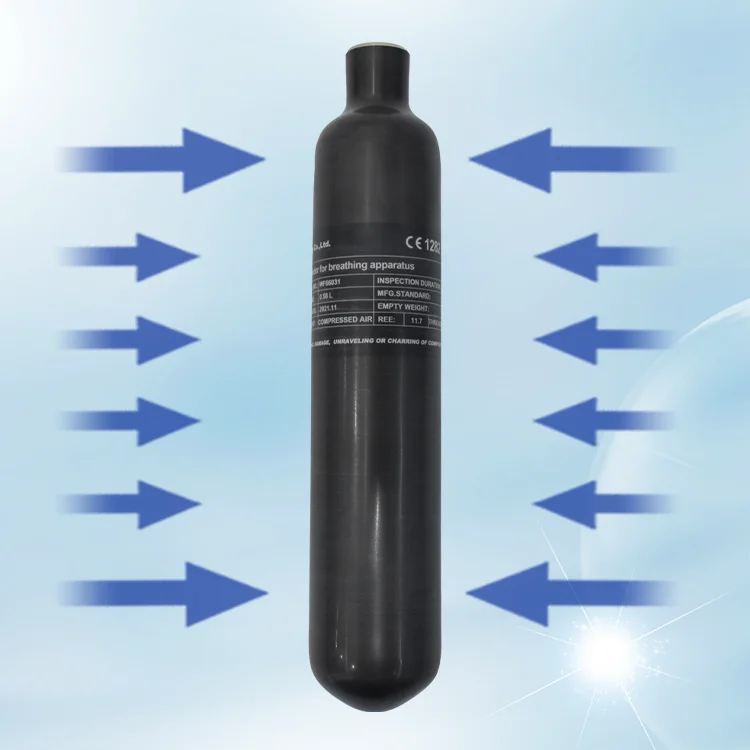

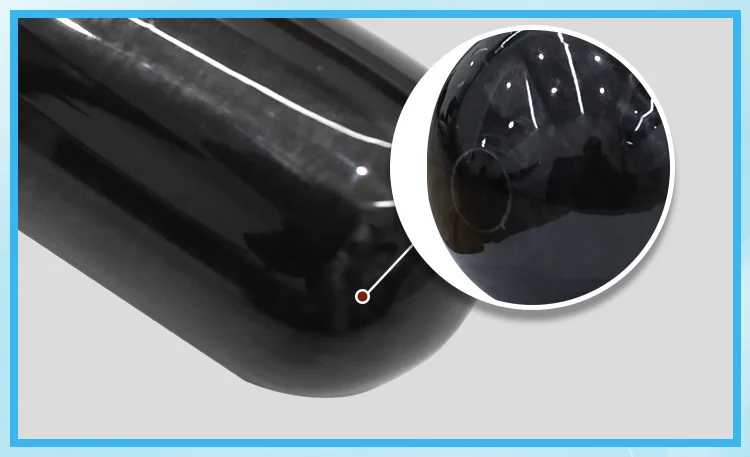

High Strength and More
Pressure Resistance

The bottle body is tempered with carbon fiber hardness,so it is very resistance to high pressure air.



Outstanding Safety
The composite gas cylinder is not easy to conduct electricity,and it is neutral in the case of erosion and corrosion. The cylinder valve has a built-in safety diaphragm to prevent the cylinder from exploding due to excessive pressure in the cylinder.

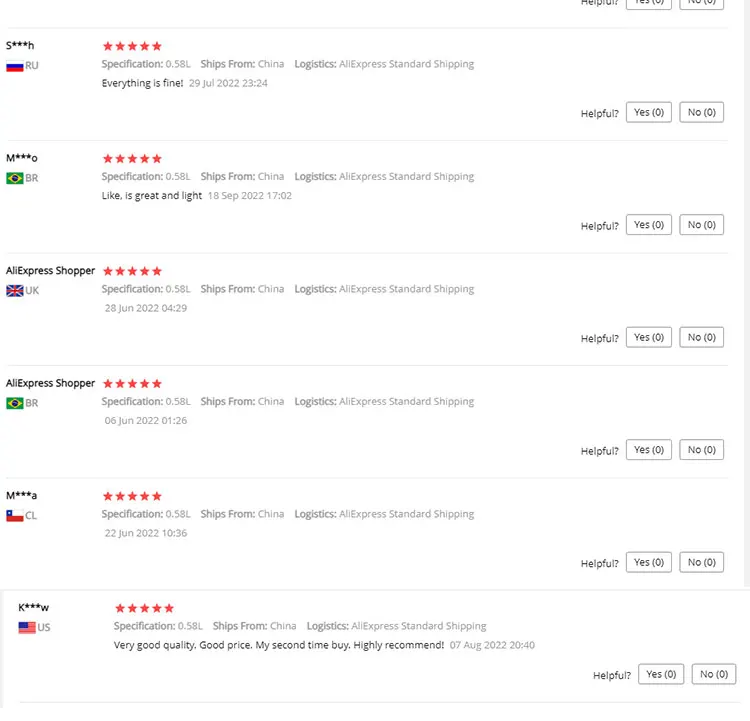

CUSTOMER EVALUATION




PRODUCT DISPLAY

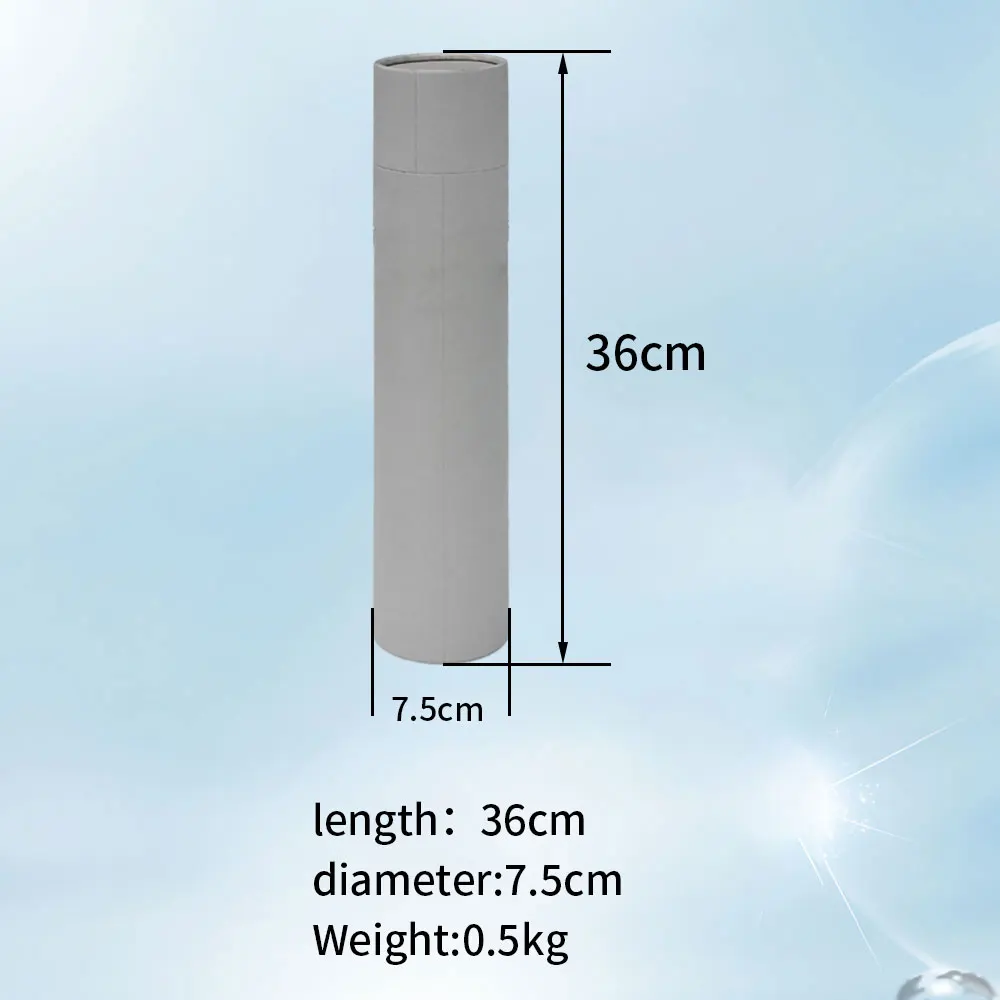

PRODUCT PACKAGING DRAWING

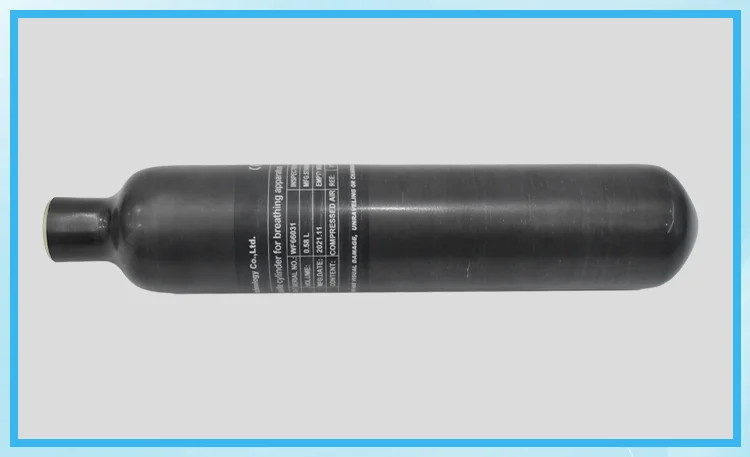

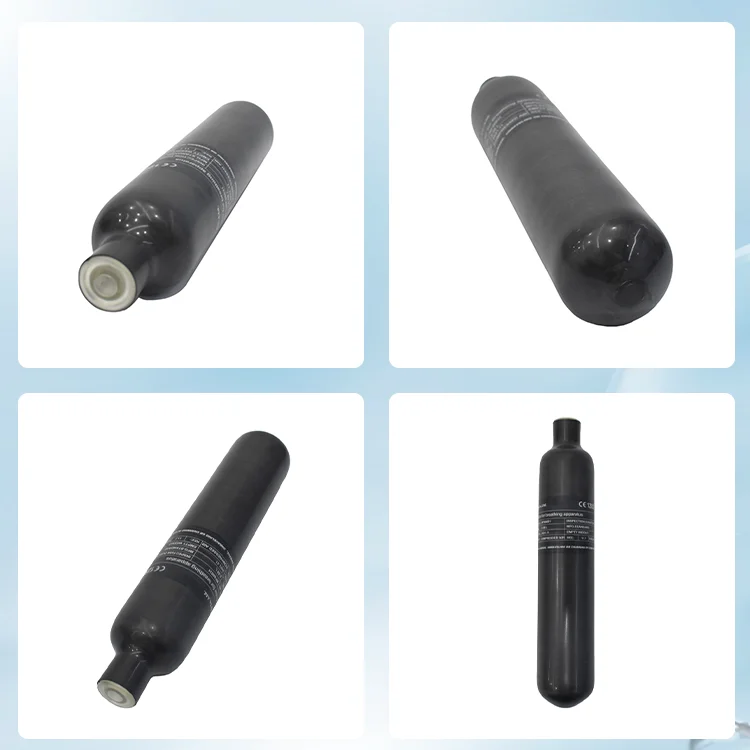

PRODUCT PICTURES




FAQ


1. What is the maximum working pressure of your gas cylinders?
---The maximum working pressure of our gas cylinder is30mpa/300bar/4500psi.
2. What is the material of your gas bottle?
---The materials of our gas cylinders are carbon fiber and aluminum alloy.
3. What is the thread on your gas cylinder?
---The thread of our gas cylinder is M18*1.5(We have other threads. If you need, you can contact us.)
4. What scenarios can your gas cylinders be used in?
---Diving, paintball and outdoor shooting activities.
5. What is the lifespan of your gas cylinders?
---The longest lifespan of our gas cylinders is generally 15 years.
6. For safety reasons, how often should your gas cylinders be tested?
---It is generally recommended to test every three years.
7. What is the hydraulic test pressure of your gas cylinders?
---The hydraulic test pressure of our gas cylinders is generally 500bar.
8. What capacity cylinders do you have?
---We have carbon fiber cylinders such as 0.22L, 0.3L, 0.36L, 0.42L, 0.45L, 0.48L, 0.5L, 0.58L, 0.7L, 1.1L, 2L, 3L, 6.8L, 9L and 12L,etc.
9.Can you send products to our Forwarder in China?
---Yes, if you have forwarder in China, I will glad to send products to him/her.
10.Do you accept OEM orders?
---Yes,we do.
