Product Overview
Description
Series :P-MOS
Model | Withstand Voltage | Current | Channel | Internal Resistance | Junction Capacitance | Package |
CX4435 | -30V | -10A | P | 16mΩ | 1500PF | SOP-8 |
CX3401 | -30V | -4.2A | P | 4mΩ | 580PF | SOT-23 |
CX3419 | -30V | -30A | P | 8mΩ | 2300PF | DFN3.3*3.3 |
CX20P02A | -20V | -12A | P | 21mΩ | 2010PF | SOT-23 |
Applications
● PWM applications ● Load switch ● Power management
● PWM applications ● Load switch ● Power management

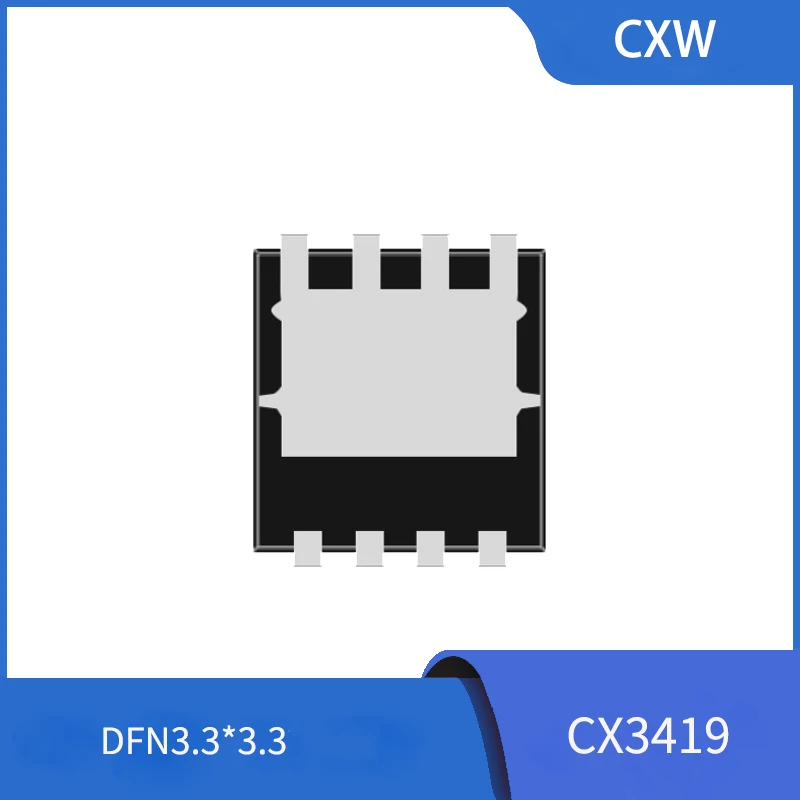

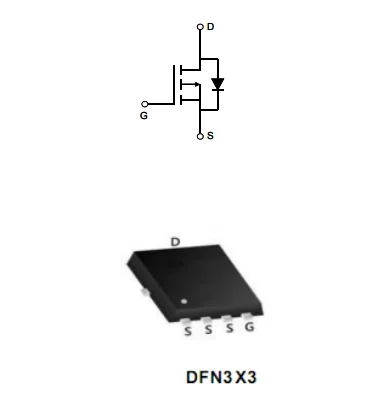

CX3419
RDS(ON) <9mΩ @ VGS=-10V

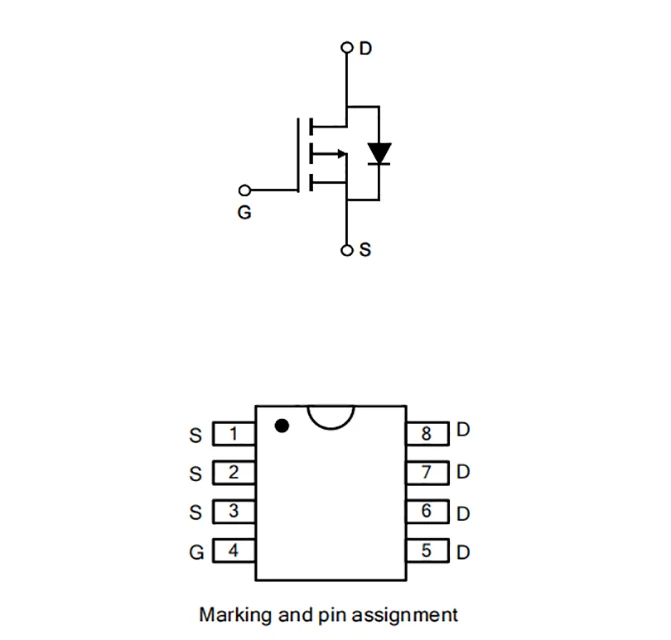

CX4435
RDS(ON) < 18mΩ @VGS=-10V
RDS(ON) < 26mΩ @VGS=-4.5V
RDS(ON) < 26mΩ @VGS=-4.5V
CX20P02A
RDS(ON)<21mΩ @ VGS =4.5V
RDS(ON)<28mΩ @ VGS =2.5V
RDS(ON)<28mΩ @ VGS =2.5V

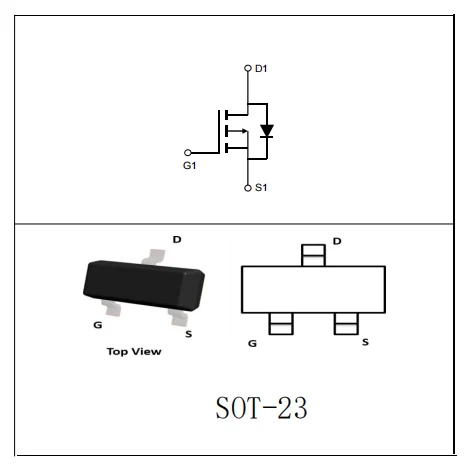

CX3401
RDS(ON) <70mΩ @ VGS=-4.5V
RDS(ON) <60mΩ @ VGS=-10V
RDS(ON) <60mΩ @ VGS=-10V
Packing
