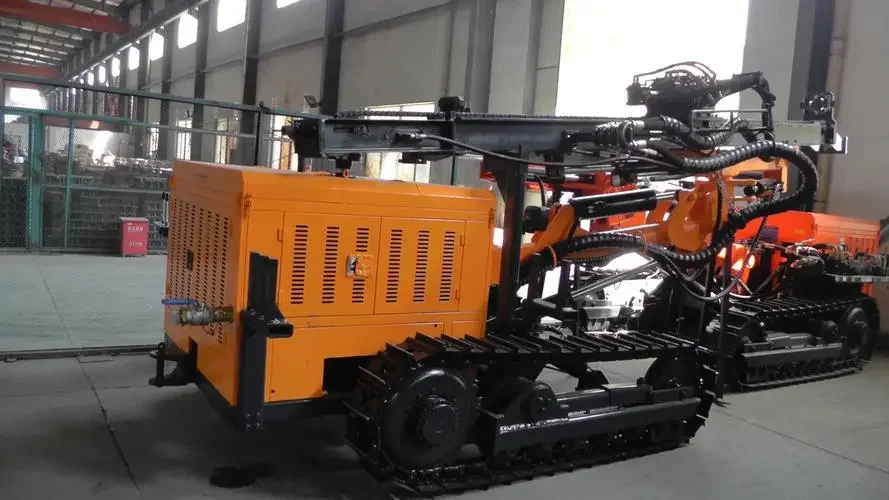

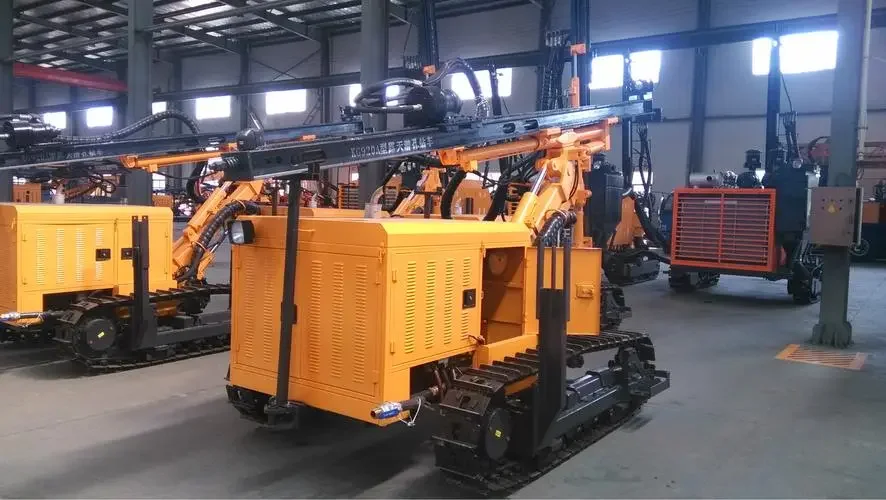

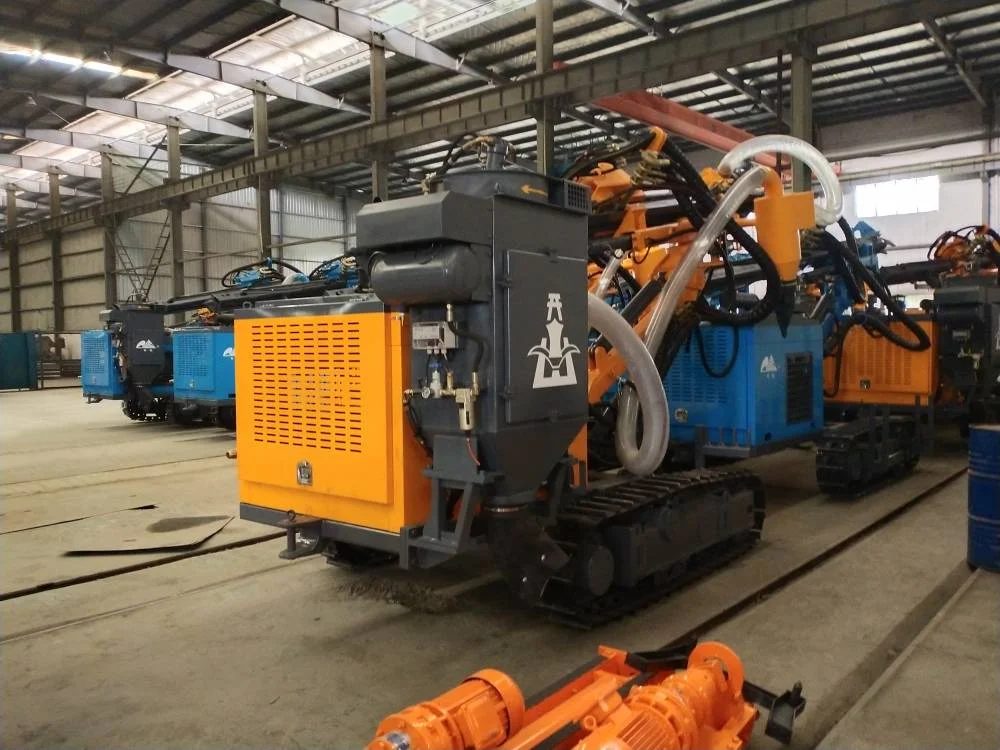

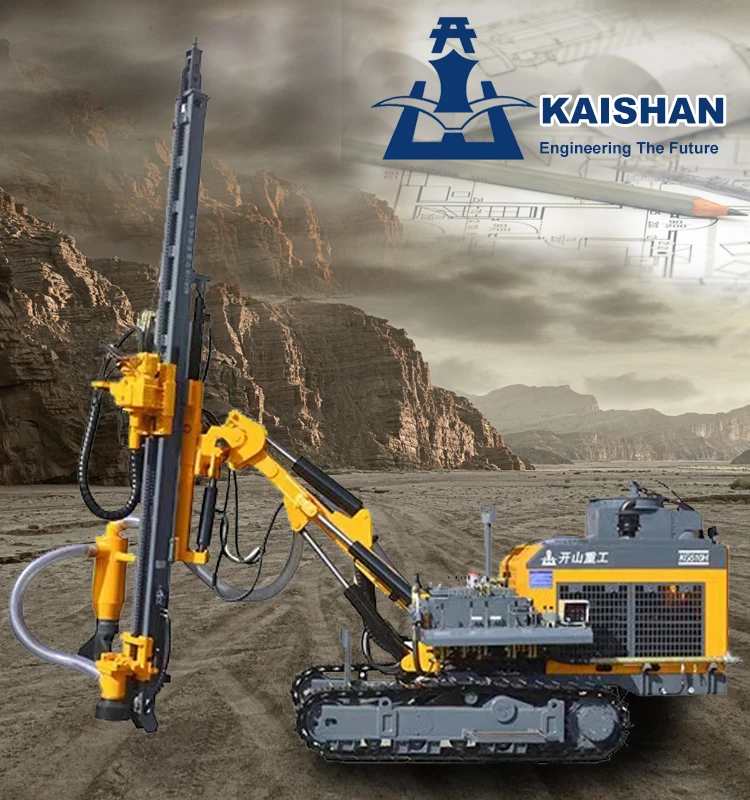

Kaishan KG420 KG430 small separated open pit DTH surface mine drilling rig equipment with air compressor
- Category: >>>
- Supplier: Shaanxi Kaishan Mechanical & Electrical Equipment Co. Ltd.
Share on (1600824813405):
Product Overview
Description
Product Description
The KG Series down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai double-cylinder engine (China III), the drill rig meets the national standards for emissions and environment. The flexible derricking mechanism is suitably qualified for horizontal drilling at a low level. The hydraulic system has been improved, leading to increased system flow and rotary speed. Moreover, the hydraulic cylinder has been optimized, thus making it more reliable; and the additional ring (plate) makes handling and lifting easier. The KG310H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Model of drill rig | KG | KGH | |
Weight of complete machine | 4000KG | 4200KG | |
Outer dimensions | 4650×2000×2200mm | 4650×2500×2200mm | |
Drilling hardness | f=6-20 | ||
Drilling diameter | Φ80-105mm | ||
Depth of economical drilling | 20m | ||
Rotary speed | 0-120rpm | ||
Rotary torque | 1250N·m | ||
Lifting force | 18KN | ||
Method of Feed | Oil cylinder-leaf chain | ||
Feed stroke | 2670mm | ||
Travelling speed | 0-2.0km/h | ||
Climbing capacity | ≤30° | ||
Ground clearance | 250mm | ||
Tilt angle of Beam | Down:145°, up: 55°, total: 190° | ||
Swing angle of boom | Left: 100°, right: 45°, total: 145° | ||
Pitch angle of drill boom | Down: 50°, up: 25°, total: 75° | ||
Compensation length of beam | 900mm | ||
Supporting power | Yuchai power YCCA13T6-45 (33.1KW/2400r/min) | ||
Drilling rod | Φ60×2m | ||
DTH hammer | L3 | ||
Air consumption | 7-15m3/min | ||
Maximum height of horizontal hole | 2650mm | ||
Minimum height of horizontal hole | 660mm | ||
FAQ
1. who are we?
We are based in Shaanxi, China, start from 2007.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Compressor,Drilling Rig,Drill Bit,Spare Parts
4. why should you buy from us not from other suppliers?
1.The biggest air compressor manufacture in China
1.More than 50 years air compressor& drilling rig manufacture.
2.Full experience of mine and industrial projects.
3.Professional and strong after - sales team.
4.Design as customer's requirement.
5.OEM
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
We are based in Shaanxi, China, start from 2007.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Compressor,Drilling Rig,Drill Bit,Spare Parts
4. why should you buy from us not from other suppliers?
1.The biggest air compressor manufacture in China
1.More than 50 years air compressor& drilling rig manufacture.
2.Full experience of mine and industrial projects.
3.Professional and strong after - sales team.
4.Design as customer's requirement.
5.OEM
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,CIP,FCA,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
