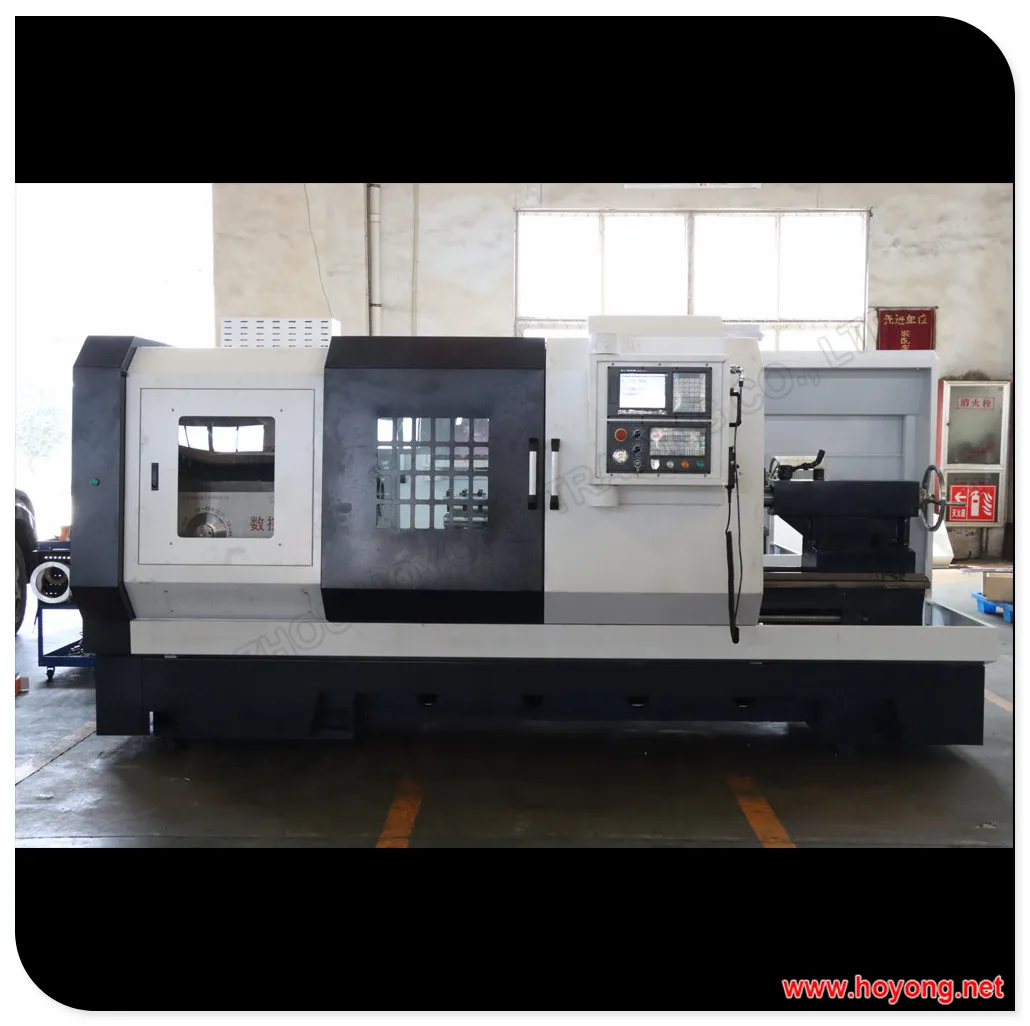

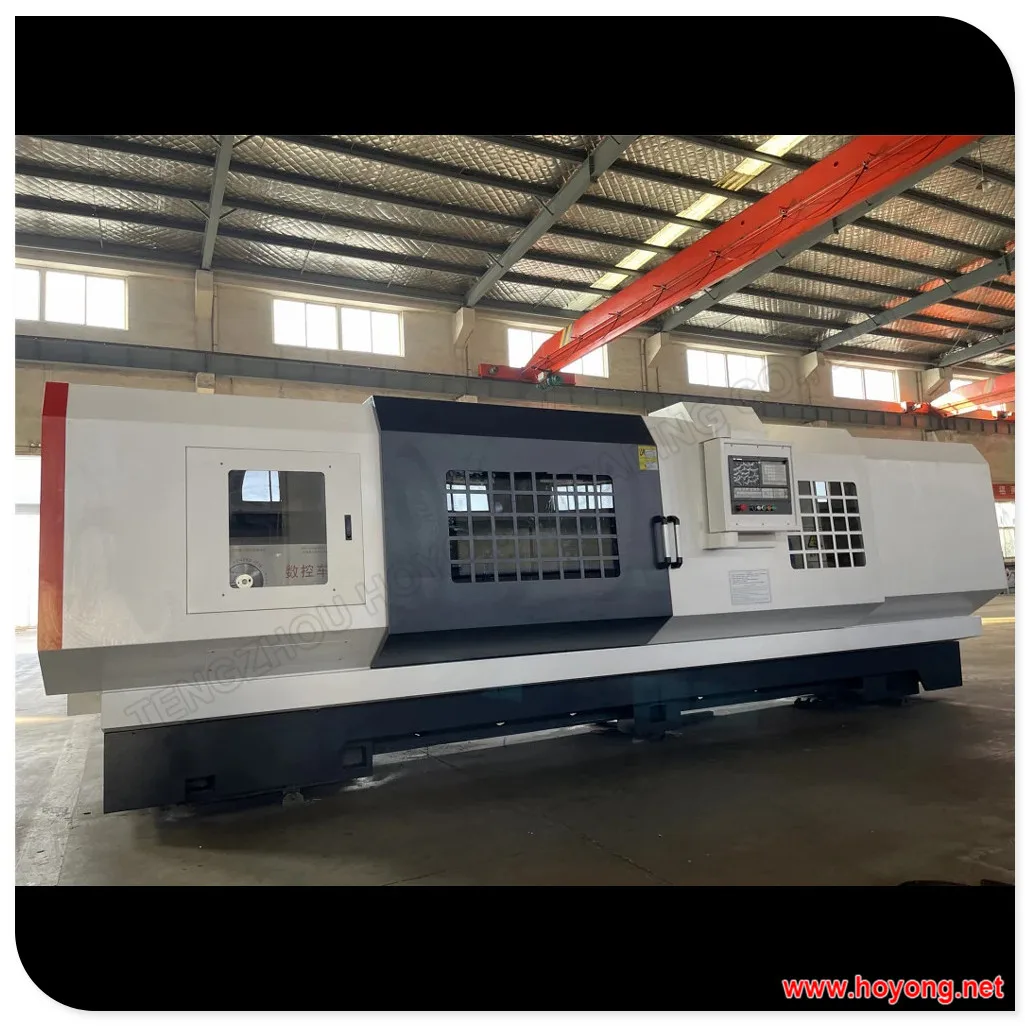

Cheap new lathe machine CK6152 CK6165E CK6185E metal lathe for workshop
- Category: >>>
- Supplier: Tengzhou Hoyong Trading Co. Ltd.
Share on (1600824869721):
Product Overview
Description
CNC LATHES FEATURES:
Machine can automatically process the inside and outside cylinder surface,cone
surface,circular arc surface,end face such as processing and also can processing the single and multiple threads in metric,inch and other standards.
cnc lathe features
1.A high strength,widening the carriage,suitable for heavy cutting

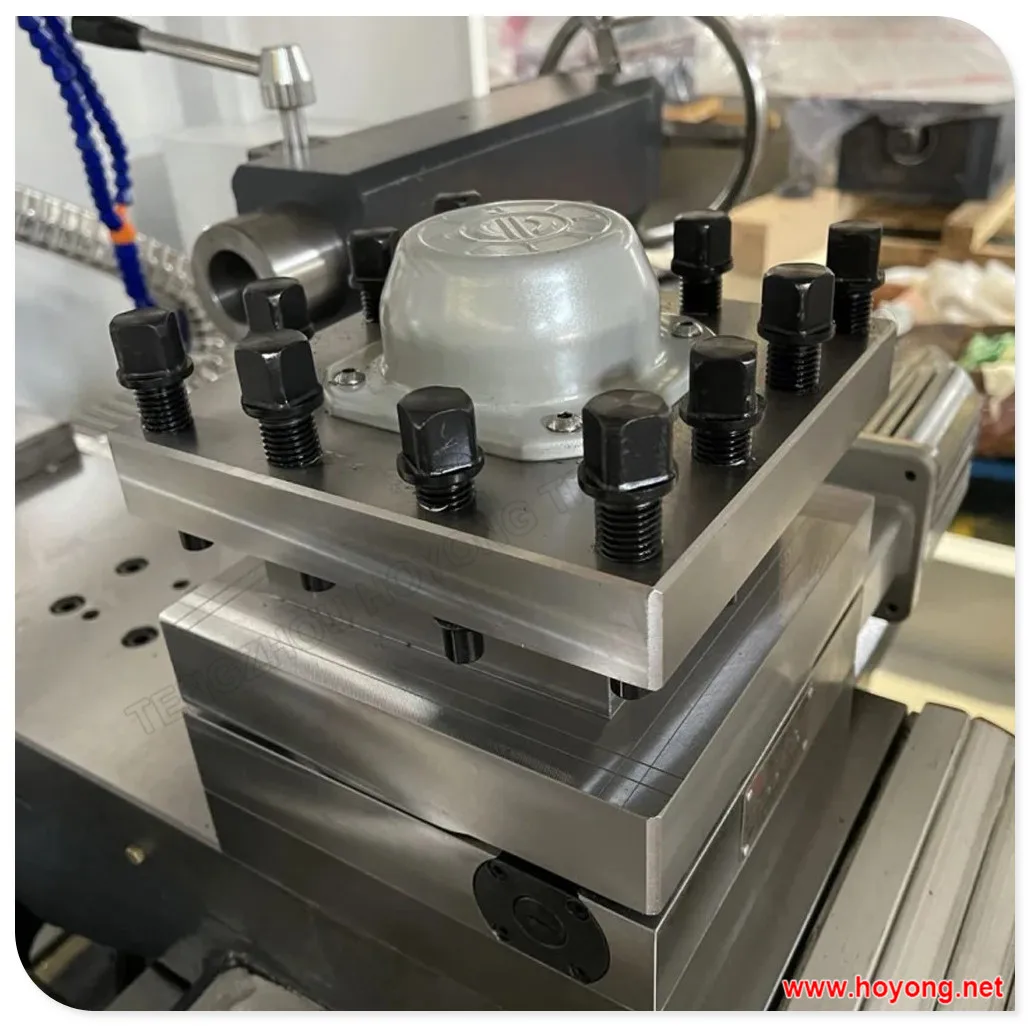

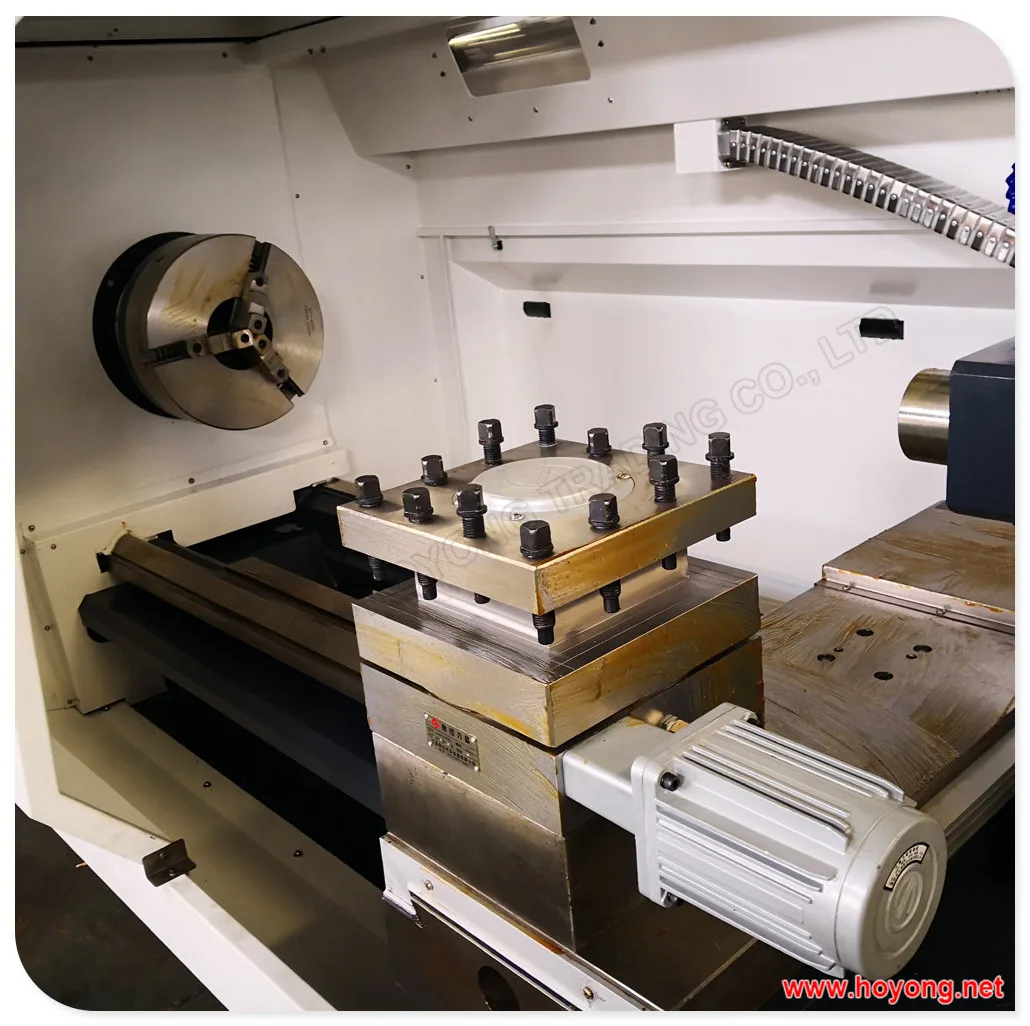

2.Four position electric turret
3.Frequency converison stepless speed regulation
4.Standard configuration:manual chuck
5.Optional configuration:hydraulic chuck
Machine can automatically process the inside and outside cylinder surface,cone
surface,circular arc surface,end face such as processing and also can processing the single and multiple threads in metric,inch and other standards.
cnc lathe features
1.A high strength,widening the carriage,suitable for heavy cutting
2.Four position electric turret
3.Frequency converison stepless speed regulation
4.Standard configuration:manual chuck
5.Optional configuration:hydraulic chuck
Main specifications:
Specifications: | Unit | CK6152 | CK6165E | CK6185E | ||
Capability | Max. swing dia. over bed | mm | 530mm | 650mm | 850mm | |
Max. swing dia. over cross slide | mm | 280mm | 375mm | 500m | ||
Max.turning diameter(disc type) | mm | 520mm | 650mm | 850mm | ||
Max. processing length | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 1000/1500/2000/3000/4000 | ||
Max.turning length | mm | 825/1325/1825/2825 | 900/1400/1900/2900 | 900/1400/1900/2900/3900 | ||
Spindle | Go-ball dia. of spindle | mm | 90mm | 105 | 105 | |
Spindle taper | 100 1:20 | 90 1:20 | 120 1:20 | |||
Spindle speed | r/min | 30-150, 90-450, 315-1600 | 10-85,40-350,100-800 | 10-85,40-350,100-800 | ||
Spindle nose | A8 | C11 | C11 | |||
Main motor power(Variable frequency) | kw | 7.5 | 10 | 10 | ||
Chuck | Chuck type | Manual | Manual | Manual | ||
Chuck size | inch | 10 | 12 | 15 | ||
X/Z | X/Z position accuracy | 0.02/0.025 | 0.025/0.03 | 0.025/0.03 | ||
X/Z repeatability | 0.01/0.012 | 0.01/0.015 | 0.01/0.015 | |||
X/Z rapid feeding speed | m/min | 6/8m/min | 4/5 m/min | 4/5 m/min | ||
Work piece | Processing accuracy | IT6-IT7 | IT6-IT7 | / | ||
Rough degree of proessing surface | Ra1.6 | Ra1.6 | / | |||
Tool holder | Type | 4-position electric type | 4-position electric type | 4-position electric type | ||
Tool bar size | mm | 25*25mm | 32x32 | 32x32 | ||
Tool holder travel | mm | X320mm Z1050/1550 | X400 Z :1200/1600/2100/3100 | X:450 Z:1100/1600/2100/3100 | ||
Total Power | kw | 12/12/13 | 17/18/20 | 17/18/20 | ||
Total current | A | 26/26/28 | 36/40/42 | 36/38/42 | ||
Net weight | kg | 2900/3150/3500/4300 | 4000/4400/5000/5800 | 4200/4600/5200/6000/6700 | ||
Dimension | (LXWXH) | mm | 2650/3300/3800/4800*1700*1820 | 3300/3800/4300/5300x2000x2000 | 3300/3800/4300/4800/5800x2000x2000 | |
