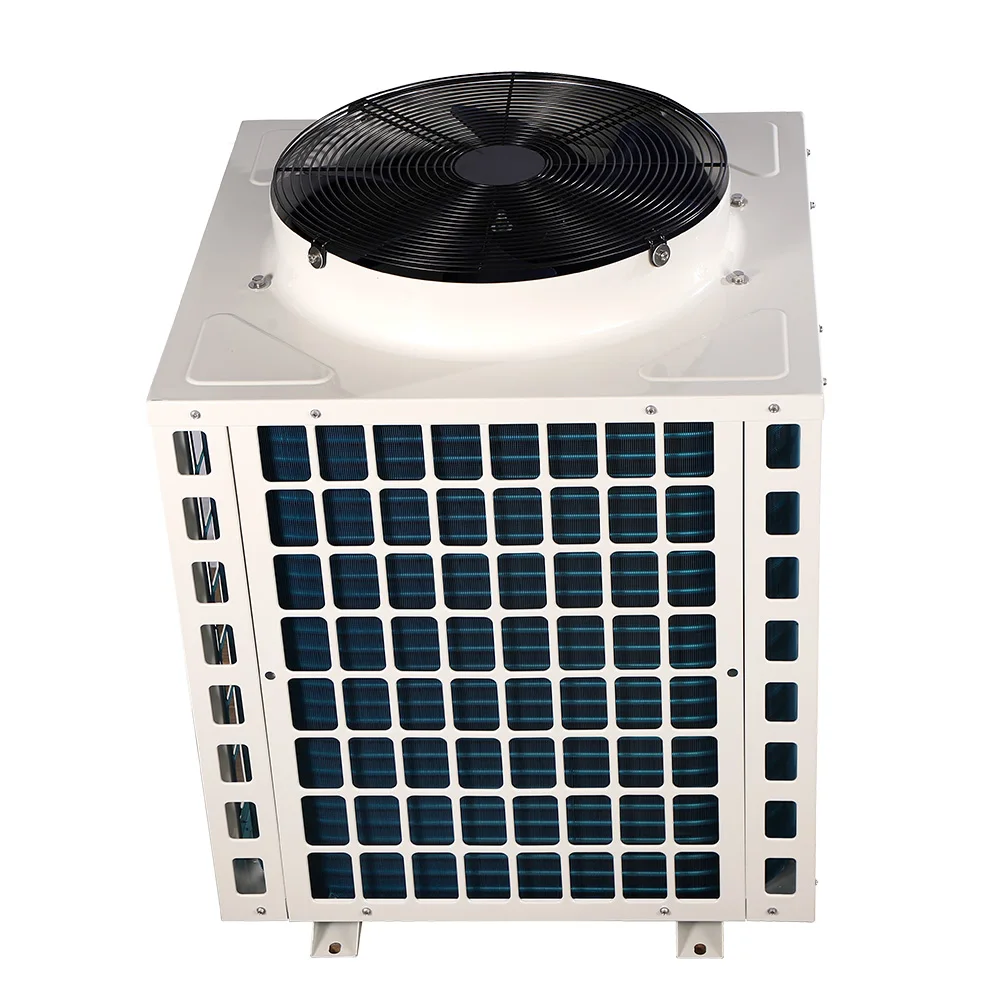

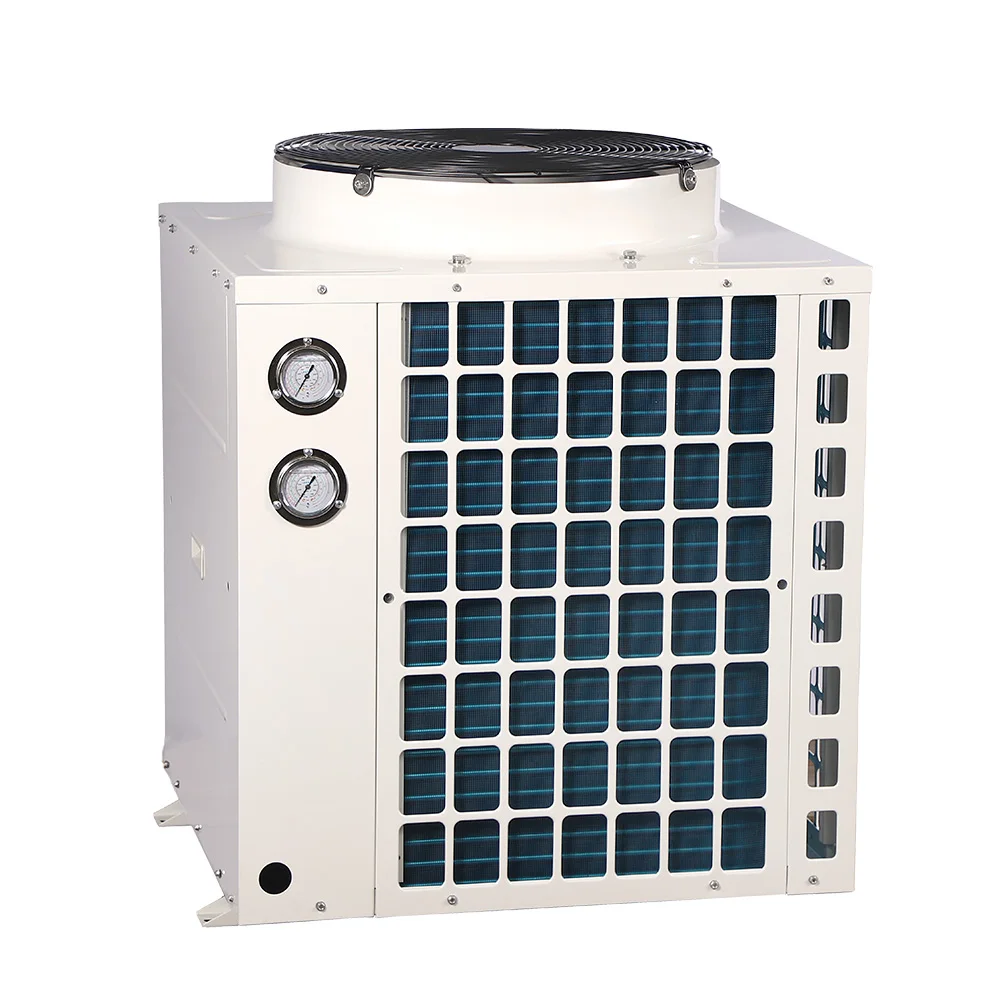

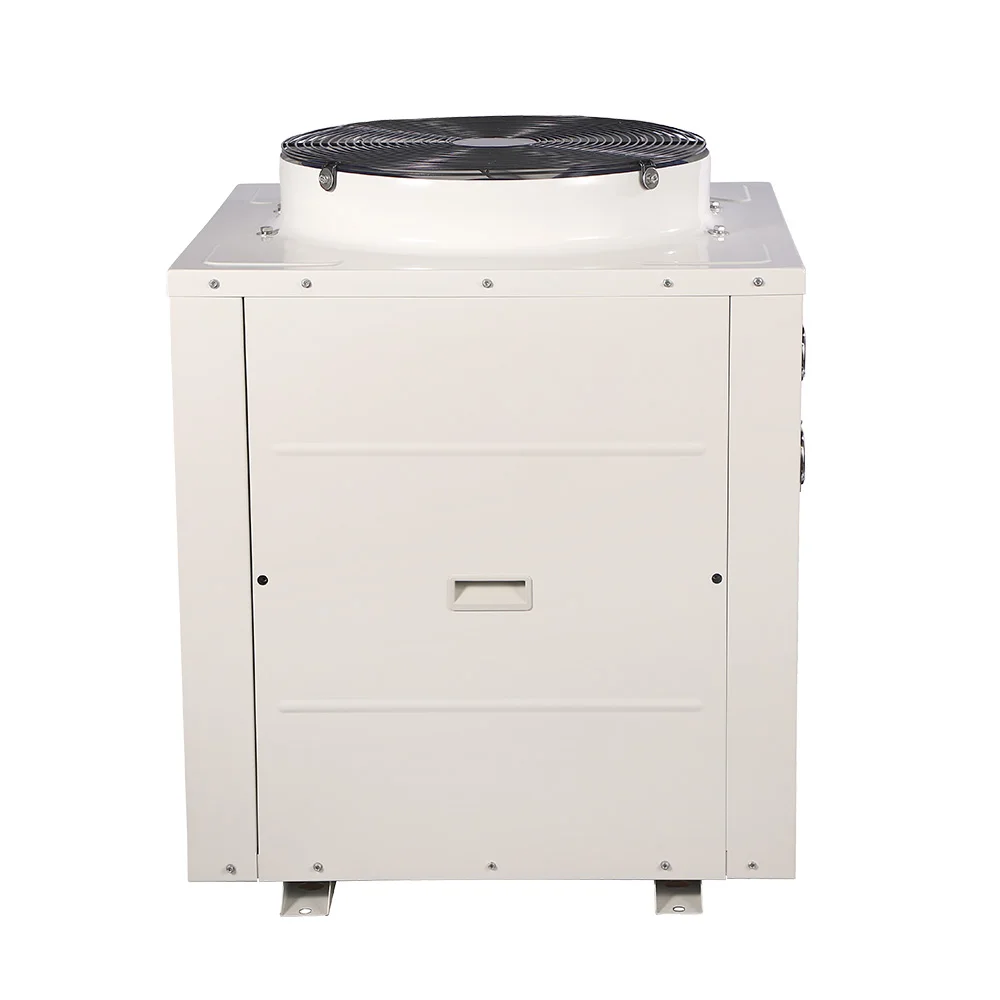

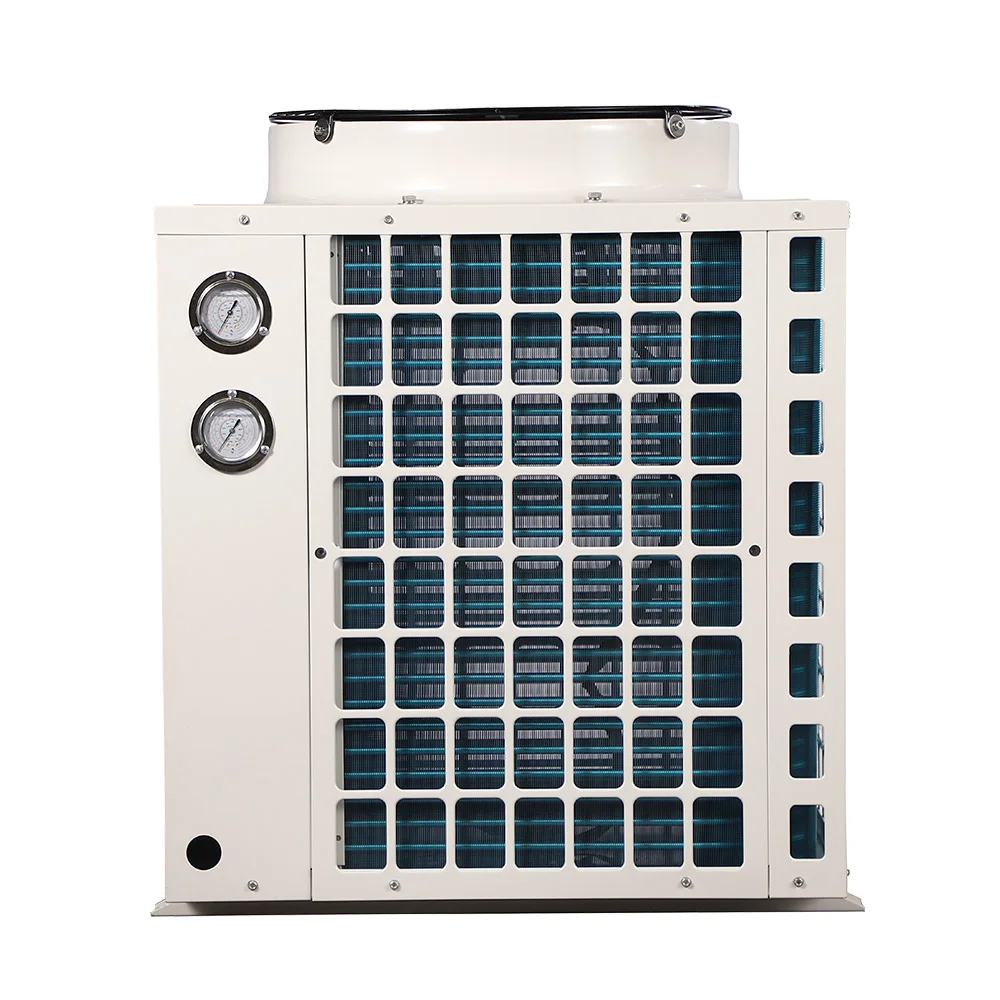

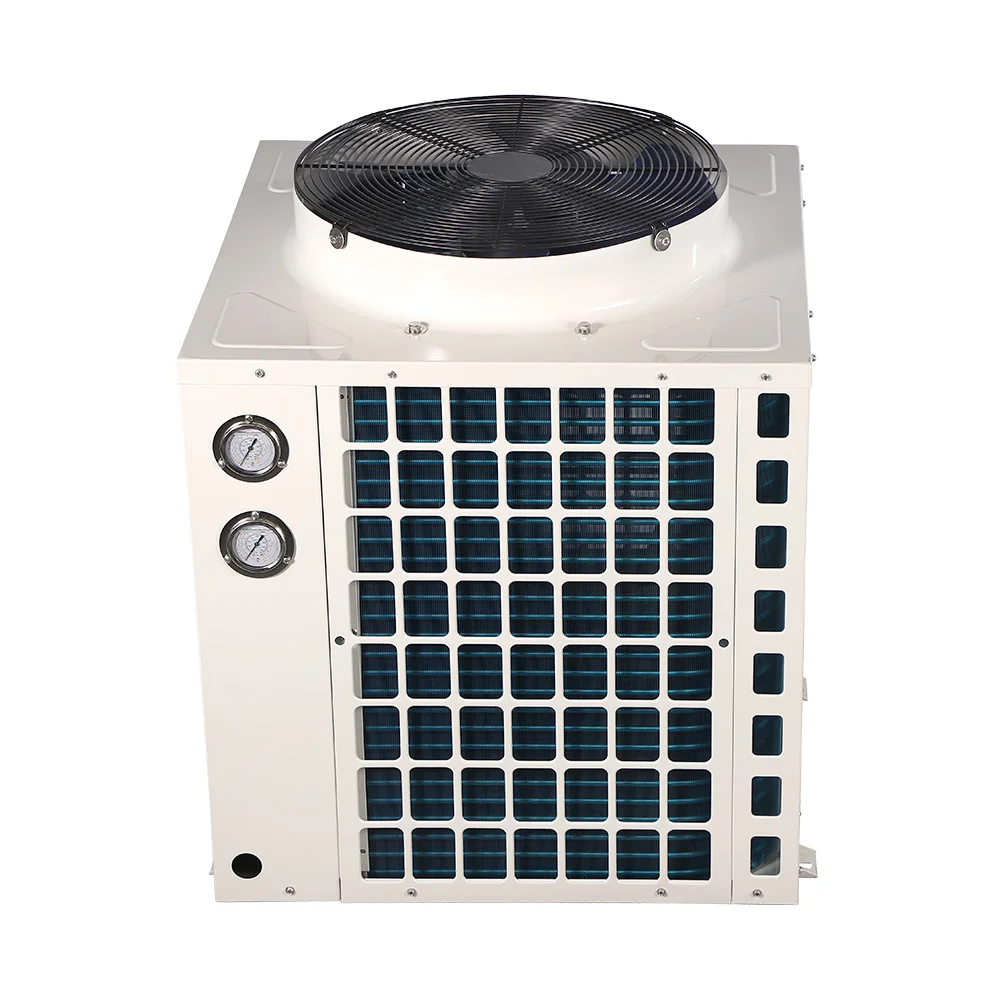

Commercial air source hot water heat pump 10KW to 25KW power

Product Overview

Description

Unit Type	HANR(H)S	20 horses	25 horses	30 horses	40 horses	50 horses	60 horses
model		YM71S	YM89S	YM107S	YM140S	YM180S	YM215S
Rated heating one (20℃/15℃)	Heating capacity(KW)	71	89	107	140	180	215
	power(KW)	16.9	21.19	25.47	33.3	42.85	51.2
	COP	4.2	4.2	4.2	4.2	4.2	4.2
Rated heating two (-7℃/-8℃)	Heating capacity(KW)	40	50.25	60.5	92	120	145
	power(KW)	15.3	20.93	23.3	30.7	40	48.33
	COP	2.6	2.6	2.6	3	3	3
Maximum input power	KW	19.71	24.64	29.56	41.6	55	66.5
input current	A	35.24	44.04	52.75	74.5	109.6	132.1
Rated water temperature	℃	55	55	50	50	50	50
Maximum outlet temperature	℃	60	60	60	60	60	60
Power form	V/Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
heat exchange maximum working pressure	Mpa	3.0	3.0	3.0	3.0	3.0	3.0
Maximum working pressure of high/low pressure side	Mpa	3.0/0.8	3.0/0.8	3.0/0.8	3.0/0.8	3.0/0.8	3.0/0.8
Anti-shock level	/	Class I	Class I	Class I	Class I	Class I	Class I
degree of protection	/	IPx4	IPx4	IPx4	IPx4	IPx4	IPx4
Unit noise	less than or equaldB(A)	78	78	78	86	86	86
Inlet and outlet water pressure difference	Kpa	40	40	40	40	40	40
The scope of work	℃	-10~45	-10~45	-10~45	-10~45	-10~45	-10~45
Dimensions (L/W/H)	mm	1750*1060*1830	1950*1060*1900	2300*1110*2200	2400*1200*2400	2400*1200*2400	2400*1200*2400
Host takeover size	National standard	DN50 outer teeth	DN50 outer teeth	DN65 flange	DN65 flange	DN65 flange	DN65 flange
equipment weight	kg	650	700	850	1400	1600	1700
