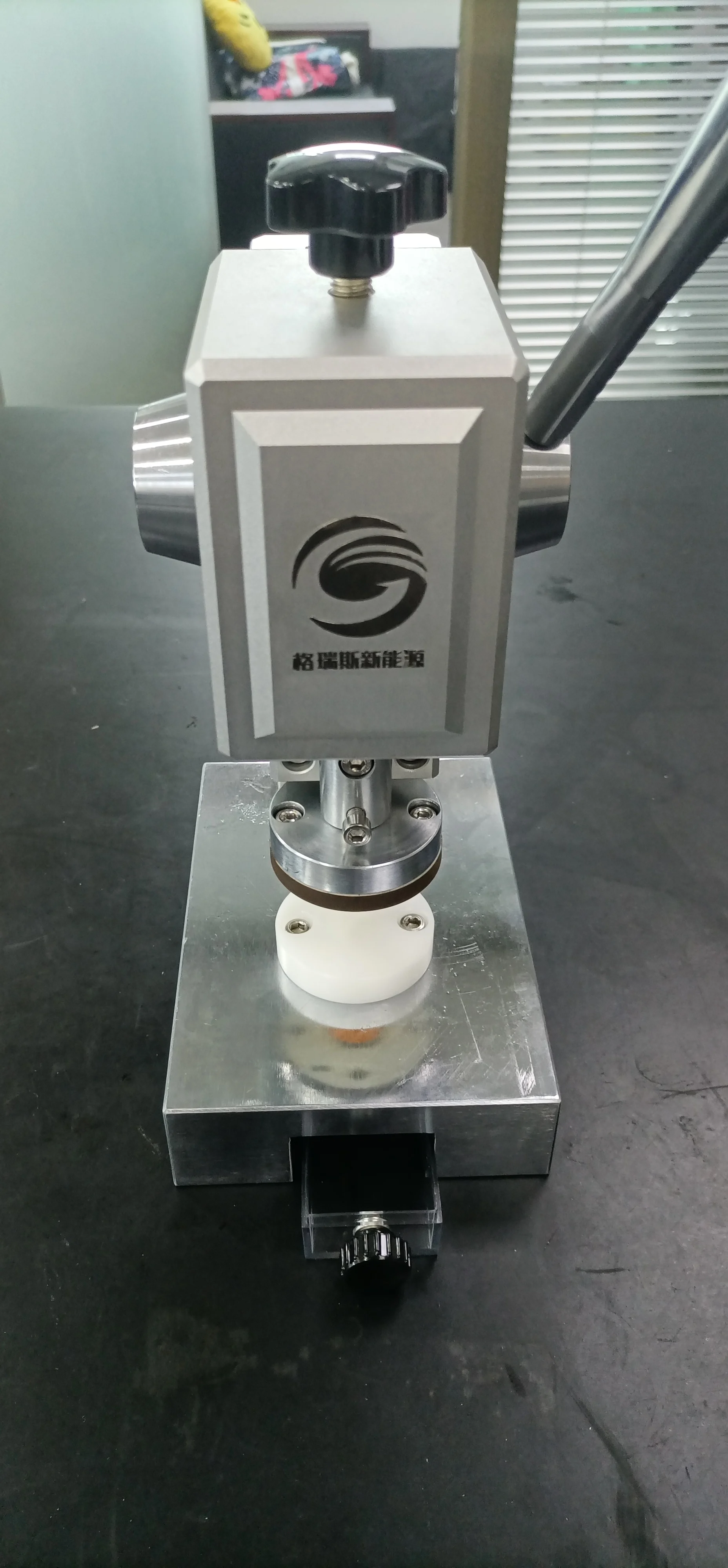

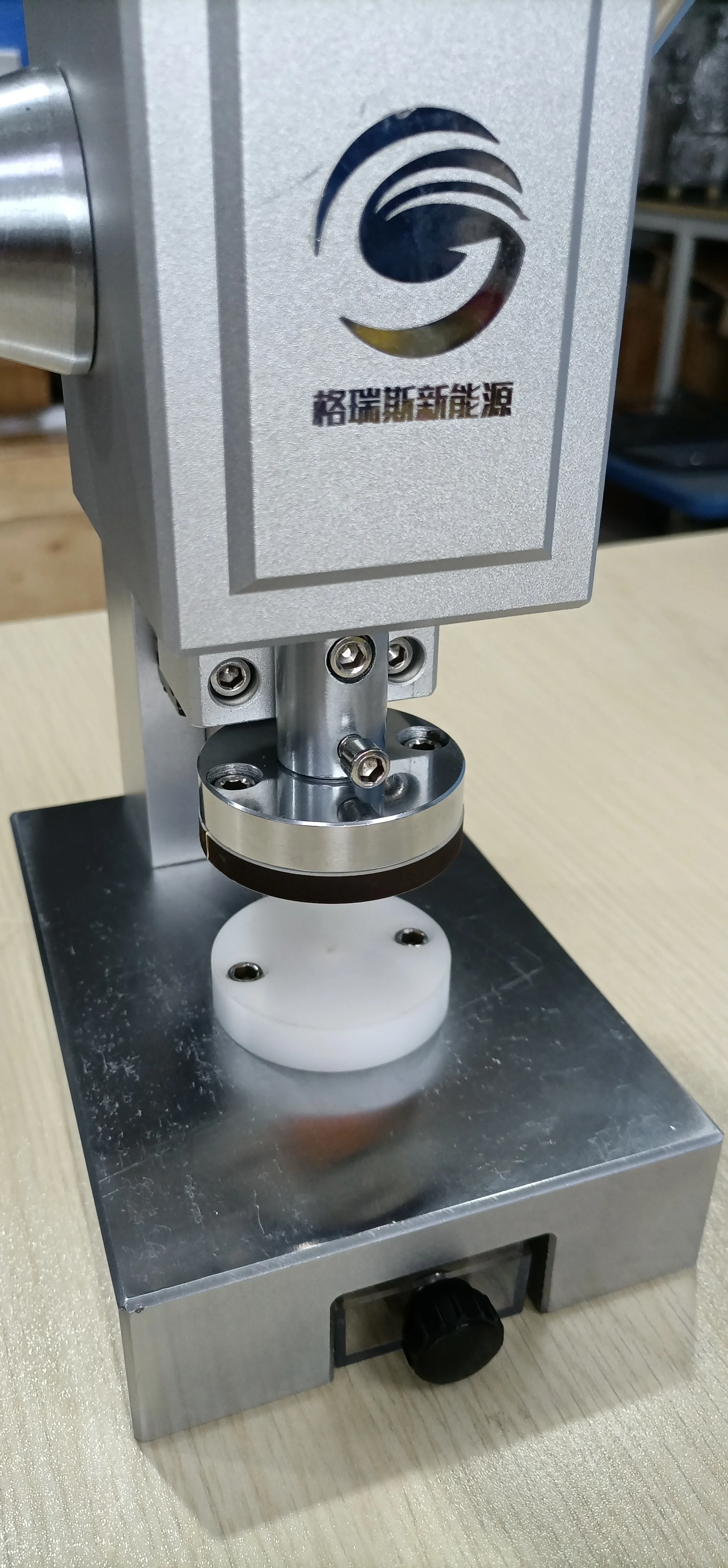

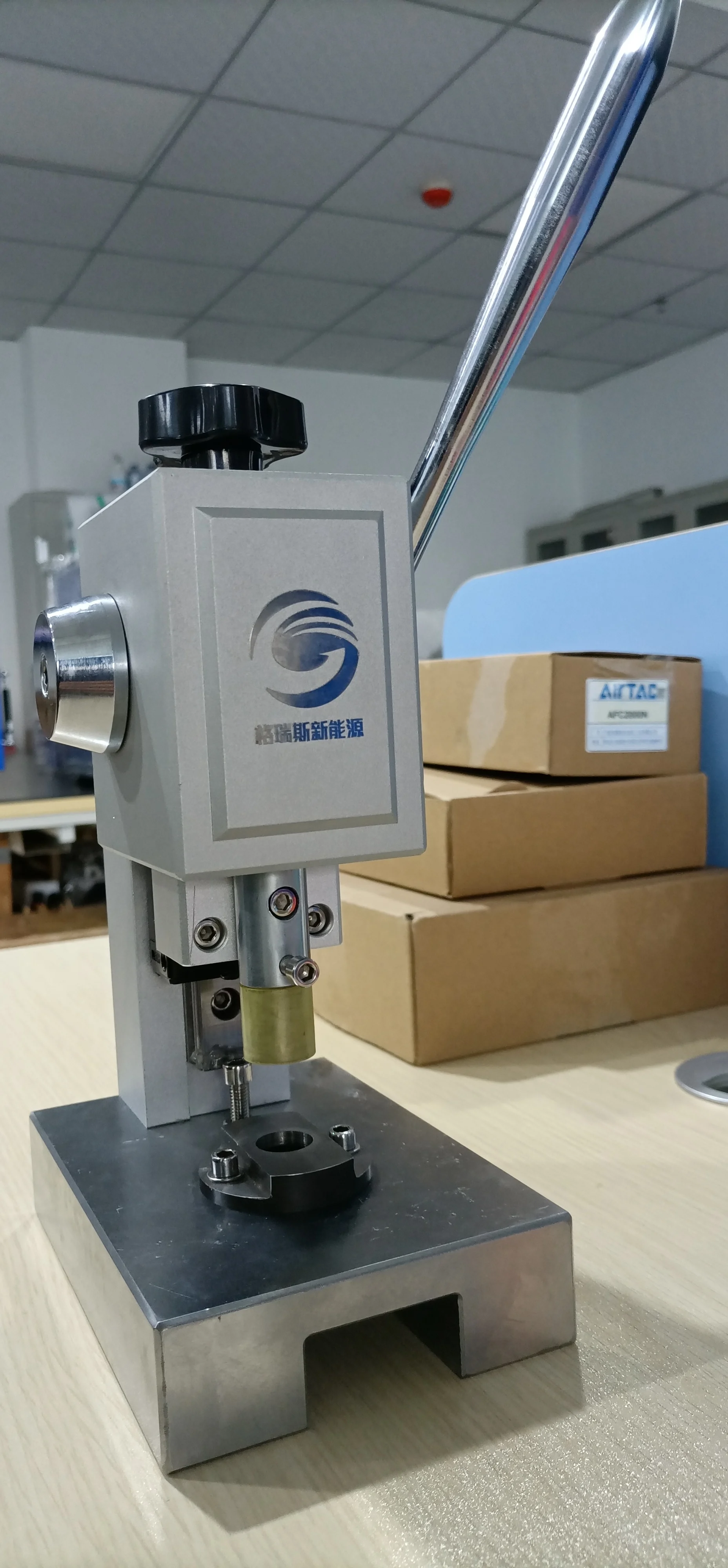

Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting
Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting
Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting
Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting
Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting
Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting
Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting

Laboratory Manual Coin Cell disc Cutter Punching for Electrode or Separator Cutting

Share on (1600824890124):


Price:$500.00 - $680.00

Quantity:


Product Overview

Description



Product Description

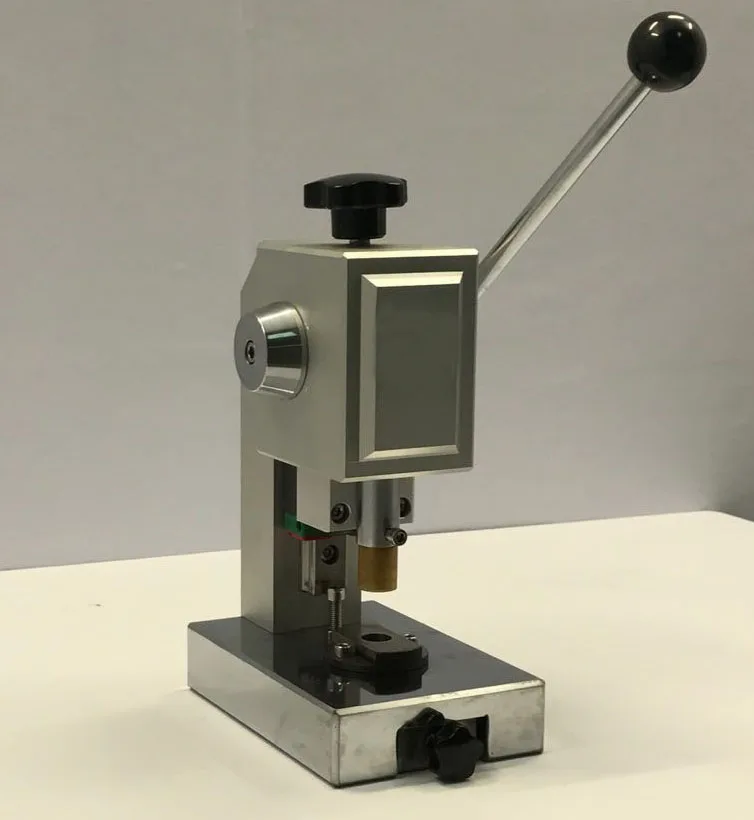

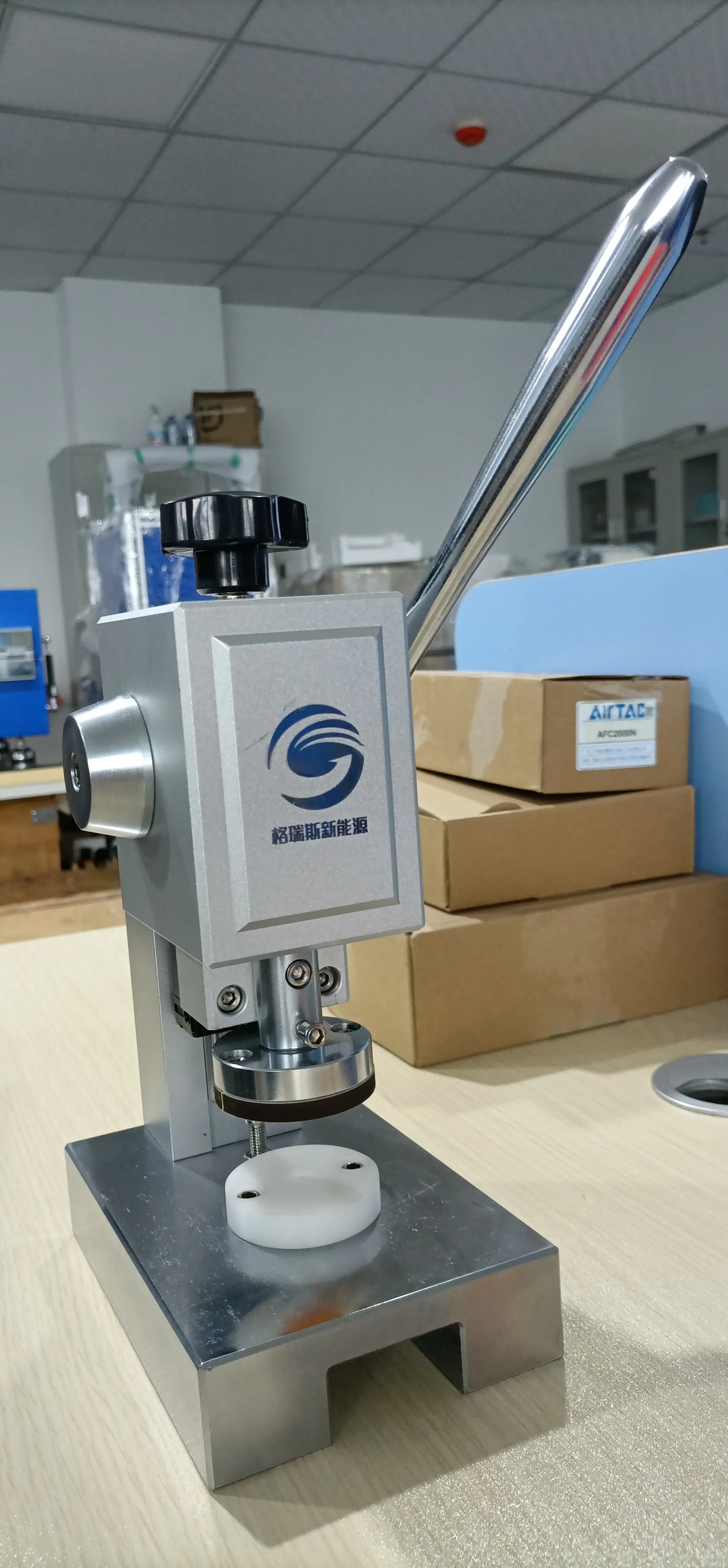

The punching machine is a patented product independently developed by our company, dedicated to punching and cutting processes. It is equipped with molds of different specifications to perform punching, blanking, and other processes on thin sheet materials. The complete machine is compact in design, flexible and convenient in use, and is very suitable for punching and blanking materials such as positive and negative electrode plates of batteries with a thickness of 0.005 to 0.5MM, and separator paper.
Features:
1.The die adopts high-precision slide guide, with high punching accuracy and no burrs, burrs, and indentation;
2.Small size, easy to operate, flexible and fast to use φ Glove boxes above 200MM pass freely through the compartment;
3.The fuselage is made of aluminum alloy corrosion resistant material, which never rusts and is beautiful;
4.Capable of punching 0.005-0.5MM thick battery materials;
5.The appearance is exquisite, beautiful, and concise, with the advantages of simple cleaning and maintenance, as well as small size.


Specification




Punching Size
Optional 3mm ~φ24mm as specified by the customer
Punchable thickness
0.005~0.5mm as specified by the customer
Press shaft stoke
Max.25mm
Size
L110×W150×H235mm
Weight
6Kg
Pouching die type
Electrode or Separator Cutting (optional model)




Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

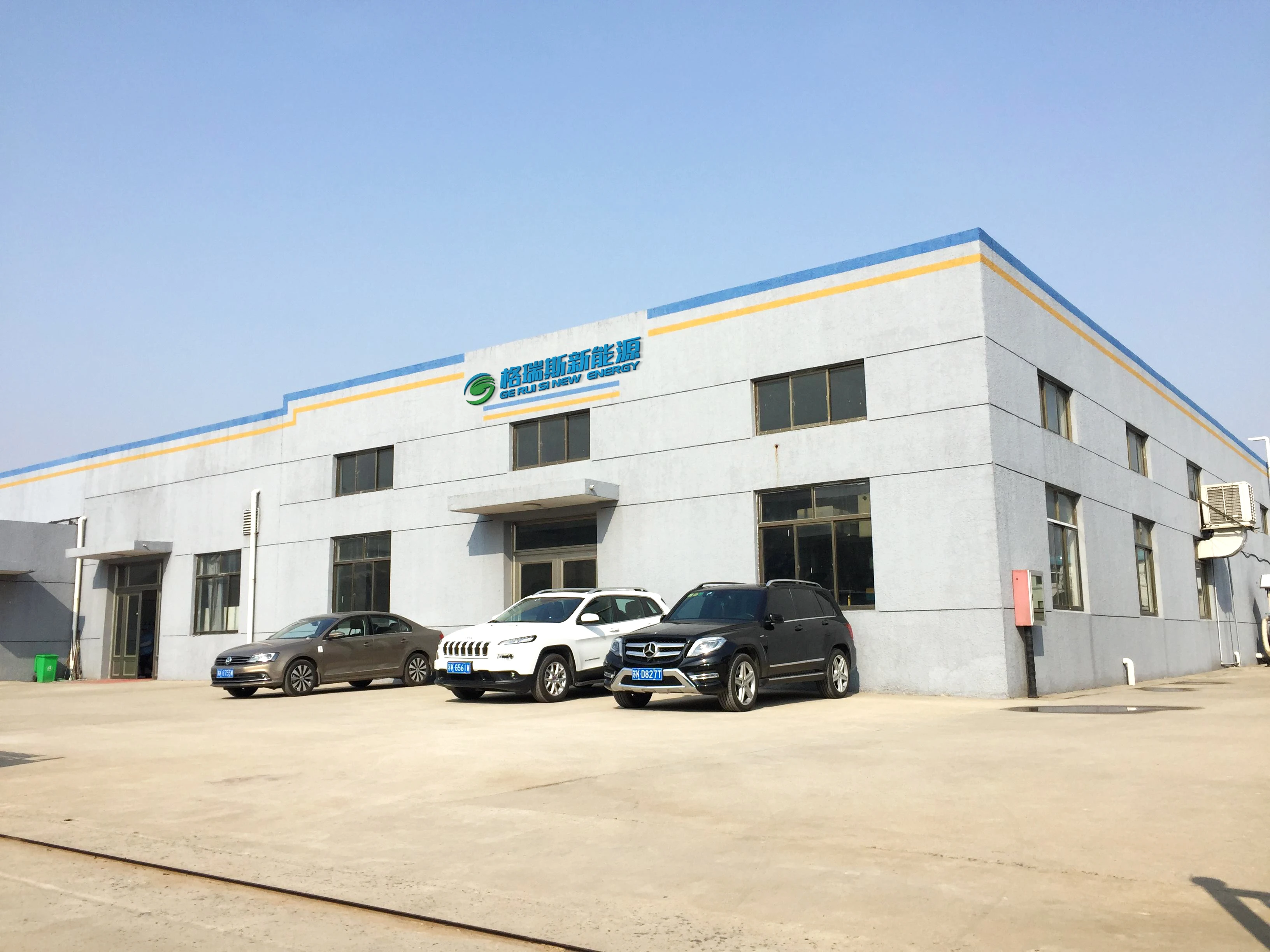

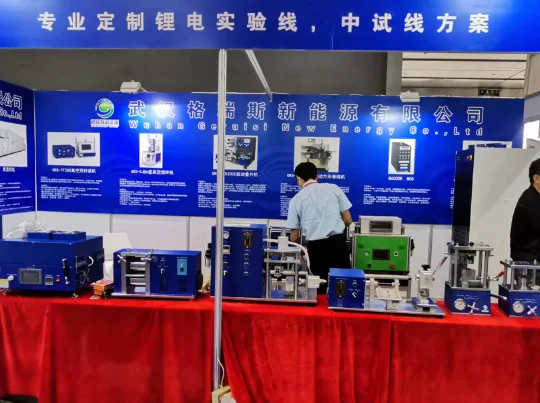

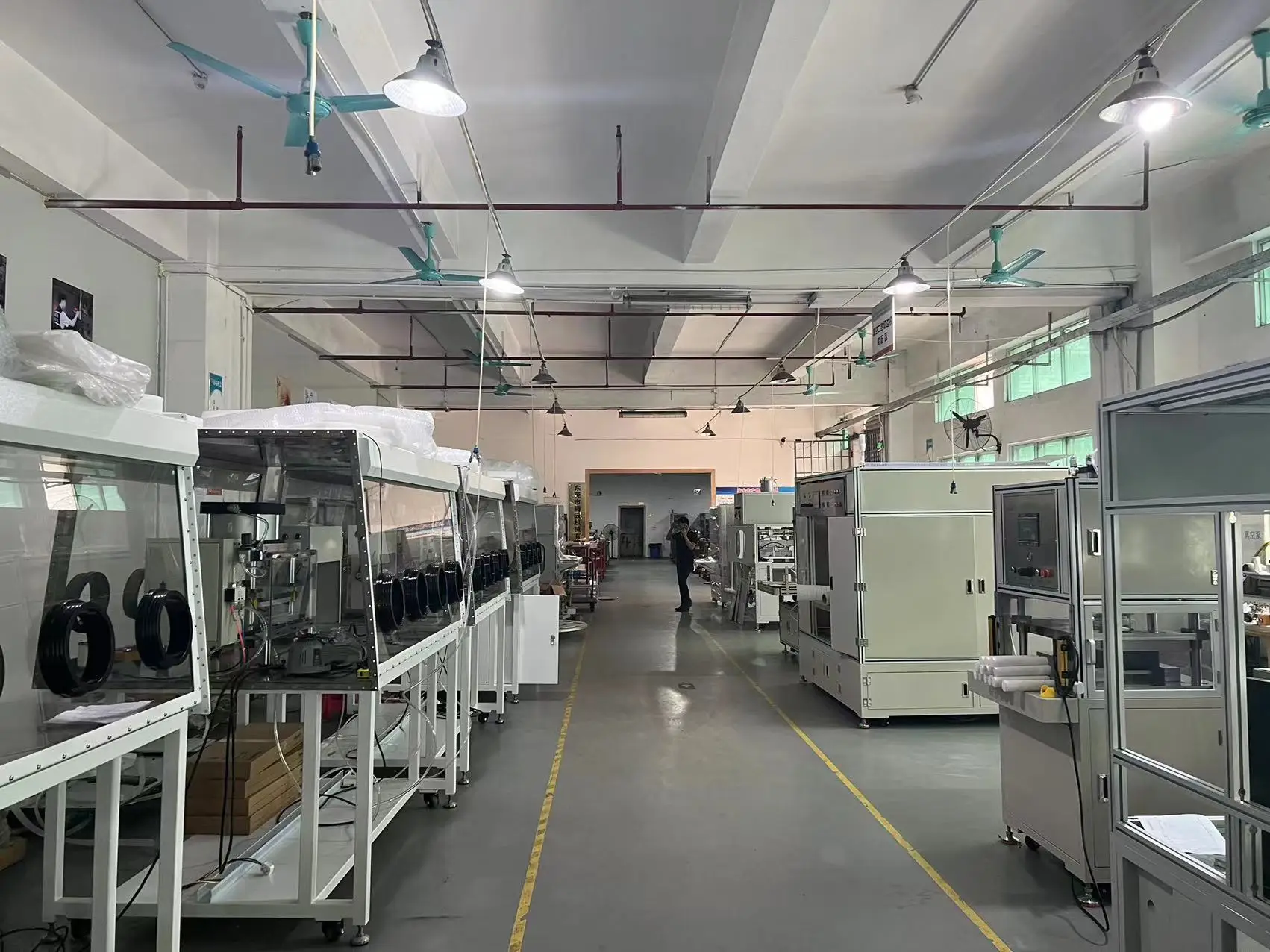

Company Profile

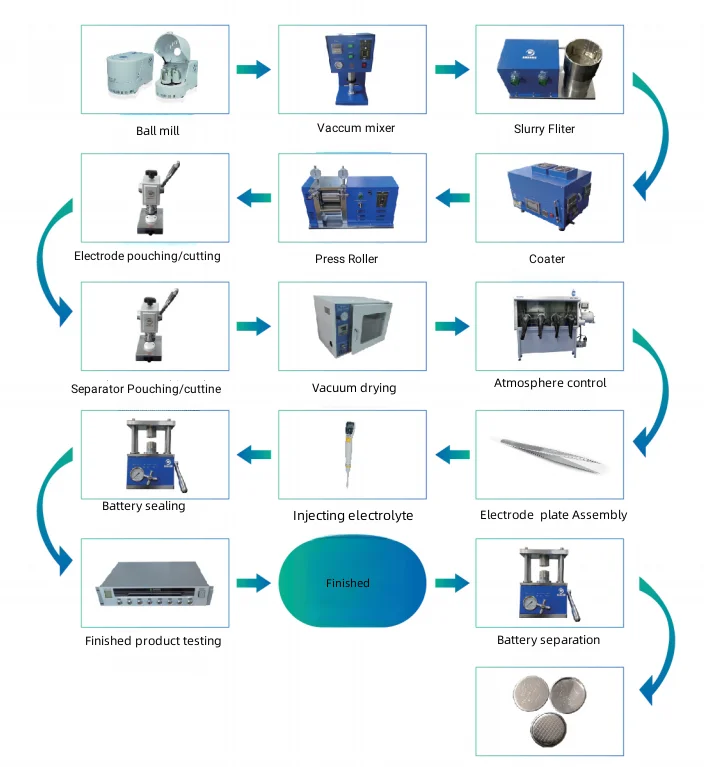

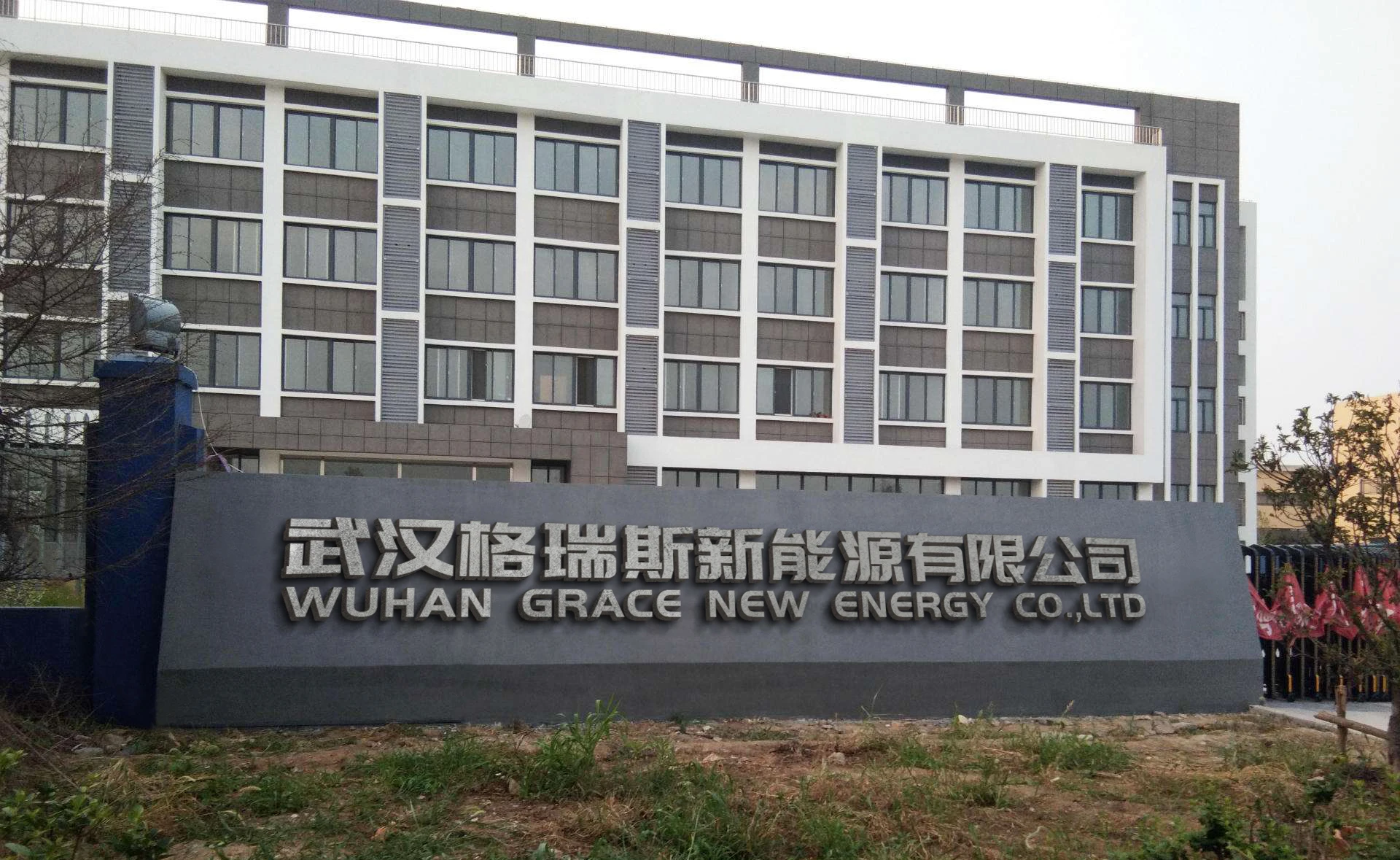

Wuhan Grace New Energy Co., Ltd. isspecializing in battery complete experimental equipment, battery testing equipment, and dehumidification and purification equipment. The company provides customized solutions for a complete set of lithium battery experimental and pilot lines, meeting the different needs of various scientific research institutions and enterprises. Our technical and management teams have been engaged in the battery related industry for more than 20 years, We always adhere to providing customers with better products and better services. For a long time, the company has been committed to providingcustomers with comprehensive battery experimental equipment, (to meet customers' new lithium battery processes and needs in recent years, such as sodium batteries, solid-state batteries and semi-solid-state battery equipment, special process requirements, such as dry process requirements, 4680 large cylindrical battery equipment, requirements, etc.) to create a one-stop service for battery experimental equipment for users, We also provide professional technical guidance and support. Currently, our related products include: mixers, coating machines,roller presses, slicers, welding machines, battery testing, lithium battery ultra-low dew point rotary dehumidification, and laboratory purification requirements. At present, our company's products have been exported to domestic and international markets,universities, institutes, battery positive and negative electrode material enterprises, battery cell manufacturers, and new energy vehicle manufacturers.
Contact: hsz@grsxny.com . Tel/Whatsapp:008615875572571
