Power Panel Paw Machine Wooden Cutting Tables With Guides Wood Sawmill Band Saw Machines For Wood Working
- Category: >>>
- Supplier: Zhengzhou The Right Time Import And Export Co. Ltd.
Share on (1600824913034):
Product Overview
Description
Products Disply

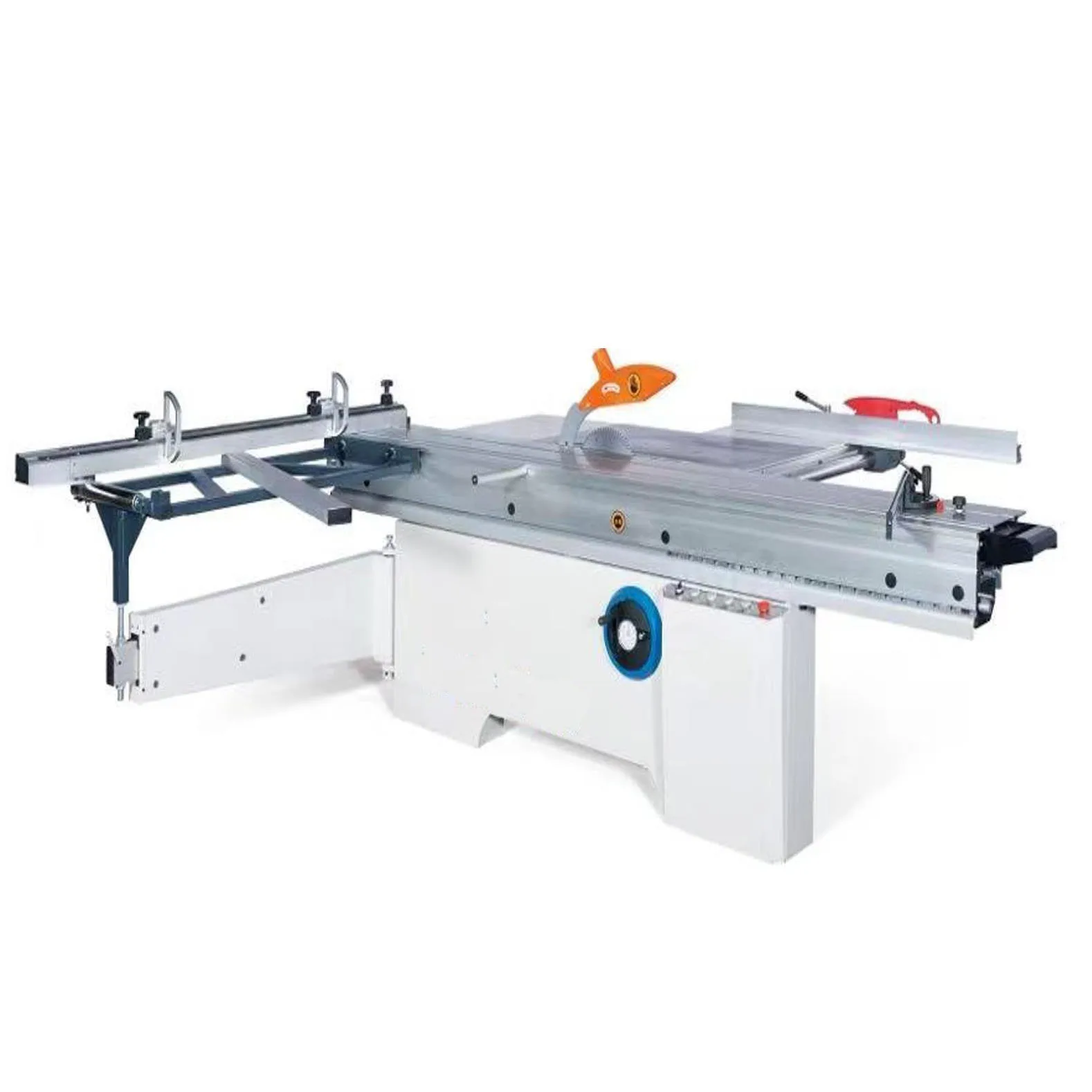

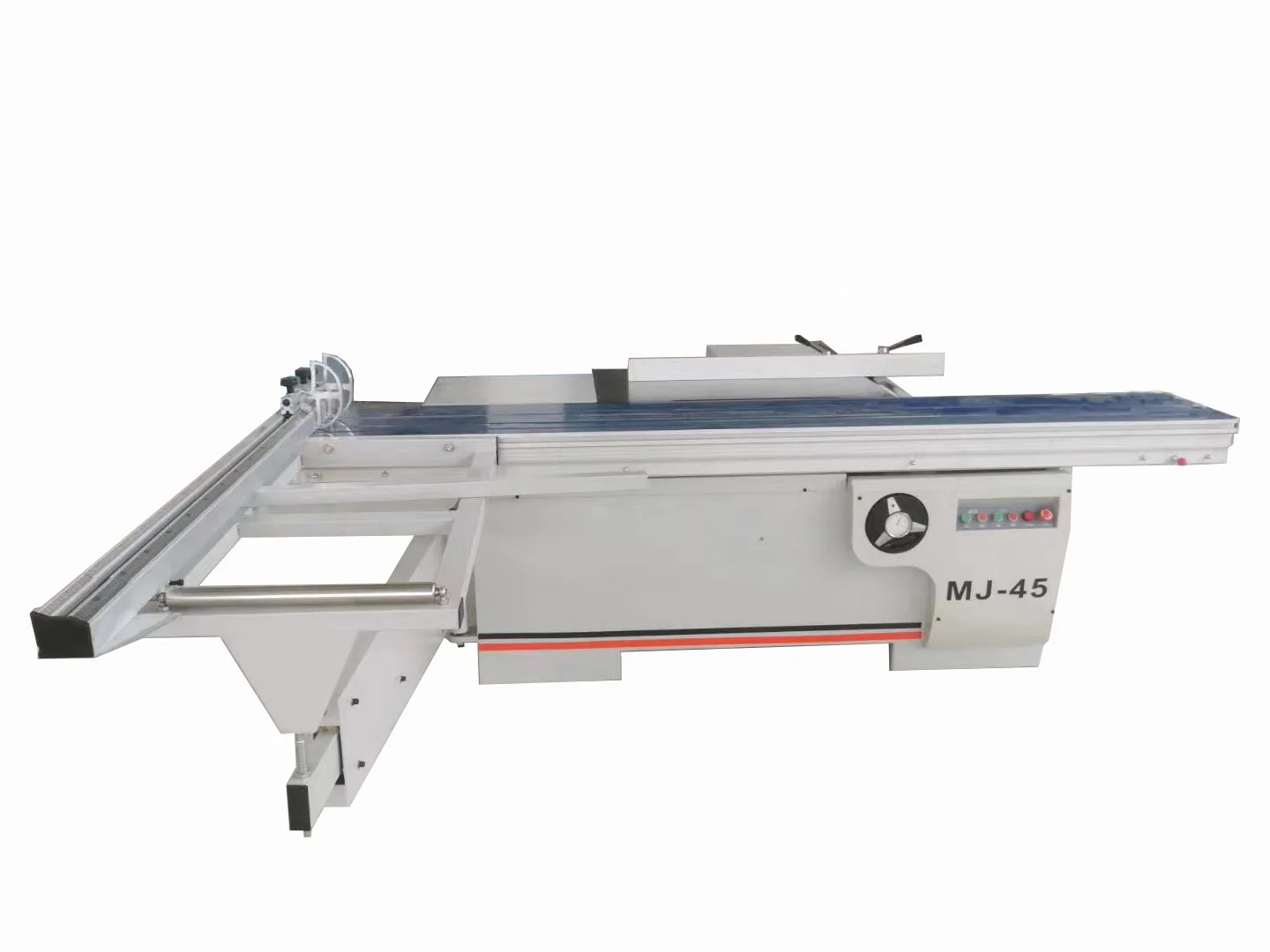

TYPE A
More stable precision structure
European round rod guide rail, step by step locking
Lengthened and enlarged guiding rule, more practical
Equipped with leakage protection and emergency stop switch
European round rod guide rail, step by step locking
Lengthened and enlarged guiding rule, more practical
Equipped with leakage protection and emergency stop switch
TYPE B
Thickened and heavier body, sturdy and durable
Electric lifting of saw blades

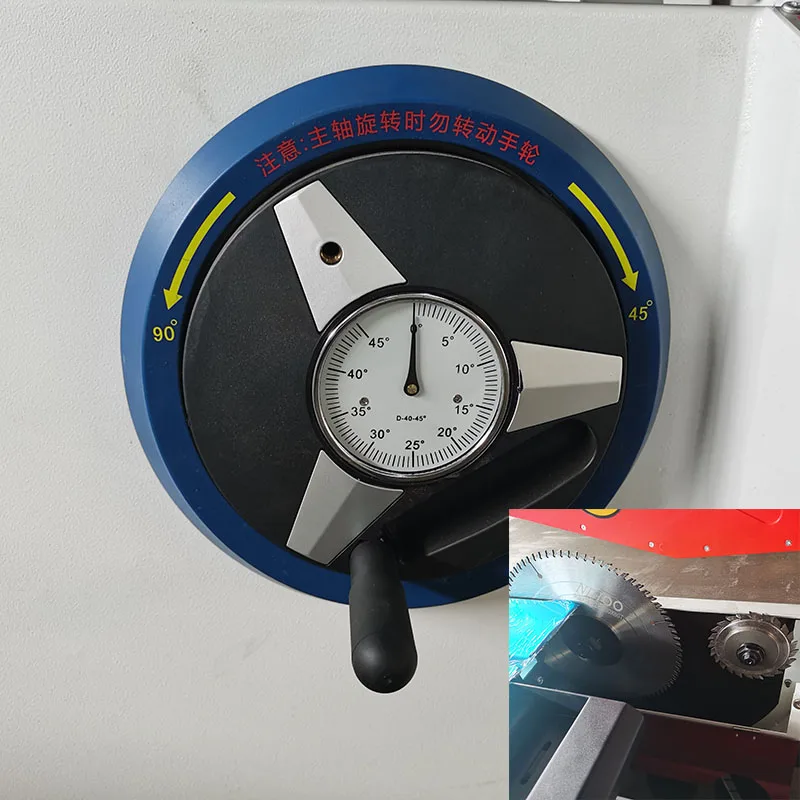

Angle adjustment digital display
Copper core motor with strong power
Electric lifting of saw blades
Angle adjustment digital display
Copper core motor with strong power

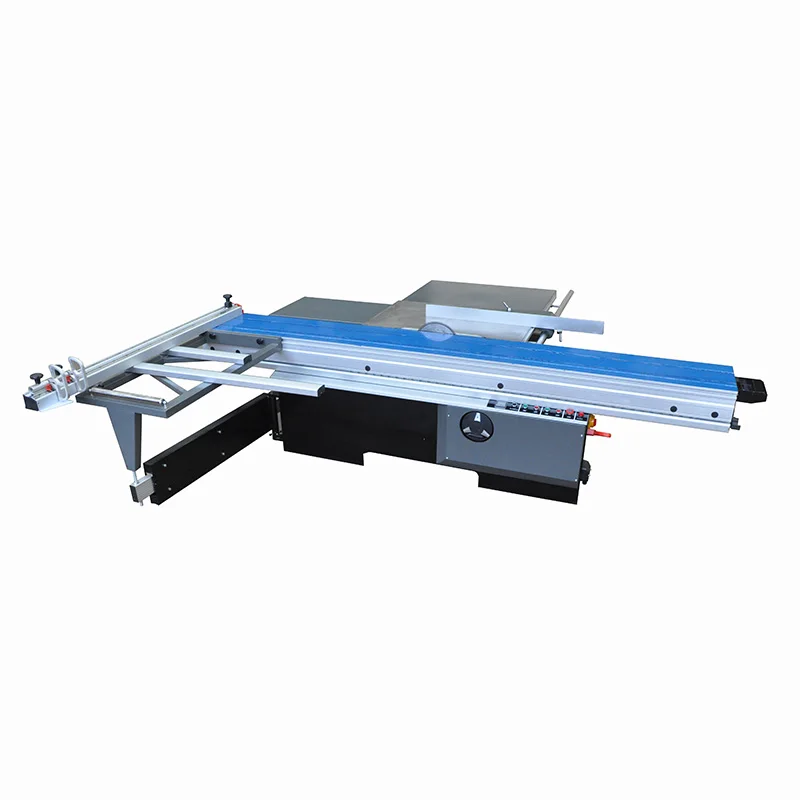

TYPE C
Easy to operate
Manual lifting of saw blade
European guiding rule
Widened and thickened sliding table
Manual lifting of saw blade
European guiding rule
Widened and thickened sliding table
Economical and cost-effective
Model | MJ45A | MJ90A | MJ45B | MJ90B | MJ45C | MJ90C | |||||
Main Saw Blade Titling Angle | 45°~90° | 90° | 45°~90° | 90° | 45°~90° | 90° | |||||
Dimension of sliding table | 2800/3200*390mm | 2800/3000/3200*375mm | 2800/3000/3200*330mm | ||||||||
Maximum cutting length | 2700/3100mm | 2700/2900/3100mm | |||||||||
Maximum cutting height (90°) | 80mm | ||||||||||
Maximum cutting height (45°) | 55mm | NO | 55mm | NO | 55mm | NO | |||||
Saw Blade Diameter | 305mm | ||||||||||
Saw Spindle Diameter | 30mm | ||||||||||
Scoring Blade Diameter | 120mm | ||||||||||
Scoring spindle diameter | 20mm | ||||||||||
Main Saw Blade Speed | 4500/6000rpm | ||||||||||
Voltage | 380V/50HZ | ||||||||||
Main Motor | 5.5kw | 4/5.5kw | |||||||||
Scoring Saw Motor | 1.1kw | 0.75/1.1kw | |||||||||
Scoring Saw Blade Speed | 7500rpm | 7000-8000rpm | |||||||||
Dimension(L*W*H): | 2850/3250*3450*900mm | 2800/3000/3200*2550*900mm | 2800/3000/3200*2550*900mm | ||||||||
weight | 920/950kg | 750/800/850kg | 750/800/850kg | ||||||||
Features:
(1) The operation is easy and labor-saving, and the pushing stroke is large.
(2) Equipped with a stable and light slide table, it runs smoothly.
(3) The setting of the mobile workbench and the main saw blade can be adjusted by 45 degrees, which expands the scope of use of the saw machine.
Sliding table saw can be used for material cutting of density board, polished board, wood-based board, solid wood board, ABS board, PVC board and other boards.
(1) The operation is easy and labor-saving, and the pushing stroke is large.
(2) Equipped with a stable and light slide table, it runs smoothly.
(3) The setting of the mobile workbench and the main saw blade can be adjusted by 45 degrees, which expands the scope of use of the saw machine.
Sliding table saw can be used for material cutting of density board, polished board, wood-based board, solid wood board, ABS board, PVC board and other boards.
Details Images

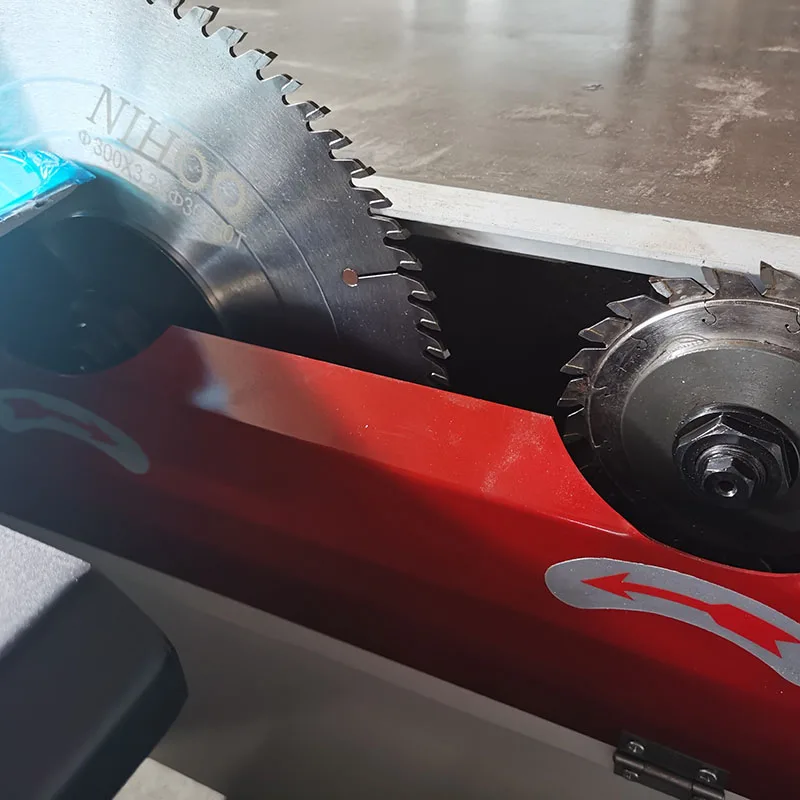

The main saw is lifted and lowered electrically, the main and auxiliary saw blades are switched separately, equipped with an emergency stop button, and the button is equipped with a dust cover, which is more durable.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co., Ltd. designated procurement channels for China Construction Overseas Projects, and is mainly involved in woodworking machinery, construction machinery, machinery accessories, engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao, Foshan City.
Combining advanced woodworking production technology and experience at home and abroad, in order to better serve woodworking machinery and support the woodworking industry, we have successively developed, designed and manufactured various type of portable and sliding table saws, the whole house customization straight and curved edge bander, trimming machine, C N C nesting machine, C N C wood router, C N C six-sided drilling and milling processing center, C N C side holes drilling machine, industrial automatic edge banding machine, hinge hole drilling machine, panel saws and other woodworking best-selling products. The products are exported to Europe, America, Southeast Asia, Kazakhstan, Vietnam, India, Brazil, Peru, and other regions and countries.
In line with the company philosophy of customer first and pursuit of excellence, the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience, with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Combining advanced woodworking production technology and experience at home and abroad, in order to better serve woodworking machinery and support the woodworking industry, we have successively developed, designed and manufactured various type of portable and sliding table saws, the whole house customization straight and curved edge bander, trimming machine, C N C nesting machine, C N C wood router, C N C six-sided drilling and milling processing center, C N C side holes drilling machine, industrial automatic edge banding machine, hinge hole drilling machine, panel saws and other woodworking best-selling products. The products are exported to Europe, America, Southeast Asia, Kazakhstan, Vietnam, India, Brazil, Peru, and other regions and countries.
In line with the company philosophy of customer first and pursuit of excellence, the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience, with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

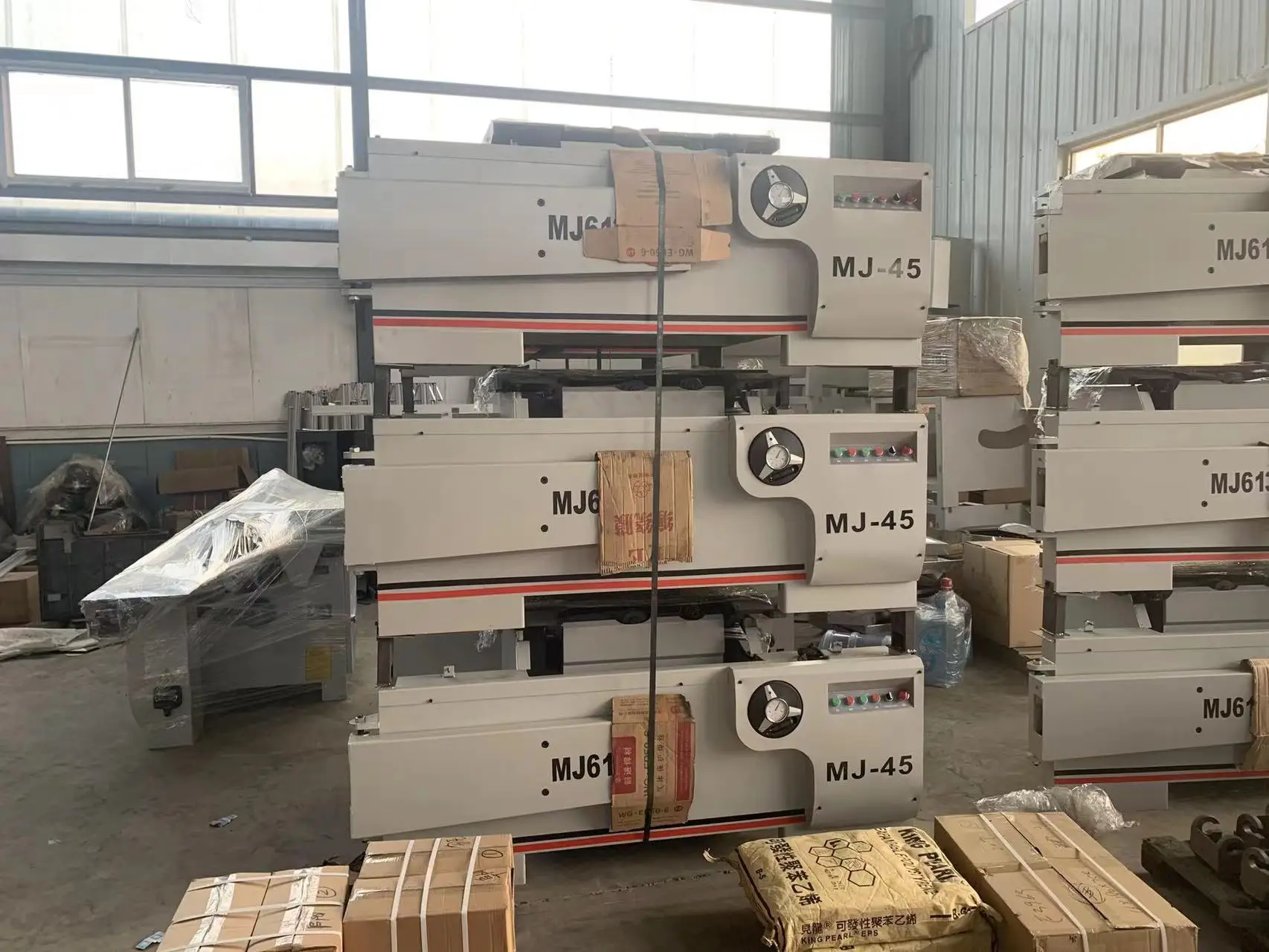

Package And Shipping
