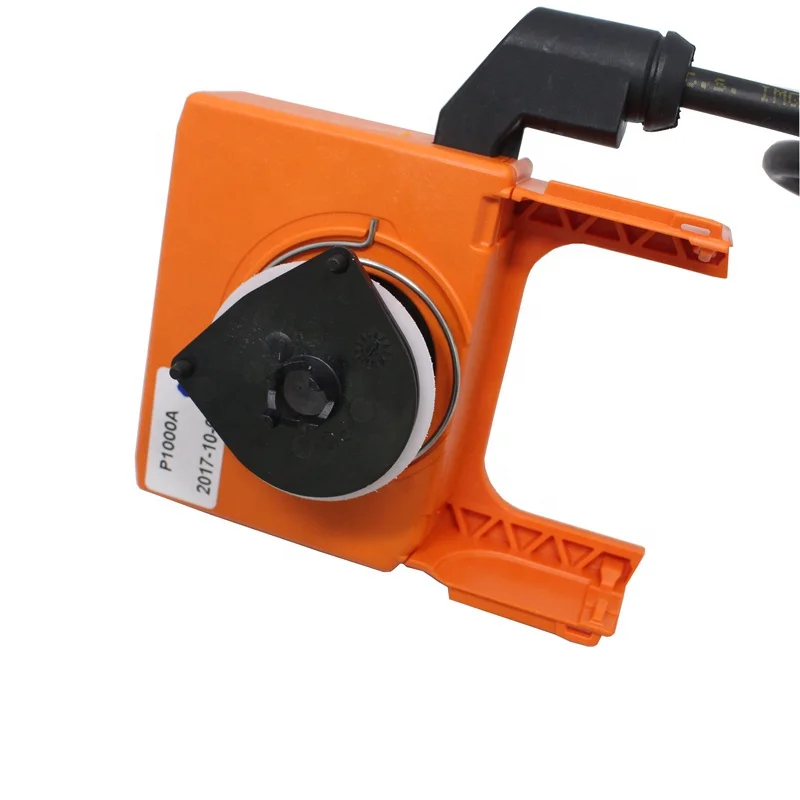

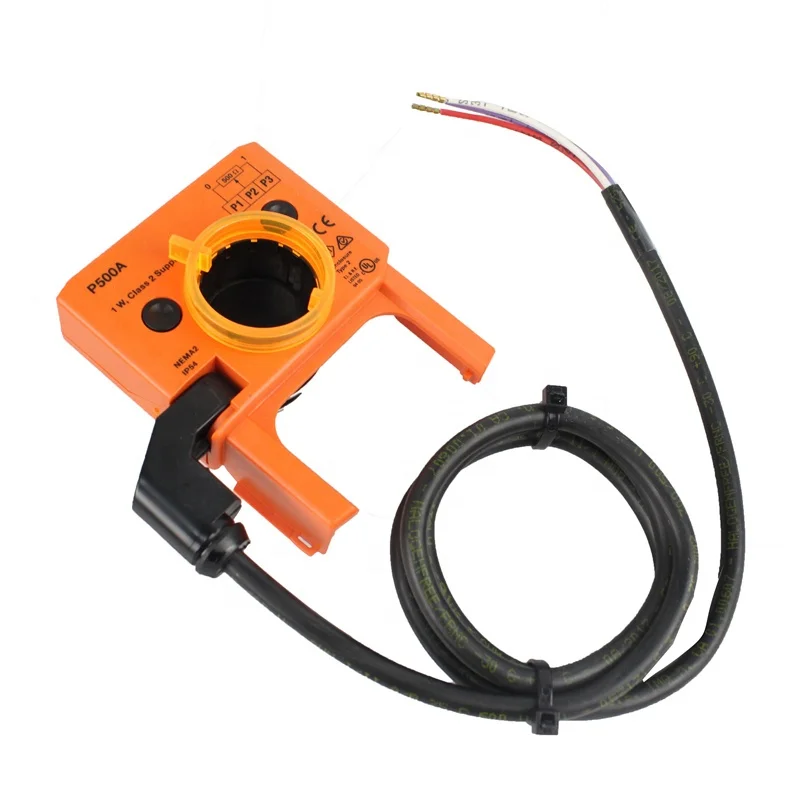

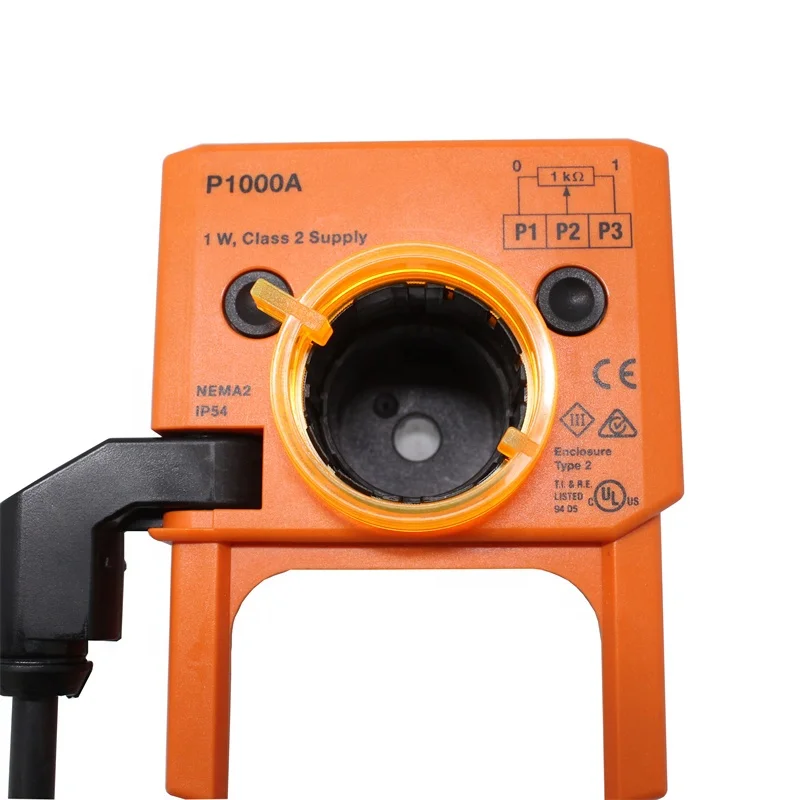

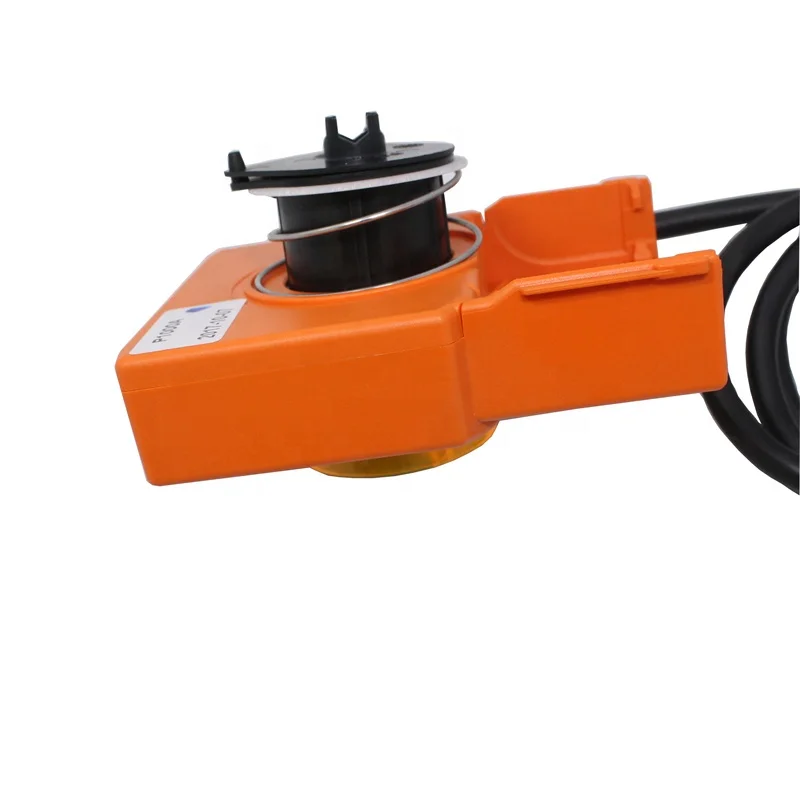

Belimo P500A/P1000A/P2800A/P5000A feedback potentiometer for damperactuators and rotary actuators
- Category: >>>
- Supplier: Beijing Ymer Technology Co. Ltd.
Share on (1600824934329):
Product Overview
Description
Product Overview
Application places
Air handling units
Belimo devices enable the precise andefficient conditioning of air in buildings
Heating water plants
Belimo devices control the generation andthe flow of hot water in a building in anenergy-efficient way
Fire & smoke protection
Belimo safety actuators save lives and helpto minimise damage to buildings andtangible assets
Details Images
Products Description
P500A
Feedback potentiometer for damper actuatorsand rotary actuators• Nominal resistance 500 Ω
• Loading capacity Max. 1 W
• Residual resistance Max. 5% on both sides
• Connection potentiometer Cable 1 m, 3 x 0.75 mm² halogen-free
• Degree of protection IEC/EN IP54
• Ambient temperature -30...50°C [-22...122°F]
• Storage temperature -40...80°C [-40...176°F]
P1000A
Feedback potentiometer for damper actuatorsand rotary actuators
Feedback potentiometer for damper actuatorsand rotary actuators
• Nominal resistance 1 kΩ
• Loading capacity Max. 1 W
• Residual resistance Max. 5% on both sides
• Connection potentiometer Cable 1 m, 3 x 0.75 mm² halogen-free
• Degree of protection IEC/EN IP54
• Ambient temperature -30...50°C [-22...122°F]
• Storage temperature -40...80°C [-40...176°F]
• Residual resistance Max. 5% on both sides
• Connection potentiometer Cable 1 m, 3 x 0.75 mm² halogen-free
• Degree of protection IEC/EN IP54
• Ambient temperature -30...50°C [-22...122°F]
• Storage temperature -40...80°C [-40...176°F]
P2800A
Feedback potentiometer for damper actuatorsand rotary actuators
Feedback potentiometer for damper actuatorsand rotary actuators
• Nominal resistance 2.8 kΩ
• Loading capacity Max. 1 W
• Residual resistance Max. 5% on both sides
• Connection potentiometer Cable 1 m, 3 x 0.75 mm² halogen-free
• Degree of protection IEC/EN IP54
• Ambient temperature -30...50°C [-22...122°F]
• Storage temperature -40...80°C [-40...176°F]
• Residual resistance Max. 5% on both sides
• Connection potentiometer Cable 1 m, 3 x 0.75 mm² halogen-free
• Degree of protection IEC/EN IP54
• Ambient temperature -30...50°C [-22...122°F]
• Storage temperature -40...80°C [-40...176°F]
P5000A
Feedback potentiometer for damper actuatorsand rotary actuators
Feedback potentiometer for damper actuatorsand rotary actuators
• Nominal resistance 5 kΩ
• Loading capacity Max. 1 W
• Residual resistance Max. 5% on both sides
• Connection potentiometer Cable 1 m, 3 x 0.75 mm² halogen-free
• Degree of protection IEC/EN IP54
• Ambient temperature -30...50°C [-22...122°F]
• Storage temperature -40...80°C [-40...176°F]
• Residual resistance Max. 5% on both sides
• Connection potentiometer Cable 1 m, 3 x 0.75 mm² halogen-free
• Degree of protection IEC/EN IP54
• Ambient temperature -30...50°C [-22...122°F]
• Storage temperature -40...80°C [-40...176°F]
