50kV 3.0µF Energy Storage Capacitor

HV Energy storage and Pulse discharge Capacitor 50,000Vdc 3MFD are designed for High voltage pulse power supply and discharge with Film-Foil dielectric capacitor elements connections , allow large discharge current .

the 3MFD 50kV Capacitor are oil impregnated , oil-filled,Film with capacitor paper combination.ideal for discharge applications.

Specifications:

• Voltage Rated: 50kV.dc


•  Capacitance: 3.0MFD


• Cap Tolerance: ±5%.10%,

Features:

• Metal case with stainless steel , oil-filled, Rectangle,


• Low inductance,Low ESR


• Coaxial terminal , high voltage Low profile terminals.

Application: for high energy Marx generators, Pulsed generators,X-Ray, power lasers, research applications, high voltage supplies , electromagnetic .

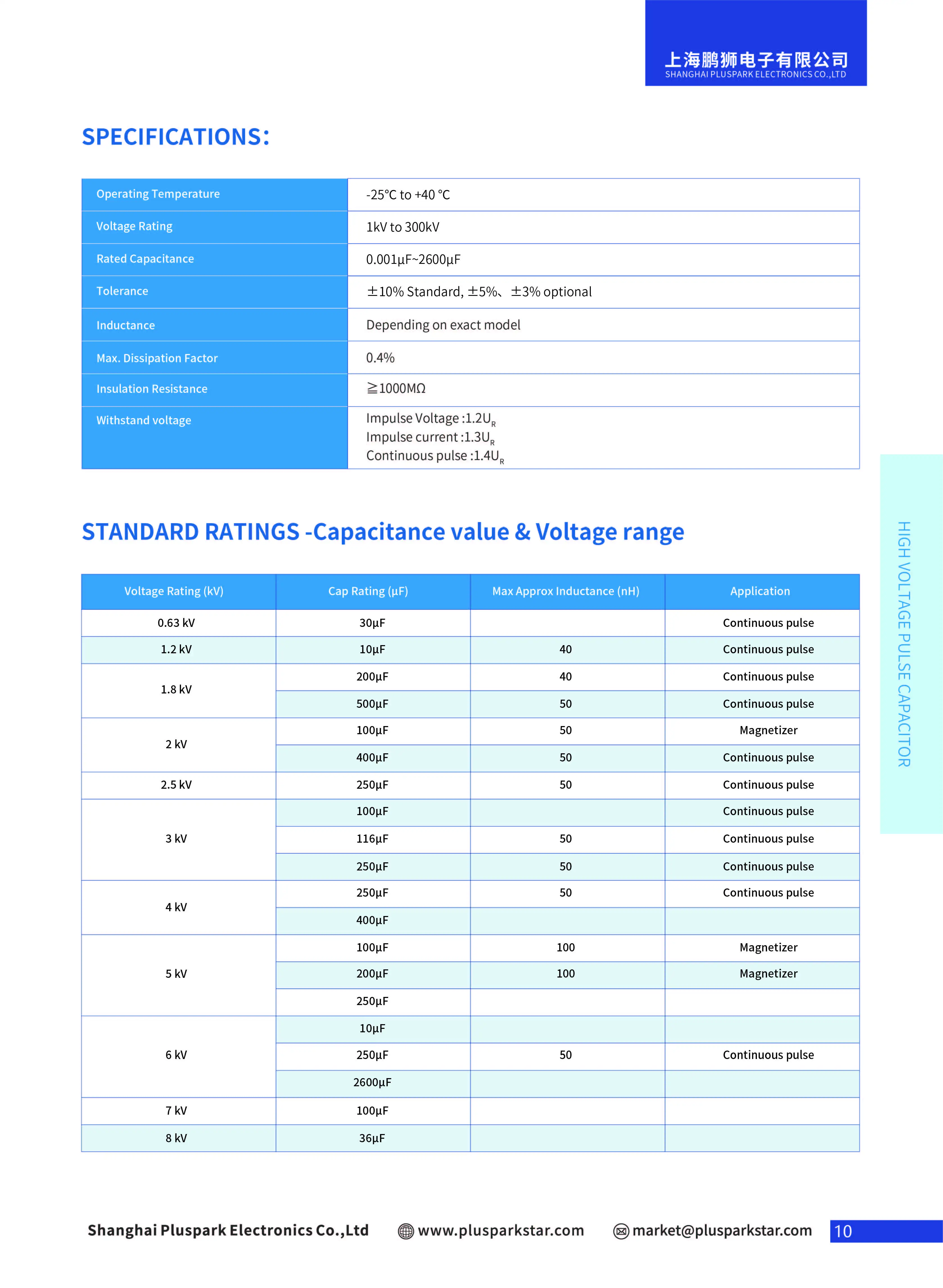

Specifications:

Operating Temperature	-40℃ to +100℃
Voltage Rating	1kV to 300kV
Rated Capacitance	0.001µF~2600µF
Tolerance	±10% Standard, ±5%,±3% optional
Inductance	Depending on exact model
Max. Dissipation Factor	0.4%
Insulation Resistance	≥1000MΩ
Withstand voltage	Impulse Voltage :1.2UR, Impulse current :1.3UR Continuous pulse :1.4 UR

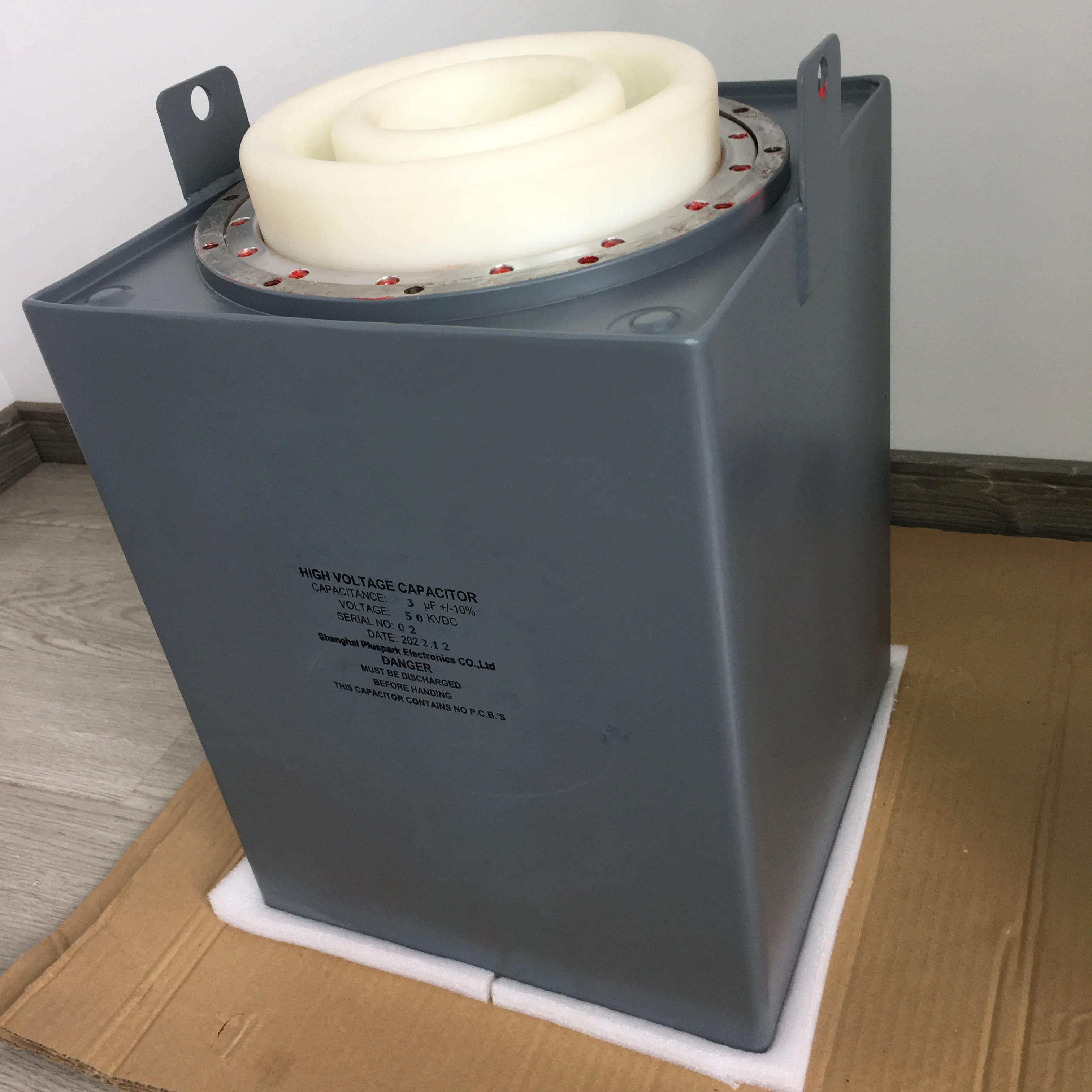

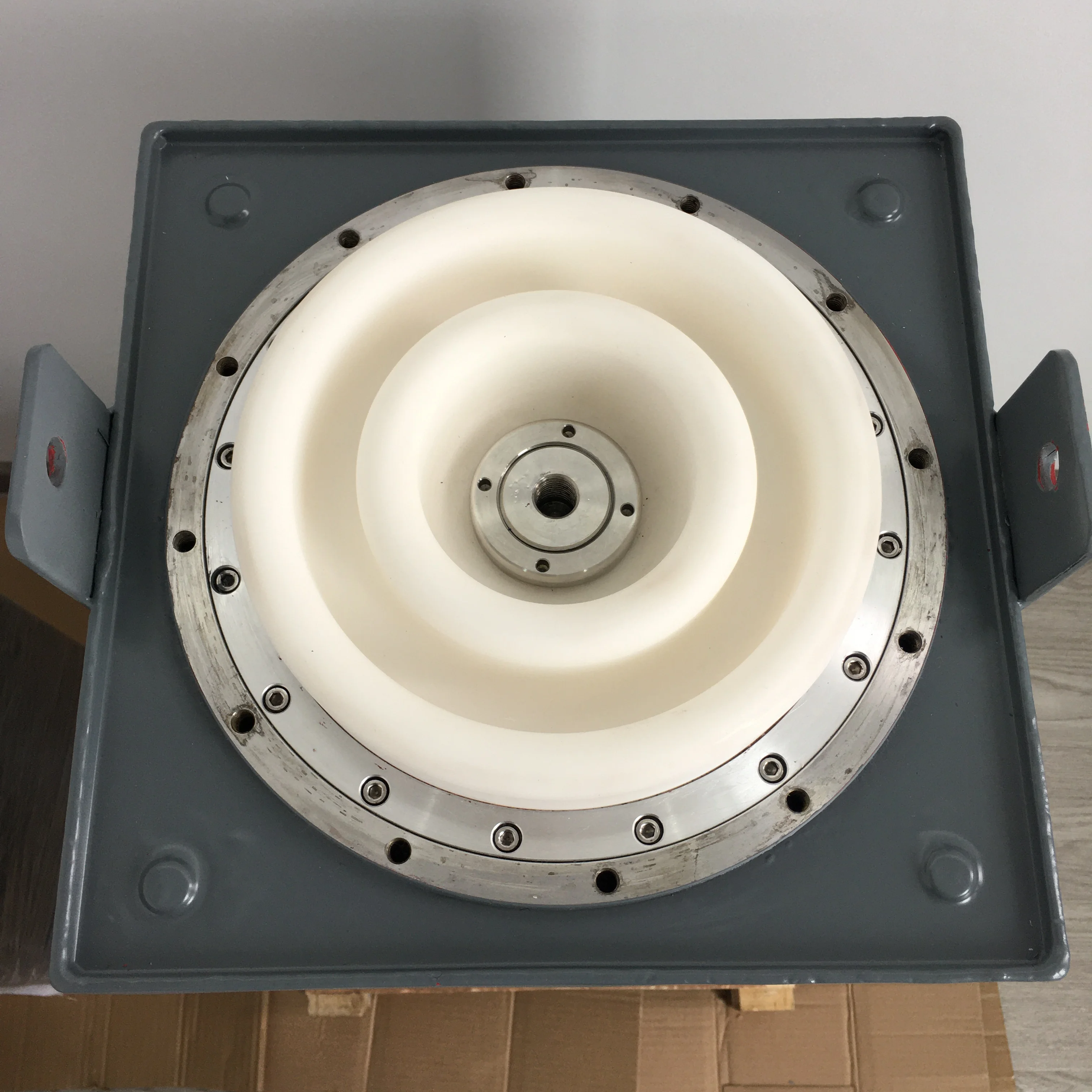

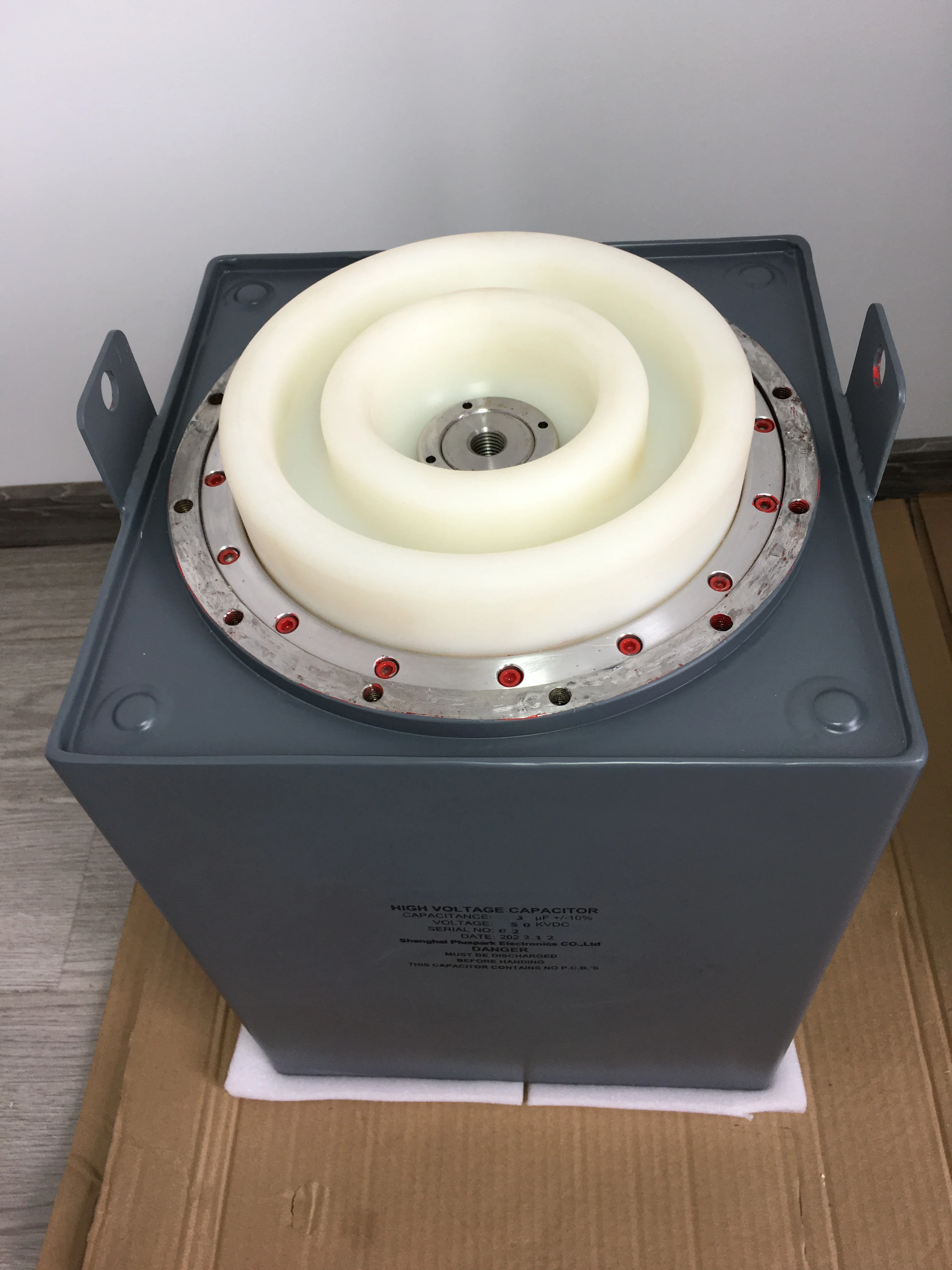

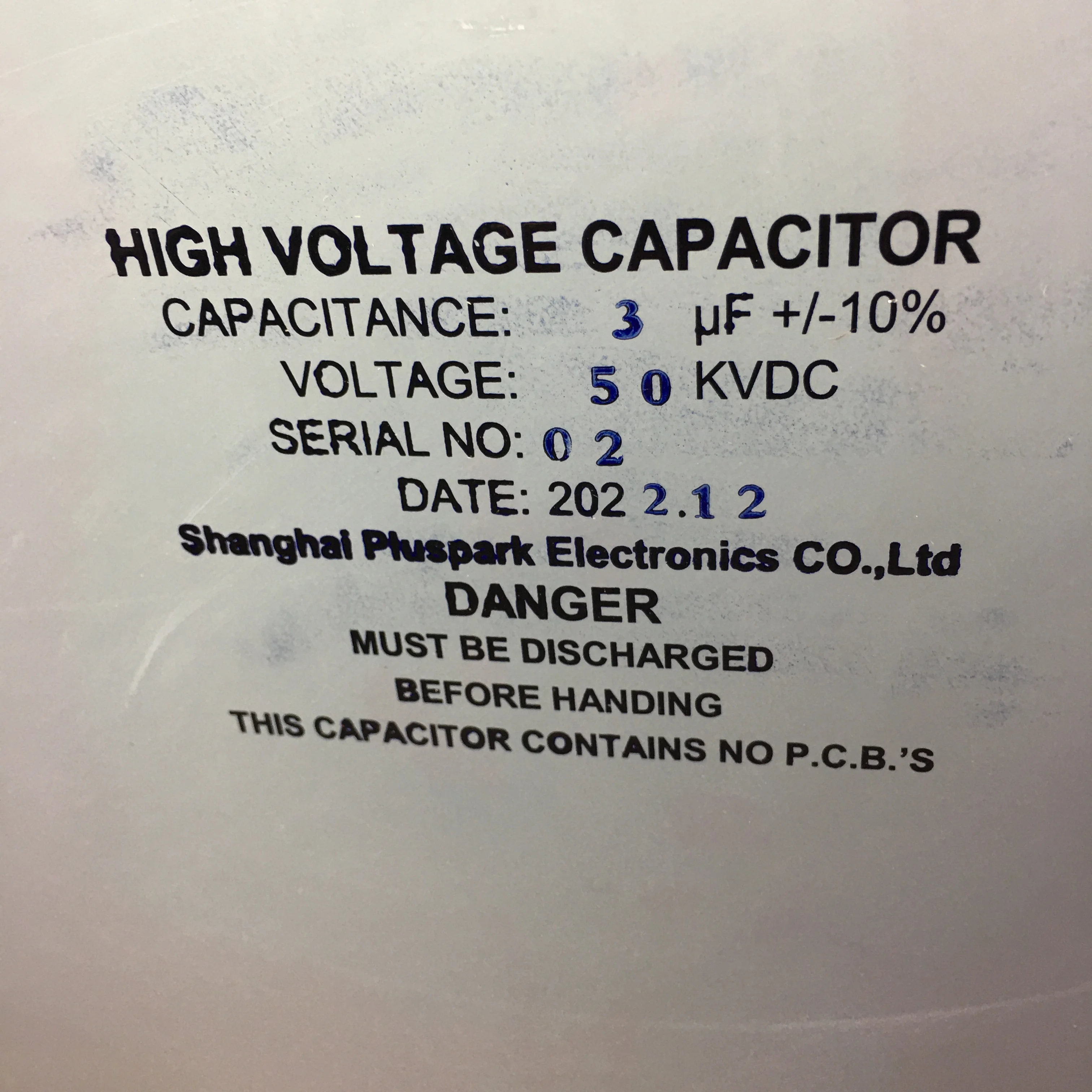

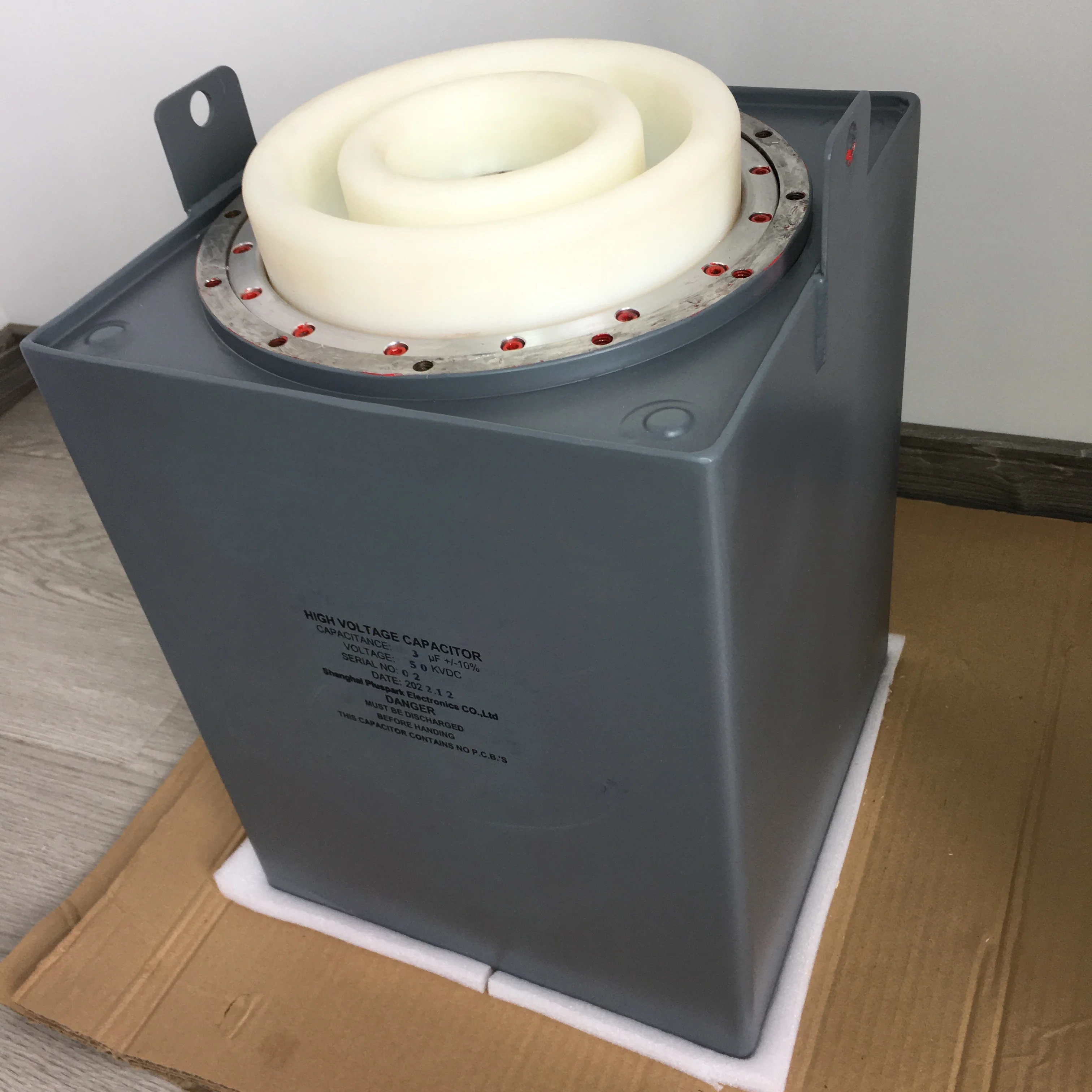

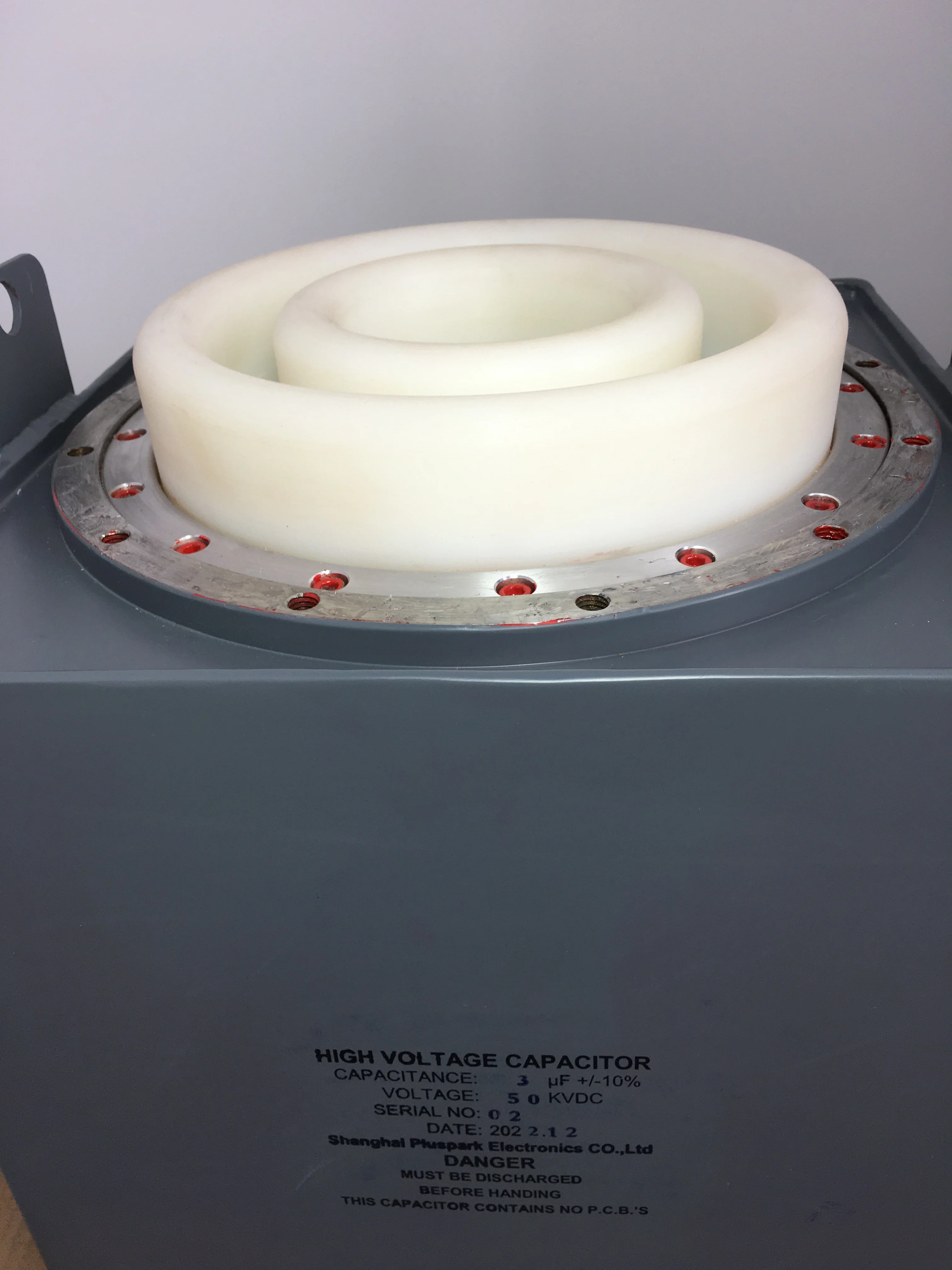

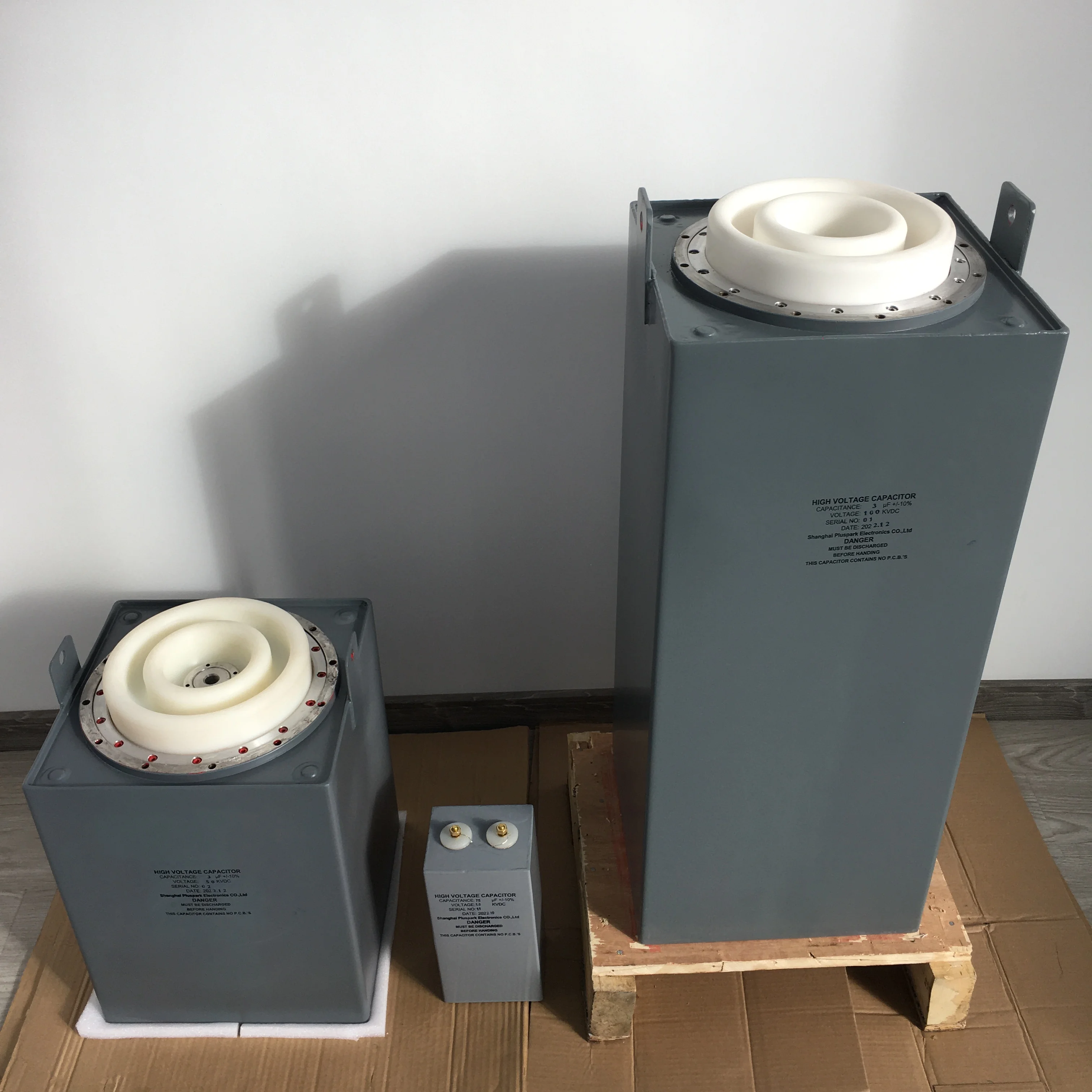

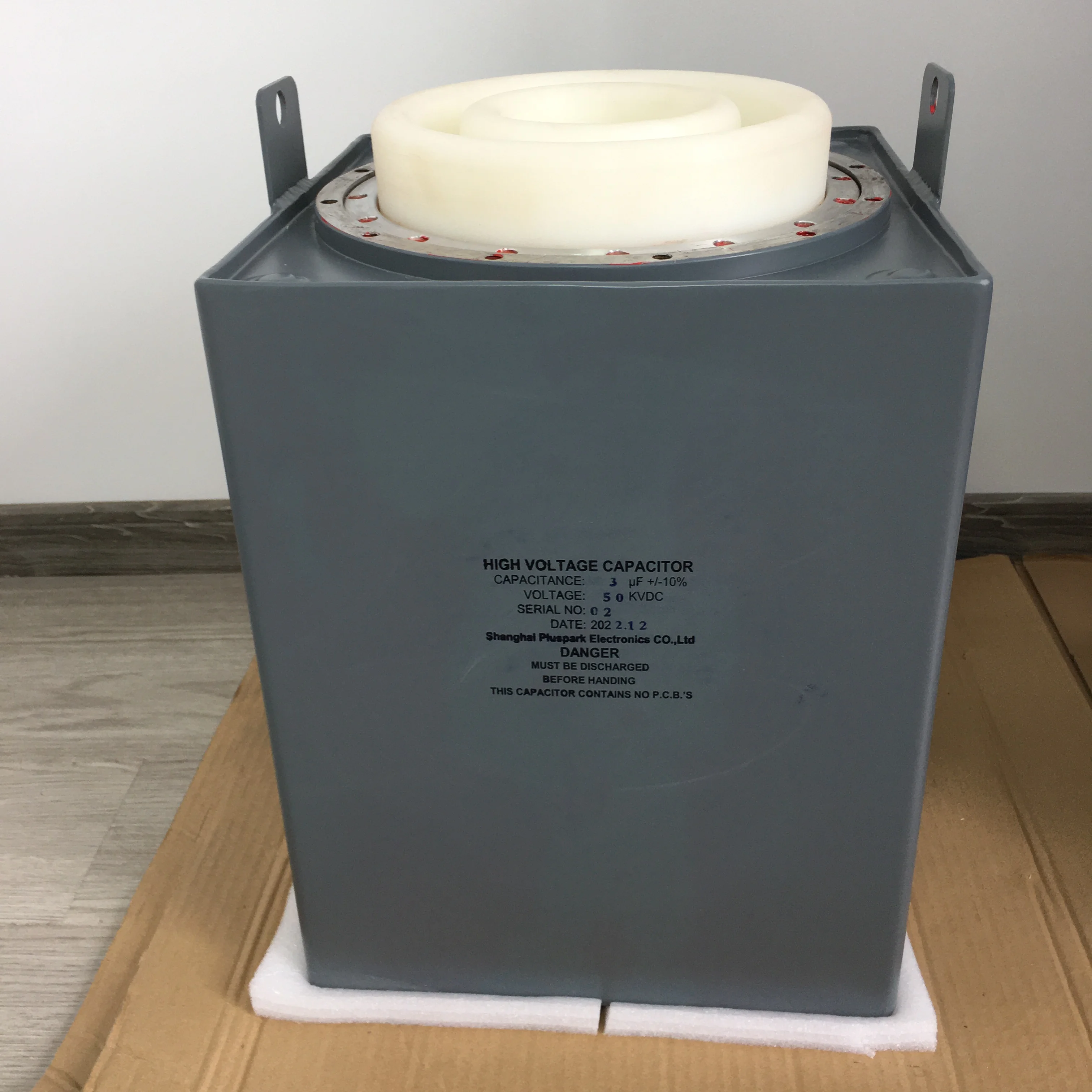

Images of high voltage capacitor 50kV 3uF

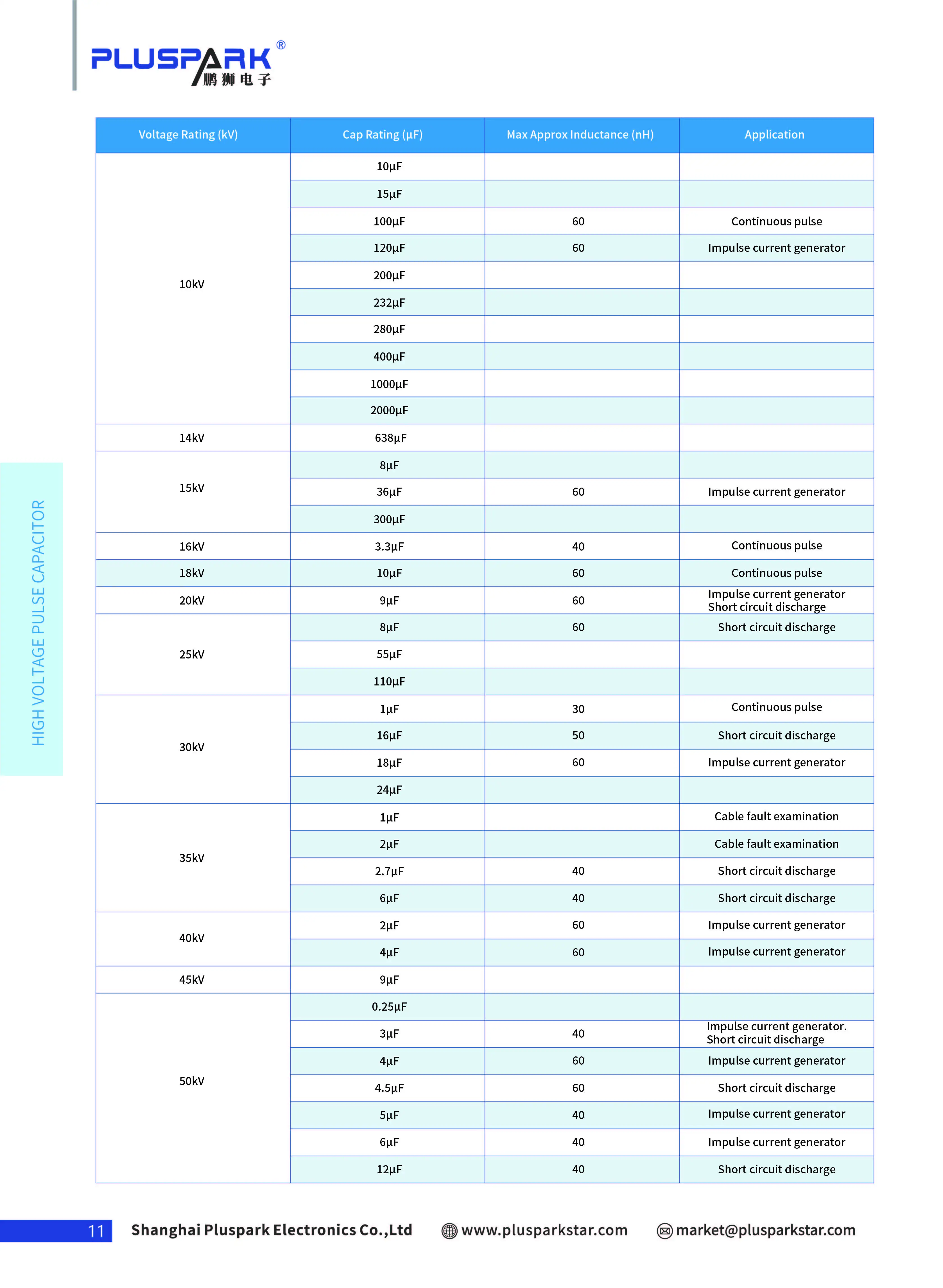

50,000VDC energy storage and pulse discharge capacitor

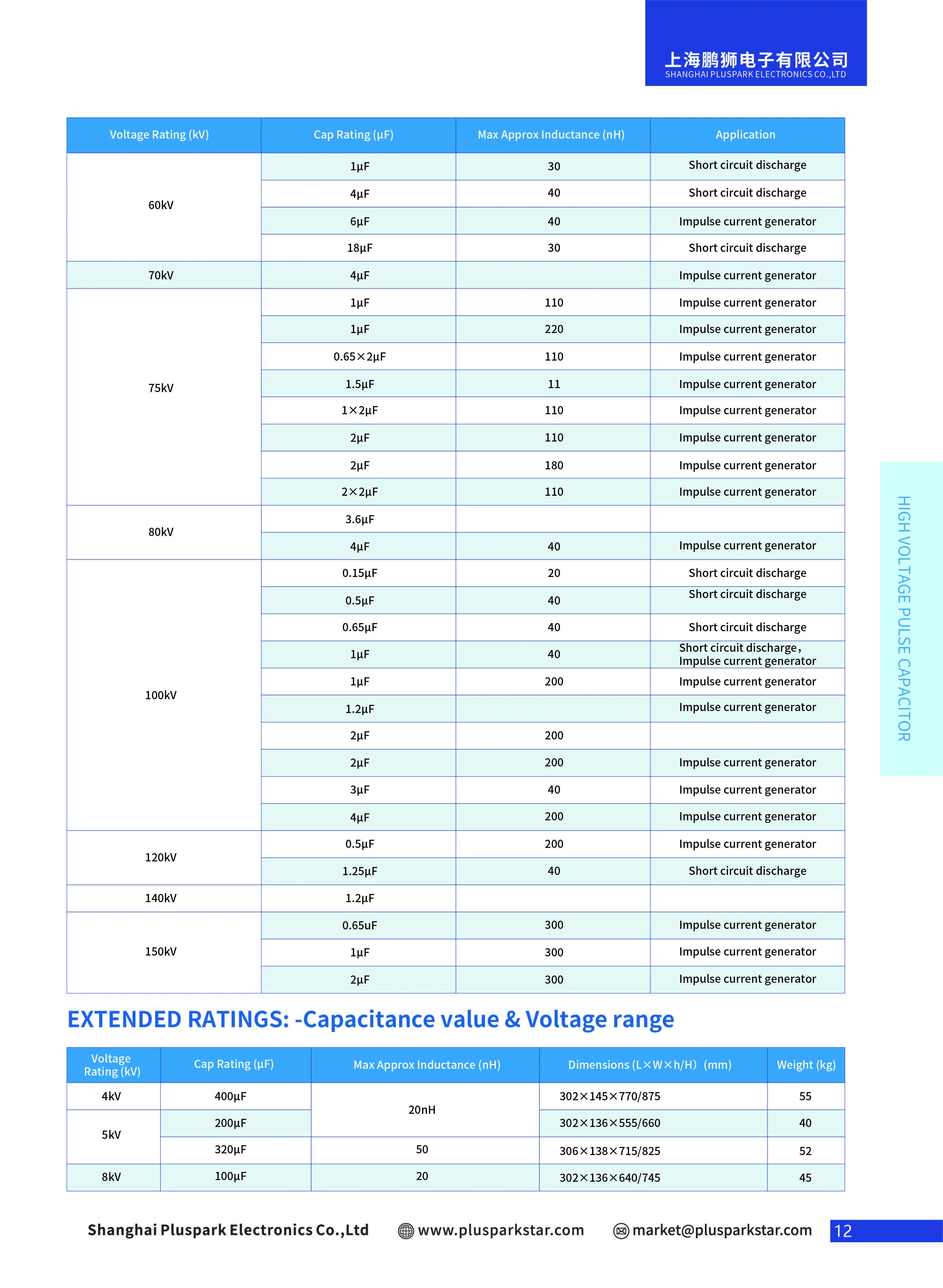

Voltage	Capacitance
(DC)	(µF)	(nF)
50kV (50000VDC)	3	300
	4.5	450
	6	600
	12	1200



Customs capacitor design are available upon request.

 also supply below HV capacitor items.:

10kV 120uF Capacitor,

10kV 100uF Capacitor,

10kV 200uF Capacitor,

20kV 9uF Capacitor,

25kV 8uF Capacitor,

30kV 16uF Capacitor,

35kV 6uF Capacitor,

50kV 3uF Capacitor,

50kV 4.5uF Capacitor.

 50kV 6uF Capacitor.

50kV 12uF capacitor,

60kV 6uF capacitor,

60kV 12uF Capacitor,
