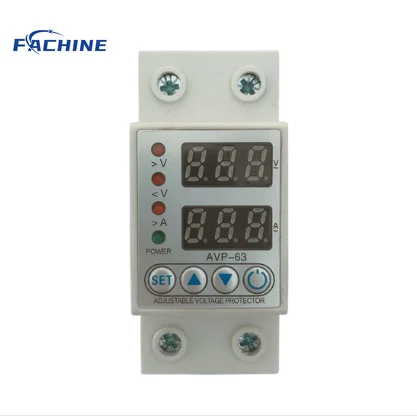

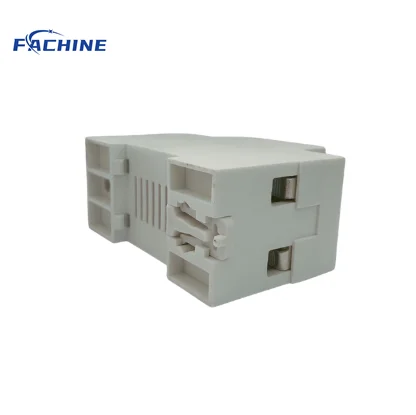

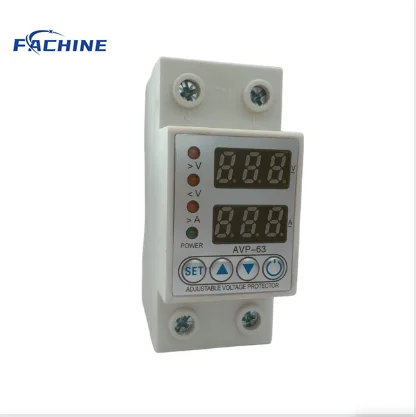

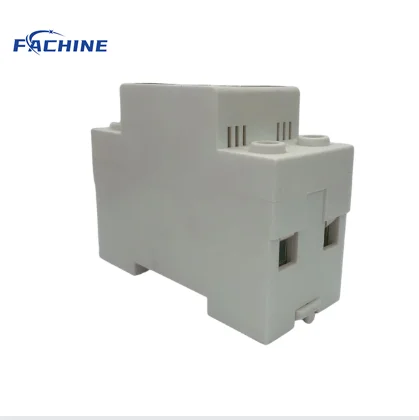

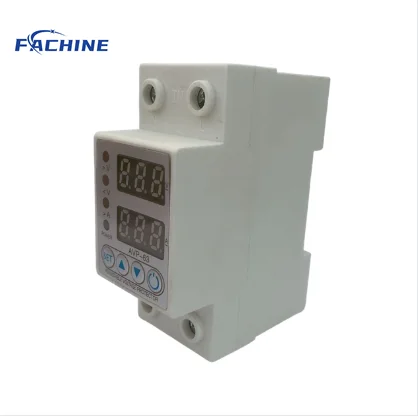

Display din rail adjustable over voltage and under voltage protection digital over current protector 63A 230V digital electric
- Category: >>>
- Supplier: Wenzhou Facun Import & Export Co. Ltd.
Share on (1600824944847):
Product Overview
Description
Product Description
Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6. Voltage calibration: Voltage +-10% adjustable. A13
7. Restore factory settings: press the down button for more than 12s
8. Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:FAC-V-Protector
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A); 1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V):
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V):
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)
6.Power-on delay time:1s~90s(default:10s)
7.Power consumption : <2W
9.Electric machinery life : 100,000 times
9.Installation:35mm DIN rail
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery
5.Voltage display(voltage measurement)
6. Voltage calibration: Voltage +-10% adjustable. A13
7. Restore factory settings: press the down button for more than 12s
8. Fault inquiry: Press the UP button from more than 12S
Product Parameters:
1.Model number:FAC-V-Protector
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~40A Adjustable(default:40A); 1~63A Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V):
Over-voltage recovery voltage range:225V--295V(default:250V)
Over-voltage protection action time:0.1s~30s(default value:0.5s)
Over-voltage r ecovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V):
Under-voltage recovery voltage range:145V--215V (default:190V)
Under-voltage protection action time:0.1s~30s(default:0.5s)
Under-voltage r ecovery delay time:1s~500s(default:30s)
6.Power-on delay time:1s~90s(default:10s)
7.Power consumption : <2W
9.Electric machinery life : 100,000 times
9.Installation:35mm DIN rail
Product Paramenters
Rated supply voltage | AC 220/230V |
Operation Voltage Range | AC 80v~400V (1 Phase) |
Rated Frequency | 50/60Hz |
Electric Current(>A) setting range | 1~63A |
Over Voltage(>U) setting range | 230~300V AC |
Under Voltage( | 140~210V AC |
Error | 2% |
>U and | 0.5S |
Reset/start delay | 1s~90s |
Voltage measurement accuracy | 1% |
Rated insulation voltage | 400V |
Output Contact | 1NO |
Protection degree | IP20 |
Pollution degree | 3 |
Altiude | <=2000m |
Operating Temperature | -50°C~55°C |
Humidity | <=50% at 40°C |
Storage Temperature | -30°C~70°C |

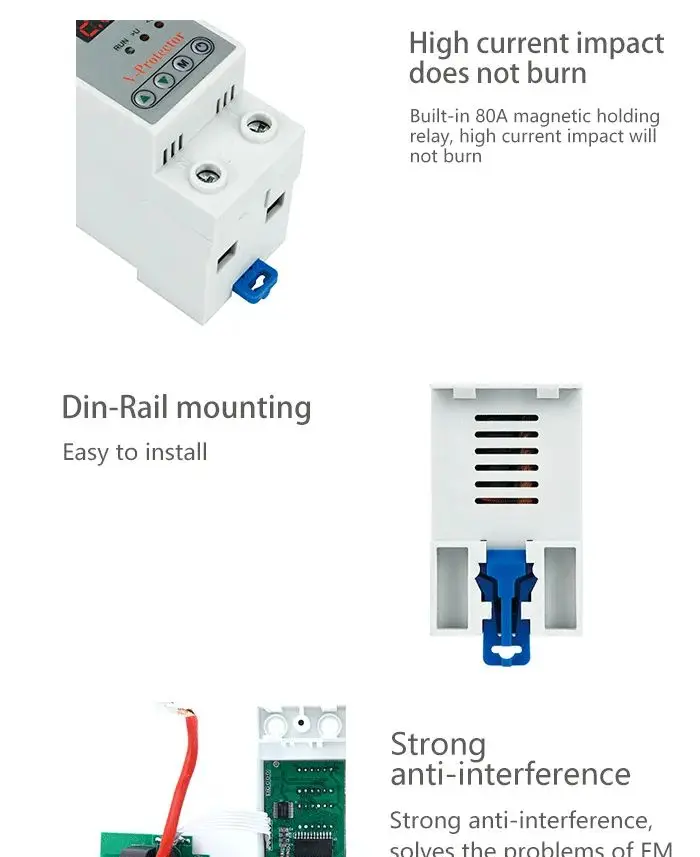

Details Images
