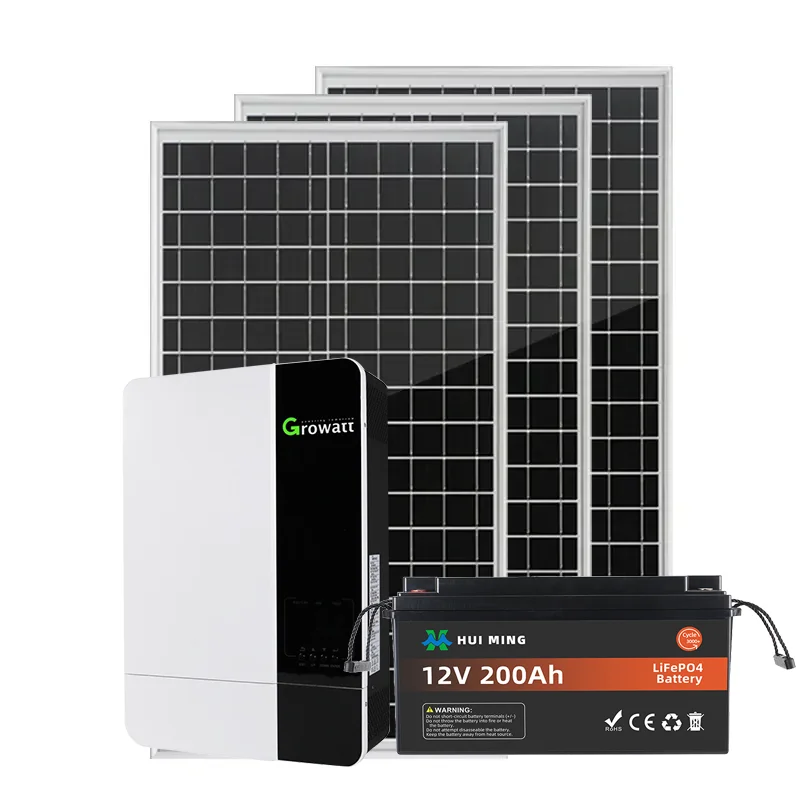

Home Solar Kit 5Kwh 10Kwh 15Kwh 20Kwh 30Kwh With A Grade Solar Panels Complete Hybrid Solar Energy System
- Category: >>>
- Supplier: Shenzhen Huiming New Energy Co. Ltd.
Share on (1600825085211):
Product Overview
Description
Products Description
Model No | RackArk-2400 | RackArk-5000 | RackArk-7200 | RackArk-9600 | |||
Nominal Voltage | 48V | ||||||
Capacity | 50Ah | 100Ah | 150Ah | 200Ah | |||
Nominal Capacity(Wh) | 2400Wh | 4800Wh | 7680Wh | 9600Wh | |||
Operation Voltage | 35.25-54.75Vdc | 37.6-58.4Vdc | 37.6-58.4Vdc | 37.6-58.4Vdc | |||
Dimension(mm) | 482*410*89 | 482*410*89 | 442*420*132 | 442*420*165 | |||
Weight (Kg) | 24KG | 43KG | 65KG | 82KG | |||
Recommend Charge /Discharge | 10A | 25A | 37A | 50A | |||
Max.Charge/Discharge | 89@1min | ||||||
Peak Charge/DischargeCurrent(A) | 200@15sec | ||||||
Single string quantity(pcs) | 16 | ||||||
Cycle Life | >6000 | ||||||
Communication Port | RS485,CAN | ||||||
Certifiactes | VDE2510-50 IEC62619/UL1973/CE/UN38.3 | ||||||

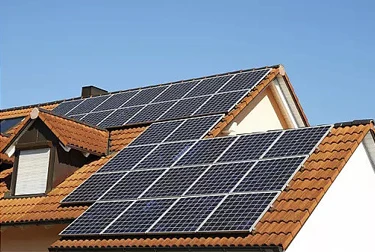

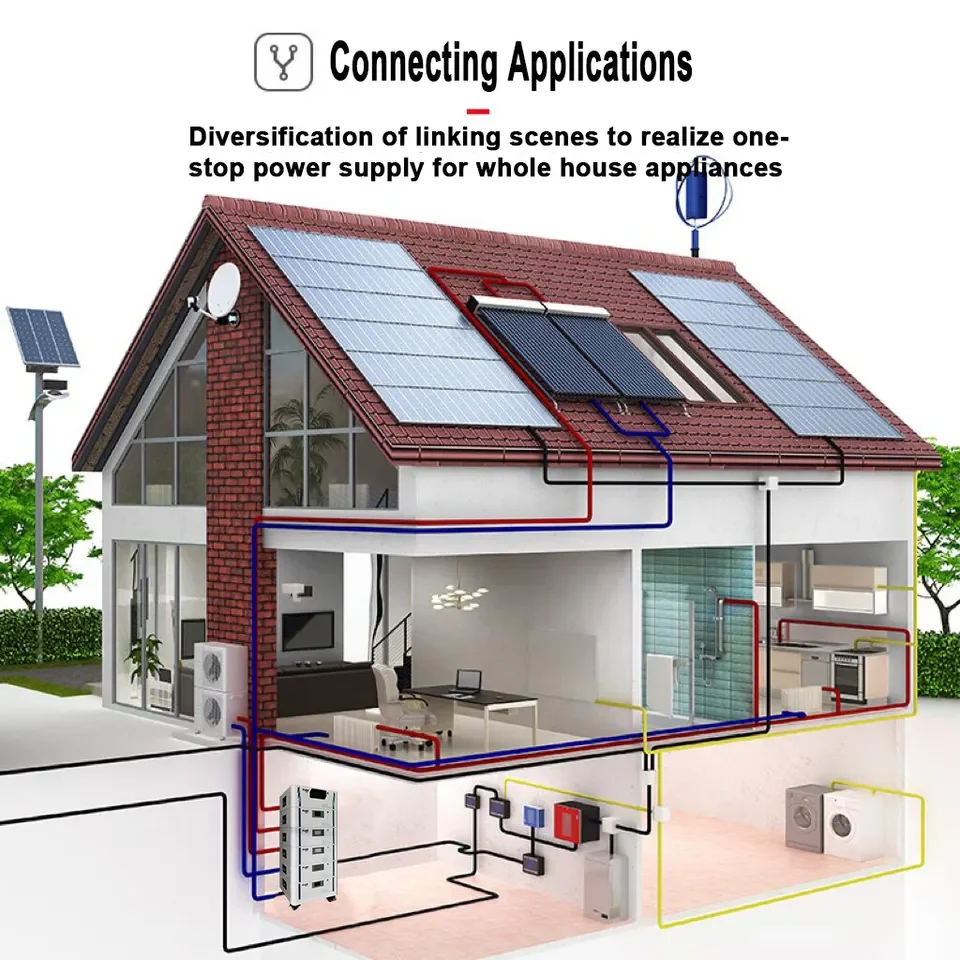

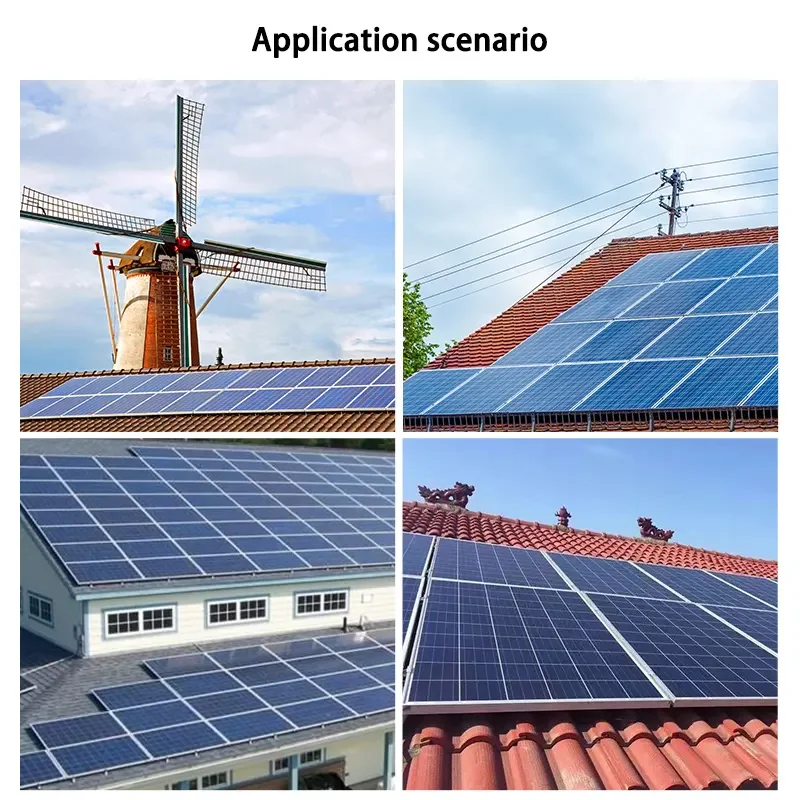

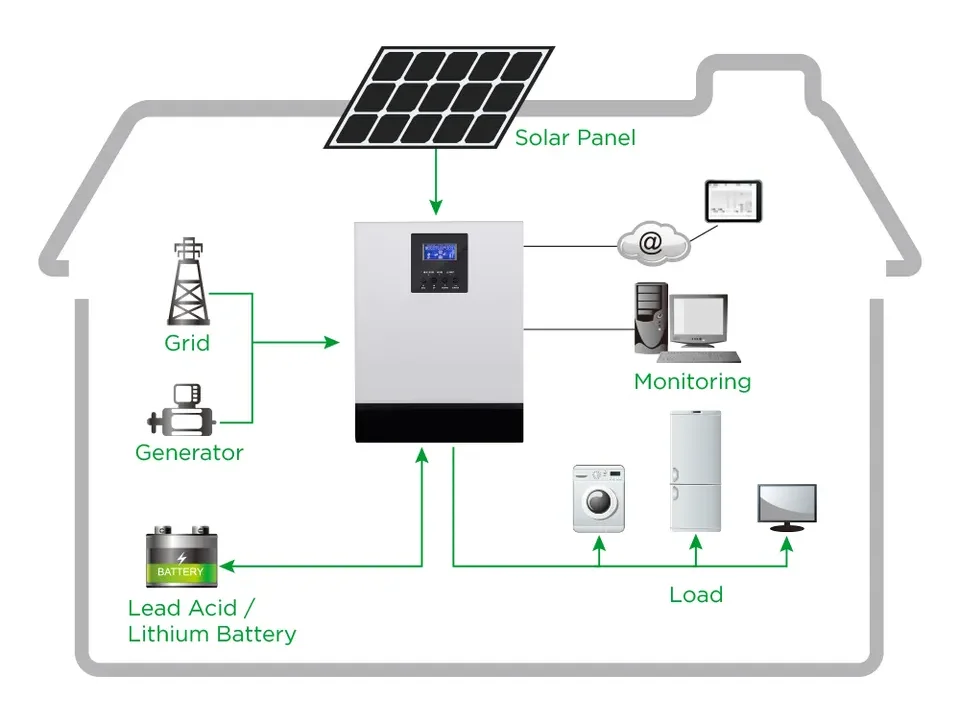

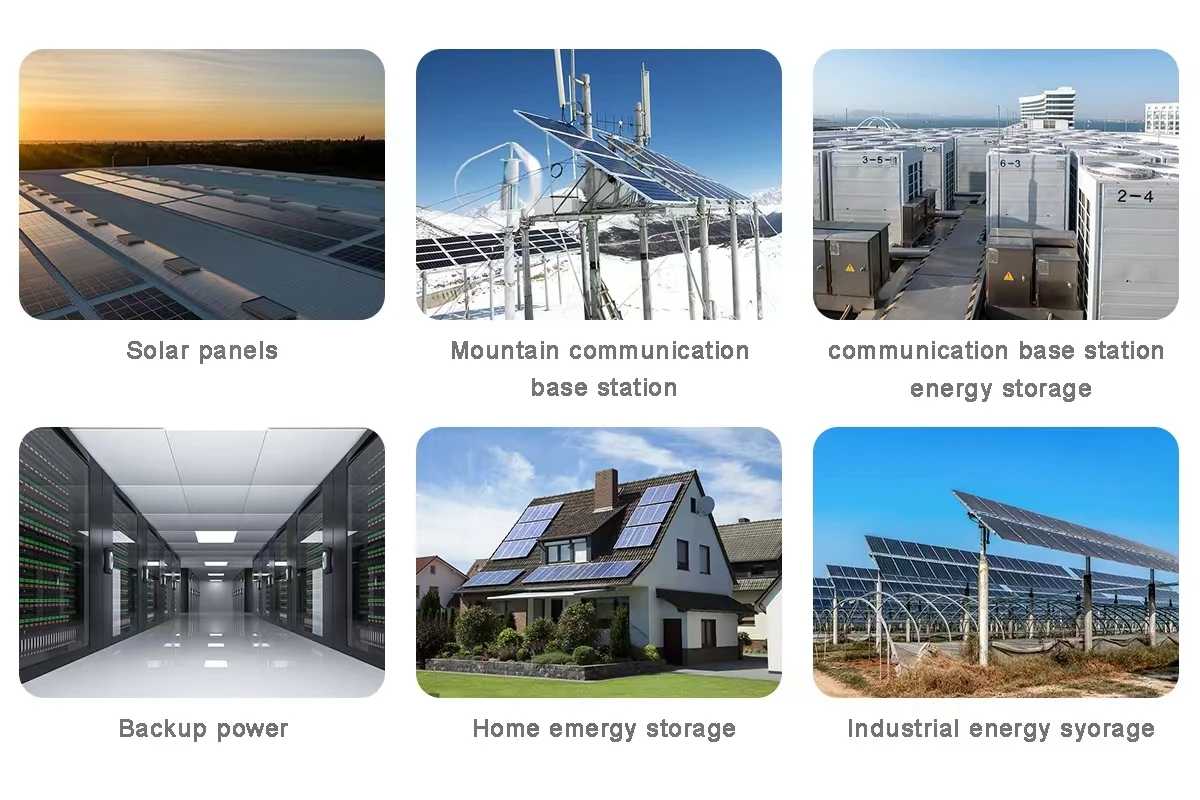

Application

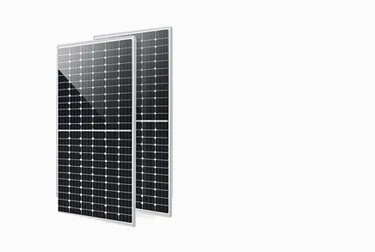

Half Cut Mono 560W Solar Panel
Peak Power Watts: 560W
Maximum Power Voltage: 42.06V Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63ADimensions:2279x1134x35mm
Weight:26.9 kg

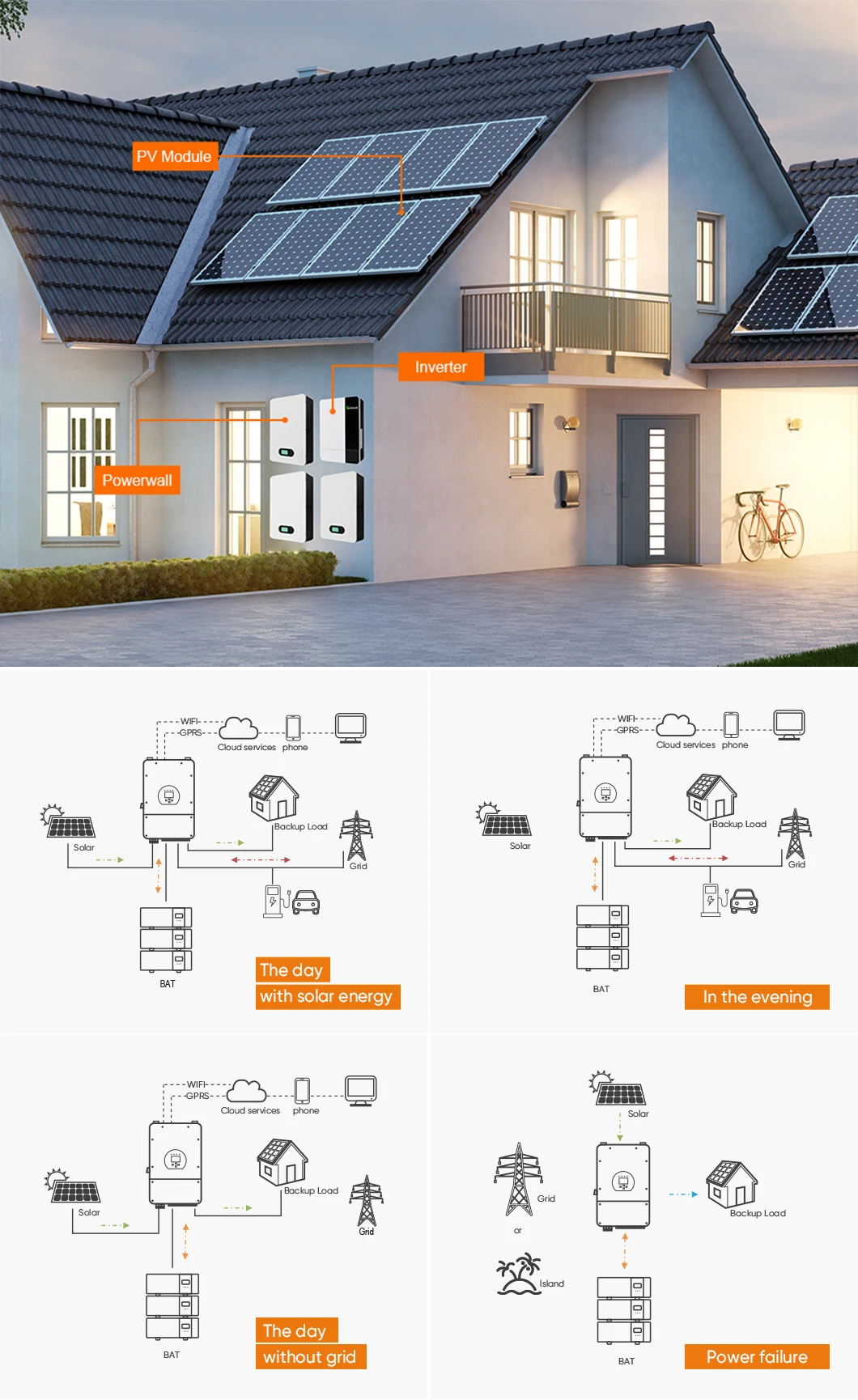

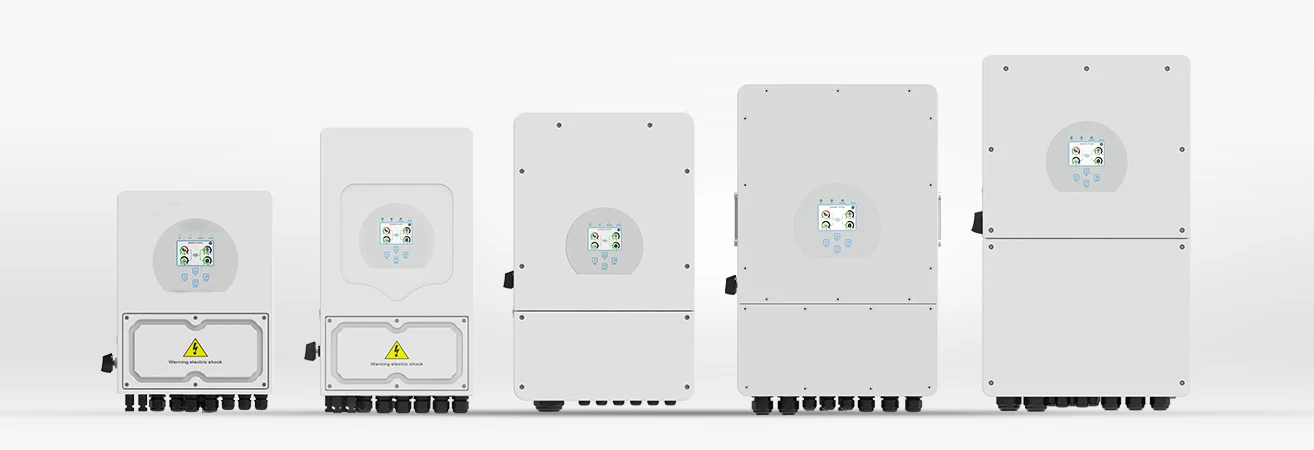

Hybrid Solar Inverter
48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max.
charging/discharging current of 240A
Max.10pcs parallel DC couple and AC couple to retrofit existing solar system

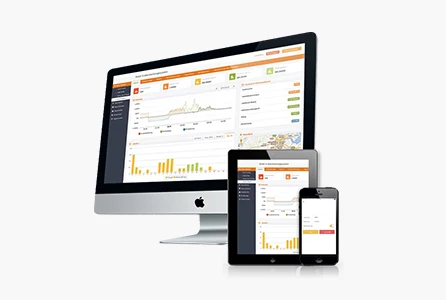

Open station supports one-click installation and registration Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability
15-20 years design life. Up to 6000 + cycle Ilfe

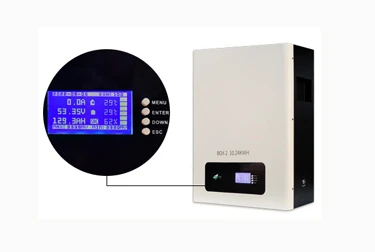

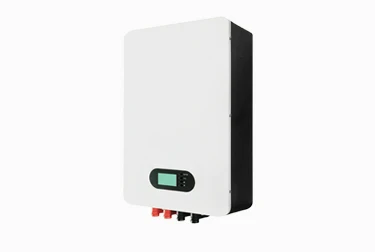

Wall mount or ground stack brick, simply connecting to inverter Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
Wall mount or ground stack brick, simply connecting to inverter Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt Optional Cable Clip & Tie Optional Ground Clip & Lugs
Optional
Mid & End Clamps: 35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt Optional Cable Clip & Tie Optional Ground Clip & Lugs
Optional

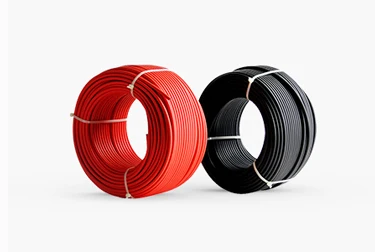

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

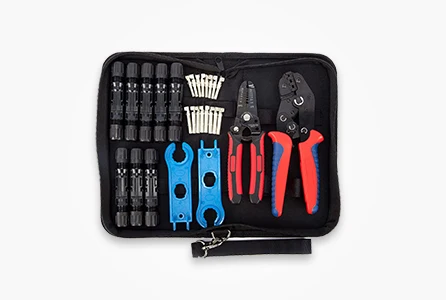

Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

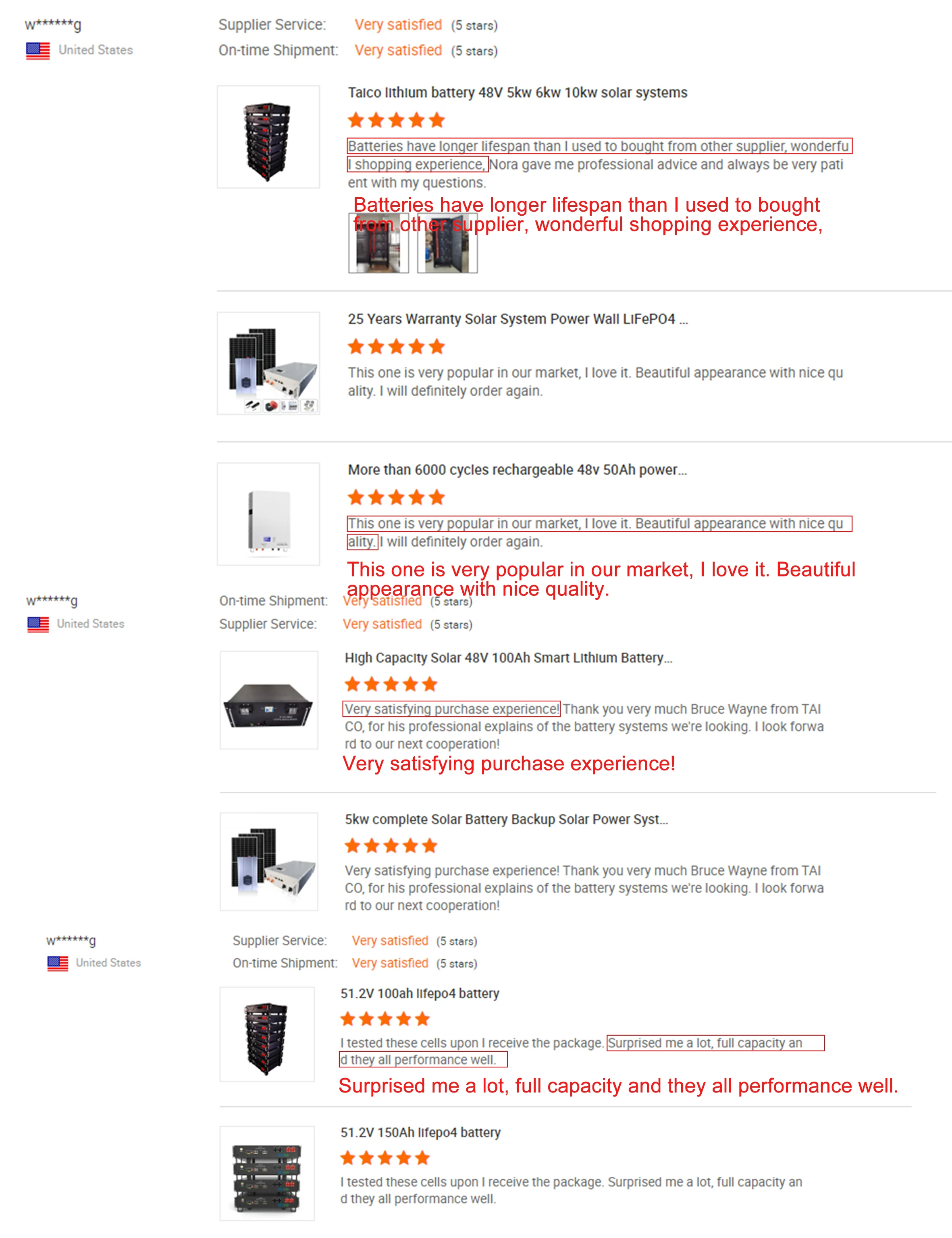

Customer Reviews
Compatiable Inverters

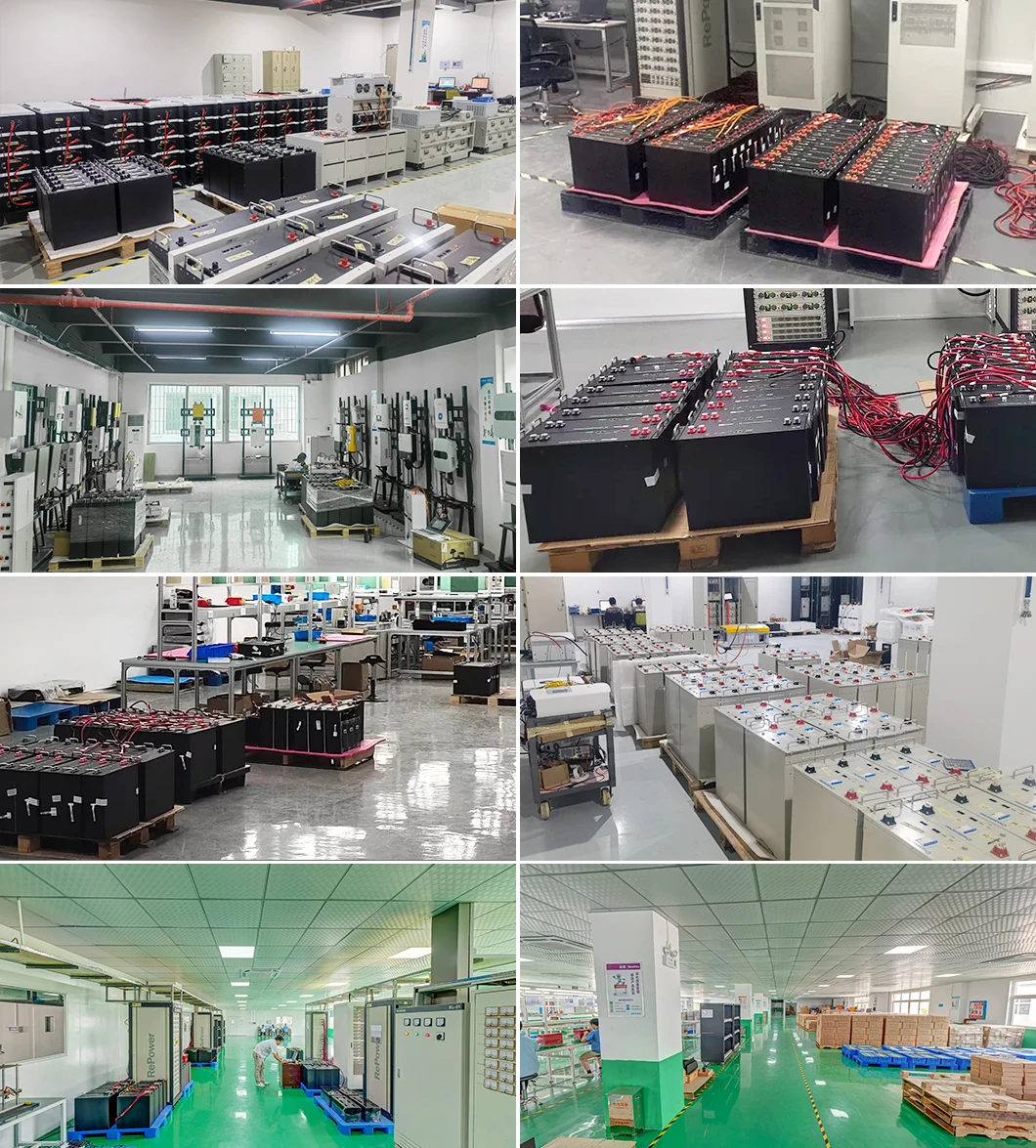

Company Profile
