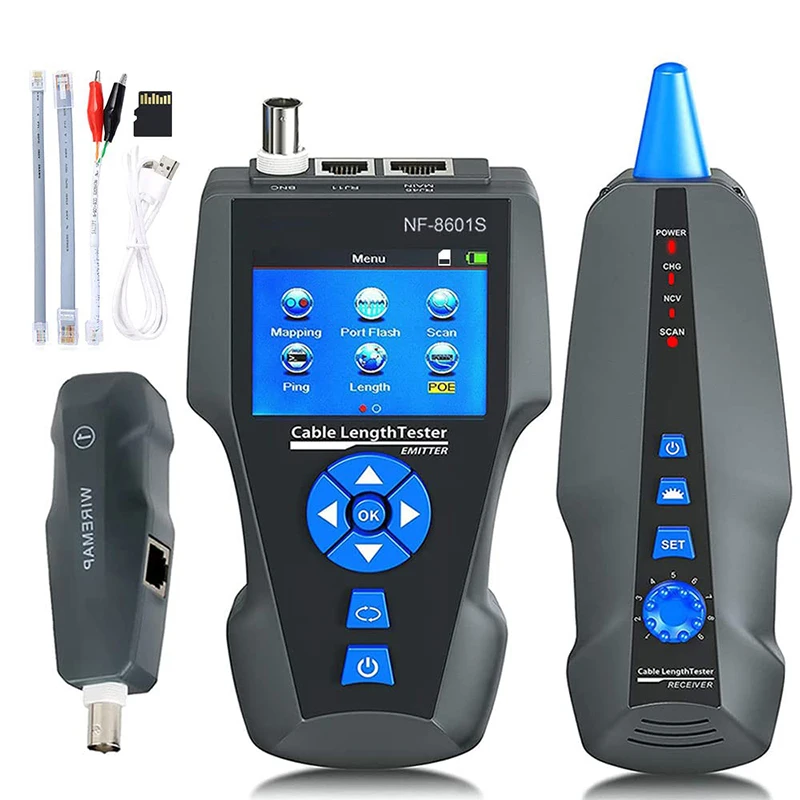

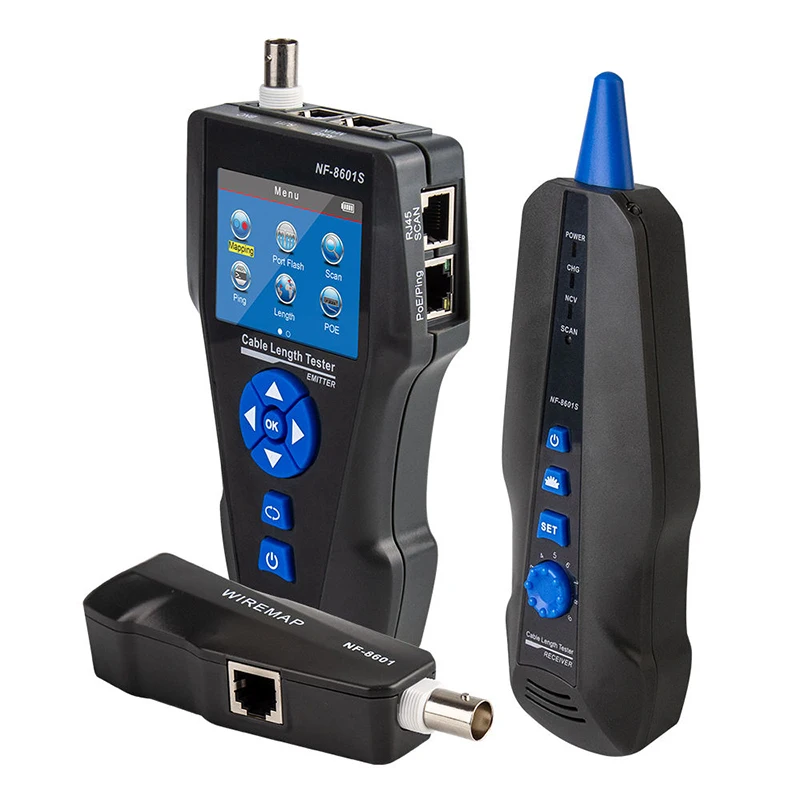

Universal Wire Harness Cable Test Lan Tester Network Cable Tester Poe Ping Tester
- Category: >>>
- Supplier: Shenzhen Chiky Technology Co. Ltd.
Share on (1600825239153):
Product Overview
Description

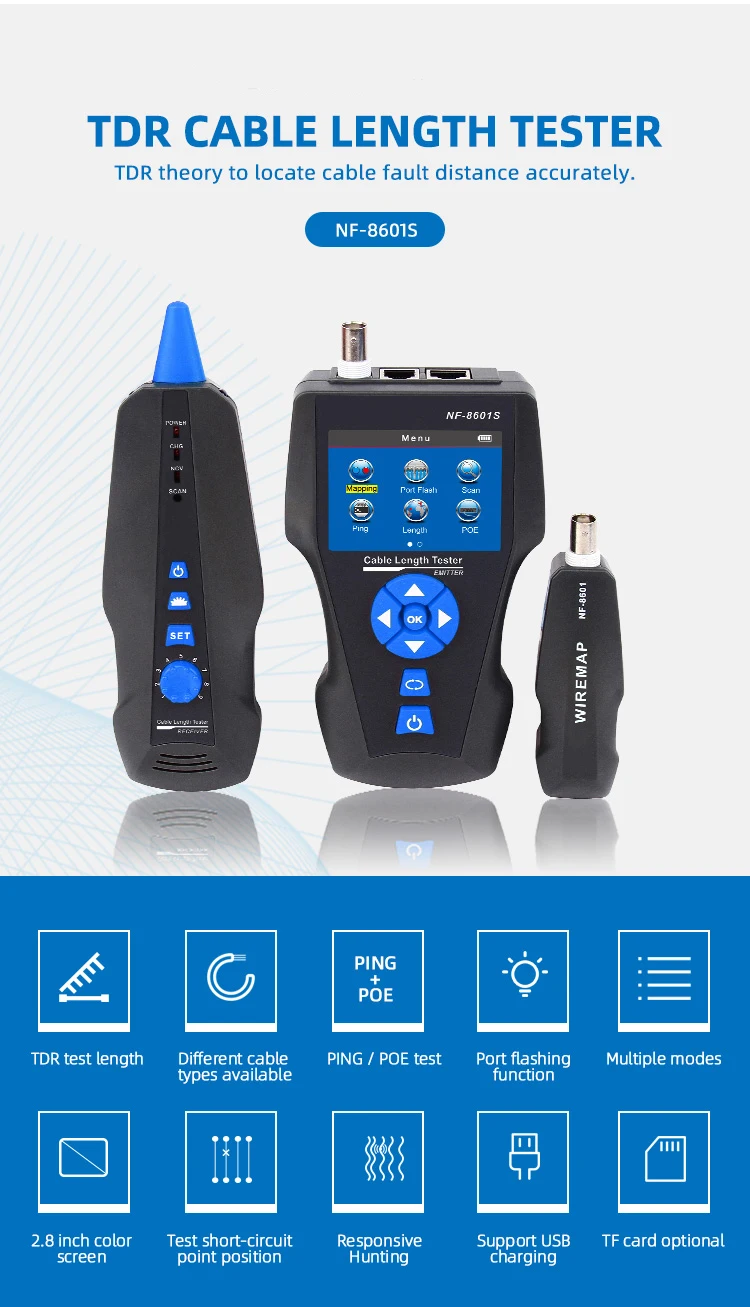

Multifunction Network Cable Tester

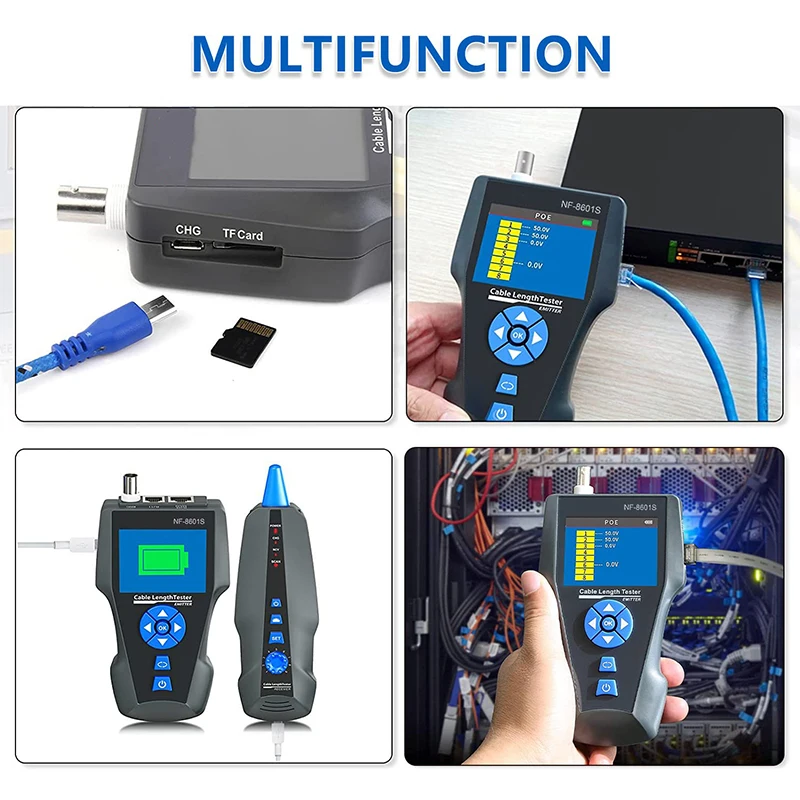

Main function
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.

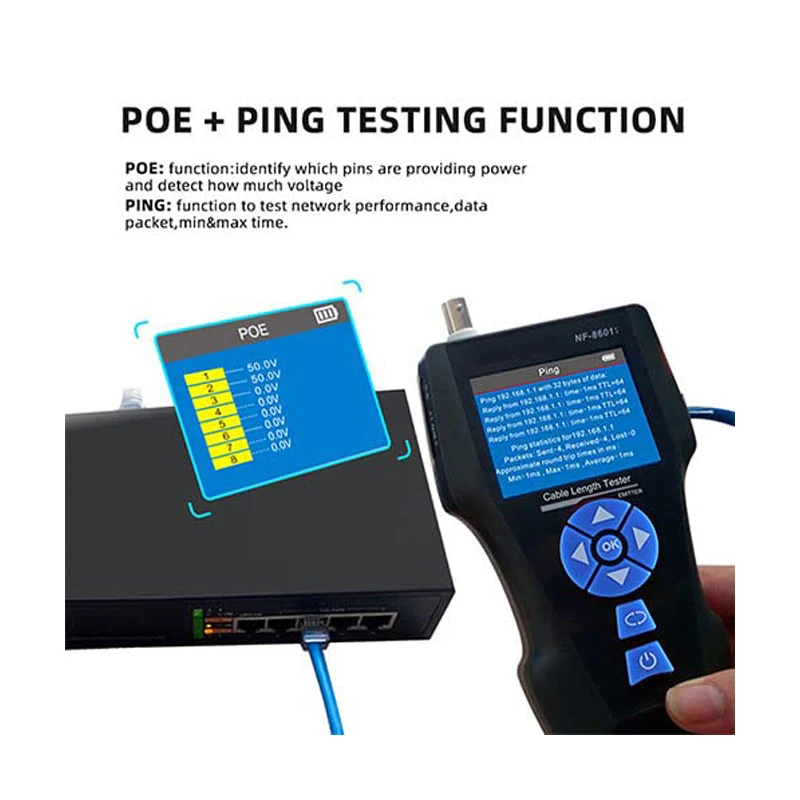

3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
1. TDR theory to measure length of cat5e, cat6 and cat7 cable, coaxil cable, telephone cable.
2. Wiremapping with length and provide the distance to fault information.
3. PoE function: identify which pins are providing power and detect how much voltage.
4. PING function to test network performance, data packet, MIN&MAX time.
5. Quickly find the targeted cable without stripping isolation among unknown cables.
6. Hub blinks for locating network port by the flashing port light on Hub / Switch.
7. Voltage detector: included in receiver (90~1000V)
Products Description
Product Paramenters
Product Name | Network Cable Tester | |
Customized | OEM, ODM, OBM, Software reengineering | |
Material | ABS+electric parts | |
NF-8601S Transmitter specifications | ||
Indictor | LCD 320x240 mm, with back light | |
Cable test types | STP/UTP 5E,6E network , telephone , coacial cable | |
Max. distance of wiremap | 1000m | |
Max. distance of tracing | 1000m | |
Max. distance of cable length | 1000m | |
Max. distance of calibration | 50m | |
Accuracy | up to 98%(after calibration) | |
Compatible connectors | RJ11,RJ45, PING/POE,BNC | |
Cable map indication | LCD (#1-#8) | |
Battery Type | 3.7V lithium battery 1800mAh | |
Work temperature / humidity | 10℃ ~ -60℃ / 0℃~70℃ | |
Dimension(LxWxD) | 173x92x34mm | |
NF-8601S Receiver specifications | ||
Cable hunting | RJ11,RJ45, BNC | |
Types of cable | ≥ 2 cores | |
Battery Type | 3.7V lithium battery 1800mAh | |
Dimension(LxWxD) | 183x58x35 mm | |
NF-8601S Remote unit specifications | ||
Compatible connectors | RJ11,RJ45, BNC | |
Dimension(LxWxD) | 106x32x30mm | |
Recommend Products

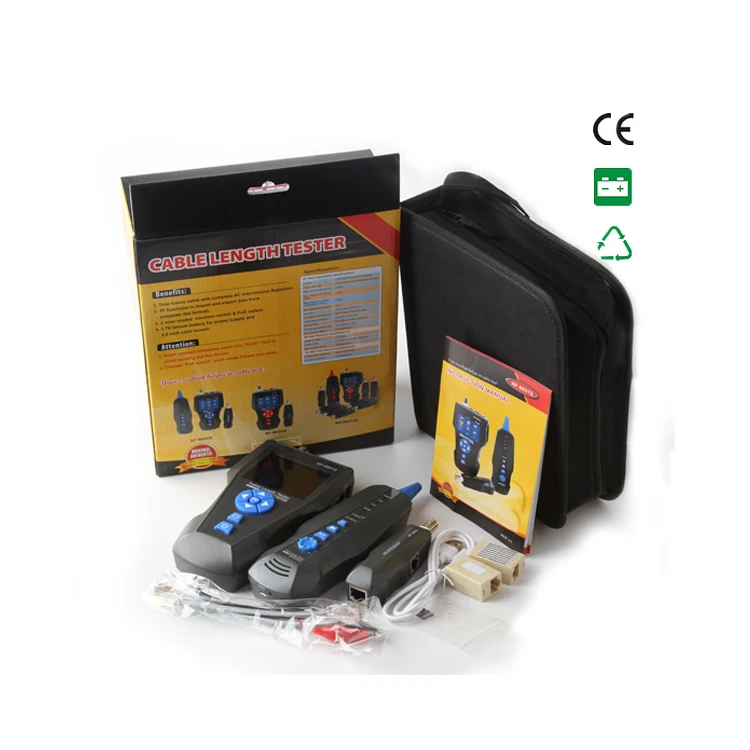

Packing & Delivery
