Product Overview
Description
Products Description

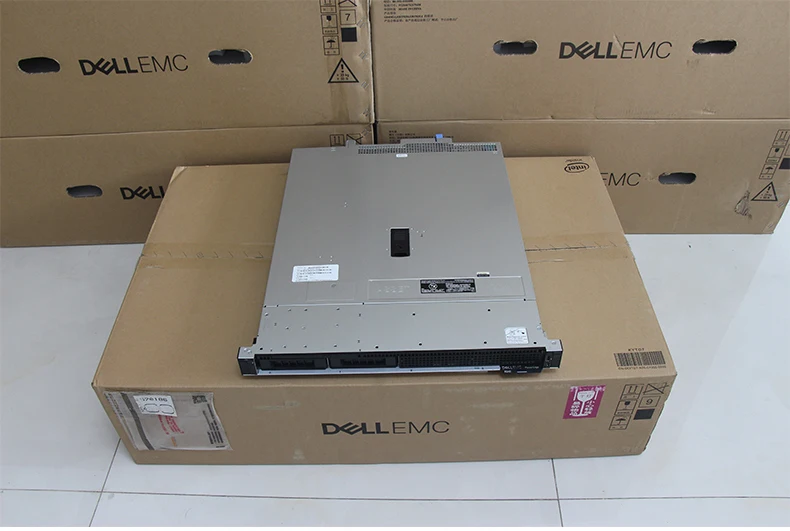

PowerEdge R250: Your Innovation Engine for businesses of all sizes
The D-ell EMC PowerEdge R250, powered by In-tel® Xeon® E-2300 processors, delivers powerful compute for common business applications and streamlines productivity. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB for memory intensive workloads. In addition, to address substantial throughput improvements, the PowerEdge R250 supports PCIe Gen 4 and offers enhanced thermal efficiency to support increasing power and thermal requirements. This makes the PowerEdge R250 an rack ideal server for buisness critical workloads, cloud infrastructure, and point of sale transactions in a 1U form factor, for small to midsized businesses, inside and outside of the data center.
Features | PowerEdge R250 Technical Specifications |
Processor | One In-tel Xeon E-2300 series processor with up to 8 cores |
Memory | • Four DDR4 DIMM slots, supports UDIMM 128 GB max, speeds up to 3200 MT/s • Supports unregistered ECC DDR4 DIMMs only Note: For Pentium processor, the maximum memory speed is 2666 MT/s. |
Storage controllers | • Internal controllers: PERC H345, H355, H755, HBA355i, S150 • Internal Boot: Internal Dual SD Module or USB or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2 x M.2 SSDs • External HBAs (non-RAID): HBA355e |
Drive bays | Front bays: • Up to 4 x 3.5-inch hot swap SAS/SATA (HDD/SSD) max 30.72 TB • Up to 2 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 15.36 TB • Up to 4 x 3.5-inch cabled SAS/SATA (HDD/SSD) max 30.72 TB |
Power supplies | • 450W Bronze 100-240 VAC, cabled • 450W Platinum 100-240 VAC, cabled |
Cooling options | Air cooling |
Fans | Up to four cabled fans |
Form Factor | 1U rack server |
Embedded NIC | Onboard LOM 1GbE x2 |
GPU options | Not supported |
Ports | Front Ports • 1 x USB 2.0 • 1 x iDRAC Direct (Micro-AB USB) port Rear Ports • 1 x USB 2.0 • 1 x iDRAC ethernet port • 1 x USB 3.0 • 1 x VGA • 1 x Serial port Internal Ports • 1 x USB 3.0 (optional) |
Detail Images

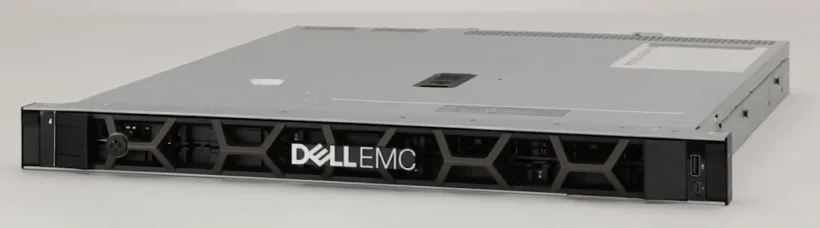

Item | Ports, panels, and slots |
1 | Left control pane |
2 | Optical drive |
3 | Drive |
4 | Right control panel |
5 | Information tag |

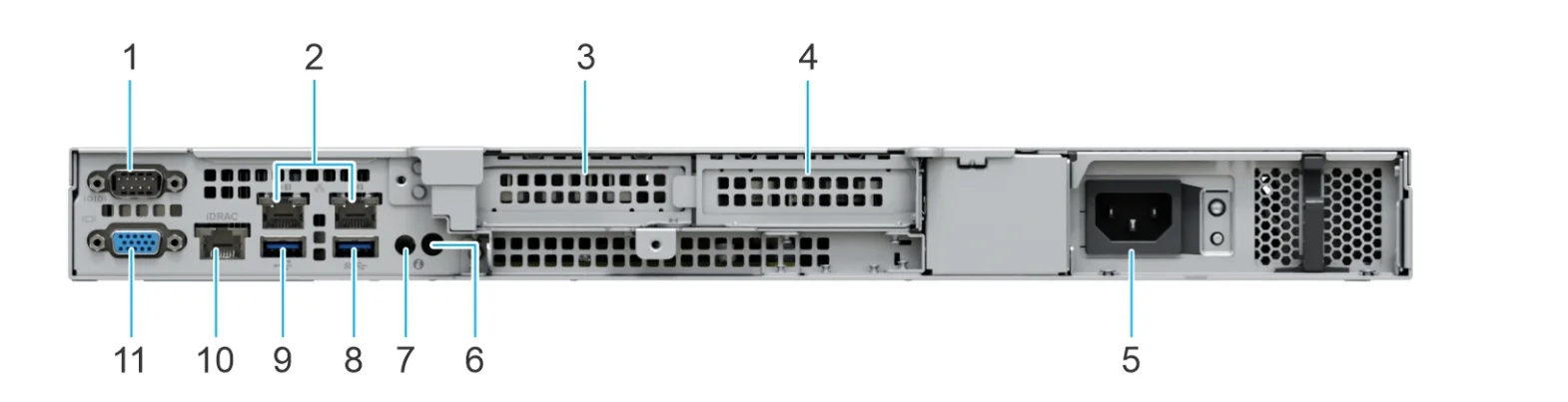

Rear view of the system ports
1. Serial connector
2. Ethernet ports
3. PCIe expansion card slot 1
4. PCIe expansion card slot 2
5. Power supply unit (PSU)
6. System ID button
2. Ethernet ports
3. PCIe expansion card slot 1
4. PCIe expansion card slot 2
5. Power supply unit (PSU)
6. System ID button
8. USB 3.2 Gen 1 port
9. USB 2.0 port
10. iDRAC ethernet port
11. VGA port

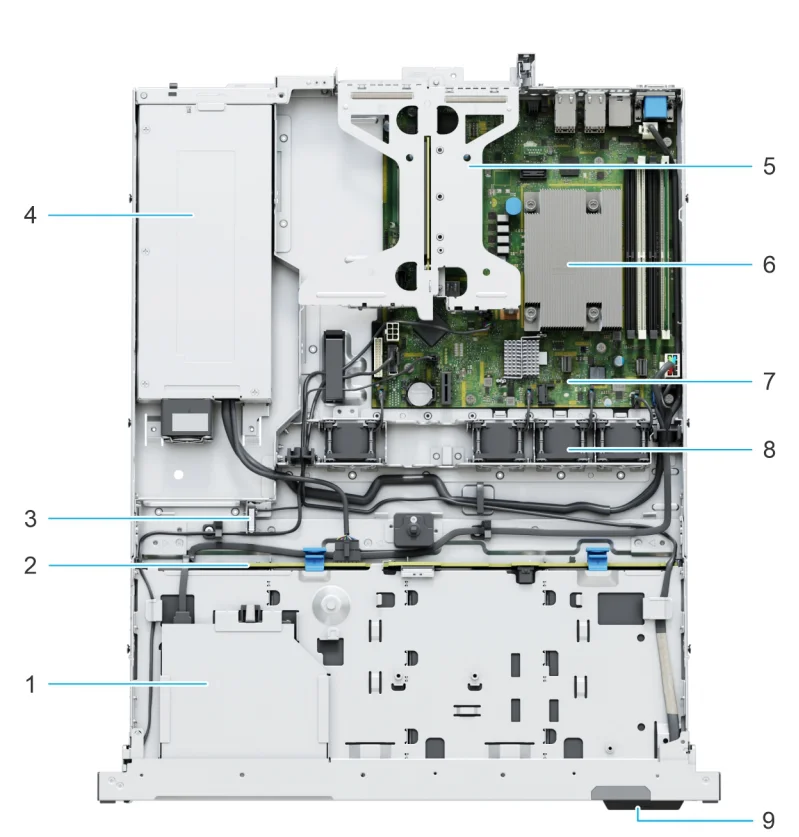

Inside view of the system with backplane
1. Optical drive
2. Backplane
3. Intrusion switch
4. Cabled power supply unit
5. Expansion card riser
2. Backplane
3. Intrusion switch
4. Cabled power supply unit
5. Expansion card riser
7. System board
8. Cooling fans
9. Information tag
