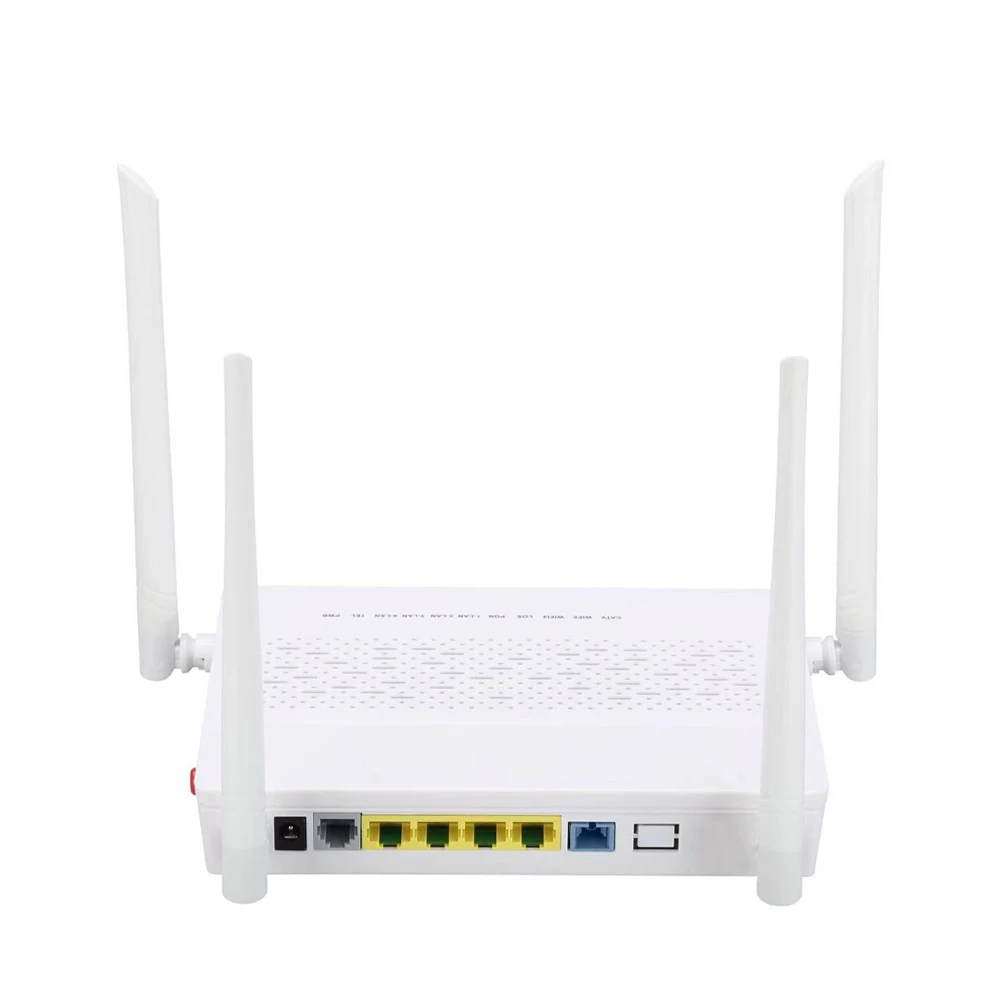

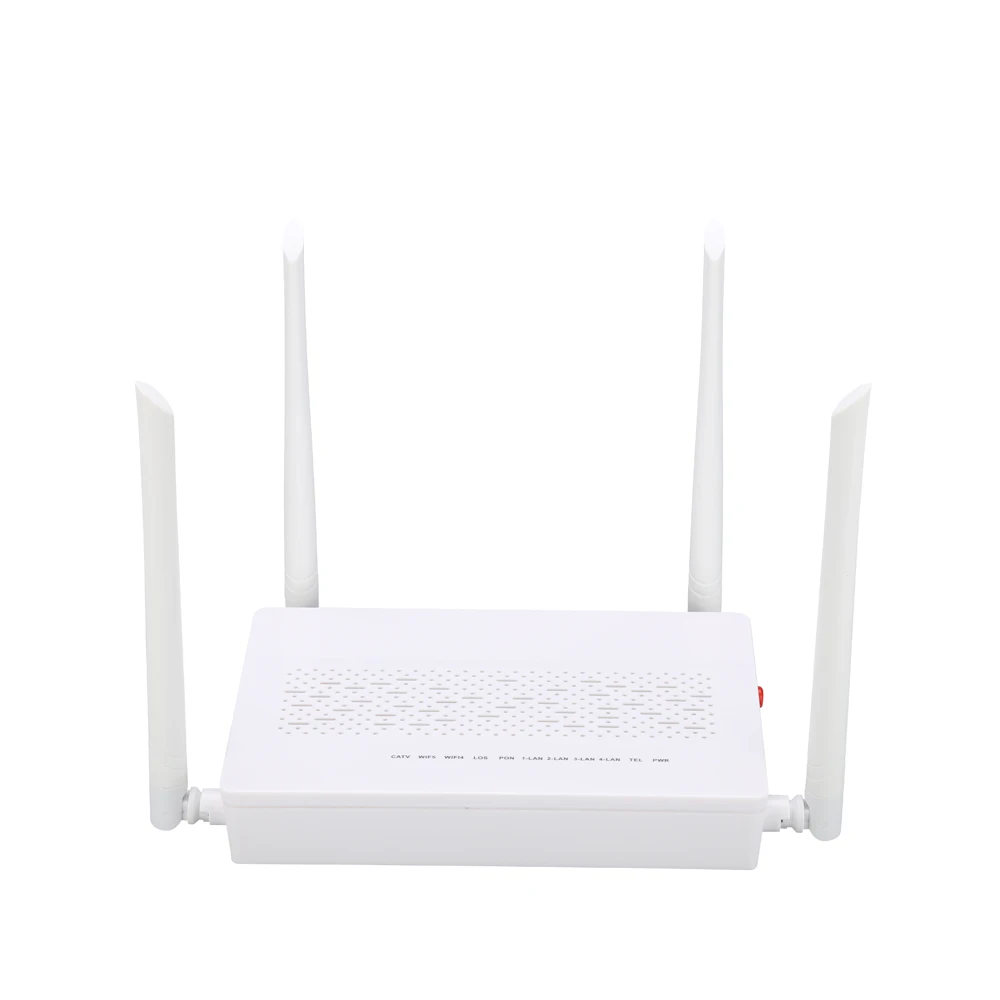

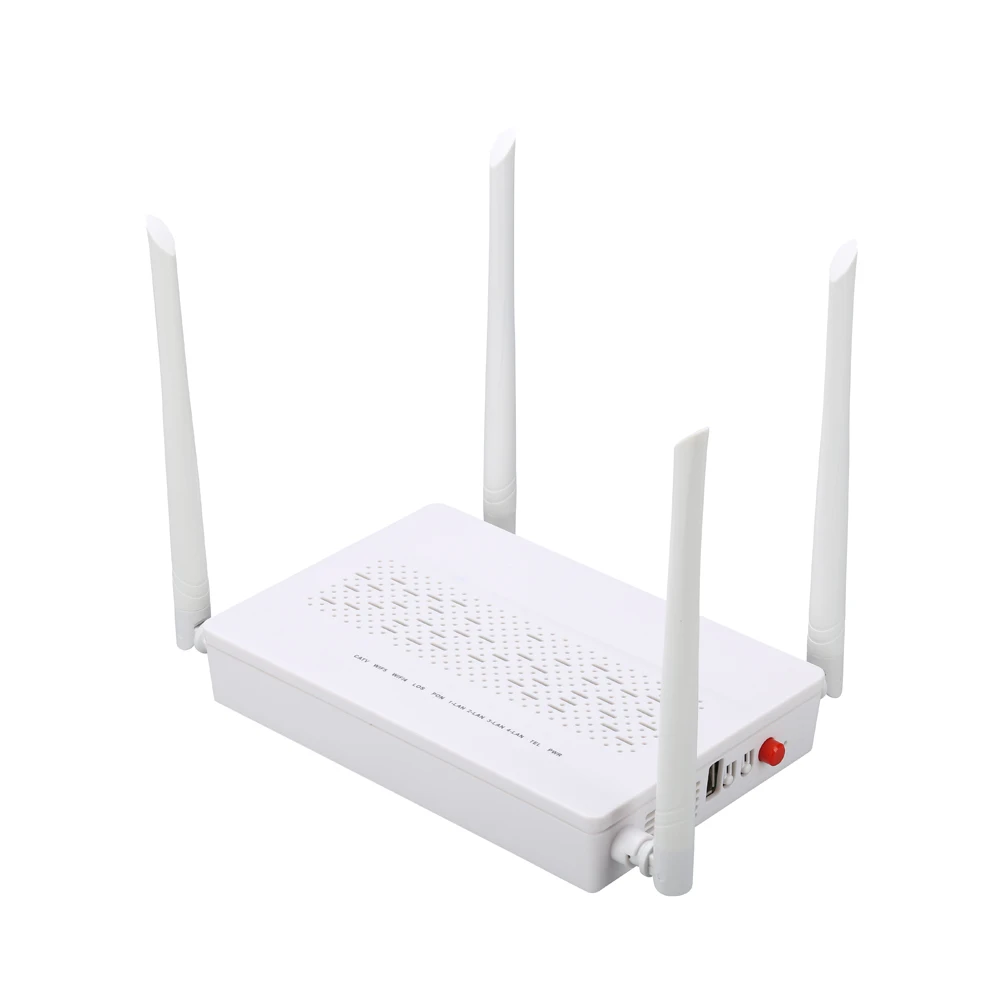

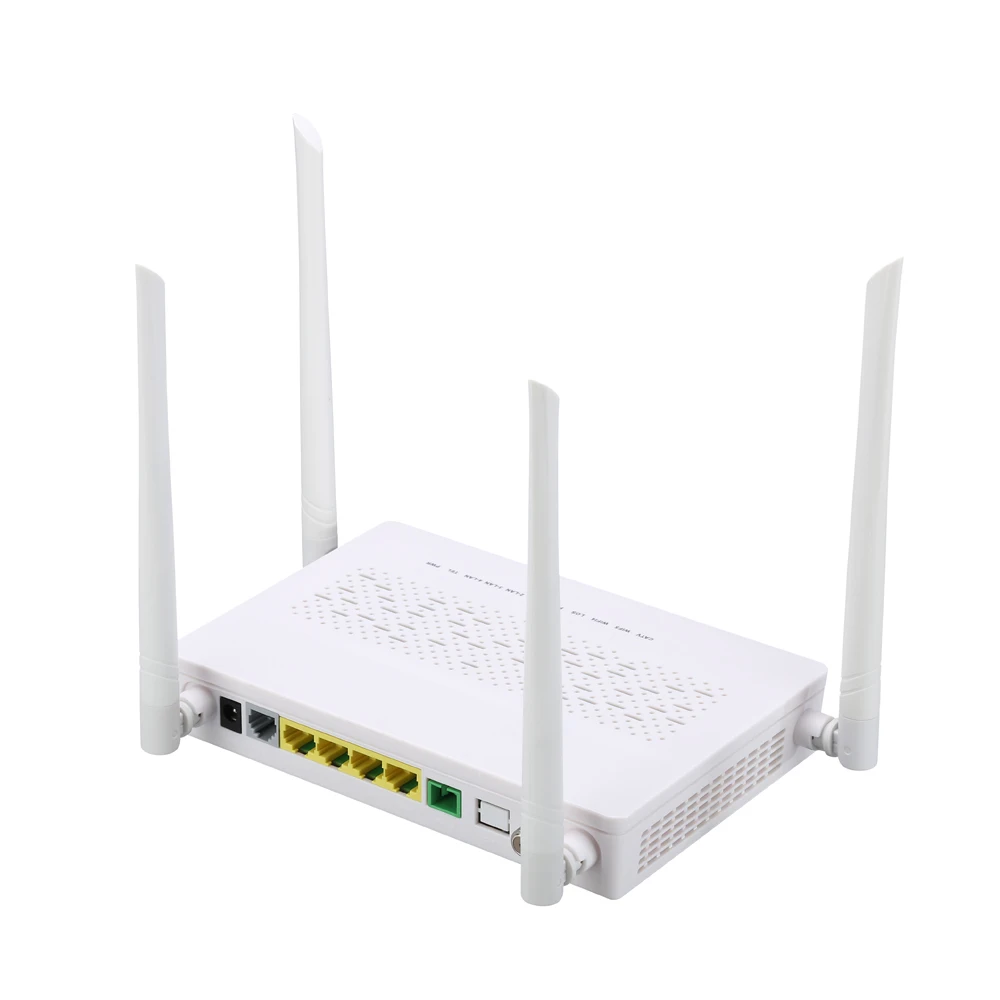

New GPON ONU 4GE 1VOIP WIFI(2.4g 5g) USB GPON ONT dual band with WPS
New GPON ONU 4GE+1VOIP+WIFI(2.4g+5g)+USB GPON ONT dual band with WPS
New GPON ONU 4GE+1VOIP+WIFI(2.4g+5g)+USB GPON ONT dual band with WPS
New GPON ONU 4GE+1VOIP+WIFI(2.4g+5g)+USB GPON ONT dual band with WPS
New GPON ONU 4GE+1VOIP+WIFI(2.4g+5g)+USB GPON ONT dual band with WPS
New GPON ONU 4GE+1VOIP+WIFI(2.4g+5g)+USB GPON ONT dual band with WPS

New GPON ONU 4GE 1VOIP WIFI(2.4g 5g) USB GPON ONT dual band with WPS

Share on (1600825326402):


Price:

Quantity:


Product Overview

Description



Product Description


New GPON ONU 4GE+1VOIP+WIFI(2.4g+5g)+USB GPON ONT dual band with WPS




Product Overview
ONU product is the terminal equipment of a series of GPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,ONU is based on mature and stable and high cost-effectiveG PON technology which adopts high-performance GPON REALTEK chipset and has high reliability， easy management，flexible configuration，robustness，good quality service guarantee(Qos).
This ONU supports WIFI4 (IEEE802.11b/g/n) and WIFI5 (IEEE802.11ac) concurrently ,a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users.
ONU supports the G/E PON switching function automatically
ONU supports a RJ11 interface for VOIP applications
Product Features
Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
Support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate
Support bidirectional FEC and RS(255,239) FEC CODEC
Support 32 TCONT and 32 GEMPORT
Support AES128 decryption function of G.984 standard
Support SBA and DBA dynamically broadband allocation
Support the PLOAM function of G.984 standard
Support Dying-Gasp check and report
Support synchronous Ethernet
Good interworking with the OLT from different manufacturers,such as HuaWei ,ZTE,Cortina etc
Down-link LAN ports: 4*10/100/1000M with auto-negotiation
Support the rogue ONU alarm function
Support VLAN function
Operation mode: HGU
Support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI
Antennas gain: 5DBi with external
Support: 300Mbps PHY rate IEEE802.11n, 866Mbps PHY rate IEEE802.11ac
Support multiply SSID
Multiple encryption methods:WFA、WPA、WPA2、WAPI
One port for VOIP，support SIP protocol optional
Comply fully with IEEE802.3ah standard and CTC-3.0 specification


Tech parameters
Description

Up-link interface
(XPON use the GPON spec)
1 GPON interface，SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type：SC/APC
Optical power：0~4 dBm Sensitivity：-28 dBm
Safety: ONU authentication mechanism
Wavelength(nm)
TX 1310nm，RX 1490nm
Fiber connector
SC/UPC or SC/APC connector
Down-link data interface
4*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED
10 pcs，refer to NO.6 definition of indicator LED
DC supply interface
input＋12V 1A，footprint：DC0005 ø2.1MM
Power
≤7W
Operating temperature
-5～+55℃
Humidity
10～85%（non-condensation）
Storage temperature
-30～+70℃
Dimension（MM）
150*110*36mm（mainframe）
Weight
0.5Kg（mainframe）
WIFI characteristics
Tech features
Description
Antenna
2T2R Mode; gain:5dBi

Rate
300Mbps IEEE802.11n 866 Mbps IEEE802.11ac The number of channel :13 for wifi4;12 for wifi5
Encryption methods
WFA、WPA、WPA2、WAPI
Tx power
17dBm for 2.4GHz ;19dBm for 5GHz

Rx sensitivity
WIFI4：-59dBm @ channel 11 MCS7; WIFI5：-50dBm @ channel 155 AC80;
WPS function
Support
VOIP Technical features
Tech features
Description

Voltage and Current Monitoring
The continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC
Protocol
Protocol : SIP;
Codec type selection :G722,G729,,G711A,G711U,
FAX:T38;
Thermal Overload Shutdown
If the die temperature exceeds the maximum junction temperature threshold, the device will shut itself down


Our Company


Our company's main business: Aggregation routers, load balancing routing, 4G/5G routers, Home routing, Industrial routing, DTU, IoT module，etc.

The company has a strong technical team, many senior software engineers, hardware engineers. Provide customers with product design, hardware development, software function customization, OpenWRT firmware compilation, TR069 protocol compilation, etc.

It can provide customers with MTK, QCA, IPQ industrial grade and other series of solution routers. Cooperative customers and products sell well at home and abroad, and are highly praised by customers.

Our company looks forward to cooperating with you! Develop together and create success together!






Certifications




Packing & Delivery


Packing

We offer a variety of packing services and shipping supplies, including corrugated boxes, bubble wrap. All items will be double checked and well packed before shipping. For items that have a unique shape or size, we'll find the right specialty box to pack it in with care.

Delivery

Shipping service by sea or air door-door to meet your unique on-demand and scheduled delivery needs. Our professional courier agent will ensure your goods are delivered reliability to their destination. We take great care in packing every details to ensure safe shipment to you.



FAQ


Contact US

Irene
Tel/ Whatsapp: +86 135 3816 2820
Skype: sales@hooolink.com
Wechat: hooolink

Our Advantage

1) If we have stock, no MOQ request
2) We provide OEM & ODM service as your request
3) We do pay more attention to the product details, including the packing, lable, shipping mark and so on.

Back-up Service

1) We will revert to you on TradeManager within 1 hour and your inquiry within 24 hours
2) We will provide the latest product information at reglar time.
3) 12 months warranty time
