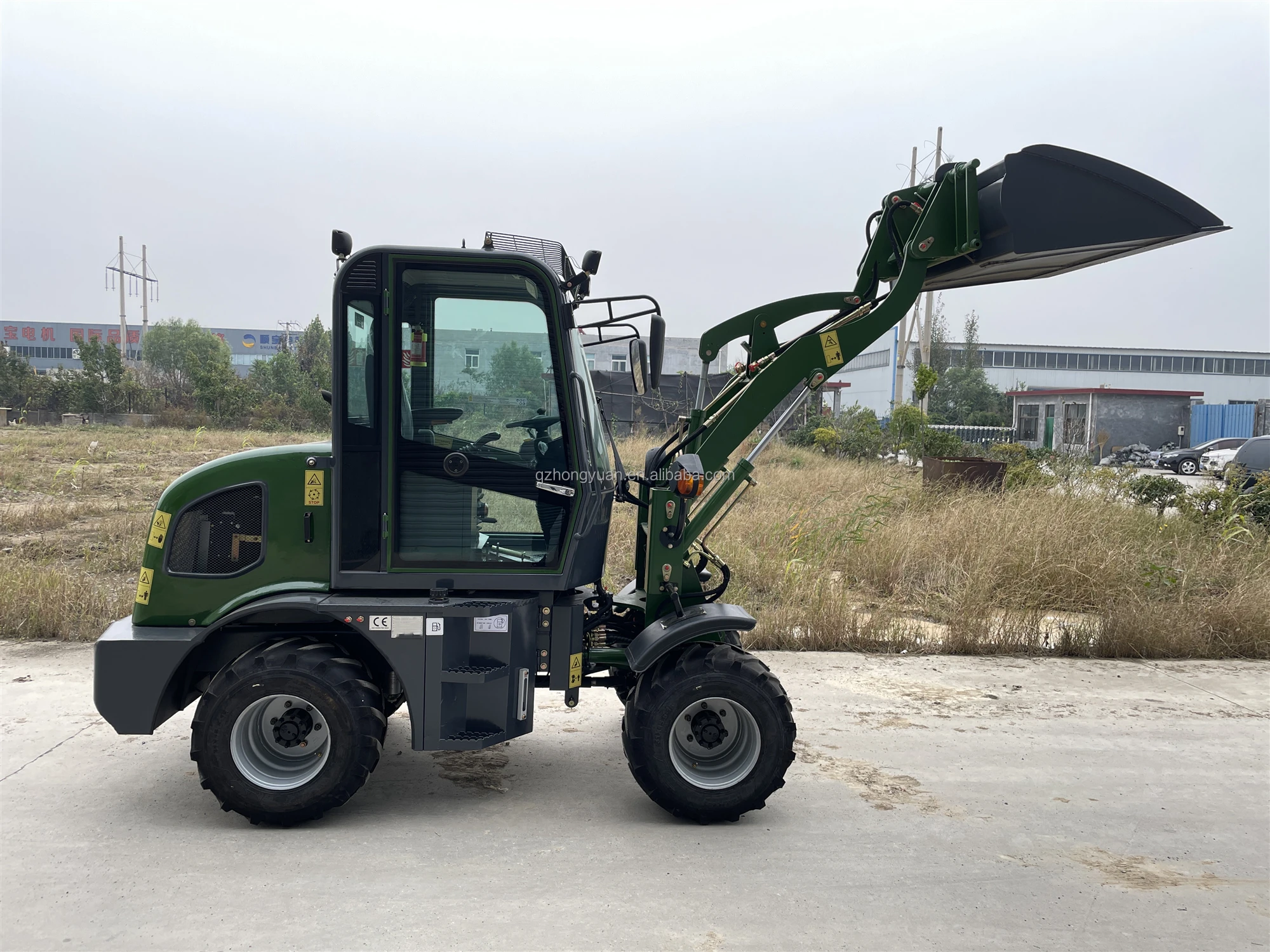

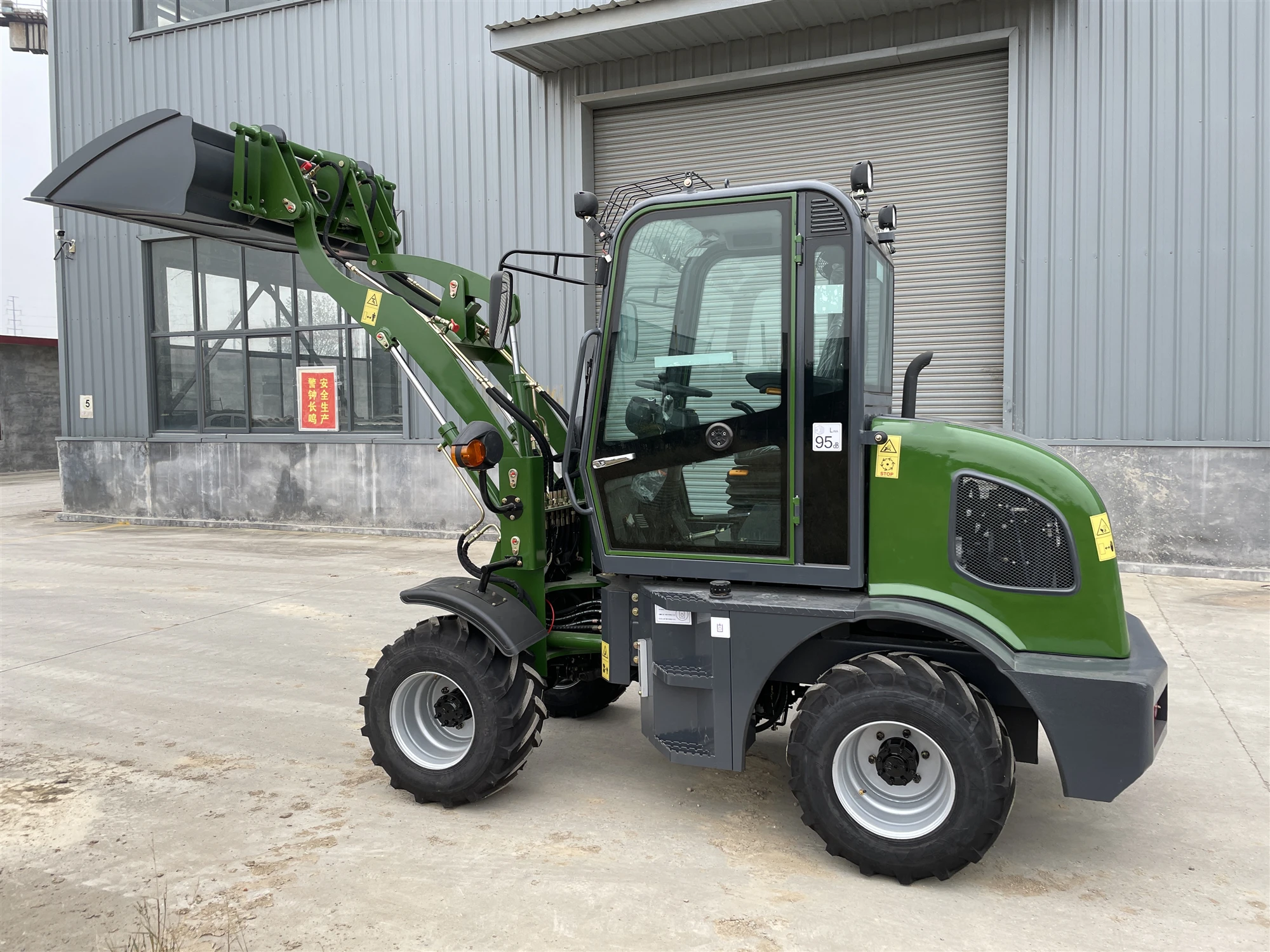

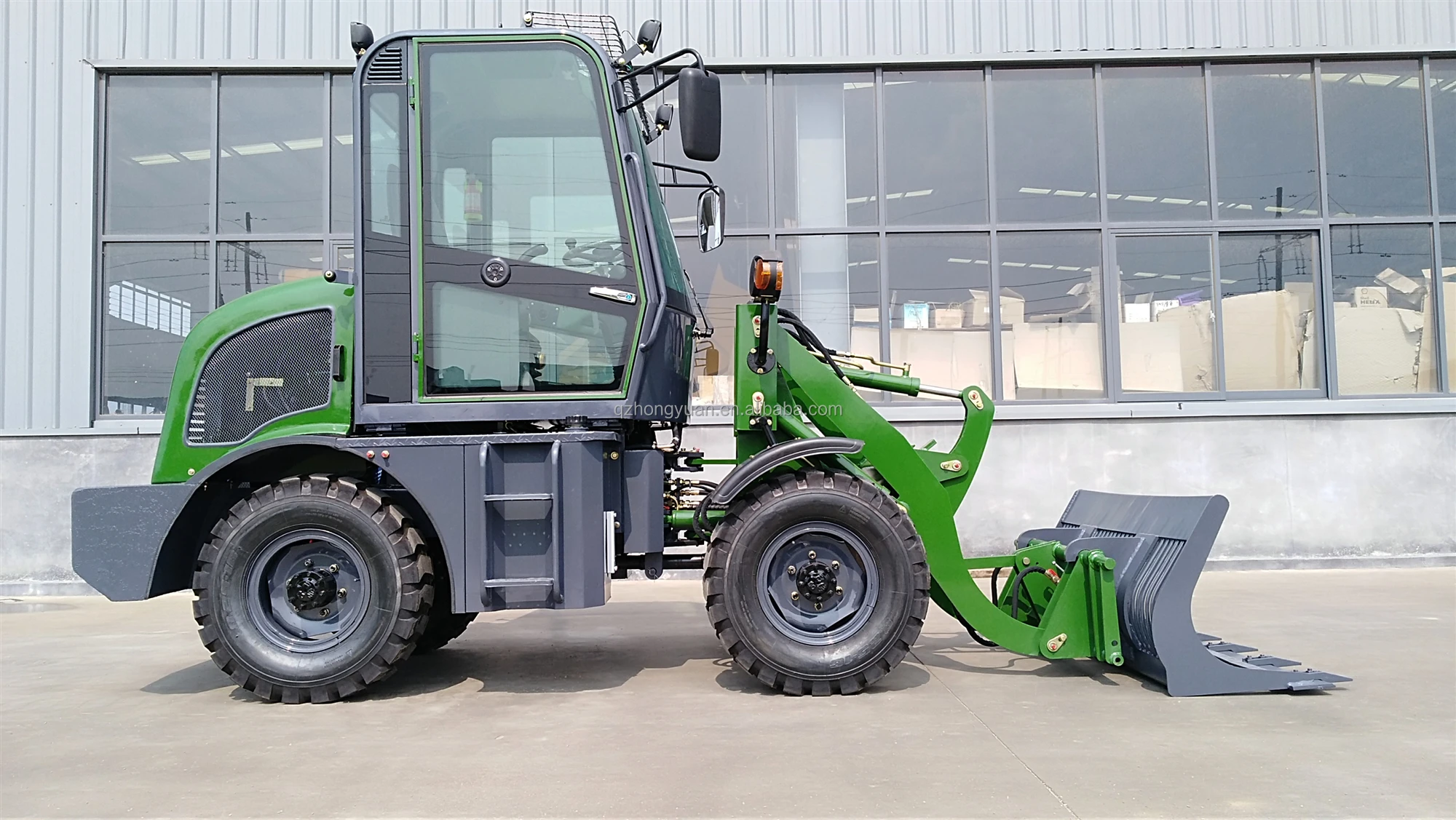

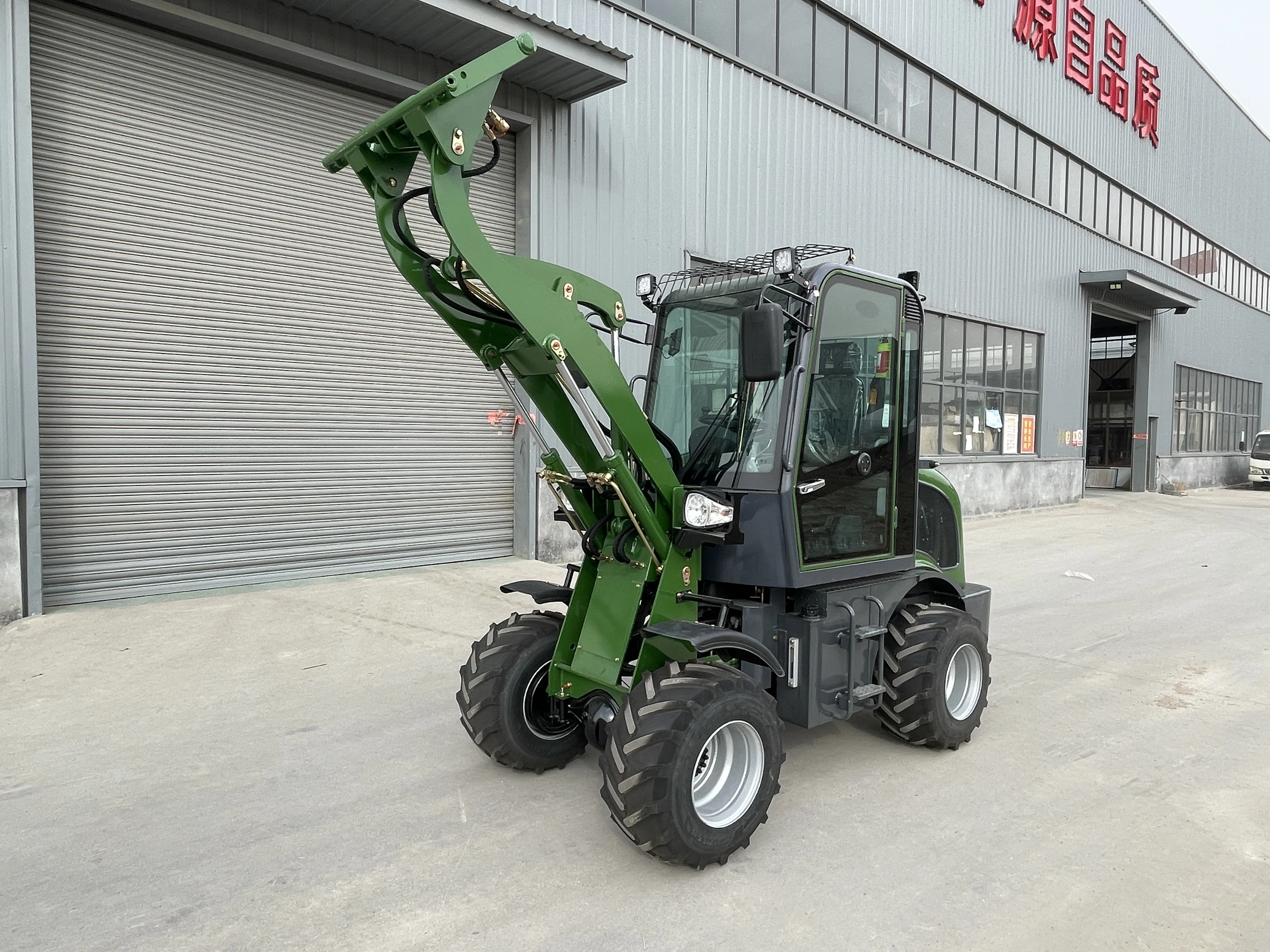

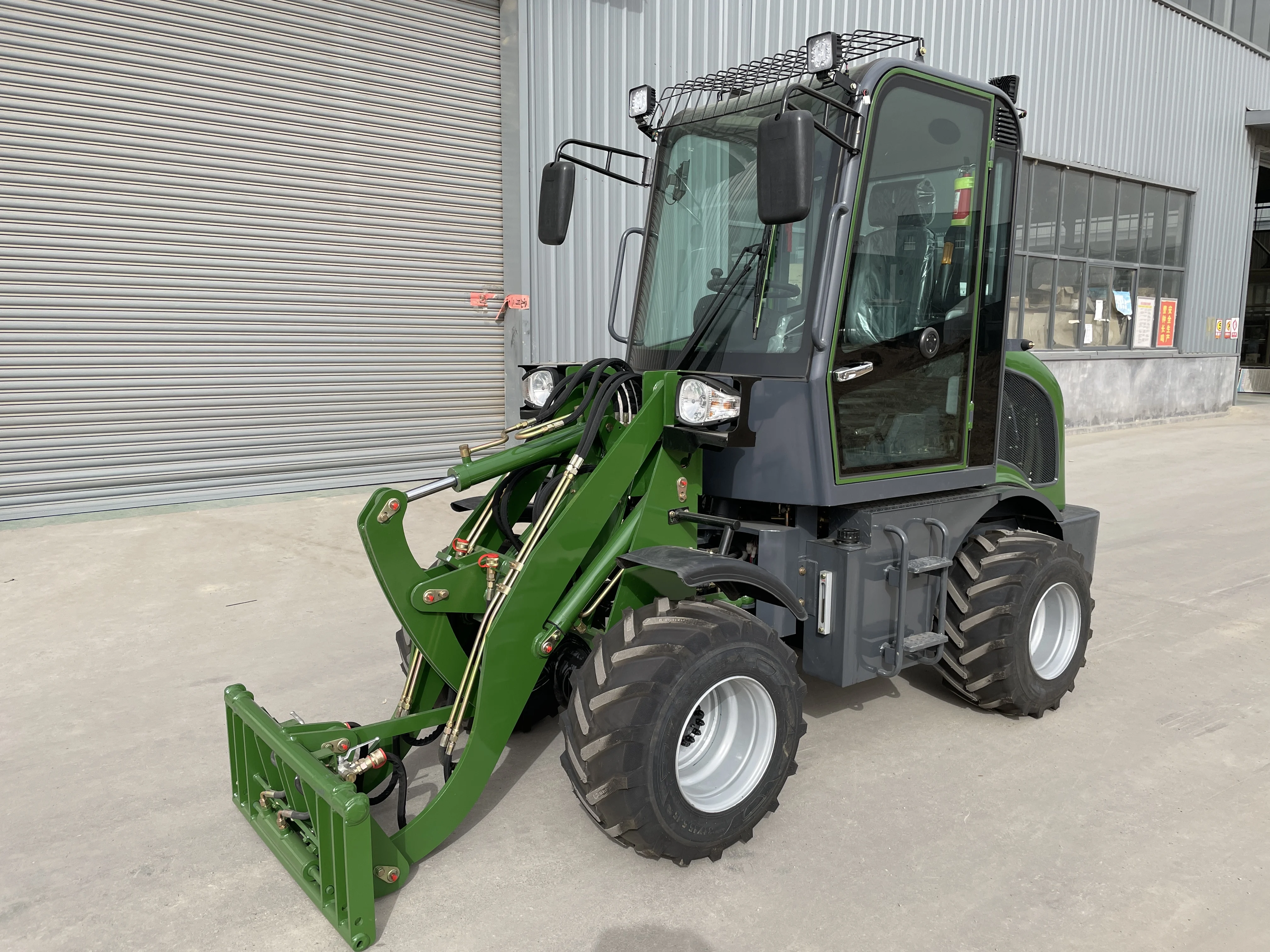

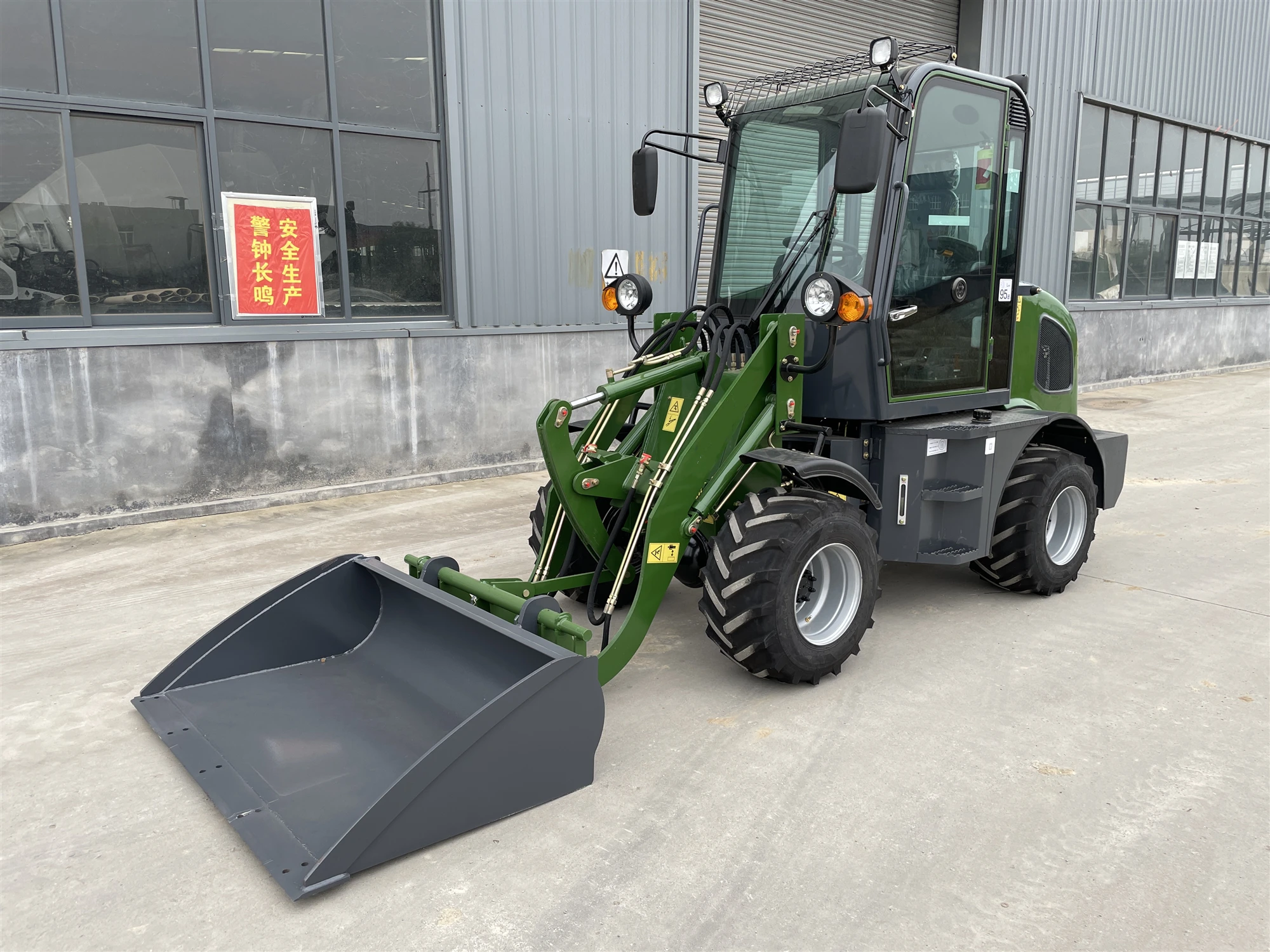

Chinese Top 0.8Ton Mini Wheel Loaders Tractor With CE Certificate Price
- Category: >>>
- Supplier: Qingzhou Hongyuan Vehicles Co. Ltd.
Share on (1600825409281):
Product Overview
Description
Products Description
TECHNICAL PARAMETERS：
* Rated loading weight: 800kg
* Rated bucket capacity: 0.4CBM
* Bucket width: 1,400mm
* Track base: 1,285mm
* Wheelbase: 2,170mm
* Minimum swerve diameter: 4,600mm
* Minimum ground clearance: 240mm
* Dump height fully raised: 2,300mm
* Reach fully raised: 750mm
* Lifting time: 4 seconds
* Hydraulic cycle time: 9 seconds
* Maximum tilt angle: 300
* Maximum bucket breakout force, lift cylinder: 28kN
* Driving mode: four-wheel drive
* Operating weight: 2,850kg
* Dimensions (L x W x H): 4,600x 1,600 x 2,550mm
* Engine model: Changchai ZN390Q
* Engine type: in-line arrangement, water cooled, one-cycle diesel engine
* Engine starting mode: electric
* Rated speeds: 2,400rpm
* Rated power: 25kW
* Brake mode: four-wheel hydraulic spread-shoe brake
* Steering system pressure: 10mPa
* Work system pressure: 16mPa
* Color: according to the requirements of customer
* Packaging details: nude package, 3units/40-foot HQ container
* Supply ability: 100 units per month
* Rated bucket capacity: 0.4CBM
* Bucket width: 1,400mm
* Track base: 1,285mm
* Wheelbase: 2,170mm
* Minimum swerve diameter: 4,600mm
* Minimum ground clearance: 240mm
* Dump height fully raised: 2,300mm
* Reach fully raised: 750mm
* Lifting time: 4 seconds
* Hydraulic cycle time: 9 seconds
* Maximum tilt angle: 300
* Maximum bucket breakout force, lift cylinder: 28kN
* Driving mode: four-wheel drive
* Operating weight: 2,850kg
* Dimensions (L x W x H): 4,600x 1,600 x 2,550mm
* Engine model: Changchai ZN390Q
* Engine type: in-line arrangement, water cooled, one-cycle diesel engine
* Engine starting mode: electric
* Rated speeds: 2,400rpm
* Rated power: 25kW
* Brake mode: four-wheel hydraulic spread-shoe brake
* Steering system pressure: 10mPa
* Work system pressure: 16mPa
* Color: according to the requirements of customer
* Packaging details: nude package, 3units/40-foot HQ container
* Supply ability: 100 units per month
MAJOR FEATURE:
1.Using direct injection diesel engine as power, with easy startup and low oil
consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning,
which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient
operation, good performance and
reliable quality
5.Widely applying to the construction of agricultural engineering and small and
medium building such as road, coal mine, brickyard, urban construction, kiln factory,
stone material factory, prefabricated cement parts factory, etc.
consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning,
which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient
operation, good performance and
reliable quality
5.Widely applying to the construction of agricultural engineering and small and
medium building such as road, coal mine, brickyard, urban construction, kiln factory,
stone material factory, prefabricated cement parts factory, etc.
Details Images
Packing & Delivery
Operating weight: 2,850kg
Dimensions (L x W x H): 4,600x 1,600 x 2,550mm
Nude packing, One 20 feet GP container can pack one unit with some accessories, but need to disassemble the cabin.
Operating weight: 2,850kg
Dimensions (L x W x H): 4,600x 1,600 x 2,550mm
One 40 feet HC container can pack 3 units with some accessories.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
FAQ
Q:All Of Hongyuan Wheel Loader Has CE Certification?
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
A:Yes.They all Have CE Certications.
Q:What Products Dose Hongyuan Machinery Company Has?
A:We Are Mainly Specializing In Producting and Exporting Of Wheel Loader From 0.6 Ton to 5 Ton.Also We Focus On Export Other Machine Like Offroad Forklift, Site Dumper, Backhoe Loader, Telescopic loader, Sugarcane machine etc. Agricultural and Enginnering Machinery.
Q:Dose the Hongyuan Machinery Has Their Own Factory?
A:Yes,We Have Our Own Production Workshop and Experienced Engineers In Qingzhou Hongyuan Factory. More Products Can Be Developed and Improved According to Our Customers' Requirements.
Q:Dose the Hongyuan Machinery Has Good Service?
A:Yes,of course. We Have a Professional Sale and After-Sales Service Team. We require all the personnel of the service must be within 24 back to all customer inquiries.
Customer Photos
Company Profile
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer
and exporter of wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient
transportation access. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world. We have over 100 employees to reach
an annual sales e that exceeds USD10,000,000, and we are currently exporting 100% of our product
worldwide. We also have approved Real CE Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,
ZL15,ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with
morethan 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift,
Sugarcane loader, Site Dumper, Self-loading concrete mixer, etc. As a result of our high quality products
and outstanding customer service, we have exported to Germany, Sweden, Finland, Poland, Norway,
Hungary, Austria, Belgium,Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea,
Malaysia, Indonesia, Vietnam, Cambodia, Australia, Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
and exporter of wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient
transportation access. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets throughout the world. We have over 100 employees to reach
an annual sales e that exceeds USD10,000,000, and we are currently exporting 100% of our product
worldwide. We also have approved Real CE Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,
ZL15,ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with
morethan 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift,
Sugarcane loader, Site Dumper, Self-loading concrete mixer, etc. As a result of our high quality products
and outstanding customer service, we have exported to Germany, Sweden, Finland, Poland, Norway,
Hungary, Austria, Belgium,Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea,
Malaysia, Indonesia, Vietnam, Cambodia, Australia, Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
