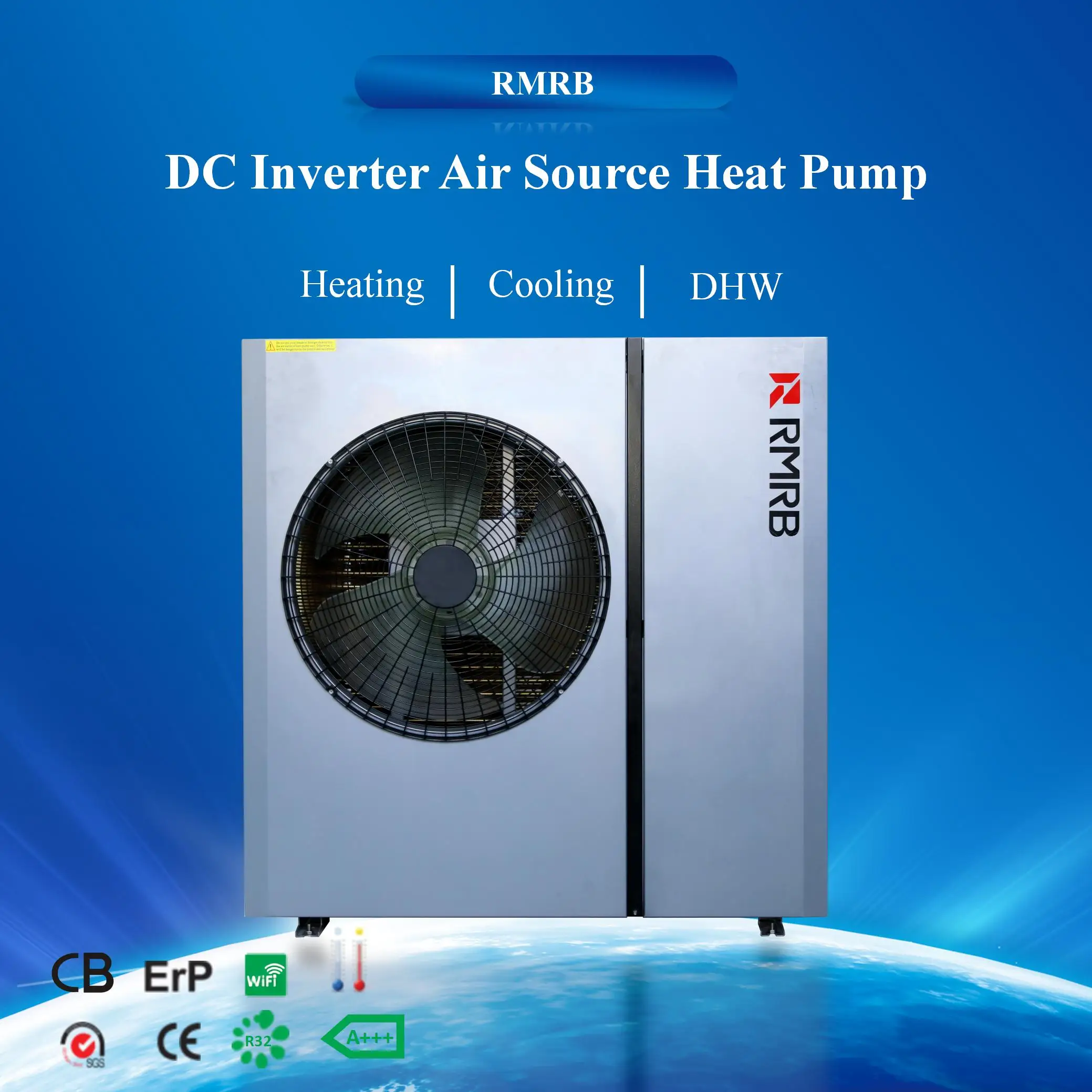

Cheap Prices RMRB New Energy Monoblock 8.2kW Inverter Water Heater Air to Water Heat Pump for Hotel
- Category: >>>
- Supplier: Guangzhou Realm Co. Ltd.
Share on (1600825410141):
Product Overview
Description
Products Description
Our Advantages
Multiple mute design
Professional airflow analysis sofware is used to analyze from multiple angles such as heat exchanger, motor, fanblade, alir duct, and shell structure to realize multiple mute design.
Fan stepless adjustment
Adopting brushless DC motor stepless adjustment technology.
Large fan design
The design of ouldoor fan is optimized. The large diameter single fan blade of 480 ~ 580MM is adopted to make the powder quantity larger and the speed lower. A brushless bC motor is employed to make the wind softer.
Professional airflow analysis sofware is used to analyze from multiple angles such as heat exchanger, motor, fanblade, alir duct, and shell structure to realize multiple mute design.
Fan stepless adjustment
Adopting brushless DC motor stepless adjustment technology.
Large fan design
The design of ouldoor fan is optimized. The large diameter single fan blade of 480 ~ 580MM is adopted to make the powder quantity larger and the speed lower. A brushless bC motor is employed to make the wind softer.
High performance
The unit uses air as the heat source for cooling, heating, and high-temperature hot water; Its efficiency is up to 300- 500%;
Fully automatic microcomputer control, no need for special care.
Do not need to adjust
Full DC inverter system; The unit can be continuously adjusted; Wide capacity adjustment range, truly achieve complete output control.
Super wide working range
Standard unit operating environment range of -25'C -43C;
Ultra-low temperature type unit environment range -35 C~46'C.
Comfortable
Suitable temperature and humidity, dry and wet season without worry. No manual operation is required for automatic control of the machine. Set the temperature as required to make the room temperature more balanced, comfortable, and healthy.
The unit uses air as the heat source for cooling, heating, and high-temperature hot water; Its efficiency is up to 300- 500%;
Fully automatic microcomputer control, no need for special care.
Do not need to adjust
Full DC inverter system; The unit can be continuously adjusted; Wide capacity adjustment range, truly achieve complete output control.
Super wide working range
Standard unit operating environment range of -25'C -43C;
Ultra-low temperature type unit environment range -35 C~46'C.
Comfortable
Suitable temperature and humidity, dry and wet season without worry. No manual operation is required for automatic control of the machine. Set the temperature as required to make the room temperature more balanced, comfortable, and healthy.
Energy efficiency
COP meets EU level 1 energy
efficiency standard "A+++", .
Full DC inverter design
It adopts high-end axiliary heat transfer analysis software, is combined with experimental numerical simulation calculation to optimize the design of the heat exchange tube and the structure of the high-efficiency intemal thread copper tube. Besides it is designed with a new large fan. Finall, the heat transfer performance of the unit is effectively improved.
Efficient heat transfer technology
It adopts high-end auxiliary heat transfer analysis software. It is combined with experimental numerical simulation calculation to optimize the design of the heat exchange tube and the structure of the high-efficiency internal thread copper tube. Besides, it is designed with a new large fan. Finally, the heat transfer performance of the unit is effectively improved.
COP meets EU level 1 energy
efficiency standard "A+++", .
Full DC inverter design
It adopts high-end axiliary heat transfer analysis software, is combined with experimental numerical simulation calculation to optimize the design of the heat exchange tube and the structure of the high-efficiency intemal thread copper tube. Besides it is designed with a new large fan. Finall, the heat transfer performance of the unit is effectively improved.
Efficient heat transfer technology
It adopts high-end auxiliary heat transfer analysis software. It is combined with experimental numerical simulation calculation to optimize the design of the heat exchange tube and the structure of the high-efficiency internal thread copper tube. Besides, it is designed with a new large fan. Finally, the heat transfer performance of the unit is effectively improved.
Product Parameters
Product parameters | ||||||
Model Type | Monoblock | RMAW-03ZR1-V | ||||
Power supply | 220-240V.50Hz.1Ph | |||||
HP | 3HP 8.2KW | |||||
Heating Capacity(kW) | 2.3~10.5 | |||||
Cooling Capacity(kW) | 2.0~7.9 | |||||
Power Input(kW) | 1.0~3.0 | |||||
Seasonal Space Heating energy efficiency class | LWT at 35ºC | A+++ | ||||
LWT at 55ºC | A++ | |||||
Refrigerant | Type(GWP) | R32/R410A | ||||
Charged volume(kg) | 3 | |||||
Sound Pressure Noise | dB(A) | 52 | ||||
Electric heater | kW | 3 | ||||
Water pump | Max Pump head(m) | 8 | ||||
Water piping connection | mm | DN25 | ||||
Ambient temperature range | Cooling | -5ºC to 46ºC | ||||
Heating | -25ºC to 35ºC | |||||
LWT temperature range | Cooling | 5ºC to 25ºC | ||||
Heating | 25ºC to 60ºC | |||||
Monoblock | ||||||
Net Dimension(L*W*H) | mm | 995*420*1000 | ||||
Packing Dimension(L*W*H) | mm | 1060*510*1140 | ||||
Net/Gross Weight | Kg | 90/120 | ||||
Monoblock | 20GP/40GP/40HQ | set | 46/92/92 | |||
CERTIFICATE

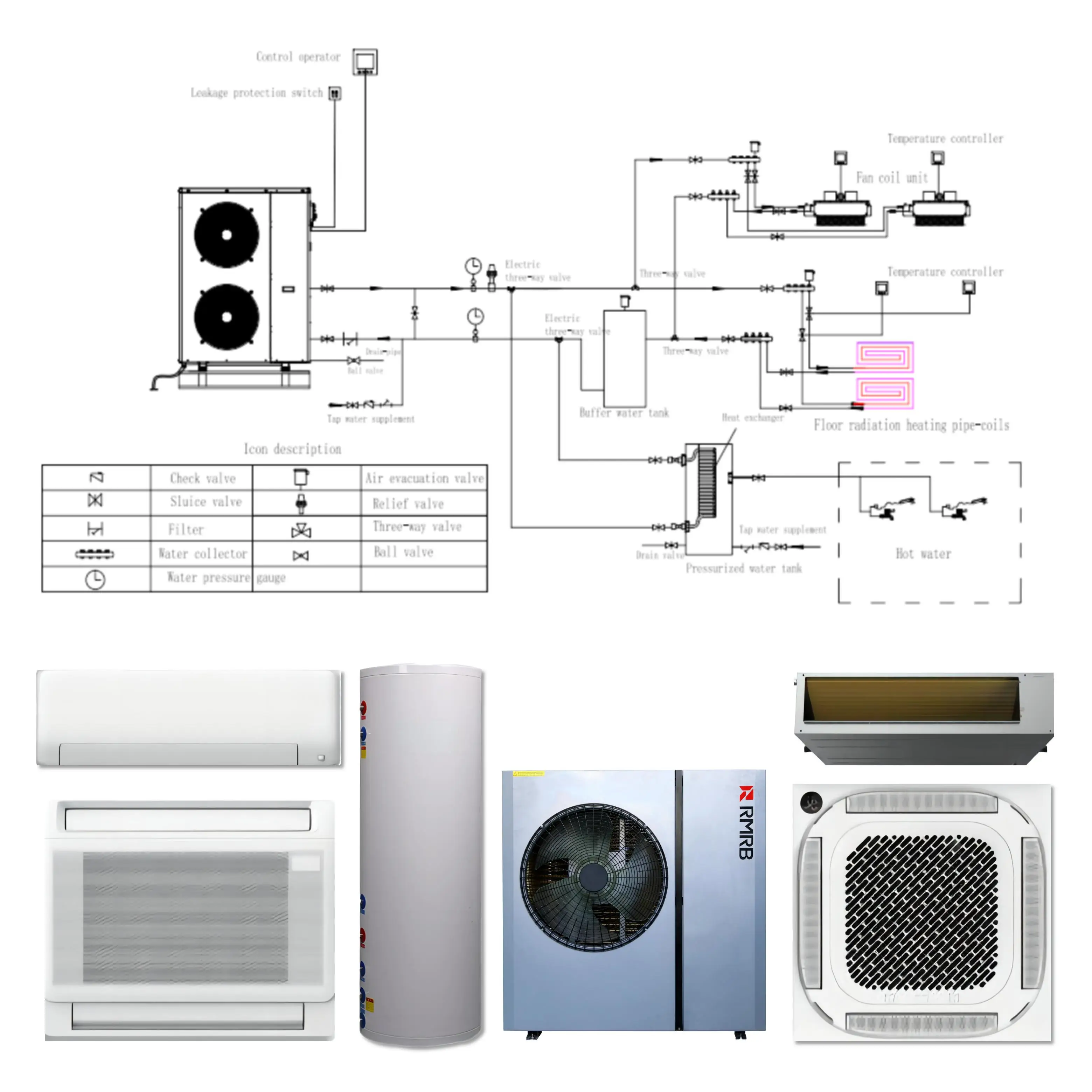

INSTALLION
Factory and Company
Our Services&Packing
Services
1.The whole product is guaranteed for 2 years.
2.The normal service life of the product is 10-15 years.
3.The faulty parts within the repair scope are guaranteed for replacement for 2 years.
4.If you have any question,please email us. We will reply to the email as soon as possible (within 24 hours).
Warranty
1.You inquiry related to our products or price will be replied within 24 hours .
2.Well-train and experienced team give more patience and good service for you.
3.Check the goods before sending the shipment.Confirm the price of goods.
4.We respect your feedback after receiver the goods .
5.Protection of your sales area idea of design and all your private information.
6.Welcome to visit our factory
1.The whole product is guaranteed for 2 years.
2.The normal service life of the product is 10-15 years.
3.The faulty parts within the repair scope are guaranteed for replacement for 2 years.
4.If you have any question,please email us. We will reply to the email as soon as possible (within 24 hours).
Warranty
1.You inquiry related to our products or price will be replied within 24 hours .
2.Well-train and experienced team give more patience and good service for you.
3.Check the goods before sending the shipment.Confirm the price of goods.
4.We respect your feedback after receiver the goods .
5.Protection of your sales area idea of design and all your private information.
6.Welcome to visit our factory
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer since 2005, with experienced and outstanding R&D team, production, marketing and service supplying.
Q2: What are your main products?
A: Our products include air source heat pump, water source heat pump, geothermal heat pump, swimming pool heat pump, super low noice heat pump and EVI heat pump for cold climate etc.
Q3: How about the lead time?
A: It will take 15-30 working days for general order. And needs to negotiated for large and customized orders.
Q4: Do you provide OEM/ODM customized service?
A: Yes, we warmly welcome your OEM/ODM orders. We can produce standard heat pumps under your brand and according to your special needs.
Q5: Can i become your heat pump agent/distributor?
A: Yes, we warmly welcome you become our heat pump agent/distributor who can distribute our heat pumps in your local country.
Q6: How to place an order?
A: You can contact us via email or online service at any time, we will offer you ralated product information and help you to place an order.
Q7: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>10000 USD, 30% T/T in advance , 70% balance before shipment or against B/L
