BR SOLAR 100kw solar panel Off Grid 3kw 5kw 10kw Solar Systems Complete PV Power System
- Category: >>>
- Supplier: Yangzhou Intelligence Solar Co. Ltd.
Share on (1600825434280):
Product Overview
Description

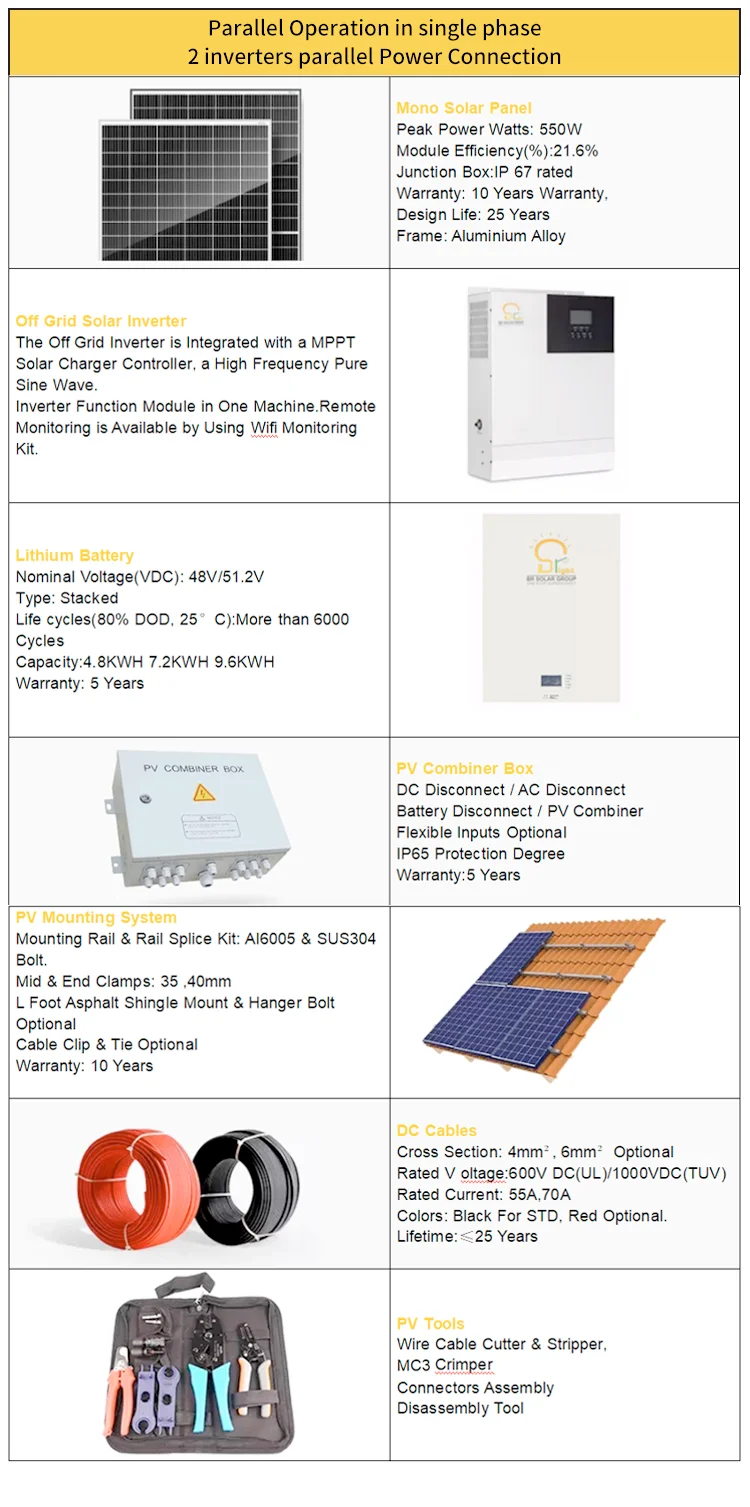

Item | Part | Specification | Quantity | Remarks |

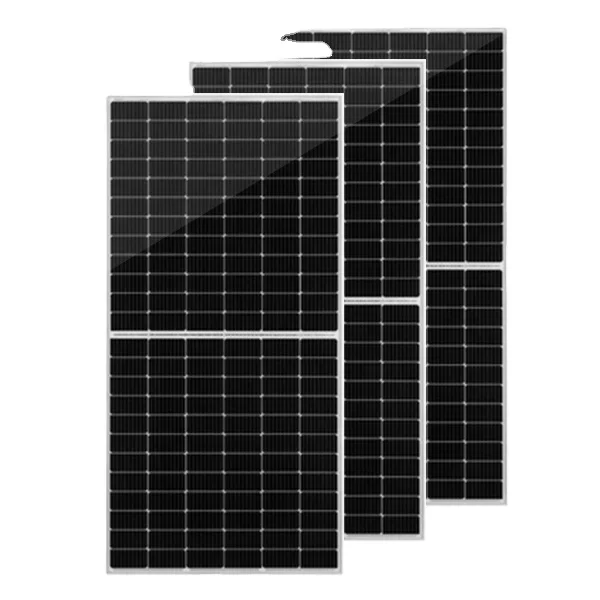

1 | Solar panel | Mono Half Cell BR-M550W Class A+,21.6% Efficiency | 18pcs | connection method：9 strings x 2 parallels |

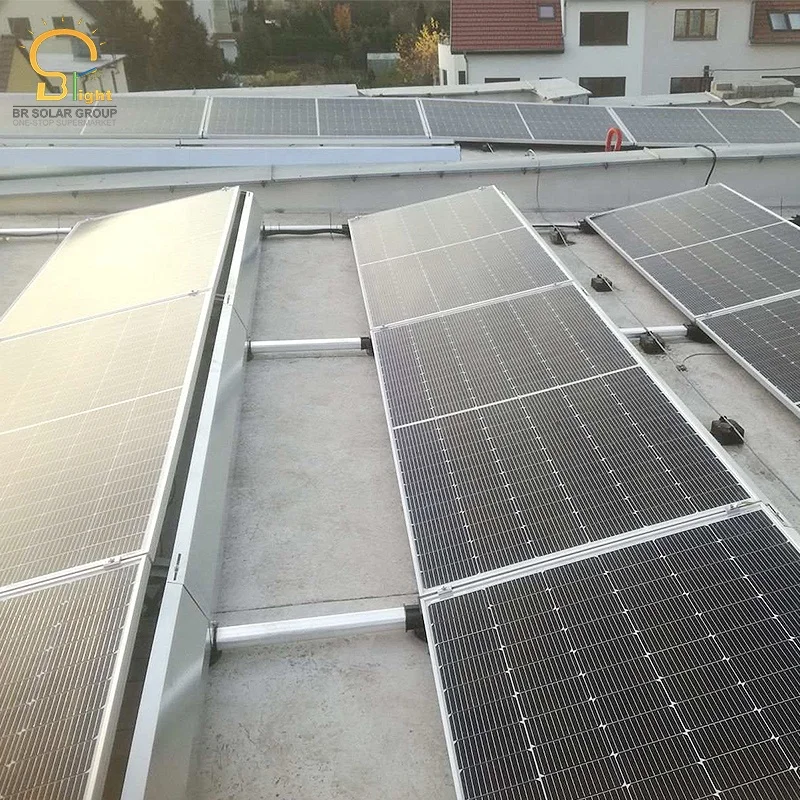

2 | Mounting Bracket | Hot-dip Galvanized Rooftop Mounting Brackets | 1set | Rooftop Mouting Brackets Anti-Rust,Anti-Corrosion ,Anti-Salt Spray, wind resistance≥160KW/H 35 Years Design Lifespan |

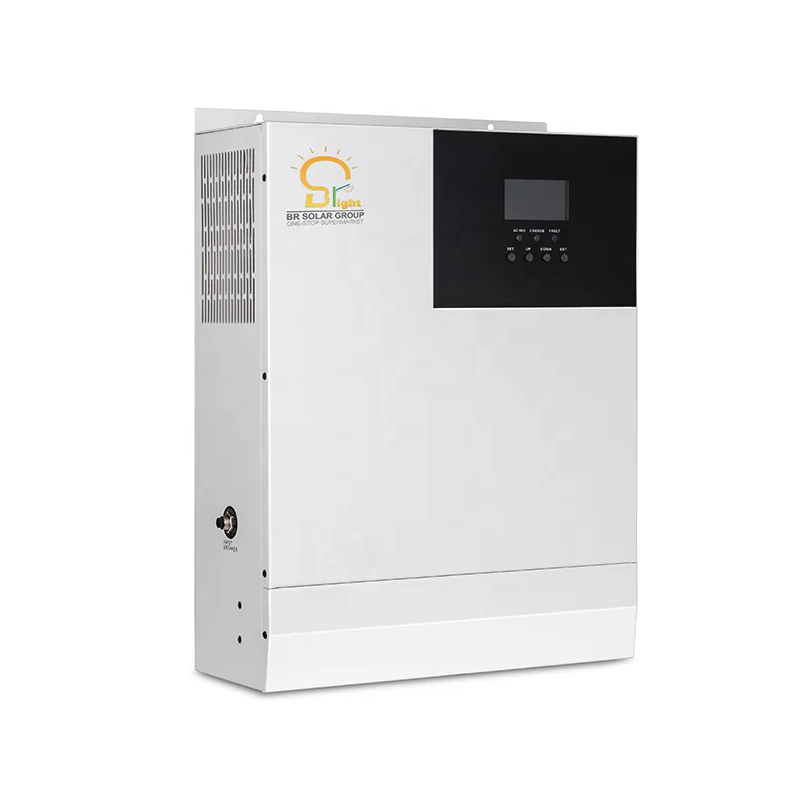

3 | Power Frequency Inverter | BR Bright Series All in one Inverter BR-BR-5K-48V-80A (MPPT) | 2sets | 1. AC Input voltage range: 170VAC-280VAC. 2. AC Output voltage: 230VAC. 3. Pure sine wave, high frequency output. 4. Max PV Power: 5000W. 5. Max PV Voltage : 500VDC. |
4 | DC Distribution Box | 1set | ||
5 | Lithium Battery | 48V-200AH | 3pcs | 3 parallels Total release power：23KWH |
6 | Connector | 16pairs | ||
7 | PV cables (solar panel to Inverter) | 6mm2 | 100m | 20 Years Design Lifespan |
8 | BVR Cables(Inverter to DC Distribution Box) | 35mm2 2m | 4pcs | |
9 | BVR Cables(Battery to DC Distribution Box) | 35mm2 2m | 3pcs | |
10 | AC Breaker | 2P 63A | 1pc |
