Replace phoenix MC1.5 ST 15EDGK 3.5 3.81mm pitch pluggable terminal block 02P 24P green connector
- Category: >>>
- Supplier: Hefei Feilon Technology Co. Ltd.
Share on (1600825693473):
Product Overview
Description
Terminal block
Product Description
The plug in series wiring terminal is formed by plugging and connecting two parts.One parts compresses the wire and then plugs it into the other part,which is welded to the PCB board.The mechanical principle of the bottom and the anti vibration design ensure the long-term airtight connection of the product and service reliability of the finished product.Both ends of the socker can be equipped with matching ears,which can protect the connector to a great extent.
| Rated Voltage | 300V |
| Rated Current | 8A |
| Poles | 02-24p |
| Color | Green |
| Housing Material | PA66 V-0 |
| Contact Material | Copper alloy |
| Operating temperature [℃] | -40~+105 |
| Stripping length | 10mm |
| Noted | The color can accept customer made |

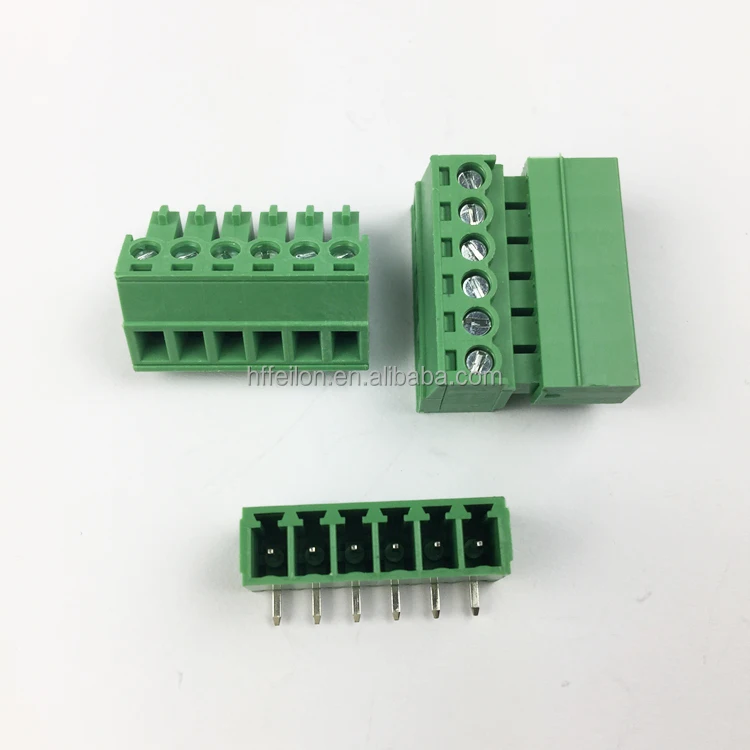

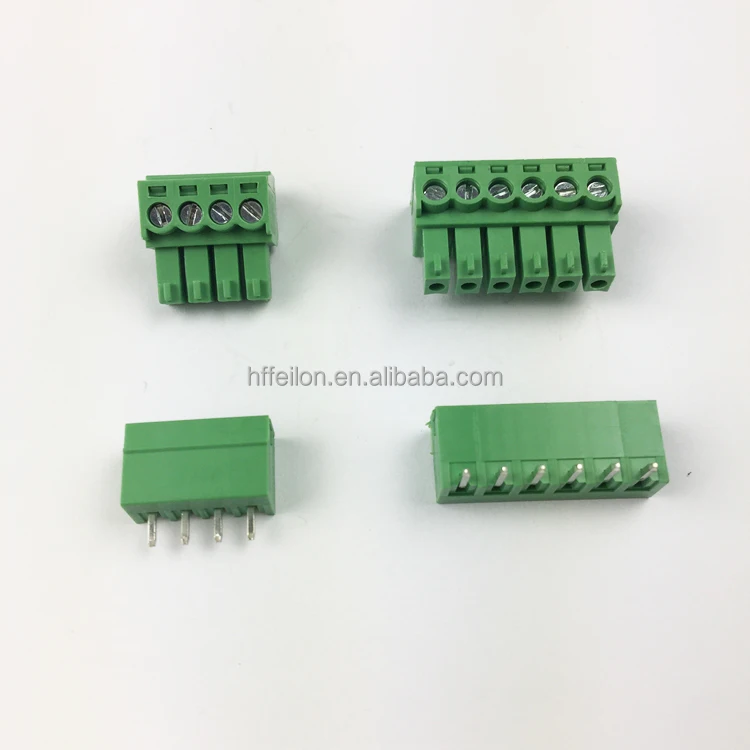

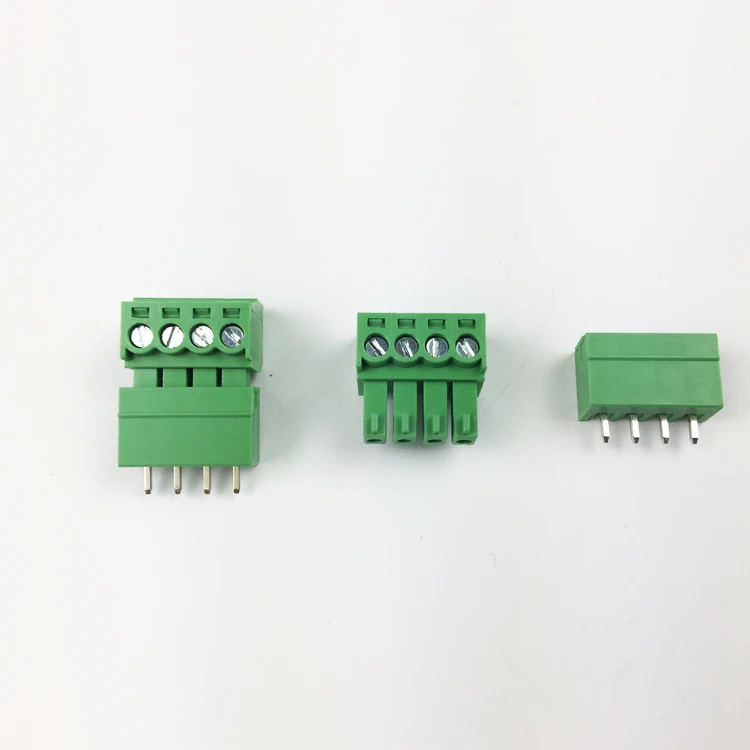

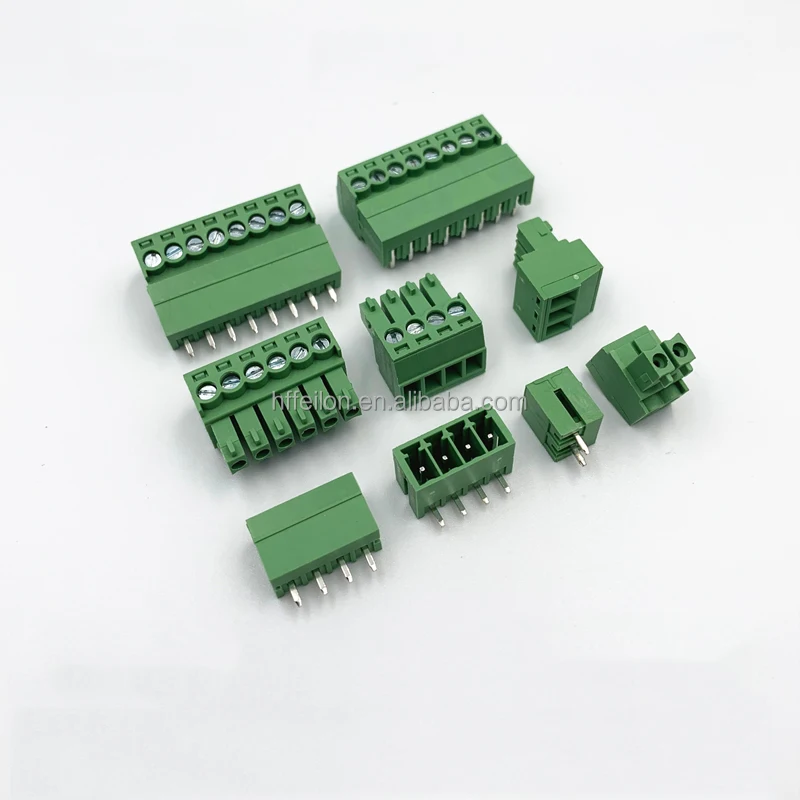

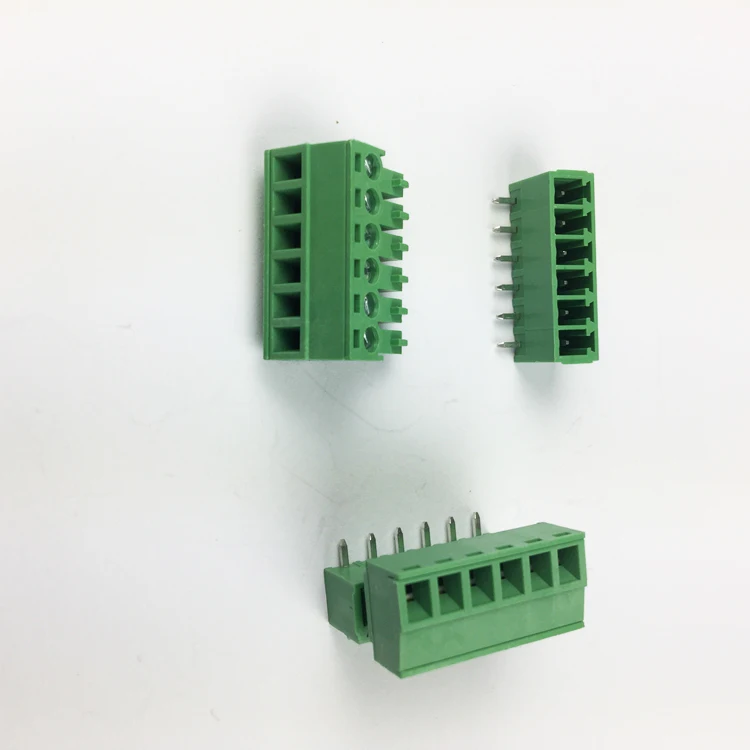

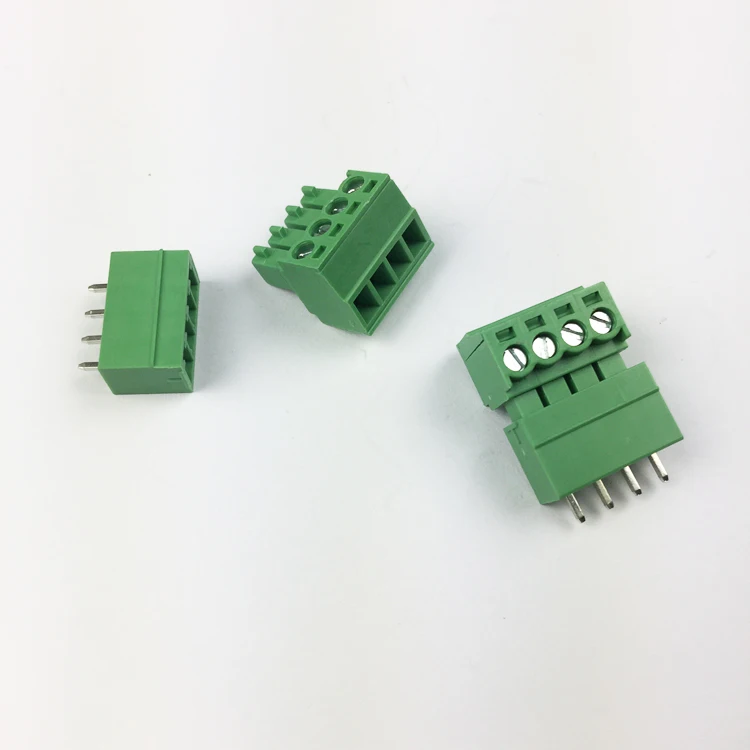

Product Photo
Application
The pluggable quick connection terminal series adopts the combination of easy to operate pluggable connection and firm and universal screws mode to connect various parts.The plug-in quick connection terminal is composed of two parts.One part compresses the wire and then plugs it into the other part,which is welded to the PCB board.The mechanical principle of the bottom and the anti virbration design ensure the long-term airtight connection of the product and the service reliability of the finished product.
Relative Products
we can offered widely series of terminal block,pcb screw terminal block ,plug in terminal block,pcb spring terminal block,universal terminal block,feed throught terminal block,barrier terminal block and etc,followed is main pluggable terminal blocks,please let me know if any model that you are interested.
