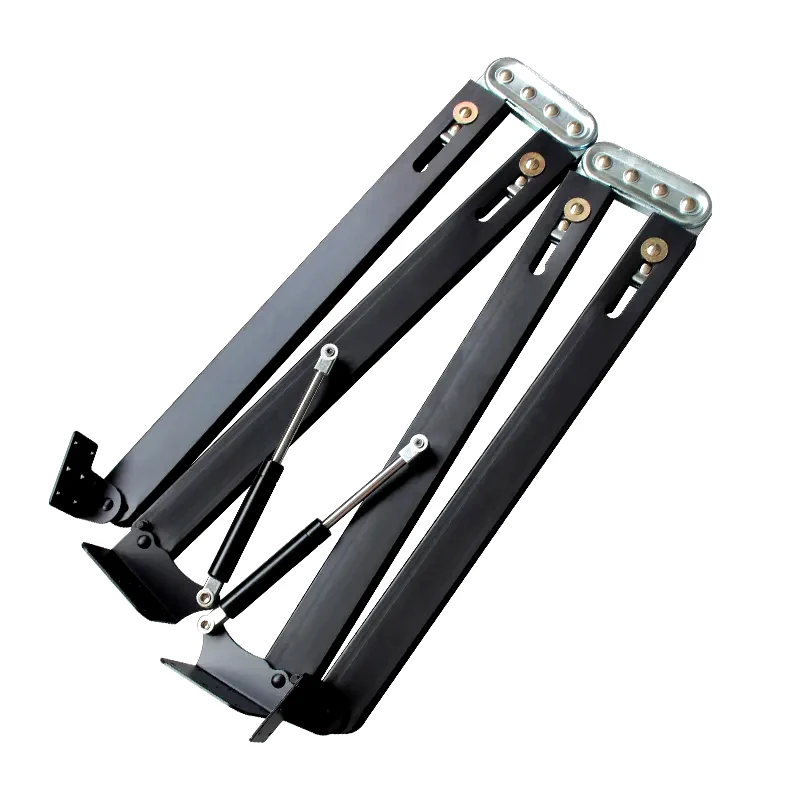

Manufacturer folding invisible table hinges hardware accessories telescopic multi function dining table functional brace
- Category: >>>
- Supplier: Foshan Aidibang Hardware Furniture Co. Ltd.
Share on (1600825751761):
Product Overview
Description

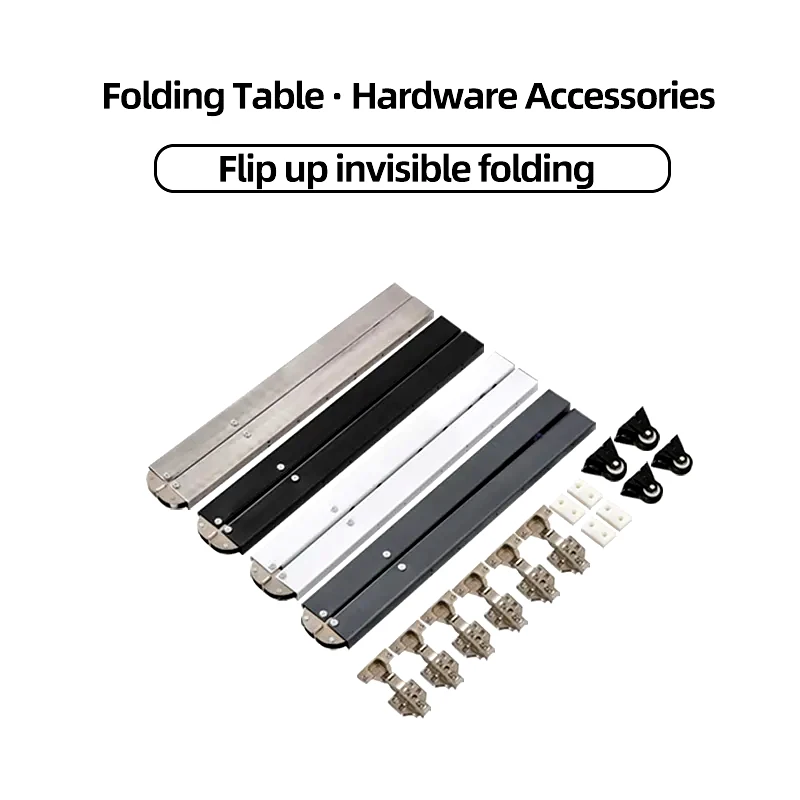

Folding table hardware accessories

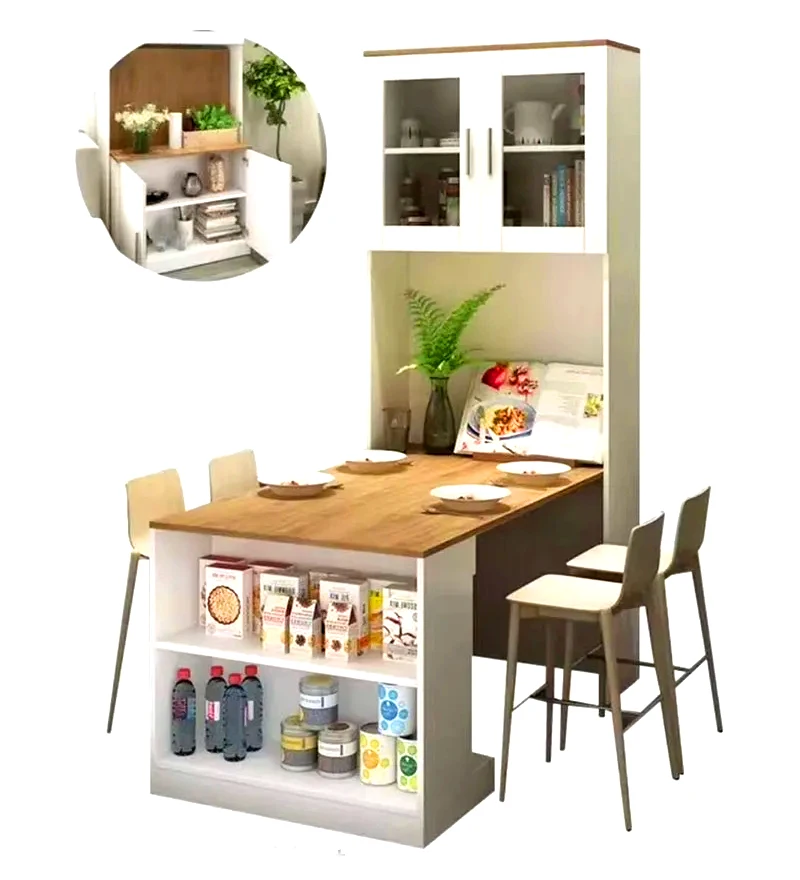

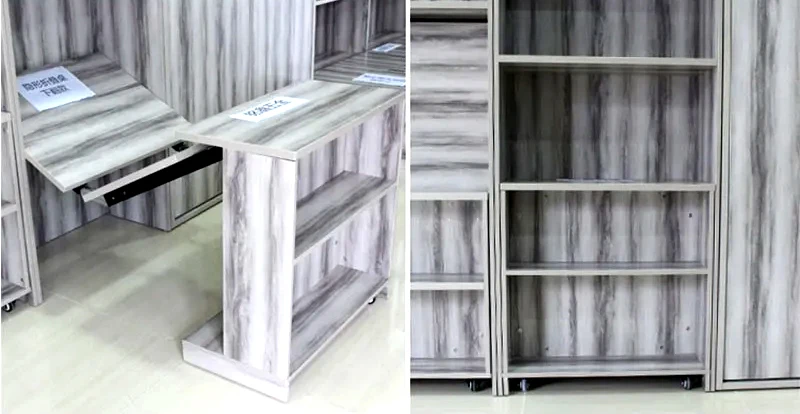

MULTI-PURPOSE CABINET
Multi-purpose cabinetDining table/desk/desk/computer desk
○●○

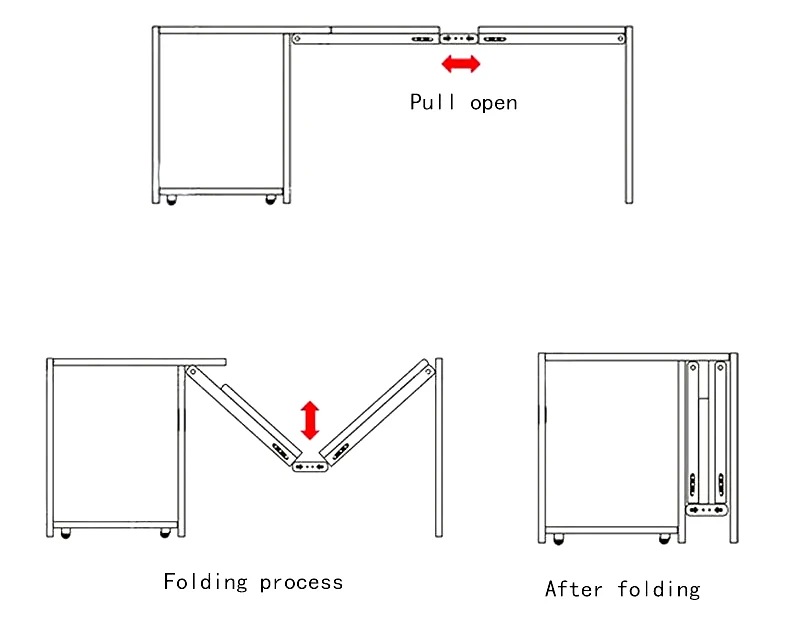

Folding design saves spaceOpen and close
fold freely,give you more convenience
○●○
Selected high quality solid wood exquisite accessories
Not only beautiful, but also a quarantee of safety.
○●○

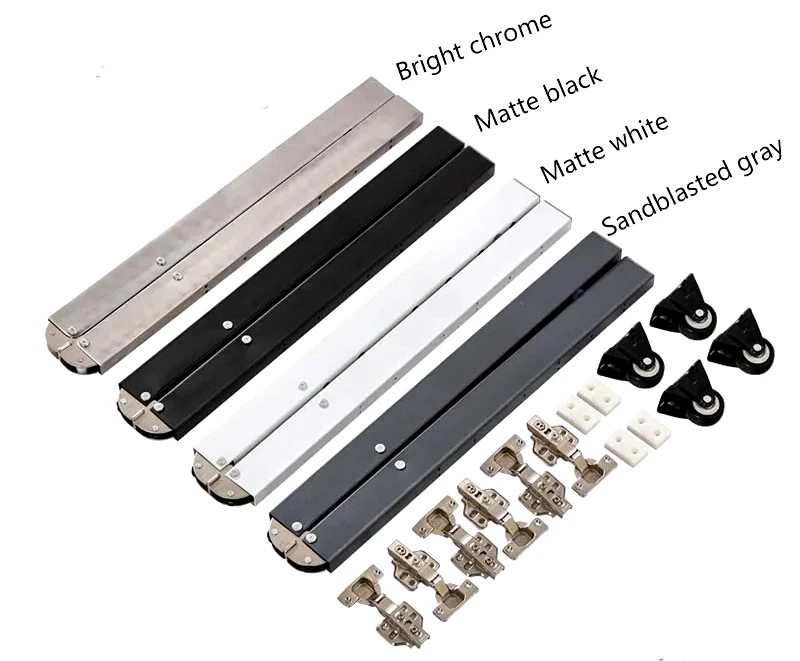

Multiple Colors
There is always one you like
○●○

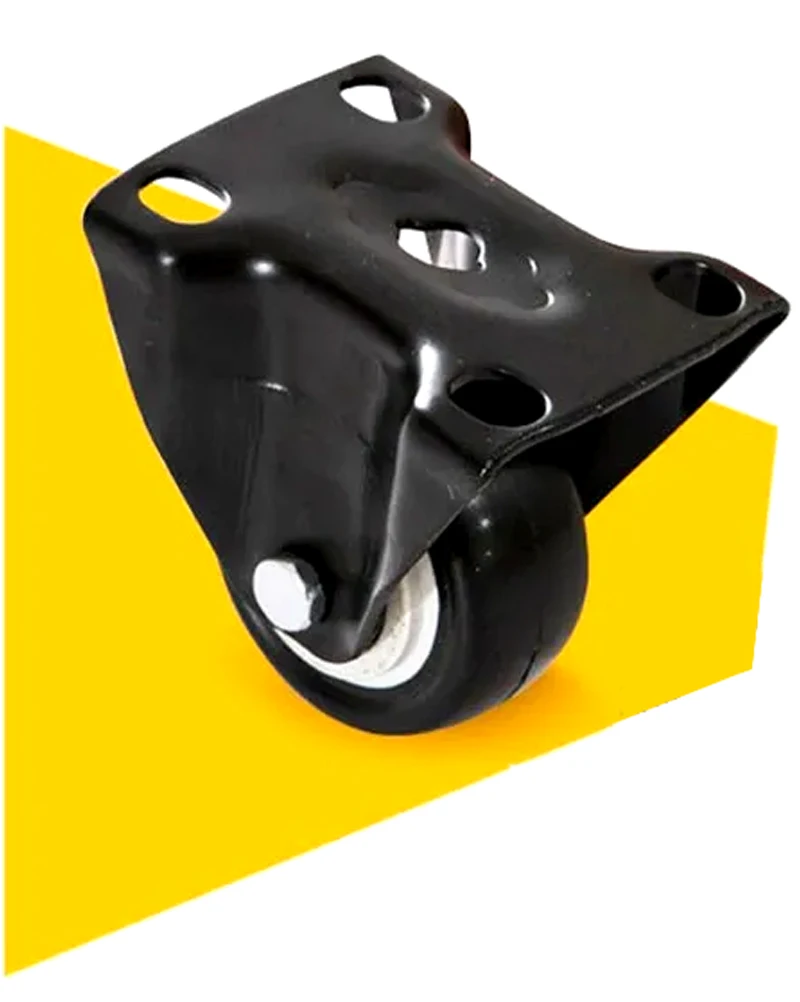

Refined directional wheel
When pushing and pulling
the table, it can
To be more accurate
To be more accurate
Exquisite chain
Three position adjustable bufferable chain
Push-pull table can automatically retract
Push-pull table can automatically retract

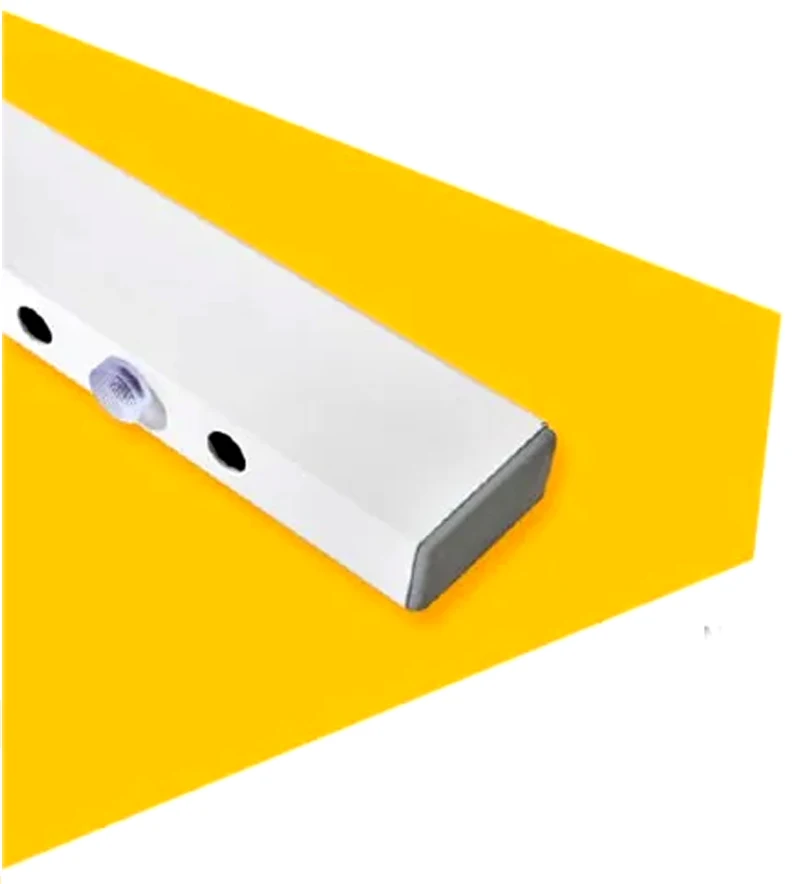

Non slip plastic pad
Adopting polyethylene material soundproofing pad to effectively reduce noise
The connection is
aesthetically pleasing and
stable

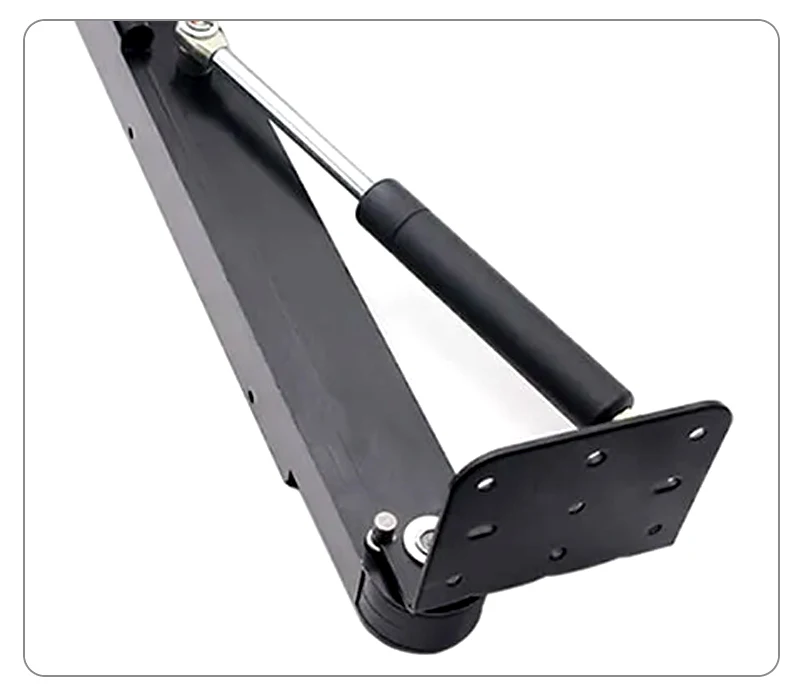

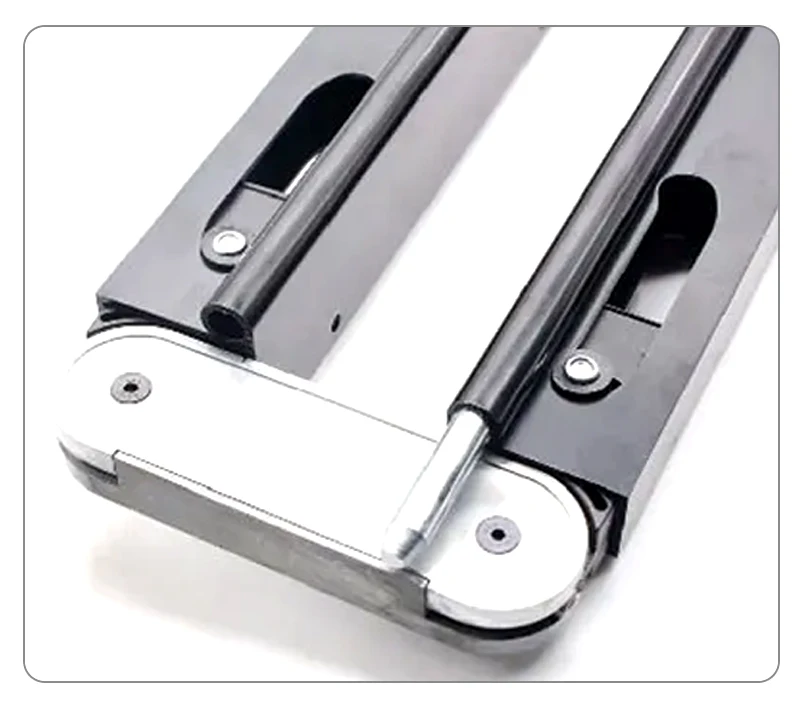

Curved integrated support, bold and beautiful design, stable and reliable

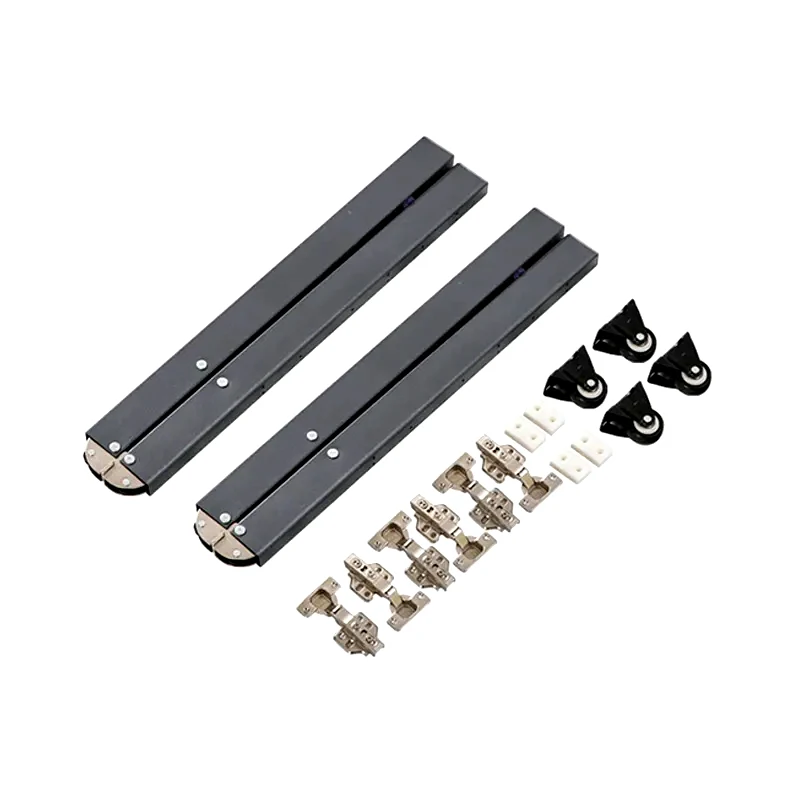

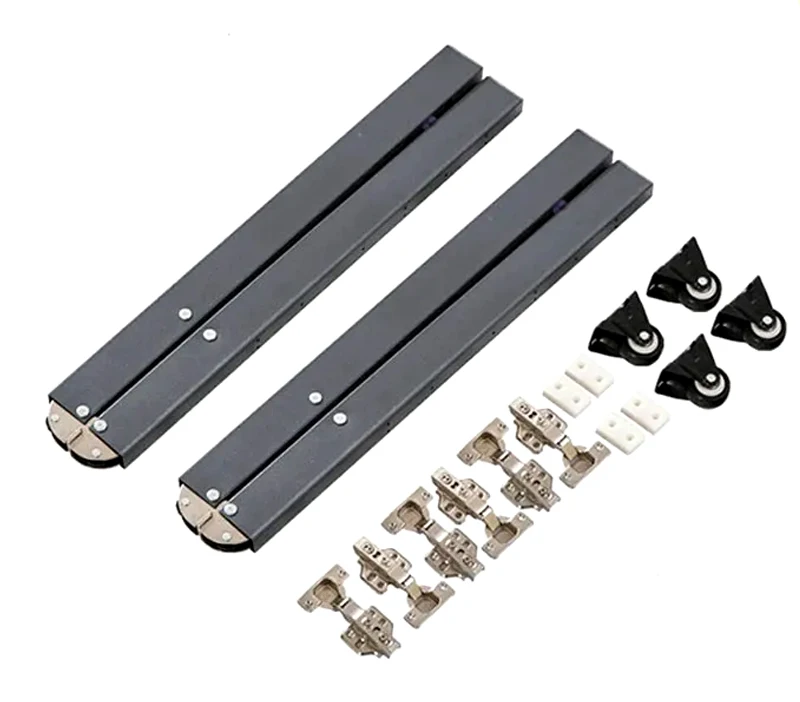

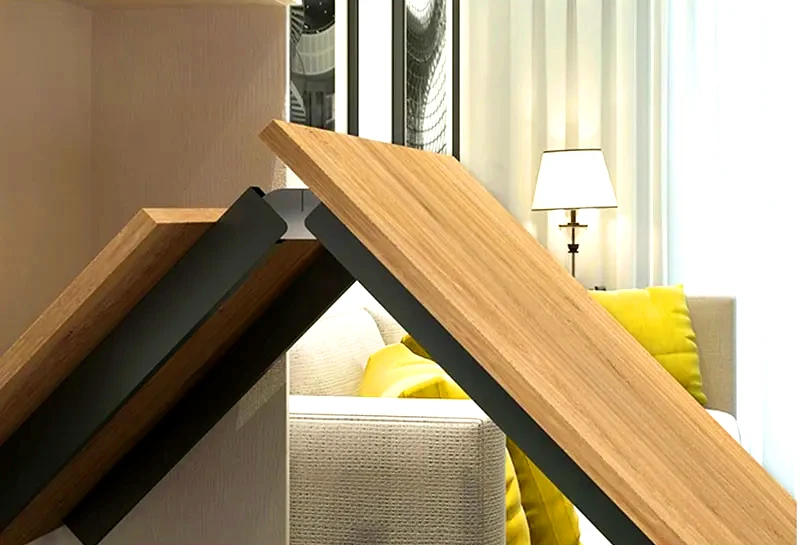

Upward flip complete set of accessories

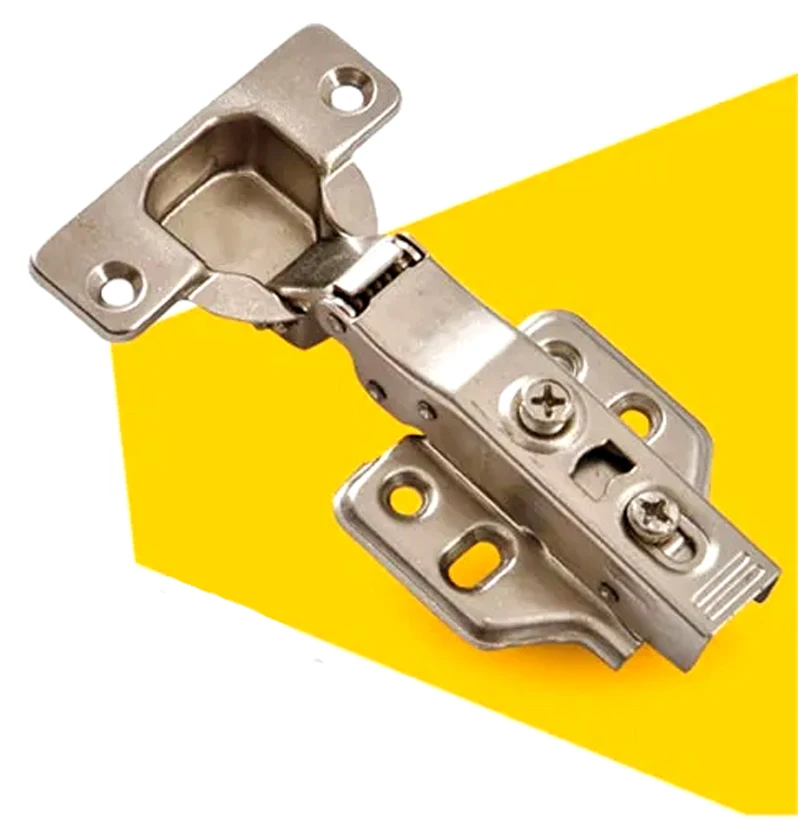

Pair of folders
Four directional wheels
Four load-bearing blocks
Matching screw
Matching screw
○●○

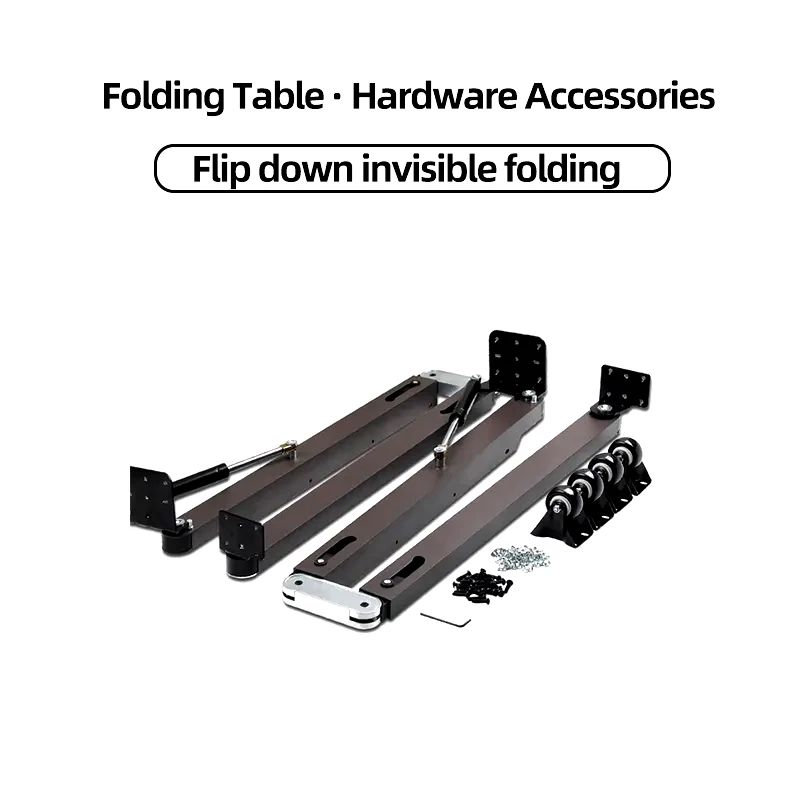

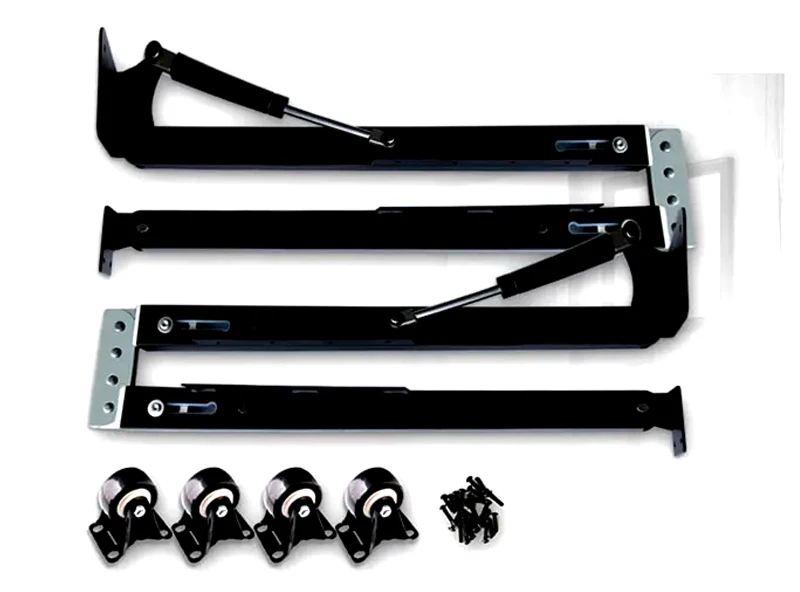

Bottom flip complete set of accessories
Pair of support frames
Four directional wheels
Several screws
○●○
Product Details

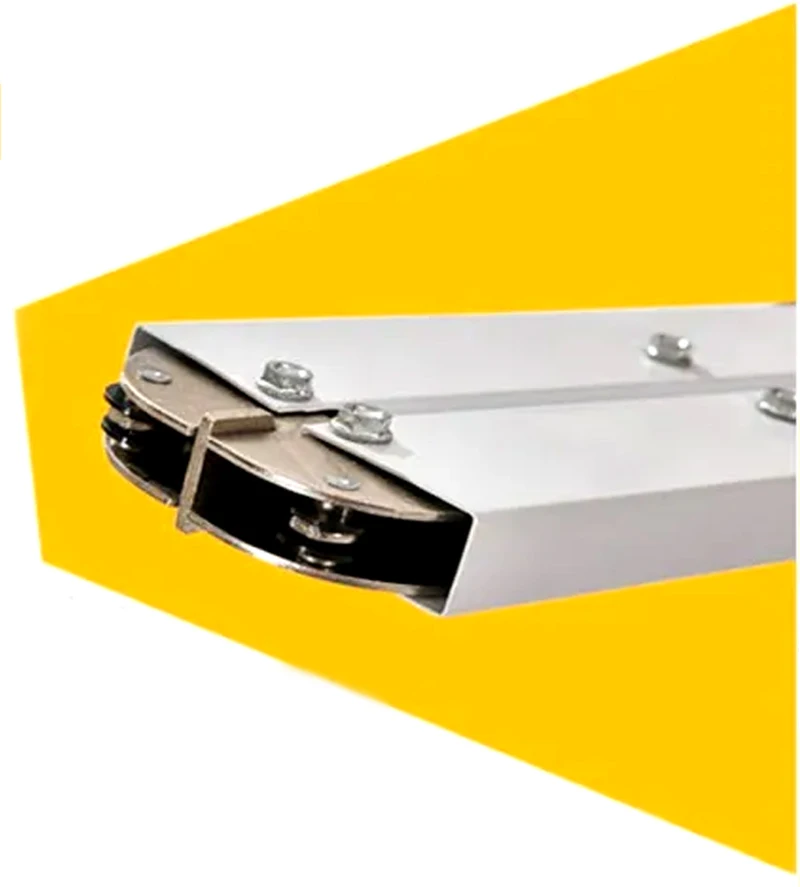

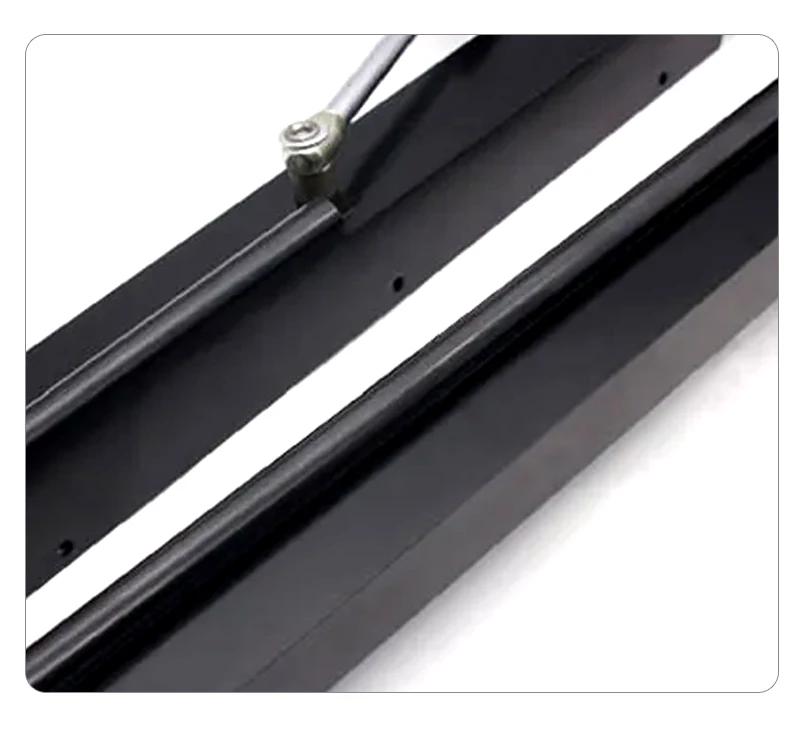

A choice of exquisite craftsmanship
○●○
parts,not easy to wear
Better to block all kinds ofcorrosive substances，
the trackis not easy to fade,durable
Reduce noise generation andplay a very good mute effec

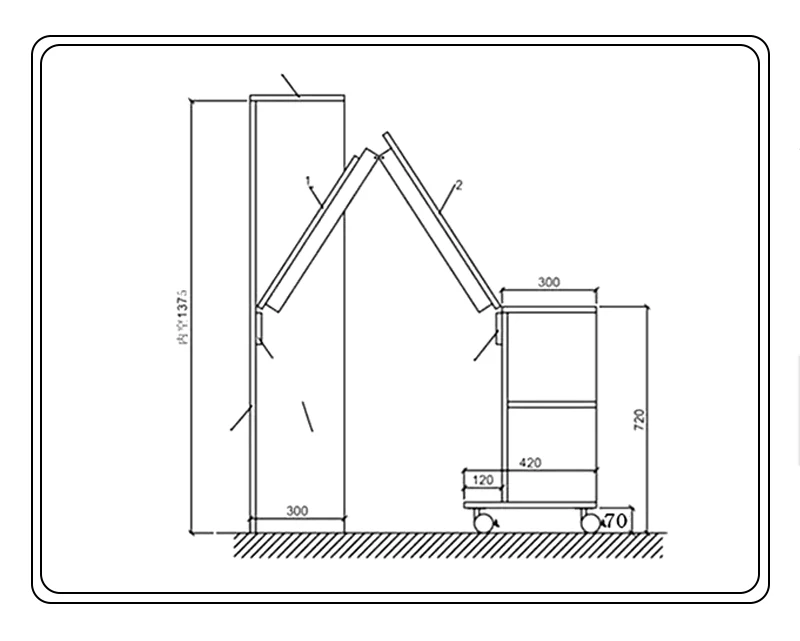

Panel size
1. The internal width of the storage cabinet is 910 millimeters and the height is 1375 millimeters. Cabinet depth 282 mm

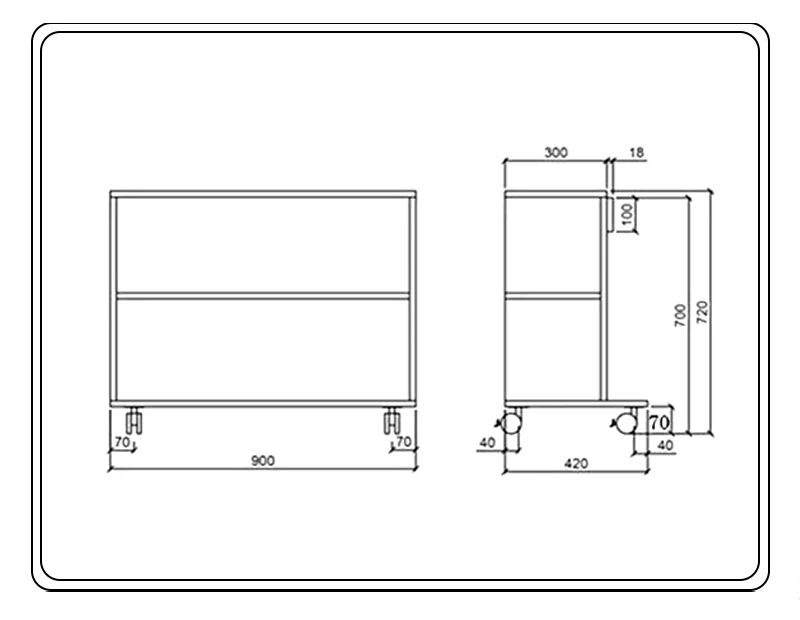

2. The outer width of the mobile cabinet is 900 millimeters, the height is 720 millimeters, and the length is 420 millimeters
3.4 flat belt universal wheels (height 80)
4. The total length of the folding table is: 18+570+660+300=1548mm
○●○
Serial Number | Component Name | Plate specifications | number |
1 | Inner desktop | 570*900*18 | 1 |
2 | External testing desktop | 660*900*18 | 1 |
3 | Inner and outer load-bearing plates | 900*100*18 | 2 |
4 | Storage cabinet side panel | 1370*300*18 | 1 |
5 | Storage cabinet back panel | 370*910*18 | 1 |
6 | Storage cabinet top plate | 946*300*18 | 1 |
7 | Mobile cabinet panel | 900*300*18 | 1 |
8 | Mobile cabinet base plate | 900*420*18 | 1 |

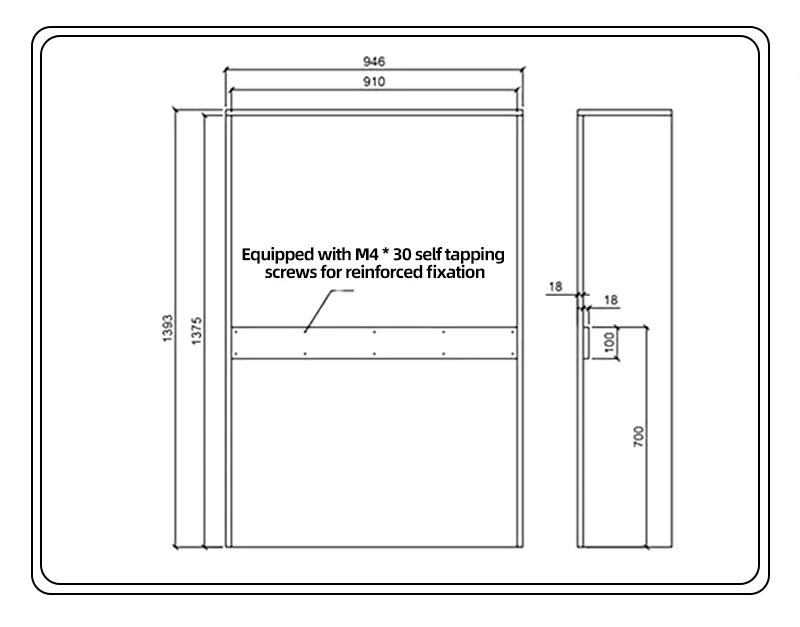

Storage cabinet
○●○
Serial Number | Component Name | Plate specifications | number |
1 | Inner bearing plate | 900*100*18 | 1 |
2 | Storage cabinet side panel | 1370*300*18 | 2 |
3 | Storage cabinet back panel | 1370*910*18 | 1 |
4 | Storage cabinet top plate | 946*300*18 | 1 |
mobile shelving
○●○
Serial Number | Component Name | Plate specifications | number |
1 | Mobile cabinet table panel | 900*300*18 | 1 |
2 | Mobile cabinet table backboard | 864*604*18 | 1 |
3 | Mobile cabinet table side panel | 282*604*18 | 2 |
4 | Mobile cabinet table and cabinet board | 282*864*18 | 1 |
5 | Mobile cabinet table base plate | 900*420*18 | 1 |

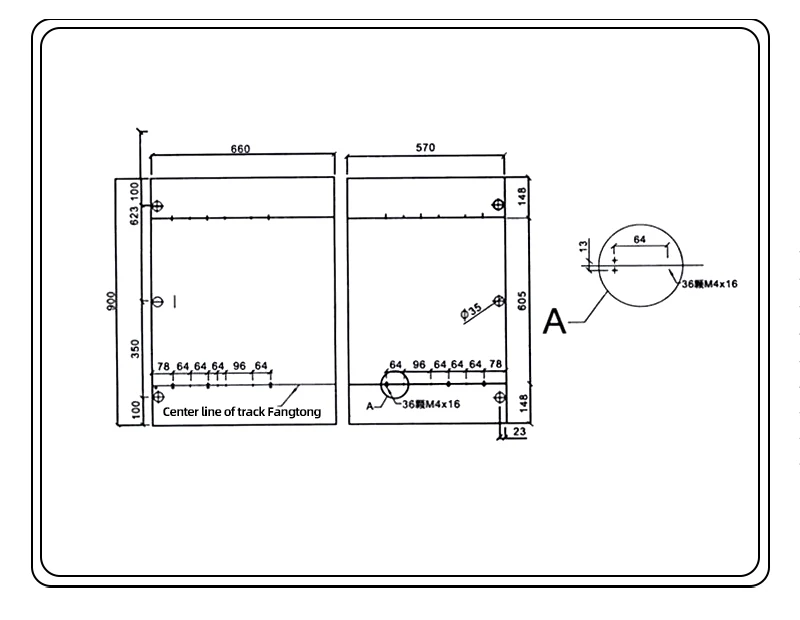

Folding desktop board
○●○
Serial Number | Component Name | Plate specifications | number |
1 | Inner desktop | 570*900*18 | 1 |
2 | Outer desktop | 660*900*18 | 1 |
