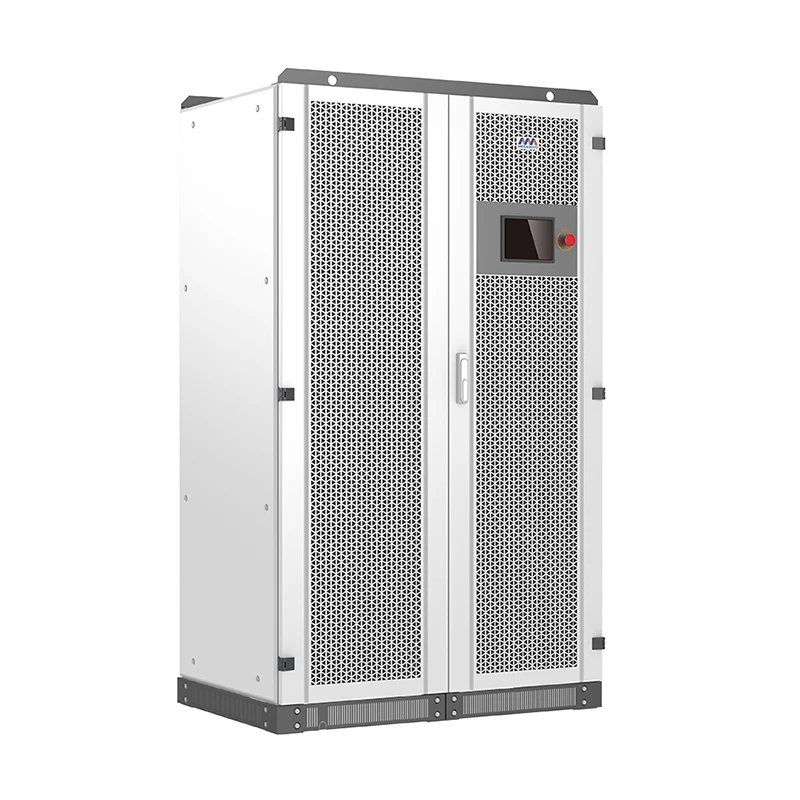

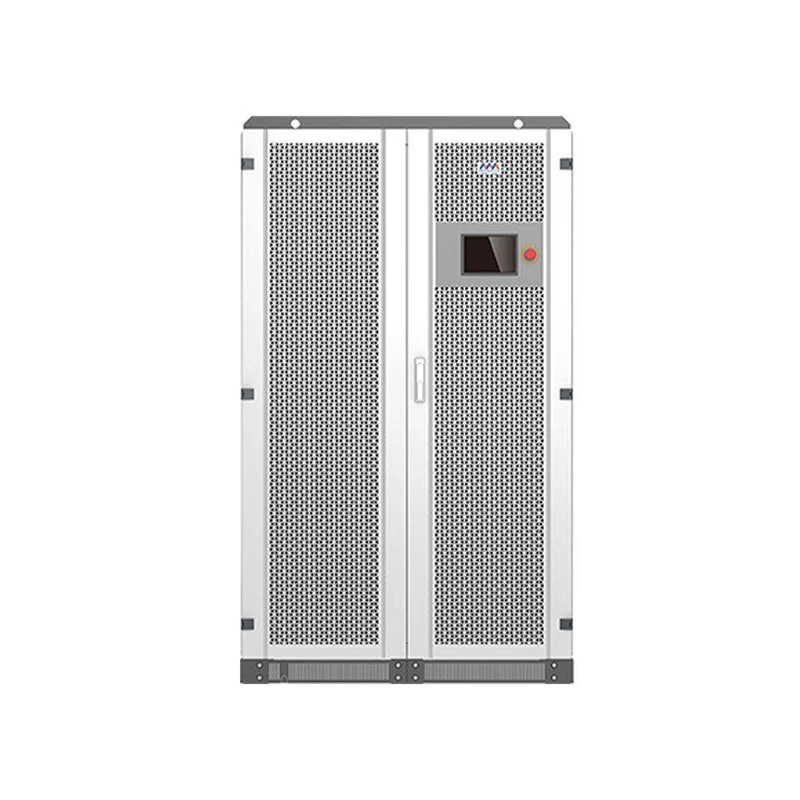

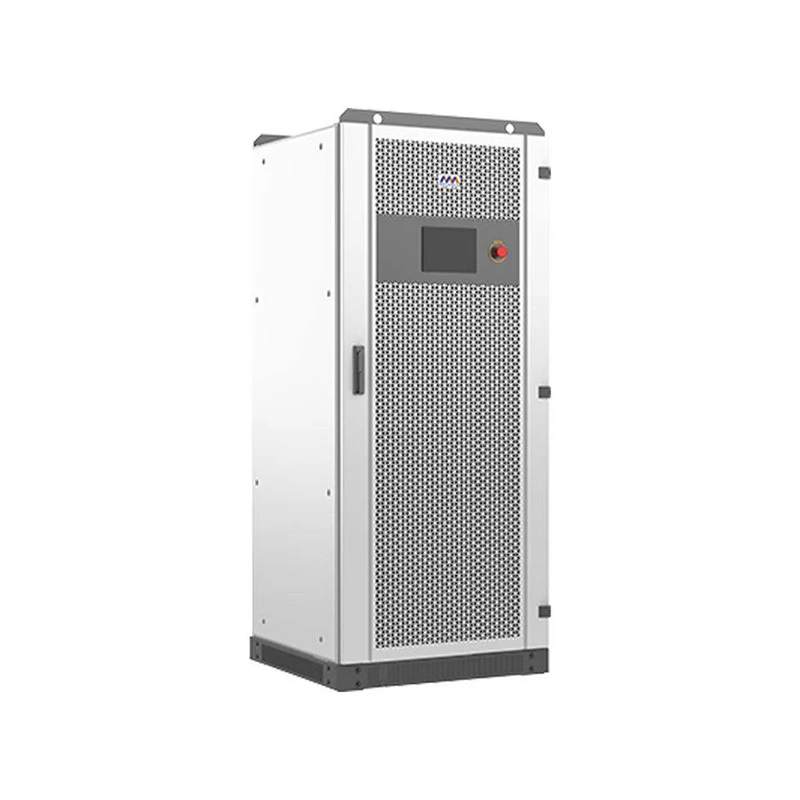

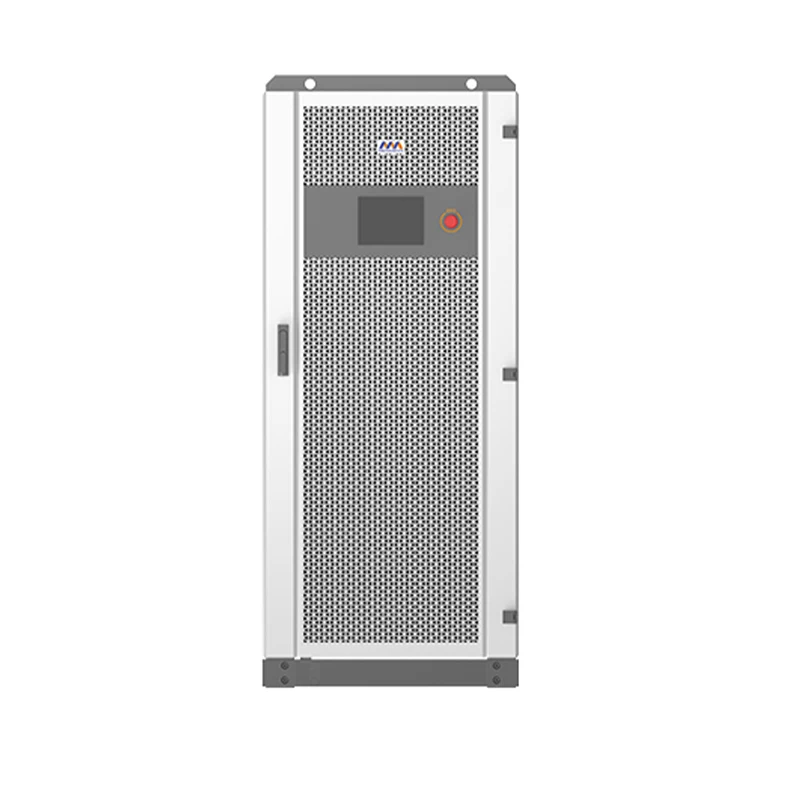

Fotovo off Grid Hybrid Inverter 20kw 30kw 50kw 100kw DC to AC Electric Power Solar Inverter Price
- Category: >>>
- Supplier: Jiangsu Elemac Energy Co. Ltd.
Share on (1600825798910):
Product Overview
Description
Product Paramenters
MPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, which greatly improves customer deployment efficiency and reduces installation costs. PV capacity can be flexibly configured, which greatly improves system availability and is suitable for the remote areas and islands where power is relatively weak.
Model | MPS30 | MPS50 | MPS100 | MPS150 | MPS250 | MPS500 | ||||||
AC(grid-connected) | ||||||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA | ||||||
Rated power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW | ||||||
Rated voltage | 400V | |||||||||||
Rated current | 43A | 72A | 144A | 217A | 361A | 722A | ||||||
Voltage range | 320V-460V | |||||||||||
Rated frequency | 50/60Hz | |||||||||||
Frequency range | 45-55/55-65Hz | |||||||||||
THDI | <3% | |||||||||||
PF | 0.8lagging-0.8leading | |||||||||||
AC connection | 3W+N+PE | |||||||||||
Transformer | Yes | |||||||||||
AC(off-grid) | ||||||||||||
Apparent power | 33kVA | 55kVA | 110kVA | 165kVA | 275kVA | 550kVA | ||||||
Rated power | 30kW | 50kW | 100kW | 150kW | 250kW | 500kW | ||||||
Rated voltage | 400V | |||||||||||
Rated current | 43A | 72A | 144A | 217A | 361A | 720A | ||||||
THDU | ≤2% linear | |||||||||||
Rated frequency | 50/60Hz | |||||||||||
Overload capability | 110%-10min120%-1min | |||||||||||
PV | ||||||||||||
Max. PV open-circuit voltage | 1000VDC | |||||||||||
MAX PV power | 60/120KW | 120/180/240KW | 300/360KW | 600/660/720KW | ||||||||
PV mppt voltage range | 200V-850V | |||||||||||
MPPT number | 1/2 | 2/3/4 | 5/6 | 10/11/12 | ||||||||
Battery | ||||||||||||
Battery voltage range | 250V-850V | 320V-850V | 420V-850V | 420V-850V | 420V-850V | 500V-850V | ||||||
Battery full Load operating voltage range | 250V-850V | 320V-850V | 420V-850V | 420V-850V | 420V-850V | 500V-850V | ||||||
Genera data | ||||||||||||
Dimension(WXDXH) | 800X800X1900mm | 1200X800X2050mm | 1800X800X2050mm | 2800X800X2050mm | ||||||||
Weight | 440kg | 620kg | 900kg | 1250kg | 1700kg | 3520kg | ||||||
Environmental temperature | -25ºC~+55ºC | |||||||||||
Relative humidity | 0-95%non-condensing | |||||||||||
Protection degree | IP20 | |||||||||||
Noise emission | 75dB(A)@1m | |||||||||||
Max.imum altitude | 5000m(derate over 3000m) | |||||||||||
Cooling | Forced-air | |||||||||||
Communication | ||||||||||||
Display | Touch screen LCD | |||||||||||
Communication interface | RS485/CAN | |||||||||||
More details please send inquiry to us | ||||||||||||
