CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment
CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment
CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment
CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment
CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment
CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment
CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment

CE APPROVED Prefabricated Concrete Floor Slabs Machine hollow core slab board making equipment

Share on (1600825826146):


Price:

Quantity:


Product Overview

Description



CONCRETE SLAB MAKING MACHINE
This floor machine is a high-frequency forming machine for the production of pre-stressed hollow slabs. It is an equipment for the production of pre-stressed hollow slabs. It consists of a frame, a reduction transfer box, a distribution box, and a high-frequency vibrator. It adopts automatic walking and continuous operation. One-time molding, compared with the traditional manual molding method (turnover, rapid demoulding), not only the ribs are uniform, the board strength is high, the speed (1.2-1.5 m/min), the quality is good, but also labor, time, Save materials, save 30-50kg of cement, and reduce labor intensity. It is an ideal plate-making equipment for the prefabrication industry..


Products Description


THE FEATURE

1. The maintenance and repair costs are small.
2. The number of users is small and the per capita labor efficiency is high. 4-7 people are required to complete the entire production process.
3. Low labor intensity: In addition to the concrete transportation addition, the product forming, demoulding and shifting of this model are automatically completed by the machine.


5. Low cost, strong practicability and high production efficiency.
6. All parts have good wear resistance and are easy to replace.
7. The equipment is small in size and light in weight, which is convenient for migration and transportation when the production site is changed.
8. Equipped with reasonable power, one (motor) multi-purpose energy saving effect is remarkable.






Product Paramenters


SLAB SIZE
CAN CUSTOMIZE
WIDTH
CUSTOMIZE AS YOU NEED
THICKNESS
CUSTOMIZE AS YOU NEED
LENGTH
CAN CUT AS YOU NEED
HOLE NO
IT DEPENDS ON
HOLE SIZE
IT DEPENDS




MODEL
SLAB   H cm
SLAB  W cm
HOLE
SPEED
MOTOR
MACHINE SIZE
WEIGHT
KL6*50
6
50
6*22
1.5M/M
4.0
1910*800*940mm
1.0T
KL8*60
8
60
7*50
1.5M/M
4.0
2026*759*800mm
1.3T
KL10*60
10
60
6*66
1.5M/M
4.0
2059*760*800
1.3T
KL12*50
12
50
4*80
1.5M/M
4.0
2070*660*750
1.15T
KL12*60
12
60
5*80
1.5M/M
4.0
2070*760*750
1.3T
KL12*70
12
70
6*80
1.5M/M
4.0
2190*860*800
1.5T
KL13*60
13
60
5*89
1.5M/M
4.0
2070*760*760
1.3T
KL15*60
15
60
4*102
1.5M/M
5.5
2181*745*840
1.5T
KL12*90
12
90
8*80
1.5M/M
7.5
2190*1060*860
2.0T
KL13*90
13
90
8*80
1.5M/M
7.5
2190*1060*860
2.05T
KL15*90
15
90
6*102
1.5M/M
7.5
2181*1045*875
2.0T
KL12*120
12
120
11*80
1.5M/M
11
2193*1360*970
2.7T
KL13*120
13
120
11*89
1.5M/M
11
2193*1360*970
2.7T
KL18*60
18
60
3*135
1.5M/M
7.5
2290*776*892
2.0T
KL18*90
18
90
5*135
1.5M/M
11
2294*1096*920
2.7T
WE ALSO CAN CUSTOMIZE OTHER SIZES AS YOU NEED








Details Images

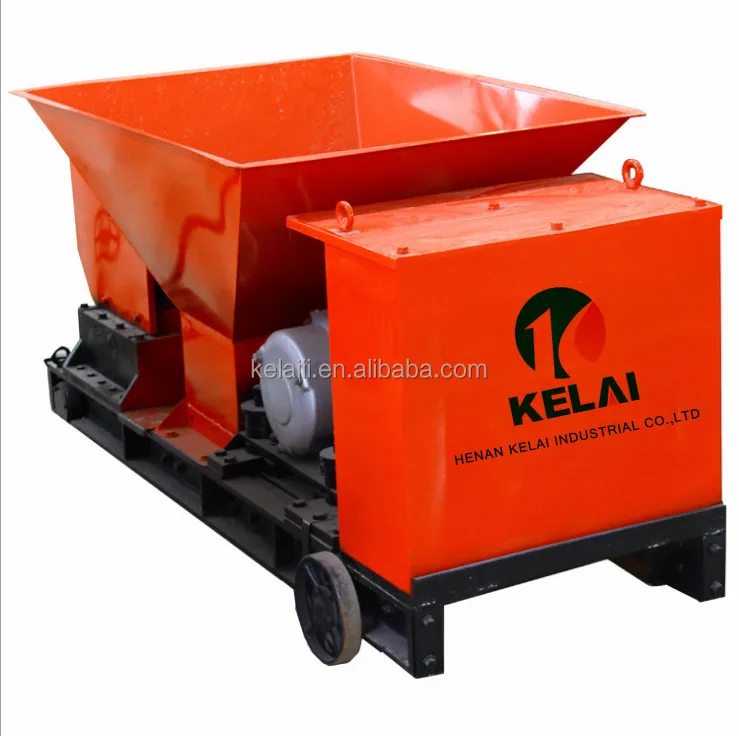

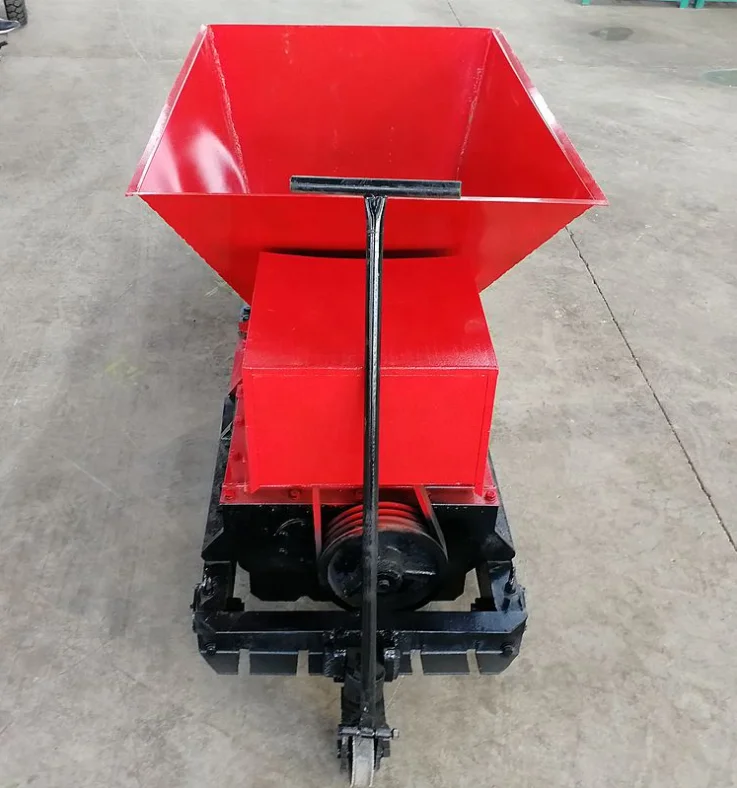

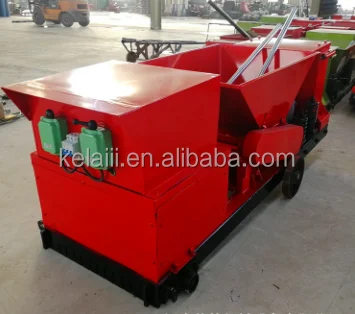

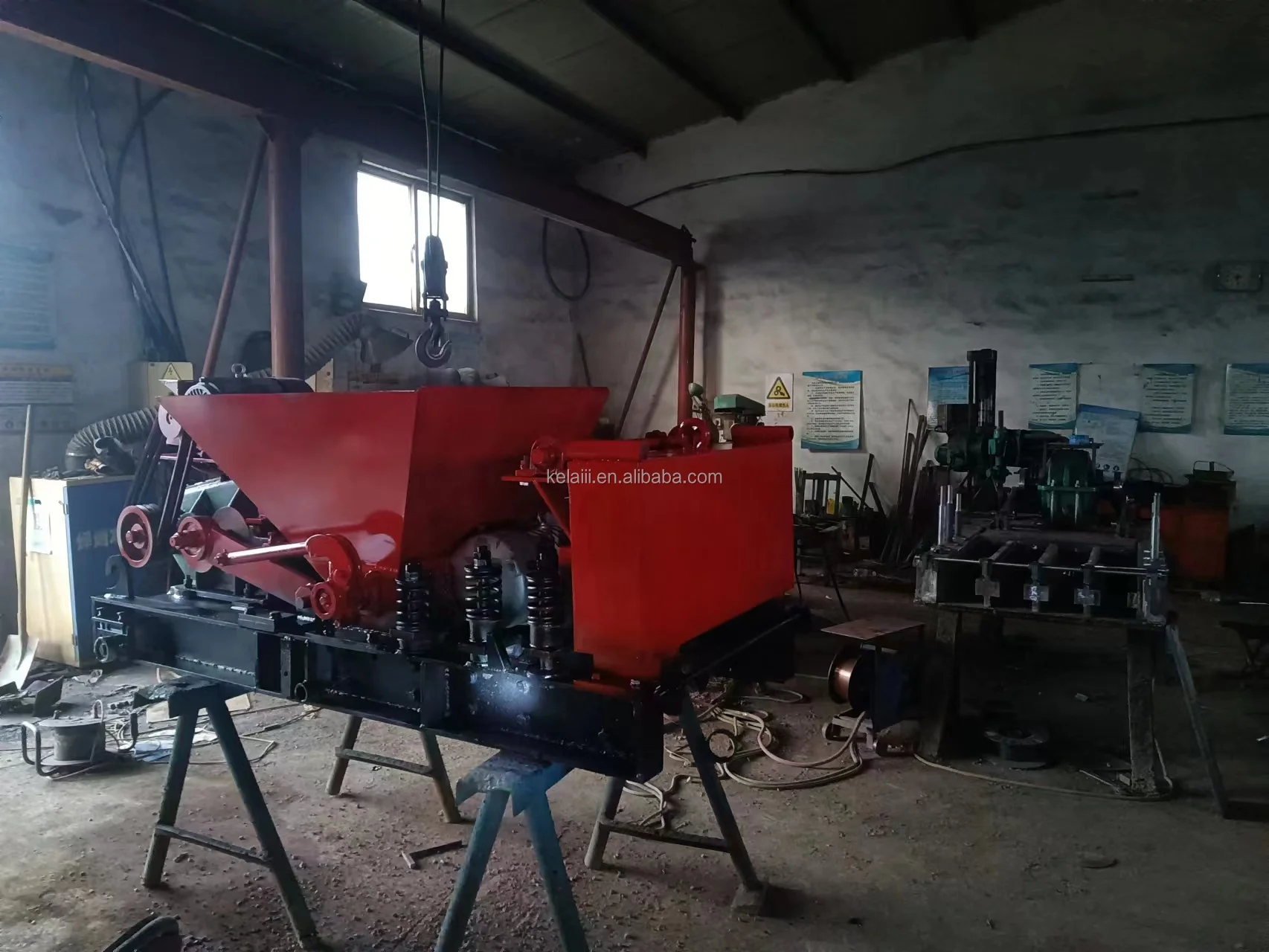

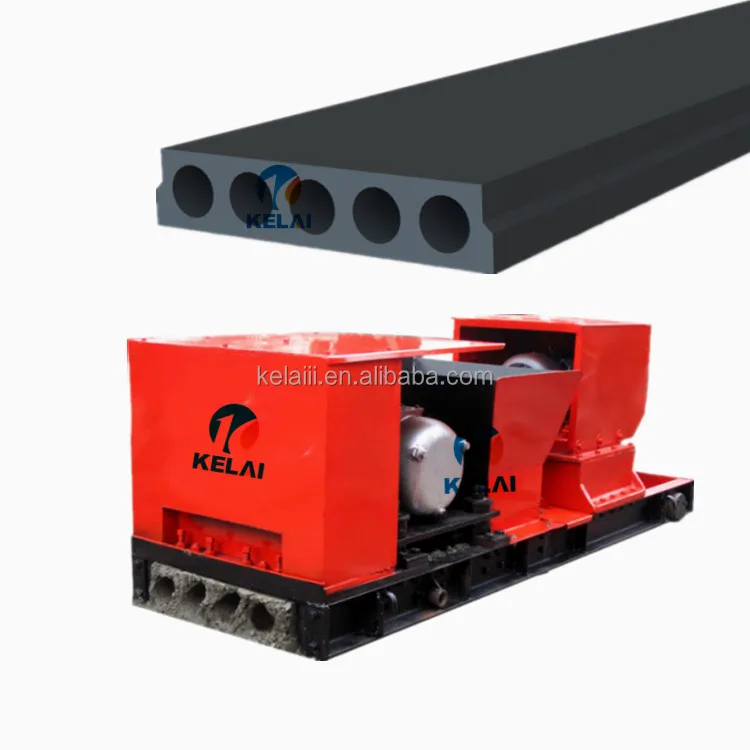

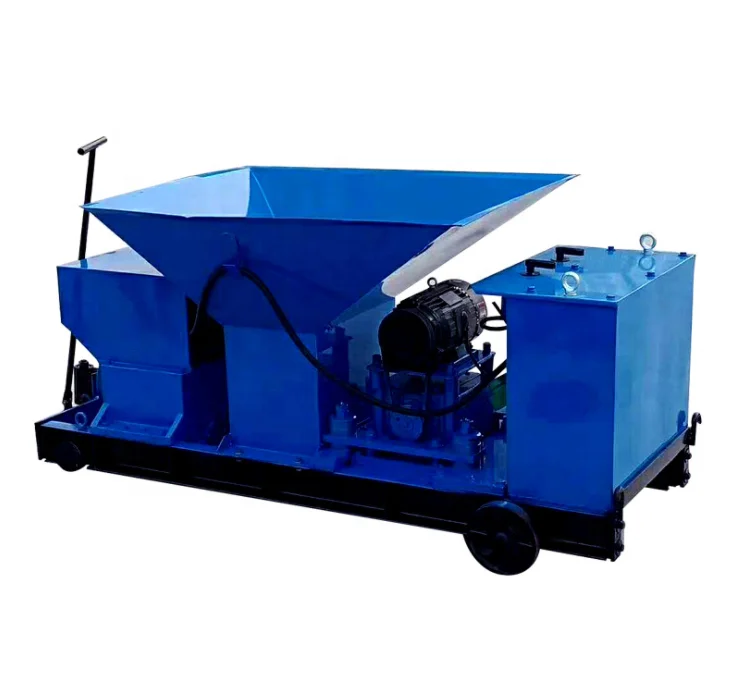

CONCRETE SLAB MACHINE TYPE 1


DURABLE MOTOR

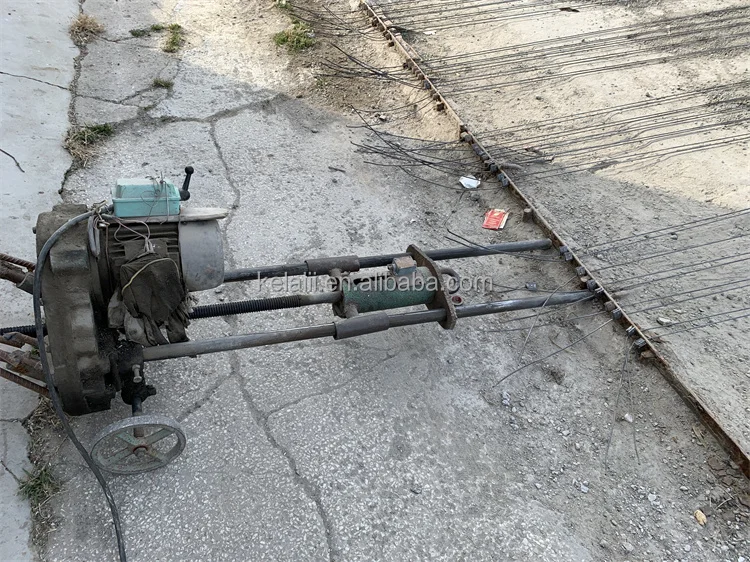

ELECTRIC VEHICLE

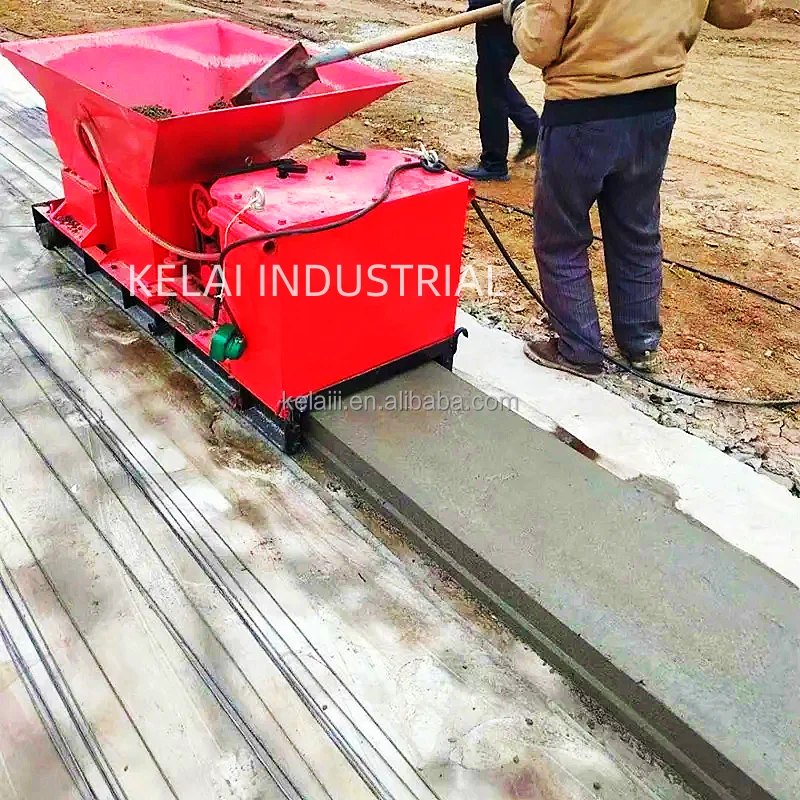

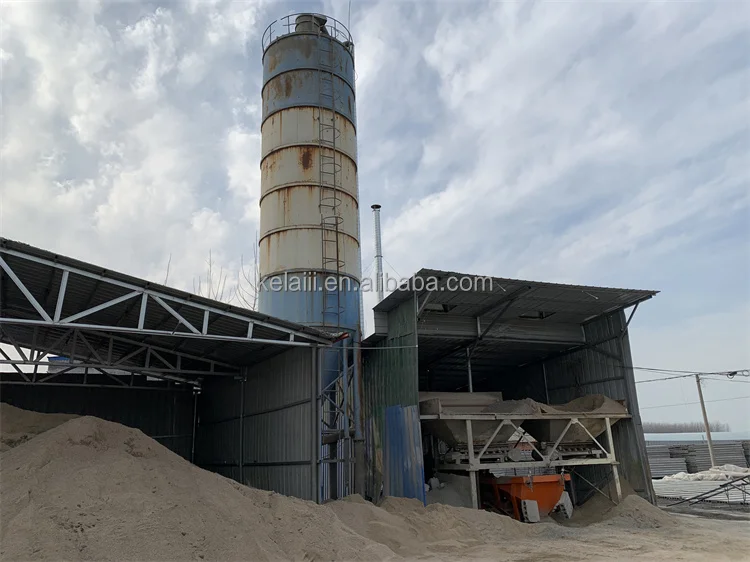

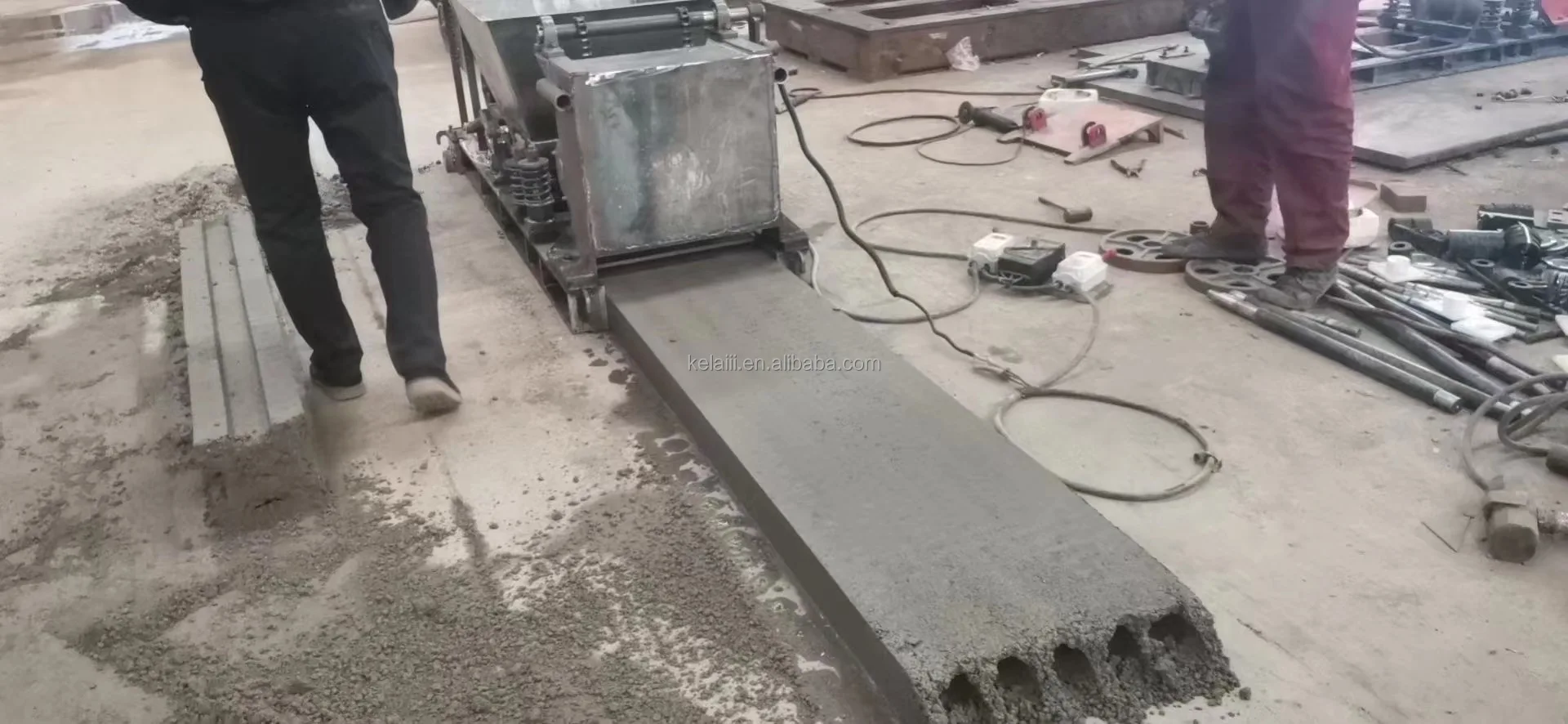

EFFICIENT PRODUCTION

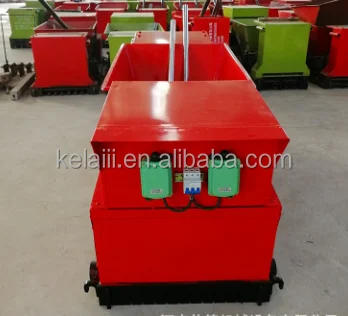

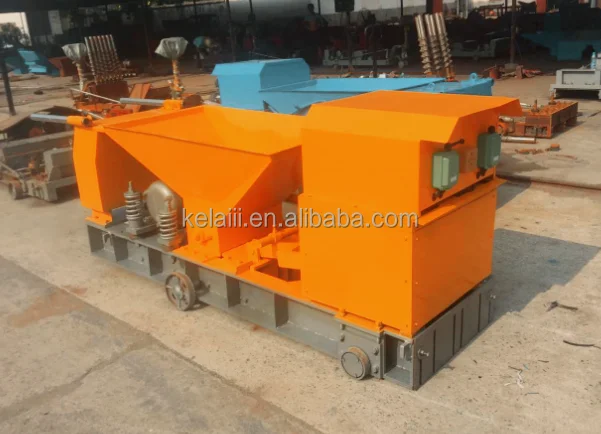

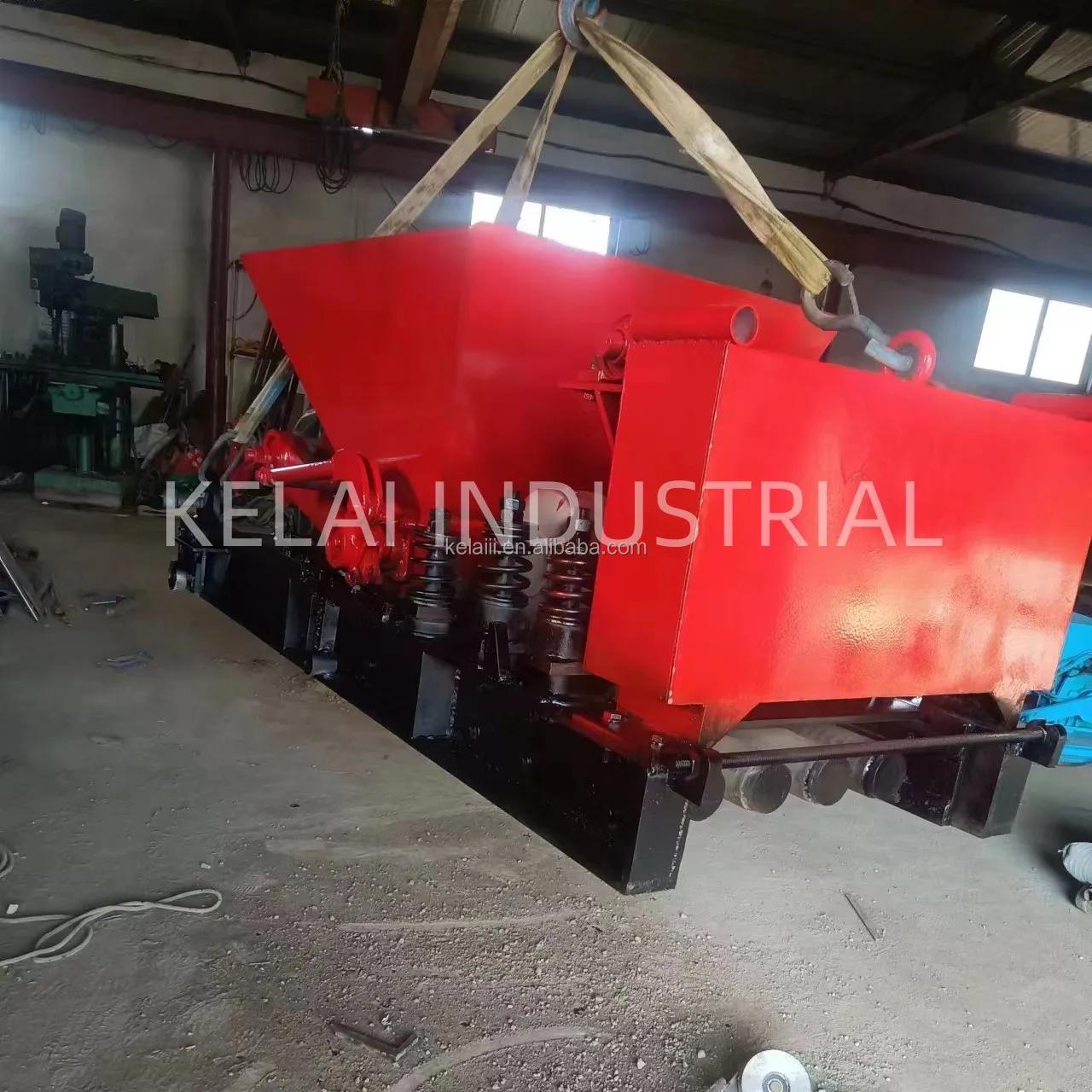

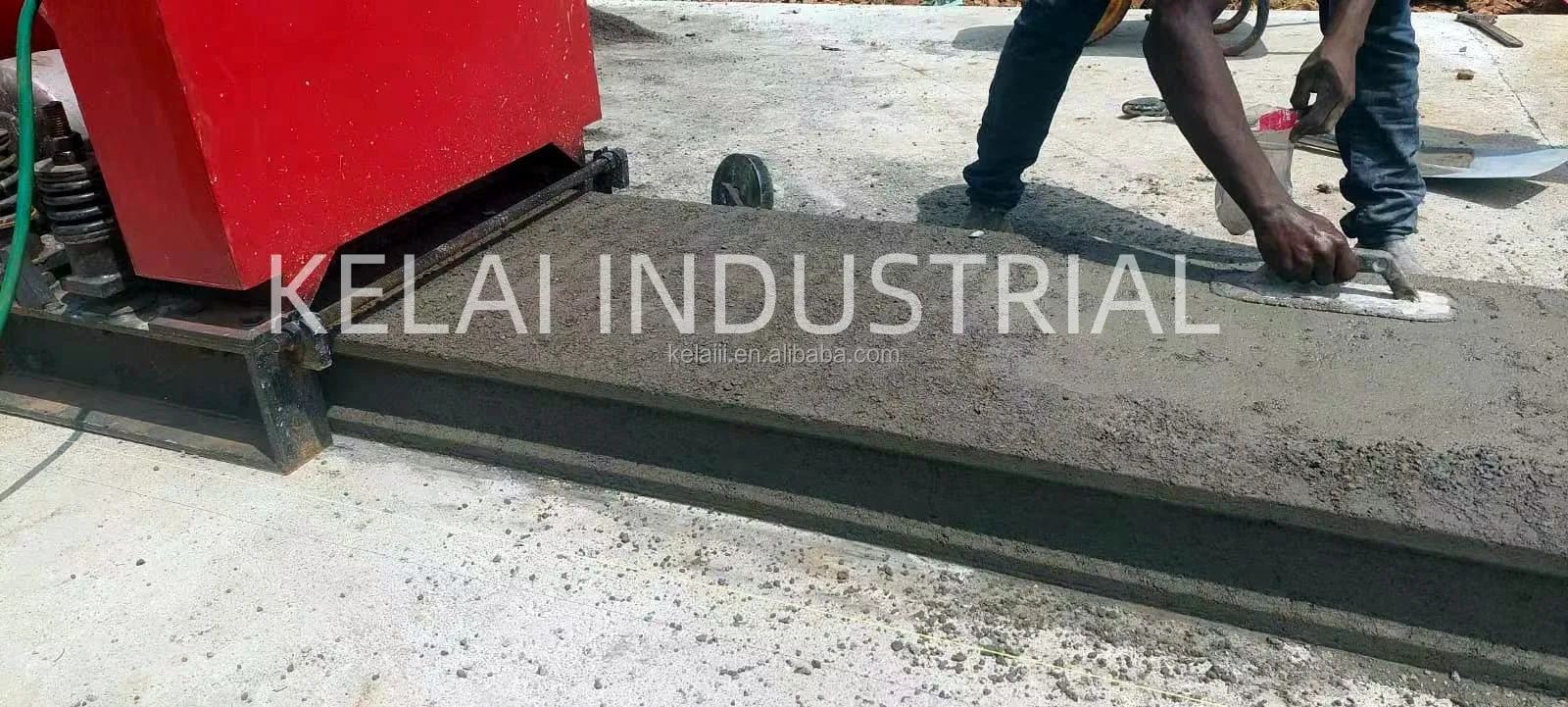

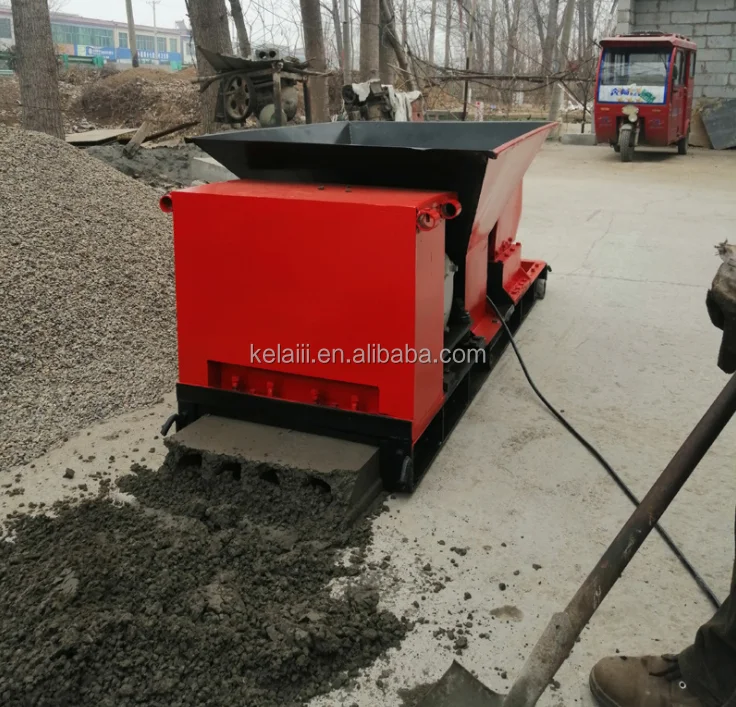

CONCRETE SLAB MACHINE TYPE 2

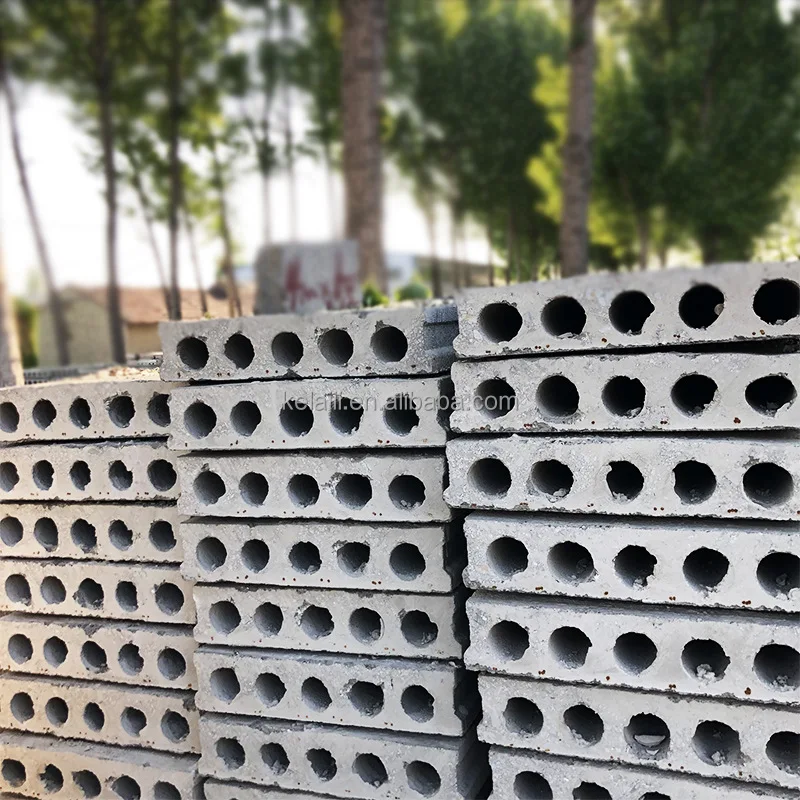

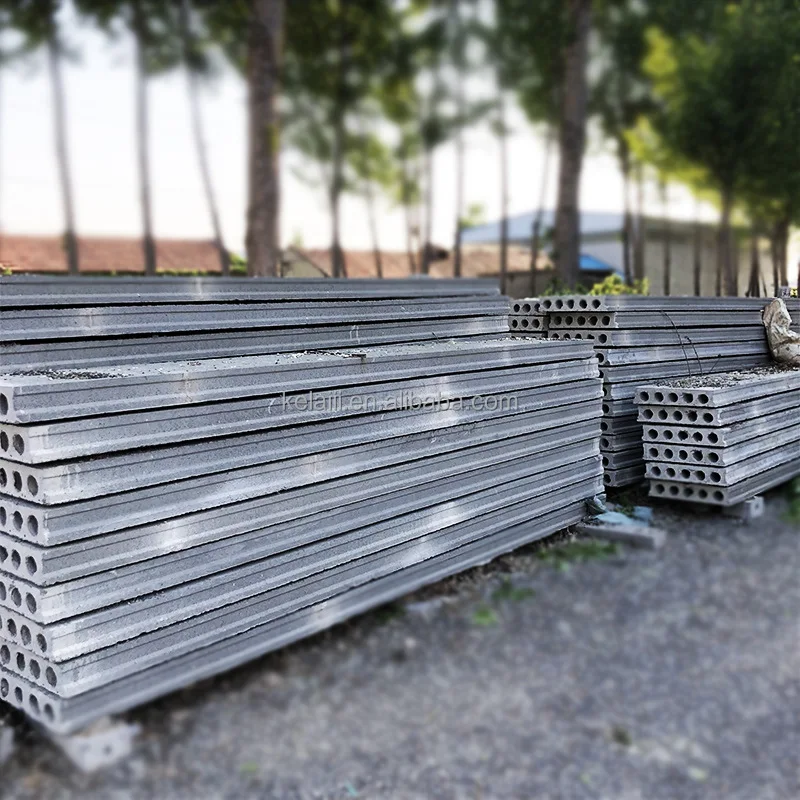

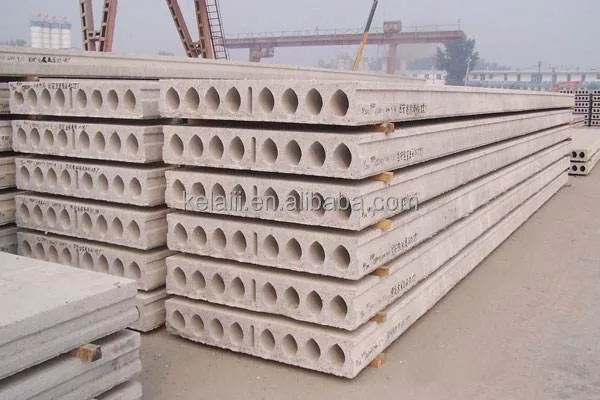

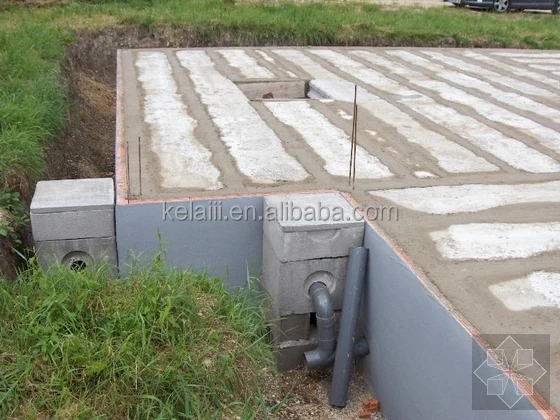

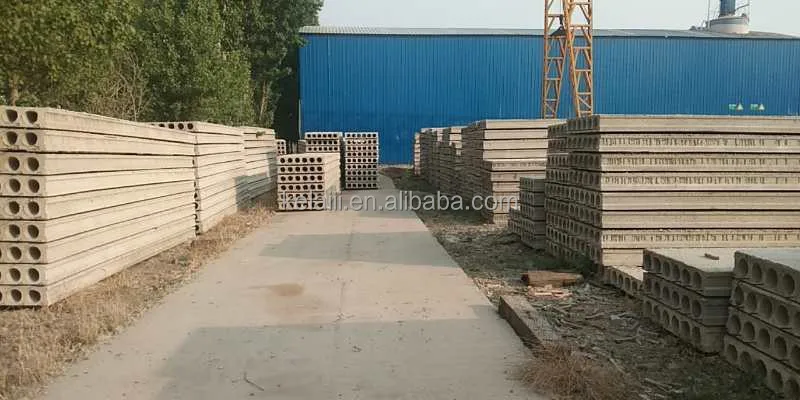

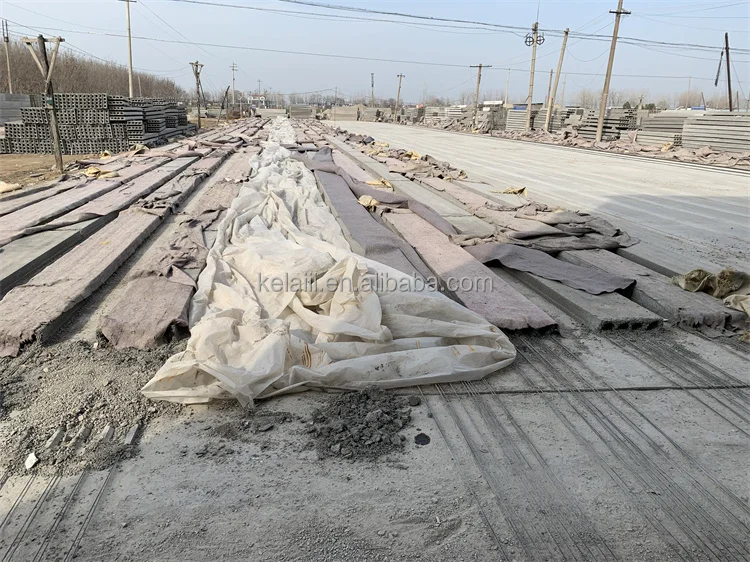

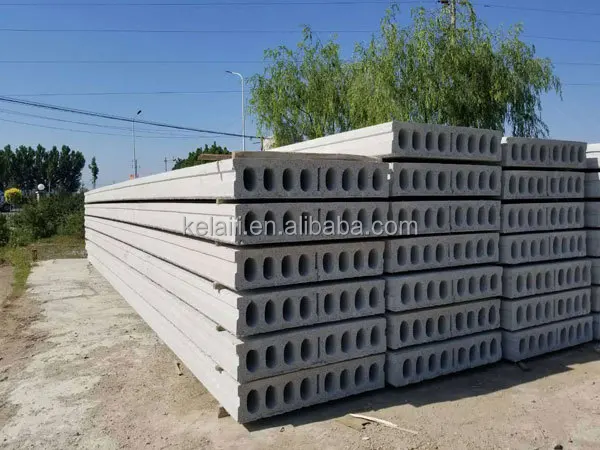

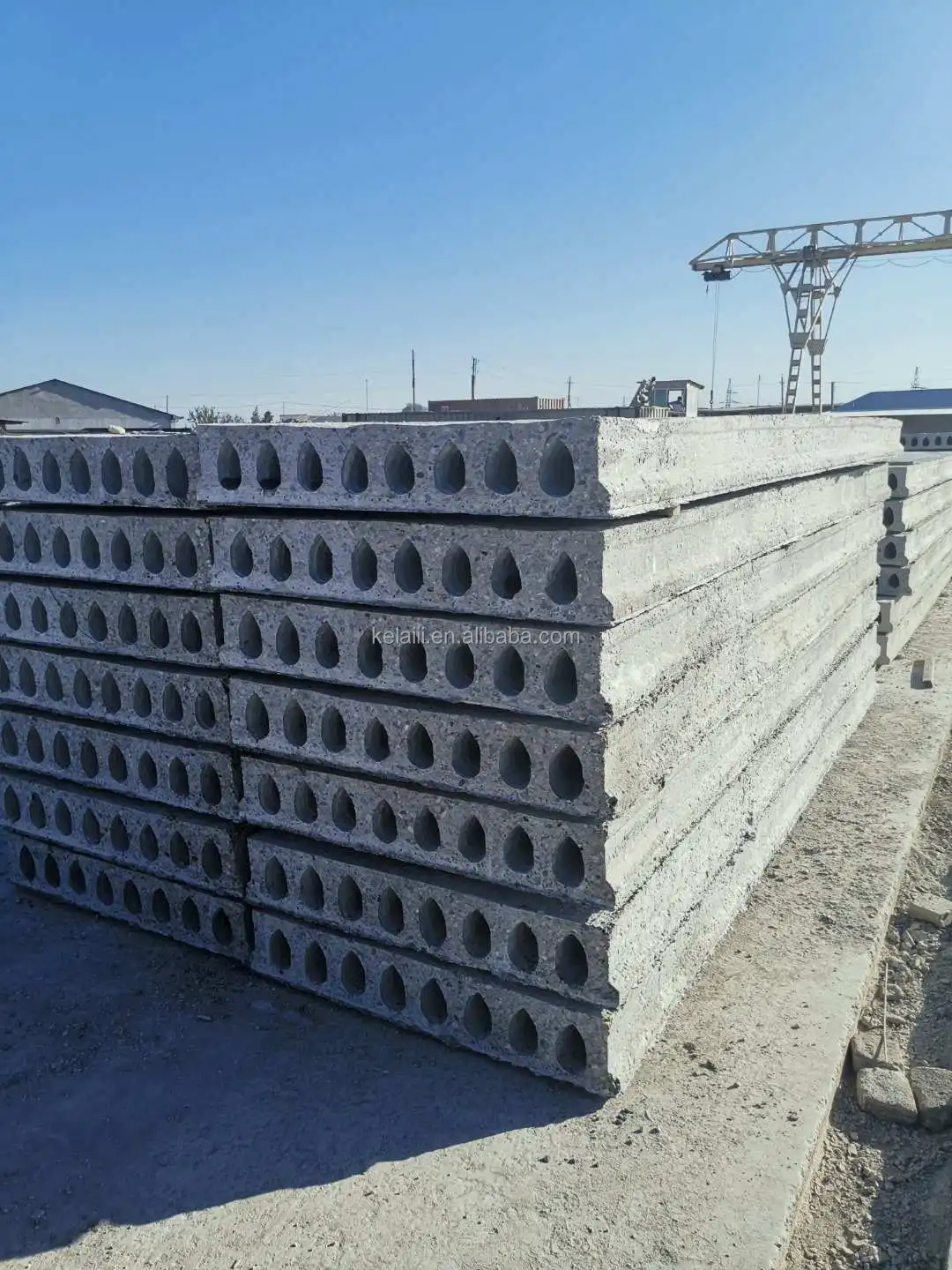

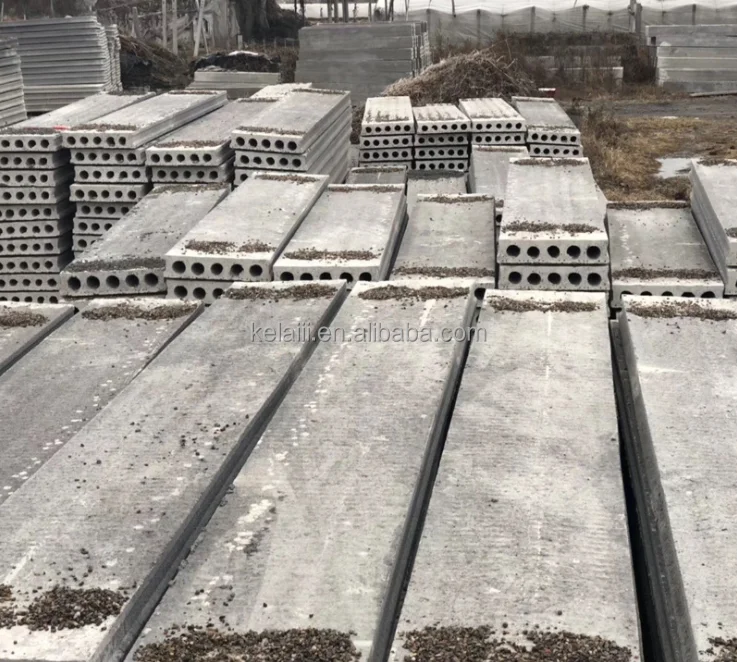

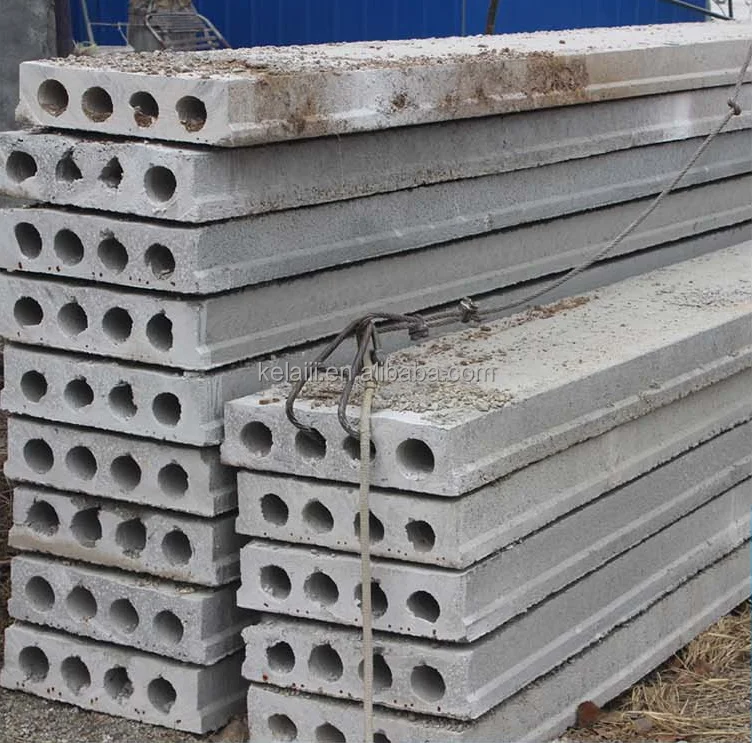

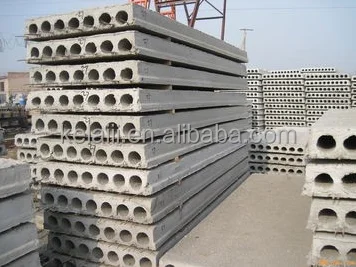

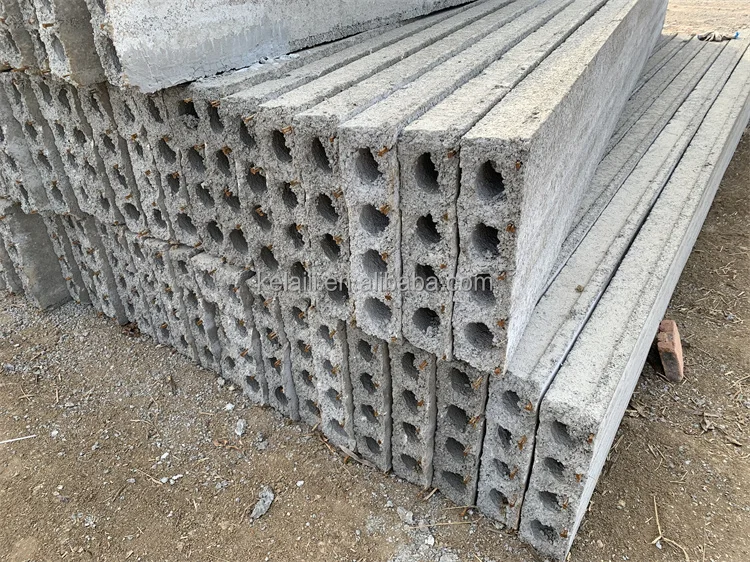

Finished Product

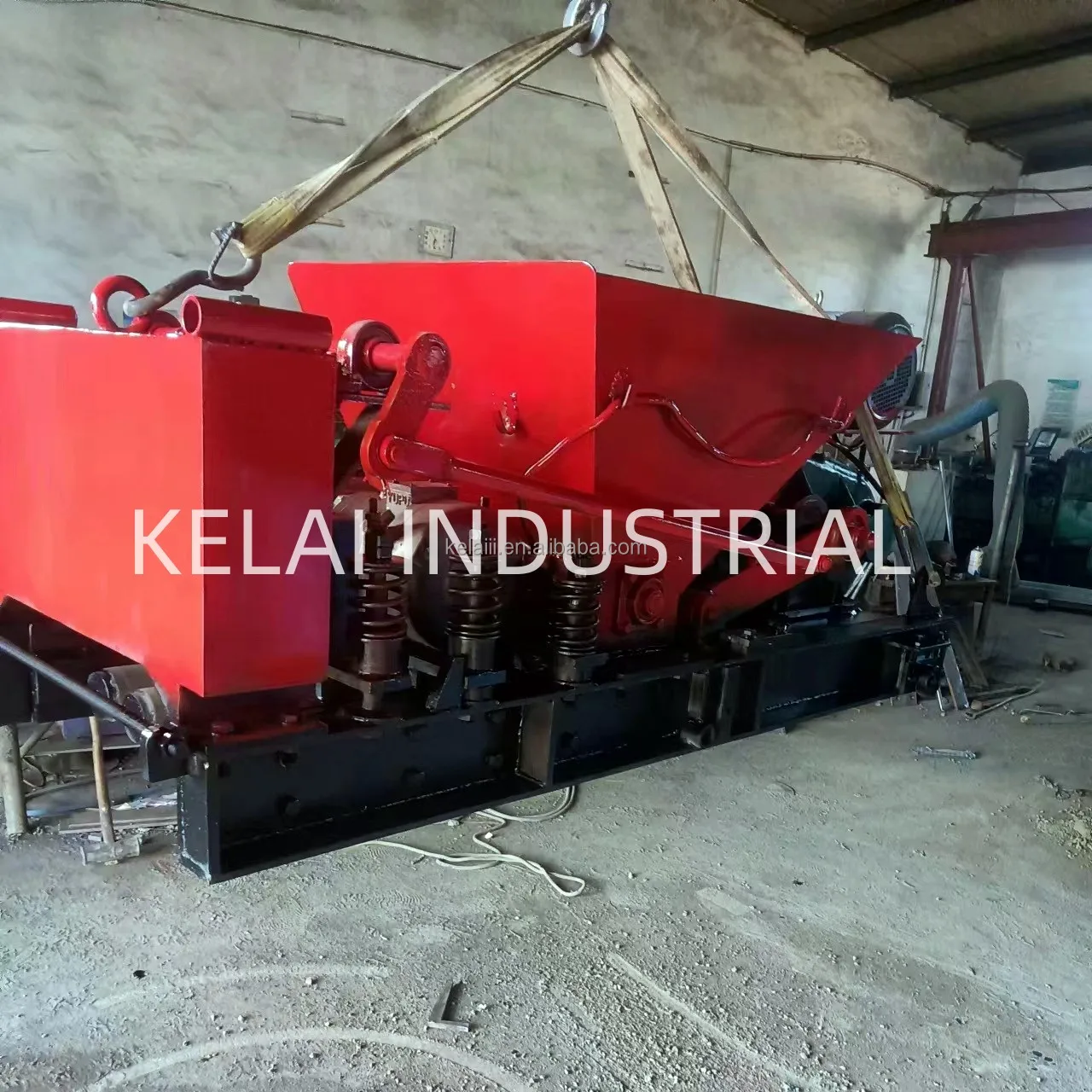

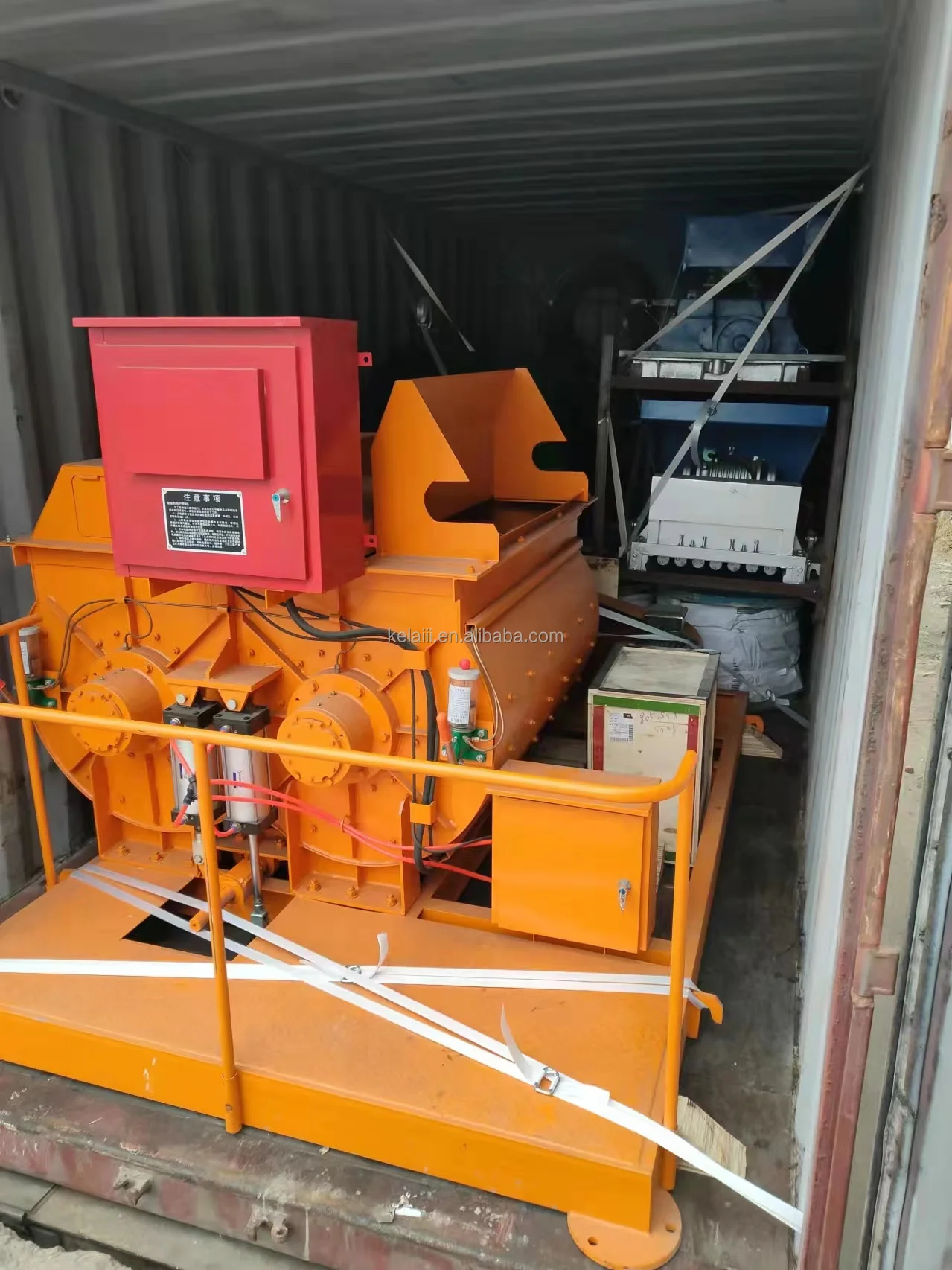

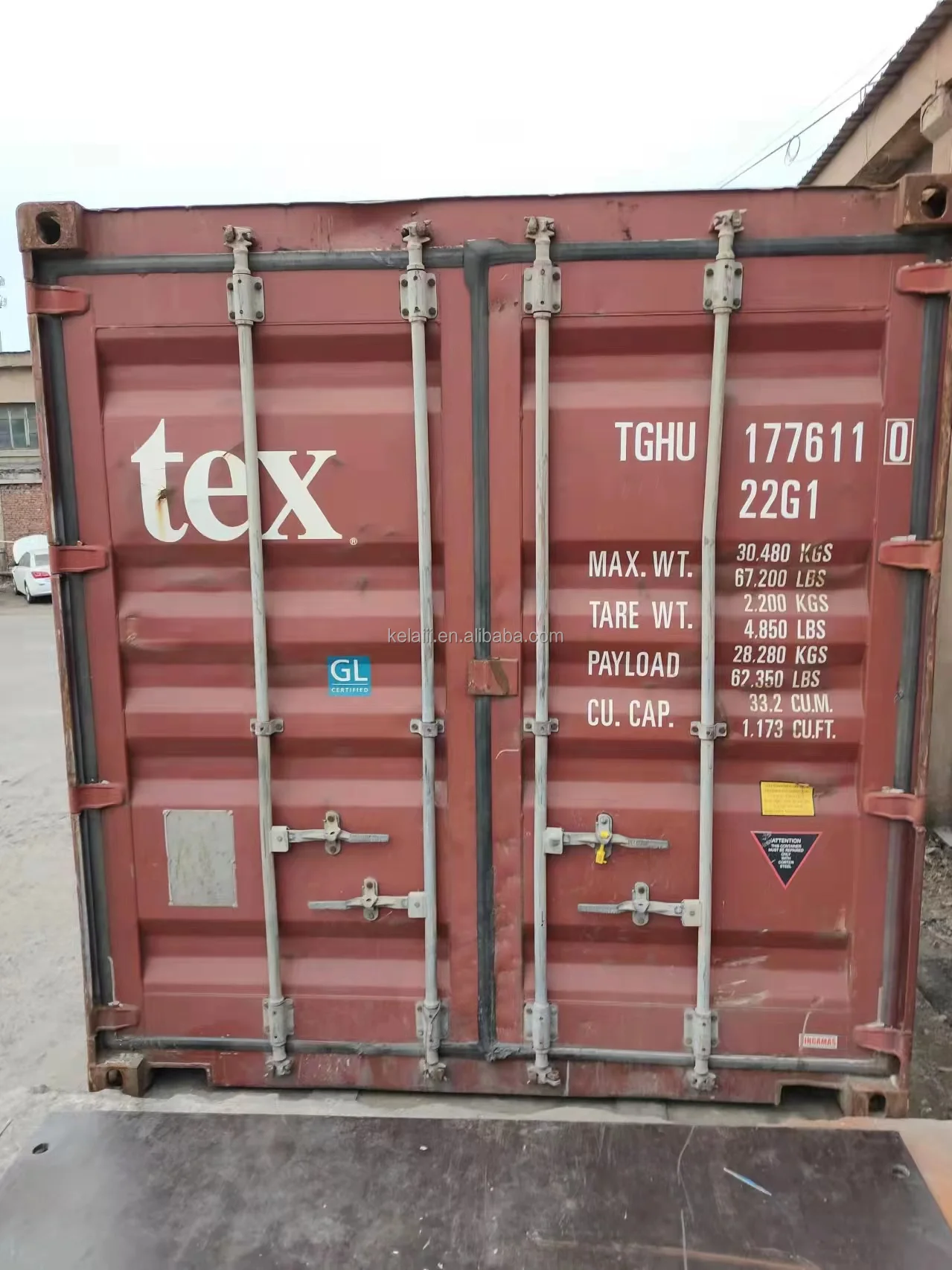

Product packaging








FAQ


Q:What are your advantages compared with your competitors?
A:With Stable and reliable product at reasonable price,rich industry experience and strict Product Quality Control systems.

Q: What are your Price Terms?
A: Price can be based on FOB, CFR, or CIF, etc.

Q: What are your Payment Terms?
A: Payment shall be made by T/T, L/C, WEST UNION,a;sp can pay alibaba online etc., you can check which one is more convenient for you.

Q: Can I print my Logo on the machine?
A: Yes, you can.

Q: Can you customize the machine for me ?
A: Yes, we can customize according to customer's requirements.

Q: What are your modes of transportation?
A: Courier service, Air transport, Sea Transport. and rail way.

Q: Which ports do you usually use?
A: We can ship from port Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.but Qingdao is close for us we use more than others.

Q:can you help me to check some other machines which you dont supply and ship together?
A:Yes we often help customer to check the other machines and ship together,it is our honor to help for checking and arrange the shipping together.
