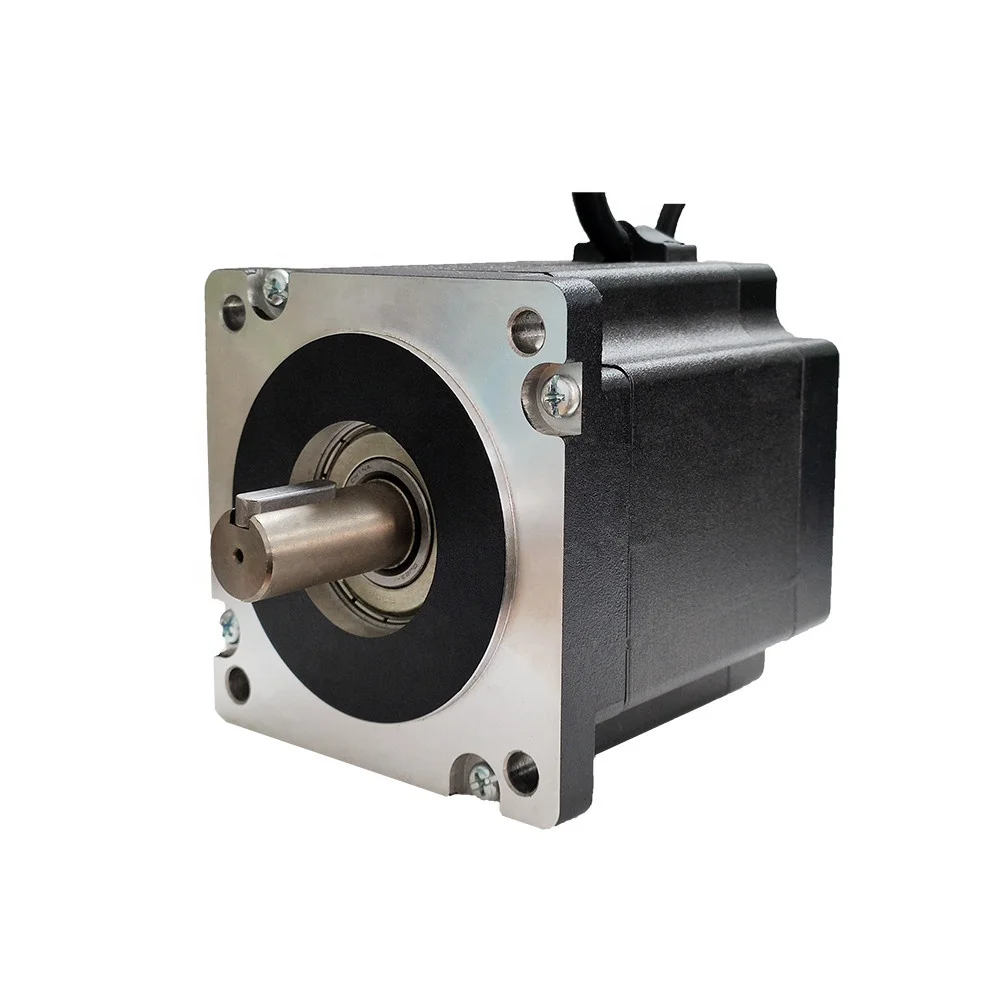

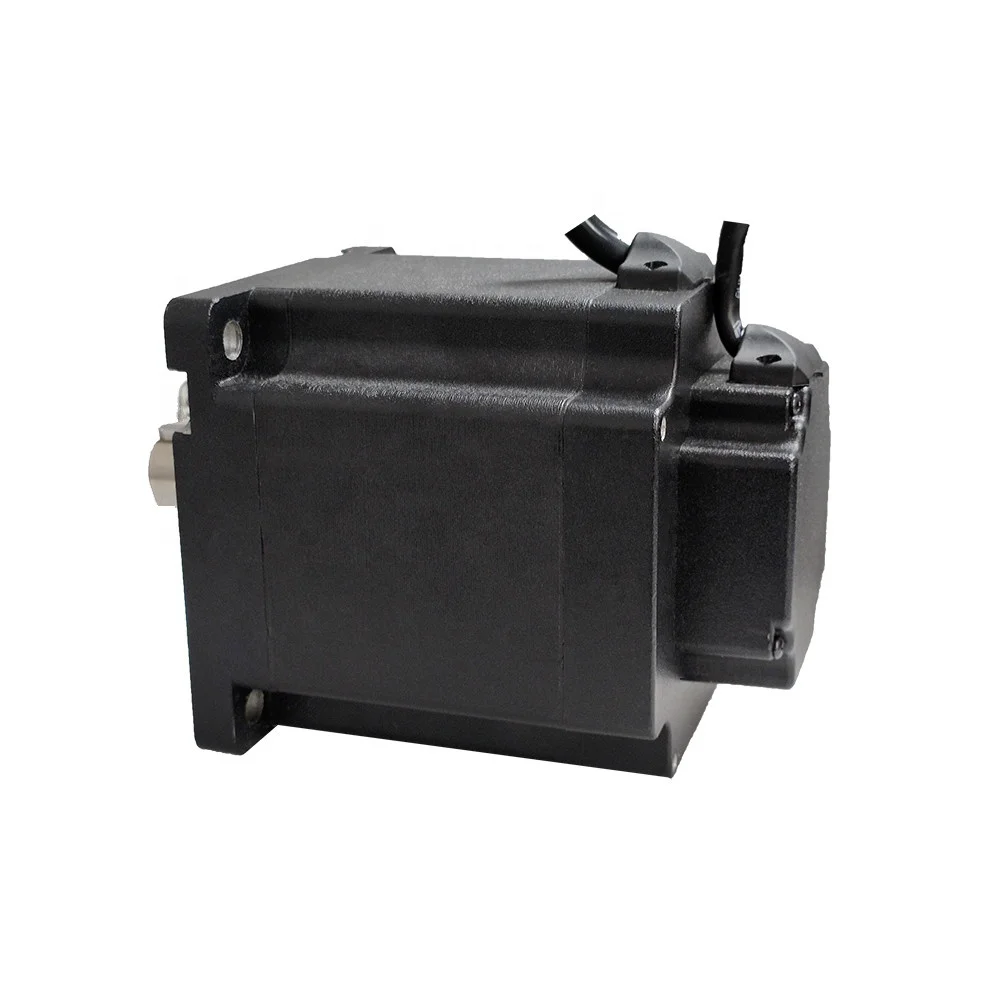

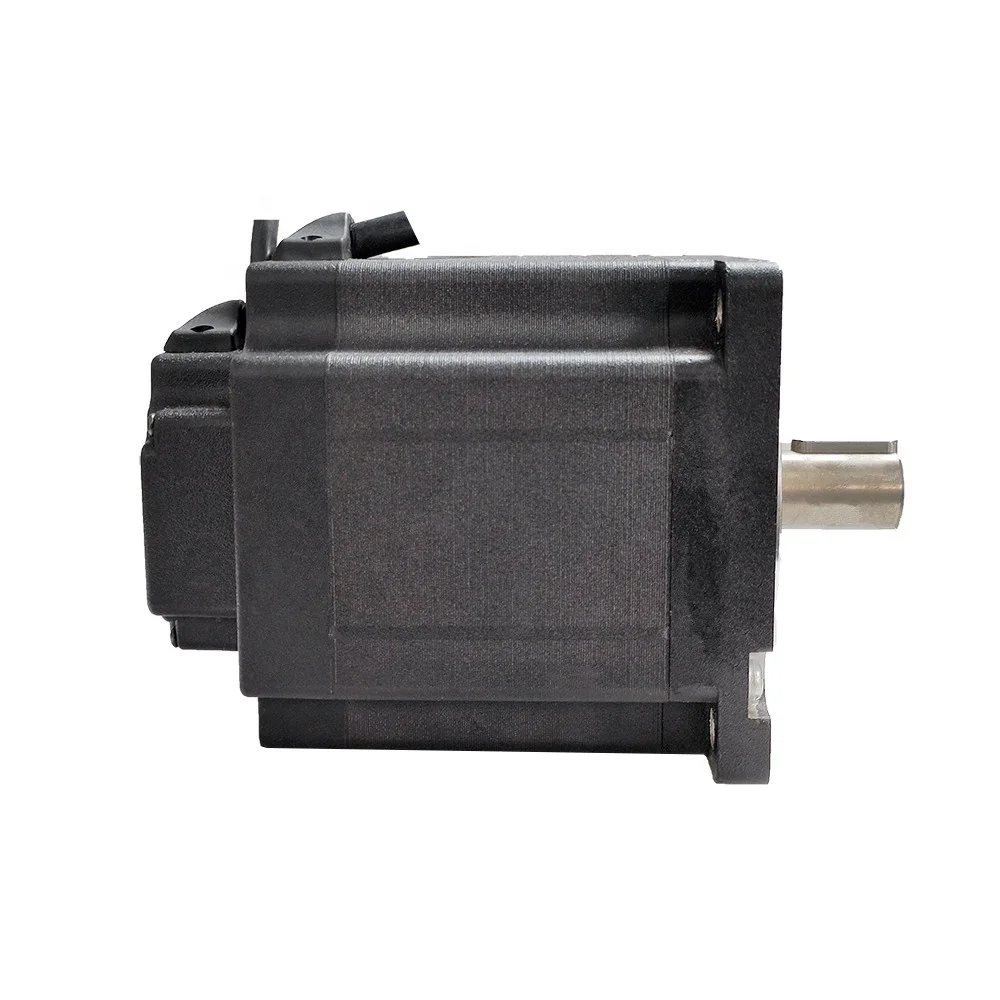

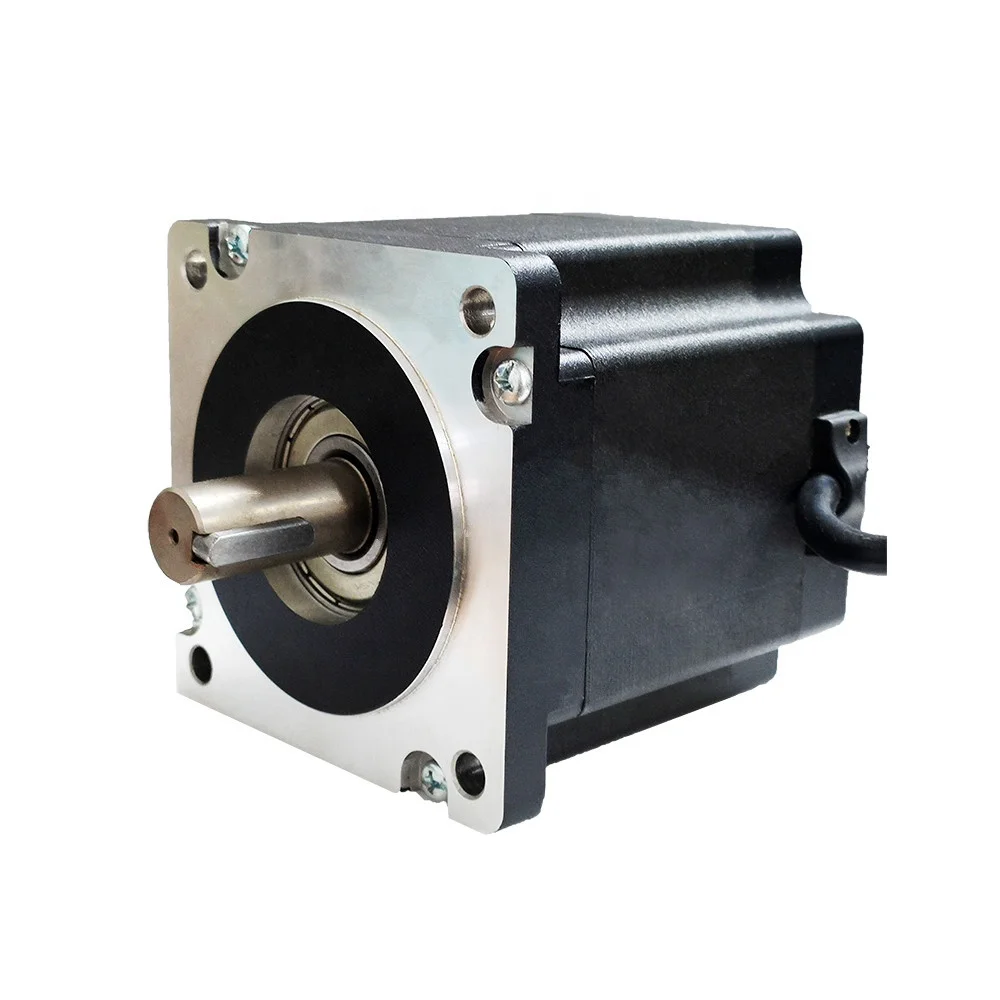

110BLS Brushless Dc Motor 1000W 1500W 2000W 3000W 110mm 48V/310V 3000rpm NEMA42 BLDC Motor
- Category: >>>
- Supplier: Shenzhen Jingbo Mechanical & Electrical Co. Ltd.
Share on (1600825879761):
Product Overview
Description
If you need 3D model of the motor, please give us your email address and we will email you it.
General Specification:
Winding type | Star |
Hall effect angle | 120° |
Insulation class | B |
Ambient temperature range | -20°C~ +50°C |
Insulation resistance | 100MΩMin 500VDC |
Dielectric Strength | 500VAC 1 minute |
Number of poles/phase | 8/3 |
Specification:
Model | Voltage (VDC) | Rated Parameters | Peak Torque (N.m) | Torque Constant (N.m/A) | Back EMF (V/k RPM) | Rotor Inertia (kg.mm2) | Length (L:mm) | Weight (kg) | |||
Speed (rpm) | Torque (N.m) | Current (A) | Power (W) | ||||||||
J110BLS110-430A | 48 | 3000 | 3.2 | 28 | 1000 | 9.6 | 0.12 | 8.4 | 730 | 138 | 4.5 |
J110BLS110-630A | 310 | 3000 | 3.2 | 4.2 | 1000 | 9.6 | 0.79 | 55 | 730 | 138 | 4.5 |
J110BLS140-430A | 48 | 3000 | 4.8 | 42 | 1500 | 14.4 | 0.12 | 8.5 | 1100 | 168 | 5.75 |
J110BLS140-630A | 310 | 3000 | 4.8 | 6.3 | 1500 | 14.4 | 0.79 | 55 | 1100 | 168 | 5.75 |
J110BLS170-630A | 310 | 3000 | 6.4 | 8.4 | 2000 | 19.2 | 0.79 | 55 | 1460 | 198 | 7.0 |
J110BLS230-630A | 310 | 3000 | 9.6 | 12.6 | 3000 | 28.8 | 0.76 | 55 | 2200 | 258 | 9.5 |

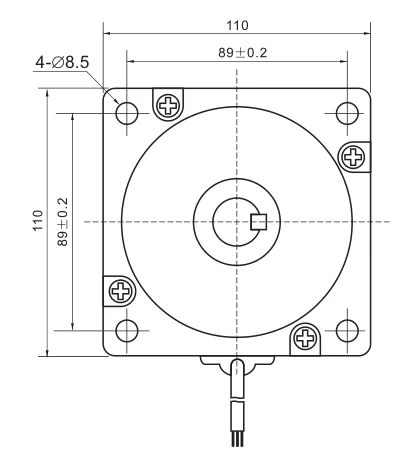

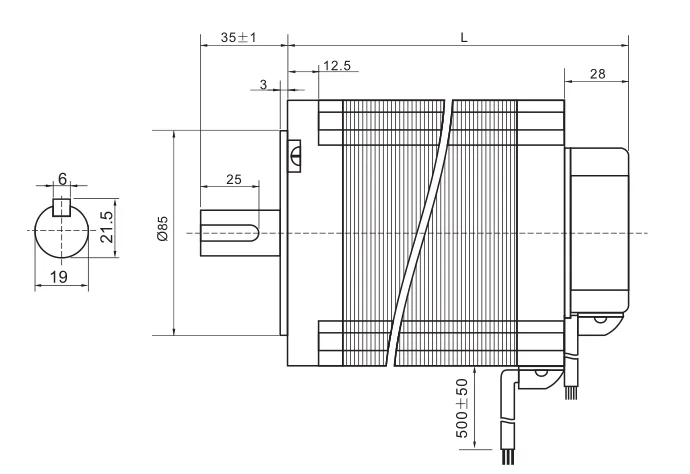

Dimension Unit:mm

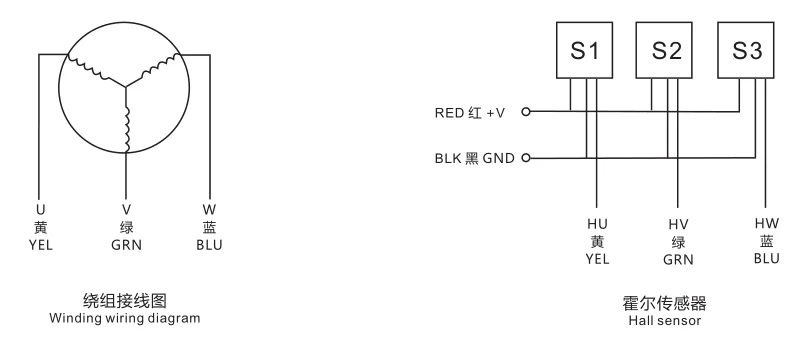

Wiring Diagram
